CMO V315B3-P04 Specification

Global LCD Panel Exchange Center

TFT LCD Approval Specification

MODEL NO.:V315B3-P04

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Customer:

Approved by:

Note:

TVHD

Approved By

LY Chen

QRA Dept. Product Development Div.

Reviewed By

Kc Ko WT Lin

LCD TV Marketing and Product Management Div.

Prepared By

Ken Wu Peter Liu

1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 CHARACTERISTICS

1.3 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V315B1-L01)

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD OPEN CELL

3.2 RSDS CHARACTERISTICS

4. BLOCK DIAGRAM

4.1 TFT LCD OPEN CELL

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

-------------------------------------------------------

3

4

5

7

8

9

12

7. OPTICAL CHARACTERISTICS

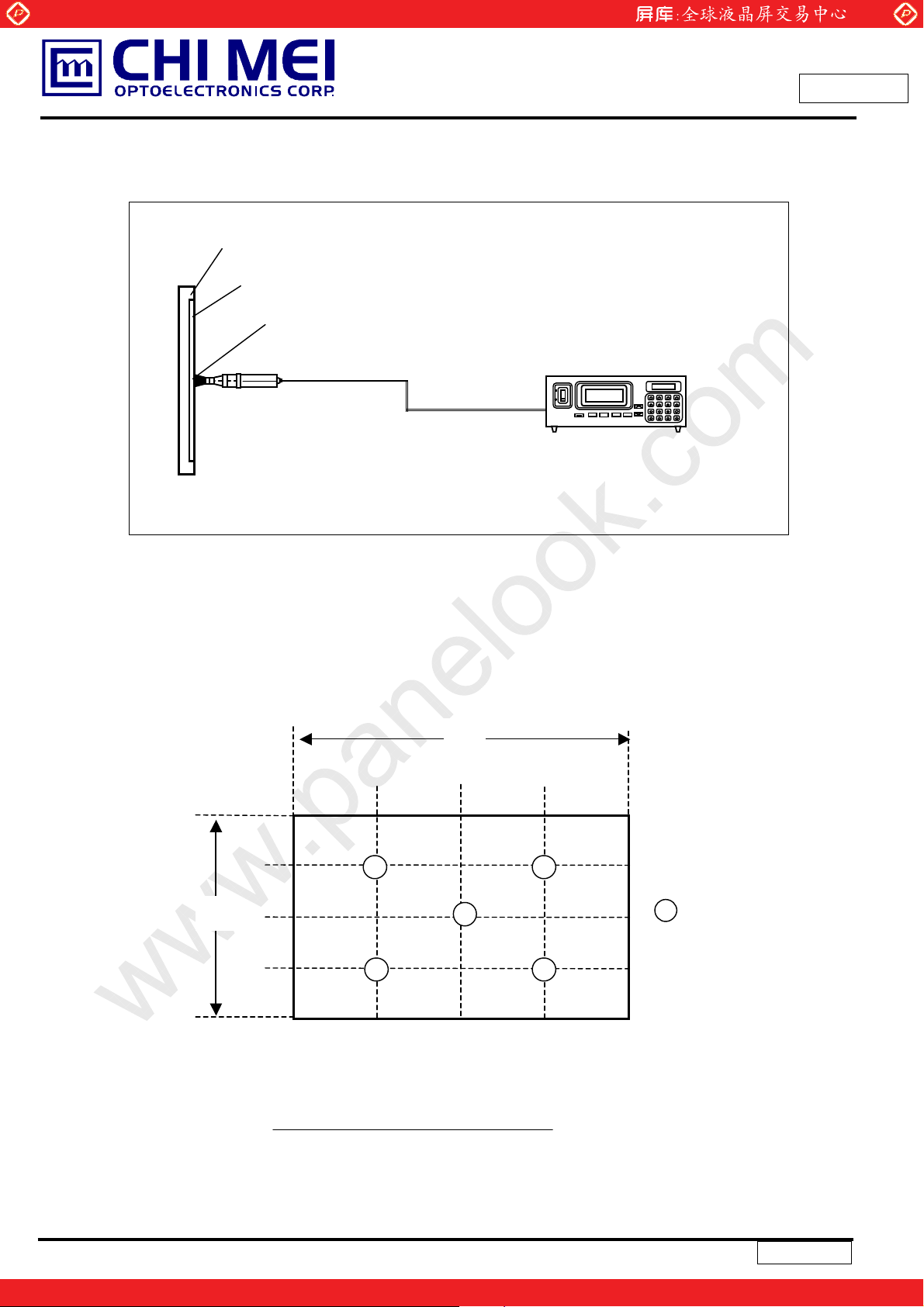

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. DEFINITION OF LABELS

8.1 OPEN CELL LABEL

8.2 CARTON LABEL

9. PACKAGING

9.1 PACKING SPECIFICATIONS

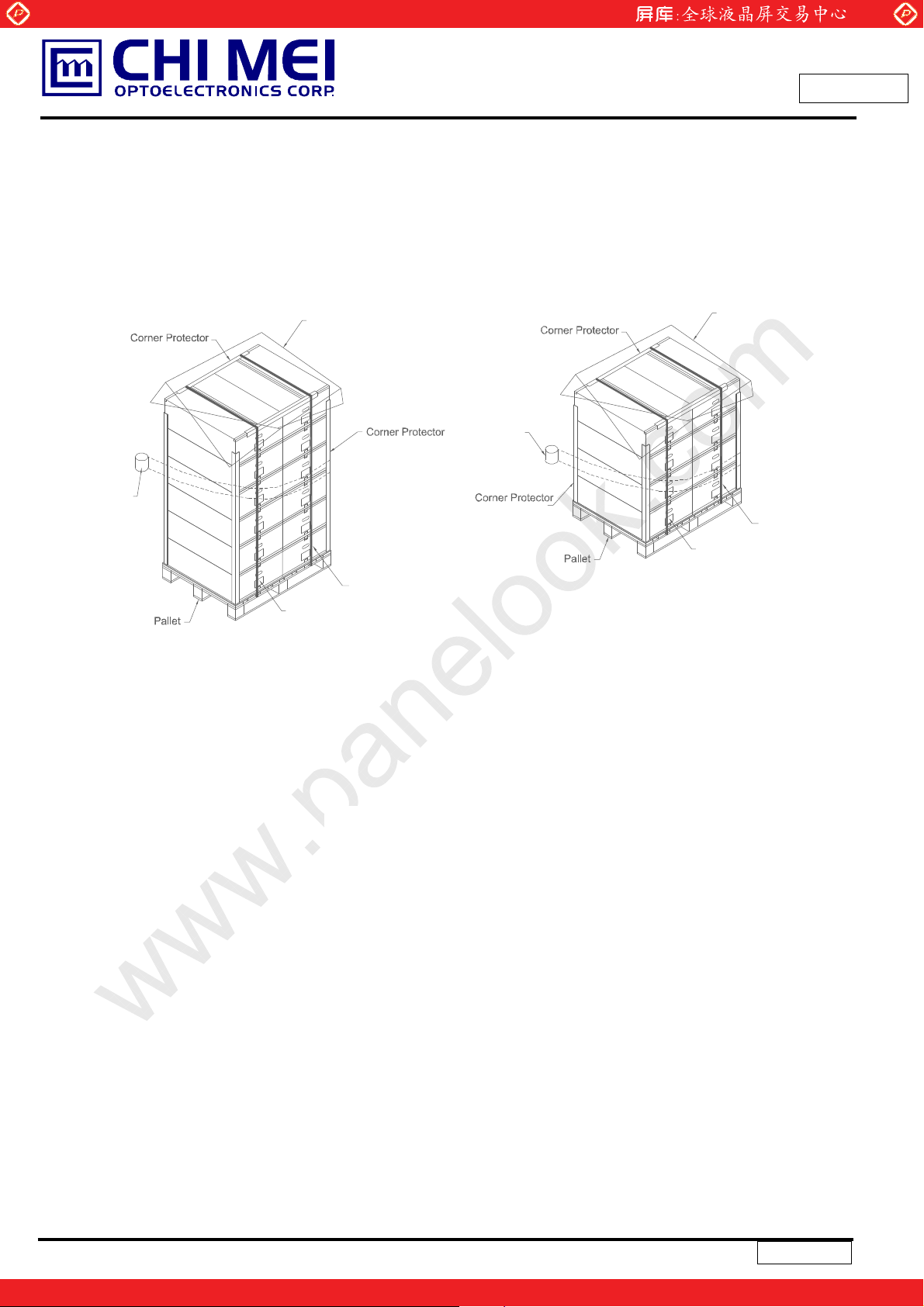

9.2 PACKING METHOD

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

10.3 SAFETY STNADARDS

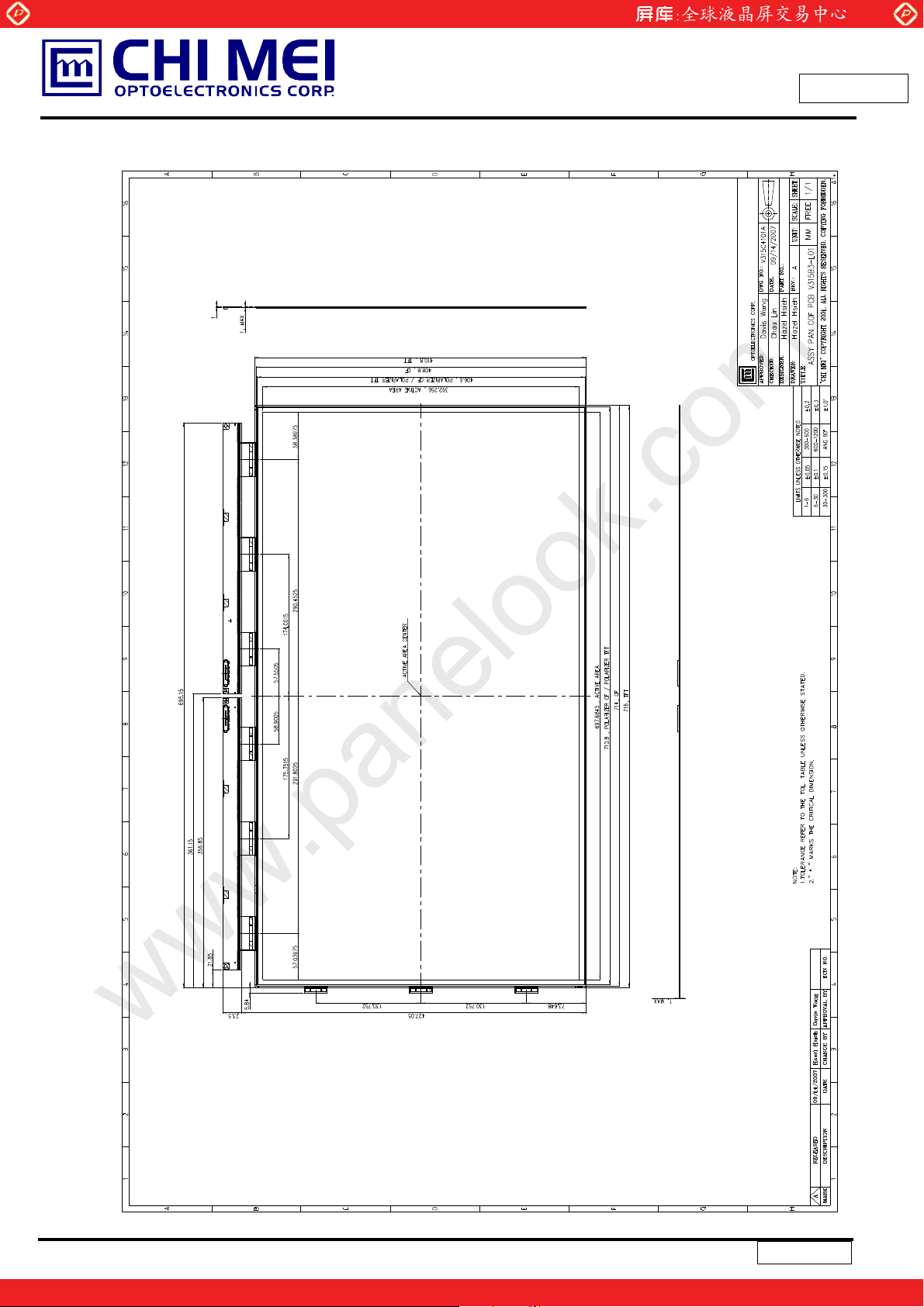

11. MECHANICAL DRAWING

-------------------------------------------------------

14

17

18

20

21

2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

REVISION HISTORY

Version Date

Ver 2.0 Dec.23, 2008 All All Approval Specification was first issued.

Page

(New)

Section Description

3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V315B3- P04 is a 31.5” TFT Liquid Crystal Display module. This module supports 1366 x 768 WXGA format and

can display true 16.7M colors ( 8-bit colors).

1.2 CHARACTERISTICS

CHARACTERISTICS ITEMS SPECIFICATIONS

Screen Diagonal [in] 31.51 Pixels [lines]

Active Area [mm] 697.6845 (H) x 392.256 (V) (31.51” diagonal) Sub -Pixel Pitch [mm] 0.17025 (H) x 0.51075 (V)

Pixel Arrangement RGB vertical stripe Weight [g] TYP. 1200 ʳ

Physical Size [mm] 716(W) x 410.8(H) x 2(D) Typ.

Display Mode Transmissive mode / Normally black Contrast Ratio 2500:1 Typ.

Glass thickness (Array/CF) [mm] 0.7 / 0.7 Viewing Angle (CR>20) +88/-88(H),+88/-88(V) Typ.

Color Chromaticity R=(0.641, 0.331)

Cell Transparency [и]

Polarizer (CF side) Super Wide View Anti-glare coating, 710.8(H) x 406.6(w)..

Polarizer (TFT side) Super Wide View, 710.8(H) x 406.6(w).

1366768

(Typical value measured at CMO’s module)

G=(0.273, 0.599) B=(0.146, 0.068) W=(0.280, 0.290) (Typical value measured at CMO’s module)

4.4%Typ. (Typical value measured at CMO’s module)

Hardness: 3H

Approval

1.3 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Weight 1100 1200 1300 g -

I/F connector mounting position

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

(2) Connector mounting position

The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal.

+/- 0.5mm

4

(2)

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE V315B1-L01)

Item Symbol

Storage Temperature TST -20 +60 ºC (1), (3) Operating Ambient Temperature TOP 0 50 ºC (1), (2), (3) Altitude Operating A OP 0 5000 M (3) Altitude Storage A ST 0 12000 M (3)

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation..

Min. Max.

Value

Unit Note

Approval

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

Temperature (ºC)

8060-20 400 20-40

Note (2) The maximum operating temperature is based on the test condition that the surface temperature of

display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled chamber.

Thermal management should be considered in your product design to prevent the surface temperature of

display area from being over 65 ºC. The range of operating temperature may degrade in case of improper

thermal management in your product design.

Note (3) The rating of environment is base on LCD module. Leave LCD cell alone, this environment condition can’t

be guaranteed. Except LCD cell, the customer has to consider the ability of other parts of LCD module

and LCD module process.

5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

Storage Condition : With shipping package.

Storage temperature range : 25±5 к

Storage humidity range : 50±10%RH

Shelf life : a month

2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Item Symbol

Power Supply Voltage VAA -0.5 +14.0 V

Power Supply Voltage VGH -0.3 +30.0 V

Power Supply Voltage VGL -10.0 -0.3 V

Logic Input Voltage VIN -0.3 +4.1 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Value

Min Max

Unit

Note

(1)

6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

3. ELECTRICAL CHARACTERISTICS

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

3.1 TFT LCD MODULE

Ta = 25 ± 2 ºC

Parameter Symbol

VGH 22 23 24 V VGL -6.0 -5.5 -5.0 V

Power Supply Voltage

VAA 13.20 13.50 13.80 V

V25V 2.4 2.5 2.6 V

VREF 12.65 12.8 12.95 V

IGH - 10 - mA

Power Supply Current

IGL - 3 - mA IAA - 260 - mA

I2.5V - 225 - mA

Input High Threshold Voltage VIH 2.7 - 3.3 V CMOS

interface

Input Low Threshold Voltage V

0 - 0.7 V

IL

3.2 RSDS CHARACTERISTICS

Item Symbol Condition

RSDS high input Voltage RSDS low input Voltage

RSDS common mode input voltage range

RSDS Input leakage current

Note (1) V

Note (2) V

Note (3) V

= (VCLKP + VCLKN)/2 or V

CMRSDS

DIFFRSDS

= VCLKP - VCLKN or V

= 1.2V(VDDD = 3.3V)

CMRSDS

V

DIFFRSDS

V

DIFFRSDS

V

CMRSDS

I

DL

V

DIFFRSDS

D

DIFFRSDS

= +1.2 V (1) 100 200 - mV

CMRSDS

= +1.2 V (1) - -200 -100 mV

CMRSDS

= 200 mV (2) VSSD+0.1 Note(3) VDDD-1.2 V

DxxP,

N ,CLKO ,CLPN

xx

= (VDXXP + VDXXN)/2

CMRSDS

= VDXXP - VDXXN

Value

Min. Typ. Max.

Unit Note

Ta = -10~+85 ºC

Value

Min Typ Max

-10 - 10

Unit

ӴA

7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD OPEN CELL

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

TFT LCD PANEL

(1366x3x768)

X(R) BOARD

X(L) BOARD

RSDS SIGNAL INPUT

Connector Part No.: STARCONN 106D61-000100-A2-R or equal.

8

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin assignment

CN1(XL) Connector Pin Assignment

Pin No. Symbol Description Pin No. Symbol Description

1 TR2 trace2 32 B1P

2 TR1 trace1 33 B1N

3 GND

4 GM14

5 GM13

6 GM12

7 GM11

8 GM10

9 GM9

10 GM8

11 GM7

12 GM6

13 GM5

14 GM4

15 GM3

16 GM2

17 GM1

18 VCM VCM Power supply 49 R2N

19 VDA

20

21 DRL

22 VDD

23 EIO4

24 STH

25 TP1

26 POL

27 GND

28 B3P

29 B3N RSDS data signal (Blue 3) 60 VGH Driver Power supply 30 B2P RSDS data signal (Blue 2) 61 GND Ground

31 B2N RSDS data signal (Blue 2)

VDA

Gamma Power supply

Control the direction of start pulse

source driver start pulse (4)

source driver start pulse

RSDS data signal (Blue 3)

Ground

Driver Power supply

Logic Power supply

RSDS data latch

polarity invert

Ground

34 B0P

35 B0N

36 CLKP

37 CLKN

38 G3P

39 G3N

40 G2P

41 G2N

42 G1P

43 G1N

44 G0P

45 G0N

46 R3P

47 R3N

48 R2P

50 R1P

51

52 R0P

53 R0N

54 GND

55 STV_R

56 STV

57 CKV

58 OE

59 VGL

R1N

RSDS data signal (Blue 1)

RSDS data signal (Blue 0)

Data driver clock

RSDS data signal (Green 3)

RSDS data signal (Green 2)

RSDS data signal (Green 1)

RSDS data signal (Green 0)

RSDS data signal (Red 3)

RSDS data signal (Red 2)

RSDS data signal (Red 1)

RSDS data signal (Red 0)

Ground

Scan driver start pulse 2

Scan driver start pulse 1

Scan driver clock

Scan driver output enable

Driver Power supply

Model No.: V315B3-P04

Approval

9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

CN2(XR) Connector Pin Assignment

Pin No. Symbol Description Pin No. Symbol Description

1 TR2 trace2 32 B1P

2 TR1 trace1 33 B1N

3 GND

4 GM14

5 GM13

6 GM12

7 GM11

8 GM10

9 GM9

10 GM8

11 GM7

12 GM6

13 GM5

14 GM4

15 GM3

16 GM2

17 GM1

18 VCM VCM Power supply 49 R2N

19 VDA

20

21 DRL

22 VDD

23 EIO4

24 STH

25 TP1

26 POL

27 GND

28 B3P

29 B3N RSDS data signal (Blue 3) 60 VGH Driver Power supply 30 B2P RSDS data signal (Blue 2) 61 GND Ground

31 B2N RSDS data signal (Blue 2)

VDA

Gamma Power supply

Control the direction of start pulse

source driver start pulse (4)

source driver start pulse

RSDS data signal (Blue 3)

Ground

Driver Power supply

Logic Power supply

RSDS data latch

polarity invert

Ground

www.panelook.com

34 B0P

35 B0N

36 CLKP

37 CLKN

38 G3P

39 G3N

40 G2P

41 G2N

42 G1P

43 G1N

44 G0P

45 G0N

46 R3P

47 R3N

48 R2P

50 R1P

51

52 R0P

53 R0N

54 GND

55 STV_R

56 STV

57 CKV

58 OE

59 VGL

R1N

Issued Date: Dec. 23, 2008

RSDS data signal (Blue 1)

RSDS data signal (Blue 0)

Data driver clock

RSDS data signal (Green 3)

RSDS data signal (Green 2)

RSDS data signal (Green 1)

RSDS data signal (Green 0)

RSDS data signal (Red 3)

RSDS data signal (Red 2)

RSDS data signal (Red 1)

RSDS data signal (Red 0)

Ground

Scan driver start pulse 2

Scan driver start pulse 1

Scan driver clock

Scan driver output enable

Driver Power supply

Model No.: V315B3-P04

Approval

Note (1) CN1ΕCN2 Connector Part No.: STARCONN 106D61-000100-A2-R or equal. Note (2) The TR1 must be connected to the TR4.

Note (3) The TR2 must be connected to the TR3.

10

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

5.2 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color.

The higher the binary input, the brighter the color. The table below provides the assignment of color versus data

input.

Data Signal

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

0

Black

Red

Green

Basic

Colors

Gray

Scale

Of

Red

Gray

Scale

Of

Green

Gray

Scale

Of

Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue

Cyan

Magenta

Yellow

White

Red(0) / Dark

Red(1)

Red(2)

:

Red(253)

Red(254)

Red(255)

Green(0) / Dark

Green(1)

Green(2)

:

Green(253)

Green(254)

Green(255)

Blue(0) / Dark

Blue(1)

Blue(2)

:

Blue(253)

Blue(254)

Blue(255)

0

1

0

1

0

:

1

0

:

0

:

0

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

:

0

1

0

1

:

1

0

1

0

:

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

:

1

Approval

0

1

0

1

0

:

0

:

0

1

0

1

:

1

0

1

11

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

Frame Rate

Vertical Active Display Term

Total Tv 778 806 888 Th Tv=Tvd+Tvb Display Tvd 768 768 768 Th Blank Tvb 10 38 120 Th Total Th 1442 1560 1936 Tc Th=Thd+Thb

Horizontal Active Display Term

Display Thd 1366 1366 1366 Tc Blank Thb 76 194 570 Tc -

Note: Since this module is operated in DE only mode, Hsync and Vsync input signals should be set to low logic

level or ground. Otherwise, this module would operate abnormally.

Fr5 47 50 53 Hz Fr

6

57 60 63 Hz

Approval

DE

DCLK

DE

DATA

INPUT SIGNAL TIMING DIAGRAM

T

v

T

vd

T

h

T

hd

Valid display data (1366 clocks)

T

vb

12

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

LVDS RECEIVER INTERFACE TIMING DIAGRAM

RXCLK+/-

RXn+/-

Tlvsu

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Tc

Tlvhd

1T

14

3T

14

5T

14

7T

14

9T

14

11T

14

13T

14

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the conditions

shown in the following diagram.

0.9 V

0.1V

CC

0.9 V

CC

0.1V

DD

T

1

T

2

3

T

4

Power Supply

V

0.5ms≤T1≤10ms

0≤T

2

≤50ms

0≤T

3

≤50ms

500ms≤T

4

CC

0V

T

5

VALI D

50%

6

T

Signals

0V

Backlight (Recommended)

500ms≤T

100ms≤T

5

6

Power On Power Off

Power ON/OFF Sequence

13

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Note (1) The supply voltage of the external system for the module input should be the same as the definition of Vcc.

Note (2)

operation of the LCD turns off, the display may, instantly, function abnormally.

Note (3)

Please apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

In case of

VCC

= off level, please keep the level of input signals on the low or keep a high impedance.

Note (4) T4 should be measured after the module has been fully discharged between power on/off periods.

Note (5) I

nterface signal shall not be kept at high impedance when the power is on.

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage V

CC

25±2

50±10

5.0 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current I

Inverter Driving Frequency F

L

5.20.5 583

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown as below. The following items should be

measured under the test conditions described in 7.1 and stable environment shown in Note (5).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Rx Ry (0.331)

Gx Gy (0.599)

Bx

Color

Chromaticity

Green

Blue

By (0.068)

White

Wx Wy

Center Transmittance T% - 4.4 - % (1), (7)

Contrast Ratio CR

Gray to

Response Time

gray

average

White Variation

Horizontal

Viewing Angle

Vertical

δW

θx+

-

θ

x

θY+

-

θ

Y

=0°, θY =0°

θ

x

˩˼˸˼˺ʳ˴˺˿˸ʳ˴ʳ˴˿ʳ

˷˼˸˶˼

With CMO module

θ

=0°, θY =0°

x

With CMO Module

θ

=0°, θY =0°

x

With CMO

Module@60Hz

=0°, θY =0°

θ

x

With CMO Module

CR≥20

With CMO Module

Typ.-0.03

1500 2500 - (1), (3)

-

80 88 80 80 80

(0.641)

(0.273)

(0.146)

Typ+0.03

(0.28)

(0.29)

6.5 12

1.3 - (1), (6)

88 88 88 -

o

C

%RH

mA

KHz

-

ms (4)

Deg. (1), (2)

(1),(5)

Note (1) Light source is CMO’s BLU and driving voltages are based on suitable gamma voltages.

Note (2) Definition of Viewing Angle (θx, θy):

Viewing angles are measured by EZ-Contrast 160R (Eldim)

14

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

T

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y-

= 90º

x-

y-

Note (3) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0

L255: Luminance of gray level 255

L 0: Luminance of gray level 0

CR = CR (5) ,where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+

= 90º

x+

θX+ = 90º

Note (4) Definition of Gray-to-Gray Switching Time:

100%

90%

Optical

Response

10%

0%

Gray to gray Switching time

The driving signal means the signal of luminance 0%, 20%, 40%, 60%, 80%, 100%.

Gray to gray average time means the average switching time of luminance 0%,20%,

40%, 60%, 80%, 100% to each other.

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 60 minutes to avoid abrupt temperature

Gray to gray Switching time

ime

15

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

change during measuring. In order to stabilize the luminance, the measurement should be executed after

lighting Backlight for 60 minutes in a windless room.

LCD Module

LCD Panel

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Center of the Screen

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 255 at 5 points

δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

where L (X) is corresponding to the luminance of the point X at the figure below.

Display Color Analyzer

(Minolta CA210)

Light Shield Room

(Ambient Luminance < 2 lux)

Horizontal Line

D

D/4 D/2 3D/4

12

: Test Point

5

X

X=1 to 5

W

W/4

W/2

Vertical Line

3W /4

Note (7) Definition of Transmittance(T%):

Module is without signal input.

Luminance of LCD module

Transmittance =

Luminance of backlight

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

34

Active Area

Ϡ 100%

16

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

8. DEFINITION OF LABELS

8.1 OPEN CELL LABEL

The barcode nameplate is pasted on each open cell as illustration for CMO internal control.

8.2 CARTON LABEL

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

-

XXXXXXXXXXXXXX

(a) Model Name: V315B3– P04

P.O. NO.

Parts ID.

Carton ID. Quantities 12

XXXXXXXXXXXXXX

Made in Taiwan

(b) Carton ID: CMO internal control

(c) Quantities: 12

17

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

9. PACKAGING

9.1 PACKING SPECIFICATIONS

(1) 12 LCD TV Panels / 1 Box

(2) Box dimensions : 970 (L) X 640 (W) X 319 (H)

Weight : approximately 28Kg ( 12 panels per box)

9.2 PACKING METHOD

Figures 9-1 and 9-2 are the packing method

Tray need not to revolve .

LCD Panel

www.panelook.com

Tray need to revolve stack

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

The desi gn packing top layer f or empt y tray

Carton Label

Cart on

Figure.9-1 packing method

18

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

Sea Transportation

Corner Protector:L1850*50*50mm

L1130*50*50mm Pallet:L1300*W1000*H140mm Pallet Stack:L1300*W1000*H2054mm Gross: 352kg

Film

PE Sheet

Carton Label

Air Transportation

Corner Protector:L1250*50*50mm

L1130*50*50mm

Pallet:L1300*W1000*H140mm

Pallet Stack:L1300*W1000*H1416mm

Gross:240kg

PE Sheet

Film

PP Belt

Carton Label

PP Belt

Figure.9-2 packing method

19

Version2.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the product during assembly.

(2) To assemble backlight or install module into user’s system can be only in clean working areas. The dust and

oil may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel will be damaged.

(4) Always follow the correct power sequence when the product is connecting and operating. This can prevent

damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily

scratched.

(7) It is dangerous that moisture come into or contacted the product, because moisture may damage the product

when it is operating.

(8) High temperature or humidity may reduce the performance of module. Please store this product within the

specified storage conditions.

(9) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the response

time will become slowly.

10.2 SAFETY PRECAUTIONS

(1) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of

contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(2) After the product’s end of life, it is not harmful in case of normal operation and storage.

10.3 SAFETY STANDARDS

Regulatory Item Standard

UL UL 60950-1:2006

Information Technology equipment

cUL CAN/CSA C22.2 No.60950-1-03: 2006

CB

UL UL 60065:2006

IEC 60950 -1:2005

Audio/Video Apparatus

cUL CAN/CSA C22.2 No.60065-03: 2006

CB IEC 60065:2006

20

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

Global LCD Panel Exchange Center

11. Mechanical Drawing

www.panelook.com

Issued Date: Dec. 23, 2008

Model No.: V315B3-P04

Approval

ڻႝηިҽԖϦљ

CHI MEI

21

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version2.0

www.panelook.com

CMO V315B3-P04 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
