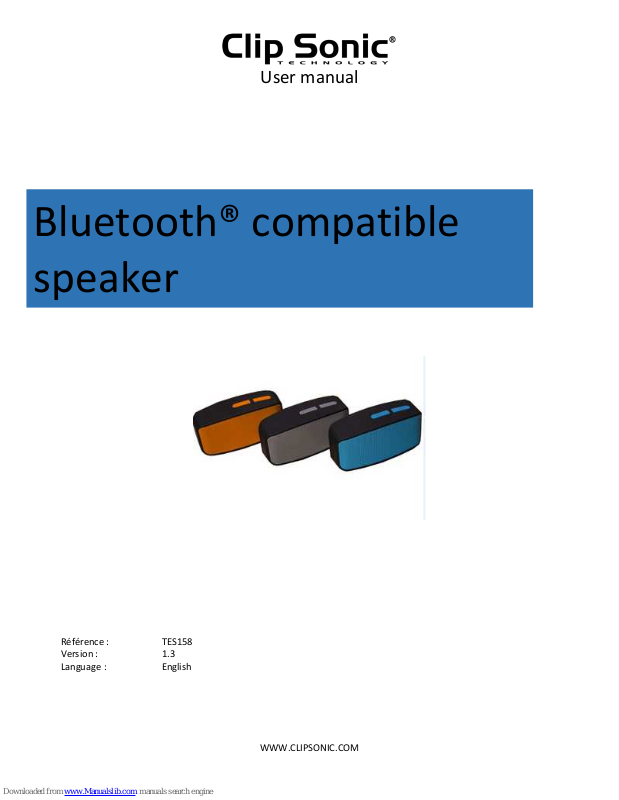

Page 1
User manual
WWW.CLIPSONIC.COM
Référence : TES158
Version : 1.3
Language : English
Bluetooth® compatible
speaker
Page 2
User manual
2
Thank you for buying our CLIP SONIC product.
We take great care in design, ergonomics and ease of use of our products. We hope that this product will
give you complete satisfaction.
This instruction manual is also available on our website www.clipsonic.com
Charging the Battery
Before using, fully charge the battery using the supplied USB cable. Connect the „DC5V“ charging slot to any
USB port supplying power (Laptop, Computer, AC Charger, Car Charger, etc.).
A solid red LED indicates that the speaker is charging, it will turn off when fully charged.
NOTE : The charging time takes approx. 2 - 3 hours.
Power on/off
Move the power switch to the “on” or “off” side to power on /off the device.
Bluetooth® Pairing
With the device turned on, it comes to pairing mode with flashing blue light. Open the Bluetooth settings of
your phone, tablet or other Bluetooth enabled audio device and select MINI SPEAKER. When prompted for
the pairing code, enter 0000. Once paired, one solid blue LED light will be on.
Playing Music
Select a song, artist, genre, or playlist on your phone, tablet or other Bluetooth enabled audio device.
Press Mode/Play/Pause button briefly to play or pause the music.
Press Next/V+ and Last/V- to adjust volume and go next/last song. (Longer press for volume adjustment).
Hands-free for Calling
Answer or Drop a call by pressing the Phone answer/drop button once quickly.
Reject a call by pressing the Phone answer/drop button for about 3 seconds.
Redial the last call by pressing the Phone answer/ drop Button for about 3 seconds.
Note: After making or dropping a call the speaker will re-start your music.
Page 3
User manual
3
TF Playing/Aux
Play music of TF directly when insert in TF card.
Press Mode button to switch between Bluetooth/TF card/Aux function
when insert TF card
Insert USB flash and music will be played automatically.
Radio Function
Choose FM mode with help of the Mode/Play/Pause button (press long).
In FM mode press Mode/Play/Pause button briefly start automatic station search, press again to stop
automatic search.
Press Last and Next button briefly to choose specific station you want.
LED Indicator Status of the speaker
Blue LED light flash Pairing
Solid Blue LED light Connected, Pause,
Blue LED light flash slowly Playing ,Calling
Red LED light on Battery is charging
Red LED light off while charging Battery is full
Specifications
Bluetooth Version V3.0
Bluetooth profiles HSP, HFP, A2DP
Range Up to 10 meters
Music playing time Up to 4 hours
Charging time About 2-3 hours
Dimensions 118*38*54mm
Weight 145g
Package Contents:
USB cable
3.5mm Audio cable
Owners manual
Page 4
User manual
4
Correct disposal of the unit
(Electrical and Electronic Equipment)
(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries)
The European Directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical
appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order
to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should
contact their local authority or retailer for information concerning the correct disposal of their product.
• Non contractual illustration
• Product information is subject to change without prior notice.
CLIP SONIC
BP 61071
67452 Mundolsheim
