Please read the following instructions carefully before installation and operation.
Table of Contents

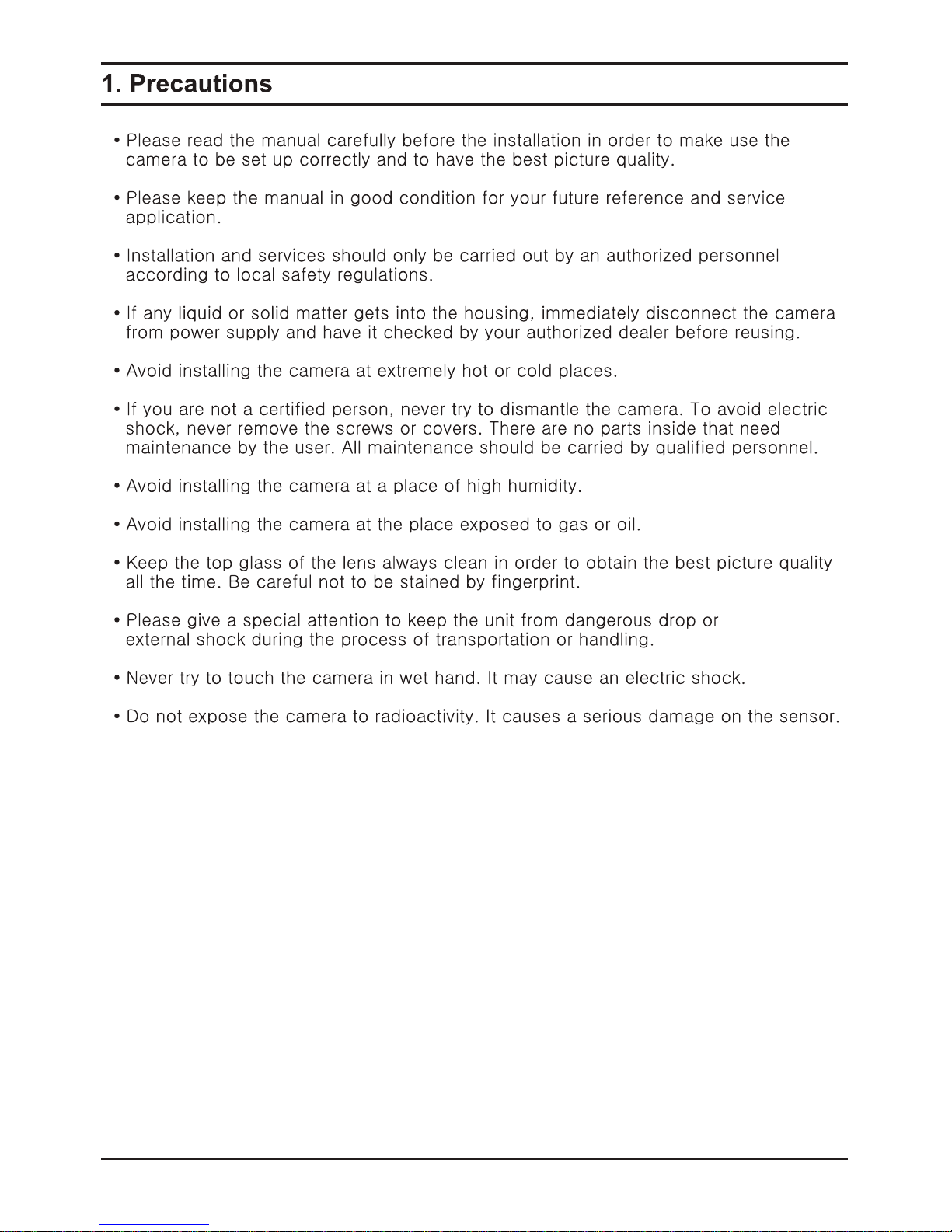

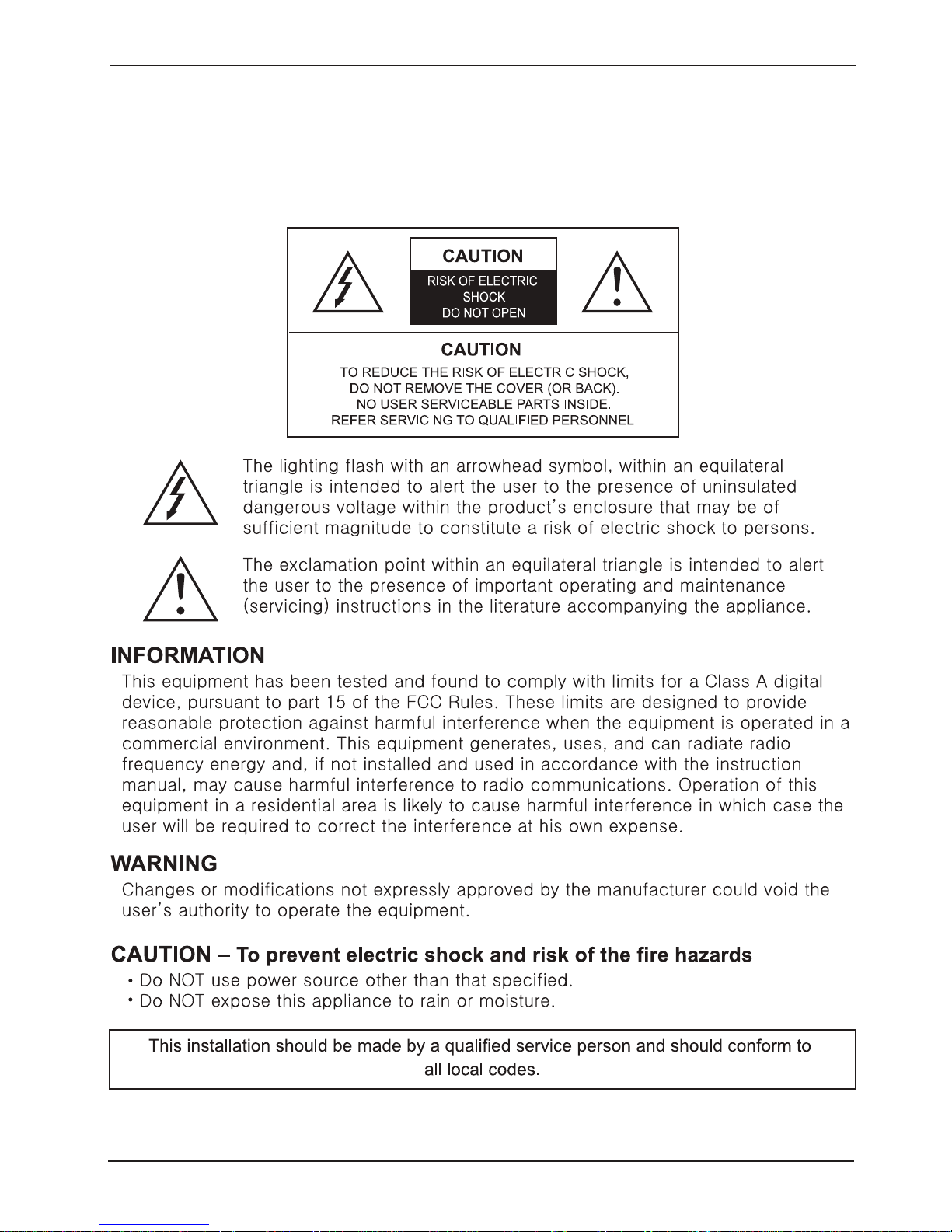

1. Precautions ........................................................................................................ 1

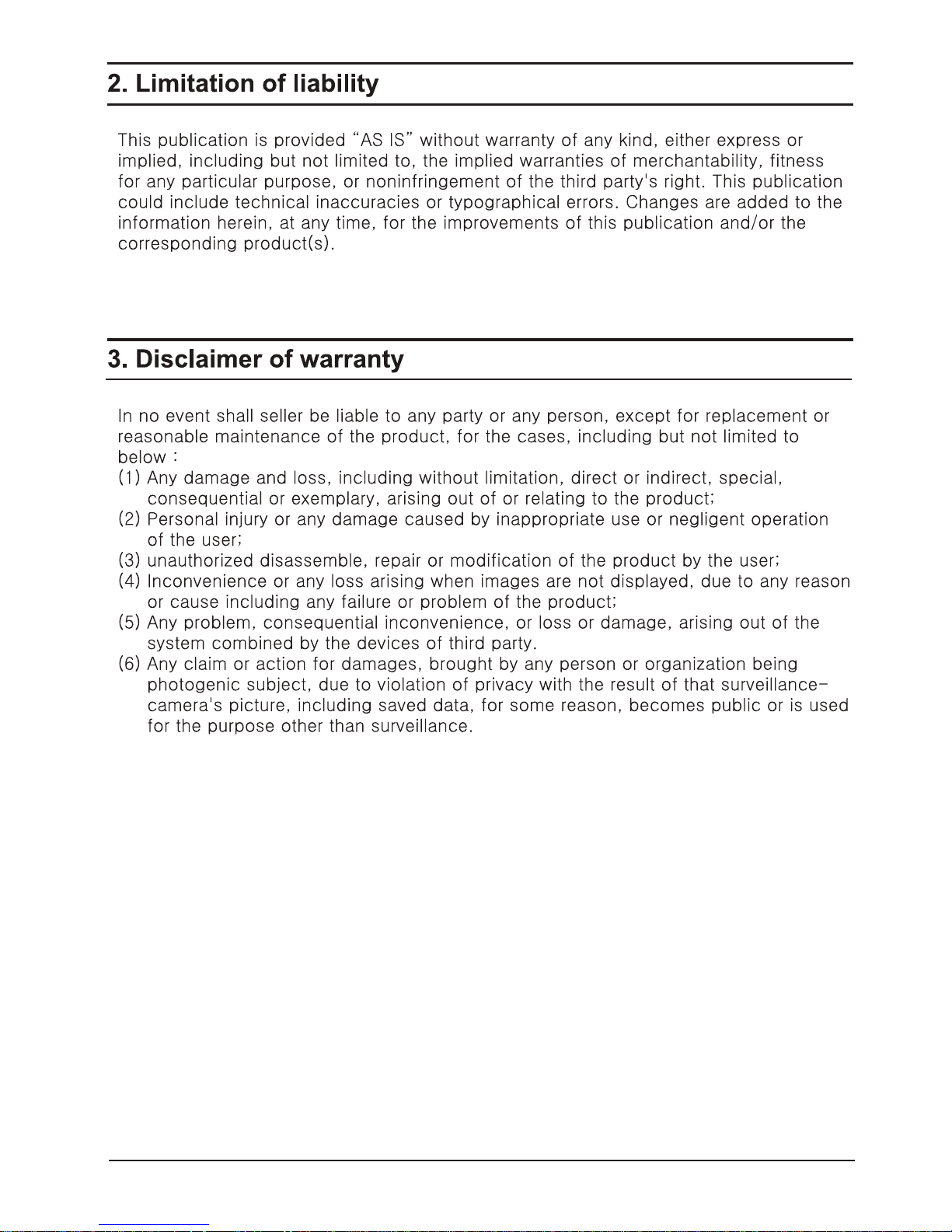

2. Limitation of liability ............................................................................................ 2
3. Disclaimer of warranty ........................................................................................ 2

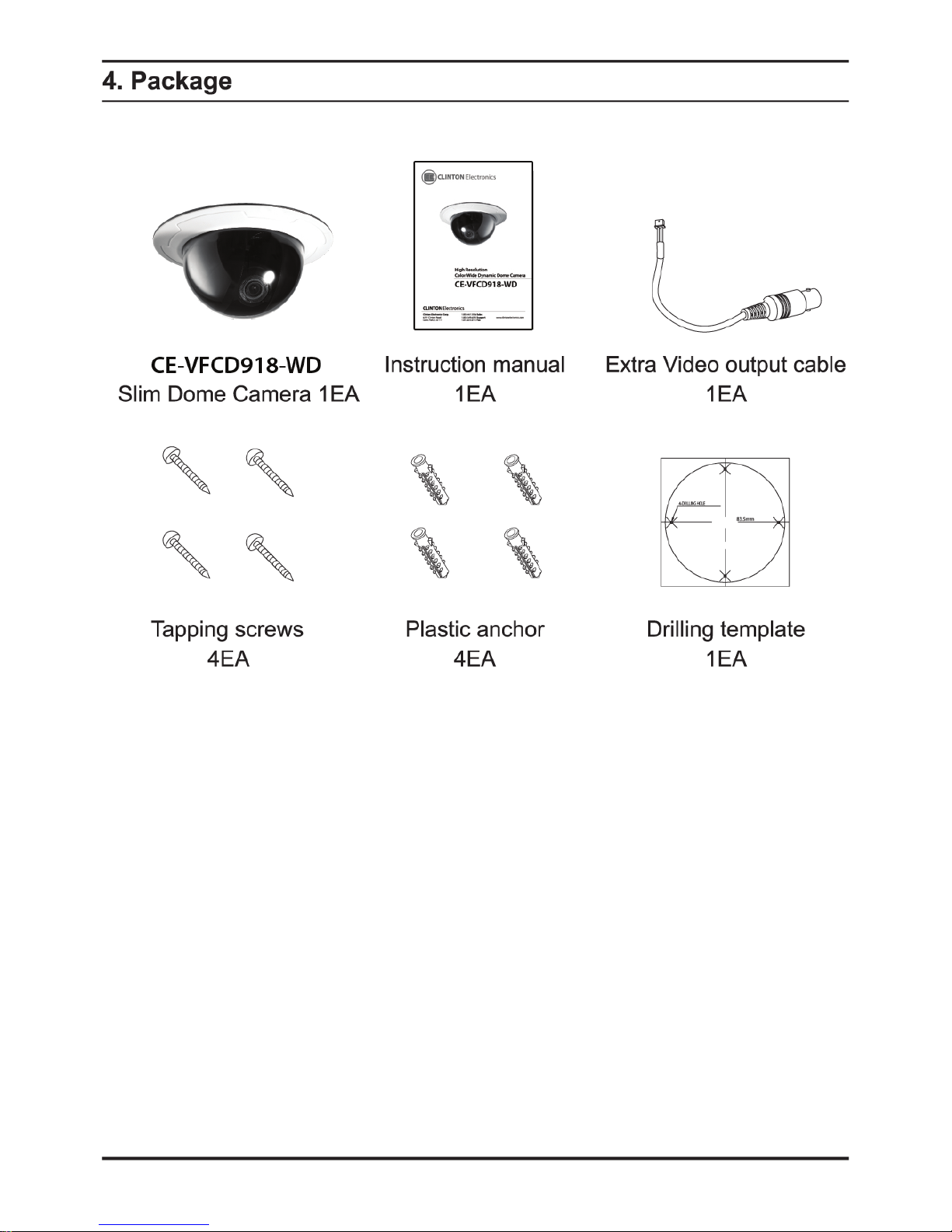

4. Package ............................................................................................................. 3
5. Installation ..........................................................................................................4-7

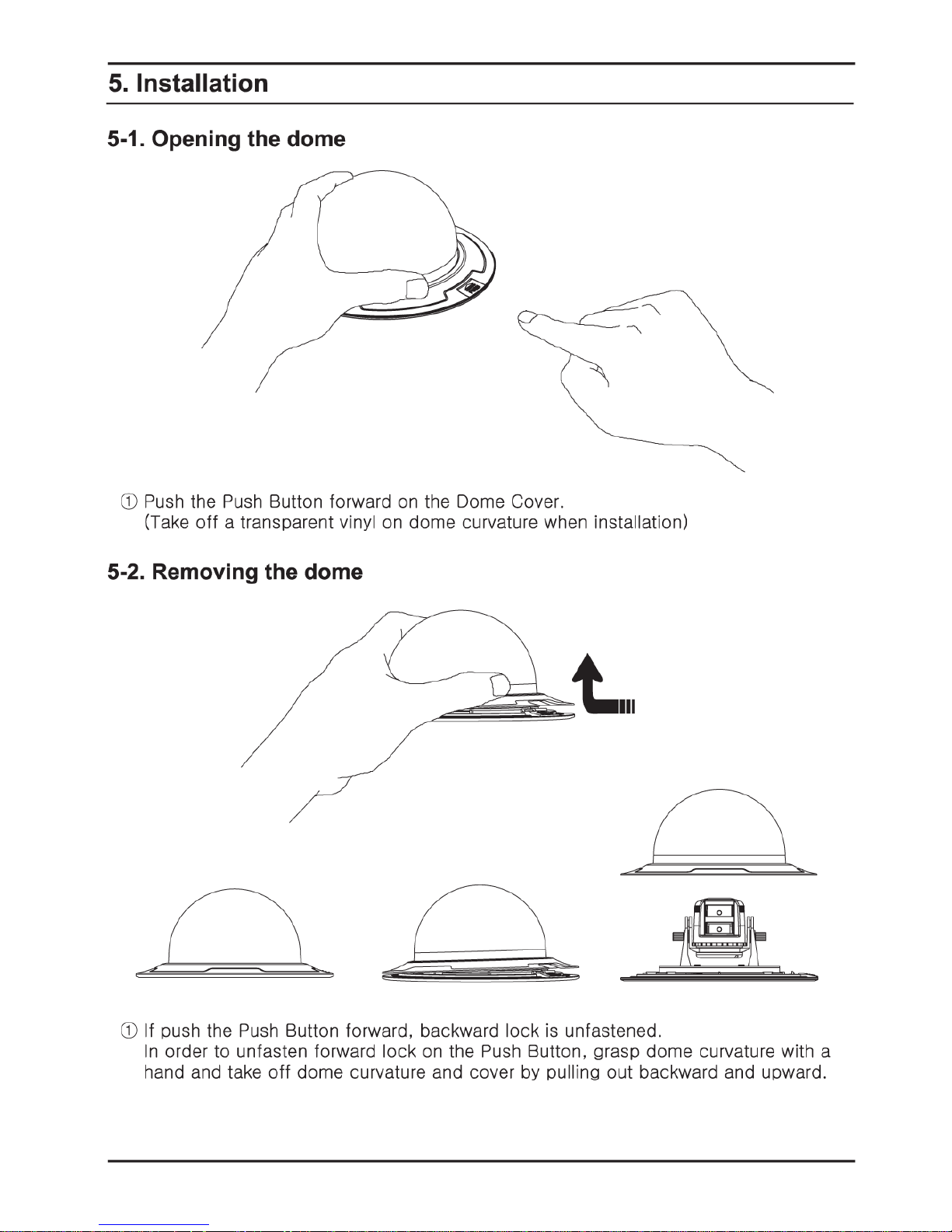

5-1. Opening the dome
5-2. Removing the dome

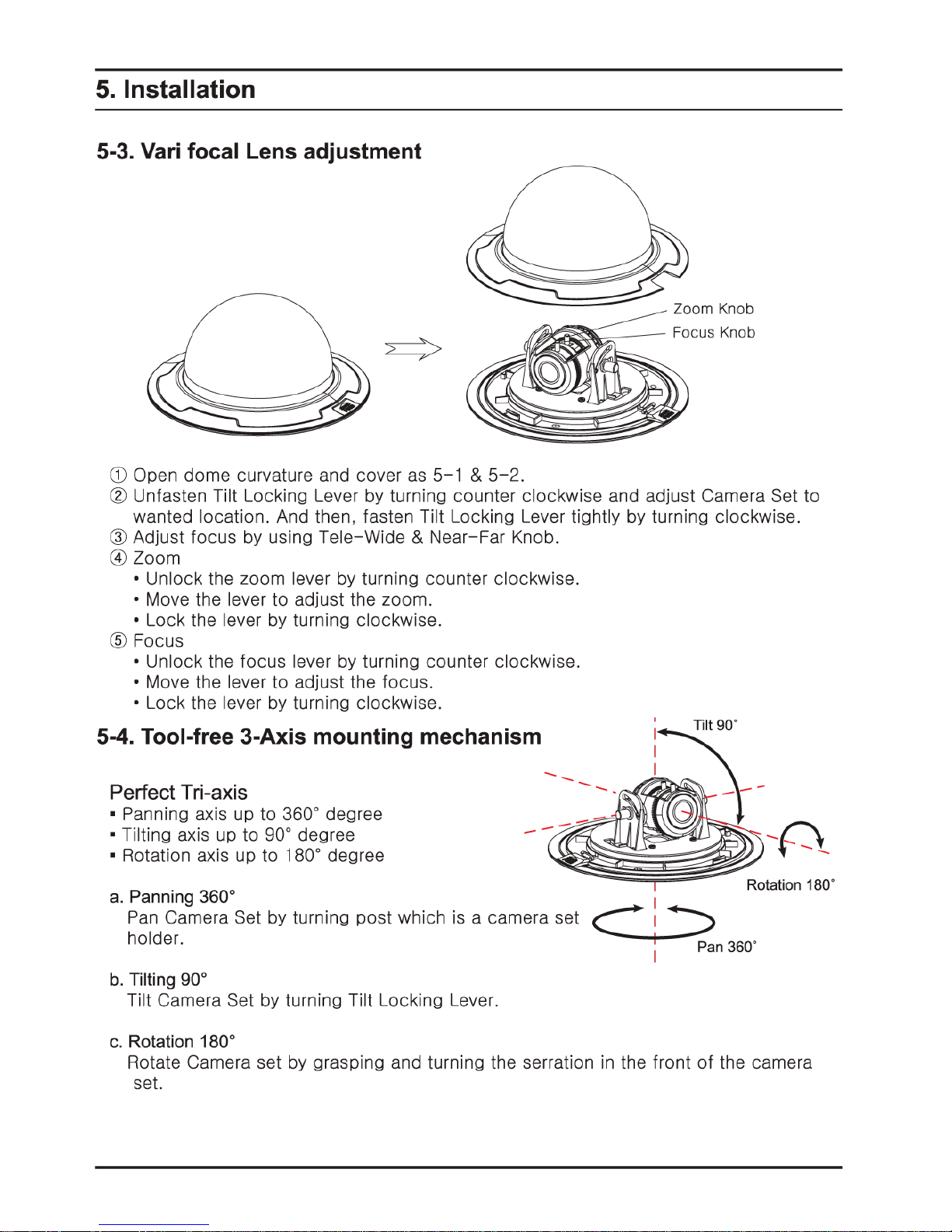

5-3. Varifocal lens adjustment
5-4. Tool-free 3-Axis mounting mechanism
5-5. Installation overview

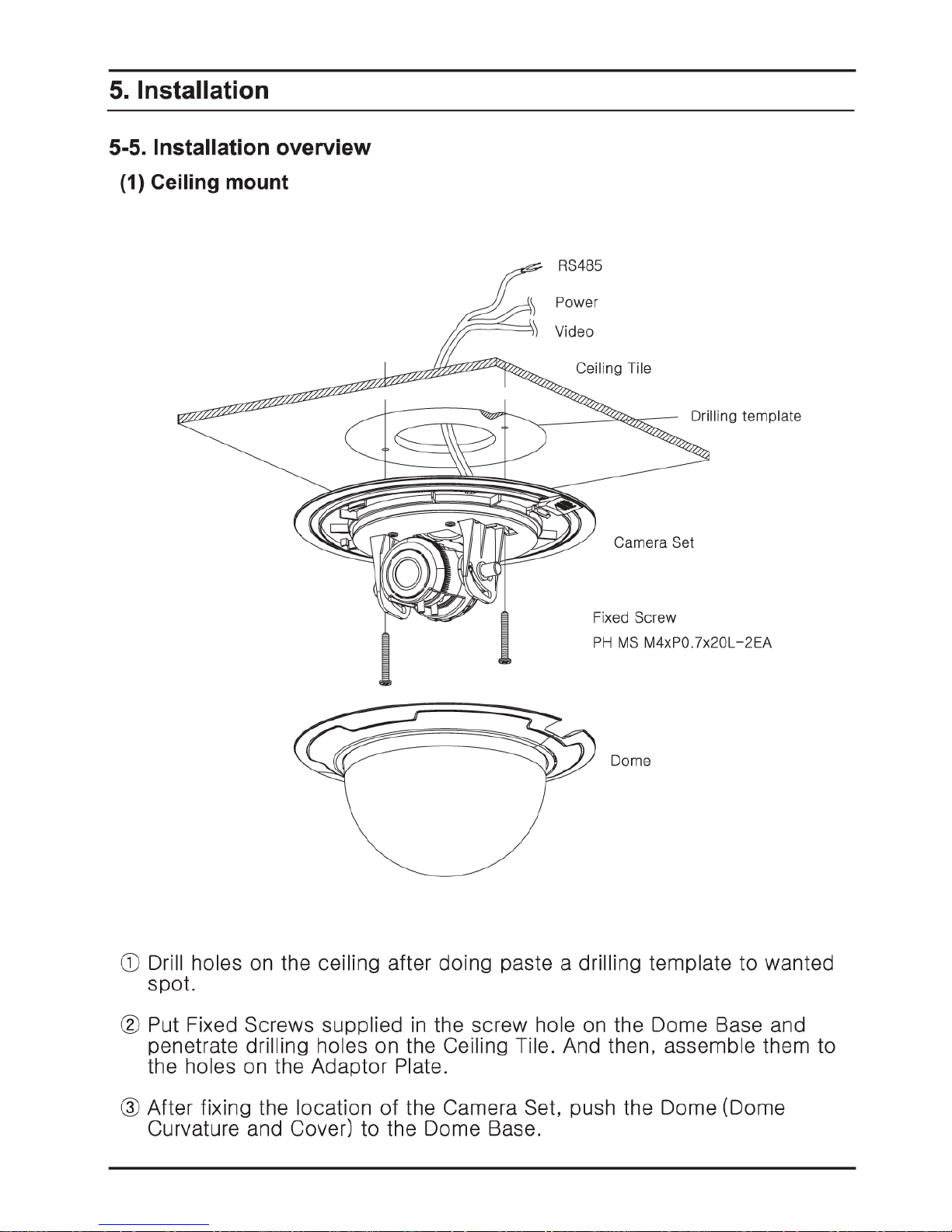

- Ceiling mount

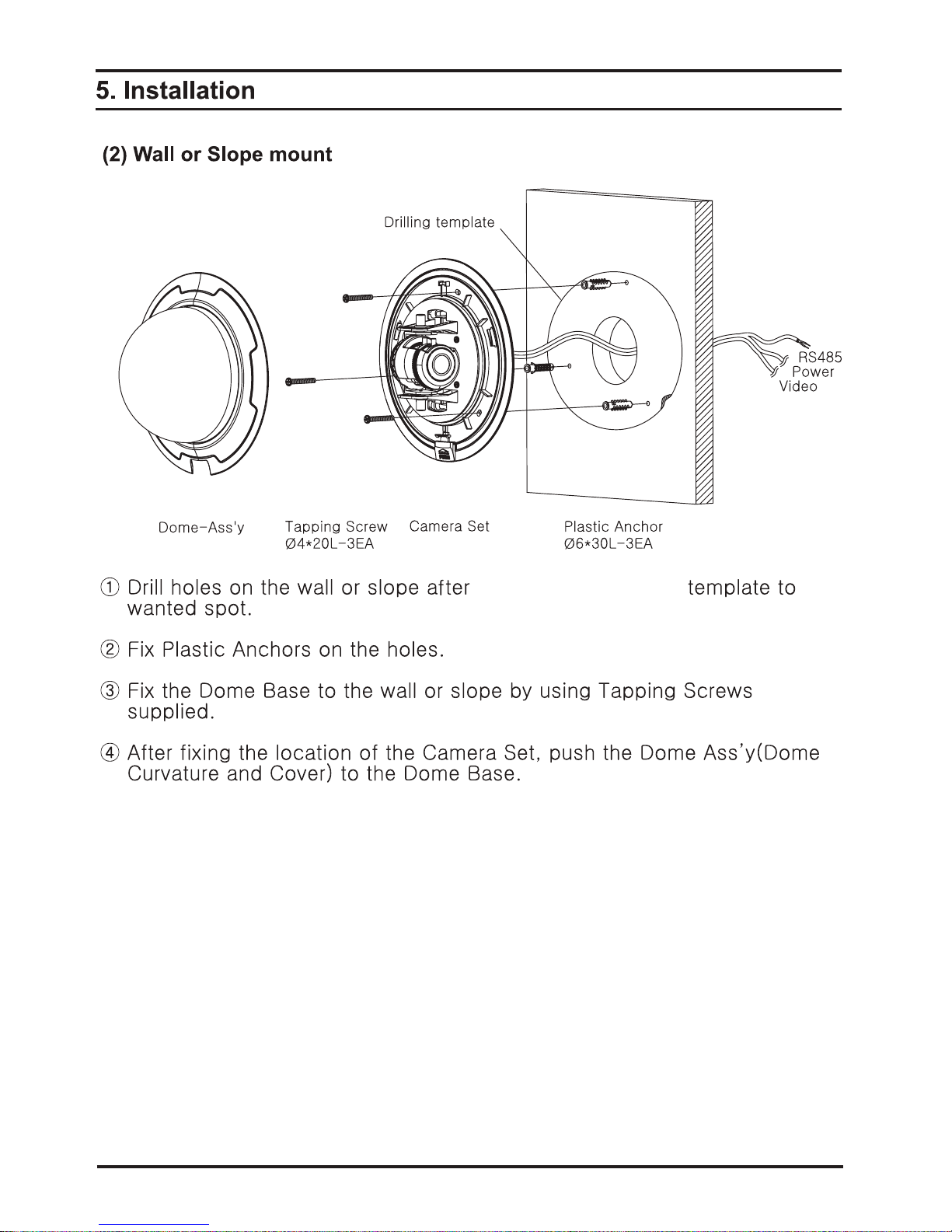

- Wall or Slope mount
6. Name and function of each part ......................................................................... 8
7. On Screen Display (OSD) Menu ......................................................................... 9
7-1. Setting up the OSD Menu
8. OSD Menu Functions .....................................................................................10-20
Setup Page Menu - Presets
- Lens
- AGC; EXIT
Special Page Menu - Camera ID
- Mirror; Backlight
- Resolution; Save/Restore
Advanced Page Menu - Video Standard; SYNC
- Sharpness; RS485 Setup
9. Dimension (inches) ..............................................................................................21
10. Troubleshooting guide .......................................................................................22
11. Specications ....................................................................................................23
1
2
3
4
5
6
applying the desired
7
8
On Screen Display (OSD) Menu

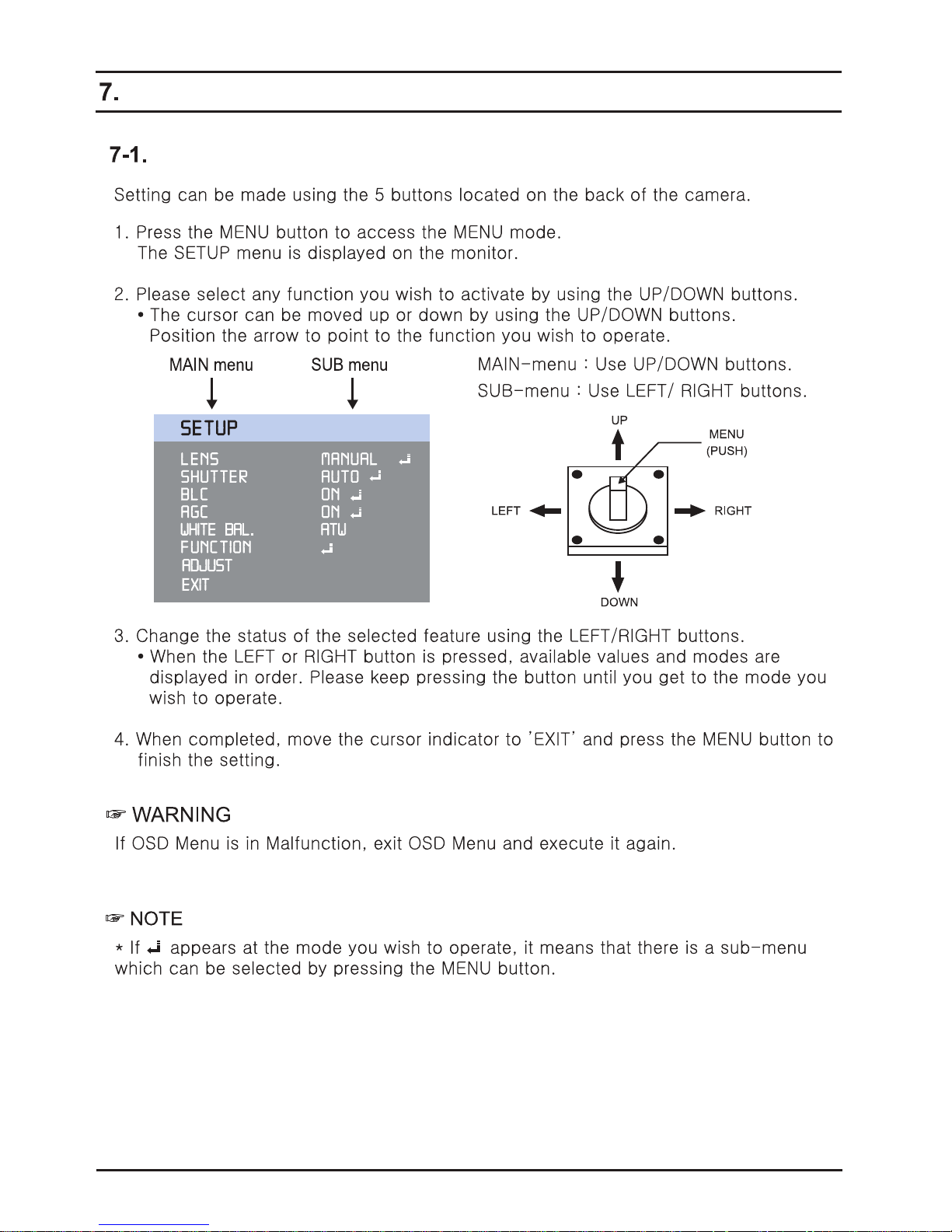

Setting up the OSD Menu
9
10
8. OSD Menu Functions
Setup Page Menu
SETUP
PRESETS NORMAL..
INDOOR..
OUTDOOR..
CUSTOM..
LENS DC..
MANUAL
RED, BLUE
LOWLIMIT, HIGHTLIMIT
LOWLIMIT, HIGHTLIMIT
BIAS, LIMIT
WHITE BAL. ATW..
ATWDes..
MANUAL..
AGC MIDDLE
HIGH
OFF
LOW
SPECIAL..
EXIT
11
Special Page Menu
MIRROR OFF
ON
CAMERA ID OFF
ON..
ID, Position
BACKLIGHT OFF
ON..
ADVANCED..
SAVE / RESTORE..
RETURN
RESOLUTION NORMAL
HIGH
SPECIAL
8. OSD Menu Functions
12
Advanced Page Menu
ADVANCED SETUP
SYNC INT
LINELOCK
VIDEO STANDARD
NTSC
PAL
SETUP
VIDEO LEVEL
COLOR BAR
VIDEO LEVEL
COLOR BAR
V PHASE
VERSION (D15-1.1)
RETURN
SHARPNESS -8 --------------------- 8
RS485 SETUP
8. OSD Menu Functions
13
8. Setup Page Menu
PRESETS
SETUP
PRESETS NORMAL
INDOOR
OUTDOOR
CUSTOM
LENS DC
WHITE BAL ATW
AGC MIDDLE
SPECIAL.. AUTO
EXIT
NORMAL PRESET (ONE)
H-Normal/Shutter Pri
Preference = Highlights
Max DR = 14 bits
Max ESS = 2x
Max Gain = 20dB
INDOOR PRESET (TWO)
S-Normal/Shutter Pri
Preference = Shadows
Max DR = 16 bits
Max ESS = 2x
Max Gain = 20dB
OUTDOOR PRESET (THREE)
H-High / Shutter Pri
Preference = Highlights
Max DR = 17 bits
Max ESS = 2x
Max Gain = 20dB
CUSTOM
Custom.. informs the user that the
value of one or more properties in
the associated predefined presets
has change and no longer
matches any of the sets.
Indoor : Indoor environment.
Outdoor : Outdoor environment.
Normal : Normal environment.
Custom : Custom setting mode.
■
■
■
■
14
8. Setup Page Menu
LENS
WHITE BALANCE
Lens
Choose the lens type DC
and set BIAS using the
selector button.
DC MODE
BIAS
LIMIT
PREVIOUS PAGE
120
----------
----------
-18-42 60
0 255
SETUP
PRESETS NORMAL
LENS DC..
MANUAL
WHITE BAL ATW
AGC
MIDDLE
SPECIAL.. AUTO
EXIT
White Balance is a function which compensates different colors of light being
emitted from different light sources.
Users can select the above levels as they desire according to the environment.
ATW (Auto Tracking White Balance) The ATW mode continuously monitors
color temperature. With WB Control set to ATW, color temperature & White
balance can be automatically adjusted accordingly.
ATW CONTROL
PREVIOUS PAGE
LOWLIMIT
HIGHLIMIT
2500
-----------
-----------
85005.5K 11K
2K 5.5K
MANUAL WHITE BALANCE
PREVIOUS PAGE
RED
BLUE
-18
-----------
-----------
13-20 20
-20 20
SETUP
PRESETS NORMAL
LENS DC
WHITE BAL ATWDes
MANUAL
ATW
AGC MIDDLE
SPECIAL.. AUTO
EXIT
■
■
8. Setup Page Menu
AGC
EXIT
ATWDesat (ATW Desaturating)
When WB is set to ATWDesat, the Extended Color temperature is desaturated
i.e when there is a excess of light temperature, ATWDesat Function is used
as well as it reduces the Noise. The limits of the color temperature setting
remain 2000K and 11,000K
AWC (Auto White Balance)
When set to AWC, Color temperature of the Light is automatically adjusted.
Manual (Manual White Balance)
Manual White Balance (MWB) Mode is used when other White Balance Options
are failed.
Saves all the setting menus and then exits.
SETUP
PRESETS NORMAL
LENS DC
WHITE BAL ATW
AGC MIDDLE
HIGH
OFF
LOW
SPECIAL..
EXIT
Automatic Gain Control is a feature which adjust automatically according to the
incoming Signal. By positioning the arrow to 'AGC' on the SETUP menu with the
help of UP and DOWN buttons, you can select the Mode you wish to go.
As the level of gain increases,
the screen gets brighter and the
level of noise also increases.
■
■
■
■
15
8. Special Page Menu
You can choose the ON and OFF
with the selector. If you select ON,
the entered camera ID is displayed
at the selected position in the video
picture (normal operation).
Please select the setup button while
in ON mode.
Select the desired position with the
selector.
Move the cursor to the letter
required by using the Set-Up button.
Select an ID from A,B~Y,Z, a,b~y,z
0,1~8,9 by using the LEFT and
RIGHT buttons.
Repeat the above steps until the ID
is complete.
Select the position where the ID
is to be displayed by using the
LEFT and RIGHT buttons.
User can enter a unique name for the respective camera.
The maximum length of the ID is ten characters.
CAMERA ID
CAMERA ID
ID CAM-001
POSITION UP-LEFT
PREVIOUS PAGE.
CAMERA ID
ID CAM-001
POSITION UP-LEFT
PREVIOUS PAGE
CAMERA ID OFF
ON
MIRROR OFF
BACKLIGHT OFF
RESOLUTION
NORMAL
SAVE / RESTORE
ADVANCED..
RETURN
SPECIAL
■
■
■
■
■
■
■
16

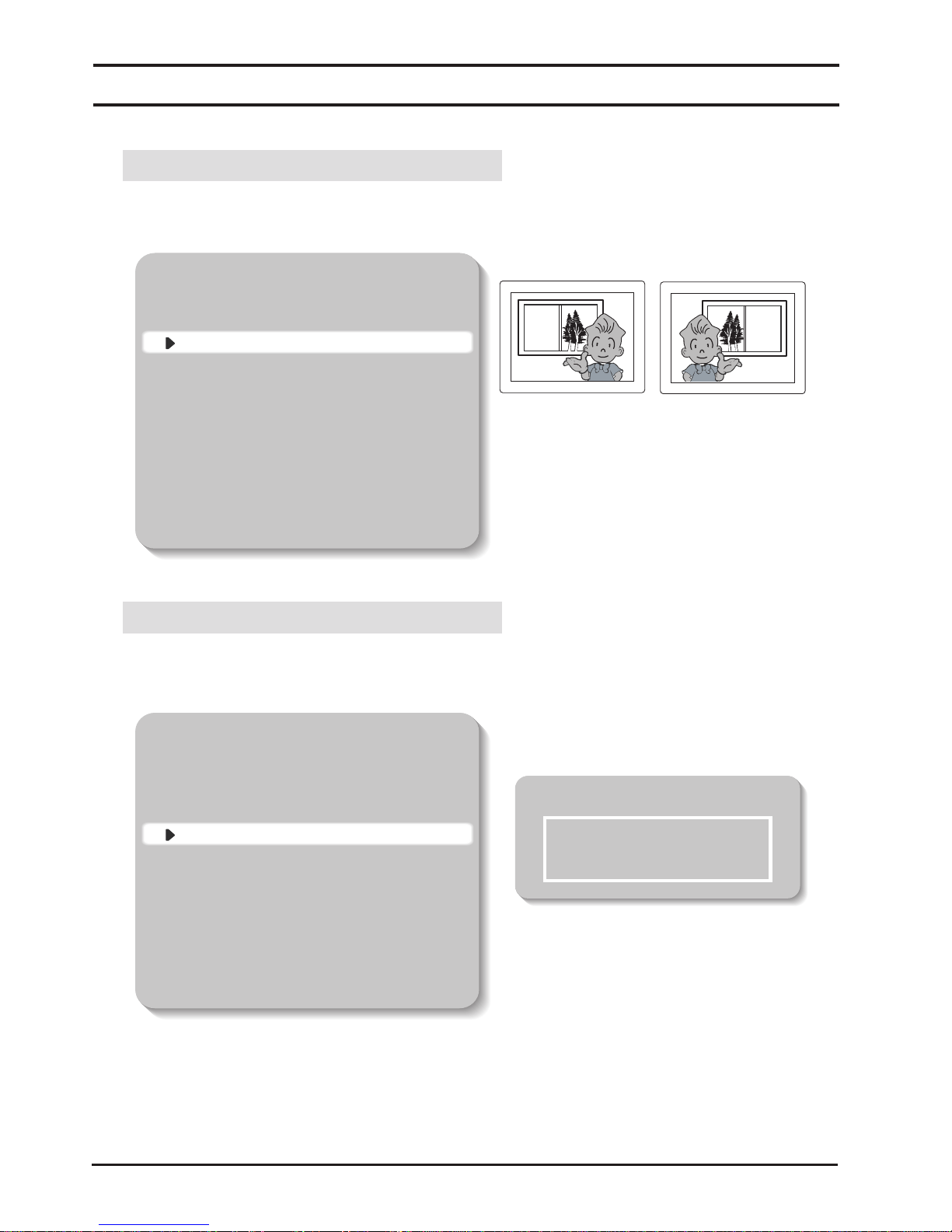

8. Special Page Menu
MIRROR
Select "OFF" to show the image as normal. Select "ON" to reflect image
horizontally.
BACKLIGHT
MIRROR ON MIRROR OFF
CAMERA ID OFF
MIRROR OFF
ON
BACKLIGHT OFF
RESOLUTION
NORMAL
SAVE / RESTORE
ADVANCED..
RETURN
SPECIAL
Backlight is feature of a Camera which compensates when there is a large
amount of background light.
When Backlight is ON, Back Light
gets activated.
White : BL-ZONE Position movement
Green: BL-ZONE Size enlargement
Red : BL-ZONE Size reduction
For BL-ZONE Confirm, long press
SET button
BL ZONE 1
CAMERA ID OFF
MIRROR OFF
BACKLIGHT OFF
ON
RESOLUTION
NORMAL
SAVE / RESTORE
ADVANCED..
RETURN
SPECIAL
■
■
■
17
8. Special Page Menu
SAVE / RESTORE
Select "OFF" to show the image as normal. Select "ON" to reflect image horizontally.
RESOLUTION
Choose resolution between high and normal with the selector (RIGHT/LEFT)
The high resolution supports
Progressive Rate video up to
540 TV Line and normal resolution
supports 480 TV Line.
CAMERA ID OFF
MIRROR OFF
BACKLIGHT OFF
RESOLUTION
NORMAL
HIGH
SAVE / RESTORE
ADVANCED..
RETURN
SPECIAL
CAMERA ID OFF
MIRROR OFF
BACKLIGHT OFF
RESOLUTION
NORMAL
SAVE / RESTORE
ADVANCED..
RETURN
SPECIAL
SAVE / RESTORE
RESTORE USER SETTINGS
SAVE USER SETTINGS
RESTORE FACTORY SETTINGS
RESET CAMERA
■
18
8. Advanced Page Menu
VIDEO STANDARD
SYNC
Choose video system between PAL and NTSC by moving the selector.
VIDEO STANDARD NTSC
PAL
SYNC INT
RETURN
ADVANCED SETUP
SHARPNESS -8 ------------ 8
VERSION (D15-1.1)
LINE LOCK
PREVIOUS PAGE
519
-----------
0 624
V PHASE
- INT : Internal synchronisation
-
LL : External line-lock synchronisation
If 'LL' is selected, it can be adjusted
to the desired phase.
Press the SET button.
Adjust to the desired phase from
0 to 624.
Two sychronisation modes are available, INTERNAL and EXTERNAL LINELOCK. In LINE-LOCK mode, it synchronises the video signal between cameras
without a synchronous generator. The line-lock synchronisation is only used in
areas of 60Hz (NTSC) / 50Hz (PAL).
VIDEO STANDARD NTSC
SYNC INT
LINELOCK
RETURN
ADVANCED SETUP
SHARPNESS -8 ------------ 8
VERSION (D15-1.1)
NTSC
SETUP
VIDEO LEVEL
COLOR BAR
PREVIOUS PAGE
110
------------
80 150
OFF
OFF
PAL
110
------------
80 150
OFF
VIDEO LEVEL
COLOR BAR
PREVIOUS PAGE
RS485 SETUP
RS485 SETUP
■
■
19
8. Advanced Page Menu
SHARPNESS
The outline of the video image becomes cleaner and more distinctive as the level
of SHARPNESS increases. If the level gose up excessively, however, it may affect
the video image and generate noise.
The available range of level is -8 ~ 8
VIDEO STANDARD NTSC
SYNC INT
RETURN
ADVANCED SETUP
SHARPNESS
-8 ------------ 8
VERSION (D15-1.1)
RS485 SETUP
This function sets up the camera communication status when controlling the camera
through an external control device.
RS485 SETUP
VIDEO STANDARD NTSC
SYNC INT
RETURN
ADVANCED SETUP
SHARPNESS
-8 ------------ 8
VERSION (D15-1.1)
RS485 SETUP
RS485 SETUP
PREVIOUS PAGE
PROTOCOL : PELCO-D 2.4K
1 < 1 > 255CAMERA # :
■
20

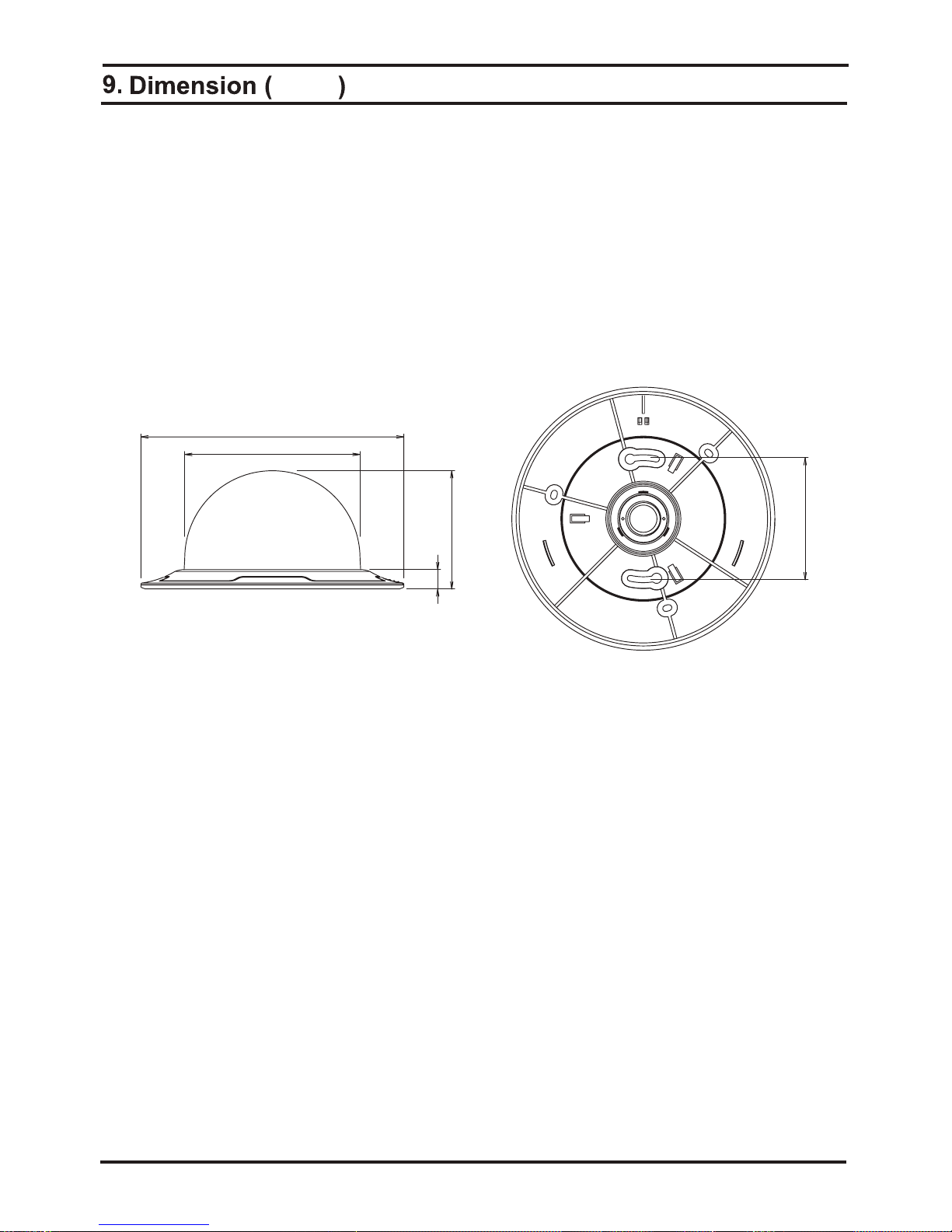

7.09”
4.72”
3.19”
3.29”
.52”
inches
21

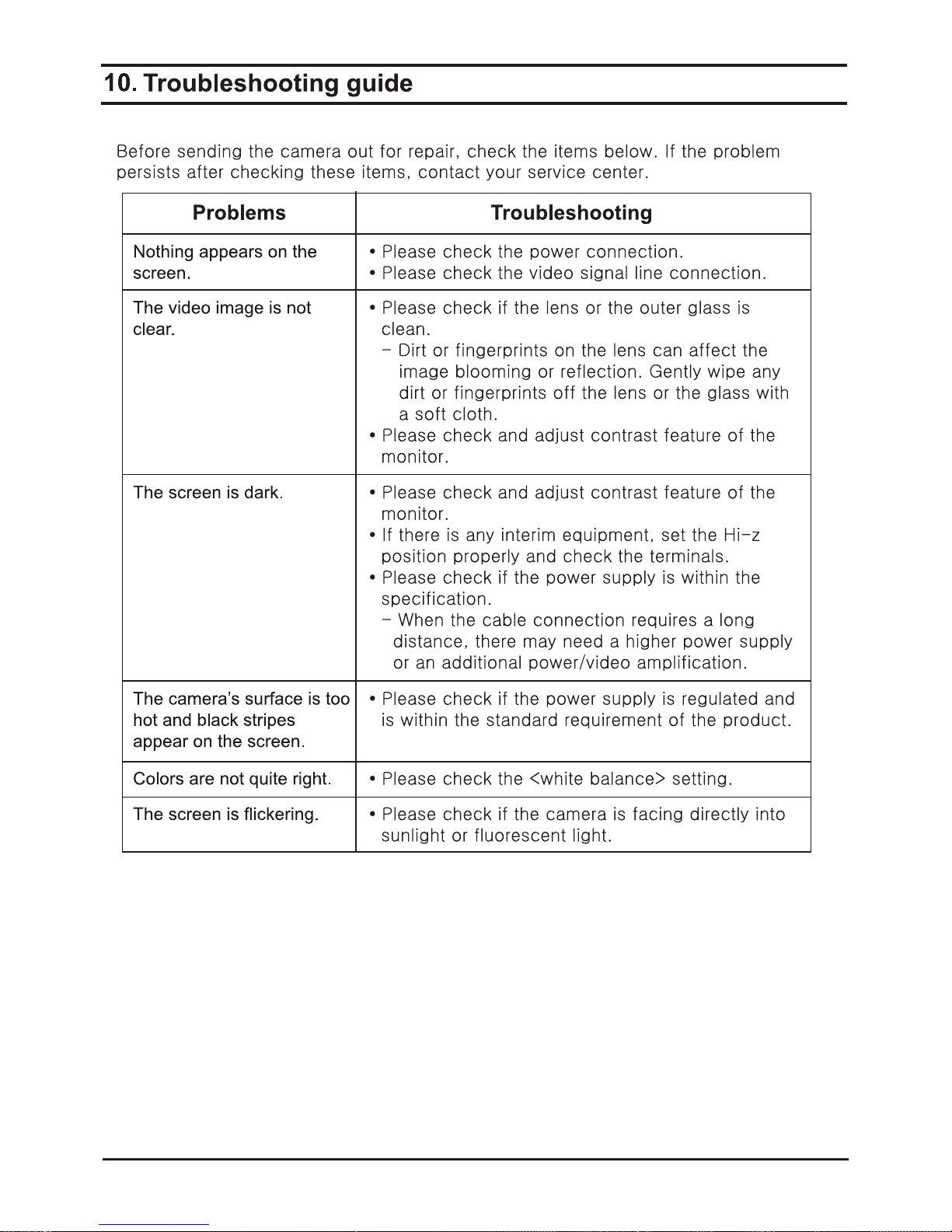

22
Specifications
Camera CE-VFCD918-WD
Image Sensor 1/3 Inch C-MOS
Resolution 540 TVL (High Resolution Mode)
Eective Pixels 720 (H) x 540 (V)
Scanning System 525 Lines, Interlace
S/N Ratio More than 48dB (AGC O)
Sync System Internal (12VDC) / Line-lock (24VAC)
Scanning Frequency 15.734 KHz (H), 59.94 Hz (V)
Minimum Illumination 0.1 Lux (Slow Shutter Mode)
Shutter Speed 1/60 ~ 1/100,000 sec.
Dynamic Range 120dB (Max.), 101dB (Typical)
Lens 3.3 ~ 12mm Vari-Focal
Video Output 1.0 ~ 1.2 Vp-p, 75Ω
Power Consumption Max. 110mA (AC24V), Max. 200mA (DC12V)
Power Requirement DC12V / AC24V
(DV9V ~ 20V) / (AC10V ~ 30V)
Operating Temperature 32°F ~ 113°F
Operating Humidity Within 90% RH
Dimensions 7.09” (Dia.) x 3.19” (H)
Weight 0.88 lbs.
OSD Menu Control with OSD Button Pad
Presets Normal / Indoor / Outdoor / Custom
Lens DC (Set BIAS and Limit)
White Balance Control ATW / AWC Des / Manual
Gain Control O / Low / Middle / High
Special Camera ID, Mirror, Backlight (BL Zone 1),
Resolution, Advanced (Video Standard, Sync,
Sharpness, Aperture), Save / Restore
Information in this document is subject to change
23
