The lightning ash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of re hazards:
u Do NOT use power sources other than that specied.
u Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualied service person and
should conform to all local codes.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Table of Contents
Warning 1
Precautions 2
Components 4
Installation 5
Operation 6
Button Functions 6
Top/Front 7
Initial Start Up 8
Live View 9
Recording View 10
Playback View 12
System Settings 14
Main Menu 14
Date / Time Setup 15
Motion Setup 15

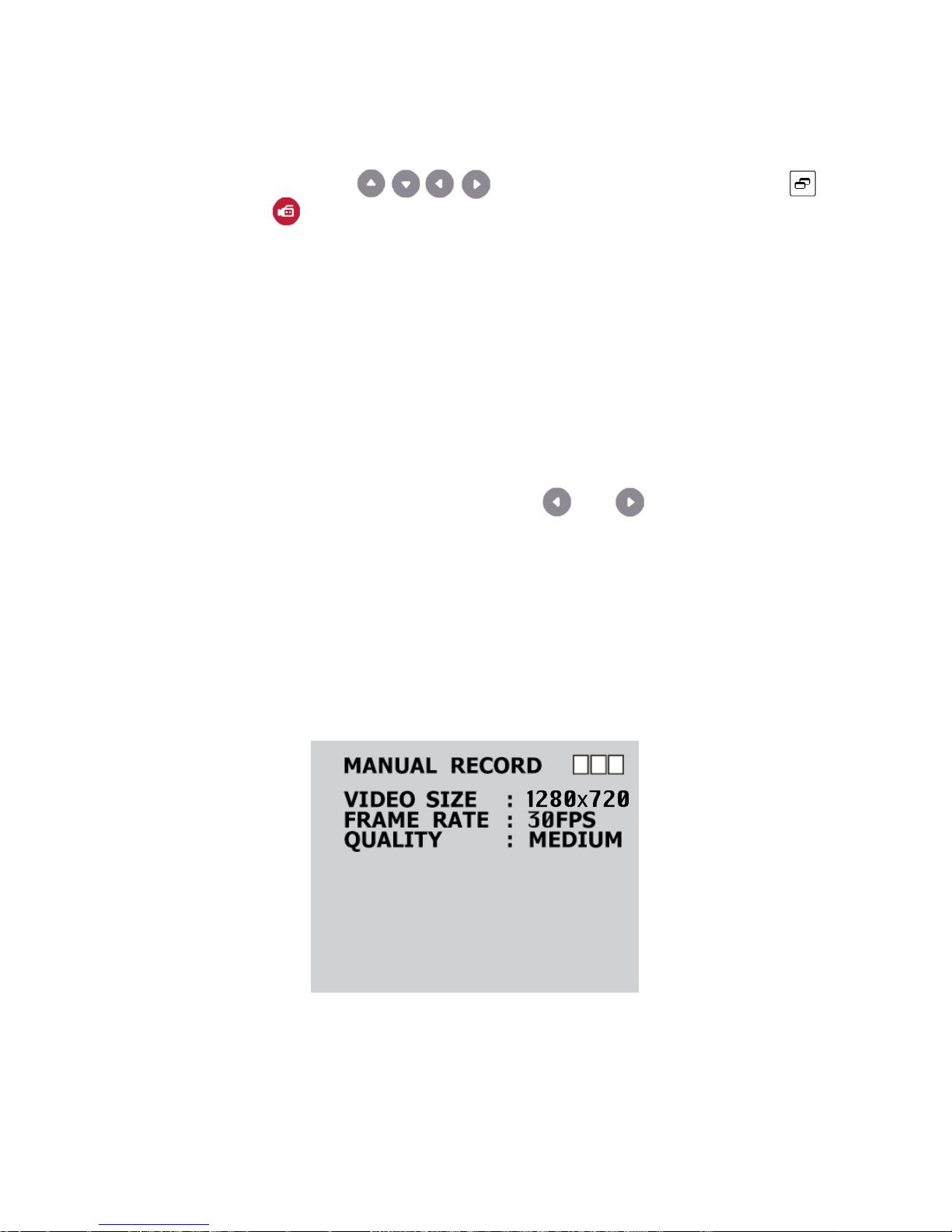

Manual Record 16
Schedule Record 17
Continuous Record 19
SD-Card 20
System Status 20
Power On Setup 21
Factory Settings 21
Possible Recording Time 22
Troubleshooting 23
Contact an authorized technician to carry out the inspection.
If the camera emits smoke or is unusually hot for a long period, a re may be
caused.
If the camera is installed on an inappropriate surface, it may fall and cause
injury.
It could cause an electric shock.
It may result in an electric shock or other hazards.
It may result in a re or other hazards.
Warning
The camera requires periodic inspection.
Stop using your camera when you nd it malfunctioning.
Do not install the camera on a surface that can not support it.
Do not hold plug with wet hands.
Do not disassemble the camera.
Do not use the camera close to a gas or oil leak.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
1
Precautions
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
2
Only use the camera under conditions It can cause the image quality to be
where temperatures are between poor.
41°F ~ 104°F. Be especially careful to
provide ventilation when operating
under high temperatures.
Severe lighting change or icker can This is one of the most important
cause the camera to work improperly. parts of the camera. Be careful not to
leave ngerprints on the lens cover.
Do not install the camera in
extreme temperature conditions.
Do not install the camera under
unstable lighting conditions.
Do not touch the front lens of the
camera.
Do not install or use the camera
in an environment where the
humidity is high.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
3
It can cause malfunctions to occur. It can damage the CCD.
If it gets wet, wipe it dry immediately. If exposed to radioactivity the CCD
Liquids can contain minerals that will fail.
corrode the electronic components.
Never keep the camera pointed
directly at strong light.
Do not drop the camera or subject
it to physical shocks.
Do not expose the camera to
radioactivity.
Notes
• If the camera is exposed to spotlight or object reecting strong light, smear
or blooming may occur.
• Check that the power satises the normal specication before connecting
the camera.
Do not expose the camera to rain
or spill beverage on it.

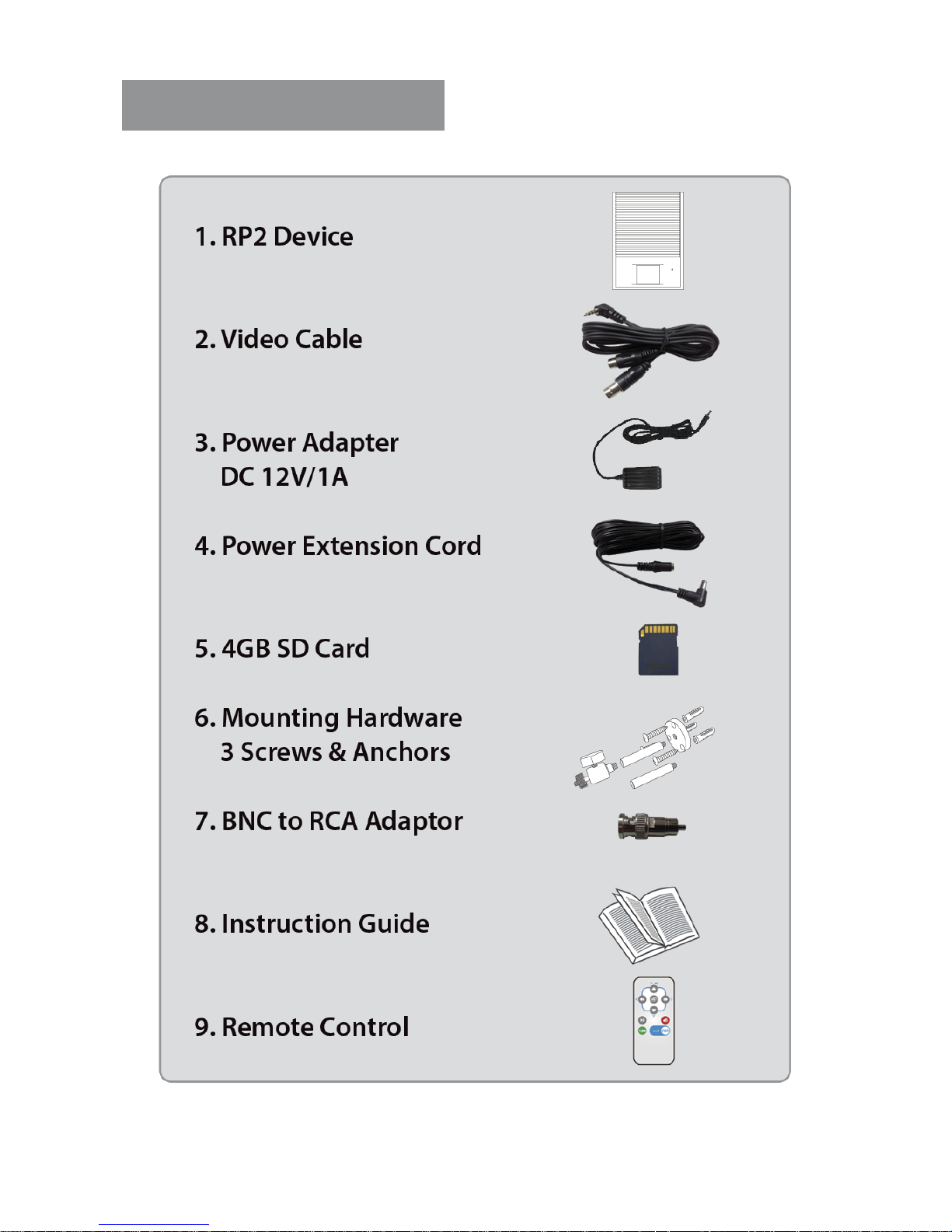

Components
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
4
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com

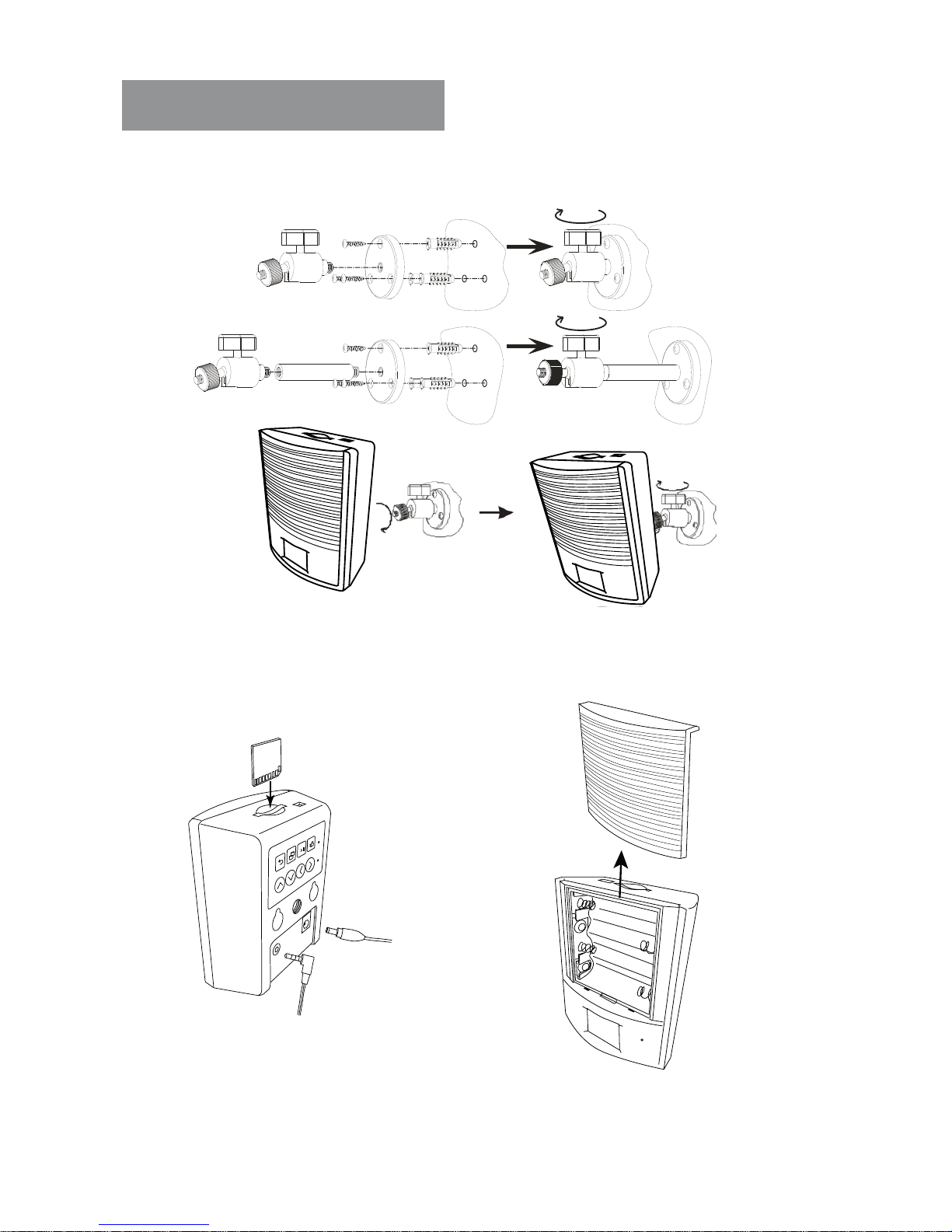

Installation
Mounting with included wall mount bracket
SD-Card Insertion, Video Output,
DC Power Supply
5
Battery Compartment Access
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com

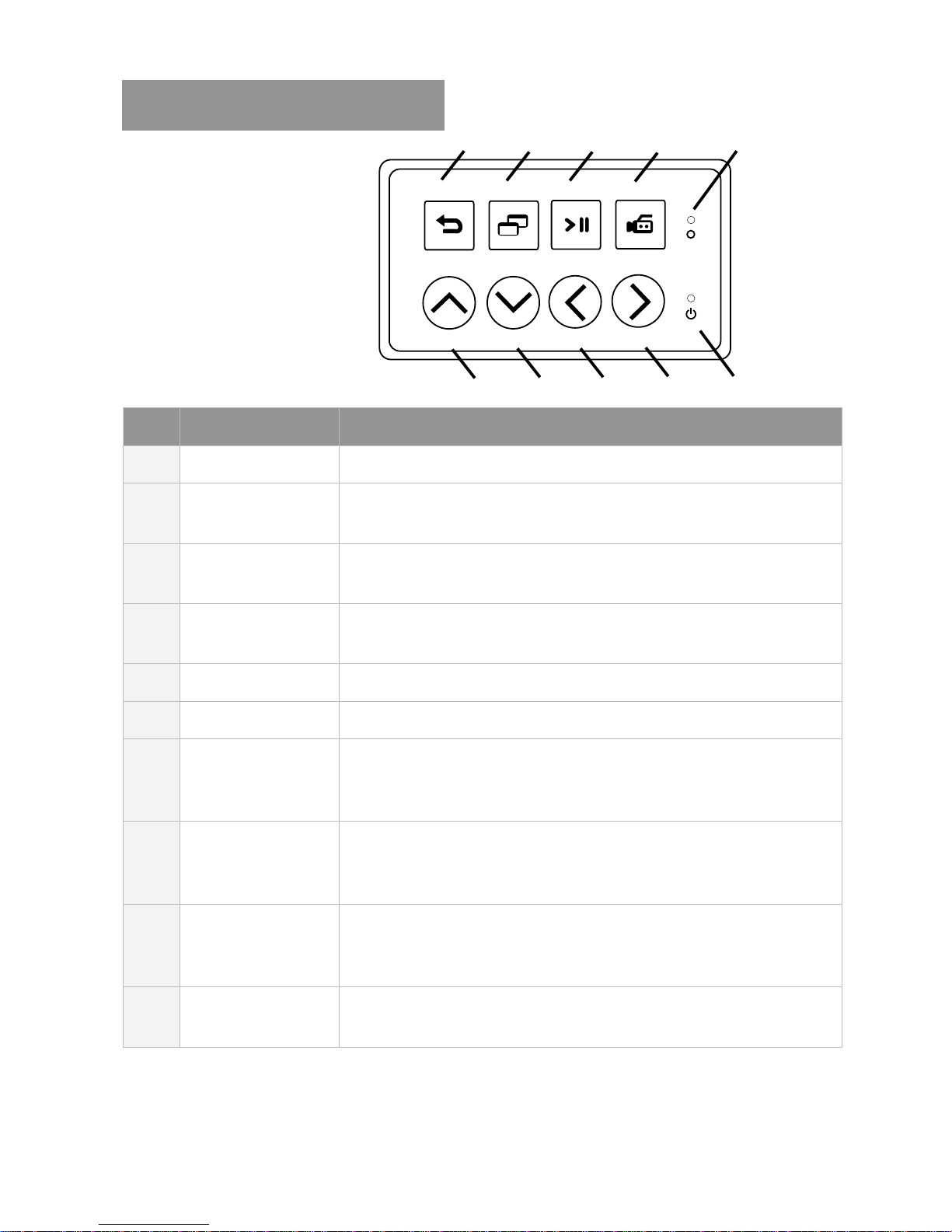

Operation
No. Name Function
1 Exit / Stop Stop record / Play, or Exit sub-menu
2 Menu/Set
Menu: Conrm or open sub menu
Live View: Open main menu
3 Play/Pause
Live View: Start playback
Playback: Pause playback, press again to continue playback
4 Rec/Exit
Live View: Start menu recording
Recording: Stop recording
5 Up Button Menu: Navigate up
6 Down Button Menu: Navigate down
7 Left Button
Menu: Decrease value
Playback: Fast rewind
Playback Paused: Step rewind
8 Right Button
Menu: Increase value
Playback: Fast forward
Playback Paused: Step forward
9
Recording
Indicator
LED Red: Device is recording
LED Flashing: SD-Card is not inserted
LED O: Device is not recording
10 Power Indicator
LED Green: Device is On
LED O: Device is O
6
EXIT
MENU
PLAY
REC
EXIT
STOP
SET
PAUSE
UP
DOWN
<<I
I>>
POWER
ON / OFF
SD card
l Button Functions
1 2 3 4 9
5 6 7 8 10
POWER
ON / OFF
SD card
Operation continued
No. Name Function
11 SD Card Slot
SD card storage connection - SD card should be inserted
with the label facing the front of the device.
*Fast Flashing: SD-Card not inserted
SD-Card capacity is reached
SD-Card failure
SD-Card write-protected
SD-Card not inserted & playback activated
*Solid Red: Recording activated
12 Power Switch Recessed power switch
13 Battery Cover Push upward to remove cover & access battery compartment
14 Lens Window Mirrored surface conceals lens from view
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
7

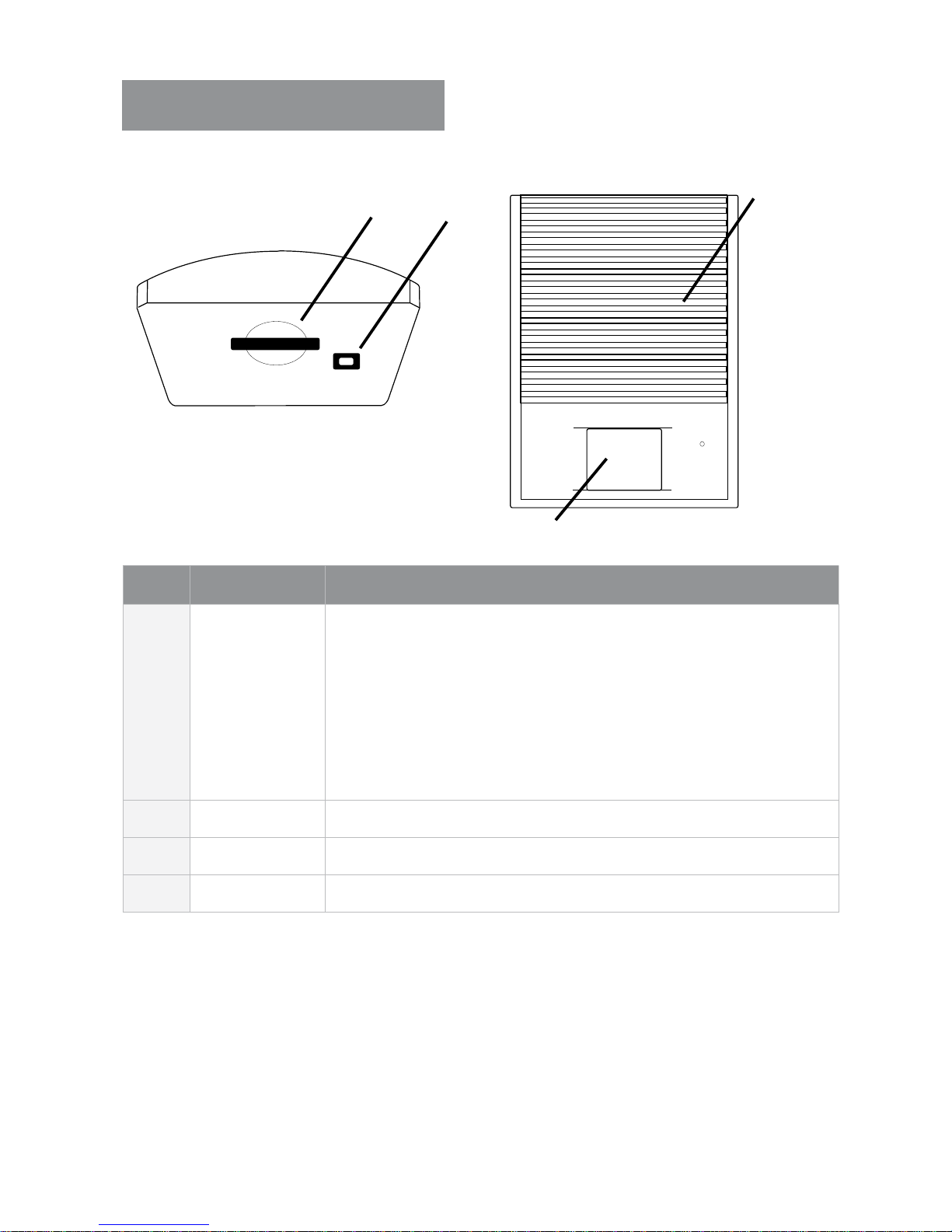

Top View
11 12
Front View
13
14
l Initial Start Up
1. To turn the device ON / OFF:
• Move the switch on the top of the device to the on or o position. This
switch is slightly recessed to prevent accidental or unwanted switching.
NOTE: Each time after power-on, the system auto-detects its peripherals. When the
REC LED ashing indicates that the SD card is proceeding testing (complete boot
time is several seconds) When an image le error has been detected, the system will
display error message on OSD.
2. The default menu language is English. To change the languages:
• Select item [POWER ON SETUP] in the main menu. Here you can change
the language of the menu.
3. After successful start-up the recorder shows the live view.
• If schedule recording has been programmed, the device will automatically
resume this schedule.
• During recording the REC LED indicator will be solid red.
4. If the symbol [ ] is shown, the SD-Card has not been recognized, or the
SD-Card is inserted improperly.
• If the SD-Card cannot be recognized the REC LED ashes red. In this case,
erase the SD-Card contents, or re-format the card.
5. If the write-protection lock on the side of the SD-Card is activated, it is only
possible to read recorded data.
6. When SD card is writing data during recording, record indicator will light on.
7. After power-loss the system auto returns to the previous recording mode.
Attention
- Never remove the SD-Card during the boot process. This can lead to
permanent damage of recorded data.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
8

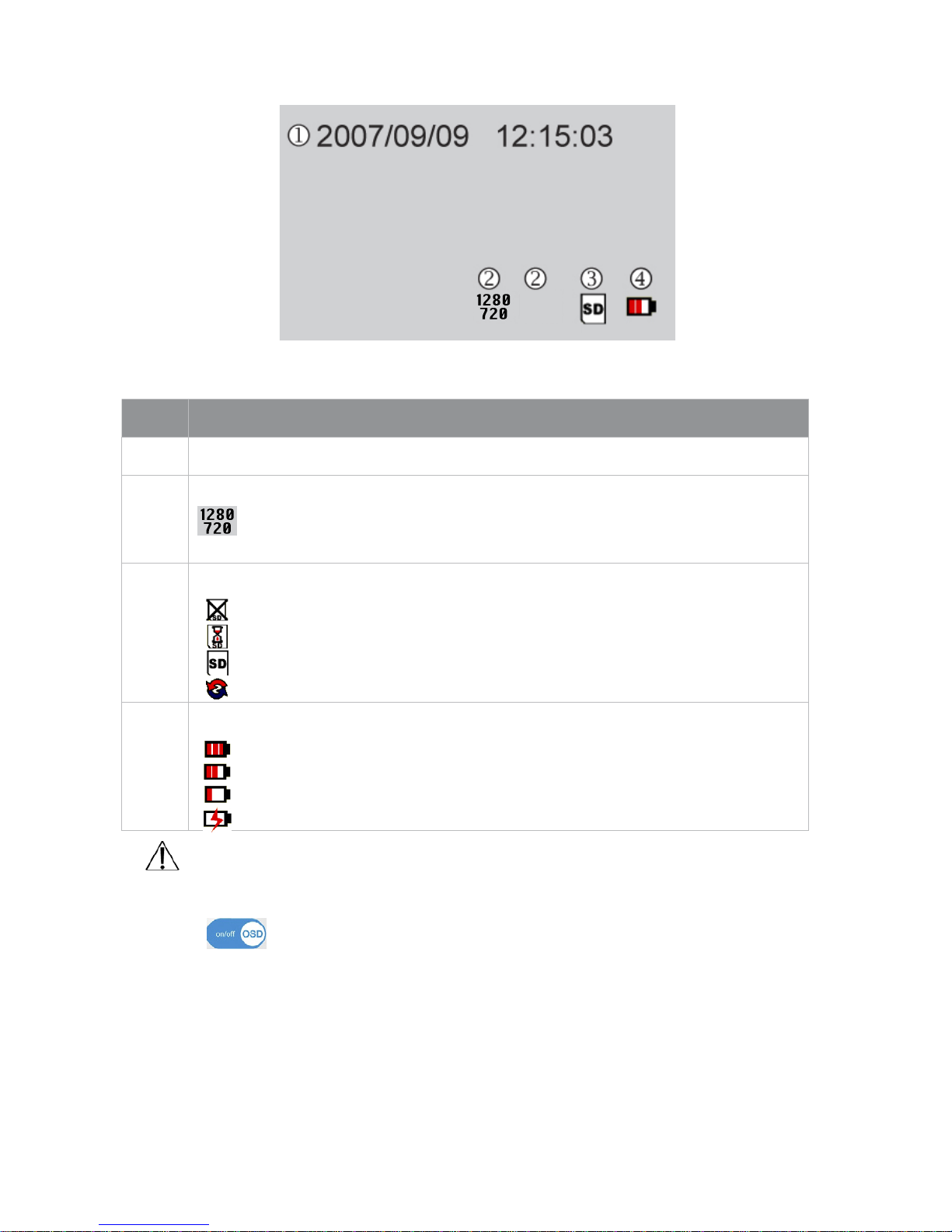

l Live View
If the video output of the device is connected to a monitor, you can view the
live images on the monitor. The following icons may be shown:
Attention
- If no SD-Card is inserted only live view is possible.
- Press button on remote controller, You will see the status of LED in front
of case. This status LED will help you check the device recording status when
not connected to an external monitor.
* Continuous light for 3 seconds : In recording mode.
* Slow ash for 3 seconds : In live, play back, or menu mode.
* Quick ash for 3 seconds : SD-Card is not inserted, SD card failure, or device
malfunction.
No. Live View Function
1 Shows the current date and time.
2 Shows the recording setup:
Shows the recording resolution
BQ Shows the recording quality
3 Shows the status of the SD card:
SD-Card has been removed or SD-Card cannot be recognized
SD-Card is being checked
SD-Card has been recognized
SD-Card will be overwritten
4 Shows the battery status:
100% battery power
60% battery power
30% battery power
Battery is empty and has to be recharged / DC Power Connected
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
9
BQ

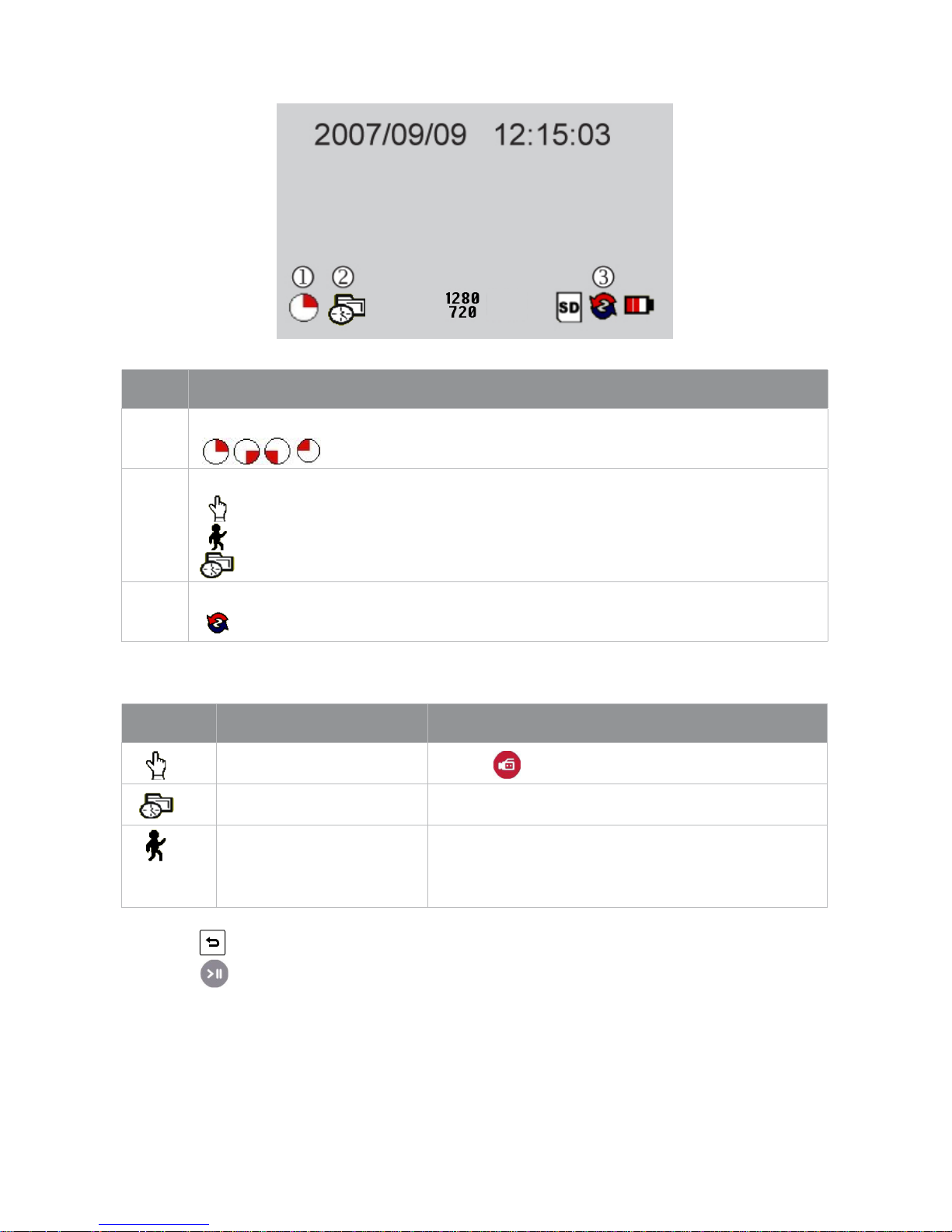

l Recording View
There are three dierent ways to start recording:
Press [ ] to stop a manual recording.
Press [ ] to stop recording and enter play mode.
No. Recording View Function
1
Record Status:
Device is recording data
2 Record Mode:
Manual Record
Motion Detection
Schedule Record
3 Record Storage Mode Status:
Overwrite is activated
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Symbol Mode Start Recording Function
Manual Press [ ] button to start recording
Schedule Recording Enable schedule recording in the menu.
Motion Detection As soon as device detects motion, the device
starts recording. Motion detection must be
setup in menu to be active.
10
EXIT
MENU
PLAY
REC
POWER
ON / OFF
SD card
BQ
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
To continue the recording following a stop or pause, proceed as follows:
1. The event status is determined by the system recording, according to the order
of priority. The order of priority is: Manual, Motion, and then Schedule Record.
2. Dierent recording modes can have dierent recording parameters (video size,
recording frames, and video quality).
When the dierent recording modes are triggered, the system starts recording
according to the set parameters. This kind of design provides exibility to ensure
ecient recording time and quality.
Example: Work hours [Schedule Record] from 8:00am to 5:00pm, are setup to low
video quality with less recording frames to extend the recording time. Non-work hours,
[Motion Record] setup to enable high video quality with the highest recording frames,
when an event occurs.
3. The record LED ash indicates that the system is currently loading les on to the
SD-Card.
- Do not withdraw the SD-Card while recording. It may destroy the stored data.
- Power loss during recording results in incomplete videos or errors.
- Video loss during recording, the system stops recording, will backup the les,
and when the videos signal is normal again, the system will continue recording.
l Recording View continued
Mode Continue Recording Function
Manual Press [ ] button again
Schedule Recording,
Motion Detection
Exit playback or menu
11

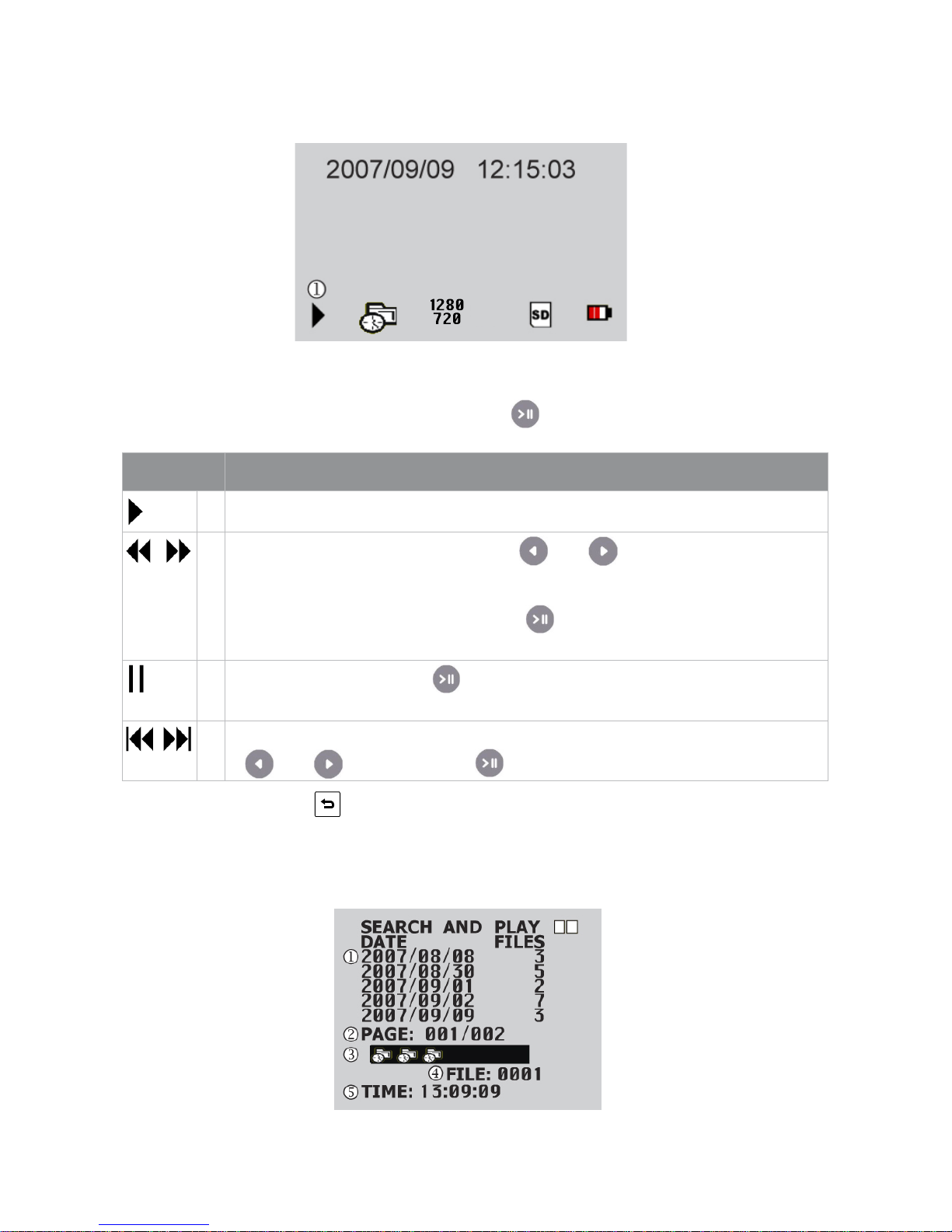

Normal Playback
During live view press the playback/pause [ ] button to start normal playback:
Press the exit/stop [ ] button to stop playback and return to live view.
Event List
In order to open the search menu open the main menu and select the menu
item SEARCH & PLAY.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Symbol Normal Playback Function
: Normal playback speed
: During the normal playback press [ ] or [ ] button to rewind or
fast forward.
By pressing in the same direction again you raise the search speed
(Speed: x2/ x4/ x8/ x16/ x32). Press [ ] button to playback at normal
speed.
: During playback, press [ ] button to pause playback and press again
to return to playback status.
: After pressing Pause button you can search picture by picture, using
[ ] or [ ] button. Press [ ] button to playback at normal speed.
12
l Playback View
To start playback, you can decide between two dierent modes:
EXIT
MENU
PLAY
REC
POWER
ON / OFF
SD card
BQ
No. Event List Function
1
The le view shows the date of recording and the number of les belonging
to the recording. To navigate press the direction button up or down and
press [ ] button to playback. To return to the selection mode press the
exit/stop button.
2 Shows the number of pages.
3 Record Mode:
Manual Record
Motion Detection
Schedule Record
4 Press the direction button right or left in order to show the rst picture of
the event.
5 Shows the time of the recording.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Playback Using a Computer
All les on the SD-Card are stored in a folder named DVH264 and will have an
approximate size of 3MB ~100MB, and will be ordered chronologically. These
les can be viewed with Microsoft® Media Player or DivX Player. In order to
playback the les correctly, an update to the video codec of the Windows Media
Player may be necessary.
SD-Card Maintenance
1. The device supports only FAT32 le system- it is unable to determine other le
systems. Please format the SD card (enter [MENU/ SD CARD OPTIONS] and select
“Format”).
2. The system supports only partial SD card le system repair. The system is un
able to detect any le system damage, therefore please format the SD card
(enter [MENU/ SD CARD OPTIONS] and select “Format”).
3. When using SD card, you need to choose class 10 or above.
Firmware Update
Use the SD-Card to update your system rmware.
1. Using your computer, copy new rmware into the directory of the SD-Card.
2. Insert the SD-Card into the device, switch o the main power and then restart.
3. Wait for 10-20 seconds, the system update will be completed and return back
to live mode. You can check your version number in [MENU/ SYSTEM STATUS].
Do not remove the SD-Card while booting, if a power-loss occurs while
completing step 3, please repeat steps 2 and 3.
13
MENU
PLAY
REC
POWER
ON / OFF
SD card
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
System Settings

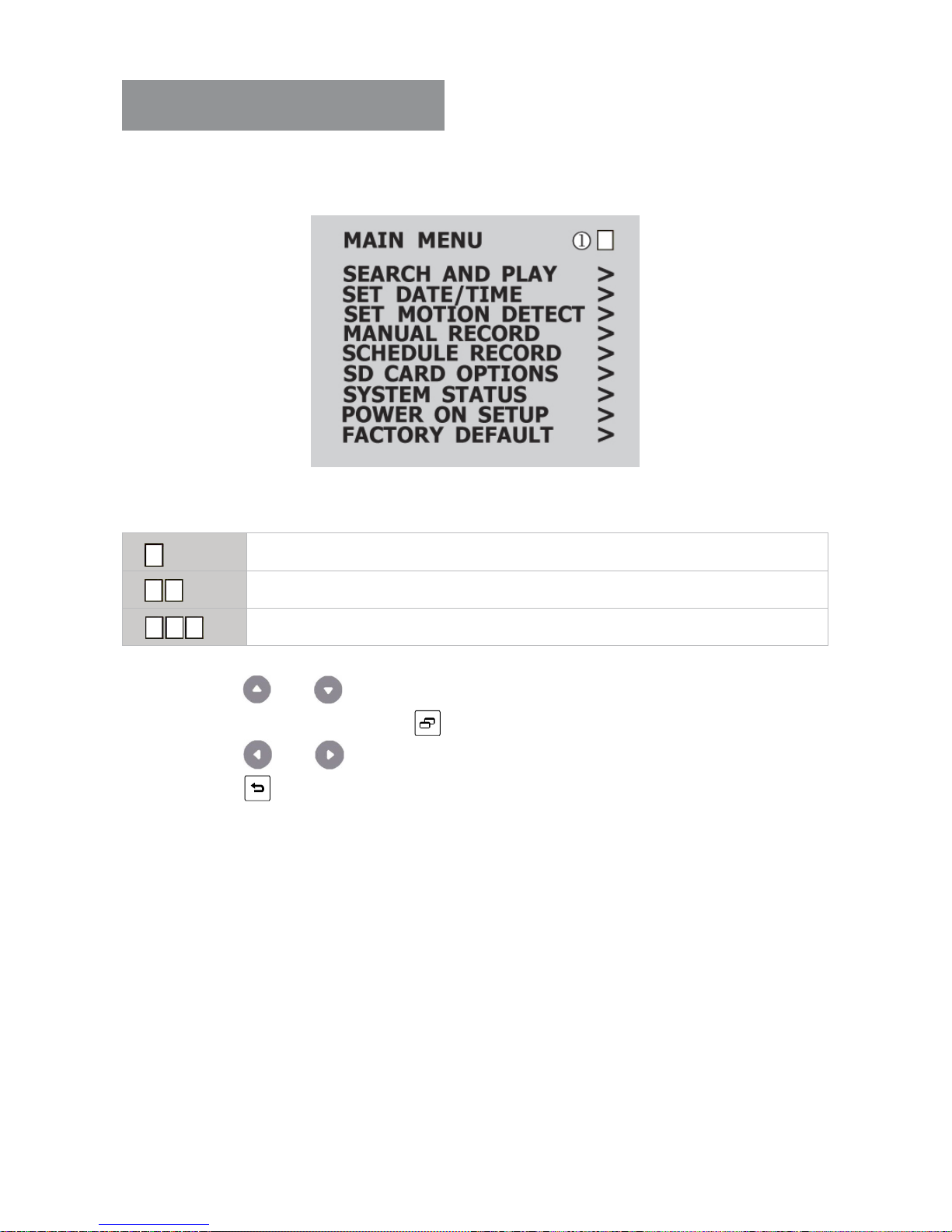

l Main Menu
1In the top right corner the menu level is shown:
− Press [ ] or [ ] buttons to navigate.
− To conrm or select press [ ] button.
− Press [ ] or [ ] buttons to change the value.
− Press [ ] button to leave the menu.
First level (main menu)
Second level
Third level
14
MENU
PLAY
REC
POWER
ON / OFF
SD card
EXIT
MENU
PLAY
REC
POWER
ON / OFF
SD card
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com

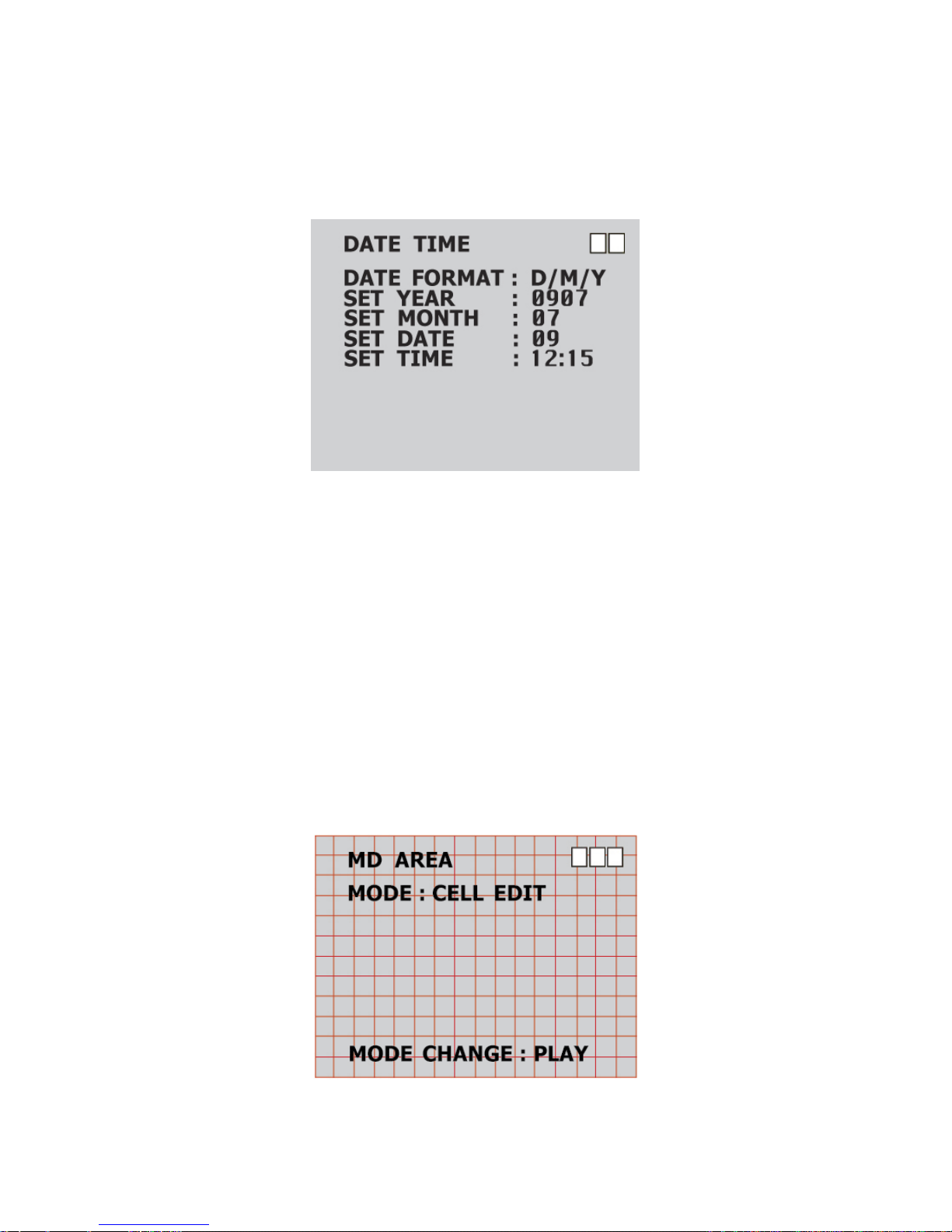

l Date/Time Setup
• Date Format : Here you can change the way the date is displayed.
• Date/Time Adjustment : Here you can change the date and time.
l Motion Setup
Set MD Area
The motion detection area is split up into 16 x 12 cells. Cells which are marked
to detect motion are displayed in red. One or more red cells form a block.
15
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
In order to navigate use [ ] buttons and conrm by pressing [ ]
button. Press [ ] record button in order to change the editing mode.
• CELL EDIT : Here you can (de-) activate every single cell.
• DEL BLOCK : Here you can deactivate a complete block of cells.
• DEL ALL : Here you can deactivate all cells at once.
• ADD BLOCK : Here you can activate a complete block of cells.
• ADD ALL : Here you can activate all cells at once.
Set MD Sensitivity
Here you can set the sensitivity of motion detection.
• MD ENERGY : Shows the current recognized motion.
• MD THRESHOLD : By pressing the buttons [ ] or [ ] you can set the
value when motion detection is triggered. The lower the
value is set the more sensitive motion detection reacts.
l Manual Record
l Motion Setup continued
16
MENU
PLAY
REC
POWER
ON / OFF
SD card
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
− VIDEO SIZE / FRAME RATE:
Here you can change the video size and frame rate for the manual recording.
− QUALITY:
Here you can choose between three recording qualities:
• High (HQ) • Normal (NQ) • Basic (BQ)
− BRIGHTNESS: Adjustable 0~9
− SHARPNESS: High / Normal / Basic
− MODE: O / Fixed
− GAIN: X2 / X4 / X8

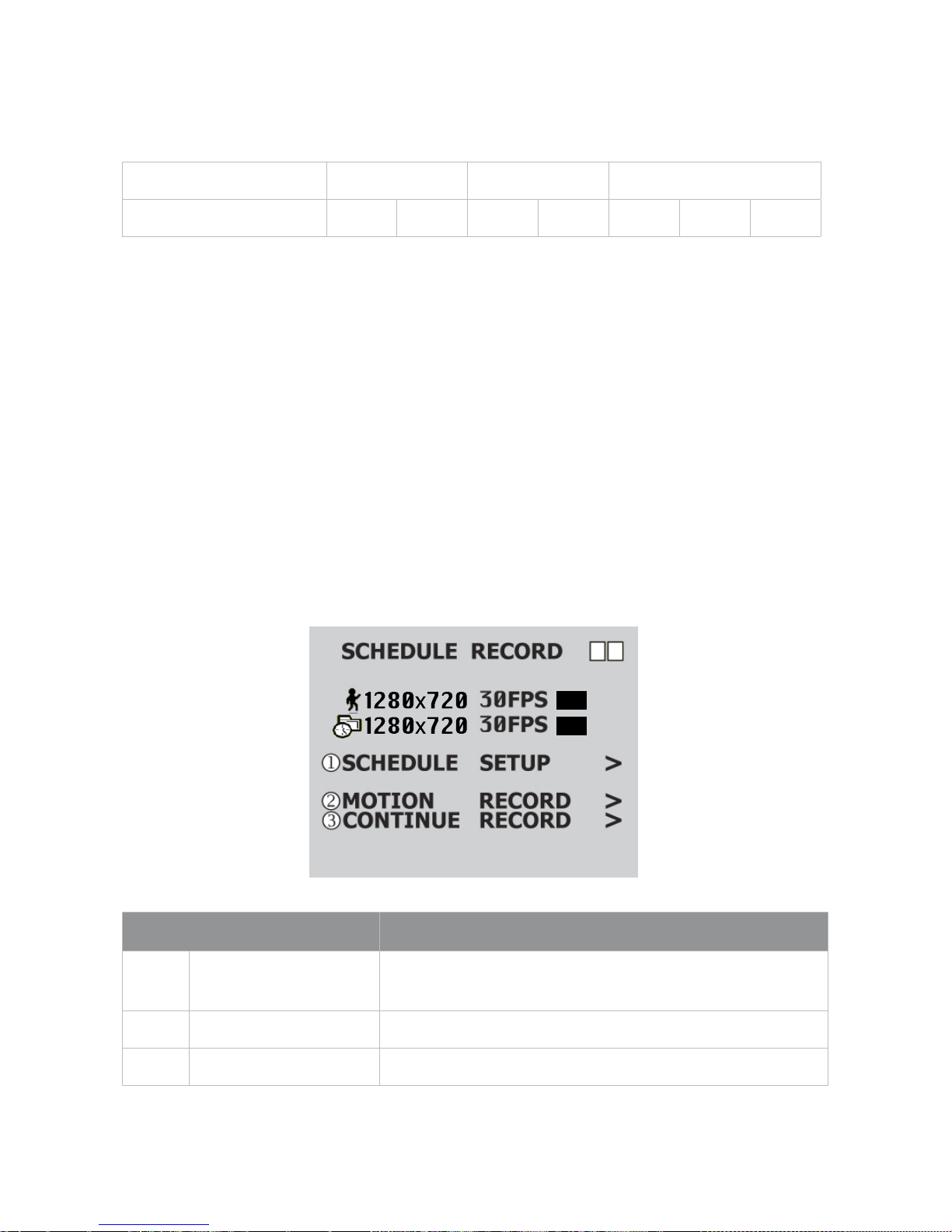

l Schedule Record
Here you can see a short summary of the settings for motion and continuous
recording.
Note : Max. frame rate is 25 fps for 1920 x 1080
No. Mode Schedule Record Function
1 SCHEDULE SETUP Activate / Deactivate the schedule and the recording
settings.
2 MOTION RECORD Settings for the motion detection.
3 CONTINUE RECORD Settings for continuous recording.
17
l Manual Record continued
Video Size 640 x 480 1280 x 720 1920 x 1080
Max. Frame Rate 1 fps 2 fps 4 fps 10 fps 15 fps 20fps 30fps
BQ
BQ

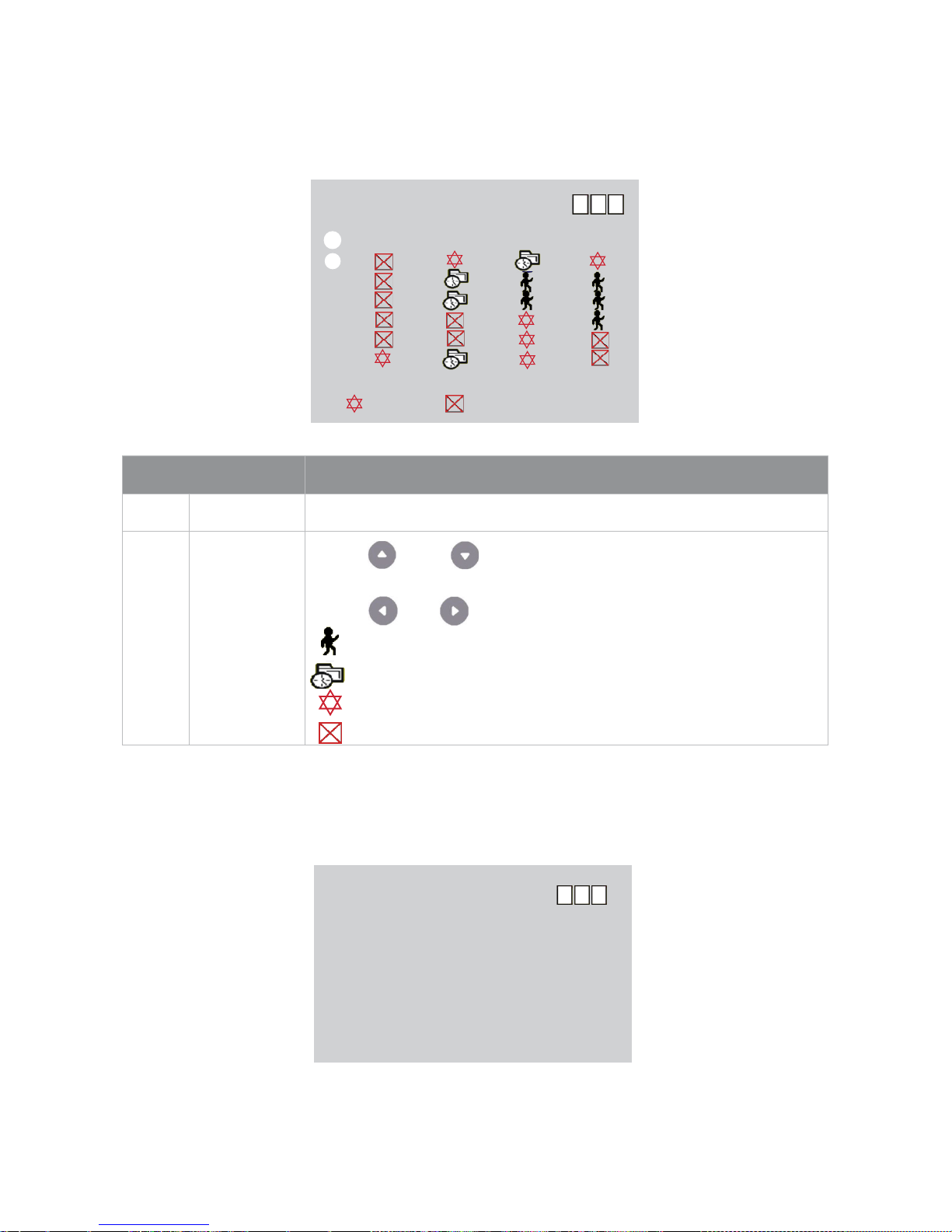

Schedule Setup
Motion Record
Here you can change the settings for the motion detection.
No. Mode Schedule Setup Function
1 SCHEDULE Recording ON / OFF (default value is OFF)
2 00 - 23 With [ ] and [ ] buttons you can navigate between the
hours.
Press [ ] or [ ] to change the recording types.
: Motion detection
: Continuous recording
: All modes active
: No mode active
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
01 07 13 19
03 09 15 21
04 10 16 22
05 11 17 23
02 08 14 20
SCHEDULE SETUP
SCHEDULE : ON
00 06 12 18
: ALL : NONE
MOTION RECORD
FRAME RATE : 30FPS
VIDEO
SIZE : 1280x720
QUALITY : MEDIUM
DURATION : 10 SEC
AUDIO : ON
PRE - RECORD : 10 SEC
18
− Motion record functions:
• VIDEO SIZE : Here you can set the recording resolution.
• FRAME RATE : Here you can set up how many fps to be recorded.
• QUALITY : Here you can set the recording quality.
• DURATION : Here you can set how long the device shall record after
motion has been detected.
• PRE-RECORD : Here you can set the amount of footage that will be saved
before an event is triggered.
Continue Record
Here you can change the settings for the continuous recording.
− Continuous record functions:
• VIDEO SIZE : Here you can set the recording resolution.
• FRAME RATE : Here you can set up how many fps to be recorded.
• QUALITY : Here you can set the recording quality (LOW / MEDIUM /
HIGH). The higher the quality, the better the playback
image, but the recording requires more space.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
CONTINUE RECORD
FRAME RATE : 30FPS
VIDEO
SIZE : 1280x720
QUALITY : MEDIUM
19
l Motion Record continued
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com

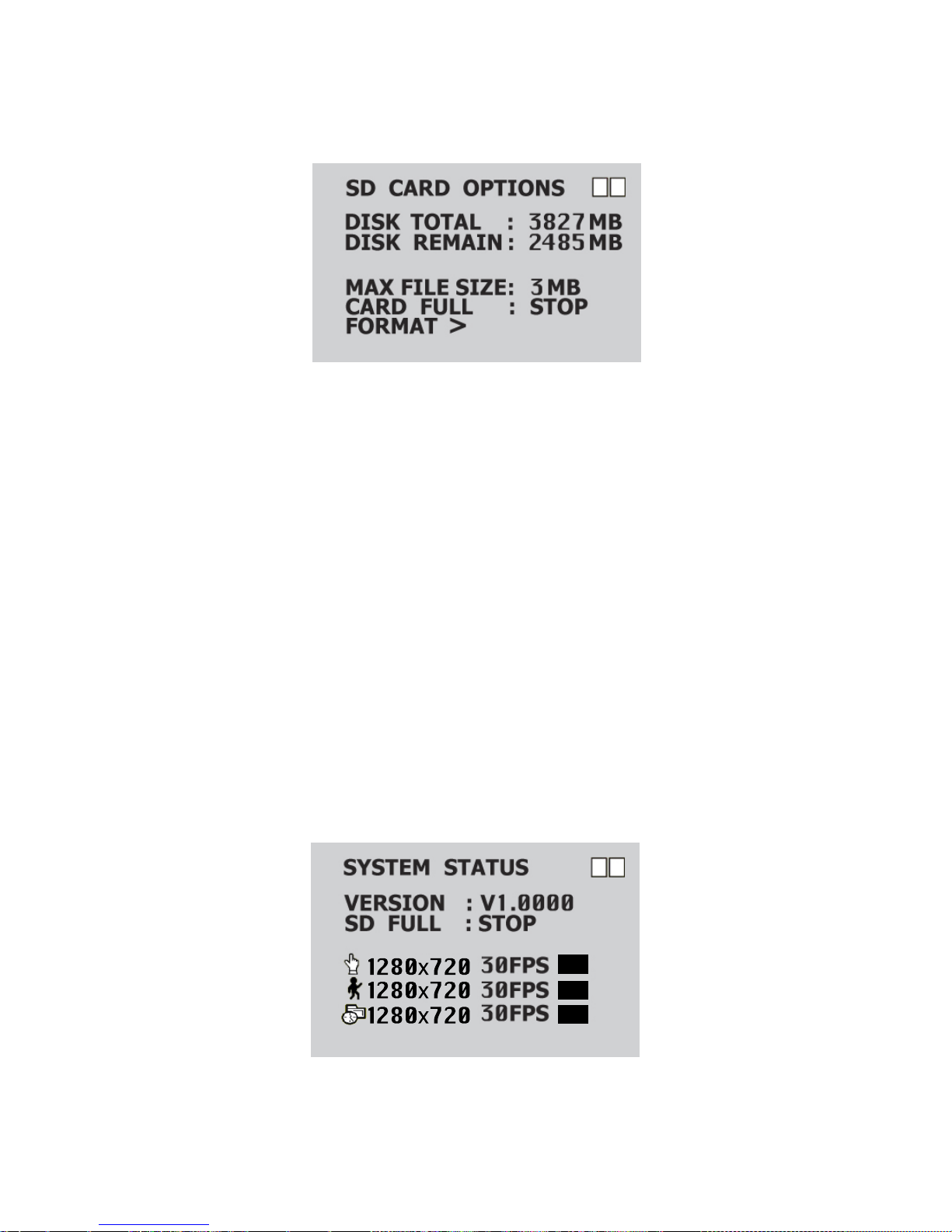

l SD-Card
− SD-Card functions:
• DISK TOTAL : Shows the total capacity of the inserted SD-Card.
• DISK REMAIN : Shows the remaining capacity of the inserted SD-Card.
• MAX FILE SIZE : Here you can set the max. le size (3 ~ 100 MB) of a
recording. If the size is reached a new le is created.
• CARD FULL : Here you can choose what happens when the total
capacity of the SD-Card is reached:
- STOP : The recording is stopped.
- LOOP : The recording continues. The oldest les are
replaced by the new recordings.
• FORMAT : Here you can format the SD-Card. All data will be
deleted, and a new .
l System Status
Here you can nd a summary of the rmware version and the recording
settings. Press exit/stop to return to the main menu.
20
BQ
BQ
BQ
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com

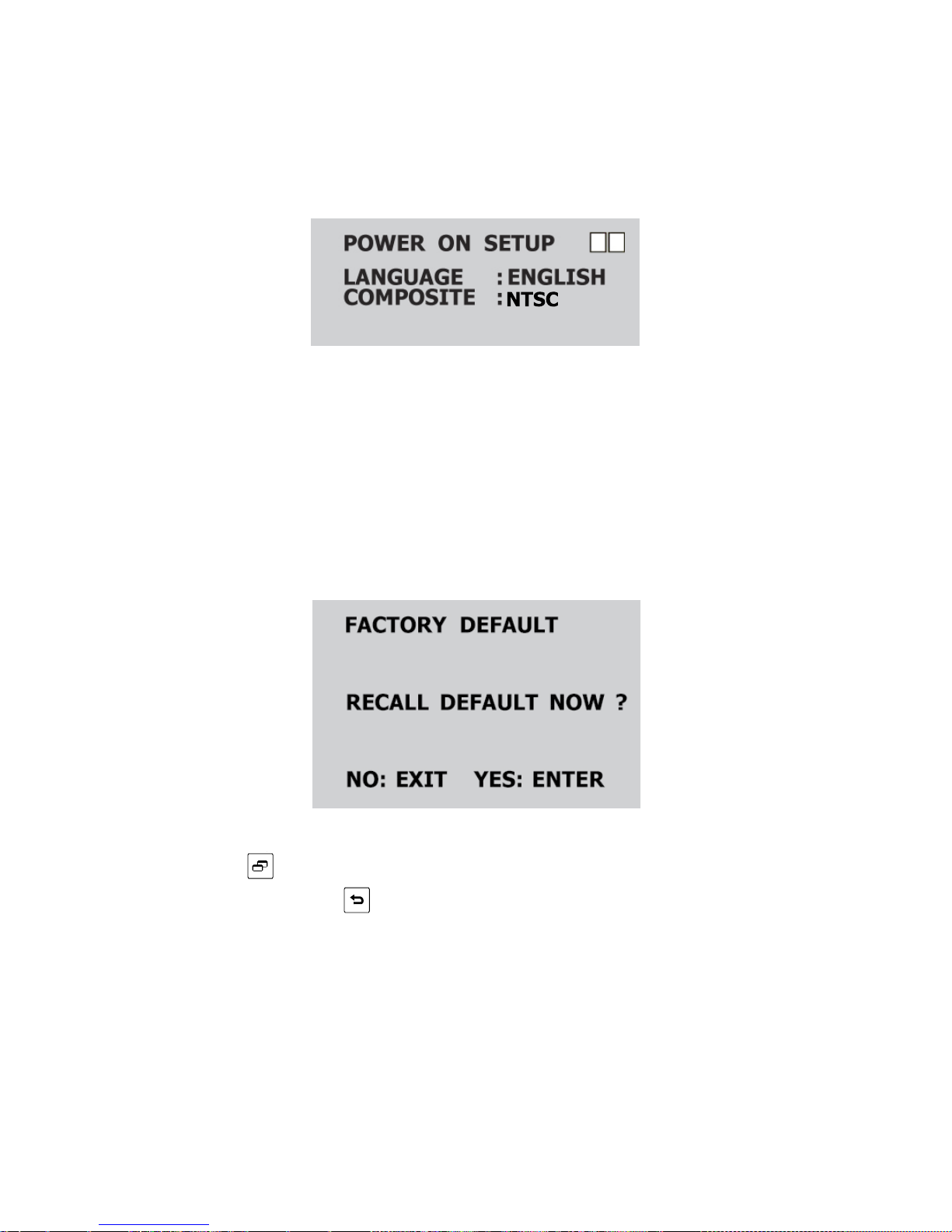

l Power on Setup
− Power On Functions:
• LANGUAGE : Here you can set the OSD menu language.
• COMPOSITE : Here the video standard for the video output is shown.
l Factory Settings
Here you can reset all settings, except Date and Time, to factory default.
− Press [ ] button to reset to factory default.
− To back up, press [ ] button and return to the main menu.
21
MENU
PLAY
REC
POWER
ON / OFF
SD card
EXIT
MENU
PLAY
REC
POWER
ON / OFF
SD card
32GB SD-Card
(example)
Frame Rate
Resolution
Quality
30 fps at
640x480
30 fps at
1280x720
High 134 Hrs. TBD
Normal 290 Hrs. TBD
Basic 434 Hrs. TBD
Possible Recording Times
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
22
Recording times are approximate. Design and specications are subject to change without notice.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Troubleshooting
If you have trouble operating your device, refer to the following table. If the
guidelines do not enable you to solve the problem, contact Clinton Electronics
Technical Support at 1-800-549-6393 or 815-633-1444.
Problem Solution
Why is the power button not
functioning?
• Ensure the power cord is fully engaged.
• Check the battery power, insert new batteries if necessary.
Why does the system auto
reboot during normal
operation?
• It indicates that an SD-Card error has been
detected. To enable data completeness,
monitoring procedure will reboot the
device. After device reboot the system
returns to the status before reboot (ie.
returns to Manual Record or Schedule
Record).
23
ver: 04.03.18
The material in this document is subject to change without notice. While reasonable
eorts have been made to assure the accuracy of this document, Clinton Electronics
and it’s employees assume no liability resulting from errors or omissions in this
document, or from the use of the information contained herein. Clinton Electronics
reserves the right to make changes or revisions in the product design or the product
manual without reservation and without obligation to notify any person of such
revisions and changes.
Sales: 1-800-447-3306 Support: 1-800-549-6393 www.clintonelectronics.com
Clinton Electronics Corp. 6701 Clinton Road. Loves Park, IL 61111
Loading...
