Clinton Electronics CE-PTZ10x User Manual

High Speed Dome Camera

CE-PTZ10X
User Manual

CLINTON Electronics
6701 Clinton Road
Loves Park, IL 61111

1.800.447.3306 Sales

1.800.549.6396 Support

1.800.633.8712 Fax

www.clintonelectronics.com

v.04.05.10

Table of Contents

Intro

System

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents, Installation & Set-up, Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Precautions & Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connection Schematic, RS485 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Distribution, Cable Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Basic Operation: Initial Test, OSD Menu, Keyboard Navigation . . . . . . . . . . . . . . . . . . .

Edit Dome Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Info, Display Setup, Motion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clearing Functions, Password Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-7

4

5

8

9

10

11

11

12

13

Camera

Function

Window
Blanking

Appendix

Clock, Communication Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Zoom, Backlight, Shutter, Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Scan, Pattern. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tour, Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Time Running . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Window Blanking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OSD Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

14

15

16

17

18

18

19

20

Introduction

Congratulations on the purchase of your new High Speed Dome Camera. This camera
is a full-functional, high-speed pan-tilt-zoom camera in a compact size, enclosed in
a dome housing. It is designed for professional surveillance applications, and can be
integrated into any surveillance system.

Construction:

• Aluminum-Alloy housing and nishing

• High-precision, machined aluminum construction

• Designed for 24-7 operation

• Stepless and smooth PTZ with micro-processor controlled high-precision mechanism

• 360˚ endless pan range with 1˚-160˚ per second

• 90˚ Tilt range with 1˚-90˚ per second and auto ip

• Stabilized image transfer at 1˚/s (max. zoom)

Built-in Camera:

• High-Performance zoom camera with digital signal processing

• High-Resolution with real 540TVL

• High-Sensitivity with SONY Ex-View CCD

• Integrated 10x optical high-speed zoom iris lens

• Auto-Iris function

• Fast auto-focus

• Manually congurable exposure modes

• Privacy masking up to 24 zones

Functions:

• 128 preset points

• 4 preset tour sequences with 32 presets each

• 4 self-learning (pattern) sequences

• 1 scan sequence

• OSD for conguration setup

• RS 485 interface

• Multiple Protocol settings (CLINTON, Pelco-D, Pelco-P)

• Soft-Setup for ID, Baudrate, and Protocol

• Intelligent Thermal-Control with temperature indicator

• Idle-Protection with user denable action

4

PACKAGE CONTENTS

3”

4”

Bolt

Install the wall mount bracket

9.8”

7”

3”

4”

Bolt

Ceiling/Wall

Indoor mount bracket

Insert PTZ tabs into mount

holes and turn to lock in place

Install the wall mount bracket

Set screw

Insert PTZ tabs into mount

holes and turn to lock in place

Indoor Mounting

9.8”

7”

CE-PTZ10x Camera

DC 24VAC

Power

Supply

Wall Mount

Set Screw
(+1 extra)

User Manual

Installation and Set up

Unpacking your camera

Your PTZ camera comes with a power supply, as well as a wall mount and a small screw to
attach the camera to the wall mount (plus one extra screw). Carefully remove the contents

from it’s packing and set on a rm surface. Save the packing in case of future service

requirements or transportation needs.

The Transparent cover is sensitive and should be handled with care. Do not touch or rub the
surface in any way with the protective foil. Please use a dry cloth to clean the inner and outer
surfaces. For contamination, use a natural detergent. Improper cleaning method will cause permanent
scratches on the cover and cause unclear image or focusing errors of the camera.

Dimensions

Installation

5

Precautions

For all service or installation needs, please refer to qualied service personnel or system installers

Do not attempt to disassemble the device

To prevent electric shock, do not remove screws or cover. There are no user-serviceable parts inside.

Contact qualied service personnel for maintenance

Handle the device with care

Do not strike or shake, as this may damage the device. It should be protected against extreme pressure,

vibration, and humidity during transportation and storage. Damages caused by improper transportation
may void the warranty.

Do not use strong or abrasive detergents when cleaning the device’s body and transparent cover.

Use a dry cloth to clean the device when dirty. When dirt is hard to remove, use a mild detergent and
wipe gently.

Do not operate the device beyond its specied temperature or humidity ratings.

Do not use the dome camera in an extreme environment where high temperature or high humidity
exists.

Do not point the camera lens directly into sunlight or any strong light source.

This will cause permanent damage to the camera and voids the warranty.

Read this user manual carefully before operating the device

Make sure local electric safety standards are followed when using or installing the appliance.

Do not install the camera in an orientation other than as designed

And do not bend or squeeze the device as this may damage the mechanical structure of the device and

void the warranty.

Do not touch the cover with bare hands or any object

Doing so may scratch the surface and aect the image quality.

6

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, SO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS
OR OTHER OPENINGS ON THE EQUIPMENT.

This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
within this unit.

This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.

FCC COMPLIANCE STATEMENT

FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH
THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL
INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF
NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL MAY CAUSE
HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT
IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE
USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE
EQUIPMENT.

CE COMPLIANCE STATEMENT

WARNING: THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT, THIS PRODUCT
MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE
ADEQUATE MEASURES.

CAUTION: BEFORE ATTEMPTING TO CONNECT OR OPERATE THIS PRODUCT, PLEASE READ THE
LABEL ON THE BOTTOM AND USER’S MANUAL CAREFULLY.

Technical specications are subject to change without prior notice. Manual may contain
mistakes or print errors. All trademarks mentioned belong to their respective owners.

7

Installation

Safety Instructions before starting

- Do not install and operate this appliance in a ammable and explosive environment.

- Make sure that the installation is done according to the local electricity safety regulations of
your country.

- Before installation and maintenance, make sure that the appliance is disconnected from the
power source.

- Handle the device during installation carefully. Falls or extreme vibration may cause

irreparable damages or void the warranty.

- Do not install or operate the device near any high-voltage devices or high-voltage cable.
The safety distance should remain at least 50m.

- To achieve best image quality, its recommended to use underground cable shielded with

steel tube. Do not install the cable without any protection.

- In a thunderstorm area or region with high inductive voltage, such as high voltage

transformer stations, it is necessary to use additional lightning-proof equipment or

lightning rod for protection.

- For outdoor installation, lightning-proof and grounding of the device should be considered.
Please refer to the industrial safety regulations of your country.

- Grounding should be considered to eliminate any interference and fulll the safety

requirements. Do not connect the ground with short-circuited or other high voltage electric

networks.

- The resistance of down conductor should not exceed 4 Ohms, and its thickness should be

at least 25mm2.

- This appliance has the lightning-proof function which can prevent damages caused by
high-voltage pulse, such as lightning strike below 1500.

- This device meets the Ip66 standards against dust and water. Make sure that the installation

is protected from prolonged water droplet/spatter exposure, which can damage the device.

- Make sure that the installation environment meets the requirements of the device, such as
weight support, sucient room for cords, and power supply requirements.

8

Keyboard Adaptor

(No: 14375)

RS-232/

GND GND R T

RS-485/

RS232 R
RS232 G

DC12V -

RS485 -

Power

DC12V

RS485 +
DC12V +
DC12V +

RS232 T

Keyboard

RJ45

Keyboard Adaptor

(included with CE-PTZKEY)

CE-PTZ10X

CE-PTZKEY

RS485+ (Green Wire)

RS485- (Yellow Wire)

AC24V (Black Wire)

AC24V (Red Wire)

DVR

MUX

MENU

SET/

SHOT/

ALM/

GRP/

OFF/

ON/

AUTOPAN/

System Keyboard

VER34<01>

AUX/

RUN/

HOLD/

PREV/

NEXT/

1

2

3

4

5

6

7

8

9

*

0

ENTER

MON

CAM

CLR

OPEN/

BACK

FAR/
PIC.L

NEAR/

PIC.F

CLOSE/

DEL

TELE/
PgDn

WIDE/
PgUp

POWER

DVR

MUX

SYS

Rx

Tx

IRIS

FOCUS

ZOOM

RJ45 Cable

Power Supply to Wall Outlet

Power Supply to Wall Outlet

BNC Connection

to Monitor or DVR

Monitor

DVR

DVR

BNC to DVR or Monitor

3 2 1

Installation

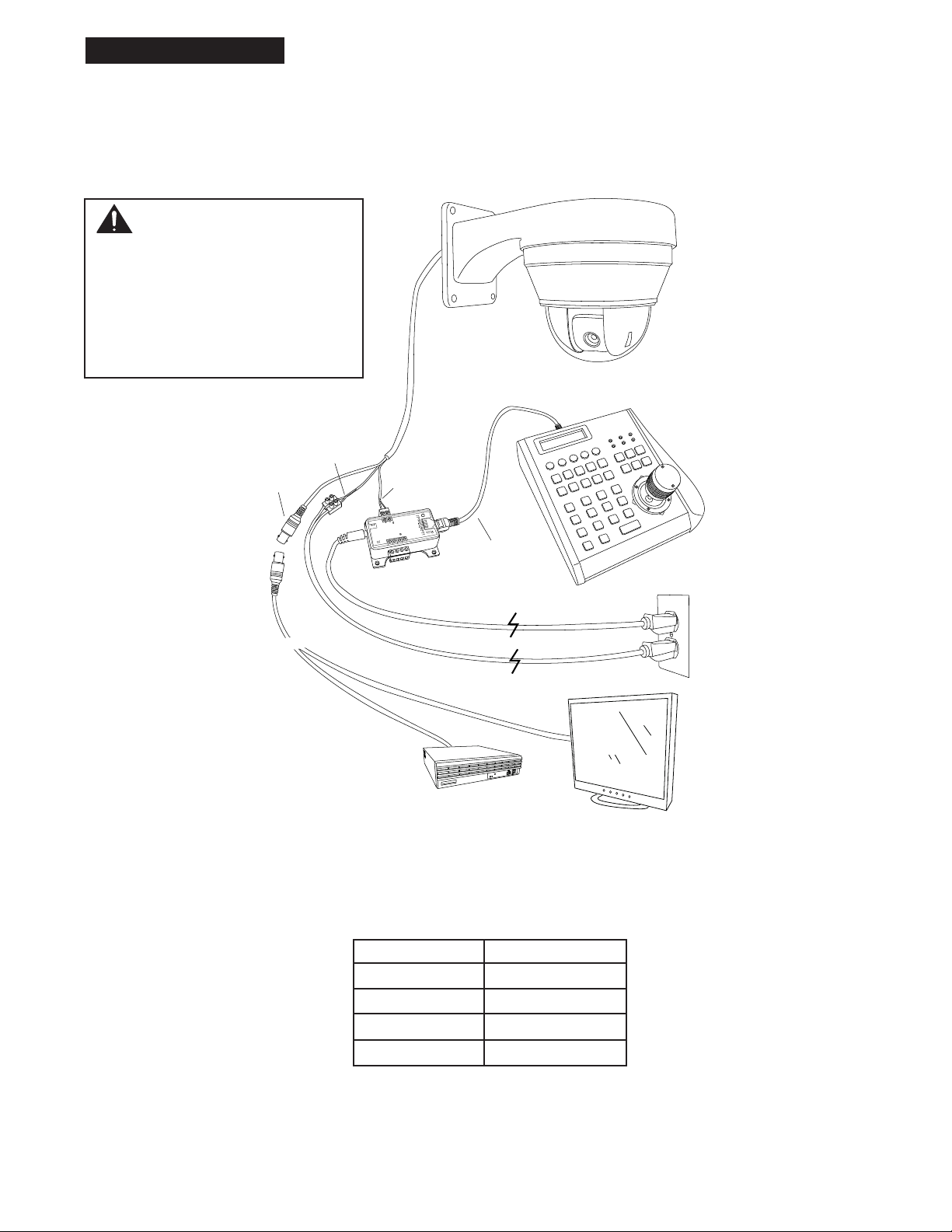

Connection Schematic

The high speed dome camera series can be connected to various optional accessories through
the standard connector types, which simplify the cable handling and avoids possible errors. All

accessories are tested for maximum compatibility and best performance.

This dome has jumperless design,
meaning protocol, baud-rate,
and ID are to be set in OSD. The protocol
can be automatically recognized by the
system. For the rst start, please ensure
your keyboard parameters match those

shown on the initial screen (ie. protocol,
baud-rate, ID). Doing so will allow you to

enter the OSD for further settings.

RS485 Cable-

The telemetric control of the device uses RS485 serial communication with half duplex

transmission technology. The transmission distance can vary, depending on cable type,

and baud rate. The following table shows maximum distances based on cable with 0,56mm
(24AWG) twisted pair:

Baud Rate Max. Distance

2400 bps 5577ft / 1700m
4800 bps 3609ft / 1100m
9600 bps 2297ft / 700m
19200 bps 1312ft / 400m

Due to environmental interfaces, such as electromagnetic and induction elds, or number of connected
devices on the RS485 bus, or using thinner than 24AWG cable, the transmission range may be less.

9

Installation

System Keyboard

VER34<01>

Termination ON

RS 485+

RS 485-

Termination OFF

Termination OFF

Termination ON

System Keyboard

VER34<01>

RS-485 Distributor

System Keyboard

VER34<01>

Termination ON

RS 485+

RS 485-

Termination OFF

Termination OFF

Termination ON

System Keyboard

VER34<01>

RS-485 Distributor

Video Amplier (optional)

DVR

Monitor

(optional)

DVR

(optional)

Up to 750m, coaxial cable

RS 485+

RS 485-

120Ω

Resistor

120Ω

Resistor

Device 1

Device 2

Device 3

System Keyboard

VER34<01>

Termination ON

RS 485+

RS 485-

Termination OFF

Termination OFF

Termination ON

System Keyboard

VER34<01>

RS-485 Distributor

Video Amplier (optional)

DVR

Monitor

(optional)

DVR

(optional)

Up to 750m, coaxial cable

Balun Transmitter

(optional)

DVR

Monitor

(optional)

DVR

(optional)

Up to 1200m, twisted pair or cat5 cable

Balun Receiver

(optional)

Star-Connection-

The star-form connection is most commonly used. It enables the connection of dierent dome
cameras with longer cable runs. It is recommended to use an RS485 distributor to ensure the
telemetric data transmission.

The advantage of the star-connection is that every channel can work independently and can

take a cable length up to 3,280 feet (1000 meters) (depending on cable quality). In cases where
more dome cameras are installed, the star-connection can be extended with additional RS485

distributors.

Video Cable-

Coaxial cable with 75Ω impedance with copper conductor at center conductor, and shielded
with 95% copper. The following table shows dierent cable type and its maximum length:

Cable Standard Max. Distance (m / ft)

RG 59 / U 750 ft / 229m

RG 6 / U 1000 ft / 305m

RG 11 / U 1500 ft / 457m

The values are for reference only. Depends on the cable

quality and environmental conditions, the transmission

distance might be less.

If the cable length is more than 1,312ft (400m), it is recommended to use optional accessories,

such as a video amplier or twisted-pair video converter, for boosting the video signal.

Extend connection distance
with video amplier

Extend connection distance with
Twisted-Pair video converter

10

Basic Operation­Initial Screen and Self-Testing

After powered on, the dome starts the self-testing by slowly rotating and panning. After the self­test completes the initial information will be displayed on the screen.

S/N:XXXXXXXXXXXXXXX
CLINTON V2.42
PROTOCOL: CLINTON
DOME ADDRESS: 001
COMM 9600, N, 8, 1

S/N of the PTZ
Software Version
Protocol
Dome ID
Communication
Parameter

remain on the screen until a
button is pressed, joystick is
moved, or until “POWER UP

ACTION” initiates. See next page

on how to show Initial Info within
system settings menu, and how
to dene Power up action.

Open the On-Screen-Display (OSD) Menu

This dome supports OSD menu for simple conguration of device settings. To enter the OSD

menu, press [shot] 95 [enter] on the keyboard. Or call the sequence [shot] 9 [enter] twice within 3

seconds. If you encounter troubles, make sure your keyboard settings are correct for the camera
you are trying to control, such as the CAM number on your keyboard matching the number
assigned to the desired PTZ.

Navigation from keyboard

[IRIS OPEN] Enters the sub menu or conrms a setting

[IRIS CLOSE] Exits the selected menu item or cancels the current setting.

[UP], [DOWN] Move between menu lines, or adjust the selected value.

The initial information will

[RIGHT] Enter a highlighted menu item. (same as [IRIS OPEN])

[LEFT] Moves left or exit the menu item.

System Settings

MAIN MENU

- - - - - - - - - - - - - - - - - ­ SYSTEM SETTING -->
CAMERA SETTING -->
FUNCTION SETTING -->
WINDOW BLANKING -->
EXIT

EDIT DOME LABEL

For multiple domes in a single installation, it may be helpful to assign a name to
every dome with location info. Label may contain alphanumeric values up to 16
characters long. Ensure Dome Label is set to “ON” ; see Display Setup on pg.12.

- Enter OSD and select SYSTEM SETTING

- Select EDIT DOME LABEL and enter the sub menu

SYSTEM SETTING

- - - - - - - - - - - - - - - - - ­ EDIT DOME LABEL -->
INITIAL INFO -->
DISPLAY SETUP -->
MOTION -->
CLEAR -->
PASSWORD SETUP -->
CLOCK SETTING -->
COMM SETTING -->
BACK
EXIT

- Select LABEL and enter with [RIGHT] or [IRIS OPEN]

- The input character starts to ash, use [UP] or [DOWN] to select the desired
character and [RIGHT] for next input.

- Available characters appear in the following order: “0” to “9”, “A” to “Z”, “:” , “<” ,
“>” , “-”, {SPACE}

- Use [LEFT] to move to previous character if needed.

- If you need to delete a character, use the {SPACE} character.

EDIT DOME LABEL

- - - - - - - - - - - - - - - - - ­ LABEL: DOME 1
BACK
EXIT

- When nished, press [IRIS OPEN] , or use [RIGHT] to move to last

character and then navigate to BACK or EXIT to exit the editing mode.

- Select “BACK” to exit to “SYSTEM SETTING” menu.

11

INITIAL INFO

- - - - - - - - - - - - - - - - - ­ S/N: XXXXXXXXXXXXXXX
CLINTON V2.42
PROTOCOL: CLINTON
DOME ADDRESS: 001
COMM 9600, N, 8, 1
BACK
EXIT

DISPLAY SETUP

- - - - - - - - - - - - - - - - - ­ DOME LABEL OFF
PRESET LABEL OFF
ZOOM LABEL OFF
ZONE LABEL OFF
DIRECTION LABEL OFF
TEMPERATURE LABEL OFF
TIME LABEL OFF
DATE LABEL OFF
BACK
EXIT

DOME LABEL TEMP
PRESET LABEL

INITIAL INFO

Shows the serial number, current rmware version and other settings.

[BACK]: Move to previous screen

[EXIT]: Exit the OSD

DISPLAY SETUP

Customize the labels shown on the OSD

[DOME LABEL]: Shows dome label name on OSD

[PRESET LABEL]: Shows the current preset label on OSD (see pg.15; “Preset”)

[ZOOM LABEL]: Shows magnication setting on OSD

[ZONE LABEL]: Shows current zone (must rst be set up: see pg.17; “Zones”)

[DIRECTION LABEL]: Shows current direction on OSD: Displayed as (Pan: 0º-359º,

Tilt: 0º-90º)

[TEMPERATURE LABEL]: Shows current temperature inside dome on OSD

ZONE LABEL DATE
DIRECTION ZOOM TIME

MOTION

- - - - - - - - - - - - - - - - - ­ AUTO FLIP OFF
PROPORTION PAN OFF
PARK TIME 000
PARK ACTION NONE
POWER UP ACTION NONE
FAN ENABLED 113
BACK
EXIT

[TIME LABEL]: Shows current time on OSD. Displayed as Year/Month/Day.

[DATE LABEL]: Shows current date on OSD. Displayed as 24 hour clock.

[BACK]: Move to previous screen (doing so will save your changes to display setup)

[EXIT]: Exit the OSD (doing so will save your changes to display setup)

MOTION

The motion control includes the setting for Park Time action and other features.

[AUTO FLIP]: Disabling this function will limit the tilt range to 90 degrees only

[PROPORTIONAL PAN]: Pan speed adjusts accordingly to the zoom ratio. The more

the operator zooms in, the slower the pan speed. The Park Time speed will be
adjusted accordingly.

[PARK TIME]: Sets the idle time in minutes, until [PARK ACTION] is activated.

[PARK ACTION]: You can select an action that will be started after certain idle time,

such as preset, tour or pattern. Select NONE to disable the function.

[POWER UP ACTION]: Instructs the dome to start a predened action when
system boots up and completes the self test. This could be helpful to restore the
observation after power loss.

[FAN ENABLED]: Sets the temperature limit for the internal cooling fan to start.

[BACK]: Move to previous screen (doing so will save your changes to motion)

[EXIT]: Exit the OSD (doing so will save your changes to motion)

12

- - - - - - - - - - - - - - - - - -

CLEAR

CLEAR ALL ZONES
CLEAR ALL PRESETS
CLEAR ALL PATTERNS
CLEAR ALL TOURS
CLEAR ALL WINDOWS
FACTORY DEFAULTS
RESTART
BACK
EXIT

CLEAR

The CLEAR function resets the stored settings and controls back to factory default.

*NOTE: Pressing Right with the joystick will activate the following functions.
There are no sub menus to these functions. You cannot undo the action.

[CLEAR ALL ZONES]: Clear set zones

[CLEAR ALL PRESETS]: Clear all stored preset positions

[CLEAR ALL PATTERNS]: Clear all stored pattern tours

[CLEAR ALL TOURS]: Clear all tours

[CLEAR ALL WINDOWS]: Clear all privacy masking settings

*[FACTORY DEFAULTS]: Reset all settings and return to factory settings

[RESTART]: Restarts the system, used after resetting factory defaults

[BACK]: Move to previous screen

[EXIT]: Exit the OSD

PASSWORD SETUP

- - - - - - - - - - - - - - - - - ­ OLD PASSWORD : ******
NEW PASSWORD : ******
CONF PASSWORD: ******
ENABLE PASSWORD OFF
BACK
EXIT

*NOTE: After using the FACTORY DEFAULTS option, all system settings and
stored information, such as presets, tour, or patterns will be permanently
erased. Please make sure this is your intention before selecting this option.

PASSWORD SETUP

In password-settings menu, you can change the password, and enable/disable the

password protection function. The password function can prevent unauthorized
access to the OSD and changes to the settings. It consists of a 6 digit number from
0-9, and can be disabled if so desired.

1. To modify the password, you must input the old password. The default
password is 000000.

2. Enter a new password.

3. Enter the new password again in [CONF PASSWORD] to conrm.

To set the password, move left/right to select a digit, and up/down to change the

number. When nished, press [IRIS OPEN] on the keyboard, or move the cursor
right to save the settings.

A “SUCCESS” message will appear on screen when changes are saved, or your
submission is correct. An “ERROR” message will appear on screen when an incorrect
password is entered.

13

CLOCK SETTING

- - - - - - - - - - - - - - - - - ­ TIME 13:44:30
DATE 10/03/31
BACK
EXIT

COMM SETTING

- - - - - - - - - - - - - - - - - ­ S/N: XXXXXXXXXXXXXXX
CONF:XXXXXXXXXXXXXXX
SITE ID 001
COMM SPEED 9600bps
PROTOCOL CLINTON
BACK
EXIT

CLOCK SETTING

The system is equipped with a RTC (Real-Time Clock) and can be used to display the
date/time information on the screen, or operated via schedule (see pg.18; “Time
Running”). In order to use this function correctly, you must rst set up the date and

time.

[TIME]: Change the time setting. Displayed as 24hr clock.

[DATE]: Change the date setting. Displayed as Year/Month/Day.

[BACK]: Move to previous screen (doing so will save your changes to clock setting)

[EXIT]: Exit the OSD (doing so will save your changes to clock setting)

COMM SETTING

To edit settings for Site ID, baudrate, and protocol, you must rst unlock these settings
by entering the serial number again into the [CONF] eld. Protocol setting can be
detected automatically.

Camera Settings

MAIN MENU

- - - - - - - - - - - - - - - - - ­ SYSTEM SETTING -->
CAMERA SETTING -->
FUNCTION SETTING -->
WINDOW BLANKING -->
EXIT

CAMERA SETTING

- - - - - - - - - - - - - - - - - ­ ZOOM SPEED HIGH
DIGITAL ZOOM ON
BLC MODE OFF
SLOW SHUTTER OFF
ADVANCE SETTING -->
BACK
EXIT

CAMERA SETTING

- - - - - - - - - - - - - - - - - ­ ZOOM SPEED HIGH
DIGITAL ZOOM ON
BLC MODE OFF
SLOW SHUTTER OFF
ADVANCE SETTING -->
BACK
EXIT

ADVANCE SETTING

- - - - - - - - - - - - - - - - - ­ AE MODE AUTO
SHUTTER N/A
IRIS N/A
BRIGHT N/A
WB MODE AUTO
R GAIN N/A
B GAIN N/A
BACK
EXIT

In this section, the camera and image related functions can be set.

[ZOOM SPEED]: Zoom-in speed

[DIGITAL ZOOM]: Besides the optical zoom, this PTZ is equipped with digital image

enlargement, known as digital zoom. When o, only the optical zoom will be available.

[BLC MODE]: Backlight compensation mode. Use this option when the observed
object has a strong backlight such as sunlight, or other light source.

[SLOW SHUTTER]: The slow shutter allows a higher sensitivity by exposing the image

sensor a longer period of time, useful when observing objects do not have much
movement.

[ADVANCED SETTING]: Enters the advanced settings sub-menu for the camera.
[AE MODE]: Activate auto-exposure mode for various exposure methods for
dierent environments:

- SHUTTER MODE: In shutter mode, the camera changes the shutter
speed to regulate light.

- IRIS MODE: Regulate the iris-opening to control the exposure.

- BRIGHTNESS: Regulate the exposure by changing the brightness control

- AUTO: Automatically regulates the exposure modes.

[WB MODE]: The camera supports Auto, Manual, ATW, OPW, Outdoor, and
Indoor modes of White Balance, which chooses the correct color of the image.

*NOTE: R gain and B gain are only editable in Manual mode.

- R GAIN: Regulates the red elements in the image color

- B GAIN: Regulates the blue elements in the image color

14

Function Settings

MAIN MENU

- - - - - - - - - - - - - - - - - ­ SYSTEM SETTING -->
CAMERA SETTING -->
FUNCTION SETTING -->
WINDOW BLANKING -->
EXIT

FUNCTION SETTING

- - - - - - - - - - - - - - - - - ­ PRESETS -->
SCAN -->
PATTERNS -->
TOUR -->
ZONES -->
TIME RUNNING -->
BACK
EXIT

PRESETS

- - - - - - - - - - - - - - - - - ­ PRESET NUMBER 001
SET PRESET -->
SHOW PRESET
CLEAR PRESET
EDIT PRESET LABEL -->
BACK
EXIT

In the function settings, user can setup the automated PTZ functions, such as
preset position, tours, scan, etc. These functions may become very useful for
your surveillance application.

PRESET

Preset point is a position of PTZ which can be memorized by the device and be
recalled immediately, if needed. Up to 128 preset points are supported. Quickly
recall a preset using the keyboard by pressing “SHOT”, the desired preset #,
then “ENTER”. *NOTE: Assigning #95 to a preset will result in an error, as this

number is used to call up the System Settings OSD Menu.

[PRESET NUMBER]: Selected preset position

[SET PRESET]: Setup the preset position. Enter this menu, move the PTZ to

desired position, and press [IRIS OPEN] to store, or [IRIS CLOSE] to discard.

[SHOW PRESET]: This will show the current preset dened in [PRESET NUMBER]

[CLEAR PRESET]: This will delete the current preset dened in [PRESET NUMBER]

[EDIT PRESET LABEL]: Assign a name to the current preset position dened in

[PRESET NUMBER]. This label will show on the screen when called up. “Preset
Label” must be set to “ON” for label to appear on-screen. See pg 12; “Display
Setup”.

[BACK]: Move to previous screen (doing so will save your changes to presets)

[EXIT]: Exit the OSD (doing so will save your changes to presets)

15

- - - - - - - - - - - - - - - - - -

SCAN

SCAN NUMBER 01
SCAN SPEED 50
SET LEFT LIMIT -->
SET RIGHT LIMIT -->
CLEAR SCAN
RUN SCAN
EDIT SCAN LABEL -->
BACK
EXIT

SCAN

A Scan-Tour is an automated Pan movement between 2 dened positions with
speed setting. The scan will move from the dened Left limit, to the dened Right
limit in a straight path, and back again. If you wish to have your PTZ follow a more

advanced path, use one of the next two selections: “PATTERN”, or “TOUR”.

[SCAN NUMBER]: Current scan number

[SCAN SPEED]: Dene the scan speed

[SET LEFT LIMIT]: Dene the left point of the scan tour. To dene, enter the

selection and move the PTZ to desired position. Use [IRIS OPEN] to store or [IRIS
CLOSE] to discard.

[SET RIGHT LIMIT]: Dene the right point of the scan tour. To dene, enter the
selection and move the PTZ to desired position. Use [IRIS OPEN] to store or [IRIS
CLOSE] to discard.

[RUN SCAN]: This will run the current scan dened in [SCAN NUMBER]

[CLEAR SCAN]: This will erase the current scan dened in [SCAN NUMBER]

[EDIT SCAN LABEL]: Assign a name to the current scan dened in [SCAN NUMBER]

- - - - - - - - - - - - - - - - - -

PATTERNS

PATTERN NUMBER 001
PROGRAM PATTERN -->
RUN PATTERN
CLEAR PATTERN
EDIT PATTERN LABEL -->
BACK
EXIT

[BACK]: Move to previous screen (doing so will save your changes to scan)

[EXIT]: Exit the OSD (doing so will save your changes to scan)

PATTERN

A pattern-tour is a custom tour dened by recording the user’s actions up to 180
seconds per tour. This camera can support up to 4 pattern tours.

[PATTERN NUMBER]: Current pattern number

[PROGRAM PATTERN]: Record the pattern tour. Enter this menu to start the tour

recording, when nished, press [IRIS OPEN] to store.

[RUN PATTERN]: This will run the current pattern dened in [PATTERN NUMBER]

[CLEAR PATTERN]: This will erase the current pattern dened in [PATTERN

NUMBER]

[EDIT PATTERN LABEL]: Assign a name to the current pattern dened in [PATTERN
NUMBER]

[BACK]: Move to previous screen (doing so will save your changes to pattern)

[EXIT]: Exit the OSD (doing so will save your changes to pattern)

16

- - - - - - - - - - - - - - - - - -

TOUR

TOUR NUMBER 001
EDIT TOUR -->
RUN TOUR
CLEAR TOUR
BACK
EXIT

TOUR

A Tour is an automated cruising through selected preset positions with individual
speed settings and dwell times. This PTZ supports up to 4 tours with 24 positions
each. *NOTE: Before a tour can be properly set up, you must rst dene your

preset points you wish to include in the tour (see page 16 “Presets”).

A tour sequence will repeat until interrupted by a movement of the joystick
after it reaches a preset point, or until another command is entered (ie.
[SHOT]95[ENTER] to enter menu).

[TOUR NUMBER]: Current tour number

PO-S-TM PO-S-TM PO-S-TM

EDIT TOUR

00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
BACK
EXIT

ZONES

- - - - - - - - - - - - - - - - - ­ ZONE NUMBER 001
SET LEFT LIMIT -->
SET RIGHT LIMIT -->
CLEAR ZONE
EDIT ZONE LABEL -->
BACK
EXIT

[EDIT TOUR]: Edit the current selected tour as dened in [TOUR NUMBER]
Tour Editing:

PO: The preset position being included in the tour. If there is no preset

position stored, please exit, and dene presets before continuing.

S: The speed in which the PTZ moves to this preset. The value is between

1(slow)-8(fast).

TM: The dwell time before the PTZ moves to the next point. Given in
seconds. (Up to 60 sec.)

[RUN TOUR]: This will run the current tour dened in [TOUR NUMBER]

[CLEAR TOUR]: This will erase the current tour dened in [TOUR NUMBER]

[BACK]: Move to previous screen (doing so will save your changes to tour)

[EXIT]: Exit the OSD (doing so will save your changes to tour)

ZONES

The zone function allows user to dene a perimeter with a name tag. The
perimeter is dened by setting a Left, and Right end of a desired area. When the
camera enters this area, the name will be displayed on the screen, which provides
better orientation in surveillance applications. Up to 8 zones are supported. Make
sure “Zone Label” is set to “ON” in Display Setup; see pg12.

[ZONE NUMBER]: Current zone number

[SET LEFT LIMIT]: Dene the left point of the zone

[SET RIGHT LIMIT]: Dene the right point of the zone

[CLEAR ZONE]: This will erase the current zone dened in [ZONE NUMBER]

[EDIT ZONE LABEL]: Assign a name to the current zone dened in [ZONE NUMBER]

[BACK]: Move to previous screen (doing so will save your changes to zones)

[EXIT]: Exit the OSD (doing so will save your changes to zones)

17

TIME RUNNING

- - - - - - - - - - - - - - - - - ­ TIME CHANNEL 1
START TIME 00:00
END TIME 00:00
RUNNING NONE
BACK
EXIT

TIME RUNNING

The time running function is a scheduled start for predened action, such as preset
tour, scan tour, etc. This PTZ supports up to 4 schedules. Before setting this function,

please make sure that the system time has been set correctly (see clock setting; pg14)

[TIME CHANNEL]: Current schedule number

[START TIME]: Start time of selected schedule as dened in [TIME CHANNEL]

[END TIME]: End time of selected schedule as dened in [TIME CHANNEL]

[RUNNING]: Dene the action to be started. Select None to deactivate the function.

[BACK]: Move to previous screen (doing so will save your changes to time running)

[EXIT]: Exit the OSD (doing so will save your changes to time running)

Window Blanking

WINDOW BLANKING

- - - - - - - - - - - - - - - - - ­ WINDOW NUMBER 01
EDIT WINDOW -->
ENABLE WINDOW ON
CLEAR WINDOW
BACK
EXIT

The Window Blanking function is used to protect the privacy in the observed area, as

this may be required by law for certain applications. It is also known as “Privacy Masking”,

which covers the selected area with a blank window. This PTZ supports up to 25 masking
windows.

[WINDOW NUMBER]: Current window number

[EDIT WINDOW]: Edit the current masking window as dened in [WINDOW NUMBER]

1. Center the area you wish to mask on the screen by using the joystick.

2. Press iris open to enter window blanking edit.

3. Use the [UP], and [DOWN] movements to increase or decrease the height of
the window mask.

4. Use [LEFT], or [RIGHT] to decrease or increase the width of the window mask.

5. Press [IRIS OPEN] to save the mask.

[CLEAR WINDOW]: Clear the current masking window as dened in [WINDOW NUMBER]

[BACK]: Move to previous screen (doing so will save your changes to time window

blanking)

[EXIT]: Exit the OSD (doing so will save your changes to window blanking)

18

OSD Map

OSD MENU INDEX

SYSTEM SETTING

- - - - - - - - - - - - - - - - - ­ EDIT DOME LABEL -->
INITIAL INFO -->
DISPLAY SETUP -->
MOTION -->
CLEAR -->
PASSWORD SETUP -->
CLOCK SETTING -->
COMM SETTING -->
BACK
EXIT

EDIT DOME LABEL

- - - - - - - - - - - - - - - - - ­ LABEL: DOME 1
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ S/N: XXXXXXXXXXXXXXX
CLINTON V2.42
PROTOCOL: CLINTON
DOME ADDRESS: 001
COMM 9600, N, 8, 1
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ DOME LABEL OFF
PRESET LABEL OFF
ZOOM LABEL OFF
ZONE LABEL OFF
DIRECTION LABEL OFF
TEMPERATURE LABEL OFF
TIME LABEL OFF
DATE LABEL OFF
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ AUTO FLIP OFF
PROPORTION PAN OFF
PARK TIME 000
PARK ACTION NONE
POWER UP ACTION NONE
FAN ENABLED 113
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ CLEAR ALL ZONES
CLEAR ALL PRESETS
CLEAR ALL PATTERNS
CLEAR ALL TOURS
CLEAR ALL WINDOWS
FACTORY DEFAULTS
RESTART
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ OLD PASSWORD : ******
OLD PASSWORD : ******
OLD PASSWORD : ******
ENABLE PASSWORD OFF
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ OLD PASSWORD : ******
OLD PASSWORD : ******
OLD PASSWORD : ******
ENABLE PASSWORD OFF
BACK
EXIT

INITIAL INFO

DISPLAY SETUP

MOTION

CLEAR

PASSWORD SETUP

PASSWORD SETUP

MAIN MENU

- - - - - - - - - - - - - - - - - ­ SYSTEM SETTING -->
CAMERA SETTING -->
FUNCTION SETTING -->
WINDOW BLANKING -->
EXIT

CAMERA SETTING

- - - - - - - - - - - - - - - - - ­ ZOOM SPEED HIGH
DIGITAL ZOOM ON
BLC MODE OFF
SLOW SHUTTER OFF
ADVANCE SETTING -->
BACK
EXIT

ADVANCE SETTING

- - - - - - - - - - - - - - - - - ­ AE MODE AUTO
SHUTTER N/A
IRIS N/A
BRIGHT N/A
WB MODE AUTO
R GAIN N/A
B GAIN N/A
BACK
EXIT

FUNCTION SETTING

- - - - - - - - - - - - - - - - - ­ PRESETS -->
SCAN -->
PATTERNS -->
TOUR -->
ZONES -->
TIME RUNNING -->
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ PRESET NUMBER 001
SET PRESET -->
SHOW PRESET
CLEAR PRESET
EDIT PRESET LABEL -->
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ SCAN NUMBER 01
SCAN SPEED 50
SET LEFT LIMIT -->
SET RIGHT LIMIT -->
CLEAR SCAN
RUN SCAN
EDIT SCAN LABEL -->
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ PATTERN NUMBER 001
PROGRAM PATTERN -->
RUN PATTERN
CLEAR PATTERN
EDIT PATTERN LABEL -->
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ TOUR NUMBER 001
EDIT TOUR -->
RUN TOUR
CLEAR TOUR
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ ZONE NUMBER 001
SET LEFT LIMIT -->
SET RIGHT LIMIT -->
CLEAR ZONE
EDIT ZONE LABEL -->
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ TIME CHANNEL 1
START TIME 00:00
END TIME 00:00
RUNNING NONE
BACK
EXIT

PRESETS

SCAN

PATTERNS

TOUR

ZONES

TIME RUNNING

WINDOW BLANKING

- - - - - - - - - - - - - - - - - ­ WINDOW NUMBER 01
EDIT WINDOW -->
ENABLE WINDOW ON
CLEAR WINDOW
BACK
EXIT

EDIT PRESET LABEL

- - - - - - - - - - - - - - - - - ­ LABEL: PRESET-001
BACK
EXIT

EDIT SCAN LABEL

- - - - - - - - - - - - - - - - - ­ LABEL: AUTOSCAN1
BACK
EXIT

EDIT PATTERN LABEL

- - - - - - - - - - - - - - - - - ­ LABEL: PATTERN1
BACK
EXIT

PO-S-TM PO-S-TM PO-S-TM
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
00-0-00 00-0-00 00-0-00
BACK
EXIT

- - - - - - - - - - - - - - - - - ­ LABEL: ZONE-1
BACK
EXIT

EDIT TOUR

ZONES

COMM SETTING

- - - - - - - - - - - - - - - - - ­ S/N: XXXXXXXXXXXXXXX
CONF:XXXXXXXXXXXXXXX
SITE ID 001
COMM SPEED 9600bps
PROTOCOL CLINTON
BACK
EXIT

19

Specications

Model CE-P TZ10X

Signal Format PAL / NTSC

Scanning Progressive

Image Sensor 1/4 inch Ex-View CCD

H. Resolution 540 TVL

Viewing Angle 46.0 º (Wide end)

Zoom 10 x Optical / 12 x Digital

Min. Illumination 1.0Lx (typical) - (F1.8, 50 IRE)

Focus Auto / Manual

White Balance Auto / Manual (AT W, Indoor, Outdoor, One Push WB, Manual WB)

Shutter Speed 1 to 1/10,000 Sec. 22 steps

Iris Control Auto / Manual / Auto Slow Shutter

Gain Control Auto / Manual (-3 to 28 dB, 2 dB steps)

Video Output VBS: 1.0Vp-p (Sync Negative), Y / C Output

S/N Ratio More than 50 dB

Pan Speed 0.4 º - 300 º per Sec.

Tilt Speed 0.4 º - 150 º per Sec.

Pan Range 360 º

Tilt Range 0 - 90 º

Communication RS-485, multiple-protocol, coax

Preset Positions 128 Presets

Auto Pan Yes, between 2 presets

Tour / Sequence 4 progr. Tours with max 32 presets / 4 Patterns up to 180s

Privacy Mask 24 Position / 8 Position per Screen

Operating Temp. Outdoor: -40 ºF to 140ºF / Indoor: 14ºF to 122ºF

Power DC 12V / AC 24V

4.6 º (Tele end)

If you have trouble operating your camera and the guidelines in this
manual do not enable you to solve the problem, contact Clinton
Electronics Technical Support at 1-800-549-6393 or 815-633-1444.

20

21

v.01.25.10
