Introduction
Congratulations on the purchase of your new Public View Integrated Camera Security
display. This display and camera combination is designed for simple and eective loss
prevention by making the viewer aware of video surveillance measures.
Features:
• Rugged Steel Enclosure
• SD-Card Player
• Motion Detection
• Low Voltage power
• Integrated High-Resolution Digital Day & Night Camera (600 TVL)
• VESA mounting pattern for ceiling or wall mount options
• Remote control operation of all screen adjustment features
• Wide viewing angles
• Video Output
Precautions
• There are no user serviceable parts inside the unit. Authorized service personnel
must perform all service. To avoid electrical shock, do not disassemble the unit.
Any attempt to disassemble the unit will void the warranty.
• Verify DC power supply before installation. This unit requires an external AC to
DC power supply capable of supplying sucient DC voltage to the display.
• Install the monitor in a location that is suitable for the display. Make sure there is
adequate ventilation around the unit, and that the display is mounted securely to
its support structure.
• Do not place the monitor in direct sunlight, or near sources of heat.
• Do not place the monitor in a damp area.
• Do not place the monitor in an area that is below 40˚F.
• Clean the monitor with water or non-ammonia glass cleaners only. Do not use
abrasive cleaners, abrasives, or highly concentrated ammonia to clean the front
of the display. Clean with a damp cloth only, do not spray directly with water.
3
PACKAGE CONTENTS
SD Card
16
GB
SD Card
2
GB
DVR
REC
MENU/OK
Exit
OSD
AUTO
UP
DOWN
MENU
SOURCE
POWER
SWAP
PIP
MUTE
AUTO
MENU
ENTER
EXIT
VOL+
VOL-
ON
1 2 3 4
Motion
Chime
SD-Audio
Alarm
SD Card
16
GB
SD Card
2
GB
M19, M24 only
M26, M32 only
M19, M24 only
M26, M32 only
M26, M32 only
CE-M19S, CE-M24S,
CE-M26S, or CE-M32S
with access door
Extra Case
Screws (2)
2 GB SD-Card
Remote Control
(batteries included)
Power Pigtail
(for Hardwiring)
110VAC Plug
User Manual
(for media)
Installation and Set up
Unpacking your display
Your Public View display comes with all of the items shown above. Carefully remove the
display from its packing and set the unit on a rm surface. Save the packing in case of future
service requirements.
Installation of the display
The display should be located where it will have the most eect on deterring potential
shoplifting. Keep in mind the lighting conditions, viewing area, ease of installation, and
distance from the power supply when choosing a location. The display is compatible with
many available wall and ceiling mounts, consult your dealer for suggestions. The rear of the
display has a VESA 75mm & 100mm mounting patterns that accepts M4x8mm screws. Please
refer to the installation instructions on the particular mounting bracket and details of how to
install.
Connecting the display
This display requires a 24V DC power supply. Locate the applicable AC to DC power supply
in a suitable location where there is a power source, and access to run the low voltage cable
to the display. (NOTE: The M26S and the M32S are also equipped with an alternate110VAC
power supply capability. You can power the M26S / M32S using either power source. DO NOT use 24VDC and 110VAC simultaneously. This may result in damage to the device.)
For single unit power supplies, you will need to keep the distance from the power supply to
the display less than 75 ft. For multiple unit power supplies, the power supply can be located
at further distances from the displays at a central location. Please refer to the specic power
supply installation instructions for recommended wire size and distances.
Caution: Do not connect the power connector to the display when energized,
doing so may damage the electronics inside the display. Connect power supply
to unit, then to 120v wall outlet.
4
POWER
AUTO
UP
DOWN MENU
POWER
AUTO
UP
DOWNMENU
Display Functions
POWER
AUTO
UP
DOWNMENU
Features
LED Flasher
IR Sensor
Camera
24VDC Power
Supply Input
(M26, M32 only)
24VDC Power
Supply Input
(M19, M24 only)
VESA 75 & VESA 100
mounting patterns
BNC 2
Output
Camera & Camera OSD
Menu Access Door
BNC 2
Input
BNC 1
Output
110VAC Power
Supply Input
(M26, M32 only)
VGA Output
Video SD
Card Slot
LCD OSD
Menu Buttons
Control Access
The access door for the SD-Cards, AV connections, and power is located at the back of the unit and
can be removed by pulling upward and outward from the device.
5
DVR
REC
MENU/OK
Exit
OSD
Remote Control - M19, M24 models
The parameters of the display can be adjusted by using the included remote control.
LCD CONTROLS
Power
Selection Arrows/
Volume
Menu
Mute
*NOTE: All other buttons not described are non-functioning on this device.
LCD CONTROLS
Power – On/O function. This will power o the display only. The internal camera can still
supply video to an external display or DVR.
Mute –Disables the audio on the unit.
Volume – When not in the OSD menu, you can press VOL- to lower the volume and VOL+ to raise
the volume of the chime or SD-Card audio.
Menu – Adjustment of audio, video, signal, tools, & language.
• Push MENU button once.
• Use arrow buttons located around the MENU button to pick category.
• When correct category is chosen, press VOL- and VOL+ buttons to adjust given parameter of
display.
• When adjustment of selected parameter is done, press MENU to go back to the previous screen,
or simply wait for the menu screen to time out.
Selection Arrows – Use in conjunction with the menu button to navigate and make adjustments.
6
SOURCE
POWER
SWAP
PIP
MUTE
AUTO
MENU
ENTER
EXIT
VOL+
VOL-
Remote Control - M26, M32 models
The parameters of the display can be adjusted by using the included remote control.
LCD CONTROLS
Power
Mute
Menu
Selection Arrows
Enter
Exit
*NOTE: All other buttons not described are non-functioning on this device.
Volume
LCD CONTROLS
Power – On/O function. This will power o the display only. The internal camera can still
supply video to an external display or DVR.
Mute –Disables the audio on the unit.
Volume – Press VOL- to lower the volume and VOL+ to raise the volume of the chime or SD-Card
audio.
Selection Arrows – Use to navigate through menus and settings.
Enter – Use to enter a selection.
Exit – Use to back out of menus.
Menu – To adjust video, signal, tools, language use up & down buttons.
• Push MENU button.
• Use UP or DOWN arrow buttons to pick category.
• When category is selected, press ENTER button to enter function.
• Use arrow buttons located around the menu button to select and adjust parameter.
• When adjustment of selected parameter is done, press EXIT to go back to the previous
screen, or simply wait for the menu screen to time out.
7
Display Set-Up
Video Menu: The display should be pre-set for most installations, however if some adjustment
is necessary, we suggest you follow these recommendations by pressing the MENU button on
the remote control:
1. First adjust the BRIGHTNESS control to set the black level so that the images are at their
brightest while the black images are still black. Do not adjust too high where the black
portions of the image become gray or the image will have a “washed out” appearance.
2. Set the CONTRAST control to set the white level so that the images are at their brightest
without losing denition in the white portions of the image.
3. Adjust the COLOR control to achieve a realistic image of the items within the viewing area.
4. Adjust the TINT control if the image has bluish or reddish tint to the white portions of the
image.
5. Decrease the SHARPNESS if the image appears too grainy or pixelated. Increase the
SHARPNESS if the image appears too soft.
6. In the ADVANCED menu, more adjustments can be made as necessary.
Display Menu
1. In the IMAGE MODE setting, you can select from one of the following:
• Motion: Displays SD-Card content, switching to camera image upon motion sensing.
• SD-Video: Displays SD-Card content only.
• Camera: Displays camera image only.
• BNC2: Displays BNC2 source image only.
• Switch: Use in conjunction with the Switch Timer setting to cycle between multiple sources:
Camera, BNC2, and/or SD-Card content.
*NOTE: If an SD-Card is not inserted, the display will show an SD-Card settings menu when SD-Card option is selected.
2. With MOTION DWELL TIME you can select the duration that the camera image will stay on screen
when motion is occurring.
3. With SWITCH TIMER you can select the duration that each selected source will stay on screen.
8
Audio Menu
1. The Audio Menu can be used to raise or lower the volume of the chime or SD-Card activated
audio.
*NOTE: The MUTE function on the remote control will disable the audio/chime sound.
2. Select the audio source by selecting CHIME to enable the built in chime sound, or SD-AUDIO
for the audio on the SD-Card to play.
System Settings Menu
1. The LANGUAGE can be changed to one of the following: English, French, German, Spanish,
Italian, Dutch, Greek, Swedish.
2. The SLEEP TIMER can be set from 1 to 90 minutes.
3. With OSD TIMER you can control the duration the menu is on screen
4. With OSD TRANSPARENCY you can adjust the transparency of the OSD menu.
5. The KEY LOCK function allows you to disable the buttons on the back of the device so you can
only enter the menu and make adjustments with the remote control. A “Key Locked” message will
appear on screen when a back panel button is pressed when Key Lock is activated.
6. In the SPECIAL CONTROL section you can set the following:
6a. MESSAGE On / O -turns the message on
the bottom of the screen on/o.
6b. MESSAGE - Select the message to read
“WELCOME” or “RECORDING IN PROGRESS”.
6c. FLASH -control the message to ash on
and o, or be steady on.
6d. LED CONTROL-disable or enable the
ashing LED on the front of the device.
6e. LED CTRL WITH PANEL - Use this feature
in conjunction with the sleep timer. When
this feature is ON and the device goes into
sleep mode, the ashing LED will turn o with
the LCD panel.
6f. IMAGE ORBIT - Periodically shifts the screen image to prevent image burn-in.
7. RECALL will reset the device to the factory presets.
9
Change SD-Card Image/Video/Audio
POWER
AUTO
UP
DOWN MENU
POWER
AUTO
UP
DOWNMENU
• Insert the SD-Card into your computer or SD-Card reader.
• Move the desired JPEG image, or AVI video le into the SD-Card folder.
(The required full screen image size is 1024x786)
• Leaving multiple media les on the SD-Card will result in the device cycling through all loaded media.
• Insert the SD-Card back into the PVM with the contacts facing out, as shown on the right- DO NOT
FORCE IT IN.
• WHEN SD-CARD IS INSERTED, YOU MUST POWER CYCLE THE UNIT. You can do this by pushing
the power button on the remote control, or by unplugging the power cord from the wall.
• If you choose to display SD-Card content, an SD-Card MUST be inserted, or you will see a
“Settings” Menu.
When an SD-Card is inserted, you
must power cycle the unit by pushing
the power button on the remote, or
unplugging the power from the wall.
10
Accessing the Camera OSD Board
The access door to the camera and OSD Board is located at the bottom of the unit. A Phillips
screwdriver is required to remove the two access panel screws (Fig. A), place the screws in a
location where they will not be lost.
The OSD board is attached to the access panel for easy adjustment of the parameters of the
camera while viewing the front of the screen (Fig. B).
The Zoom and Focus can be adjusted by loosening the two adjustment dials on the lens (Fig. B).
When the desired Zoom and Focus settings are reached, nger tighten the dials; do not over
tighten. The angle of the lens can also be vertically adjusted using the thumb screws on each
side o the lens.
B.A.
Camera
OSD
Board
Lens Angle
Zoom
Focus
Camera OSD Menu
Camera functions and settings can be adjusted or changed by activating the OSD menu. When
the OSD menu is activated text will display on the monitor. The user can then move the cursor
to the desired function to change the setting.
SETUP Menu
LENS • DC
EXPOSURE • BRIGHTNESS • SHUTTER • AGC
• SENS-UP • RETURN
WHITE BALANCE
• MANUAL • AWC SET
SSDR • OFF • ON
BACKLIGHT • OFF • BLC • HLC
DNR3 • OFF • ON
DAY / NIGHT
• EXTERN
SPECIAL
• SYNC • MOTION DET • PRIVACY
• COMM ADJ • LANGUAGE • RETURN
EXIT • SAVE • NOT SAVE • RESET
• IMAGE ADJ. • MONITOR • CAM TITLE
• ATW • OUTDOOR • INDOOR
• AUTO • COLOR • B/W
11
Navigating the OSD Menu
1. Press the SETUP button, then select a menu item from the list available by using the UP
and DOWN buttons.
• Functions are selected using up and down buttons.
• Place the cursor over a desired item, the selected position is displayed.
Select the function
using the UP or
DOWN button.
2. Set up a selected item by using the Left and Right buttons.
3. To nish the settings, select ‘EXIT’ and press the SET button.
Notes
• An item with the icon also has sub menus. To select a sub menu, select
an item with the icon and press the SET button.
• An item with the - - - icon has no sub-menus available for selection.

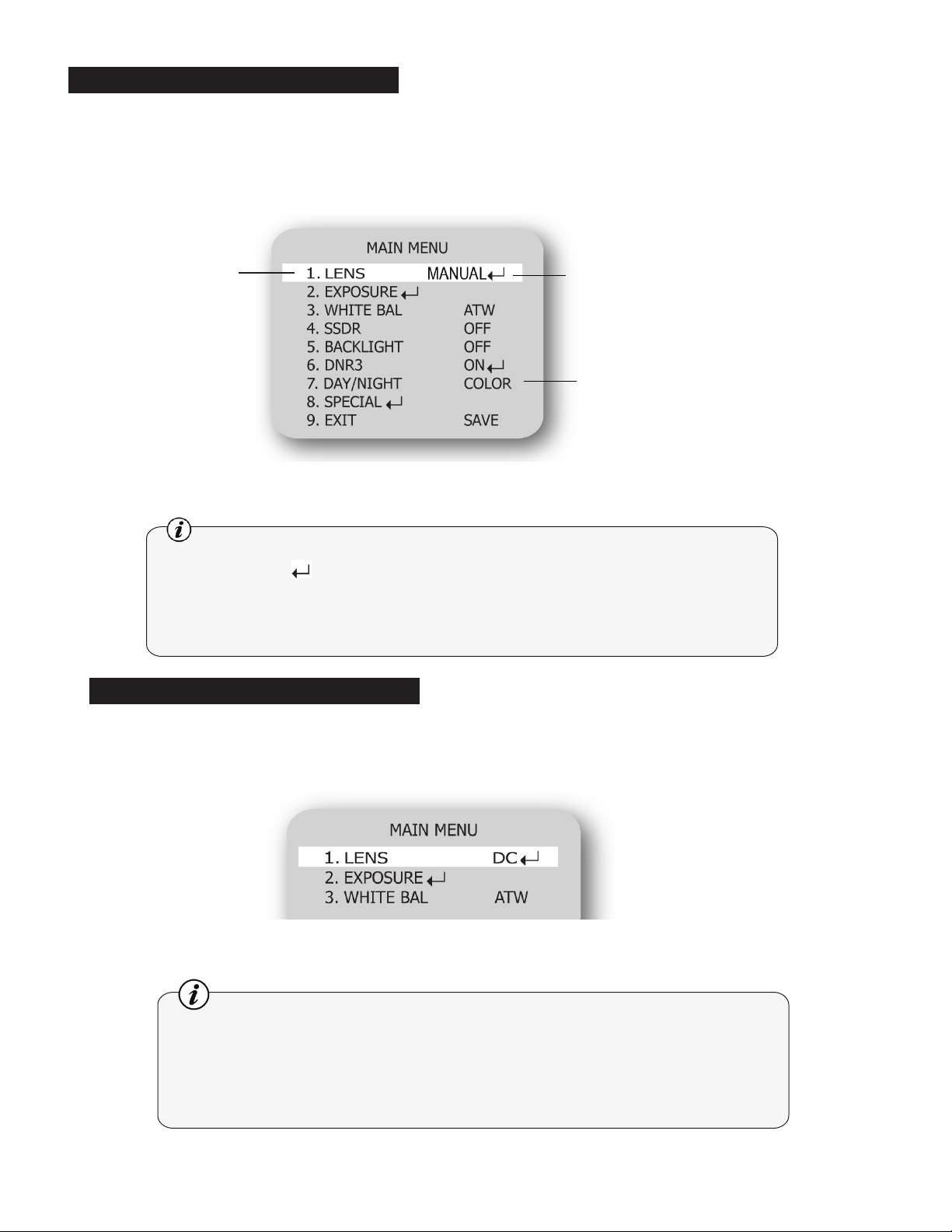

LENS (Adjusting the brightness level)
When an arrow
is present, press
SETUP button to
enter sub-menu
Change the status
using the LEFT or
RIGHT button.
Using this function, you can control the screen brightness.
1. When the SETUP menu screen is displayed, select ‘LENS’ by using the Up and Down buttons
so that the arrow indicates ‘LENS’.
2. Press SETUP to enter the sub menu and adjust the following.
– BRIGHTNESS : Adjusts the video brightness (selectable from 1 - 70).
Notes
• If color rolling occurs when using a DC lens, set Shutter to FLK.
• Some lenses may not work properly, depending on the setting of the
BRIGHTNESS LEVEL.
12

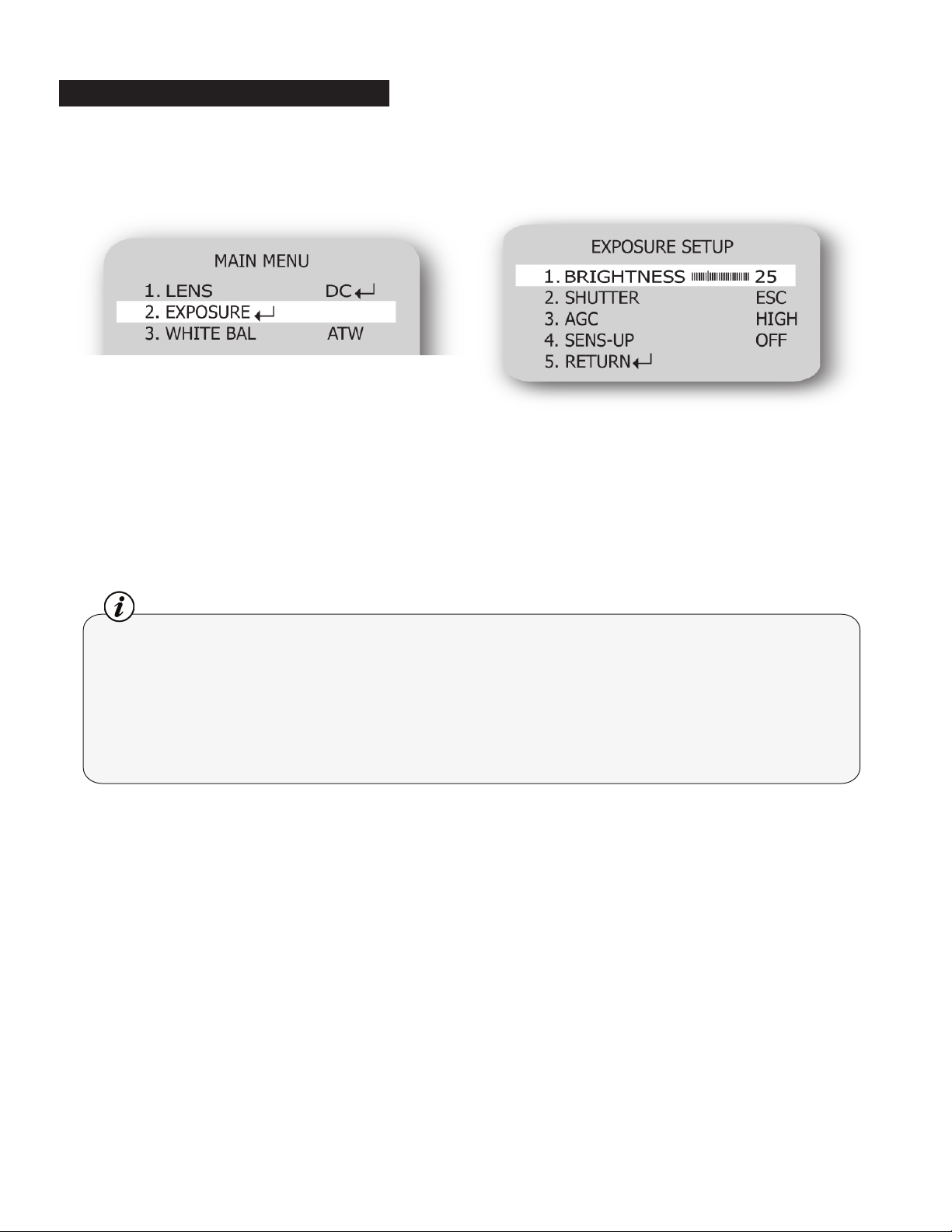

Exposure
1. When the SETUP menu is displayed, select ‘EXPOSURE’ by using the Up and Down buttons so
that the arrow indicates ‘EXPOSURE’. Press SETUP to enter.
2. Select the desired mode using Up and Down buttons.
BRIGHTNESS: Adjusts the exposure brightness.
SHUTTER: You can select either auto or manual shutter.
– A.FLK : Select this when you experience picture icker, which can happen when there is a clash
with the frequency of the installed lighting.
– ESC : Select this to control the shutter speed automatically. If ESC is selected, the shutter speed is automatically controlled depending on the ambient illumination of the subject.
– MANUAL: You can control shutter speed manually. (1/60 ~ 1/120,000)
Notes
• When using a DC lens, set the shutter mode to A.FLK if color rolling occurs.
• When the SHUTTER is set to ESC after selecting Internal Synchronization Type, the picture may
become unstable if the camera faces a bright uorescent light. Therefore, take care when choosing
the installation position.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
AGC (AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen, but the higher the noise.
– OFF : Deactivates the AGC function.
– LOW : Allows automatic gain control from 5.3dB to 32dB.
– HIGH: Allows automatic gain control from 5.3dB to 37dB.
SENS-UP: When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated.
– OFF : Deactivates the SENS-UP function.
– AUTO : Activates the SENS-UP function.
RETURN:Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.
13
Exposure- continued
Notes
• If you press the SET button in ‘AUTO’ mode, you can adjust brightness by increasing or decreasing
the shutter speed. (x2 ~ x512)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that an after-
image will appear.
• Although noise, spots, and whitish symptoms may occur in SENS-UP operation when the zoom
level is increased, this is normal.
White Balance Control

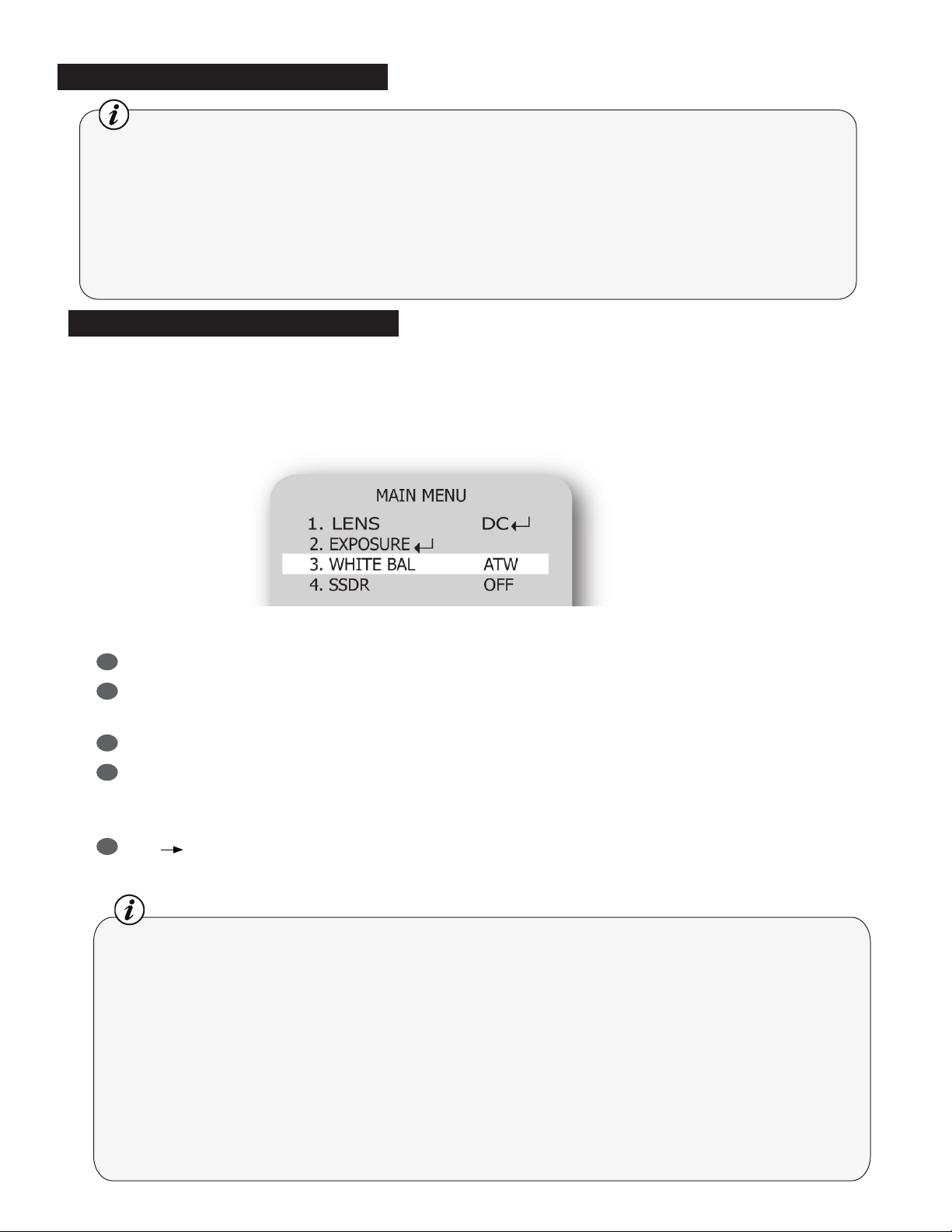

Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘WHITE BAL’ by using the Up and Down
buttons so that the arrow indicates ‘WHITE BAL’.
2. Select a desired mode using the Left and Right buttons.
tSelect one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between1,700°K and 11,000°K.
OUTDOOR : Select this when the color temperature is between1,700°K and 11,000°K
(sodium light inclusion)
INDOOR : Select this when the color temperature is between 4,500°K and 8,500°K.
MANUAL : Select this to ne-tune White Balance manually. Set White Balance rst by using the
ATW or AWC mode. After that switch to MANUAL mode, ne-tune the White Balance
and then press the SET button.
AWC SET : To nd the optimal luminance level for the current environment, point the camera
towards a sheet of white paper and press the Function Setup switch. If the environment changes, readjust it.
Notes
• White Balance may not work properly under the following conditions. In this case select the AWC
mode.
jWhen the color temperature of the environment surrounding the subject is out of the control
range (ie. clear sky or sunset).
kWhen the ambient illumination of the subject is dim.
lIf the camera is directed towards a uorescent light or is installed in a place where illumination
changes dramatically, the White Balance operation may become unstable.
14

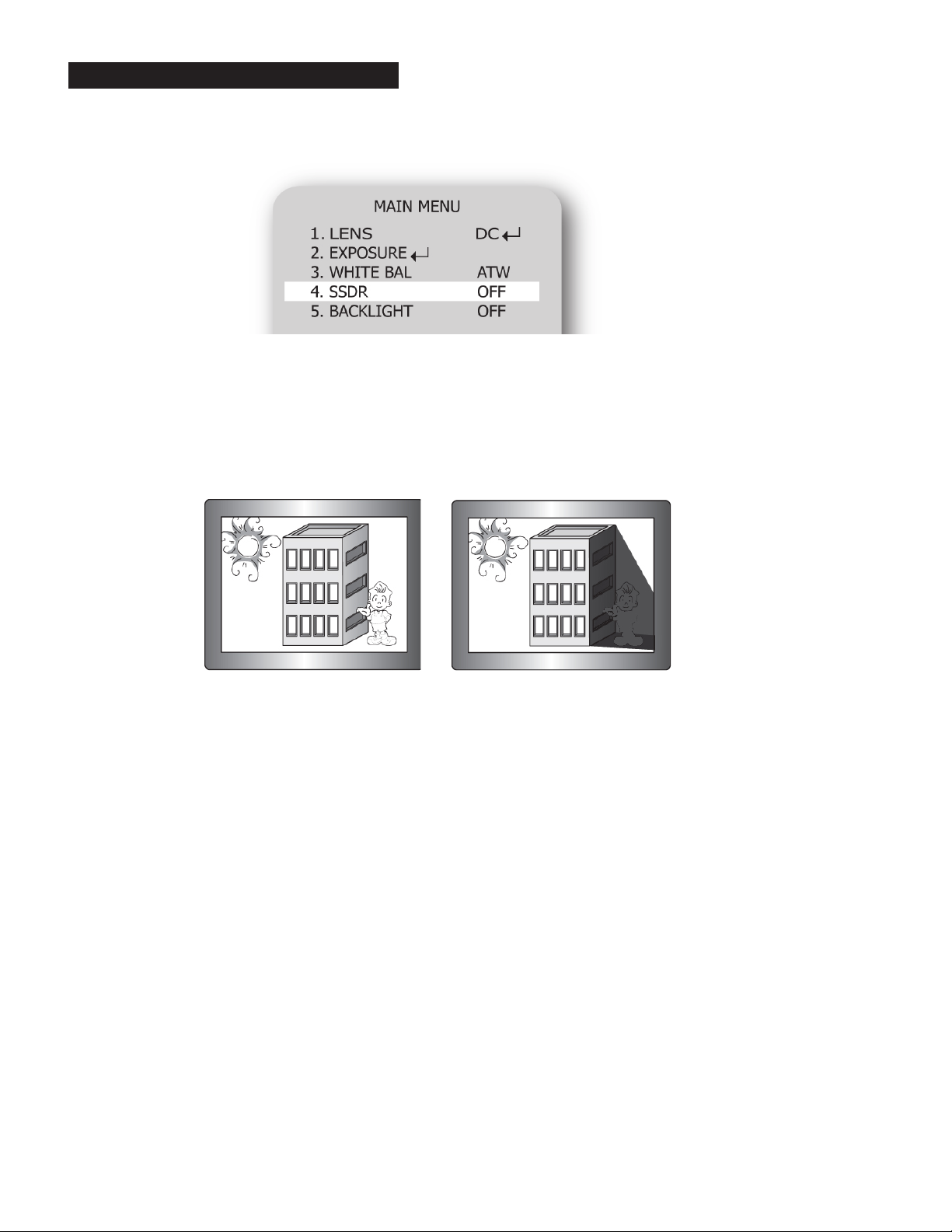

SSDR (Super Dynamic Range)
SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even
out the overall brightness of images with high contrast between bright and dark areas.
1. When the SETUP menu screen is displayed, select ‘SSDR’ by using the Up and Down buttons
so that the arrow indicates ‘SSDR’.
2. Turn on by using the Left/Right buttons and press SETUP to change the SSDR level in the sub-
menu according to the contrast between bright and dark areas.
SSDR ON
SSDR OFF
15
BLC (Back Light Compensation)
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Up and Down
buttons so that the arrow indicates ‘BACKLIGHT’.
2. Select a desired mode using the Left and Right buttons depending on the camera purpose.
BLC: Enables a user to select a desired area on a picture and view that area more clearly.
BLC ON
HLC (High Light Compensation) : If the scene contains extremely bright light areas such as from
car headlight, the light can mask out much of the on-screen detail. Use HLC feature to remove
these exceptionally bright lit areas to allow detail such as car license plate number to become
visible.
– LEVEL: Adjust level of the HLC function.
– LIMIT: Enable to change the operating condition.
– MASK COLOR/TONE : Change the color / brightness of the masking area.
(Black, Red, Blue, Cyan, Magenta)
– TOP/BOTTOM/LEFT/RIGHT : Adjust the area to be enhanced.
HLC MASKING AREA
BLC OFF
OFF : Not being used.
HLC ON
HLC OFF
16
HLC continued
3. Select a desired mode using the Left and Right buttons and press the SET button.
BLC : Select ‘BLC’ to adjust
the area to be enhanced change the level limit,
then adjust the level. mask color/tone and area.
Notes
• For eective license plate observation, it needs minimum illumination and fast shutter speed
more than 1/200sec.
• Because there can be a dierence in the eectiveness of HLC according to the amount of light
area in the screen, optimize the installation angle for the best HLC performance.
• When dark, the HLC is only activated when a bright light exceeding a specic size in NIGHT ONLY
mode.
• The HLC is not activated in day light or when bright light is not present at night in NIGHT ONLY
mode.
HLC :Enable the user to
17

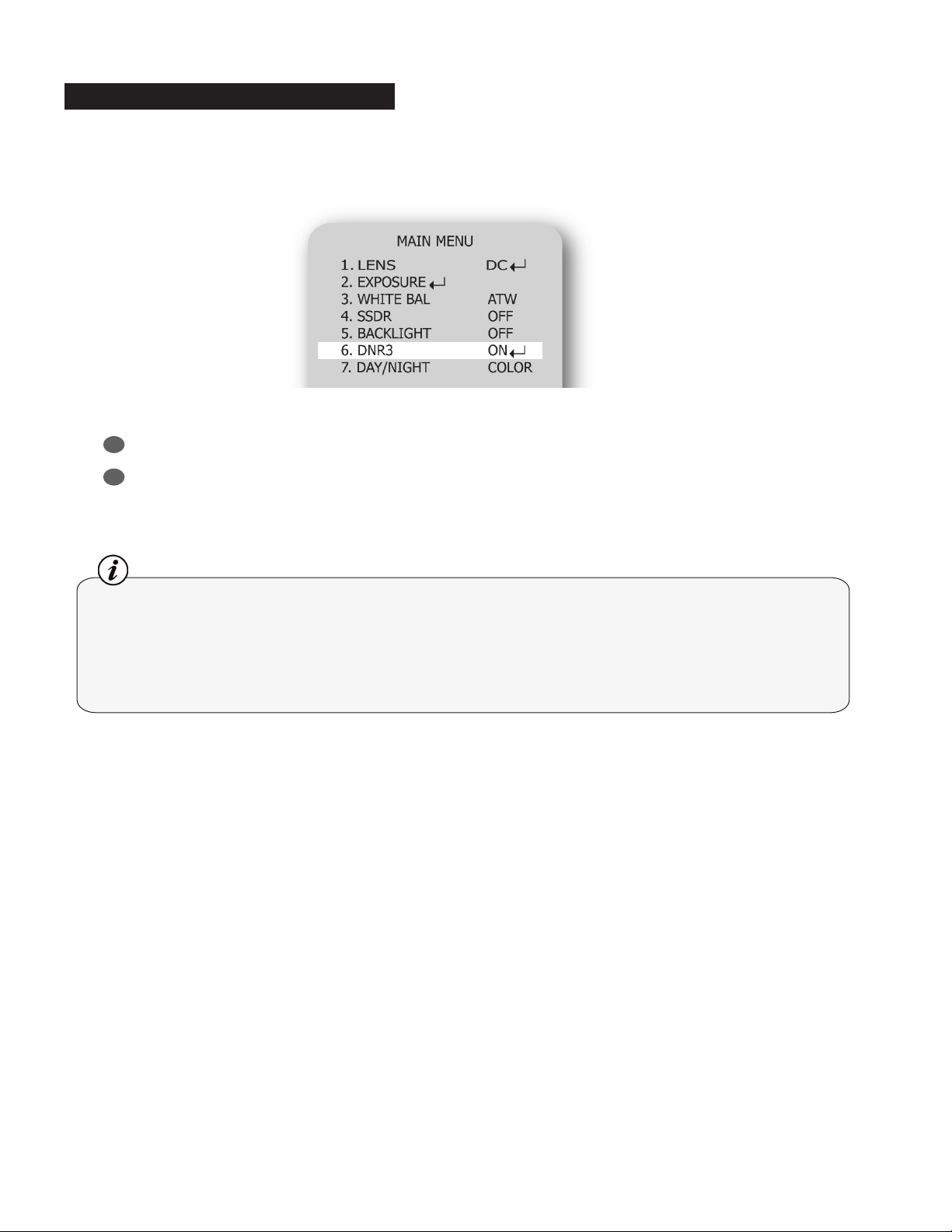

DNR3
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select ‘DNR’ by using the Up and Down buttons so
that the arrow indicates ‘DNR’.
2. Select a desired mode using the Left and Right buttons.
OFF: Deactivates DNR. Noise is not reduced.
ON : Activates DNR so that noise is reduced.
3. Set the DNR mode to ‘ON’ and press the SET button. Then you can adjust the noise reduction
level.
Notes
You cannot set the DNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’.•
When adjusting the noise reduction level in DNR mode, remember that the higher the level is set, •
the greater the reduction in noise level, as will the brightness of the image.
18
Day / Night
You can display pictures in color or black and white.
1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up and Down
buttons so that the arrow indicates ‘DAY/NIGHT’.
2. Select a desired mode using the Left and Right buttons according to the picture display you
want.
EXTERN : This mode allows you to apply a desired lter to external signals.
COLOR : The picture is always displayed in color.
B/W : The picture is always displayed in black and white. You can turn on or o the burst signal on B/W mode.
AUTO : The mode is switched to ‘Color’ in a normal
environment, but switches to ‘B/W’ mode when
ambient illumination is low. To set up the switching time for AUTO mode, press the SET button. You can turn on or o the burst signal on B/W mode.
– DWELL TIME : You can select the duration time the camera changes from day to night mode.
(3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s)
Notes
When using a Video Auto Iris Lens, if you set the lens level to low, automatic switching between •
Color and Black & White may not occur.
When AGC in the EXPOSURE menu is ‘OFF’, ‘ --- “ mode operates as like selecting ‘COLOR’ mode, •
and ‘AUTO’ mode can not be selected.
19
SPECIAL
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Up and Down buttons so
that the arrow indicates ‘SPECIAL’. Press SETUP to enter the ‘SPECIAL’ menu.
2. Select a desired mode using the Up and Down buttons.
IMAGE ADJ:
1) When the SETUP menu screen is displayed, select ‘IMAGE ADJ.’ by using the Up and Down
buttons so that the arrow indicates ‘IMAGE ADJ.’ Press SETUP to enter ‘IMAGE ADJ’.
2) Select a desired mode using the Up and Down buttons.
l V-REV : You can ip the picture vertically on the screen.l H-REV : You can ip the picture horizontally on the screen.l D-ZOOM : You can use a digital zoom of x1 ~ x16.l DIS (Digital Image Stabilizer : This function mitigates any picture movement due to external
factors such as wind.
Notes
As the DIS function uses the digital zoom the camera’s resolution will decrease.•
DIS doesn’t operate when background illumination is too low.•
DIS doesn’t operate when object pattern is monotonic (ie. sky or white wall).•
20
Image Adj. Continued
l FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue)l SHARPNESS : As you increase this value, the picture outline becomes stronger and clearer.
Adjust this value appropriately depending on the sharpness of the picture.
l RETURN : Select this to save the settings for the IMAGE ADJ. menu and to return to the SETUP
menu.
Notes
When the V-REV or H-REV mode is enabled, the text on the screen does not ip.•
If you increase the SHARPNESS level too high, the picture may become distorted or noise may •
appear.
MONITOR : This menu will not be used on this device. Change the settings value of video that
is appropriate to your monitor.
– LCD : Select this menu item when using a LCD monitor.
– CRT : Select this menu item when using a CRT monitor.
– USER : Use this menu item when using a monitor other
than standard ones. You can change the gamma,
PED level, and color gain in the sub menus.
21
CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Up and Down buttons so that the arrow
indicates ‘CAM TITLE’.
2) Set it to ‘ON’ by using the Left and Right
buttons.
3) Press the SET button.
4) Use the 4 direction buttons to move to a
desired letter and select the letter by
pressing the SET button. Repeat this to
enter multiple letters. You can enter up to
15 letters.
5) Enter a title, move the cursor to ‘POS’ and
press the SET button. The entered title
appears on the screen. Select the position
to display the title on the screen by using
the 4 direction buttons and press the SET
button. When the position is determined,
select ‘END’ and press the SET button to
return to the SPECIAL menu.
Notes
• When the CAM TITLE menu is ‘OFF’, no title will be displayed on the monitor screen even if you
enter one.
• Only English is available is this mode.
• If you move the cursor to CLR and press the SET button, all the letters are deleted. To edit a letter,
change the cursor to the bottom left arrow and press the SET button. Move the cursor over the
letter to be edited, move the cursor to the letter to be inserted and then press the SET button.
22
SYNC : In areas where the supply is at
60Hz, you can synchronize the
output phase of multiple cameras
using the power synchronization
function (Line-Lock) without using
a synchronization signal generator.
– INT : Internal Synchronization Type
– L/L : Power Synchronization Type, Line-lock
lPress the Function Setup switch.
lYou can select a desired phase from 0 to 359 when select ‘phase’.
Notes
• When using AC power at 60Hz frequency, you can use the L/L type synchronization.
• When the power is DC 12V, the SYNC menu is xed to the ‘INT’ mode.
MOTION DET : You can monitor activity more ecient with this feature allowing you to observe movement of objects
in 8 dierent areas on the
screen, and the words
‘MOTION DETECTED’ appear
on the screen when
movement is detected..
1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow
indicates ‘MOTION DET’.
23
Motion Detection- Continued
2) Set up the mode using the 4 direction buttons.
– SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high, motion
detection sensitivity is increased to recognize even small movement.
– AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
– SEL POS : Determines which of the 4 vertices of each MD area is to be used.
– XPOS : Determines the coordinate of the horizontal axis for SEL POS.
– YPOS : Determines the coordinate of the vertical axis for SEL POS.
– FILL SET : Fills in a selected MD area. The color of lling is sequentially selected as brown,
orange, blue, cyan, green, yellow, magenta and red.
– RETURN : Select this to save the MOTION DET menu settings and return to the SPECIAL menu.
PRIVACY : Mask an area you want to hide on the screen.
1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow
indicates ‘PRIVACY’.
2) Set up the mode using the 4 direction buttons.
– AREA SEL : Select up to 12 PRIVACY areas.
– MODE : Determines whether to use the area selected in the AREA SEL.
– MASK COLOR : Determines area color. Select Green, Red, Blue, Black, White, Gray.
– MASK TONE : Adjust the brightness of MASK COLOR.
– TOP/BOTTOM/LEFT/RIGHT : Adjust the size and position of the selected area.
– RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.
24
COMM ADJ (Communication Adjustment) : This function sets up the camera communication
status when controlling the camera through an external control device.
1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow
indicates ‘COMM ADJ’.
2) Set up the mode using the 4 direction buttons.
– CAM ID : Determines the camera’s identication number (between 0 and 255).
– BAUD RATE : Select 2400/4800/9600/19200/38400/57600 bps.
– UART MODE : Select NONE, EVEN or ODD for the parity bits.
– RET PKT : Determines whether to send a command back to the controller device when a
communication control command is sent to the camera.
– DISP ID : Display the camera title on the top left corner of the screen.
– PROTOCOL : STW(SPD), PELCO-D, PELCO-P, SEC, BOSCH, HONEY WELL, VICON, PANA.
LANGUAGE : You can select the menu language according to your requirements.
RETURN : Select this to save the SPECIAL menu settings and return to the MAIN SETUP menu.
Exit
Select a desired EXIT mode using the Left and Right buttons depending on the camera purpose.
– SAVE : Save the current settings and exit the MAIN SETUP menu.
– NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu.
– RESET : Resets the camera settings to the factory defaults. Language and Monitor settings are
not initialized.
25
Troubleshooting
If you have trouble operating your device, refer to the following table. If the guidelines do not enable
you to solve the problem, contact Clinton Electronics Technical Support at 1-800-549-6393 or
815-633-1444.
ProblemSolution
Nothing appears on the
screen.
The video image is not clear.Check if the screen and lens are clean. Clean with a clean cloth.•
Check the power connection.•
Check the video signal line connection.•
Check the Brightness of Auto Iris lens.•
Press the POWER button on your remote control.•
Check to ensure the proper voltage is applied to the display. In the •
case of long runs or small wire size, there may be a signicant voltage drop to the display resulting in insucient voltage to properly
power the display. Consult your power supply manual to determine
if the voltage can be increased to compensate.
Adjust the contrast feature of the monitor.•
Make sure that the screen is not exposed directly to a bright light•
Enter the OSD settings of the display with the remote control. Go to •
the SHARPNESS setting and increase the value.
The screen is dark.Adjust the contrast feature of the monitor.•
There is a problem with
the camera operation.
The camera surface is too
hot and black stripes
appear on the screen.
No Audio Make sure the mute function is not activated.•
NOTE: Pixelization in low light conditions is considered normal.
If you have an intermediate device, set the 75Ω/Hi-z properly, and •
check the terminals.
Adjust the brightness level of the lens in the camera OSD menu.•
Check if an appropriate power source to the camera complies with •
the manufacturer’s standard requirement, or if the voltage keeps
changing.
Turn up the volume.•
If using chime sound, make sure “Image Mode” is set to “Motion”.•
If using SD-Card audio, make sure it is a supported audio format.•
26
Troubleshooting
ProblemSolution
The MOTION DETECTION
function is not working.
Colors are not quite right.Check the ‘WHITE BAL’ setting.•
The screen is ickering.Check if the camera is facing directly into sunlight or uorescent light.•
Check if ‘MOTION DETECTION’ mode is turned on.•
Check if the MD LEVEL is too low.•
Check the setting of the MD AREA.•
L/L mode isn’t able to be
selected.
L/L mode is not available.When using DC 12V input power, ‘SYNC’ mode is xed to ‘INT’.•
COLOR (DAY & NIGHT)
mode is not working.
SENS-UP function is not
working.
Have you connected your camera to DC power source? Connect it to •
AC power source.
Check if the AGC menu is set to the OFF position.•
Check if the AGC menu is set to the OFF position.•
Check the limit of SENS-UP AUTO mode.•
27
v.07.18.11
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
