Climax AC5000 User Manual

AC5000 AUTOCLAD - INTEGRATION PACKAGE

Modular, Automated Cladding in either a full machine conguration or

as an integration package to incorporate into your existing setup.

The CLIMAX AC5000 AutoClad is a
great way to add automated cladding
to your arsenal. Modular options allow
you to configure either a full AutoClad
machine, or select just the components
you need to integrate automated
cladding into your existing setup.

This document contains information specific
to the Integration Package.
Please ask your salesperson about
configuring a complete machine.

Flexible & Versatile

• Select the level of integration you
need by selecting the appropriate
components to add automated
cladding to your existing setup.

• Select MIG or TIG options

• Weld diameters as small as 1.2
inches (30.5 mm) for MIG, and 2
inches (50.8 mm) for TIG, and up to
24 inches (609.6 mm) deep. And
with over 3 inches of bore size,
reach increases to 48 inches
(1219.2 mm) on certain models.

High Quality Welds:

• Achieve high-quality welds with
difficult-to-weld materials like Nickel

Alloys, (Inconel™, Monel™,
Hastelloy™) and Stainless Steels.

• Water-Cooled Torch keeps the torch
cool, allowing long weld times,
maximizing productivity and
increasing consumable life.

• Optional wire feeding system
configurations:
Use the CLIMAX Shop Style wire
feeder and the quill mounted push
pull feeder for best wire-feeding
performance, or choose the
"feederless" version, allowing use
of the advanced MIG synergic
systems already in place at your
facility.

Simple, Safe Setup & Operation

• Cross slide provides variable torch
diameter settings. Also allows fine
adjustment of MIG stickout and TIG
arc length control. (Automatic
voltage control available for TIG
systems.)

• Use the Cross Slide Mounting Plate
to quickly mount the AC5000 Quill
Assembly to your existing setup.
Optional Offset Block provides
additional flexibility for setup.

• Optional Remote Control keeps
operator safely away from fumes,
flash, and heat, and allows operator
to make immediate changes to
welding & positioning, increasing
quality while saving time.

• Encoder allows operator to
precisely position weld start and
resume location, even when the
weld tip can not be seen.

2

2014

AC5IP

SPECIFICATIONS, OPERATIONAL DIMENSIONS

16.0 (406.4mm)

4.4 (112mm)

.50 (12.7mm)

3.5 (89mm)

18" QUILL - 29.8" (757mm)
24" QUILL - 35.8" (910mm)
36" QUILL - 47.8" (1214mm)
48" QUILL - 59.8" (1519mm)

22.0" (559mm) MIN

26.5" (673mm) MAX

AC5000 Integration Package

Machine Performance Range

Minimum bore diameter, MIG 1.2 inches 30.5 mm

Minimum bore diameter, TIG 2.0 inches 50.8 mm

Crosslide stroke (radial adjustment) 2.9 inches 73.7 mm

Available stroke lengths 18, 24, 36 and 48 inches 457, 609, 914 and 1,219 mm

Amperage at 100% duty cycle 200 Amp 200 Amp

Torch type MIG or TIG water cooled MIG or TIG water cooled

Wire size 0.035 or 0.045 0.9 mm or 1.2 mm

Dimensions in Inch (mm)

9.0"

(229mm)

4.4 (112mm)

4X .688 (Ø17.5mm)
MOUNTING HOLES

2.875 (73.02mm)

2.4± 1.4

(61mm± 36mm)

CROSS SLIDE TRAVEL

.50 (12.7mm)

2.625 (66.67mm)

18" QUILL - 29.8" (757mm)
24" QUILL - 35.8" (910mm)
36" QUILL - 47.8" (1214mm)
48" QUILL - 59.8" (1519mm)

16.0 (406.4mm)

10.1 (257mm)

9.0 (229mm)

22.0" (559mm) MIN

26.5" (673mm) MAX

3.5 (89mm)

15.0

(381mm)

11.3

(539mm)

All dimensions should be considered reference. Contact your Climax Representative for precision dimensions. Specifications are subject to change without notice. There are no systems or components
on this machine that are capable of producing hazardous EMC, UV or other radiation hazards. The machine does not use lasers nor does it create hazardous materials such as gasses or dust.

page 2

Climax Portable Machining & Welding Systems Web site: climaxportable.com

Worldwide Phone: [phone] N. America Toll-Free: 1.800.333.8311 Fax: [phone] E-mail: [e-mail]

TOOL CONFIGURATIONS

Congure your AC5000 AutoClad Integration Package by following these 7 easy steps:

1 Select a Base Unit
2 Select a Torch (Torches)
3 Select a Quill and Positioner Assembly
5 Select Torch Accessories
6 Select a Cross Slide Mounting Plate
7 Select a Wire Feeder

1 Base Unit

INTEGRATION PACKAGE (Includes: quill & positioner assembly with encoder, tool kit,
consumables, torch case, customer interface cable, packaging)

MIG

Base Unit 18 inch (457.2 mm) stroke 75725
Base Unit 24 inch (609.6 mm) stroke 75726
Base Unit 36 inch (914.4 mm) stroke 75727
Base Unit 48 inch (1219.2 mm) stroke 75728

TIG
Base Unit 18 inch (457.2 mm) stroke 75729

Base Unit 24 inch (609.6 mm) stroke 75730
Base Unit 36 inch (914.4 mm) stroke 75731
Base Unit 48 inch (1219.2 mm) stroke 75732

2 Torches

MIG
#00 24 inch (609.6 mm) quick connect torch, water cooled 72476
#0 24 inch (609.6 mm) quick connect torch , water cooled 70095
#1 24 inch (609.6 mm) quick connect torch, water cooled 70097
#2 24 inch (609.6 mm) quick connect torch, water cooled 70092
#3 24 inch (609.6 mm) quick connect torch, water cooled 70093
#4 24 inch (609.6 mm) quick connect torch, water cooled 70094
#00 to #2 torch set for 10 inch (254.0 mm) small frame machine 75717

TIG
#0 24 inch (609.6 mm) quick connect torch, cold wire water cooled 73826
#1 24 inch (609.6 mm) quick connect torch, cold wire water cooled 73719
#2 24 inch (609.6 mm) quick connect torch, cold wire water cooled 73789
#3 24 inch (609.6 mm) quick connect torch, cold wire water cooled 73792
#4 24 inch (609.6 mm) quick connect torch, cold wire water cooled 73793
#0 to #2 torch set for 10 inch (254.0 mm) small frame machine 75719

3 Torch Accessories

MIG
Quick connect face torch assembly, 31 inch (787.4 mm) range 70722

4 Controllers

MIG
Controller, 120V w/o tilt 74557
Controller, 230V w/o tilt 74559

TIG
Controller, 120V w/o tilt 74568
Controller, 230V w/o tilt 74571

5 Cross Slide & DRO Assemblies

MIG/TIG

Manual cross slide assy with single axis DRO & power cord 76471
Single axis DRO 75724

6 Cross Slide Mounting Plate

Cross slide mounting plate 70784

7 Wire Feeder

Push/pull wire feed assy w/ auxiliary & shop style feeders and conduit 75723

Quill & positioner assembly

MIG Torch

Face torch, MIG

Controller

Cross slide
with DRO

TIG Torch

Cross slide
mounting plate

page 3

Wire Feeder, auxiliary & shop style

Climax Portable Machining & Welding Systems Web site: climaxportable.com

Worldwide Phone: [phone] N. America Toll-Free: 1.800.333.8311 Fax: [phone] E-mail: [e-mail]

ACCESSORIES, MACHINE OVERVIEW

To convert a machine from MIG to TIG, or from TIG to MIG, select the appropriate Conversion Kit below.

NOTE: In addition to this kit, please also order MIG or TIG torches as required (shown on Tool Configuration Page).

Conversion Kit

73985 MIG to TIG 120V
Converts a 120V Small Frame Machine from MIG to TIG.

76177 MIG to TIG 230V
Converts a 230V Small Frame Machine from MIG to TIG.

76104 TIG to MIG 120V
Converts a 120V Small Frame Machine from TIG to MIG.

76303 TIG to MIG 230V
Converts a 230V Small Frame Machine from TIG to MIG.

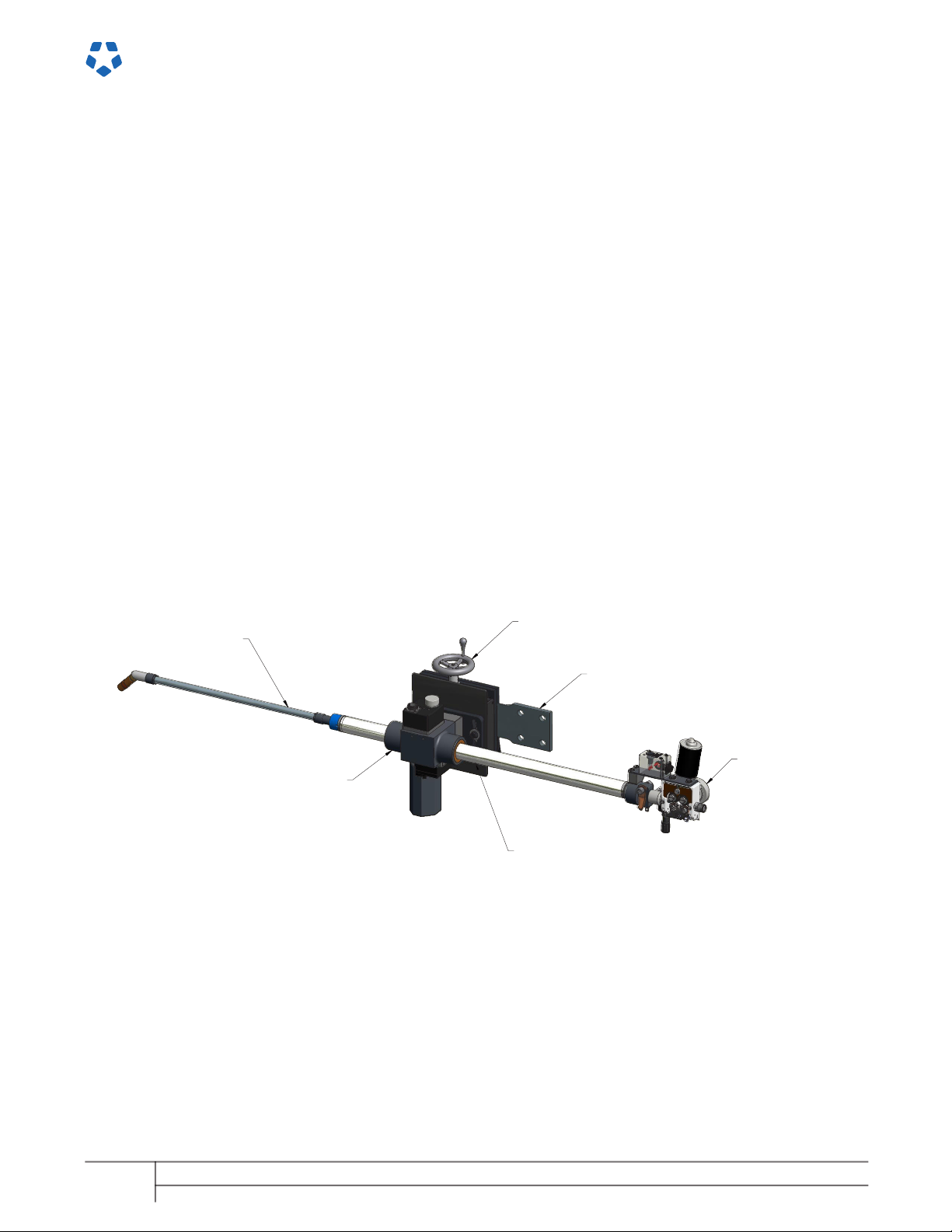

Water Cooled Quick Connect Torch

24" Sizes #00 thru #4 (#1 Shown)

(609.6 mm sizes)

Quill Positioner Motorized

DRO Comes Standard

Cross Slide Travel
Motorized Option Available
DRO Option Available

Cross Slide Mounting Plate
Customer Mounting Point

Quill - 18", 24", 36", & 48" Travels Available
24" Travel Quill Shown

(609.6 mm Travel Quill Shown)

Auxillary Pull Wire Feeder
Main Wire Feeder Not Shown

page 4

Climax Portable Machining & Welding Systems Web site: climaxportable.com

Worldwide Phone: [phone] N. America Toll-Free: 1.800.333.8311 Fax: [phone] E-mail: [e-mail]

CLIMAX Training Facilities

CLIMAX has been teaching the fundamentals and fine points of
portable machine tool operation for practically as long as we’ve
been inventing and building the tools.

We offer several training facilities across the United States - the
Global Learning Center, situated in our corporate headquarters
near Portland, Oregon, our New Hampshire Training Facility,
and our Houston Training Facility. All facilities offer training for
machine tool operators on safety and machine setup and
operation. Trainees also receive technical tips and tools to
improve operational efficiencies, with the vast majority of every
program devoted to hands-on activities and skill development.

The CLIMAX instructional team includes specialists in
shipbuilding, power generation, civil engineering, bridge
re-building, petrochemical and other industries.

Whether it’s a regularly scheduled course at one of our training facilities, or custom curriculum conducted at your facility, your
machinists will benefit from courses developed by some of the most respected authorities in the business.

Call us today to register for a regularly scheduled class, or talk to us about how we can customize a training program for your special­ized application.
