![](/html/1e/1e9f/1e9fef069a11e3637c40cc6c63c3ea820c3d1291cfac639d17cf0e15d64fc2fe/bg1.png)
Color profile: Disabled
Composite Default screen
The Science of Security™
Prime
Level
THREE
SECURITY
UPGRADE
PACKAGE
E
N
G
E
R
H
T
R
U
O
F
M
O
B
I
A
T
I
O
N
Installation Manual
Y
T
I
R
L
U
E
C
S
E
D:...-923 Level 3 install manual.vp
Mon Aug 02 10:56:45 1999
1
![](/html/1e/1e9f/1e9fef069a11e3637c40cc6c63c3ea820c3d1291cfac639d17cf0e15d64fc2fe/bg2.png)
Color profile: Disabled
Composite Default screen
Table of Contents
Wiring Diagram ...................................2
Important Information ................................3
Required Installation Tools .............................3
Modes: Sleep Mode & Customer Mode .......................3
Passenger Compartment Connections ........................3
Control Unit ....................................3
Ignition & Starter .................................3
LED & Valet Switch Assembly ...........................3
Door Trigger ...................................4
Optional Interior Light Illumination .......................4
Optional Parking Light Confirmation ......................4
Horn Connection .................................4
Door Lock Input ..................................4
Optional Trunk Trigger Connection .......................4
Optional Dual-Zone Piezo Vibration/Impact Sensor...............5
Auxiliary A Output ................................5
European Vehicle Window/Sunroof All-Close.......................5
Remote Timed Headlight Activation ...........................5
Optional Engine Compartment Connections.....................5
Optional Siren ..................................5
Final Wiring Connections ..............................5
Delayed Courtesy Lights ...............................5

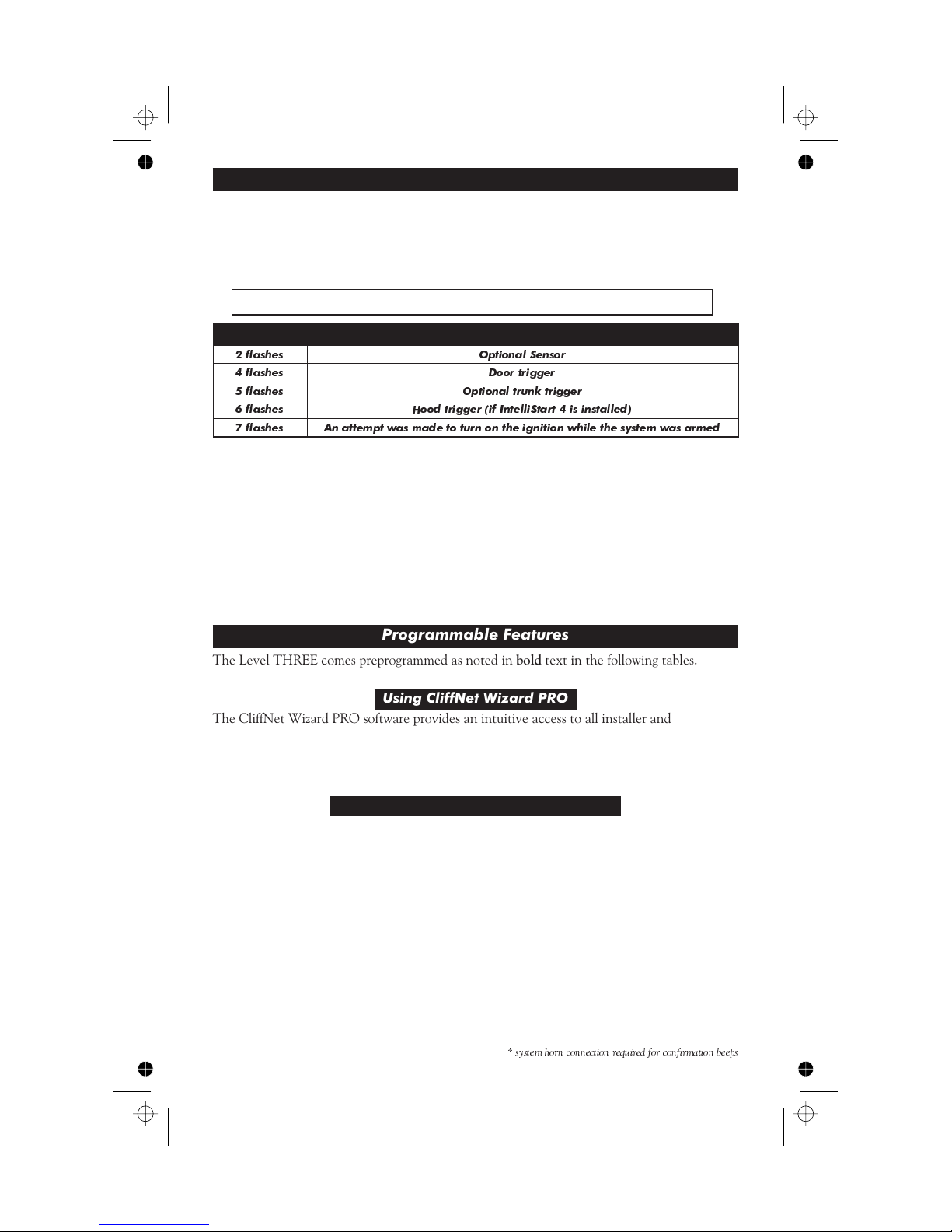

Eight-Event TotalRecall ...............................6
Programmable Features ...............................6
Using CliffNet Wizard PRO ............................6
Programming User-Selectable Features ....................6-7
Installer Programmable Features ........................7

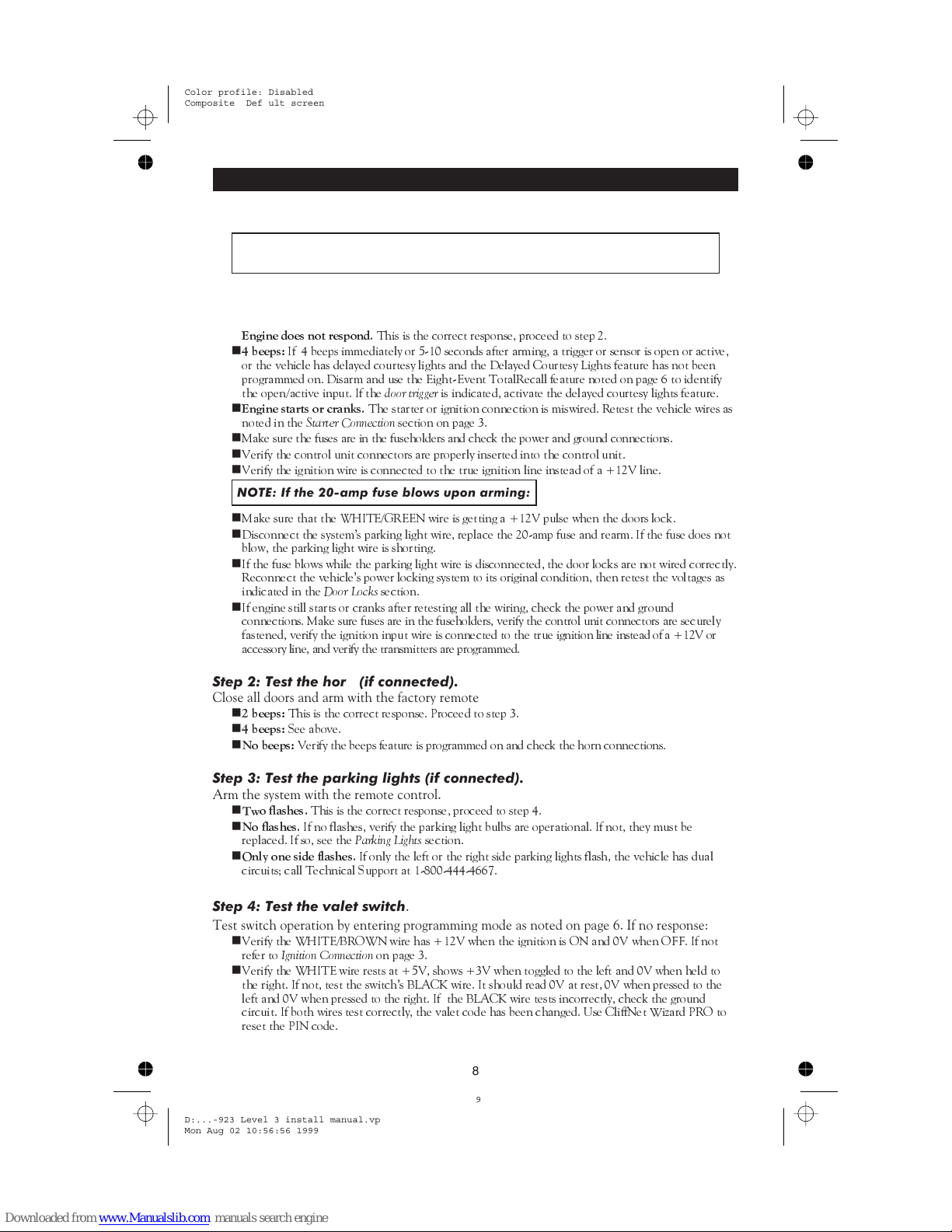

System Checklist & Troubleshooting ........................8-9
NOTE: The Prime Level 1-5 products are designed for easy, plug-in upgrade.
Thus the Level 1 harness is used in the Level 2 installation, the Level 1 and 2
harnesses are used in the Level 3 installation, and so on.
1
2
D:...-923 Level 3 install manual.vp
Mon Aug 02 10:56:46 1999
![](/html/1e/1e9f/1e9fef069a11e3637c40cc6c63c3ea820c3d1291cfac639d17cf0e15d64fc2fe/bg3.png)
Color profile: Disabled
Composite Default screen
Siren/Car Horn
Output
Factory
Car Horn
Relay
Car Horn
OR
Optional
Siren
NegativeTrigger PinSwitches,
or +12Vfor PositiveTrigger
+12V
+12V
Red
Black
Yellow (horn/siren -)
Connect toGround for
Pin Switches
Optional
Interior
Light Relay
driver kick panel
+12V UNLOCK
+12V LOCK
White/Green
(arm input +)
White/Orange
(disarm input 1 +)
Gray/Violet (disarm input 2 +)
14 13 9 8
76543 21
Brown/White
(interior light output-)
Factory
Keyless
Entry
Module
passenger kick panel
UNLOCK
LOCK
+12V UNLOCK
+12V LOCK
to rear doors
(if applicable)
Brown (Parking light output -)
Gray/Blue (- output pulse/time)
Gray/Yellow
(trunk input -)
Green/White
(armed output 2 -)
Accessory
Trunk
Switch
10 6
543 21
Optional Parking
Light Relay
Underdash LED/Valet
Switch Assembly
DataPort
Violet (LED +)
Black (ground -)
White (valet switch -)
Black (ground -)
Gray (data input)
Black (ground -)
Black
(ground -)
Parking Lights
+12V
MX
2E
Violet
Not
Used
Ground
Black
White
k
Bl
Interior
Door
Switch
D:...-923 Level 3 install manual.vp
Mon Aug 02 10:56:50 1999
Light
Optional
Dual Zone
Piezo Sensor
Black
Orange
Blue
Red
(battery +)
Gray (door trigger + or -)
Red
(armed output 1 -)
White/Brown
Green
5 amp
Fuse
Ignition
Switch
Constant +12V Supply To Switch
White/Brown
(ignition input +12V)
White/Red
White/Red
(starter disable)
Cut
(starter disable)
Ignition
X
Starter
2
3
![](/html/1e/1e9f/1e9fef069a11e3637c40cc6c63c3ea820c3d1291cfac639d17cf0e15d64fc2fe/bg4.png)
Color profile: Disabled
Composite Default screen
Important Information
1. Use a voltmeter. DO NOT USE A TEST LIGHT! Test lights have a current drain that
will damage the vehicle’s onboard computer or could trigger the air bag.
2. Keep extension, if needed, as short as possible. Use same-gauge wire for extensions.
3. DO NOT mount components nor route wires near hot or moving vehicle parts.
NOTE: Clifford Electronics’ web site for Authorized Clifford Dealers has
detailed descriptions of wire colors and locations for most foreign and
domestic vehicles. See www.clifforddealers.com for assistance 24-hours per
day or refer to the latest quarterly Tech Support Database CD-ROM.
Required Installation Tools
Voltmeter (set to DC Volt)
n
Wire crimper
n
Wire stripper
n
Electric drill and bits
n
Phillips screwdriver
n
Crescent wrench
n
Vinyl tubing
n
Rubber grommet (if firewall pass-through is needed)
n
Modes: Sleep Mode & Customer Mode
There are two modes to provide the utmost flexibility for expediters and new vehicle dealers:
Sleep Mode:
n
the system inoperable in cases where it is not feasible to remove the system control unit (the LED
& switch assembly, however, should be removed by the person preparing the vehicle for delivery).
n
Customer Mode:
This mode completely disables the system. It is intended for unsold pre-loads to make
This is the normal as-shipped operating mode for the new car purchaser.
Passenger Compartment Connections
Control Unit
Never install the control unit under the hood.
1. Select a mounting area, but do not affix the control unit until wiring and testing is complete.
Ignition & Starter
1. Find the wire in the steering column or ignition switch wireloom that shows +12V throughout
BOTH the cranking AND engine running cycles, and 0 volts when the ignition is off.
2. Connect the WHITE/BROWN wire to the ignition line.
3. Find the wire that shows +12V during the cranking cycle ONLY.
4. Cut it and connect a WHITE/RED wire to each side of the cut wire.
LED & Valet Switch Assembly
1. Select an underdash area to mount the assembly where there is clearance for the screws
and will position the LED so it is visible through the windows.
2. Mate the assembly’s connector to the control unit connector of the same colors.
NOTE: The GRAY & BLACK wire 2-pin connector (found on the 10-pin
connector) is not used on the Level THREE.
3
