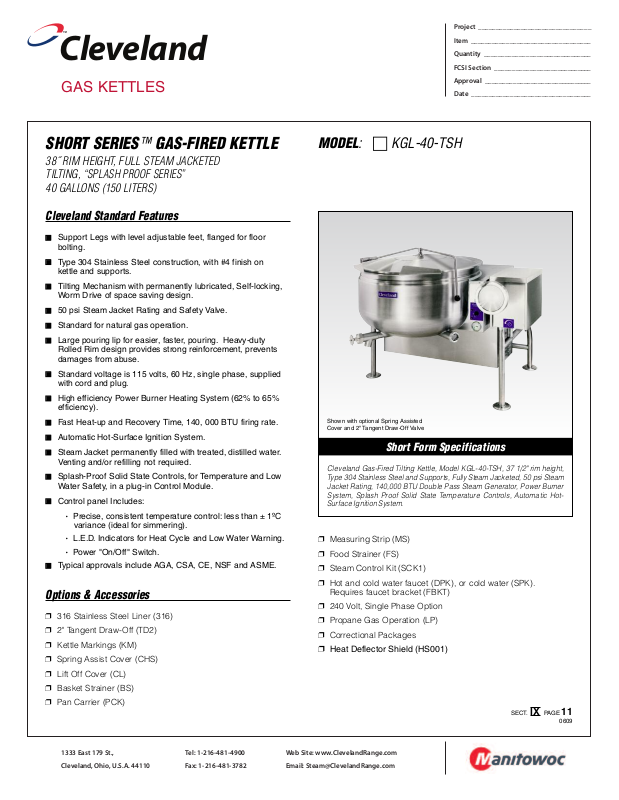

Cleveland KGL-40-TSH User Manual
Cleveland
™
P
roject ________________________________
Item __________________________________
Quantity _______________________________
F
CSI Section ____________________________
A
pproval _______________________________
D
ate __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
GAS KETTLES
SHORT SERIES™ GAS-FIRED KETTLE
38˝ RIM HEIGHT, FULL STEAM JACKETED
TILTING, “
40 GALLONS (150 LITERS)
Cleveland Standard Features
I
I
I
I
I
I
I
I
II
II
II
II
II
II
II
II
II
II
Options & Accessories
Ë 316 Stainless Steel Liner (316)
Ë 2" Tangent Draw-Off (TD2)
Ë Kettle Markings (KM)
Ë Spring Assist Cover (CHS)
Ë Lift Off Cover (CL)
Ë Basket Strainer (BS)
Ë Pan Carrier (PCK)
SPLASH PROOF SERIES”
upport Legs with level adjustable feet, flanged for floor
S
bolting.
Type 304 Stainless Steel construction, with #4 finish on
kettle and supports.
Tilting Mechanism with permanently lubricated, Self-locking,
Worm Drive of space saving design.
50 psi Steam Jacket Rating and Safety Valve.
Standard for natural gas operation.
Large pouring lip for easier, faster, pouring. Heavy-duty
Rolled Rim design provides strong reinforcement, prevents
damages from abuse.
Standard voltage is 115 volts, 60 Hz, single phase, supplied
with cord and plug.
High efficiency Power Burner Heating System (62% to 65%
efficiency).
Fast Heat-up and Recovery Time, 140, 000 BTU firing rate.
Automatic Hot-Surface Ignition System.
Steam Jacket permanently filled with treated, distilled water.
Venting and/or refilling not required.
Splash-Proof Solid State Controls, for Temperature and Low
Water Safety, in a plug-in Control Module.
Control panel Includes:
• Precise, consistent temperature control: less than ± 1ºC
variance (ideal for simmering).
• L.E.D. Indicators for Heat Cycle and Low Water Warning.
• Power "On/Off" Switch.
Typical approvals include AGA, CSA, CE, NSF and ASME.
MODEL: KGL-40-TSH
Shown with optional Spring Assisted
Cover and 2" Tangent Draw-Off Valve
Short Form Specifications
Cleveland Gas-Fired Tilting Kettle, Model KGL-40-TSH, 37 1/2" rim height,
Type 304 Stainless Steel and Supports, Fully Steam Jacketed, 50 psi Steam
Jacket Rating, 140,000 BTU Double Pass Steam Generator, Power Burner
System, Splash Proof Solid State Temperature Controls, Automatic HotSurface Ignition System.
Ë Measuring Strip (MS)
Ë Food Strainer (FS)
Ë Steam Control Kit (SCK1)
Ë Hot and cold water faucet (DPK), or cold water (SPK).
Requires faucet bracket (FBKT)
Ë 240 Volt, Single Phase Option
Ë Propane Gas Operation (LP)
Ë Correctional Packages
Ë Heat Deflector Shield (HS001)
SECT. IX PAGE 11
0609
SPECIFICATIONS
NOTES
FOOT LOCATION &
FLOOR DRAIN DETAIL
FLANGED
FOOT DETAIL
9
/16"
14 mm
120º
TYP
1
" (25 mm)
MAX. ADJUSTMENT
1 5/8" (42 mm)
Ø
7/16" (11 mm)
Ø
3 HOLES ON
3 1/8" (80 mm)
Ø
B
.C.D.
4 7/8"
1
24
Ø
m
m
29 1/2 I.D.
4
9 3/8
3
7
36 5/8
CAPACITIES: (in 8 oz. servings, other sizes
•
may be calculated)
40 Gallon / 150 liters...................640
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.
SECT. IX PAGE 12
0609
Litho in U.S.A.
