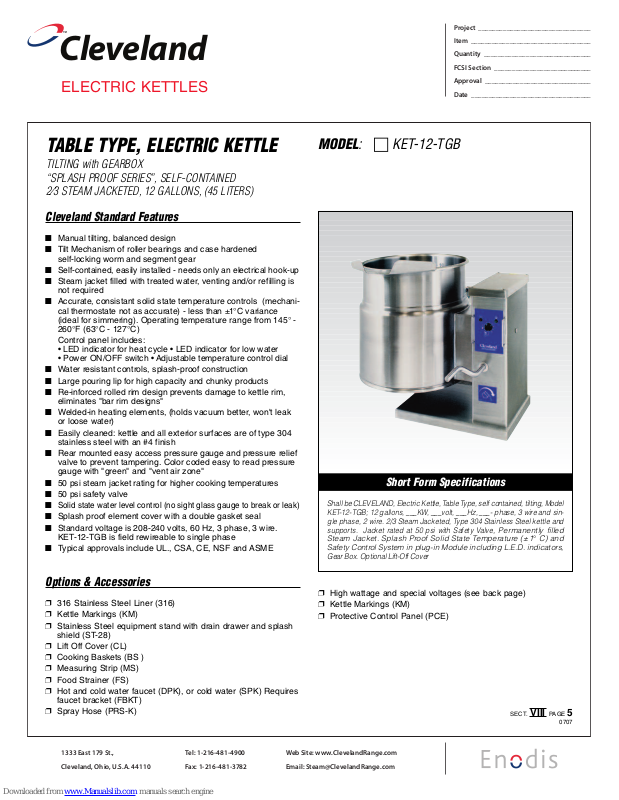

Cleveland KET-12-TGB Specifications
Cleveland
™
P
roject ________________________________
I
tem __________________________________
Quantity _______________________________
F
CSI Section ____________________________
A
pproval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
ELECTRIC KETTLES
TABLE TYPE, ELECTRIC KETTLE
TILTING with GEARBOX
“SPLASH PROOF SERIES”, SELF-CONTAINED
2⁄3 STEAM JACKETED, 12 GALLONS, (45 LITERS)
Cleveland Standard Features
n Manual tilting, balanced design
n Tilt Mechanism of roller bearings and case hardened
self-locking worm and segment gear
n
Self-contained, easily installed - needs only an electrical hook-up
n Steam jacket filled with treated water, venting and/or refilling is
not required
n Accurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° 260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
n Water resistant controls, splash-proof construction
n Large pouring lip for high capacity and chunky products
n Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
n Welded-in heating elements, (holds vacuum better, won't leak
or loose water)
n Easily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
n Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
n 50 psi steam jacket rating for higher cooking temperatures
n 50 psi safety valve
n
Solid state water level control (no sight glass gauge to break or leak)
n Splash proof element cover with a double gasket seal
n Standard voltage is 208-240 volts, 60 Hz, 3 phase, 3 wire.
KET-12-TGB is field rewireable to single phase
n Typical approvals include UL., CSA, CE, NSF and ASME
MODEL: c KET-12-TGB
Short Form Specifications
Shall be CLEVELAND, Electric Kettle, T
KET-12-TGB; 12 gallons, ___KW, ___volt, ___Hz, ___- phase, 3 wire and single phase, 2 wir
supports. Jacket rated at 50 psi with Safety Valve
Steam Jacket. Splash Proof Solid State Temperature
Safety Control System in plug-in Module including L.E.D. indicators,
Gear Box. Optional Lift-Of
e. 2/3 Steam Jacketed, T
f Cover
able Type, self contained, tilting, Model
ype 304 Stainless Steel kettle and
, Permanently filled
(±1° C) and
Options & Accessories
p 316 Stainless Steel Liner (316)
p Kettle Markings (KM)
p Stainless Steel equipment stand with drain drawer and splash
shield (ST
p Lift Of
p Cooking Baskets (BS )
p Measuring Strip (MS)
p Food Strainer (FS)
p Hot and cold water faucet (DPK), or cold water (SPK) Requires
faucet bracket (FBKT)
p Spray Hose (PRS-K)
-28)
f Cover (CL)
p High wattage and special voltages (see back page)
p Kettle Markings (KM)
p Protective Control Panel (PCE)
SECT. VIII PAGE 5
0707
NOTES
UNIT SHOWN WITH OPTIONAL DOUBLE PANTRY FAUCET (DPK).
CORD AND PLUG SUPPLIED BY OTHERS.
WARNING: TO PREVENT INJURY KETTLE MUST BE BOLTED TO THE TABLE.
LEGEND
ELECTRICAL SUPPLY COLD WATER HOT WATER
C
H
C
H
C
H
27 1/2"
(699mm)
6"
(152mm)
20"
(508mm)
16 3/4"
(425mm)
32 3/4"
(832mm)
38"/965mm
(MAXIMUM POUR PATH)
7"
(178mm)
16"
(406mm)
6"
(152mm)
18"
(457mm)
23 1/4"
(590mm)
18"
(457mm)
1 1/2"
(138mm)
24 7/8"
(632mm)
19 1/4"
(489mm)
18"
(457mm)
14 1/2"
(
368mm)
2 3/32"
(
53mm)
5/16-18 THREADED
BUSHINGS
1 1/2"
(38mm)
10"
(254mm)
12 1/2"
(318mm)
KET-12-T
H
C
CAPACITIES: (in 4 oz. servings, other sizes may be
•
calculated)
12 Gallon / 45 liters .... 352 servings
AMPS
AMPS AMPS AMPS
STANDARD WATTAGE
208V 240V 416V 480V
AMPS
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH 3PH
12 45 9.8 47.2 27.2 13.1 54.4 31.4 12.1 29.0 16.7 13.1 27.2 15.7
AMPS
AMPS
AMPS
HIGH WATTAGE
GALS. LITERS KW 1PH 3PH KW 1PH 3PH KW 1PH 3PH KW 1 PH
12 45 12.3 59.0 34.1 16.3 68.1 39.3 15.1 36.2 20.9 16.3 34.0 19.6
Consult factory for other voltages.
TES
NO
:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., NSF, CGA, CSA, ETL and others.
208V 240V 416V 480V
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
3
⁄8˝ O.D. copper tube or
1
⁄2˝ N.P
When ordered with
optional faucet.
TER
A
W
. pipe.
.T
CLEARANCE
= 0˝, LEFT
RIGHT
REAR = 6˝
SHIPPING
WEIGHT
190 lbs.
(NOT
.
SECT
= 0˝
:
O SCALE)
T
AGE
VIII P
0707
Litho in U.S.A.
