Cleveland KEL-80-T Installation Manual
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Phone: (216) 481-4900 Fax: (216) 481-3782
Visit our web site at www.clevelandrange.com
SE95036 Rev. 6

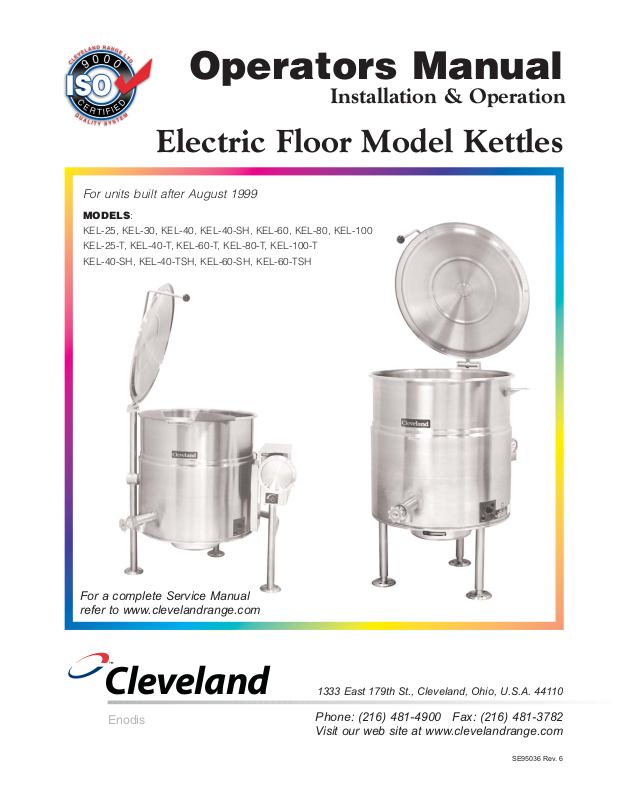

Operators Manual
d
Enodis
For a complete Service Manual
refer to www.clevelandrange.com
Installation & Operation
Electric Floor Model Kettles
For units built after August 1999
MODELS:
KEL-25, KEL-30, KEL-40, KEL-40-SH, KEL-60, KEL-80, KEL-100
KEL-25-T, KEL-40-T, KEL-60-T, KEL-80-T, KEL-100-T
KEL-40-SH, KEL-40-TSH, KEL-60-SH, KEL-60-TSH
™
Clev elan
For your safety
DANGER
Keep clear of pressure
relief discharge.
IMPORTANT
Inspect unit daily for
proper operation.
CAUTION
Surfaces may be
extremely hot! Use
protective equipment.
Keep hands away from
moving parts and pinch points.
Do not fill kettle above
recommended level
marked on outside of kettle.
Wear protective equipment
when discharging hot product.
Do not lean on or place
objects on kettle lip.
SERVICING
Shut off power at main
fuse disconnect prior
to servicing.
GAS APPLIANCES
Do not attempt to operate
this appliance during a
power failure.
Stand clear of product
discharge path when
discharging hot product.
Ensure kettle is at room
0
temperature and pressure
gauge is showing zero or less
prior to removing any fittings.
Keep appliance and area free
and clear of combustibles.
GENERAL
Installation of the kettle must be accomplished by
qualified electrical installation personnel working
to all applicable local and national codes.
Improper installation of product could cause injury
or damage.
This equipment is built to comply with applicable
standards for manufacturers. Included among
those approval agencies are: UL, NSF, ASME/Ntl.
Bd., CSA, CGA, ETL, and others. Many local
codes exist, and it is the responsibility of the
owner/installer to comply with these codes.
Note: Maximum voltage for LVD (low volt
directive for Europe) to be 440 volts for CE
marked appliances.
INSPECTION
Before unpacking visually inspect the unit for
evidence of damage during shipping.
If damage is noticed, do not unpack the unit, follow
Shipping Damage Instructions shown below.
SHIPPING DAMAGE
INSTRUCTIONS
If shipping damage to the unit is discovered or
suspected, observe the following guidelines in
preparing a shipping damage claim.
1. Write down a description of the damage or the
reason for suspecting damage as soon as it is
discovered. This will help in filling out the claim
forms later.
2. As soon as damage is discovered or suspected,
notify the carrier that delivered the shipment.
3. Arrange for the carrier's representative to
examine the damage.
4. Fill out all carrier claims forms and have the
examining carrier sign and date each form.
INSTALLATION
The first installation step is to refer to the
Specification Sheets or Specification Drawings for
detailed clearance and drain requirements in
order to determine the location of the kettle. Next,
carefully cut open the shipping carton for easy
removal of the kettle.
CLEARANCE REQUIREMENTS
& RECOMMENDED FLOOR
DRAIN LOCATIONS
INSTALLATION
Model # ABCD
KEL-25 22 3/8” 34” 5 1/4” 11 1/4”
KEL-30 25 3/8” 37” 6 3/4” 12 3/4”
KEL-40 28 5/8” 40” 7 3/4” 13 3/4”
KEL-40-SH 32 1/2” 44” 9 1/2” 15 1/2”
KEL-60 32 1/2” 44” 9 1/2” 15 1/2”
KEL-80 35 7/8” 47” 11 1/4” 17 1/4”
KEL-100 38 3/8” 50” 12 1/2” 18 1/2”
KEL-25-T 22 1/4” 51 3/4” 4 24”
KEL-40-T 26 56 5 1/2” 28 1/2”
KEL-60-T 29 3/4” 62 1/2” 5 1/2” 31”
KEL-80-T 30 1/2” 65 3/8” 5 1/2” 35 1/2”
KEL-100-T 34 1/8” 69 1/4” 4” 40 1/2”
Clearance Requirements
Back Left Side Right Side *
0 0 12'
*
Minimum recommended
clearance for service
** Above dimensions apply to standard 2" Tangent Draw-Off Valve
only. For other valves consult factory.
Recommended Floor Drain Locations
**
Tilting
Models
Stationary
Models
2" Tangent
Draw-Off
Valve
B
RECOMMENDED
FLOOR DRAIN
A
2" Tangent
Draw-Off
Valve
B
RECOMMENDED
FLOOR DRAIN
A
RECOMMENDED
RECOMMENDED
FLOOR DRAIN
FLOOR DRAIN
C
D
RECOMMENDED
FLOOR DRAIN
12" x 12"
C
D
RECOMMENDED FLOOR
DRAIN DETAIL
ASSEMBLY
Position the kettle in it's permanent location, and
level the kettle by turning the adjustable flanged
feet. Once positioned and leveled, permanently
secure the kettle's flanged feet to the floor using
5/16" lag bolts and floor anchors (supplied by the
installer). There are three bolts required to secure
each of the flanged feet.
WIRE CONNECTION
Install in accordance with local codes and/or the
National Electric Code ANSI/NFPA No. 70-1990
(USA) or the Canadian Electric Code CSA
Standard C22.1 (Canada). A separate fused
disconnect switch must be supplied and installed.
The kettle must be electrically grounded by the
installer.
The electrical supply must match the power
requirements specified on the kettle's rating plate.
The copper wiring must be adequate to carry the
required current at the rated voltage.
Note: Maximum voltage for LVD (low voltage
directive for Europe) to be 440 volts for CE
marked appliances.
The kettle is wired for 3-phase operation at the
factory. For single phase operation, rewire the
terminal block to that shown in the above diagram.
Note: Ensure main power is turned off before
connecting wires.
Stationary Models
Remove the screws securing the dome-shaped
service cover underneath the kettle and remove
the cover. A wiring diagram is affixed to the inside
of cover. Fasten permanent copper wiring to the
three-connection terminal block, Be sure to
connect ground wire to the separate ground
terminal connector (ground lug). Slide the cover's
slot over the wiring and secure the cover to kettle
with the screws.
Tilting Models
First remove the handwheel by loosening the allen
screw. Then remove the two screws at the front
and rear of the console cover and remove the
cover. A wiring diagram is affixed to the underside
of the console cover. Feed permanent copper
wiring through the cut-out in the bottom of the
console, and fasten to the three-connection
terminal block. Be sure to connect the ground
terminal connector (ground lug). Replace the
console cover and handwheel.
WATER
The sealed jacket of the electric kettle is
precharged with the correct amount of a waterbased formula, and therefore, no water connection
is required to the kettle jacket. The kettle can be
equipped with optional hot and cold water taps,
the taps require 1/2" copper tubing as supply
lines.
Flanged Foot Detail
RECOMMENDED
FLOOR
DRAIN
4" MINIMUM,
6" RECOMMENDED
FLOOR SLOPE
1" IN 4'
PIPE DRAIN
RECOMMENDED
MINIMUM VALVE
SIZE PLUS 1"
FLANGED
FOOT (5" DIA)
(3) 7/16" DIA.
3 1/8"
HOLES
THREE
PHASE
RED
YELLOW
BLACK
BLACK
BLUE
L1 L2 L3
RED
SINGLE
PHASE
RED
YELLOW
BLACK
BLACK
BLUE
L1 L2
RED
