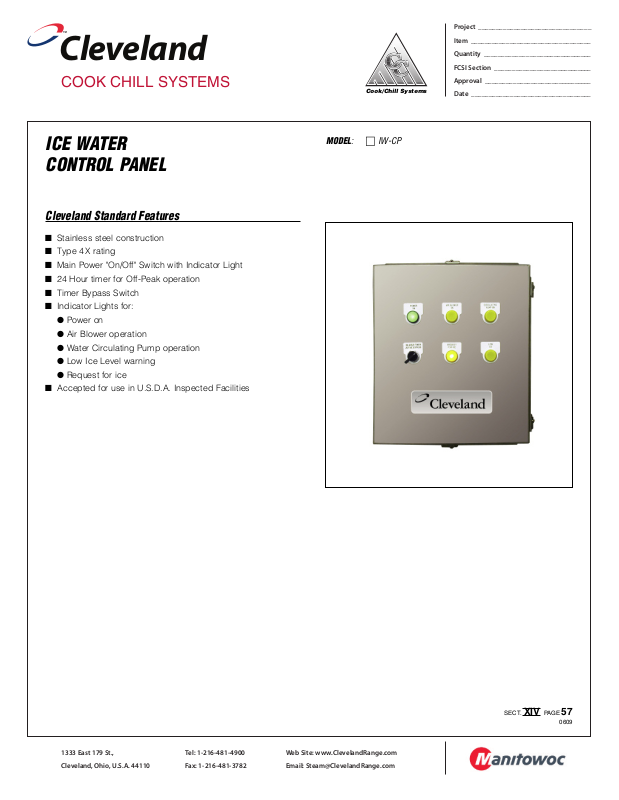

COOK CHILL SYSTEMS
Cook/Chill Systems
ICE WATER
CONTROL PANEL
Cleveland Standard Features
I Stainless steel construction
I Type 4X rating
I Main Power "On/Off" Switch with Indicator Light
I 24 Hour timer for Off-Peak operation
I Timer Bypass Switch
I Indicator Lights for:
G Power on
G Air Blower operation
G Water Circulating Pump operation
G Low Ice Level warning
G Request for ice
I Accepted for use in U.S.D.A. Inspected Facilities
MODEL:
IW-CP
SECT. XIV PAGE 57
0609
14"
6"
6"
16" 17 3/8"
A
A
G
A
A
POWER
ON
AIR BLOWER
ON
CIRULATING
PUMP ON
24 HOUR TIMER
ACTIVE BYPASS
REQUEST
FOR ICE
LOW
ICE
UNIT TO BE MOUNTED ON
D
1 D 2
B
D
1 D 2
B
THE WALL NEAR THE
OOK/CHILL PRODUCTION
C
EQUIPMENT
MODEL DESCRIPTION ELECTRICAL
IWCP ICE WATER CONTROL PANEL 120V/1PH – 10 AMPS
ELECTRICAL POWER TO AND FROM
CONTROL PANEL
• CONTRACTOR MUST CUT ENTRY
HOLE
• TOP OR BOTTOM POWER ENTRY
RECOMMENDED
• MUST USE PROPER CONNECTIONS
TO MAINTAIN U.L. LISTING
