ClearOne WS800 Data Sheet

Download

WS800

Wireless Microphone System

ClearOne’s Wireless Microphone System is the

most economical, versatile, and easily scalable

wireless system in the market today with

unprecedented ease-of-use and simple installation.

This microphone system complements other

professional audio products from ClearOne

including CONVERGE® Pro 1 & 2 Mixers,

INTERACT Mixers, CONVERGE Matrix products.

WS800 Receiver comes with and without DanteTM

built-in audio networking.

Flexibility

+ Reliable digital wireless system is the best

for flexible spaces and upgrading existing areas without access to cable paths

Scalability

+ Provides up to 32 channels per RF band

allowing channels to be added in the field to respond to future growth

+ Balanced line or headphone output and

the GUI can be used to send control signals to the main and mixed outputs

Economical

+ Cost-effective and flexible as one system can

serve the wireless needs of up to six rooms

Audio Quality

+ From 20 Hz to 20 kHz very low-latency digital

audio, enhanced through the DanteTM interface

Multiple RF RangesMixed Audio Outputs

+ M915: 902 MHz to 928 MHz + M715: 710 MHz to 740 MHz + M610: 603 MHz to 630 MHz + M500: 486 MHz to 512 MHz + M586: 573 MHz to 599 MHz + M800: 793 MHz to 819 MHz

+ M930: 917 MHz to 943 MHz

VENUES

Boardrooms

Conference Rooms

Courtrooms

Training Rooms

Auditoriums

Houses of Worship

WS800

Components/Back Panel

PRODUCT SPECIFICATIONS

WS800 Wireless Microphone System:

• Wireless System: Up to 24-bit, 48 KHz, digital audio RF technology

• Channels: 4 or 8-channel receivers

• Daisy-chainable up to 32 channels per RF band

• RF Range: M915: 902 MHz to 928 MHz M715: 710 MHz to 740 MHz

M610: 603 MHz to 630 MHz M500: 486 MHz to 512 MHz

M586: 573 MHz to 599 MHz M800: 793 MHz to 819 MHz

M930: 917 MHz to 943 MHz

• Working Range: 300 feet (line-of-sight)

• Encryption: 256 bit key (AES) always-on, laboratory-verified

NSA FIPS 197 standard

• Frequency Response:

16 channels 20 Hz - 20 KHz (stage)

32 channels 20 Hz - 20 KHz (compressed, conference)

32 channels 20 Hz - 12 KHz (non-compressed, conference)

• S/N Ratio: 109 dB (typical ‘A’ weighted)

• Total Harmonic Distortion: <0.03% @ 1kHz

• Latency:

Stage............................................ 3ms

Conference, non-compressed..... 4ms

Conference, compressed............ 9-10ms

• Stability: <5ppm

• Operation Temperature Range: 0 - 50 degrees Celsius ambient temperature

Model WS840

(4 output channels)

WS880

(8 output channels)

* Any combination of options are available separate or combined, except for options

-C and -S together. * Euroblock connectors provided unless -X option is ordered

Part Numbers RF Range Available Options*

910-6000-401 910-6000-402 910-6000-403 910-6000-404 910-6000-405 910-6000-406 910-6000-407

910-6000-801 910-6000-802 910-6000-803 910-6000-804 910-6000-805 910-6000-806 910-6000-807

M915 (902-928 MHz) M715 (710-740 MHz) M610 (603-630 MHz) M500 (486-512 MHz) M586 (573-599 MHz) M800 (793-819 MHz) M930 (917-943 MHz)

-D : Dante network capability

-X : XLR Connector Outputs*

-S : Receiver is a Stage Audio receiver

-C : Audio Compression

Receiver (Base Station)

• Channels per receiver: 4-channels (WS840), 8 channels (WS880)

• Power Requirements: 100-240 VAC 50-60 Hz, 15 Watts

• Display: OLED

• External Antennas: Support up to six pairs per system

• Antenna Distribution: Attach up to 32 channels to one pair of antennas

• Analog Audio Outputs: Phoenix terminal blocks or with XLR adapters

• Output Impedance: 100 Ohm

• Headphone out (mixed): Balanced 1/4 inch TRS mixed line out for

recorders or powered speakers; or headphone out

• Interface: USB, RS232 & Ethernet (dual port 10/100 Mbps)

• Dante™ Audio channels: Eight (8) digital outputs @ 48 KHz.

• Dante Ports: Primary & secondary, RJ45 ports, 100/1000 Mbps, 328 ft.

• GPIO Interface: 22 programmable pins

• Gain Adjustment Range: -20dB to +31 dB

• Dimension: 1-U rack-mount, 19 x 1.75 x 6.5 inches

• Weight: 4.7 lbs (2.14 kg) for 8-channel receiver; 4.5 lbs (2.04 kg) for 4-channel

receiver

WS840/880 Front Panel

Available with WS840

WS840/880 Back Panel

Note: Receivers with -X option come with Euroblock-to-XLR adapters.

Dante Connections

Available with -D Option

Available with WS880

Phoenix Euroblock

Available with WS840Available with

Available with WS880

PRODUCT SPECIFICATIONS

WS800

Wireless Microphone System

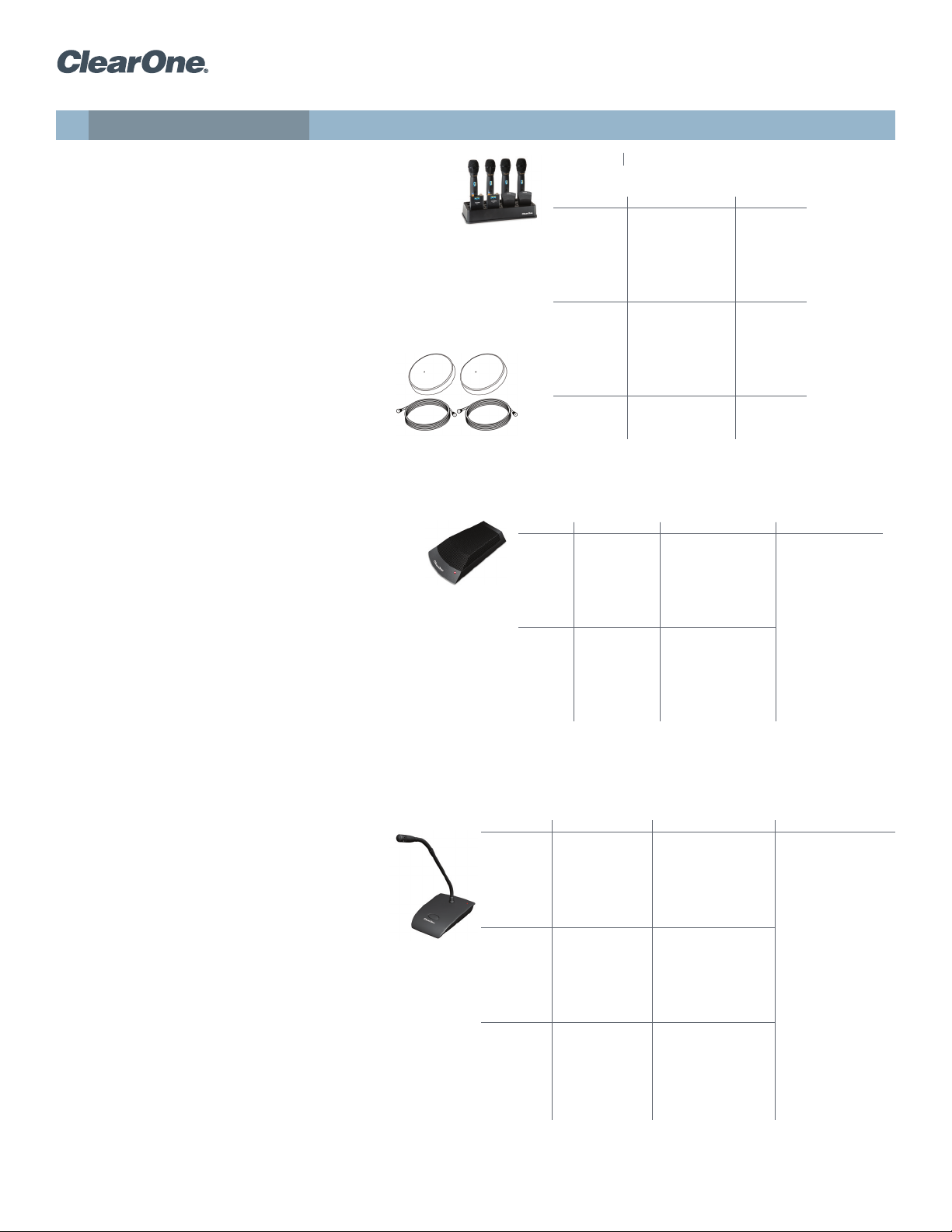

Charging Station (Docking Station)

• Housing: ABS

• Capacity: Charges 8 microphones simultaneously

(mix and match any type of the supplied microphones)

• Power: 5.6V DC / 4 A

• Dimension: 13.25 x 5.75 inches

• Weight: 1.30 lbs (.58 kg)

Extension Antennas

• Mount: Wall mount, ceiling or mic-stand mount

• Connectors: Straight connectors

• Reception Pattern: 130-degree reception pattern

• Gain: Provides 15dB of RF gain (915MHz)

• Power: Phantom-powered from the receiver

• Dimensions: 5.8”(dia) x 1.125”(d) (14.8cm x 2.9cm)

• Weight: .55 lbs (.24 kg)

Transmitters (Microphones)

• Mic Polar Pattern : Cardioid, omni

• RF Output: 1, 10, 25 or 50mW, user selectable

• Power: USB or AA rechargeable (included) or AA disposal

• Antenna: Internal

• LED Indicators: Battery status, mute status

• Button: Press to talk, press to mute (or logic mute), toggle on/off

• Programmable Switch: Talk, mute, logic mute, on / off

• Frequency Response: 60 - 20kHz (Omni version); 60 - 15kHz

(Cardioid version)

• Signal-to-Noise Ratio: 80dB Typ. at 1kHz (1Pa) ‘A’ weighted

(Omni version); 74dB Typ. at 1kHz (1Pa) ‘A’ weighted (Cardioid version)

• Battery: Two rechargeable NiMH included, standard AA size

• Battery Charge Time: 4 hrs

• Battery Talk Time: Up to 8 hrs continuous usage per charge,

typical @ 1mW

• Dimension: 3.9 L x 2.8 W x .69 H inches

• Weight: 0.25lbs (.12 Kg) including batteries

Part Number 910-6000-800 (comes free with Receiver)

Category Extension

Antenna Kit

(with 25 ft plenum cable)

Extension Antenna Kit

(with 50 ft plenum cable)

Extension Antenna Combiner

Model

Cardiod version

Omni version

* For systems with audio compression, -C must be added to the transmitter part number

Part Numbers RF Range

910-6001-001 910-6001-002 910-6001-003 910-6001-004 910-6001-005 910-6001-006 910-6001-007

910-6001-011 910-6001-012 910-6001-013 910-6001-014 910-6001-015 910-6001-016 910-6001-017

Part Numbers RF Range

910-6005-001 910-6005-002 910-6005-003 910-6005-004 910-6005-005 910-6005-006 910-6005-007

910-6005-011 910-6005-012 910-6005-013 910-6005-014 910-6005-015 910-6005-016 910-6005-017

910-6005-200 (2way) 910-6005-300 (3way) 910-6005-400 (4way)

M915 (902-928 MHz) M715 (710-740 MHz) M610 (603-630 MHz) M500 (486-512 MHz) M586 (573-599 MHz) M800 (793-819 MHz) M930 (917-943 MHz)

Available Options*

-C : Audio Compression

Gooseneck Microphone

• Mic Polar Pattern: Cardioid, Super-Cardioid

• Gooseneck Lengths: 6, 12 or 18 inch, with double bend

• RF Output: 1, 10, 25 or 50mW, user-selectable

• Frequency Response: 60 - 15kHz

• Signal-to-Noise Ratio: 74dB Typ. at 1kHz (1Pa) ‘A’ weighted

• Antenna: Internal

• Power: USB or AA rechargeable (included) or AA disposal

• Button: Press-to-talk, press-to-mute (or logic mute), toggle on/off

• LED Indicators: Battery status, mute status

• Programmable Switch: Talk, mute, logic mute, on / off

• Battery: Four rechargeable NiMH included, standard AA size

• Battery Charge Time: 4 hrs

• Battery Talk Time: Up to 16 hrs continuous usage per charge, typical @ 1mW

• Dimension: 6.1 L x 4.6 W x 1.4 H inches

• Weight: 1.60lbs (.72 Kg) including batteries

Model

6-inch neck

12-inch neck

18-inch neck

* For systems with audio compression, -C must be added to the transmitter part number

Part Numbers RF Range

910-6002-061 910-6002-062 910-6002-063 910-6002-064 910-6002-065 910-6002-066 910-6002-067

910-6002-121 910-6002-122 910-6002-123 910-6002-124 910-6002-125 910-6002-126 910-6002-127

910-6002-181 910-6002-182 910-6002-183 910-6002-184 910-6002-185 910-6002-186 910-6002-187

M915 (902-928 MHz) M715 (710-740 MHz) M610 (603-630 MHz) M500 (486-512 MHz) M586 (573-599 MHz) M800 (793-819 MHz) M930 (917-943 MHz)

Available Options*

-C : Audio Compression

PRODUCT SPECIFICATIONS

WS800

Wireless Microphone System

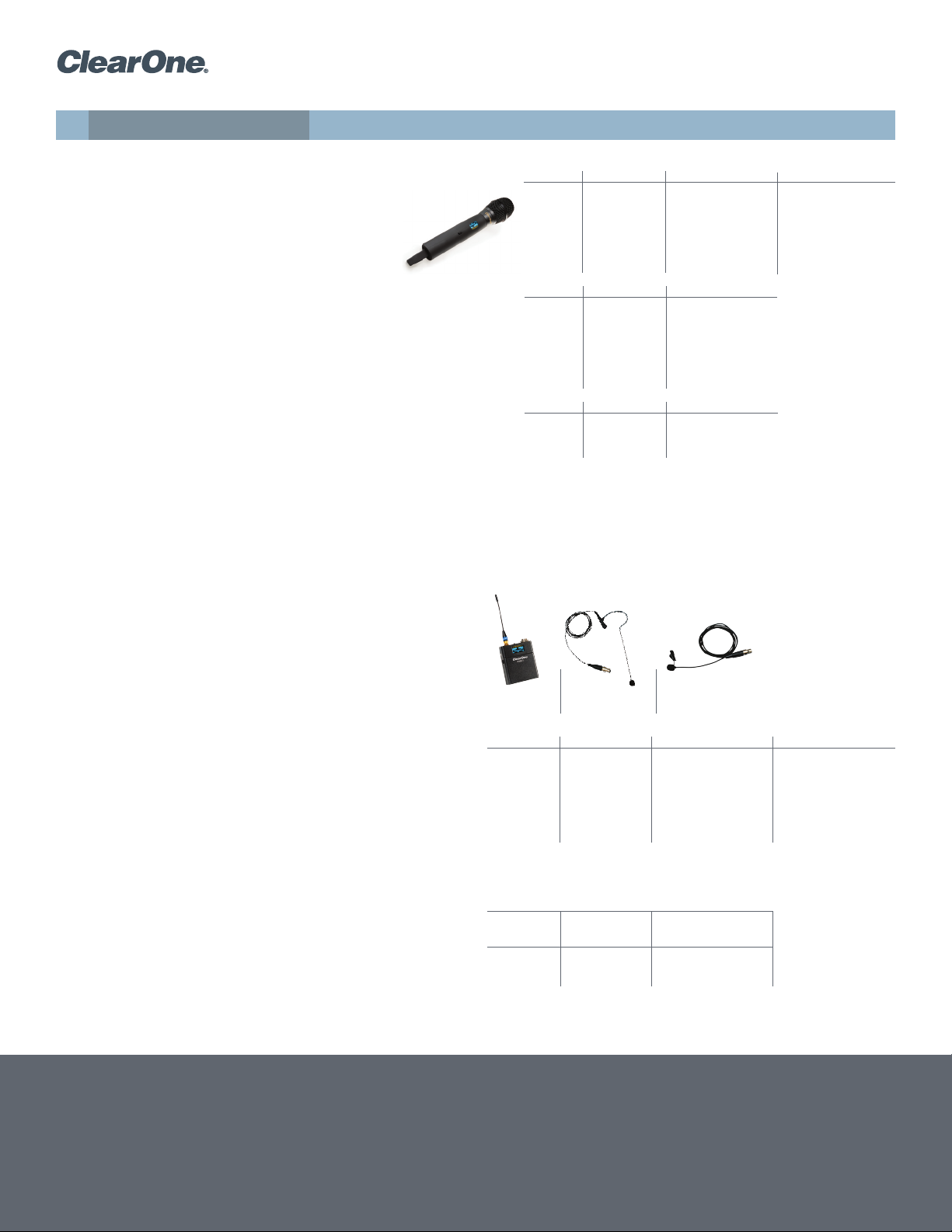

Handheld Microphone

• Mic Polar Pattern: Cardioid, Super-Cardioid, or Hyper-Cardioid

• RF Output: 1, 10, 25 or 50mW, user-selectable

• Frequency Response: 60 - 15kHz

• Signal-to-Noise Ratio: : 74dB Typ. at 1kHz (1Pa) ‘A’ weighted

• Antenna: Internal

• Display: OLED

• Power: USB or AA rechargeable (included) or AA disposal

• Indicators: Battery status, mute status

• Programmable Switch: Talk, mute, logic mute, on / off

• Battery: Two rechargeable NiMH included, standard AA size

• Battery Charge Time: 4 hrs

• Battery Talk Time: Up to 8 hrs continuous usage per charge, typical @ 1mW

• Dimension: 10.2 L x 1.4 W x 1.4 H inches

• Weight: 0.75lbs (.34 Kg) including batteries

Beltpack Transmitter

• RF Output: 1, 10, 25 or 50mW, user-selectable

• Antenna: External, field-replaceable

• Display: OLED

• Power: USB, AA rechargable (included), or AA disposable

• Indicators: Battery status, mute status

• Programmable Switch: Talk, mute, logic mute, on / off

• Mic Input Impedance: 47 K Ohms

• Mic Bias: 3V

• Mic Connector: TA4

• Battery: Two rechargeable NiMH included, standard AA size

• Battery Charge Time: 4 hrs

• Battery Talk Time: Up to 8 hrs continuous usage per charge, typical @ 1 mW

• Dimension: 2.8 L x 2.4 W x .66 H inches

• Weight: 0.35 lbs (.16 Kg) including batteries

Lavalier Mic for Beltpack Transmitter

• Mic Polar Pattern: Omni

• Frequency Response: 20 - 20kHz

• Signal-to-Noise Ratio: Above 56dB at 1kHz (1Pa) ‘A’ weighted

Model

Handheld mic

Model

OM5

Model

OM3

* For systems with audio compression, -C must be added to the transmitter part number

Transmitter

Model

Beltpack Transmitter

Part Numbers RF Range

910-6003-001 910-6003-002 910-6003-003 910-6003-004 910-6003-005 910-6003-006 910-6003-007

Part Numbers RF Range

910-6003-021 910-6003-022 910-6003-023 910-6003-024 910-6003-025 910-6003-026 910-6003-027

Part Numbers RF Range

910-6003-011 910-6003-012 910-6003-013 910-6003-014 910-6003-015 910-6003-016 910-6003-017

Headset MicBeltpack

Part Numbers RF Range

910-6004-001 910-6004-002 910-6004-003 910-6004-004 910-6004-005 910-6004-006 910-6004-007

M915 (902-928 MHz) M715 (710-740 MHz) M610 (603-630 MHz) M500 (486-512 MHz) M586 (573-599 MHz) M800 (793-819 MHz) M930 (917-943 MHz)

Lavalier Mic

M915 (902-928 MHz) M715 (710-740 MHz) M610 (603-630 MHz) M500 (486-512 MHz) M586 (573-599 MHz) M800 (793-819 MHz) M930 (917-943 MHz)

Available Options*

-C : Audio Compression

Available Options*

-C : Audio Compression

Headset Mic for Beltpack Transmitter

• Mic Polar Pattern: Omni

• Frequency Response: 50 - 18kHz

• Signal-to-Noise Ratio: Above 56dB at 1kHz (1Pa) ‘A’ weighted

• Headset: Single-ear headset

SALES AND INQUIRIES

Headquarters

5225 Wiley Post Way,

Suite 500

Salt Lake City, UT 84116

US & Canada

Tel: 801.975.7200

TollFree: 800.945.7730

Fax: 801.303.5711

Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne’s products. All rights reserved. Information in this document subject to change without notice. © 2017 ClearOne. DOC-0123-001. Revision 2.2 2017

* M500, M586, M800, M930 (MHz) systems are only available with audio compression

* For systems with audio compression, -C must be added to the transmitter part number
