Page 1
1
MYTHOS
C61391
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
ENGLISH
INDEX
Page Contents
2 Safety Information
3 Unpacking and preparation
4 Installation and start-up
5 Control panel
7 Maintenance
13 Technical information
14 Cause and solution of problems
Page 2
2
MYTHOS
SAFETY INFORMATION
EN
IT
DE
ES
FR
RU
SAFETY INFORMATION
IMPORTANT: Clay Paky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
http://www.claypaky.it/en
Ref: [FIS00H – Safety Information Mythos - Supersharpy]
INFORMAZIONI DI SICUREZZA
IMPORTANTE: Clay Paky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
http://www.claypaky.it/en/download
Rif: [FIS00H – Safety Information Mythos - Supersharpy]
I
NFORMATIONEN ZUR SICHERHEIT
WICHTIG: Clay Paky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
http://www.claypaky.it/en/download
Ref: [FIS00H – Safety Information Mythos - Supersharpy]
INFORMACIONES DE SEGURIDAD
IMPORTANTE: Clay Paky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
http://www.claypaky.it/en/download
Ref: [FIS00H – Safety Information Mythos - Supersharpy]
CONSIGNES DE SÉCURITÉ
IMPORTANT: Clay Paky recommande de lire attentivement et de conserver les informations de sécurité relatives
à ce produit, disponibles en version digitale au lien suivant:
http://www.claypaky.it/en/download
Réf. : [FIS00H – Safety Information Mythos - Supersharpy]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Clay Paky рекомендует внимательно прочитать и сохранить инструкцию по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
http://www.claypaky.it/en/download
Наименование: [FIS00H – Safety Information Mythos - Supersharpy]
Page 3
3
MYTHOS
UNPACKING AND PREPARATION
2 x 183102/805
1
UNLOCKED
9
0
°
9
0
°
9
0
°
9
0
°
LOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
LOCKED
UNLOCKED
4
5
°
4
5
°
4
5
°
4
5
°
4
5
°
Page 4
4
MYTHOS
4
2
1
1
2
3
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
Page 5
5
MYTHOS
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
MYTHOS Version X.X.X Dmx Address xxx E: .........................
Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control
panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address
(if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
2
Dmx Address
Warning Message
Fixture ID
18m
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
C
onnecting to the mains supply - Fig. 6
SIGN
AL
SC
R
EEN
D
MX
5
1
2
5
PI
N
1
2
3
4
5
SIGN
AL
Mains
6
7
Page 6
MYTHOS
6
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN Ckeys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT
Page 7
7
MYTHOS
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
2
1
1/4 Turn
1
4
1/4 Turn
3
2
10 11
MAINTENANCE
Continue
➔
Page 8
Lower Side
Lower Side Lower Side
Upper Side
8
MYTHOS
1
2
Periodical cleaning - Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs.
NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration.
NOTE: keep a careful
cleaning of the ''CMY/colour
filters assembly'' to prevent
rapid deterioration.
Page 9
9
MYTHOS
1
4
3
2
1
3
Cleaning of the filters - Fig. 13.
Continue
➔
Page 10
10
MYTHOS
L
ower Side
1
2
1
3
2
1
2
1
45°
14
remove the fan
r
emove the lamp
contacts protection
unscrew a bit the 4 nuts
to facilitate the lamp
replacement
15
pay attention to the
right position of the
lamp contacts
(see pictures)
pay attention to the
right position of the
lamp contacts
(see pictures)
Lamp change - Fig 14.
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it
with a clean, dry cloth.
Lamp regulation - Fig. 15
To centre the lamp, turn the adjusting screw as shown in the figure.
WARNING: The lamp must be adjusted with the projector switched off. After adjusting, close the effects covers, switch on the projector and check
that the adjustment has been correctly made. If necessary, switch off the projector, remove the effects covers and repeat lamp adjustment.
REMARK:
- Lifetime of the lamp will be influenced by the switching cycle.
- After a successful starting, attempt to keep the lamp burning for at least 15 minutes in order to complete the chemical cycle of the
lamp to secure the lifetime.
- Before switch off the fixture, is necessary to keep closed the dimmer channel for at least 5 seconds, this is to ensure a better working
/ reliability of the lamp itself (it is recommended to turn off the lamp when it is dimmed).
WARNING:
• The projector needs to be positioned so that the objects hit by the beam of light are at least 18 metres (59’1”) from the lens of the projector.
A “Soft filter” is available (Channel 4 - Colour1 - DMX bit=50) when this ''Soft Filter'' is into the beam, the projector can be used at a
minimum distance of 12 metres from illuminated objects.
Page 11
11
MYTHOS
GOD007-004
GOD007-005
GOD007-002
GOD007-001
GOD007-003
GOD007-006
1
5
16
Rotating gobo wheel - Fig. 15.
ATTENTION:
- Before use custom gobos contact Clay Paky
- The original gobos have a special coating designed specifically to resist to the high temperatures
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos)
- For more information contact Clay Paky
Static gobo wheel cod. 298510/801 - Fig. 16.
Continue
➔
Page 12
12
MYTHOS
Battery removal - Fig. 17
This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end
of its life according to the regulation in force.
2
1
6
3
4
5
LiFePO4
17
Page 13
13
MYTHOS

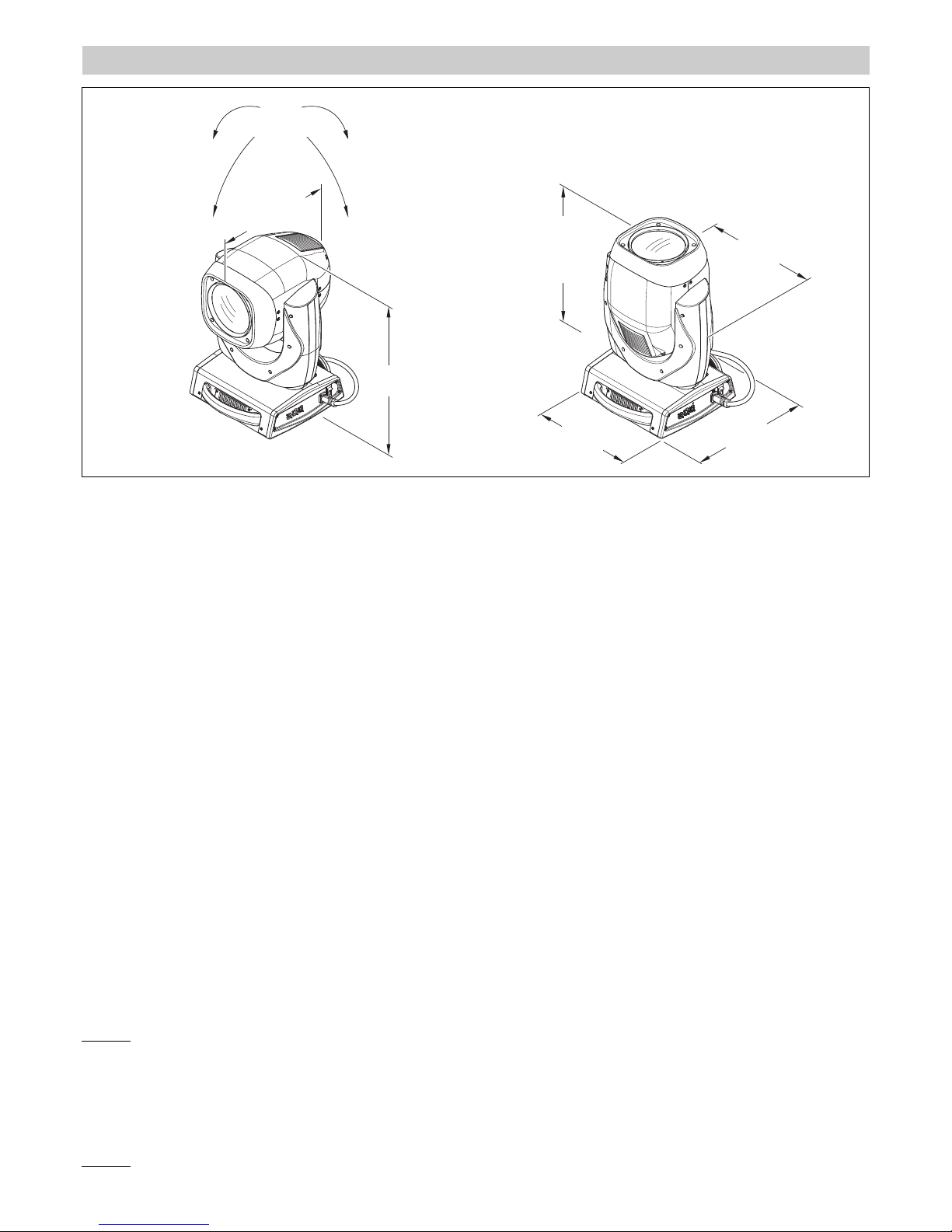

TECHNICAL INFORMATION
3
80
(14.96")
420
(16.53")
396
(15.59")
L
ens IN
6
11 (24.05")
L
ens OUT
628 (24.72")
570
(
22.44")
Lens OUT
4
27 (16.81")
Lens IN
408 (16.06")
Lens IN&OUT
455 (17.91")
Power supplies
• 115/230V 50/60 Hz
• Automatic Power supply switching
Input power
700VA at 230V 50Hz
Total lumen output
Max 24.000 lumens
Light source
470W discharge lamp
- Type: Philips MSD Platinum 20R
- Color Temperature: 7.800 K
- Life: 1,500hrs
- Luminoux flux: 23.000 lm
- Cap by faston TM 250 (6.35 mm)
Motors
20 stepper motors, operating with microsteps,
totally microprocessor controlled.
Channels
30/34 control channels.
Inputs
• DMX 512
• Ethernet
Moving body
Automatic repositioning of PAN and TILT after
accidental movement not controlled by control unit.
PAN
• Angle Rotation: 540°
• Fast speed: 3.517 sec
• Normal Speed: 4.038 sec
• Resolution PAN: 2.11°
• Resolution PAN FINE: 0.008°
Accuracy:
Resolution ± 0,3° (Range 0,6°)
TILT
• Angle Rotation: 244°
• Fast speed: 2.180 sec
• Normal Speed: 2.274 sec
• Resolution TILT: 0.96°
• Resolution TILT FINE: 0.004°
Accuracy:
Resolution ± 0,3° (Range 0,6°)
Noise level
50 dBA
Weight
32 Kg (70.54 lbs)
IP rating
• IP20
• Protected against the entry of solid bodies
larger than 12mm (0.47”).
• No protection against the entry of liquids.
Safety devices
• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of
overheating or failed operation of cooling
system.
Cooling
Forced ventilation with fans.
Body
• Aluminium structure with plastic cover.
• Two side handles for transportation.
• Device locking PAN and TILT mechanisms for
transportation and maintenance.
Working position
• Any Working Position
• Hanging system: with fast-lock omega clamps
(1/4 turn) on the base
Optics
• 157mm diam. front lens
• Electronic focusing for a perfectly sharp light
beam along its entire length
• Zoom ranging from 4,5° to 30,8° for fixed
gobos sharp focusing
• Zoom range from 6,5° to 47,3° for rotating
gobos sharp focusing
• BEAM mode with 2,5° aperture and “pipe”
effect
Color system
• CMY color system based on 3 gradually fading
color wheels
• 11 color filters on three wheels
• 2 CT0 filters (3,200K and 2,500K) + 1 CTB
filter
Effects section
• 2 gobo wheels
• Wheel with 6 HQ dichroic, indexable an d
interchangeable rotating gobos.
• Interchangeable and variable rotation wheel
with 18+1 fixed metal gobos (including 6 beam
reducers).
• Selectable gobo-shake function
• Advanced Visual Effect Disc (Animation disc)
• 2 indexable and interchan ge ab le rotating
prisms (8-facet and linear prism)
• Frost unit to soften the beam edge
• 0-100% Mechanical dimmer
• Mechanical shutter and adjustable speed
strobe effect
Control and programming
• 30/34 DMX 512 control channels
• DMX protocol signal: USITT DMX 512
• Display: Graphic LCD backlit b/w Display
• Pan/Tilt Resolution: 16 bit
• Gobo Indexing Resolution: 16 bit
• Focus Indexing Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 3 and 5 pole XLR input
and output
• Software upload through DMX input
Electronics
• Long life self-charging buffer battery.
• Pre-set macros.
• Function reset from control unit
• ON/OFF lamp control from the lighting desk.
• Function reset from the lighting desk.
• "AUTOTEST" function from menù
• ETHERNET Ready.
• Electronic monitoring with status error
• Cooling system monitoring
• DMX level monitoring on all channels
• Internal data transmission diagnostics
• Firmware Upgrade with no power
• Firmware upload from another fixture
Page 14
14
MYTHOS
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.
Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
Page 15
CLAY PAKY S.p.A. - Via Pastrengo,3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - Fax +39-035-301876 - www.claypaky.it
IST00L/001 – EN - Rev.C 05/2016
Loading...
