INSTRUCTION MANUAL
C61730
ENGLISH
AXCOR BEAM 300
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total
quality to ensure excellent performance and best meet your
expectations and requirements.
INDEX
Page
2
3
4
5
7
12
12
Contents
Safety Information
Unpacking and preparation
Installation and start-up
Control panel
Maintenance
Technical information
Cause and solution of problems
P
R
E
L
I
M
I
N
A
RY
Page 2
2
AXCOR BEAM 300
SAFETY INFORMATION
EN
IT
DE
ES
FR
RU
SAFETY INFORMATION
IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also
available in digital format at the following link:
http://www.claypaky.it/en
Ref: [FIS01A – Safety Information Axcor 300 series]
INFORMAZIONI DI SICUREZZA
IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative
a questo prodotto, sempre reperibili in versione digitale al seguente link:
http://www.claypaky.it/en/download
Rif: [FIS01A – Safety Information Axcor 300 series]
I
NFORMATIONEN ZUR SICHERHEIT
WICHTIG: Claypaky empfiehlt, die Sicherheitsinformationen bezüglich dieses Produkts genau zu lesen und
aufzubewahren. Sie sind in Digitalversion immer unter folgendem Link auffindbar:
http://www.claypaky.it/en/download
Ref: [FIS01A – Safety Information Axcor 300 series]
INFORMACIONES DE SEGURIDAD
IMPORTANTE: Claypaky recomienda leer detenidamente y conservar la información de seguridad relativa a este
producto. Además, está disponible una versión digital de la misma en el siguiente enlace:
http://www.claypaky.it/en/download
Ref: [FIS01A – Safety Information Axcor 300 series]
CONSIGNES DE SÉCURITÉ
IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à
ce produit, disponibles en version digitale au lien suivant:
http://www.claypaky.it/en/download
Réf. : [FIS01A – Safety Information Axcor 300 series]
ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ
ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкцию по технике безопасности
данного изделия, которая всегда доступна в электронном формате по следующей ссылке:
http://www.claypaky.it/en/download
Наименование: [FIS01A – Safety Information Axcor 300 series]
Page 3
3
AXCOR BEAM 300
UNPACKING AND PREPARATION
9
0
°
9
0
°
9
0
°
9
0
°
UNLOCKED
LOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
4
5°
2 3
Packing contents - Fig. 1
1
Page 4
4
AXCOR BEAM 300
4
1
1
2
3
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
WARNING:
light collimation system
This product contains internal light collimation system.
Avoid intense light from any angle.
Page 5
5
AXCOR BEAM 300
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware Axcor Beam 300 System errors
Axcor Beam Version X.X.X Dmx Address xxx E: .........................
300 Date W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address.
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
Dmx Address
War ning Message
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Mains
6
7
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
DMX 512
Connecting to the mains supply - Fig. 6
NB: connecting one
Axcor Beam 300 to the mains,
i
t is possible to connect up
to a maximum 11 @ 200-240Vac
or 5 @ 100-120Vac Axcor Beam
300 in parallel at the same time.
Continue
➔
Page 6
6
AXCOR BEAM 300
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
S
etting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
If there is no DMX input signal, the display will show "No signal".
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
RIGHT Eto momentarily activate the display and thus access the settings. Once the required operations have been
carried out, the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press LEFT
D
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN Ckeys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT
Page 7
7
AXCOR BEAM 300
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
3
1/4 Turn
1
2
1
1/4 Turn
2
10 11
MAINTENANCE
Continue
➔
Page 8
8
AXCOR BEAM 300
Periodical cleaning
- Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits.
The frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality
of the working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from lenses and filters. It is recommended that the projector
undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs
.
L
ower Side
Upper Side
12
P
a
r
t
s
r
e
q
u
i
r
i
n
g
f
r
e
q
u
e
n
t
c
l
e
a
n
i
n
g
.
Page 9
9
AXCOR BEAM 300
Cleaning of the filters
- Fig. 13
13
Upper Side
Extraction of the effect modules - Fig. 14
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 14 in reverse order.
14
Continue
➔
Page 10
10
AXCOR BEAM 300
Replacing fuse - Fig. 15
3
2
1
Fuse
5x20mm - 3.15AT 250V
15
Page 11
11
AXCOR BEAM 300
1
2
16
Battery removal - Fig. 16
This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the
regulation in force.
Page 12
LIGHT SOURCE
110W White LED engine (7600 K) - 215VA
OPTICS
Ø 140mm front lens
Beam aperture: 2°
Motorised focus lens
COLOR SYSTEM
One color wheel with 14 Colors
EFFECTS SECTION
One gobo wheel with 17 Gobos
Rotating 8-facet Prism
CONTROL AND PROGRAMMING
16-bit Electronic Dimmer with 4 curves
Electronic strobe@24 f/sec
Two DMX modes: 14ch / 16ch (Sharpy mode)
WEIGHT
17.6 Kg (38.8 lbs)

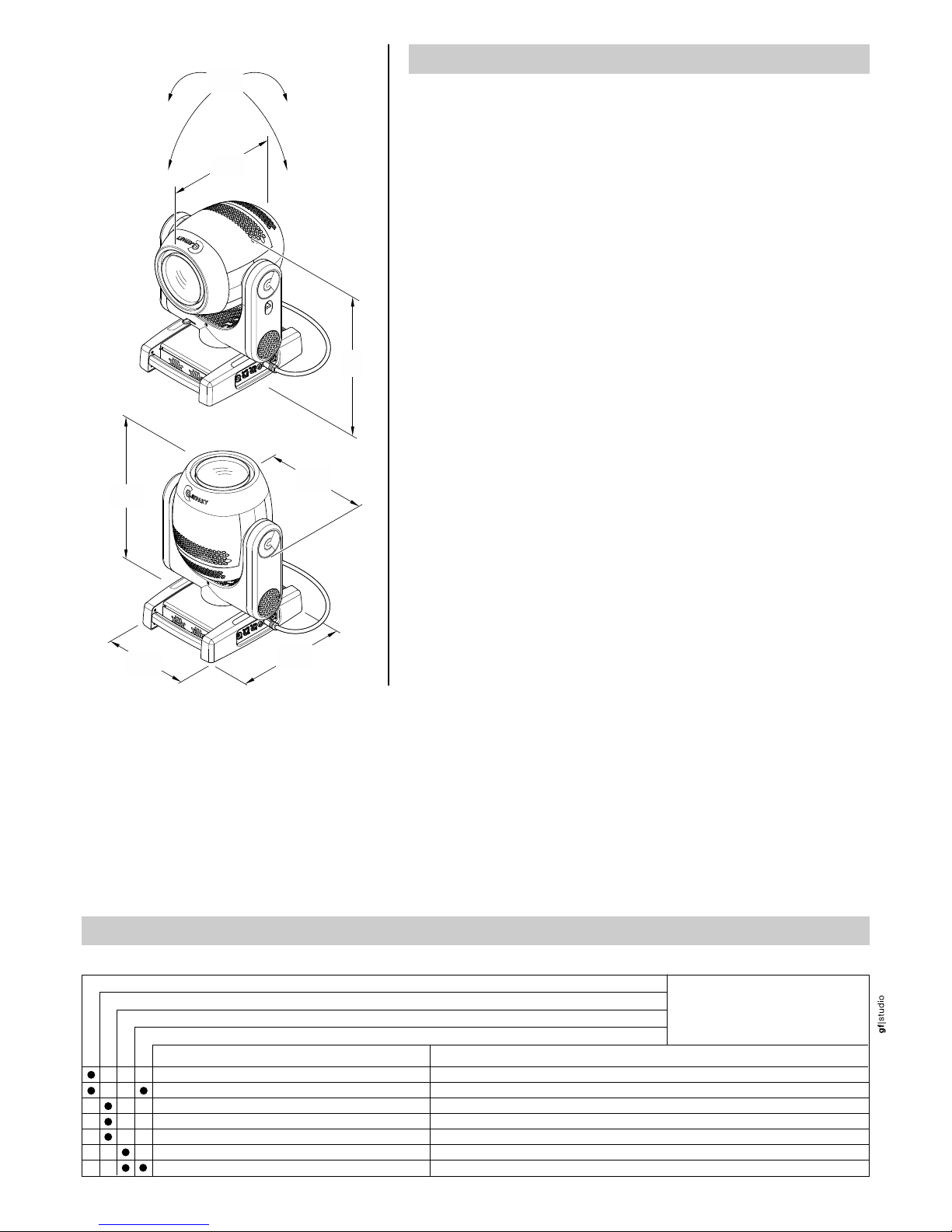

TECHNICAL INFORMATION
350
(13.77")
317
(12.48")
446
(17.56")
4
90
(
19.29")
350
(13.77")
350
(13.77")
275
(10.83")
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
LED engine defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses broken
Dust or grease deposited.
Check the power supply voltage.
Replace LED engine.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
Clay Paky S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - Fax +39-035-301876 - www.claypaky.it
IST016/001 – EN - Rev.0 02/2018
