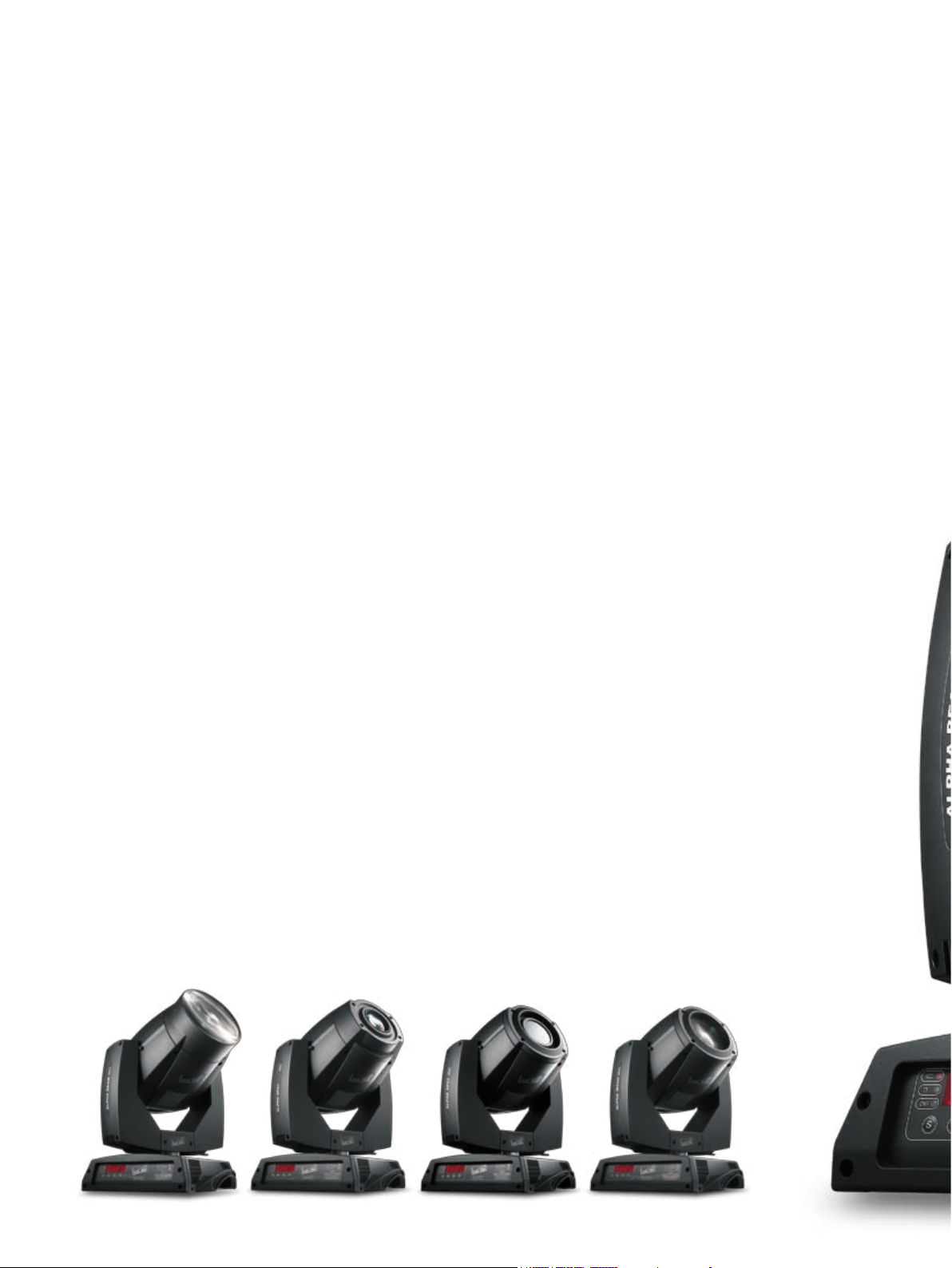

Four compact moving body projectors for
professional use designed with the big features of
the whole Alpha Series:
Alpha Beam 300 moving light beam,
Alpha Spot HPE 300 effect projector,
Alpha Spot 300 effect projector,
Alpha Wash 300 washlight.
Unmatched in performance, these new 300 Watt
models are superior to all competitors in the
same power category for brightness, graphic
variety, optical system and performance, often
also allowing them to be used professionally in
place of larger sized projectors.
They are of limited size and weight that
make their installation and use ideal in highly
professional environments, with considerable
investment and operating economy.
All these features make the “Alpha 300” excellent
for every sector – from the Theatre to Television,
from Corporate Events to Clubs, for large as for
small Rental Companies.
ALPHA BEAM 300
ALPHA SPOT HPE 300
ALPHA SPOT 300
ALPHA WASH 300
Page 3
ALPHA BEAM 300
Code C61093
ALPHA BEAM 300
3
Page 4
ALPHA BEAM 300

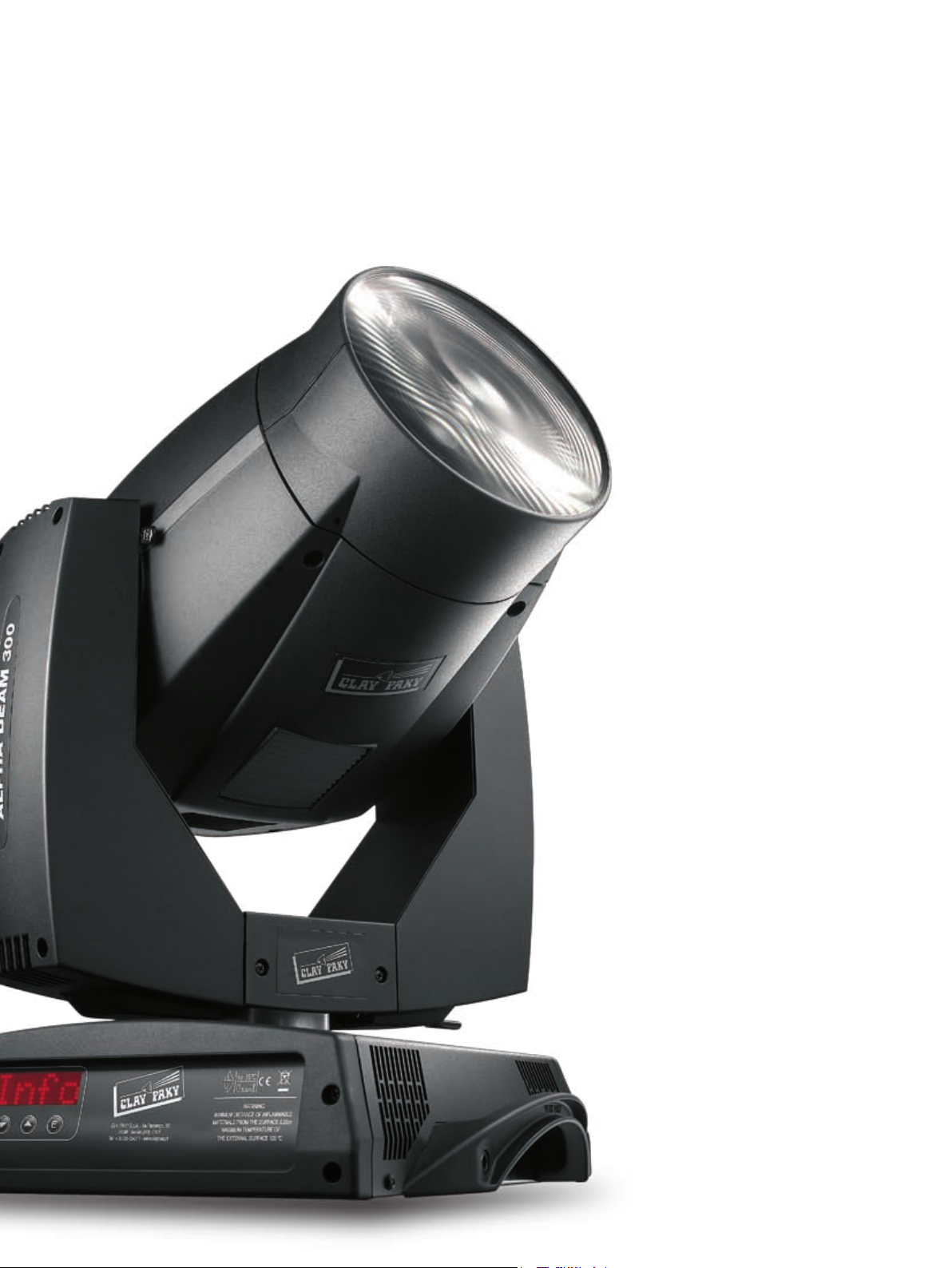

An exclusive MOVING LIGHT BEAM
The only 300W Moving Light Beam on
the market able to release an Aircraft
Landing light effect from a powerful,
light and compact moving body. Like an
ACL Par64, the Alpha Beam 300 can be
used in “live” environments, especially
for “long throw” use, and in addition to
the former offering a series of graphic
and movement capacities impossible to
imagine so far.
4
Unequalled BRIGHTNESS
The new special Clay Paky optical
group, with a 300W lamp and an unique
elliptical reflector with a smooth surface
is three times brighter than an ordinary
1200W wash projector, generating an
extraordinary “tunnel of light” with a
natural beam of 8°.

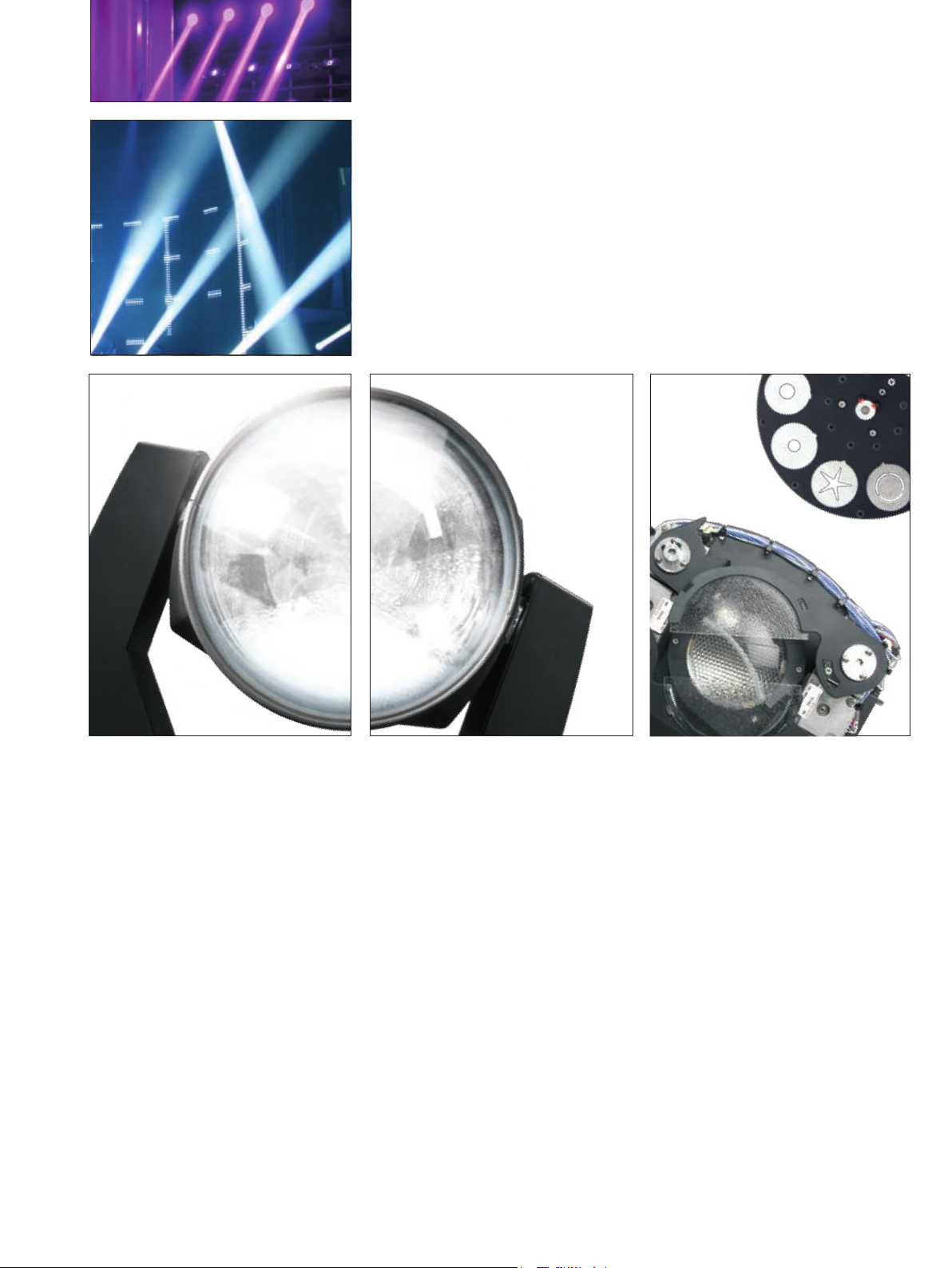

Complete GRAPHICS
The opening and graphics of the
“tunnel of light” can be decided at will
with the 8 fixed gobos available as
standard (4 standard gobos + 4 beam
angle reduction gobos) and easily
interchangeable.

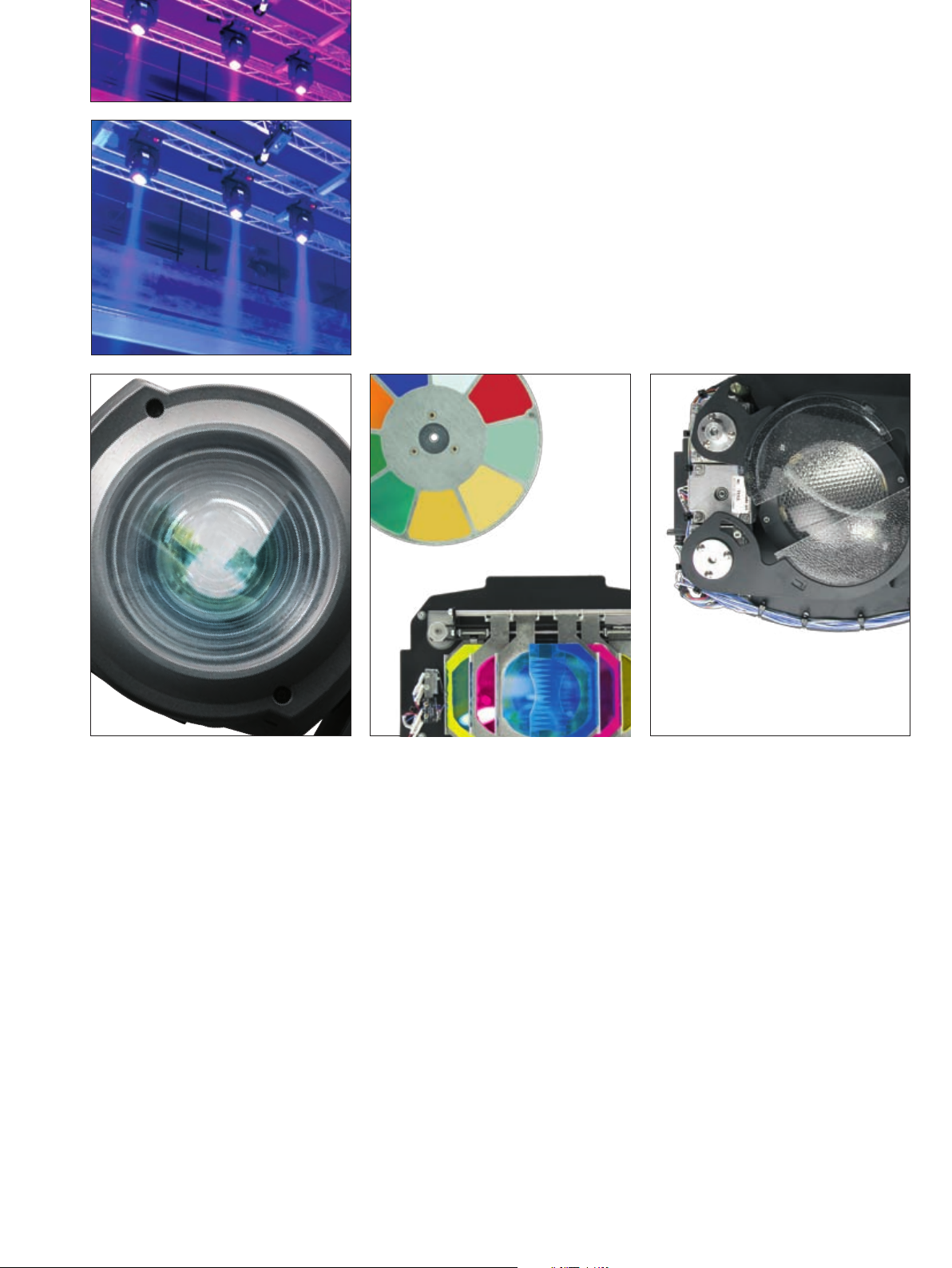

Patented FROST
The innovative frost system (Patent
Pending), based on the inclusion of two
high quality diffusion filters, allows the
linear passage from a sharp beam to
a soft one with two angles of diffusion,
typical of a regular wash, with the obvious
advantages of the two projection modes.
Page 5
ALPHA BEAM 300
Presented exclusively by Clay Paky, the Alpha Beam 300 produces a superconcentrated parallel light beam, for a
very similar use to that of an ACL Par64, always used in big Rock'n'Roll shows, but with decidedly superior features.
Innovative and complete, compact, service friendly, easy to install and to use, the Alpha Beam 300 is the ideal Moving
Light Beam for “live” professional use, especially “long throw” to penetrate the background brightness of stage washes
or LED systems with Aircraft Landing light effects that have never been seen as yet.
ALPHA BEAM 300

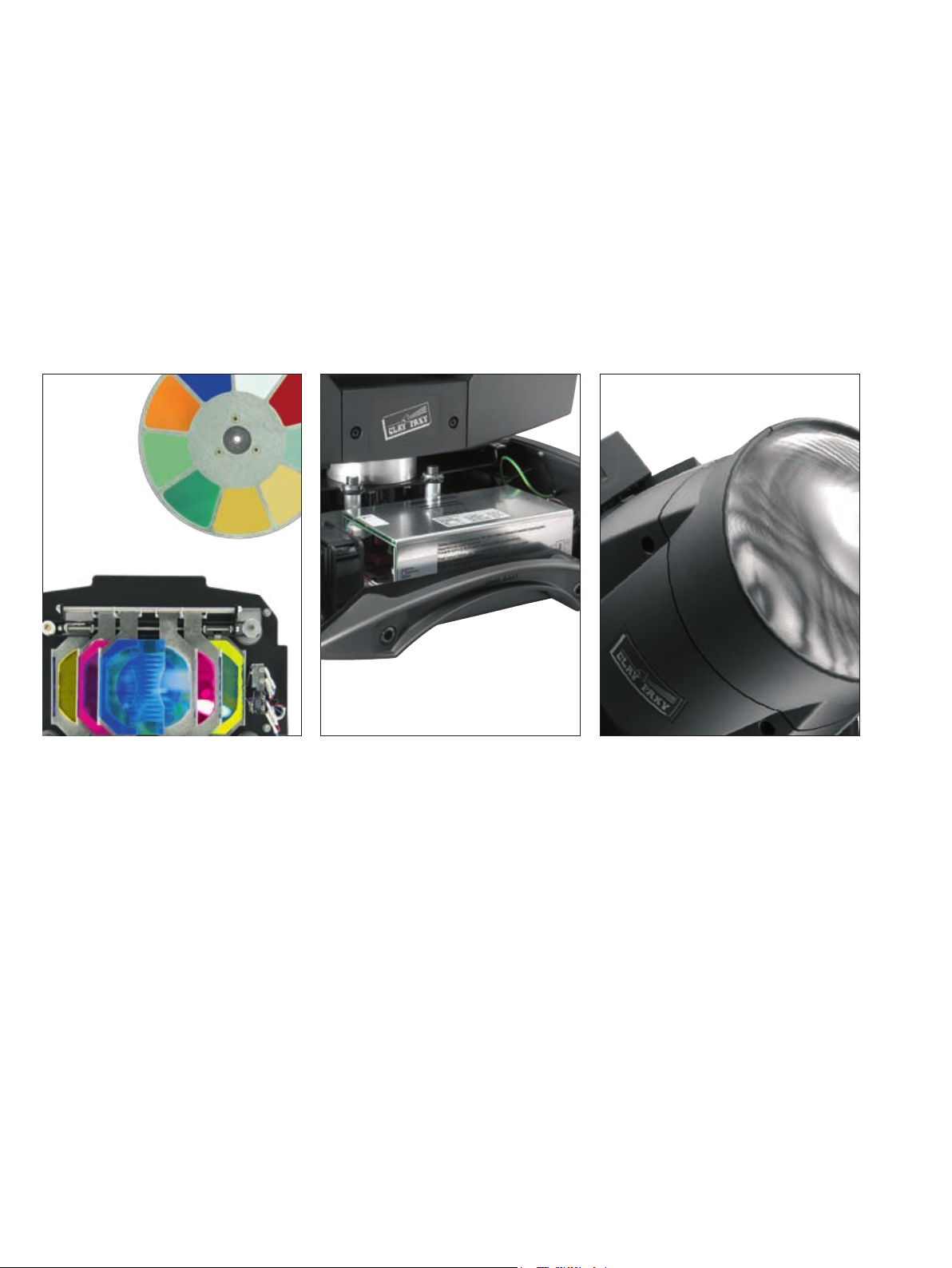

The COLOR makes the difference
CMY + Color Wheel (8+1) that allow
the light beam to be colored at will,
exceeding the traditional concentration
of the Par64, which requires the manual
insertion of gelatine filters.
2 CTO filters (3200K and 2500K),
1 CTB filter and a selection of new colors
particularly demanded for professional
use: Orange, Aquamarine, deep Green,
deep Blue (Night Light effect) and
saturated Red. The color wheel uses a
new snap-shot system that increases the
color changing speed.
Standard ELECTRONIC BALLAST
The first product in its category with a
standard electronic ballast that means
total absence of flickering, a universal
power supply selectable automatically
and, naturally, the product weighs less.
Wide and fast PAN and TILT
movements
Unlike an ACL Par64, with a 540° PAN
and a 250° TILT, the Alpha Beam 300
superconcentrated light beam can be
pointed and moved with ease onto
the stage, the audience, the ceiling or
towards the sky for open-air events.
Three-phase motors have been
introduced in the Alpha Beam 300 to
allow faster Pan (2.75sec/540°) and Tilt
(1.65sec/250°) movements.
5
Page 6

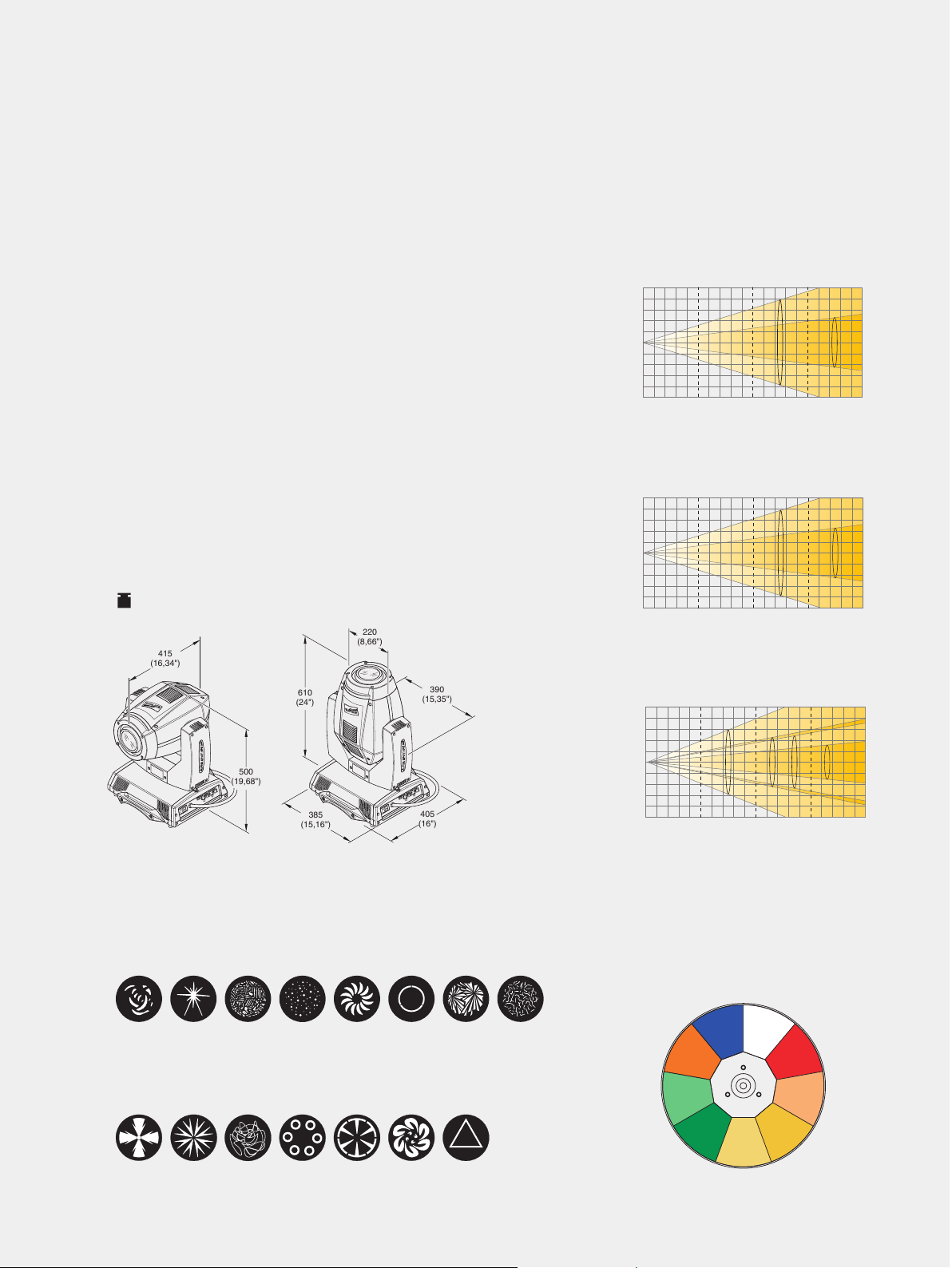

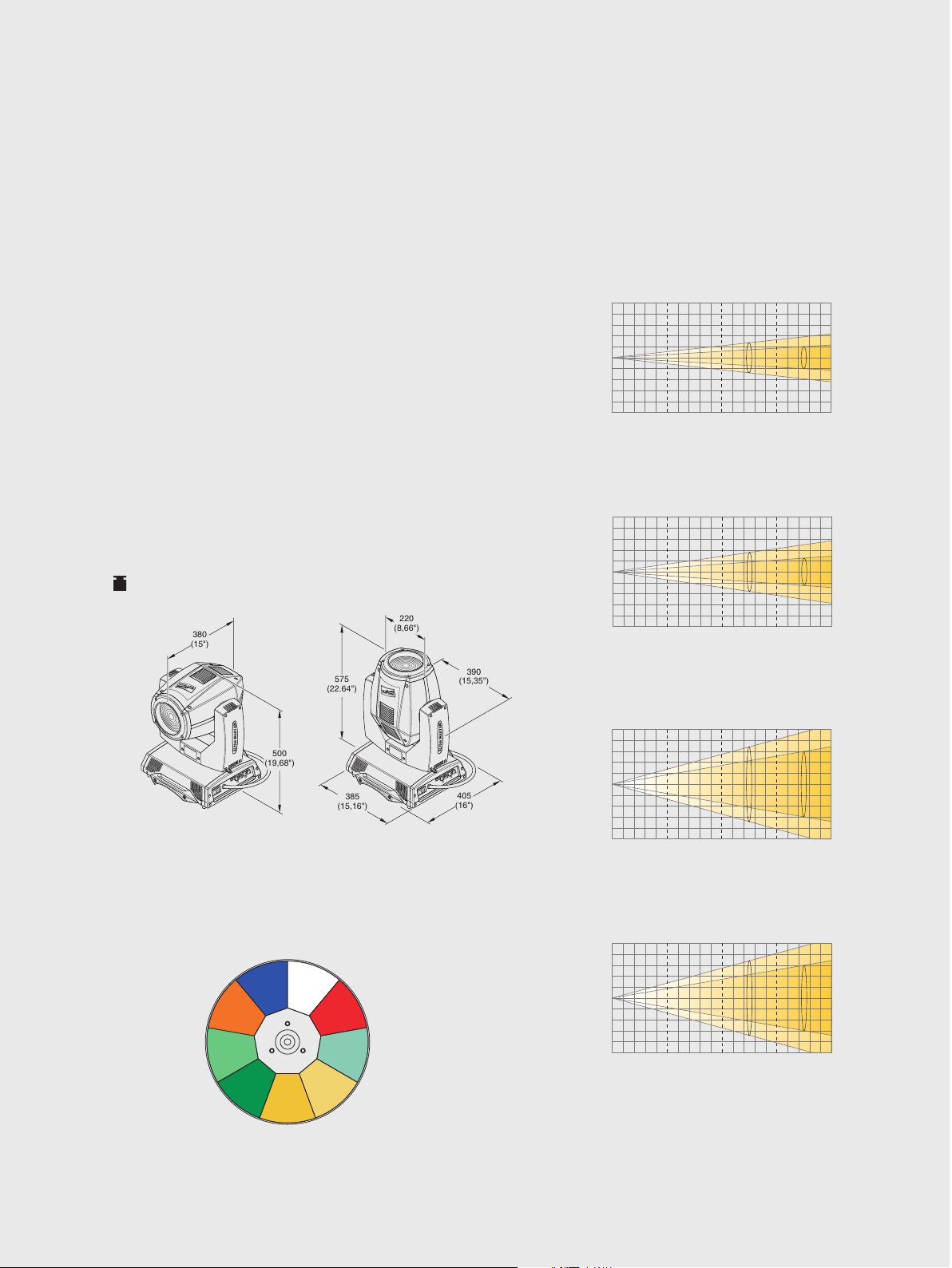

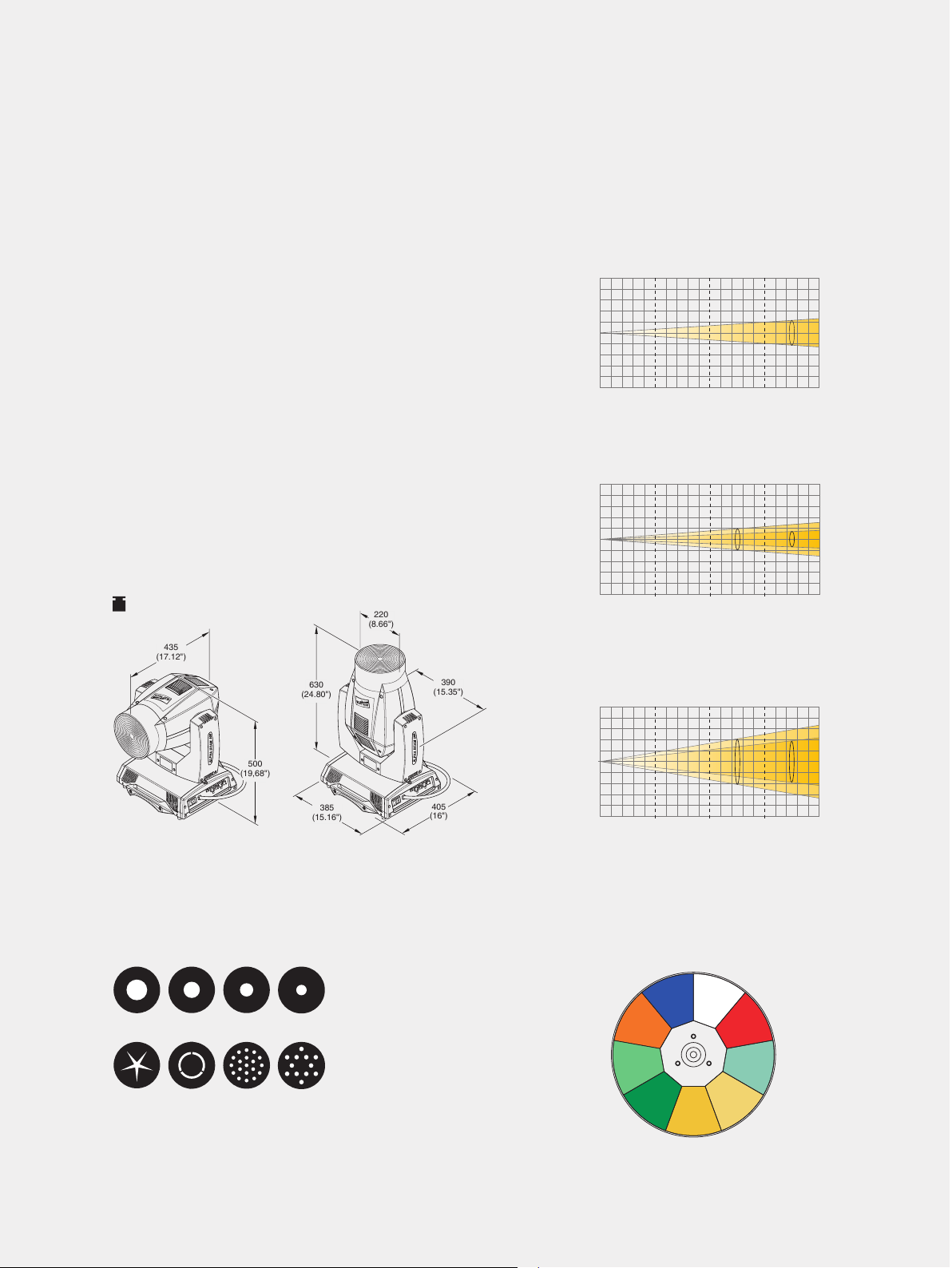

435
(17.12")
500
(19,68")
435
(17.12")
500
(19,68")
405
(16")
385
(15.16")
390
(15.35")
220
(8.66")
630
(24.80")
ALPHA BEAM 300
ALPHA BEAM 300
CONTROL CHANNELS
01. Cyan
02. Magenta
03. Yellow
04. 8+1 Color wheel
05. Stop-Strobe
06. Dimmer 0-100%
07. Fixed Gobo Wheel
Wheel with 8 xed and easy
interchangeable gobos, with
variable rotation and selectable
“gobo shake” function
08. Linear Frost
09. Pan
10. Pan Fine
11. Tilt
12. Tilt Fine
13. Reset
14. Lamp on/off
15. Pan -Tilt Time
16. Color Time
17. Beam Time
18. Gobo Time
WEIGHT AND DIMENSIONS
19.1 Kg (42 lbs)
(mm - inches)
lux (fc)
Distance m (ft in)
Diameter m (ft in)
lux (fc)
Distance m (ft in)
Diameter 10% m (ft in)
Diameter 50% m (ft in)
PHOTOMETRICS
Standard (8,0°)
0
33000 8250 3667 20633066 766 341 192
5
4
3
2
1
0
1
2
3
4
5
10
8
6
4
2
0
2
4
6
8
10
10 32’10’’
0
1.40
0
with light frost (4,4° 50% - 8,6° 10%)
10000 2500 1111 625929 232 103 58.1
0
10 20 30 40
0
1.50 3.00
0
0.77 1.54
0
20 65’7’’ 30 98’5’’ 40 131’3’’
4’7’’
2.80 9’2’’ 4.20 13’9’’
32’10”
2’6” 5’1
65’7”
9’10
” 14’9” 19’8”
”
with heavy frost (12,6° 50% - 18,9° 10%)
8.6°
4.50
2.32
8, 0°
5.60 18’4’’
4.4°
98’5” 131’3”
6.004’11”
7’7” 10’2”
3.09
lux (fc)
0
0
10
8
6
4
2
0
2
4
6
8
FIXED GOBOS COLOR WHEEL
085805/001
085804/001 085803/001 085802/001
Diameter 10% m (ft in)
Diameter 50% m (ft in)
Distance m (ft in)
ORANGE
10
0
0
0
AQUAMARINE
085605/001 085603/001085702/001 085606/001
DEEP GREEN
1310 328 146 82122 30.4 13.5 7.61
18.9°
10 20 30 40
32’10”
3.33 6.66 9.99 13.32
10’11” 21’10” 32’9” 43’8”
2.20 4.41 6.61 8.82
7’3”
65’7”
14’6” 21’8” 28’11”
12.6°
98’5” 131’3”
BLUE
8
7
6
5
DARK RED
1
2
CTB
3
4
CTO 8000-3200K
CT0 8000-2500K
6
Page 7
ALPHA SPOT HPE 300
Code C61098
ALPHA SPOT HPE 300
7
Page 8

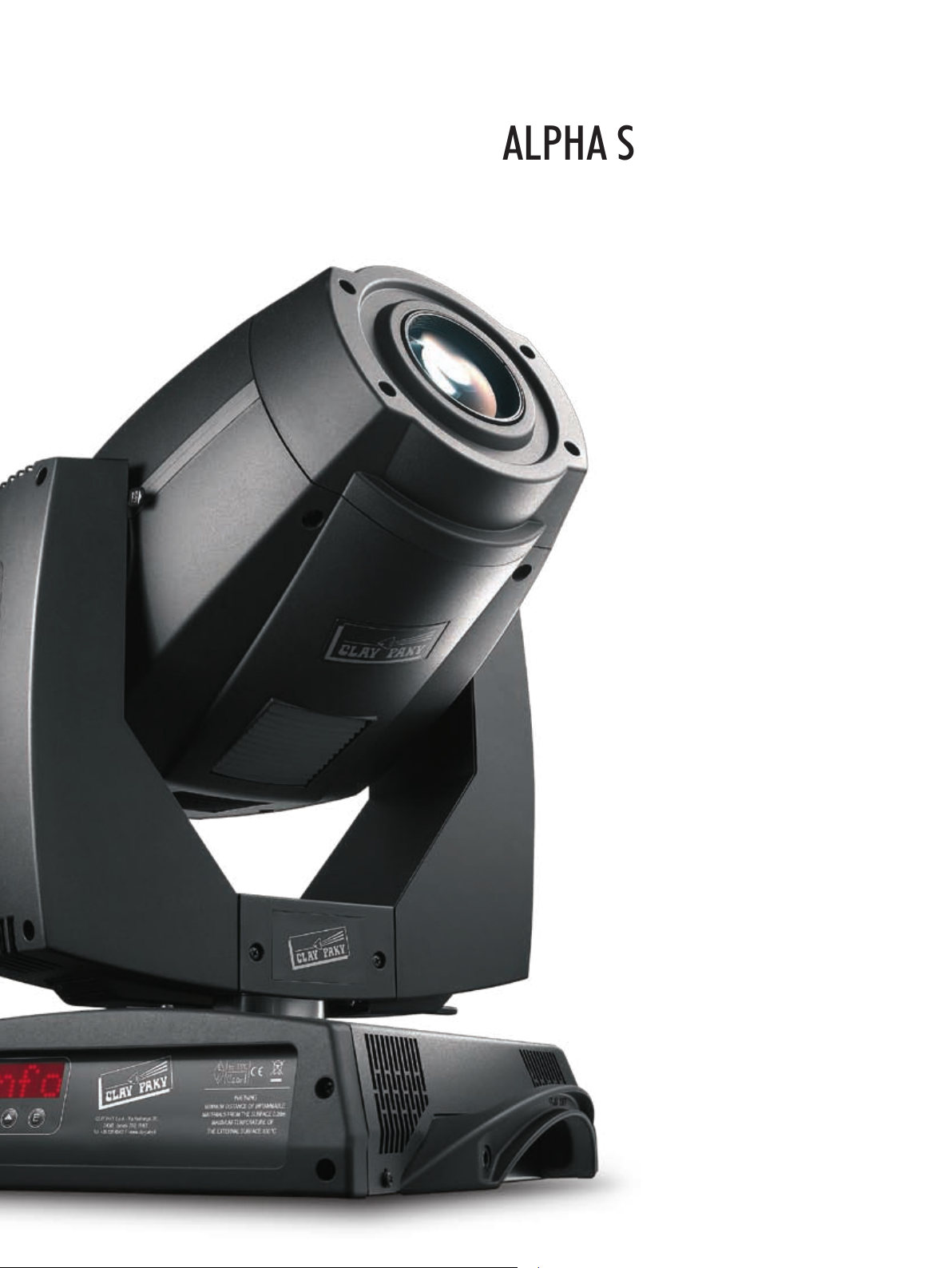

ALPHA SPOT HPE 300
Unequalled BRIGHTNESS
About twice as bright as the best-known
competitors in its category.
Optical system based on the use of
a 300W lamp and a dichroic elliptical
mirror with high reflection. In many cases,
the Alpha Spot HPE 300 can also be
used instead of projectors of larger size
(575W).
8
The widest EFFECT SECTION

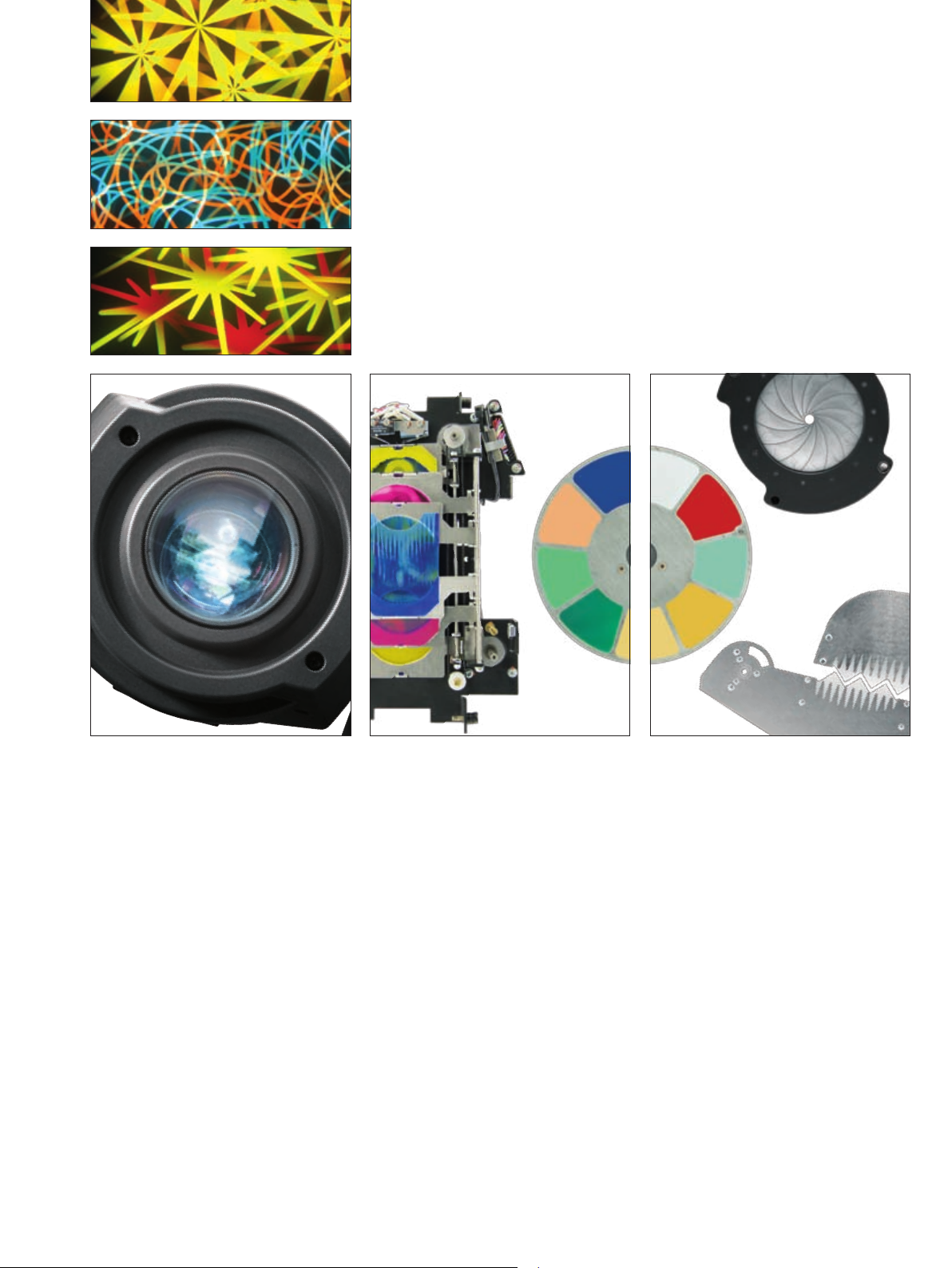

CMY, 8+1 Color Wheel, 15 gobos,
rotating Prism, Frost with adjustable
projection angle, 0-100% Dimmer
on dedicated channel, high speed
mechanical iris, stop/strobe. It is the only
compact projector on the market to have
all the effects of the large size projectors.
A complete COLOR SYSTEM
It’s among the few “300s” with a complete
color system: CMY and 8+1 Color Wheel,
which includes 2 CTO filters (3200K and
2500K) and a selection of new colors,
particularly demanded for professional
use: Half Minus Green,Orange,
Aquamarine, deep Green, deep Blue
(Night Light effect) and saturated Red.
The color wheel uses a new snap-shot
system that increases the color changing
speed.
Page 9
ALPHA SPOT HPE 300
Compact, light, very bright and silent, with superior graphic and optical
performances, it is the most complete spotlight in its category.
The ideal tool for every professional sector, that needs to combine the
advantages of small units with the performance of the large ones.
ALPHA SPOT HPE 300
15 high quality GOBOS
7 rotating gobos in high quality glass +
8 fixed gobos can be overlapped for an
extraordinary Morphing effect. All gobos
are easily interchangeable.
Standard ELECTRONIC BALLAST
The first product in its category with
standard electronic ballast that means
the total absence of flickering, a universal
power supply selectable automatically
and, naturally, the product weighs less.
The first “300” with LINEAR ZOOM
A wide Linear Zoom, that provide precise
control at any beam opening. A special
lens on a dedicated channel allows
the useful passage, at will, from “hot
spot” to “uniform field” with the obvious
advantages of the two projection modes.

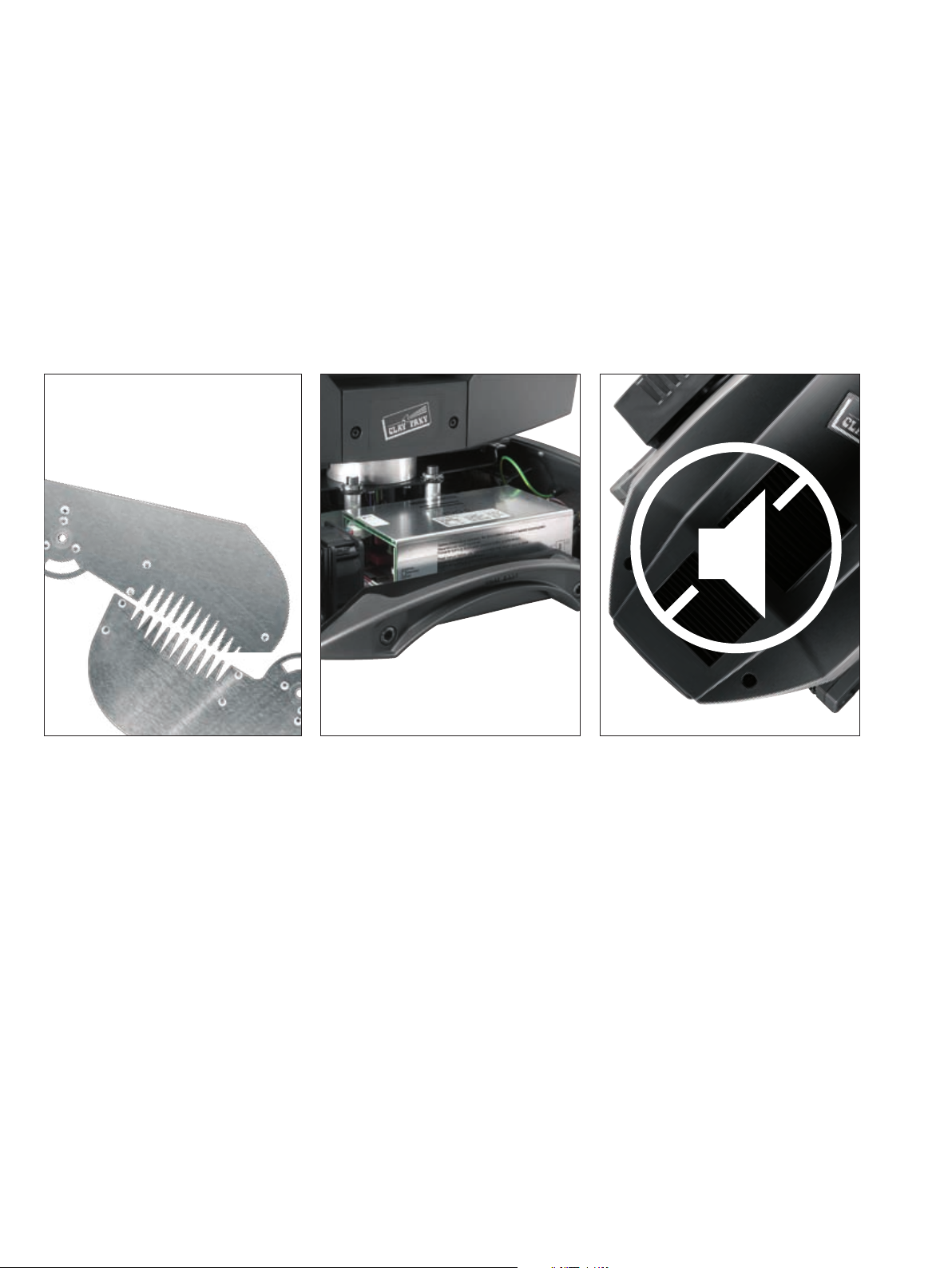

SILENCE at the top of its category
Noise produced is less than 40 dB,
thanks to the use of an innovative internal
ventilation system and of an innovative
electronic section that restores a further
reduction of unwanted noise in the
projector PAN-TILT motors.
9
Page 10
ALPHA SPOT HPE 300
500
(19,68")
415
(16,34")
500
(19,68")
415
(16,34")
405
(16")
385
(15,16")
390
(15,35")
220
(8,66")
610
(24")
ALPHA SPOT HPE 300
CONTROL CHANNELS
01. Cyan
02. Magenta
03. Yellow
04. Uniform eld lens
05. 8+1 Color wheel
06. Stop/strobe
07. Dimmer 0-100%
08. Iris
09. Fixed gobo wheel
Wheel with 8 xed and
easily interchangeable
gobos, with variable
rotation and selectable
“gobo shake” function
10. Rotating Gobo wheel
Wheel with 7 rotating,
bidirectional, indexable
and easily
interchangeable gobos.
“Gobo shake” function
11. Gobo rotation
12. Gobo Fine
13. Prism insertion
14. Prism rotation
15. Frost
16. Focus
17. Zoom
WEIGHT AND DIMENSIONS
21.4 Kg (47lbs 1oz)
18. Pan
19. Pan Fine
20. Tilt
21. Tilt Fine
22. Reset
23. Lamp on/off
24. Pan-Tilt Time
25. Color Time
26. Beam Time
27. Gobo Time
(mm - inches)
Min Diameter m (ft in)
Max Diameter m (ft in)
Min Diameter m (ft in)
Max Diameter m (ft in)
Minimum Zoom
Maximum Zoom
Minimum Zoom lux (fc)
Maximum Zoom lux (fc)
Distance m (ft in)
Minimum Zoom lux (fc)
Maximum Zoom lux (fc)
Distance m (ft in)
Minimum Zoom lux (fc)
Maximum Zoom lux (fc)
Distance m (ft)
Diameter 10% m (ft)
Diameter 50% m (ft)
Diameter 10% m (ft)
Diameter 50% m (ft)
PHOTOMETRICS
Standard (14,7° - 34,9°)*
0
14450 3613 1606 9031342 336 149 83.9
0
3075 769 342 192286 71.4 31.7 17.9
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
1.29
4’3’’
3.14 10’4’’
with uniform field lens (14,7° - 34,9°)*
7480 1870 831 468695 174 77.2 43. 40
1440 360 160 90134 33.4 14.98.360
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
1.29 4’3’’
3.14 10’4’’
with frost (10,8°- 22,1° 50%; 20,2°- 44,2° 10%)**
3690 923 410 231343 85.7 38.1 21.4
0
960 240 107 6089.2 22.3 9.91 5.57
0
5
4
3
2
1
0
1
2
3
4
5
0
0
0
0
0
*17,7° - 44° with full open iris
**11,3°- 22,7° 50% ; 21,6°- 47,1° 10% with full open iris
5 16’5’’
1.78 5’10’’
0.94 3’1’’
4.06 13’4’’
1.95 6’5’’
44, 2°
10 32’10’’
2.58 8’6’’
20’7’’
6.28
10 32’10’’
2.58 8’6’’
6.28 20’7’’
10 32’10’’
3.56 11’8’’
1.88 6’2’’
8.13 26’8’’
3.90 12’10’’
34, 9°
34, 9°
22, 1° 20, 2°
15 49’3’’
3.87 12’8’’
9.42 30’11’’
15 49’3’’
3.87 12’8’’
9.42 30’11’’
15 49’3’’
5.34 17’6’’
2.82 9’3’’
12.19 40’0’’
5.85 19’2’’
10, 8°
14, 7°
14, 7°
20 65’7’’
5.16
16’11’’
12.56 41’2’’
20 65’7’’
5.16 16’11’’
12.56 41’2’’
20 65’7’’
7.12 23’4’’
3.76 12’4’’
16.26 53’4’’
7.80 25’7’’
FIXED GOBOS
085601/001 084707/001 084705/001084702/001 085602/001 084708/001085701/001 084709/001
ROTATING GOBOS
085506/001
10
085511/001 085507/001 085516/001 085517/001 082201/001 085522/001
ORANGE
AQUAMARINE
DEEP GREEN
COLOR WHEEL
BLUE
8
7
6
5
4
CTO 8000-3200K
1
2
3
CTO 8000-2500K
DARK RED
HALF MINUS GREEN
Page 11

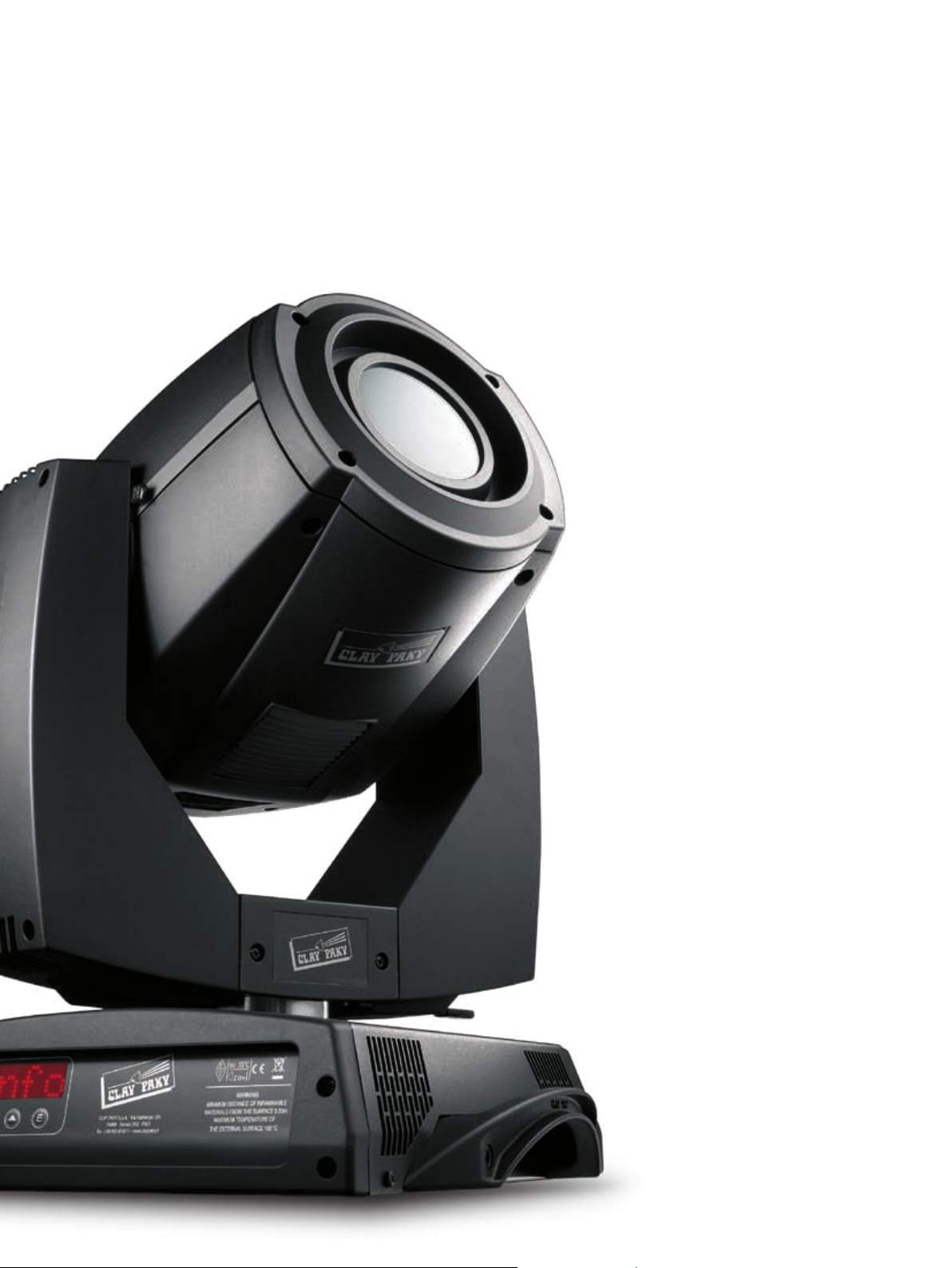

ALPHA SPOT 300
Code C61097 electronic
Code C61095 magnetic
ALPHA SPOT 300
11
Page 12
ALPHA SPOT 300
Greater BRIGHTNESS
Considerably greater brightness than
other spots in its category. The optical
system is based on the use of a 300W
lamp and a dichroic elliptical mirror with
high reflection.
In many cases, Alpha Spot 300 can also
be used instead of projectors of larger
size (575 W).
12

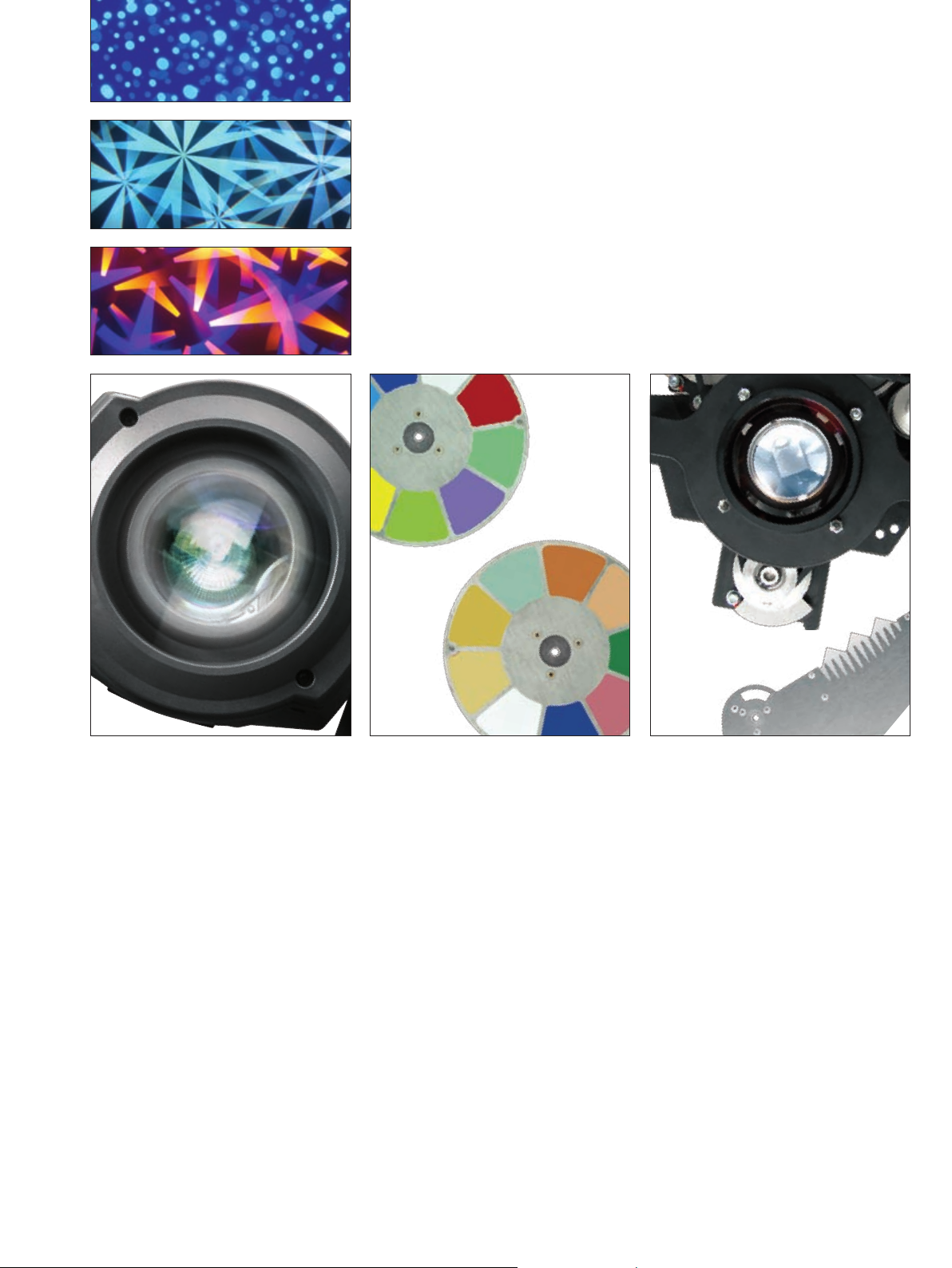

EFFECTS SECTION suitable for any use
15 gobos, rotating Prism, 16+1 Colors on 2 Wheels (that include 2 CTO filters at 3200K
and 2500K, CTB filter and a selection of new colors particularly demanded by Lighting
Designers) with a snap-shot system that increases color changing speed, 0-100%
Dimmer on dedicated channel, stop/strobe.
Page 13
ALPHA SPOT 300
With the same optical, lighting technology and construction qualities of the
Alpha Spot HPE 300, it is ideal for more basic applications that involve limited
investment levels. It is available either with electronic or magnetic ballast.
ALPHA SPOT 300

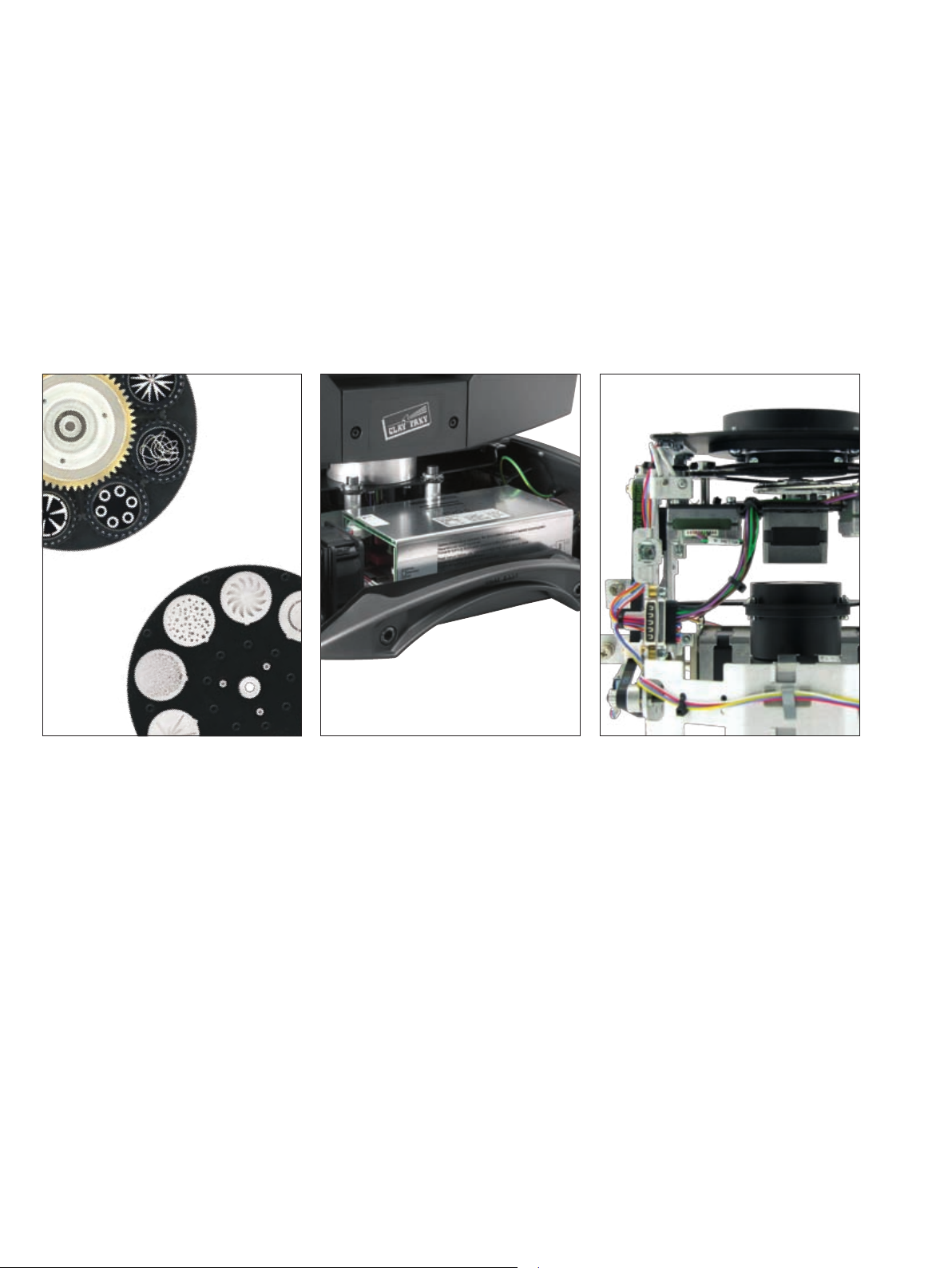

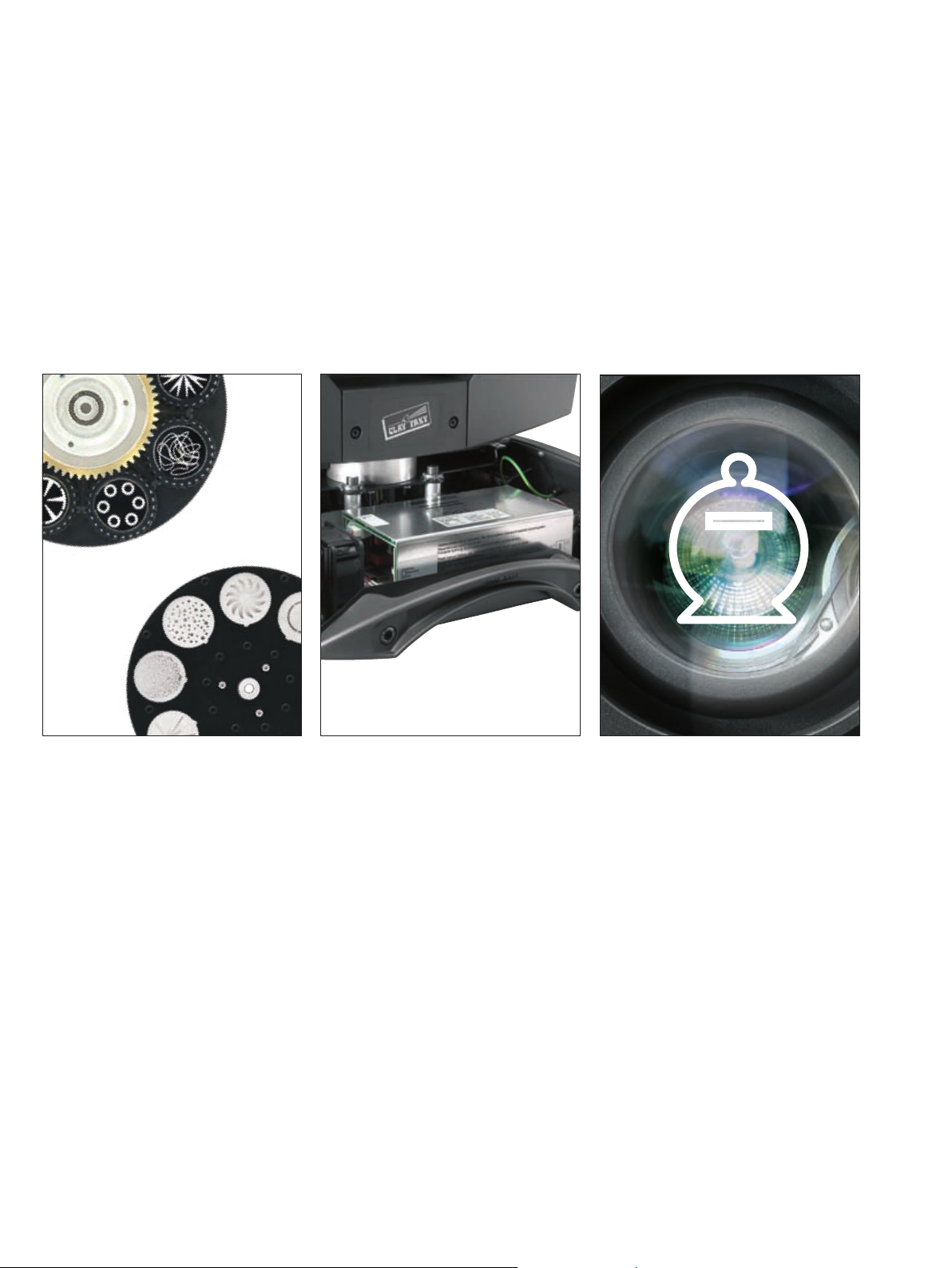

15 high quality GOBOS
7 rotating gobos in high quality glass +
8 fixed gobos can be overlapped for an
extraordinary Morphing effect. All gobos
are easily interchangeable.
Magnetic or electronic BALLAST
Depending on professional needs, every
user can choose the product in the
electronic or magnetic version.
Extraordinary VALUE
Power, superior optical system and
very high level performances, at a truly
contained price.
13
Page 14
ALPHA SPOT 300
380
(15")
500
(19,68")
380
(15")
500
(19,68")
405
(16")
385
(15,16")
390
(15,35")
220
(8,66")
575
(22.64")
ALPHA SPOT 300

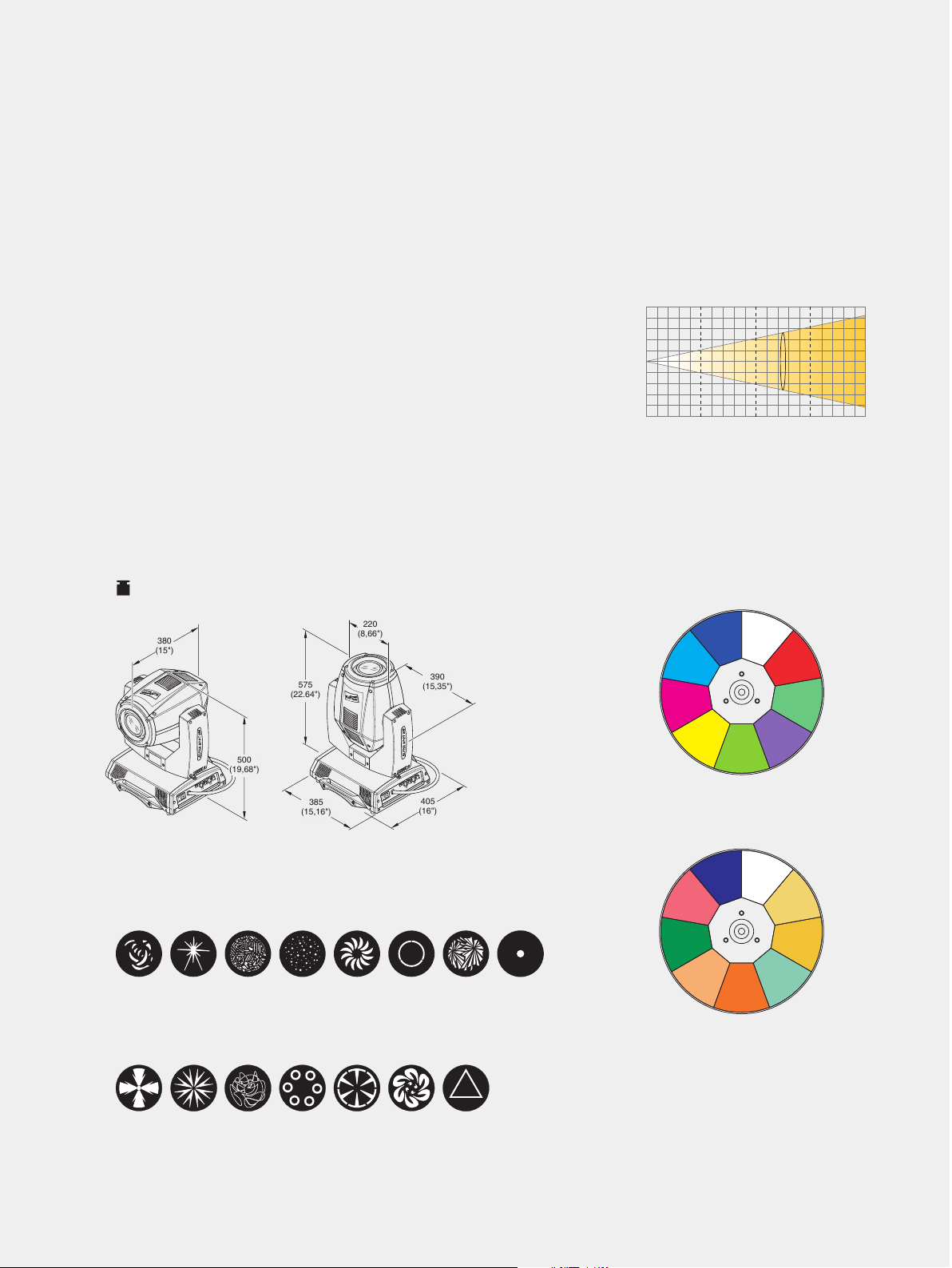

CONTROL CHANNELS
01. 8+1 Color wheel 1
02. 8+1 Color wheel 2
03. Stop/Strobe
04. Dimmer 0-100%
05. Fixed Gobo wheel
Wheel with 8 xed and
easily interchangeable
gobos, with variable
rotation and selectable
“gobo shake”function
06. Rotating Gobo wheel
Wheel with 7 rotating,
bidirectional, indexable
and easily
interchangeable gobos.
“Gobo shake” function
07. Gobo rotation
08. Gobo Fine
09. Prism insertion
10. Prism rotation
11. Focus
WEIGHT AND DIMENSIONS
19,1 Kg (42lbs) electronic version
22,8 Kg (50lbs 3oz) magnetic version
12. Pan
13. Pan Fine
14. Tilt
15. Tilt Fine
16. Reset
17. Lamp on/off
18. Pan-Tilt Time
19. Color Time
20. Beam Time
21. Gobo Time
(mm - inches)
Distance m (ft in)
Diameter m (ft in)
MAGENTA
PHOTOMETRICS
Standard (
lux (fc)
9050 2263 1006 566841 210 93.4 52.50
5
4
3
2
1
0
1
2
3
4
5
0
0
2.10
5 16’5’’
6’11’’
COLOR WHEELS
BLUE
CYAN
8
7
6
10 32’10’’
4.20 13’5’’
23,7°
23, 7°
)
1
15 49’3’’
6.30 20’8’’
2
8.40 27’7’’
DARK RED
AQUAMARINE
20 65’7’’
FIXED GOBOS
085601/001 084707/001 084705/001084702/001 085602/001 085701/001 084709/001
ROTATING GOBOS
085506/001 085511/001 085507/001 085516/001 085517/001 082201/001 085522/001
14
085801/001
YELLOW
PINK
DEEP GREEN
HALF MINUS GREEN
5
U.V.
7
6
5
4
LIGHT GREEN
8
4
ORANGE
3
1
3
LAVENDER
CTO 8000-3200K
2
CTB
CTO 8000-2500K
Page 15

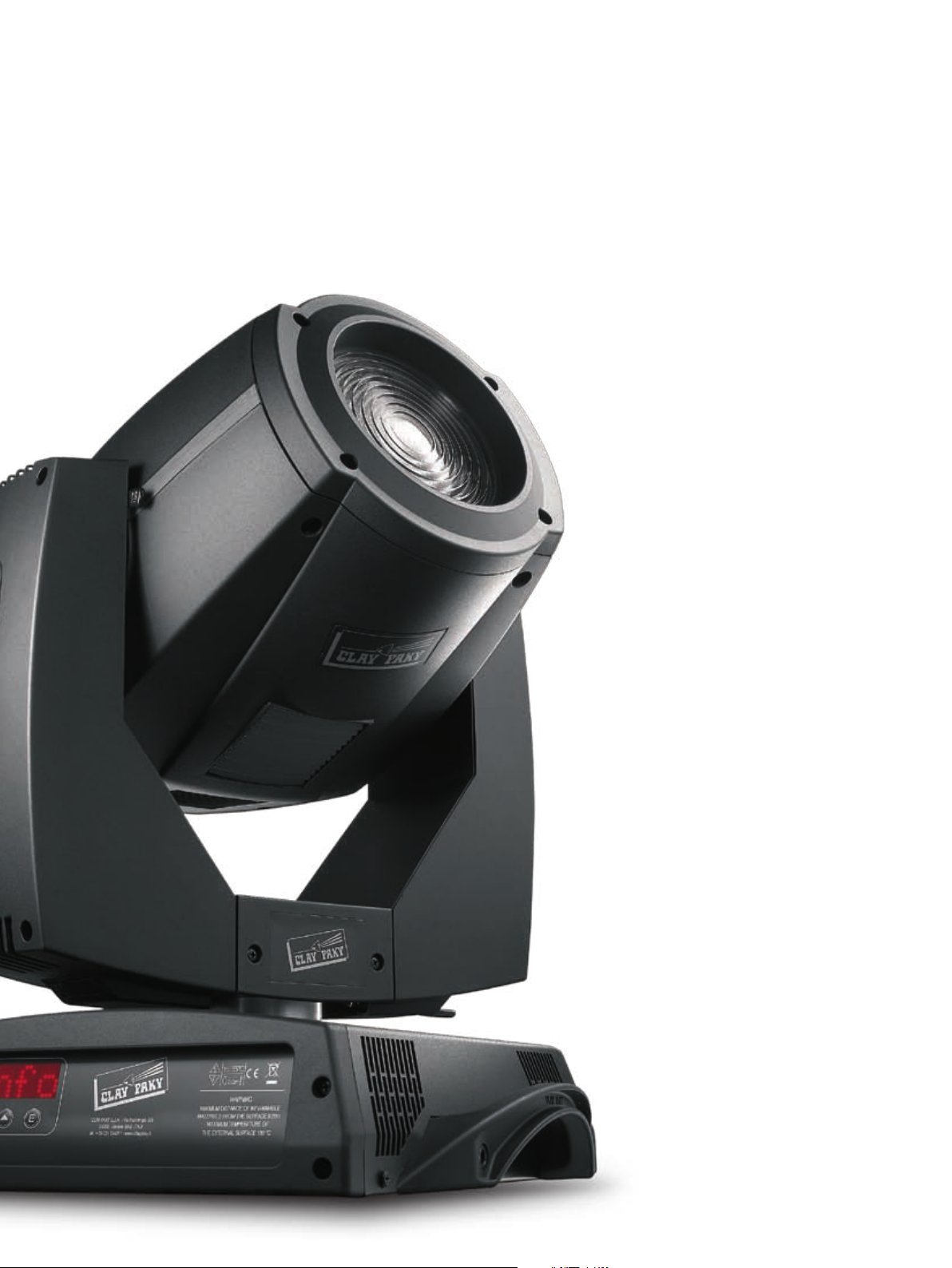

ALPHA WASH 300
Code C61094 electronic
Code C61092 magnetic
15
ALPHA WASH 300
Page 16
ALPHA WASH 300

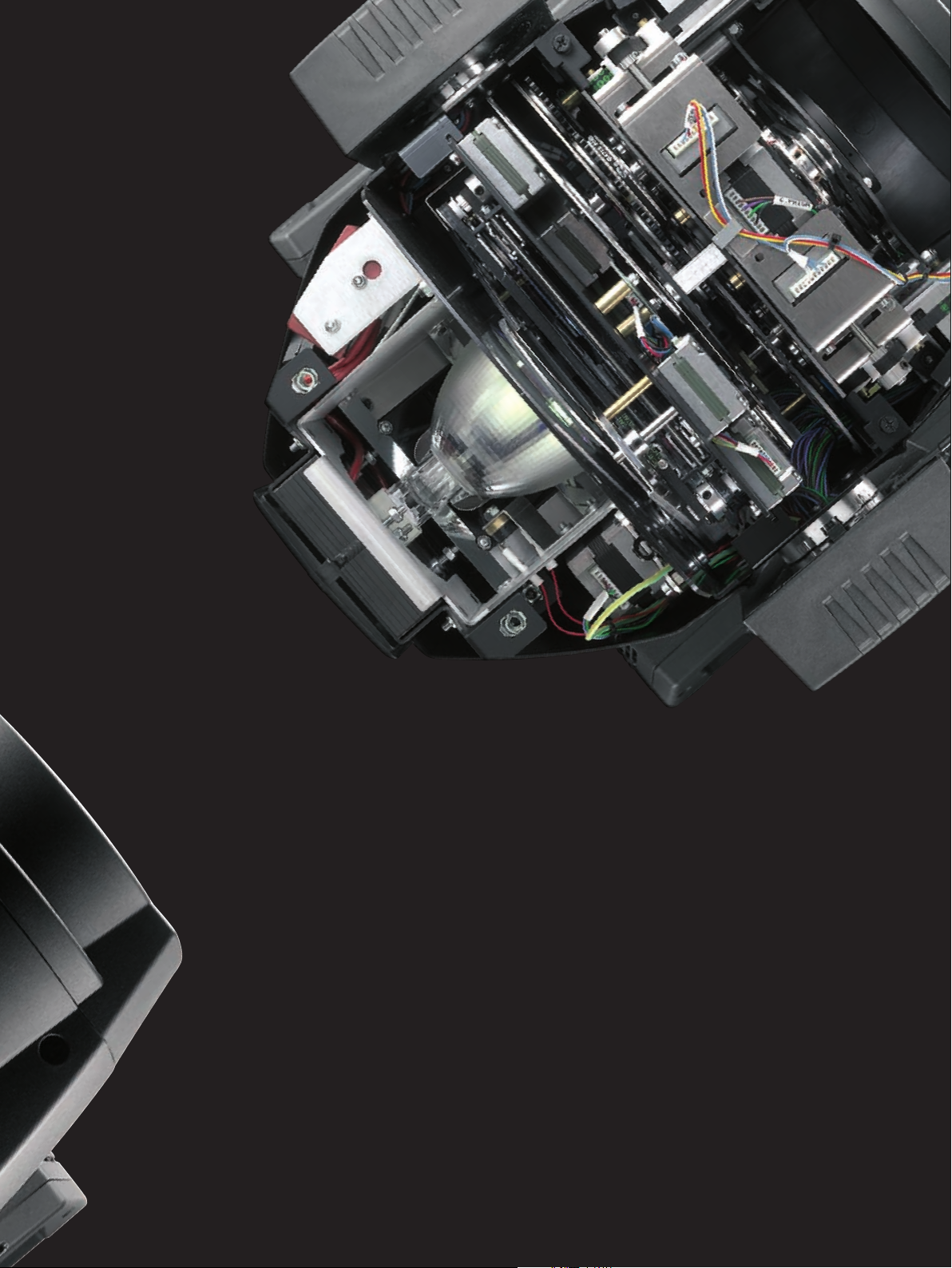

The BRIGHTEST 300W washlight
About 20% brighter than the best-known
competitors in its category.
The optical system is based on the
use of a 300W lamp and a dichroic
elliptical mirror with high reflection. The
Alpha Wash 300 can be used instead of
projectors of larger size (575W).
16
COLOR QUALITY at maximum levels
CMY system and Color Wheel (8+1), that
includes 2 CTO filters (3200K and 2500K)
and 1 CTB filter, as well as a selection
of new colors particularly demanded for
professional use: Orange, Aquamarine,
deep Green, deep Blue (Night Light
effect) and saturated Red. The color
wheel uses a new snap-shot system that
increases the color changing speed.
Perfect beam UNIFORMITY
Two different frost effects with linear
variation located on dedicated channels
guarantee gradual color diffusion and a
perfect beam uniformity at all projection
distances. Beam opening from 12° to
32° can be obtained by using the frosts
individually or together.
Page 17
ALPHA WASH 300
A compact, light, extremely bright and silent washlight that is practical to install, able to
supply any required tone and an unrivalled color quality.
The Alpha Wash 300 is suitable for universal use, even in the most demanding professional
sectors and is available either with electronic or magnetic version.
Very precise DIMMER
Special dimmer on dedicated channel to
vary the brightness level from 0 to 100%
and black-out with maximum linearity and
precision.
Magnetic or electronic BALLAST
Depending on professional needs, every
user can choose the product in the
electronic or magnetic version.
ALPHA WASH 300
SILENCE at the top of the category
Noise produced is less than 40 dB,
thanks to the use of an innovative internal
ventilation system and of an innovative
electronic section that restores a further
reduction of unwanted noise in the
projector PAN-TILT motors.
17
Page 18
ALPHA WASH 300
380
(15")
500
(19,68")
405
(16")
385
(15,16")
390
(15,35")
220
(8,66")
575
(22.64")
380
(15")
500
(19,68")
CONTROL CHANNELS
01. Cyan
02. Magenta
03. Yellow
04. 8+1 Color wheel
05. Stop/Strobe
06. Dimmer 0-100%
07. Linear Light Frost
08. Linear Heavy Frost
09. Pan
10. Pan Fine
11. Tilt
12. Tilt Fine
13. Reset
14. Lamp on/off
15. Pan -Tilt Time
16. Color Time
17. Beam Time
WEIGHT AND DIMENSIONS
18,2 Kg (40lbs 1oz) electronic version
21,9 Kg (48lbs 3oz) magnetic version
(mm - inches)
lux (fc)
Distance m (ft in)
Diameter 10% m (ft in)
Diameter 50% m (ft in)
lux (fc)
Distance m (ft in)
Diameter 10% m (ft in)
Diameter 50% m (ft in)
PHOTOMETRICS
Standard (6,3° 50% - 12,5° 10%)
22100 5525 2456 13812053 513 228 128
0
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
1.10
3’7’’
0.55 1’10’’
with light frost (8,2° 50% - 15,9° 10%)
11060 2765 1229 6911027257 114 64.20
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
1.40 4’7’’
0.72
2’4’’
10 32’10’’
2.19 7’2’’
1.10
10 32’10’’
2.79 9’2’’
1.44 4’9’’
12, 5°
3’7’’
15, 9°
15 49’3’’
3.29 10’9’’
1.65 5’5’’
15 49’3’’
4.19 13’9’’
2.16 7’1’’
6, 3°
8, 2°
20 65’7’’
4.38
14’4’’
7’3’’
2.20
20 65’7’’
5.59 18’4’’
2.88 9’5’’
ALPHA WASH 300
COLOR WHEEL
AQUAMARINE
ORANGE
DEEP GREEN
BLUE
8
7
6
5
CTO 8000-2500K
with heavy frost (19,9° 50% - 30,3° 10%)
0
lux (fc)
Distance m (ft in)
Diameter 10% m (ft in)
Diameter 50% m (ft in)
2350 588 261 147218 54.6 24.313.6
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
2.71
1.75 5’9’’
8’11’’
10 32’10’’
5.42 17’9’’
11’6’’
3.51
30, 3°
15 49’3’’
8.12 26’8’’
5.26 17’3’’
19,9°
20 65’7’’
10.83
7.01 23’0’’
35’6’’
with light frost and heavy frost (20,9° 50% - 32,4° 10%)
lux (fc)
DARK RED
1
2
CTB
3
4
CTO 8000-3200K
Distance m (ft in)
Diameter 10% m (ft in)
Diameter 50% m (ft in)
1940 485 216 12118045.120 11.30
5
4
3
2
1
0
1
2
3
4
5
0
0
0
5 16’5’’
2.91
1.84 6’1’’
9’6’’
10 32’10’’
5.81 19’1’’
12’1’’
3.68
32, 4°
15 49’3’’
8.72
5.53
28’7’’
18’2’’
20,9°
11.63
7.37
20 65’7’’
38’2’’
24’2’’
18
Page 19
ALPHA RANGE | COMMON FEATURES
EXTRAORDINARY BRIGHTNESS
One of the most distinctive pluses of the ALPHA 300 series is certainly the extraordinary brightness, decidedly
superior to that of the competitors in the same category. The Alpha Spot HPE 300 and the Alpha Spot 300 are
about twice as bright as the most well-known competitors. The Alpha Wash 300 exceeds them by about 20%.
The Alpha Beam 300 is three times brighter than an ordinary 1200W Wash projector.
THE MOST SILENT FIXTURES IN THE WORLD
Clay Paky have always paid great attention to looking after this aspect: this is why its fixtures are considered
among the most silent ones in the world.
Clay Paky have made a further step forward with the Alpha 300 series, offering projectors that are much more
silent than moving lights of equal power (noise less than 40 dB).
This thanks to the use of an innovative internal ventilation system, which reduces operating noise to the
minimum, and of an innovative electronic section that restores a further reduction of unwanted noise in the
projector PAN-TILT motors.
COMMON FEATURES
19
Page 20
UNIVERSAL USE
Matchless in brightness and performance, the “Alpha 300” models have reduced size and weight that make
their installation and use ideal in highly professional environments, from the Theatre to Television, from
Corporate Events to Rock Concerts, for both large and small Rental Companies and, naturally, also in discos
and elite clubs, instead of projectors of larger size (575 W), with considerable investment and operation
savings.
ITALIAN STYLE DESIGN (Patent Pending)
The design of the Alpha 300 series derives from the research of Clay Paky’s R&D and reflects the typical
taste and creativity of Italian style. The Alpha 300s present a compact, light, ergonomic and handsome body
that blends into any situation. Each projector is conceived from a service-friendly perspective, with modular
construction that guarantees its maximum practicality in use and easy access inside for maintenance.
LONG-LIFE RECHARGEABLE BATTERY
The long-life internal self-rechargeable battery allows complete set-up of the spot when it is not powered,
allowing the operator to set address and options when the fixture is unplugged and even in its flight case.
COMMON FEATURES
20
Page 21
FASTFIT 300W LAMP
The 300W FastFit lamp with fast fitting has recently been introduced onto the market by the
manufacturers and has gained great success thanks to its practicality of use.
The Alpha 300 series uses a MSR Gold 300 FastFit lamp from Philips, very easily accessible.
ELECTRONICS AND SOFTWARE
The advanced electronics and software of the Alpha 300 range provide a long series of very
useful functions: Preset macros, On/Off control of the lamp from the control unit, Function
reset controllable from the control unit, "Help", “Memo” and “Autotest” function from the menu,
Provision for Ethernet, Electronic check-up of each individual parameter, Monitoring of the
DMX level on each individual channel, Return information on the status of each sensor and
encoder, Electronic repositioning of the effects.
COMMON FEATURES
21
Page 22
TECHNICAL DATA
Lamp type 300W FastFit 300W FastFit 300W FastFit 300W FastFit
- Color Temperature (K) 8,000 8,000 8,000 8,000
- Luminous Flux (lm) 23,000 23,000 23,000 23,000
- Average Life (h) 750 750 750 750
- Cap PGjX28 PGjX28 PGjX28 PGjX28
Power Supplies available
(with electronic ballast)
Power Supplies available
(with magnetic ballast)
Power Consumption 550VA at 230V 50Hz 550VA at 230V 50Hz 550VA at 230V 50Hz 550VA at 230V 50Hz
Lamp Control Channel • • • •
Electronic Linear Zoom 10°- 40°
Electronic Focusing • •
Uniform Field Lens •
Color Mixing CMY • • •
Color Wheel one (8+1 colors) one (8+1 colors) two (16+1 colors) one (8+1 colors)
CTO Filter
CTB Filter • • •
Linear Frost • •
Fixed Frost •
Rotating Gobos
(indexable and interchangeable)
Fixed Gobos (interchangeable) 8 8 8
Morphing Effect • •
Rotating Prism one (5-facet) one (5-facet)
Mechanical Iris •
0-100% dimmer on a dedicated
channel
Stop/Strobe • • • •
Long-life self charging Battery • • • •
Pre-set Macros • • • •
Function Reset from the Lighting desk • • • •
“HELP” Function - “MEMO” Function
“AUTOTEST” Function
Possibility to upgrade the Software
through DMX input
DMX Level Monitoring on each
Channel
Electronic Check-up on each
Parameter
Electronic Repositioning of the Effects • • • •
TECHNICAL DATA
Switchable Power Supply automatic automatic
PAN and TILT lock on 4 and 7
positions respectively
Silent Version (SV) • • • •
Control Channels max 18 max 27 max 21 max 17
Weight (Kg/lbs) 19,1 (42 lbs) 21,4 (47lbs 1oz)
Dimensions LxWxH (mm/inches)
ALPHA BEAM 300 ALPHA SPOT HPE 300 ALPHA SPOT 300 ALPHA WASH 300
100-240V 50/60Hz 100-240V 50/60Hz 100-240V 50/60Hz 100-240V 50/60Hz
(2,500K and 3,200K)
two
• • • •
• • • •
• • • •
• • • •
• • • •
• • • •
385x405x630
(15,16”x16”x24,80”)
(2,500K and 3,200K)
two
7 7
385x405x610
(15,16”x16”x24”)
230V 50Hz
240V 50Hz - 208V 60Hz
200V 60Hz -200V 50Hz
(2,500K and 3,200K)
(electronic version only)
22,8 Kg (50lbs 3oz)
two
automatic
19,1 Kg (42lbs)
electronic version
magnetic version
385x405x575
(15,16”x16”x22,64”)
230V 50Hz
240V 50Hz - 208V 60Hz
200V 60Hz -200V 50Hz
two
(2,500K and 3,200K)
automatic
(electronic version only)
18,2 Kg (40lbs 1oz)
electronic version
21,9 Kg (48lbs 3oz)
magnetic version
385x405x575
(15,16”x16”x22,64”)
22
Page 23
Moving body
• Movement by means of two
three-phase stepper motors, controlled
by microprocessor.
• Automatic repositioning of PAN and TILT
after accidental movement not controlled
by control unit.
• Travel:
PAN = 540°
TILT = 250°
• Maximum speeds:
PAN = 3.15 sec (Stnd) / 2.75 sec (Fast)
TILT = 1.95 sec (Stnd) / 1.65 sec (Fast)
Alpha Spot HPE 300 has no “fast”option.
• Resolution:
PAN = 2.11°
PAN FINE = 0.008°
TILT = 0.98°
TILT FINE = 0.004°
LAMP
Code L10087
Philips MSR Gold 300 FastFit Lamp
supplied with the projector
Optical unit
• Elliptic reflector with high luminous
efficiency
Inputs
• DMX 512
IP20 protection rating
• Protected against the entry of solid
bodies larger than 12mm (0.47”).
• No protection against the entry of
liquids.
CE Marking
In conformity with the European Union
Low Voltage Directive 2006/95/CE and
Electromagnetic compatibility Directive
89/336.
Safety Devices
• Bipolar circuit breaker with thermal
protection.
• Automatic break in power supply in
case of overheating of the lamp.
Cooling
Forced ventilation with axial fans.
Body
• Aluminium structure with plastic
cover.
• Two side handles for transportation.
• Device locking PAN and TILT
mechanisms for transportation and
maintenance.

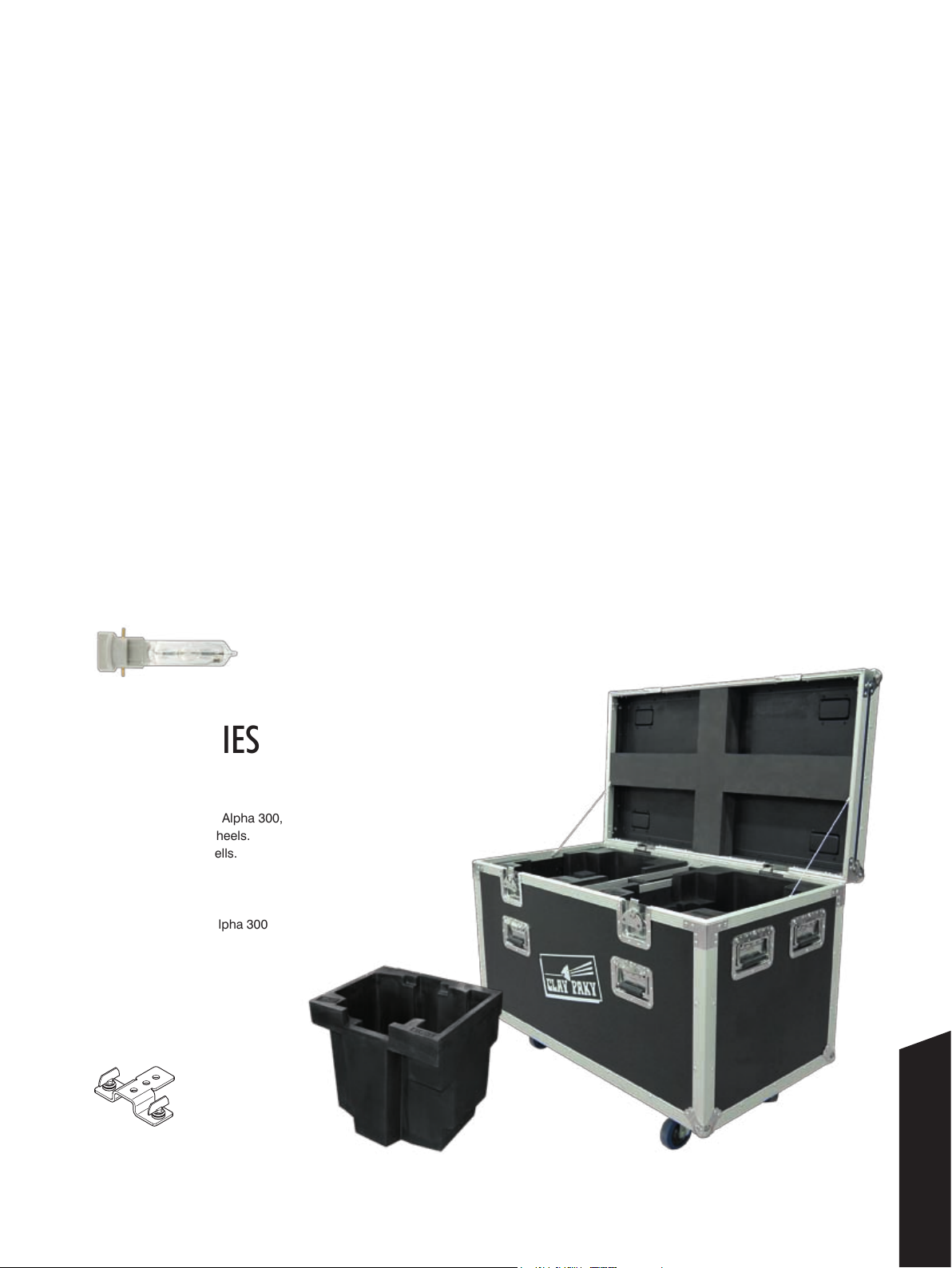

ACCESSORIES
Code F21175
FLIGHT CASE for 2 Alpha 300,
equipped with turn-wheels.
It contains 2 foam shells.
Code F21172
FOAM SHELL for Alpha 300
Code 183102/802
OMEGA
for clamps fixing,
supplied (2 pieces)
ACCESSORIES
23
Page 24
XV2063-ENG-Rev1-04/2008
www.claypaky.it
CLAY PAKY S.p.A.
Via Pastrengo, 3/b - 24068 Seriate (BG) - Italy - Phone +39 035 654311 - Fax +39 035 301876
Loading...
