Clay Paky A.LEDA WASH K5l, A.LEDA WASH K5, A.LEDA WASH K10, A.LEDA WASH K20, C61401 Instruction Manual

1

A.LEDA WASH K5
A.LEDA WASH K10
A.LEDA WASH K20

C61401

C61405

C

61410

®

INSTRUCTION MANUAL

Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.

Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.

ENGLISH

INDEX

Page

2

3

4

5

7

14

16

19

19

20

Contents

Safety information

Unpacking and preparation

Installation and start-up

Control panel

Menu setting

Maintenance

Optional accessories

Technical information

Cause and solution of problems

Channel functions

2

A.LEDA WASH

• Installation

Make sure all parts for fixing the projector are in a good state of repair.
M

ake sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if
the primary support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.

• Minimum distance of illuminated objects

The projector needs to be positioned so that the objects hit by the beam of light are at least 0.20
metres (8”) from the lens of the projector.

•

Minimum distance from flammable materials

The projector must be positioned so that any flammable materials are at least 0.20 metres (8”) from
every point on the surface of the fitting.

• Mounting surfaces

It is permissible to mount the fitting on normally flammable surfaces.

• Maximum ambient temperature

Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

• IP20 protection rating

The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first
digit 2), but not against dripping water, rain, splashes or jets of water (second digit 0).

• Protection against electrical shock

Connection must be made to a power supply system fitted with efficient earthing (Class I appliance
according to standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact
and/or shorting to earth by using appropriately sized residual current devices.

• Connection to mains supply

Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.

• Temperature of the external surface

The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 90°C (194°F).

• Maintenance

Before starting any maintenance work or cleaning the projector, cut off power from the mains
supply.

• Battery

This product contains a rechargeable lead-acid battery. To preserve the environment, please
dispose the battery at the end of its life according to the regulation in force. Instructions on how to
remove the battery from the product are available on www.claypaky.it

SAFETY INFORMATION

The products to which this manual refers comply with the European Directives pursuant to:

• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)

• 2004/108/EC - Electromagnetic Compatibility (EMC)

• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)

0.2

LED

IP20

tc90°C

LiFePO4

3

A.LEDA WASH

UNPACKING AND PREPARATION

IST004/001

2 x 183102/805

1

9

0

°

9

0

°

9

0

°

9

0

°

LOCKED

UNLOCKED

PAN Mechanism Lock and Release (every 90°) - Fig. 2

2

Packing contents - Fig. 1

4

A.LEDA WASH

3

1

2

3

2

1

4

INSTALLATION AND START-UP

Connecting and disconnecting power cable - Fig. 4

Installing the projector - Fig. 3

The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.

WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

5

A.LEDA WASH

Switching on the projector - Fig. 7
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:

Model Firmware xxx (Fixture ID) System errors

A.leda Wash Version X.X.X Dmx Address xxx E: .........................

Date - Hour W: .........................

On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel
(Fig. 7) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the

F

key will be cancelled.

CONTROL PANEL

7.5m

1

2

Dmx Address

Warning Message

Fixture ID

7

Continue

➔

Connecting to the control signal line (DMX) - Fig. 6
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.

DMX 512

Mains

5

6

S

IGNAL

SCREEN

DMX 512

5 PIN

1

2

3

4

5

S

IGNAL

SCREEN

1

3

2

DMX 512

3 PIN

SIGNAL

SIGNAL

C

onnecting to the mains supply - Fig. 5

NB: connecting one “A.leda

Wash K5” to the mains, it is
po s s ible to con n e ct up to a
maximum of 11 “A.leda Wash
K5” in parallel at the same time.

6

A.LEDA WASH

28

28

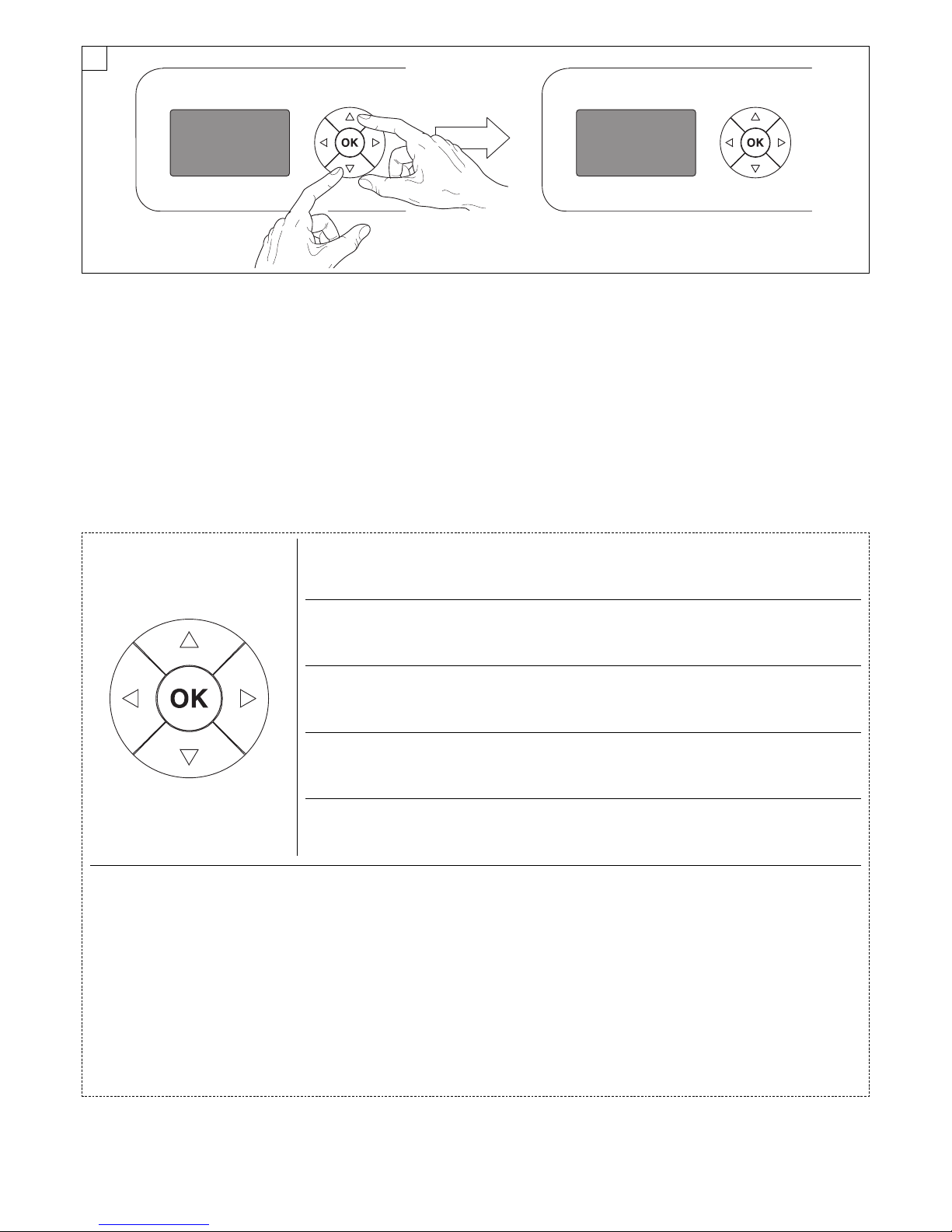

Reversal of the display - Fig. 8
To activate this function, press UP

B

and DOWNCkeys simultaneously while the display is in the rest mode. This status will be memorised and

maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.

Setting the projector starting address

On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the address: see pag. 8.

Setting the projector Fixture ID

On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Setting the Fixture ID: see pag. 8.

8

Functions of the buttons - Using the menu

Setting addresses and options with the projector disconnected

The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press

F

to momentarily activate the display and thus access the settings. Once the required operations have been carried out,

the display will switch off again after a wait time of 30 seconds.

USING THE MENU:

1) Press

F

once – “Main Menu” appears on the display.

2) Use the UP

B

and DOWN Ckeys to select the menu to be used:

• Setup (Setup Menu): To set the setting options.

• Option (Option Menu): To set the operating options

• Informations (Informations Menu): To read the counters, software version and other information.

• Manual Control (Manual control Menu): To trigger the test and manual control functions.

• Test (Test Menu): To check the proper functionning of effects

• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.13

3) Press

F

to display the first item in the selected menu.

4) Use the UP

B

and DOWN Ckeys to select the MENU items.

Confirms the displayed value, or activates the displayed function, or enters the successive
menu.

Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.

Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.

Return to the top level.

Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.

F

C

DOWN

B

UP

D

LEFT

E

RIGHT

7

A.LEDA WASH

MENU SETTING

Continue

➔

S

ystem

E

rrors

Information

Fixture

H

ours

L

ED

Energy Tot

4

Reset

Manual
Control

Channel

6

3

S

ystem

V

ersion

Board

D

iagnost.

Dmx

Monitor

F

ans

Monitor

Access code

1234

Advanced

Calibration

Upload

Aleda fw

Setup
Model

Set Up

Option

I

nformation

M

anual

C

ontrol

T

est

Advanced

1

5

Pan / Tilt

Colour

All

Test

D

mx

A

ddress

Channel

M

ode

Ethernet
Interface

F

ixture ID

N

etwork

p

arams

2

Pan / Tilt

Silent
Mode

D

isplay

Option

I

nvert
P

an

I

nvert

Tilt

S

wap

P

an-Tilt

Encoder

Pan-Tilt

Standard

Special

Functions

Setting

Default

Preset

User

Preset 1

User

Preset 2

User

Preset 3

Pan/Tilt

speed

D

immer

curve

RGB

Gamma

Halogen

Mode

Q

uiet

8

A.LEDA WASH

DMX ADDRESS
NOTE: without the DMX signal the Address (XXX) flashing

Allows you to select the DMX ADDRESS.

1) Press

F

- the current DMX Adress appear on the display.

2) Use the UP

B

and DOWN C, RIGHT Ekeys to plan the DMX

Address.

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

CHANNEL MODE

Allows you to select a channel arrangement from the two available.

1) Press

F

- the current settings appear on the display (Standard or

Vector).

2) Use the UP

B

and DOWN Ckeys to select one of the following

settings:

- Standard

- Shape

- Extended

- Extended RGBW

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

FIXTURE ID

Allows you to select the FIXTURE ID.

1) Press

F

- the current Fixture ID appear on the display.

2) Use the UP

B

, DOWN C, RIGHT Ekeys to plan the Fixture ID.

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

ETHERNET INTERFACE

It lets you set the Ethernet settings to be attributed to the projector.

1) Premere

F

.

2) Use the UP

B

and DOWN Ckeys to select the “Ethernet Interface”

options to set:

Control Protocol

It lets you select the “Control Protocol” Art-net to assign according to the
control unit used:

1) Press

F

the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following settings:

- Disabled

- Art-net on IP 2

- Art-net on IP 10

3) Press

F

to confirm the selection or LEFT Dto keep the current setting.

Repeat on DMX

It lets you enable the transmission of the Ethernet protocol by DMX signal
to all the connected projectors.

1) Press

F

the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following settings:

- Disabled: DMX transmission disabled.

- Enabled on primary: DMX transmission enabled.

3) Press

F

to confirm the selection or LEFT Dto keep the current setting.

Universe

It lets you assign the “Universe” number to be assigned to a series of
projectors.

1) Press

F

– the current Universe address appears on the display.

2) Use the UP

B

, DOWN C, RIGHT Ekeys to set the Universe

address.

3) Press

F

to confirm the selection or LEFT Dto keep the current

setting.

SET UP MENU

NOTE: On grey the default options

S

et Up

D

mx

Address

Channel

M

ode

F

ixture ID

A

ddress xxx

Standard

Shape

Extended

Extended

RGBW

V

alue xxx

Ethernet
Interface

Control

Protocol

Repeat on

DMX

Universe

9

A.LEDA WASH

Continue

➔

PAN / TILT
Invert pan

Used for reversing Pan movement.

1) Press

F

- the current settings appear on the display (On or Off).

2) Use the UP

B

and DOWN Ckeys to enable (On) or disable (Off)

PAN inversion.

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

Invert tilt

Used for reversing tilt movement.

1) PressF- the current settings appear on the display (On or Off).

2) Use the UP

B

and DOWN Ckeys to enable (On) or disable (Off)

Tilt inversion.

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

Swap Pan-Tilt

Used for swapping Pan and Tilt channels (as well as Pan fine and Tilt fine).

1) Press

F

- the current settings appear on the display (On or Off).

2) Use the UP

B

and DOWN Ckeys to enable (On) or disable (Off)

Pan and Tilt channel swap.

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

Encoder Pan-Tilt

Used for enabling the Pan / Tilt encoders.

1) Press

F

- the current settings appear on the display (On or Off).

2) Use the UP

B

and DOWN Ckeys to enable (On) or disable (Off)

Pan / Tilt encoders.

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

SILENT MODE

It lets you select the “Silent Mode” from the two available.

1) Press

F

the current setting appears on the display.

2)

Use the UP Band DOWN Ckeys to select one of the following
settings:
Standard: Maximum speed and consequently maximum effects noise
level.
Quiet: reduces the speed of some effects, thereby reducing their noise
level.

3) Press Fto confirm the selection or LEFT Dto keep the current
setting.

DISPLAY

Used for automatically reduce brightness on the display after about 30
seconds in idle.

1) Press

F

- the current settings appear on the display (On or Off).

2) Use the UP

B

and DOWN Ckeys to enable (On) or disable

(Off) the decreasing of display brightness.

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

SPECIAL FUNCTIONS
Pan / Tilt speed

Lets you select two different Pan and Tilt speeds.

1) Press

F

- the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following

settings:

- Normal

- Fast

3) Press

F

to confirm the selection or LEFT Dto keep current

settings.

OPTIONS MENU

S

wap

Pan-Tilt

On

O

ff

E

ncoder

Pan-Tilt

On

Off

P

an / Tilt

Option

I

nvert

Pan

On

O

ff

I

nvert

T

ilt

On

Off

Silent
mode

Standard

Quiet

Special

Functions

Pan / Tilt

speed

On

Off

Display

10

A.LEDA WASH

Dimmer Curve

Lets you select four different Dimmer channel curves.

1) Press

F

- the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following

s

ettings:

- Curve 1

- Curve 2

- Curve 3

- Curve 4

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

RGB Gamma

Lets you select three different RGBW gamma curves.
1

) Press

F

-

the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following

settings:

- Gamma 1.0

- Gamma 1.5

- Gamma 2.0

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

Halogen Mode

Lets you select five different halogen lamp simulations.

1) Press

F

- the current setting appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following

settings:

- Halogen OFF

- Halogen Lamp 1

- Halogen Lamp 2

- Halogen Lamp 3

- Halogen Lamp 4

- Halogen Lamp 5

3) Press

F

to confirm the selection or LEFT Dto keep current settings.

SETTING

Used to save 3 different settings of the items in the options menu and
relative submenus.

1) Press

F

- “Default preset” appears on the display.

2) Use the UP

B

and DOWN Ckeys to select one of the following

configurations:

- Default preset (*)

- User preset 1

- User preset 2

- User Preset 3

3) Press

F

- “Load preset X” appears on the display.

4) Use the UP

B

and DOWN Ckeys to select:

- Load preset X to recall a previously stored configuration.

- Save to preset X to store the current configuration.
a confirmation message (Are you sure?) appears on the display.

5) Select YES to confirm the selection or NO to keep the current setting
and return to the next higher level.

(*) DEFAULT PRESET
Used for restoring default values on all options menu items and relevant
submenus.

1) Press

F

, a confirmation message (Are you sure?) appears on the

display.

2) Select YES to confirm the selction or NO to keep current setting.

OPTION DEFAULT
Invert Pan Off
Invert Tilt Off
Swap Pan-Tilt Off
Encoder Pan-Tilt On
Display On
Silent Mode Standard
P/T Speed Fast
Dimmer Curve Curve 1
RGB Gamma Gamma 1.5
Halogen Mode Halogen Off

D

immer

C

urve

O

ption

Special

F

unctions

RGB

Gamma

Halogen

Mode

Save To
Preset 3

Reset To

Dafault

Go Back

Setting

Default

Preset

Load

Preset 1

Save To
Preset 1

User

Preset 1

Load

Preset 2

Save To
Preset 2

User

Preset 2

Load

Preset 3

User

Preset 3

11

A.LEDA WASH

Continue

➔

SYSTEM ERRORS

Shows a list of warnings and messages relevant to errors occurred since
the fixtures switching-on.

1) Pressing

F

you are allowed to reset the SYSTEM ERRORS list.
A confirmation message (Are you sure you want to clear error list ?)
appears on the display.

2) Select YES to reset the list or NO to go back.

FIXTURE HOURS

Used for displaying projector operating hours (total and partial).

1) Press

F

- Hours total and partial appears on the display.

Total counter

Counts the number of projector working life hours (from manufacture to date).

Partial counter

Counts the number of partial projector working life hours since the
last reset to date.

2) Press

F

to reset partial projector working hours a confirmation

message (Are you sure?) appears on the display.

3) Select YES to reset partial projectors counter or NO to keep the
current setting and return to the top menu level.

LED ENERGY TOT

Lets you view total LED working hours.

1) Press

F

- to display total and partial Watts/hour:

Total

Total LED working hours from construction to date.

Partial

LED working hours from last reset to date.

2) Press

F

to reset the partial counter. A confirmation appears on the

screen (Are you sure?)

3) Select YES to reset the partial counter or NO to keep the current setting
and open the next menu level.

SYSTEM VERSION

Used for displaying the software and hardware version of each board
installed in the projector.
CPU brd (CPU board)
0: PT-3f (Scheda Pan / Tilt)
1: Ld - Kxx (Scheda LED)

BOARD DIAGNOSTIC

Used for displaying the status error of each board installed in the projector:
0: PT-3f (Scheda Pan / Tilt)
1: Ld - Kxx (Scheda LED)

DMX MONITOR

Used for displaying the projector DMX channel level in bit (Val) and in
percentage (Perc).

FANS MONITOR

Used for displaying the speed of each fan installed in the projector:
PwrSp (fan PSU)
Head (fan head)

NETWORK PARAMS

Allows the "Network" parameters of the projector to be displayed or:

IP address: Internet Protocol address (two projectors must not have
the same IP address)

IP mask: 255.0.0.0
Mac address: Media Access Control: the projector’s Ethernet Address.

INFORMATION MENU

I

nformation

System

Errors

F

ixture

H

ours

T

otal XXX

P

artial XXX

R

eset...

LED Energy

Tot

System
Version

Board Revis. Hw.rv.
CPU brd x.x.x x.x
com.dev x.x
0: PT-3f x.x x.x
1: Ld - Kxx x.x x.x

Network

params

Dmx

Monitor

Board Status Err%
0:PT-3f Good 0.00
1: Ld - Kxx Good 0.00

Fans

Monitor

Fan Speed (RPM)
PwrSp XXXX
Head XXXX

Board

Diagnost.

12

A.LEDA WASH

RESET

Used for resetting the projector.

1) Press

F

to reset the projectors, a confirmation message (Are you

sure ?) appears on the display.

2) Select YES to starting reset the fixture or NO to keep the current
setting and return to the top menu level.

CHANNEL

Used for setting channel levels from the projector control panel.

1) Press

F

- the first channel appears on the display.

2) Use the UP

B

and DOWN Ckeys to select the required channel:

3) Press

F

and use the UP Band DOWN Ckeys to select the

required DMX level (value between 0 and 255).

4) Press LEFT

D

to return to the top menu level.

TEST

Allows you to check the proper functioning of effects.

1) Press

F

to return to the top menu level.

2) Use the UP

B

and DOWN Ckeys to select the required test.

3) Press

F

to confirm the selection or LEFT Dto keep current settings.
Test sequence:
Pan - Tilt effects (Pan & Tilt)
Colour effects (CMY / CTO / Colour wheel)
All effects

To enable the "Advanced Menu" set up the "Access code" (1234) using the
UP

B

, DOWN C, RIGHT Ekeys.

Press

F

- "Menu advanced" appears on the display

UP LOAD FIRMWARE

Allows you to transfer the firmware from 1 fixture to all the connected fixtures.

1) Press

F

, a confirmation message appears on the display.

2) Select YES to start the firmware loading or NO to keep the current set-

ting and return to the top menu level

SETUP MODEL

Allows you to change the default model of projector.

1) Press

F

a confirmation message appears on the display.

2) Select YES to define the model of projector or NO to keep the current

setting and return to the top menu level.

CALIBRATION

Allows you to adjust effects from the control panel to obtain perfect unifor­mity between the projectors.

1) Press

F

- “channels” appears on the display.

2) Using the UP

B

and DOWN Ckeys, select the effect you wish to

regulate.

3) Press

F

and use the RIGHT E, UP Band DOWN Cbuttons to

make the adjustment by setting a value between 0 and 255.

4) Press

F

to confirm the selection

or

LEFT Dto keep current set-

tings and return to the top level.

FACTORY DEFAULT

Allows you to restore default values of all channels (128).

1) Press

F

– a confirmation message appears on the display (Reset

calibration to factory default ?).

2) Select YES to reset calibration to factory default or NO to keep the

current setting and return to the top menu level.

M

anual

C

ontrol

N

o

Y

es

Reset

Channel

Test

Pan-Tilt
C

olour

All

Advanced

Code

1234

Calibration

Upload

Aleda fw

Transfer the firmware on all
the connected fixtures ?
Are you sure ?
Yes/No

Setup
Model

Changing to a wrong model
may damage the fixture.
Are you sure ?
Yes/No

MANUAL CONTROL

TEST MENU

ADVANCED MENU

13

A.LEDA WASH

5

6

3

4

1

2

9

Battery removal - Fig. 9

This product contains a rechargeable lead-acid battery. To preserve the environment, please dispose the battery at the end of its life according
to the regulation in force.

LiFePO4

14

A.LEDA WASH

1

2

3

4

1

3

2

4

10

11

Opening the covers - Fig. 10

Removing/Assembling the lens unit - Fig. 11
NB: Apply Loctite 222 (p/n COL002) to the threads of the 3 screws (1) before tightening them. A torque of 0.3N is recommended in order to avoid

damaging the zoom movement actuators.

MAINTENANCE

15

A.LEDA WASH

2

1

DIM002/001

12

Replacing the line actuator - Fig. 12
NB: It is highly recommended to use the DIM002/001 (1) template whenever it is necessary to replace one of the three Zoom movement line actuators.

DIM002/001 ensures the actuator group is centred correctly on the lens plate before tightening the 2 screws (2) that fasten the actuator in place.

16

A.LEDA WASH

1

2

3

C61453C61452

4

C61451

1

2

3

OPTIONAL ACCESSORIES

13

14

A.LEDA WASH K5

Transparent mask - Fig. 14

Cover - Fig. 13

C61452 - Transparent cover
C61453 - Frosted cover

17

A.LEDA WASH

1

2

3

C61456C61455

1

3

4

2

C61454

A.LEDA WASH K10

Cover - Fig. 15

C61455 - Transparent cover
C61456 - Frosted cover

Transparent mask - Fig. 16

15

16

Continue

➔

18

A.LEDA WASH

2

3

2

C61459C61458

1

3

4

1

C61457

A.LEDA WASH K20

Cover - Fig. 17

C61458 - Transparent cove
C61459 - Frosted cover

Transparent mask - Fig. 18

17

18

19

A.LEDA WASH

CAUSE AND SOLUTION OF PROBLEMS

THE PROJECTOR WILL NOT SWITCH ON

PROBLEMS

ELECTRONICS NON-OPERATIONAL

DEFECTIVE PROJECTION

REDUCED LUMINOSITY

POSSIBLE CAUSES CHECKS AND REMEDIES

No mains supply.
LED exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.

Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).

3

58

(14.09")

2

53

(

9.96")

423

(16.65")

250

(

9.84")

3

60

(14.17")

381

(

15.00")

1

55

(

6.10")

220

(8.66")

320

(12.60")

253

(9.96")

3

74

(14.72")

2

45

(

9.65")

1

55

(

6.10")

584

(22.99")

160

(6.30")

380

(14.96")

395

(15.55")

330

(12.99")

476

(18.74")

360

(14.17")

460

(18.11")

479

(

18.86")

1

60

(6.30")

290

(

11.42")

TECHNICAL INFORMATION

Power supplies available

100-240V 50/60Hz

Input power

•

K20 - 750VA

•

K10 - 450VA

•

K

5 - 170VA

Max 1800VA (with 11 A.leda Wash K5 connected in parallel)

Total output

K5 - Max 2100 lumens
K10 - Max 5500 lumens
K20 - Max 10500 lumens

LED source

LED Osram Ostar RGBW - 15W
Average LED life: 50.000 h

Motors

5 (k10 & k20), 2 (k5) stepper motors, operating with
microsteps, totally microprocessor controlled.

C

ooling

• High efficiency die-cast aluminium

• Forced ventilation

Inputs

DMX 512

Working position

Functioning in any position.

Movable body

•

Movement by means of two stepper motors, controlled by
microprocessor.

•

Automatic repositioning of PAN and TILT after accidental
movement not controlled by control unit.

• Travel:

- PAN = 540°

- TILT = 270°

IP20 protection rating

• Protected against the entry of solid bodies larger than 12mm
(0.47”).

• No protection against the entry of liquids.

CE Marking

Complies with the following European Directives

- 2006/95/EC (LVD)

- 2004/108/EC (EMC)

- 2011/65/EU (RoHS).

Weights

• K5: 7.55kg

• K10: 14.10 kg

• K20: 19.30 kg

20

A.LEDA WASH

CHANNEL FUNCTION

A.LEDA WASH K5

CHAN-

NEL

STANDARD EXTENDED RGBW

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19

CHAN-

NEL

SHAPES

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Shape Selection
Shape Speed
Shape Smoothing
Shape Red
Shape Green
Shape Blue
Shape White
Shape Intensity
Background Intensity
Shape Transition
Shape Offset

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Red LED 1
Green LED 1
Blue LED 1
White LED 1
Red LED 2
Green LED 2
Blue LED 2
White LED 2
Red LED 3
Green LED 3
Blue LED 3
White LED 3
Red LED 4
Green LED 4
Blue LED 4
White LED 4
Red LED 5
Green LED 5
Blue LED 5
White LED 5
Red LED 6
Green LED 6
Blue LED 6
White LED 6
Red LED 7
Green LED 7
Blue LED 7
White LED 7

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

EXTENDED

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Red LED 1
Green LED 1
Blue LED 1
Red LED 2
Green LED 2
Blue LED 2
Red LED 3
Green LED 3
Blue LED 3
Red LED 4
Green LED 4
Blue LED 4
Red LED 5
Green LED 5
Blue LED 5
Red LED 6
Green LED 6
Blue LED 6
Red LED 7
Green LED 7
Blue LED 7

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

21

A.LEDA WASH

Continue

➔

A.LEDA WASH K10

CHAN-

NEL

STANDARD EXTENDED

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

CHAN-

NEL

SHAPES

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Shape Selection
Shape Speed
Shape Smoothing
Shape Red
Shape Green
Shape Blue
Shape White
Shape Intensity
Background Intensity
Shape Transition
Shape Offset

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Red LED 1
Green LED 1
Blue LED 1
Red LED 2
Green LED 2
Blue LED 2
Red LED 3
Green LED 3
Blue LED 3
Red LED 4
Green LED 4
Blue LED 4
Red LED 5
Green LED 5
Blue LED 5
Red LED 6
Green LED 6
Blue LED 6
Red LED 7
Green LED 7
Blue LED 7
Red LED 8
Green LED 8
Blue LED 8
Red LED 9
Green LED 9
Blue LED 9
Red LED 10
Green LED 10

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

CHAN-

NEL

CHANNEL MODE

Blue LED 10
Red LED 11
Green LED 11
Blue LED 11
Red LED 12
Green LED 12
Blue LED 12
Red LED 13
Green LED 13
Blue LED 13
Red LED 14
Green LED 14
Blue LED 14
Red LED 15
Green LED 15
Blue LED 15
Red LED 16
Green LED 16
Blue LED 16
Red LED 17
Green LED 17
Blue LED 17
Red LED 18
Green LED 18
Blue LED 18
Red LED 19
Green LED 19
Blue LED 19

50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77

22

A.LEDA WASH

A.LEDA WASH K10

EXTENDED RGBW

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Red LED 1
Green LED 1
Blue LED 1
White LED 1
Red LED 2
Green LED 2
Blue LED 2
White LED 2
Red LED 3
Green LED 3
Blue LED 3
White LED 3
Red LED 4
Green LED 4
Blue LED 4
White LED 4
Red LED 5
Green LED 5
Blue LED 5
White LED 5
Red LED 6
Green LED 6
Blue LED 6
White LED 6
Red LED 7
Green LED 7
Blue LED 7
White LED 7
Red LED 8

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

CHAN-

NEL

CHANNEL MODE

Green LED 8
Blue LED 8
White LED 8
Red LED 9
Green LED 9
Blue LED 9
White LED 9
Red LED 10
Green LED 10
Blue LED 10
White LED 10
Red LED 11
Green LED 11
Blue LED 11
White LED 11
Red LED 12
Green LED 12
Blue LED 12
White LED 12
Red LED 13
Green LED 13
Blue LED 13
White LED 13
Red LED 14
Green LED 14
Blue LED 14
White LED 14
Red LED 15
Green LED 15
Blue LED 15
White LED 15
Red LED 16
Green LED 16
Blue LED 16
White LED 16
Red LED 17
Green LED 17
Blue LED 17
White LED 17
Red LED 18
Green LED 18
Blue LED 18
White LED 18
Red LED 19
Green LED 19
Blue LED 19
White LED 19

50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

23

A.LEDA WASH

A.LEDA WASH K20

CHAN-

NEL

STANDARD EXTENDED

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20

CHAN-

NEL

SHAPES

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Shape Selection
Shape Speed
Shape Smoothing
Shape Red
Shape Green
Shape Blue
Shape White
Shape Intensity
Background Intensity
Shape Transition
Shape Offset

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Red LED 1
Green LED 1
Blue LED 1
Red LED 2
Green LED 2
Blue LED 2
Red LED 3
Green LED 3
Blue LED 3
Red LED 4
Green LED 4
Blue LED 4
Red LED 5
Green LED 5
Blue LED 5
Red LED 6
Green LED 6
Blue LED 6
Red LED 7
Green LED 7
Blue LED 7
Red LED 8
Green LED 8
Blue LED 8
Red LED 9
Green LED 9
Blue LED 9
Red LED 10
Green LED 10
Blue LED 10
Red LED 11
Green LED 11
Blue LED 11
Red LED 12
Green LED 12
Blue LED 12
Red LED 13
Green LED 13
Blue LED 13
Red LED 14
Green LED 14
Blue LED 14
Red LED 15
Green LED 15
Blue LED 15
Red LED 16

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

CHAN-

NEL

CHANNEL MODE

Green LED 16
Blue LED 16
Red LED 17
Green LED 17
Blue LED 17
Red LED 18
Green LED 18
Blue LED 18
Red LED 19
Green LED 19
Blue LED 19
Red LED 20
Green LED 20
Blue LED 20
Red LED 21
Green LED 21
Blue LED 21
Red LED 22
Green LED 22
Blue LED 22
Red LED 23
Green LED 23
Blue LED 23
Red LED 24
Green LED 24
Blue LED 24
Red LED 25
Green LED 25
Blue LED 25
Red LED 26
Green LED 26
Blue LED 26
Red LED 27
Green LED 27
Blue LED 27
Red LED 28
Green LED 28
Blue LED 28
Red LED 29
Green LED 29
Blue LED 29
Red LED 30
Green LED 30
Blue LED 30
Red LED 31
Green LED 31
Blue LED 31
Red LED 32
Green LED 32
Blue LED 32
Red LED 33
Green LED 33
Blue LED 33
Red LED 34
Green LED 34
Blue LED 34
Red LED 35
Green LED 35
Blue LED 35
Red LED 36
Green LED 36
Blue LED 36
Red LED 37
Green LED 37
Blue LED 37

67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131

Continue

➔

24

A.LEDA WASH

A.LEDA WASH K20

EXTENDED RGBW

CHAN-

NEL

CHANNEL MODE

Red
Red fine
Green
Green fine
Blue
Blue fine
White
White fine
CTO
Macro colour
Strobe
Dimmer
Dimmer Fine
Pan
Pan Fine
Tilt
Tilt Fine
Function
Reset
Zoom
Red LED 1
Green LED 1
Blue LED 1
White LED 1
Red LED 2
Green LED 2
Blue LED 2
White LED 2
Red LED 3
Green LED 3
Blue LED 3
White LED 3
Red LED 4
Green LED 4
Blue LED 4
White LED 4
Red LED 5
Green LED 5
Blue LED 5
White LED 5
Red LED 6
Green LED 6
Blue LED 6
White LED 6
Red LED 7
Green LED 7
Blue LED 7
White LED 7
Red LED 8
Green LED 8
Blue LED 8
White LED 8
Red LED 9
Green LED 9
Blue LED 9
White LED 9

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

CHAN-

NEL

CHANNEL MODE

Red LED 10
Green LED 10
Blue LED 10
White LED 10
Red LED 11
Green LED 11
Blue LED 11
White LED 11
Red LED 12
Green LED 12
Blue LED 12
White LED 12
Red LED 13
Green LED 13
Blue LED 13
White LED 13
Red LED 14
Green LED 14
Blue LED 14
White LED 14
Red LED 15
Green LED 15
Blue LED 15
White LED 15
Red LED 16
Green LED 16
Blue LED 16
White LED 16
Red LED 17
Green LED 17
Blue LED 17
White LED 17
Red LED 18
Green LED 18
Blue LED 18
White LED 18
Red LED 19
Green LED 19
Blue LED 19
White LED 19
Red LED 20
Green LED 20
Blue LED 20
White LED 20
Red LED 21
Green LED 21
Blue LED 21
White LED 21
Red LED 22
Green LED 22
Blue LED 22
White LED 22
Red LED 23
Green LED 23
Blue LED 23
White LED 23

57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112

CHAN-

NEL

CHANNEL MODE

Red LED 24
Green LED 24
Blue LED 24
White LED 24
Red LED 25
Green LED 25
Blue LED 25
White LED 25
Red LED 26
Green LED 26
Blue LED 26
White LED 26
Red LED 27
Green LED 27
Blue LED 27
White LED 27
Red LED 28
Green LED 28
Blue LED 28
White LED 28
Red LED 29
Green LED 29
Blue LED 29
White LED 29
Red LED 30
Green LED 30
Blue LED 30
White LED 30
Red LED 31
Green LED 31
Blue LED 31
White LED 31
Red LED 32
Green LED 32
Blue LED 32
White LED 32
Red LED 33
Green LED 33
Blue LED 33
White LED 33
Red LED 34
Green LED 34
Blue LED 34
White LED 34
Red LED 35
Green LED 35
Blue LED 35
White LED 35
Red LED 36
Green LED 36
Blue LED 36
White LED 36
Red LED 37
Green LED 37
Blue LED 37
White LED 37

113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168

25

A.LEDA WASH

BIT

EFFECT

2

55

0

C

OLOUR INSERTED

C

OLOUR EXCLUDED

• RED – GREEN - BLUE - WHITE

BIT

EFFECT

255

0

•

RED FINE – GREEN FINE – BLUE FINE – WHITE FINE

N

OTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home" position (Pan 50% - Tilt 50%) all the others channels stay at 0%.

•

C.T.O.

BIT

EFFECT

2

55
250
246
242
237
2

33
228
224
2

19
215
210
206
201
197
192
188
1

84
179
1

75
170
166
161
157
1

52
1

48
1

44
139
135
130
126
121
117
112
108
103

99
95
90
86
81
77
72
68
63
59
54
50
46
41
37
32
28
23
19
14
10
0-9

2500
2

600
2700
2

800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400
4500
4600
4700
4800
4900
5000
5100
5200
5300
5400
5500
5600
5700
5800
5900
6000
6100
6200
6300
6400
6500
6600
6700
6800
6900
7000
7100
7200
7300
7400
7500
7600
7700
7800
7900
8000

UNUSED RANGE

Note: If CTO channel is active, the WHITE channel is disabled.

Continue

➔

26

A.LEDA WASH

•

STOP / STROBE

MACRO

BIT EFFECT

252 - 255

OPEN

0 - 3

CLOSED

213 - 225

RANDOM SLOW STROBE

4

SLOW STROBE (1 f lash/sec)

103

FAST STROBE (25 f lash/sec)

(25 flash/sec)

(0,5 flash/sec)

104 - 107

OPEN

108

SLOW PULSATION

208 - 212

OPEN

226 - 238

R

ANDOM MEDIUM STROB E

239 - 251

RANDOM FAST STROBE

207

FAST PULSATION

(25 flash/sec)

•

MACRO COLOUR

•

DIMMER

BIT EFFECT

2

55 FULL LIGHT

N

O LIGHT0

• DIMMER FINE

BIT

EFFECT

2

55

0

BIT COLOUR

LEE

REFERENCE

BIT VALUE

RGBW

207-255

191-206

1

84-190

180-183

179

175-178

174

1

72-173

168-171

162-167

1

57-161

151-156

149-150

147-148

146

1

45

142-144

138-141

136-137

134-135

1

31-133

129-130

128

127

1

26

1

25

1

23-124

121-122

120

119

118

117

115-116

114

113

112

110-111

100-109

89-99

78-88

68-77

62-67

49-61

46-48

45

35-44

32-34

31

30

29

27-28

23-26

20-22

19

18

17

16

15

14

13

12

11

10

0-9

197

181

174

170

169

165

164

162

158

1

52

147

141

139

137

136

135

132

128

126

1

24

121

119

118

117

116

115

113

111

110

109

108

107

105

104

103

102

100

90

79

68

58

52

39

36

35

25

22

21

20

19

17

13

10

128

77

181

255

255

82

255

255

222

2

53

255

0

77

219

255

255

0

255

227

8

4

206

0

74

206

206

51

255

255

217

255

255

255

255

255

230

237

245

41

0

0

243

243

255

255

255

255

255

255

255

255

198

152

156

0

255

255

216

255

255

0

0

0

255

255

0

255

168

199

214

46

181

84

1

71

143

255

255

197

197

58

255

53

41

2

55

255

186

255

255

255

255

20

109

130

138

148

141

122

166

160

163

202

219

194

255

117

117

107

87

112

83

65

100

135

56

114

115

126

0

137

201

237

0

255

255

0

255

0

143

255

95

64

49

90

2

28

0

2

6

13

87

0

79

61

0

143

36

56

1

3

0

255

82

56

56

51

15

33

28

31

23

31

0

0

0

0

0

0

130

135

133

39

0

0

0

2

0

0

0

0

9

9

0

0

0

25

61

255

0

255

255

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

69

0

0

0

0

0

199

197

130

107

141

0

0

0

0

0

0

0

0

0

193

255

255

0

0

0

0

0

0

Alice Blue

Congo Blue

Dark Steel Blue

Deep lavender

Lilac Tint

Daylight Blue

Flame Red

Bastard Amber

Deep Orange

P

ale Gold

Apricot

Bright Blue

Primary Green

Special lavender

Pale Lavender

Deep Golden Amber

Medium Blue

Bright Pink

Mauve

D

ark Green

Leaf Green

Dark Blue

Light Blue

Steel Blue

Med Blu Green

Peacock Blue

Magenta

Dark Pink

Middle Rose

Light Salmon

English Rose

Light Rose

Orange

Deep Amber

Straw

Light Amber

Spring Yellow

Dark yellow green

Just Blue

Sky Blue

Lavender

Light Lavender

Pink Carnation

Medium Pink

Light Pink

Sunrise Red

Dark Amber

Gold Amber

Medium Amber

Fire

Surprise Peach

Straw Tint

Medium Yellow

Black

White 5000°K

White 3700°K

White 7000°K

Magenta

Yellow

Cyan

Blue

Green

Red

Macro color OFF

27

A.LEDA WASH

BIT

255

0

B

IT

255

0

O

p

e

r

a

t

io

n

wit

h

o

p

t

io

n

I

n

v

e

r

t

P

a

n

G

O

n

(

T

ilt

co

n

v

e

n

t

io

n

a

lly

r

e

p

r

e

se

n

t

e

d

a

t

1

4

%

a

n

d

o

p

t

io

n

I

n

ve

r

t

T

ilt

G

O

f

f

)

•

TILT

O

peration with option InvertPan

G

O

ff

(Tilt conventionally represented at 14% and option Invert Tilt

G

Off)

• PAN FINE

Operation with option InvertPan

G

Off

(Tilt conventionally represented at 14% and option Invert TiltGOff)

B

IT

255

0

Operation with option InvertPanGOn
(Tilt conventionally represented at 14% and option Invert Tilt

G

Off)

BIT

255

0

0

-255 Bit: 1.45 sec (K20)

0

-255 Bit: 0.87 sec (K10)

0

-255 Bit: 0.80 sec (K5)

0-255 Bit: 1.45 sec (K20)
0

-255 Bit: 0.87 sec (K10)

0

-255 Bit: 0.80 sec (K5)

O

p

e

r

a

t

io

n

wit

h

o

p

t

io

n

I

n

ve

r

t

P

a

n

G

O

n

(

T

ilt

c

o

n

ve

n

t

io

n

a

lly

r

e

p

r

e

se

n

t

e

d

a

t

1

4

%

a

n

d

o

p

t

io

n

I

n

v

e

r

t

T

ilt

G

O

f

f

)

B

IT

255

0

BIT

2

55

0

•

PAN

O

peration with option InvertPan

G

O

ff

(

Tilt conventionally represented at 14% and option Invert Tilt

G

O

ff)

0

-255 Bit: 2.65 sec (K20)

0

-255 Bit: 2.01 sec (K10)

0

-255 Bit: 1.41 sec (K5)

0-255 Bit: 2.65 sec (K20)
0-255 Bit: 2.01 sec (K10)
0-255 Bit: 1.41 sec (K5)

BIT

255

0

BIT

255

0

Operation with option InvertPanGOn
(Tilt conventionally represented at 14% and option Invert Tilt

G

Off)

• TILT FINE

Operation with option InvertPan

G

Off

(Tilt conventionally represented at 14% and option Invert TiltGOff)

Continue

➔

28

A.LEDA WASH

•

FUNCTION

BIT EFFECT

251 – 255

103 – 250

98 – 102

93 – 97

88 – 92

83 – 87

78 – 82

73 – 77

68 – 72

63 – 67

58 – 62

53 – 57

48 – 52

43 – 47

38 – 42

25 – 37

12 – 24

0 – 11

Reset to defult

Unused Range

Halogen Lamp Simulation, type 5 (2500 W)

Halogen Lamp Simulation, type 4 (2000 W)

Halogen Lamp Simulation, type 3 (1200 W)

Halogen Lamp Simulation, type 2 (1000 W)

Halogen Lamp Simulation, type 1 (750W)

Halogen Lamp Simulation OFF (Default)

RGBW Gamma curve 3 – gamma = 2.0

RGBW Gamma curve 2 – gamma = 1.5 (Default)

RGBW Gamma curve 1 – gamma = 1.0

Dimmer Curve 4

Dimmer Curve 3 (Default)

Dimmer Curve 2

Dimmer Curve 1

Pan Tilt Normal

Pan Tilt Fast (Default)

Function off

The functions are actived passing through the “unused range” and staying 5 seconds
i

n necessary level.

L

ast selected function still active. Enable setting a new function.

DIMMER CURVE 1 - GAMMA 1 LINEAR

DIMMER CURVE 2 - GAMMA 1,5

DIMMER CURVE 3 - GAMMA 2,0

• RESET

BIT

EFFECT

255

128

127

77
76

26
25

0

ZOOM RESET

UNUSED RANGE

P

an / Tilt reset is activated passing throug the unused range

and staying 5 seconds in Pan / Tilt reset levels

Effects reset is activated passing throug the unused range
and staying 5 seconds in Effects reset levels.

COMPLETE RESET

C

OMPLETE RESET

PAN / TILT RESET

PAN / TILT RESET
Z

OOM RESET

C

omplete reset is activated passing throug the unused range

and staying 5 seconds in complete reset levels

* Automatic gamma is calculated based on background intensity to auto-adapt the

shape’s fade.

DIMMER CURVE 4 - S

29

A.LEDA WASH

S

HAPE SELECTION - SHAPE SPEED - SHAPE OFFSET

BIT SHAPE SELECTION

RANDOM

COLORS *1

SHAPE SPEED SHAPE OFFSET

On
K5

On

K10

On

K20

32-255

31

30
29
28
27
26
25

24

23

22

21

20
19

18
17

16
15

14
13
12
11
10

9
8

0-7

No
No

Yes
Yes
Yes
Yes
Yes
Yes

Yes

Yes

Yes

Yes

Yes
Yes

Yes
Yes

Yes
Yes

No
No

Yes

No

No
Yes
Yes
Yes

Yes
Yes

Yes
Yes
Yes
Yes
Yes
Yes

Yes

Yes

Yes

Yes

Yes
Yes

Yes
Yes

Yes
Yes

No
Yes
Yes

No
Yes
Yes
Yes
Yes

Yes
Yes

Yes
Yes
Yes
Yes
Yes
Yes

Yes

Yes

Yes

Yes

Yes
Yes

Yes
Yes

Yes
Yes

Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

N.a.

N.a.

Yes

Yes

Yes

Yes

N.a.
N.a.

Yes
Yes

Yes
Yes

N.a.
N.a.

Reserved
Two rotating arcs of different colors and
direction
Two rotating arcs of different colors
Two rotating bars of different colors
Triangle
Half moon
Bar (2 arms)
Fan (3 arms)

Rainbow 2, fixed speed with variable
color offset.

Rainbow 1, variable speed.

Random pixels with variable density
and speed
Random pixels distribuited on
many fixtures

Ring with variable radius, filled.
Ring with variable radius

Ring Open/Close (close/open) Filled
Ring Open/Close (close/open)

Ring Opening (Closing) Filled
Ring Opening (Closing)

Ring 1 + 4
Ring 1 + 3
Ring 1 + 2
Ring 4
Ring 3
Ring 2
Ring 1
Macro OFF

N.a.

0-126 = max to min speed,

c.cw rotation
127-128 = STOP
129-255 = min to max speed,

cw rotationt"
0-126 = c.cw rotation
127-128 = STOP
129-255 = cw rotationt

The value 0-126 or 129-255 change
the rainbow angle offset (the orange
starting angle).
0-126 = max to min speed,

c.cw rotation
127-128 = STOP
129-255 = min to max speed,

cw rotationt

0-126 = max to min speed,

Instant-on + fadeout.
127-128 = STOP.
129-255 = min to max speed,

FadeIn + FadeOut.

Fade or snap depending on fade
channel.

0-255 = radius
0 = minimum
255 = maximum

0-126 = max to min speed,

Start closed
127-128 = STOP
129-255 = min to max speed,

Start opened"

0-126 = max to min speed,

Closing effect
127-128 = STOP
129-255 = min to max speed,

Opening effect

N.a.
N.a.

N.a.

0-255 → angle offset from 0 to 360°

N.a.

0-255 → angle offset from 0 to 360°

0-255 → select pixel density

0-255 → select random distribution
from 2 up to 20 fixtures

N.a.
0-255 → angle offset from 0 to 360°

0-9 → continuous
10-255 → random distribution of flash
from 2 to 20 fixtures"

N.a.
N.a.

*1: Random colors activation with foreground R,G,B,W = 0

Continue

➔

30

A.LEDA WASH

Macro Off

DMX channel value: from 0 to 7.
No shape effects activated. Turns off any previously selected shape.

Static Rings

DMX channel value: from 8 to 14.
The ring or rings used by the macro are turned on with the foreground colour (Shape Red+Shape Green+Shape blue+Shape White).
Avaliable combinations: Ring 1 On, Ring 2 On, Ring 3 On (Aleda K10, K20 only), Ring 4 On (Aleda K20 only),Ring 1+2 On,
Ring 1+3 On (Aleda K10, K20 only), Ring 1+4 On (Aleda K20 only).
Dynamic Rings
DMX channel

Dynamic Rings

DMX channel value: From 15 to 18.
The rings used by the macro are turned on sequentially, simulating an opening , closing or both.
The Shape Speed channel increases the speed from 126 (min speed) to 0 (max speed) for the closing and closing/opening effects and from 129 (min
speed) to 255 (max speed) for the opening and opening/closing effects. With DMX value = 127 or 128 the macro stays still.
The Shape Offset channel defines the macro effect distribution over a number of fixtures (affects also the behavior of a single fixture)
Dmx values from 0 to 9: continous distribution;
Dmx values from 10 to 255 random distribution of flash from 2 to 20 fixtures.
If foreground colors are all set to 0, the Random-Colors mode is activated.
The color used by the macro changes at every restart.

Rings with variable radius

DMX channel value: 19 - 20.
The Shape Speed channel defines the ring radius: 0 = min, 255 = max.
Random pixels
DMX

Random pixels

DMX channel value: 21 – 22.
Leds are turned on and off randomly.
The Shape Speed channel increases the speed and defines the fade effect for the leds: from 126 (min speed) to 0(max speed) with a Instant-on/ fade-out
led effect, and from 129 (min speed) to 255 (max speed)with a fade-in + fade-out led effect. At a DMX value of 127 and 128 the macro stays still.
For macro 21 the Shape Offset channel defines leds random distribution from 0 (2 fixtures) to 255 over a set of fixtures (20 fixtures).
For macro 22 the Shape Offset channel defines pixels density from 0 (min density) to 255 (max density).
If foreground colors are all set to 0 the Random-Colors mode is activated.
The Shape Smoothing channel adjusts the fading effect applied to the macro movement

Rainbows

DMX channel value: 23 – 24 .
It simulates a rainbow effect.
The Shape Speed channel increases the speed and defines the rotation : from 126 (min speed) to 0 (max speed) counter clock wise rotation and from 129
(min speed) to 255 (max speed) clock wise rotation. With DMX value 127 or 128 the macro stays still.
For the macro 24 (Rainbow with fixed speed) the Shape Speed channel also defines angle offset (the orange sector starting angle).

Rotating shapes

DMX channel value: from 25 to 31.
Shapes avaliable: Fan (3 arms), Bar (2 arms), Half Moon, Triangle, Two rotating bars of different colors, Two rotating arcs of different colors, Two rotating
arcs of different colors and direction.
The Shape Speed channel increases the speed and defines the rotation : from 126 (min speed) to 0 (max speed) counter clock wise rotation and from 129
(min speed) to 255 (max speed) clock wise rotation. With DMX value 127 or 128 the macro stays still.
The Shape Offset channel defines the angle offset from 0 (0 degree) to 255 (360 degree).

31

A.LEDA WASH

•

ZOOM

BIT EFFECT

255

WIDE BEAM

0

NARROW BEAM

0-255 Bit: 0.68 sec (K20)
0

-255 Bit: 0.69 sec (K10)

•

SHAPE R G B W

BIT

EFFECT

2550COLOUR INSERTED

COLOUR EXCLUDED

• SHAPE INTENSITY

B

IT E

FFECT

2

55

0

C

OLOUR INSERTED

COLOUR EXCLUDED

• BACKGROUND INTENSITY

BIT

EFFECT

2550COLOUR INSERTED

COLOUR EXCLUDED

•

SHAPE SMOOTHING

BIT

EFFECT

246-255

245
244
243

18
17
16

0-15

Smooth, fading curve with automatic gamma *
Smooth, fading curve gamma 2
Smooth, fading curve gamma 1,993
S

mooth, fading curve gamma 1,986

Smooth, fading curve gamma 0,513
Smooth, fading curve gamma 0,506
Smooth, fading curve gamma 0,5
S

nap

1

,000

0

,900

0,800

0

,700

0,600

0

,500

0

,400

0,300

0,200

0,100

0

,000 0,100 0,200 0,300 0,400 0,500 0,600 0,700 0,800 0,900

1

,000

*

Automatic gamma is calculated based on background intensity to auto-adapt the

s

hape’s fade.

Gamma Curve

D

MX BIT

pixel colour distribution

pixel power

1

6

F

ading gamma

0

,500

1,000

0,900

0,800

0,700

0,600

0,500

0,400

0,300

0,200

0,100

0,000 0,100 0,200 0,300 0,400 0,500 0,600 0,700 0,800 0,900

1,000

Gamma Curve

DMX BIT

pixel colour distribution

pixel power

92

Fading gamma

0,997

1,000

0,900

0,800

0,700

0,600

0,500

0,400

0,300

0,200

0,100

0,000 0,100 0,200 0,300 0,400 0,500 0,600 0,700 0,800 0,900

1,000

Gamma Curve

DMX BIT

pixel colour distribution

pixel power

245

Fading gamma

2,000

Continue

➔

32

A.LEDA WASH

•

SHAPE TRANSITION

BIT

FADING TIME

4000 ms
3970 ms
3950 ms
3920 ms
3890 ms
3860 ms
3840 ms
3810 ms
3780 ms
3760 ms
3730 ms
3700 ms
3680 ms
3650 ms
3630 ms
3600 ms
3570 ms
3550 ms
3520 ms
3500 ms
3470 ms
3440 ms
3420 ms
3390 ms
3370 ms
3340 ms
3320 ms
3290 ms
3270 ms
3240 ms
3220 ms
3190 ms
3170 ms
3140 ms
3120 ms
3100 ms
3070 ms
3050 ms
3020 ms
3000 ms
2970 ms
2950 ms
2930 ms
2900 ms
2880 ms
2860 ms
2830 ms
2810 ms
2790 ms
2760 ms
2740 ms
2720 ms
2690 ms
2670 ms
2650 ms
2620 ms

255
254
253
252
251
250
249
248
247
246
245
244
243
242
241
240
239
238
237
236
235
234
233
232
231
230
229
228
227
226
225
224
223
222
221
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200

BIT

FADING TIME

2600 ms
2580 ms
2560 ms
2530 ms
2510 ms
2490 ms
2470 ms
2450 ms
2420 ms
2400 ms
2380 ms
2360 ms
2340 ms
2320 ms
2290 ms
2270 ms
2250 ms
2230 ms
2210 ms
2190 ms
2170 ms
2150 ms
2130 ms
2110 ms
2090 ms
2070 ms
2050 ms
2020 ms
2000 ms
1980 ms
1960 ms
1950 ms
1930 ms
1910 ms
1890 ms
1870 ms
1850 ms
1830 ms
1810 ms
1790 ms
1770 ms
1750 ms
1730 ms
1710 ms
1700 ms
1680 ms
1660 ms
1640 ms
1620 ms
1600 ms
1590 ms
1570 ms
1550 ms
1530 ms
1510 ms
1500 ms

199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144

BIT

FADING TIME

1480 ms
1460 ms
1440 ms
1430 ms
1410 ms
1390 ms
1380 ms
1360 ms
1340 ms
1330 ms
1310 ms
1290 ms
1280 ms
1260 ms
1240 ms
1230 ms
1210 ms
1200 ms
1180 ms
1160 ms
1150 ms
1130 ms
1120 ms
1100 ms
1090 ms
1070 ms
1060 ms
1040 ms
1030 ms
1010 ms
1000 ms

980 ms

970 ms

950 ms

940 ms

930 ms

910 ms

900 ms

880 ms

870 ms

860 ms

840 ms

830 ms

820 ms

800 ms

790 ms

780 ms

770 ms

750 ms

740 ms

730 ms

710 ms

700 ms

690 ms

680 ms

670 ms

143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100

99
98
97
96
95
94
93
92
91
90
89
88

BIT

FADING TIME

650 ms
640 ms
630 ms
620 ms
610 ms
600 ms
590 ms
570 ms
560 ms
550 ms
540 ms
530 ms
520 ms
510 ms
500 ms
490 ms
480 ms
470 ms
460 ms
450 ms
440 ms
430 ms
420 ms
410 ms
400 ms
390 ms
380 ms
370 ms
360 ms
350 ms
340 ms
330 ms
320 ms
310 ms
300 ms
290 ms
280 ms
270 ms
260 ms
250 ms
240 ms
230 ms
220 ms
210 ms
200 ms
190 ms
180 ms
170 ms
160 ms
150 ms
140 ms
130 ms
120 ms
110 ms
100 ms
No fade

87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62

60-61

59
58
57
56

54-55

53
52
51

49-50

48
47

45-46

44

42-43

41
39-40
37-38
35-36

34
32-33
30-31
27-29
25-26
22-24
19-21
16-18
11-15

5-10

0-4

33

A.LEDA WASH

A.LEDA WASH K20

LED

1

2

3

45

6

7

8

9

10

11

12

13 14

15

16

17

18

19

20

21

22

23

24

25

26

27

28 29

30

31

32

33

34

35

36

37

A.LEDA WASH K5

LED

2

1

3

4

5

6

7

LED

1

3

6

4

5

2

7

8

9

10

11

12

13 14

15

16

17

18

19

LED reference number for pixel mapping
T

ILT: channel 16 at 80%

LED reference number for pixel mapping
TILT: channel 16 at 80%

A.LEDA WASH K10

LED reference number for pixel mapping
T

ILT: channel 16 at 80%

34

A.LEDA WASH

35

A.LEDA WASH

CLAY PAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. [phone] - Fax [phone] - www.claypaky.it

IST004/001 – EN - Rev.0 09/13
