Cla-Val CFC2 User Manual

CFC2

CFC2

Float Control

For Closed Tanks

Specifications

•

Accurate Liquid Level Control

•

Fully Hydraulic Operation

•

Simple Design, Easy Maintenance

•

No Lubrication Necessary

•

No Gears, No Mechanical Linkage Between
Valve and Control

The Cla-Val Model CFC2 Float Control is a float-actuated, multi­port pilot control which provides non-modulating, two-position, on­off operation. It is used primarily to operate remotely located Cla­Val Valves requiring three-way or four-way pilot valve operation.
Designed for use in closed tanks, this control operates on a
minimum level change of approximately one inch. Maximum level
change of five and one-half inches is needed for full capacity.

Note: We recommend protecting the control tubing and valve from
freezing temperatures.

Dimensions

(In Inches)

Control Piping
Connections1⁄8" NPT

Reservoir
Connections 1" NPT

Pressure Rating 0-150 psi

Temperature
Rating Water: to 180°F.

Materials In contact with operating fluid:

Brass, Stainless Steel, Monel, with
Buna-N

®

Seals

Float chamber:

Cast Iron

Pilot valve housing:

Bronze

Materials in contact with operating fluid:

Brass, Stainless Steel, Monel with
Buna-N

®

Seals

Float ball:

Stainless Steel

Float arm:

Brass

Other material available:

Cast steel or aluminum chamber and
pilot valve housing. All stainless steel

Level Differential Approximately 1" minimum required to

change pilot valve operation. 5

5

⁄16"

required to develop full capacity.

Operating Fluids Clean liquids or gases compatible with

specified materials.

Shipping Weight 12 lbs.

Reservoir Connection
1" NPT (Typ. Both Ends 2 Places)

8.75

6.50

Port 2
1/8" NPT
(Typ. 4
Places)

Port 1

Drain

Supply

7.00

7.13

3.0

Float Travel

5.32

11.62

MODEL

Installation Data

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

Valve 1 Valve 2

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

Valve 2Valve 1

Supply

Drain

(Operating

Pressure)

Port 2

Port 1

For Controlling

Two Valves Simultaneously

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada LOR 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©

COPYRIGHT CLA-VAL 2007 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

E-CFC2 (R-12/07)

Represented By:

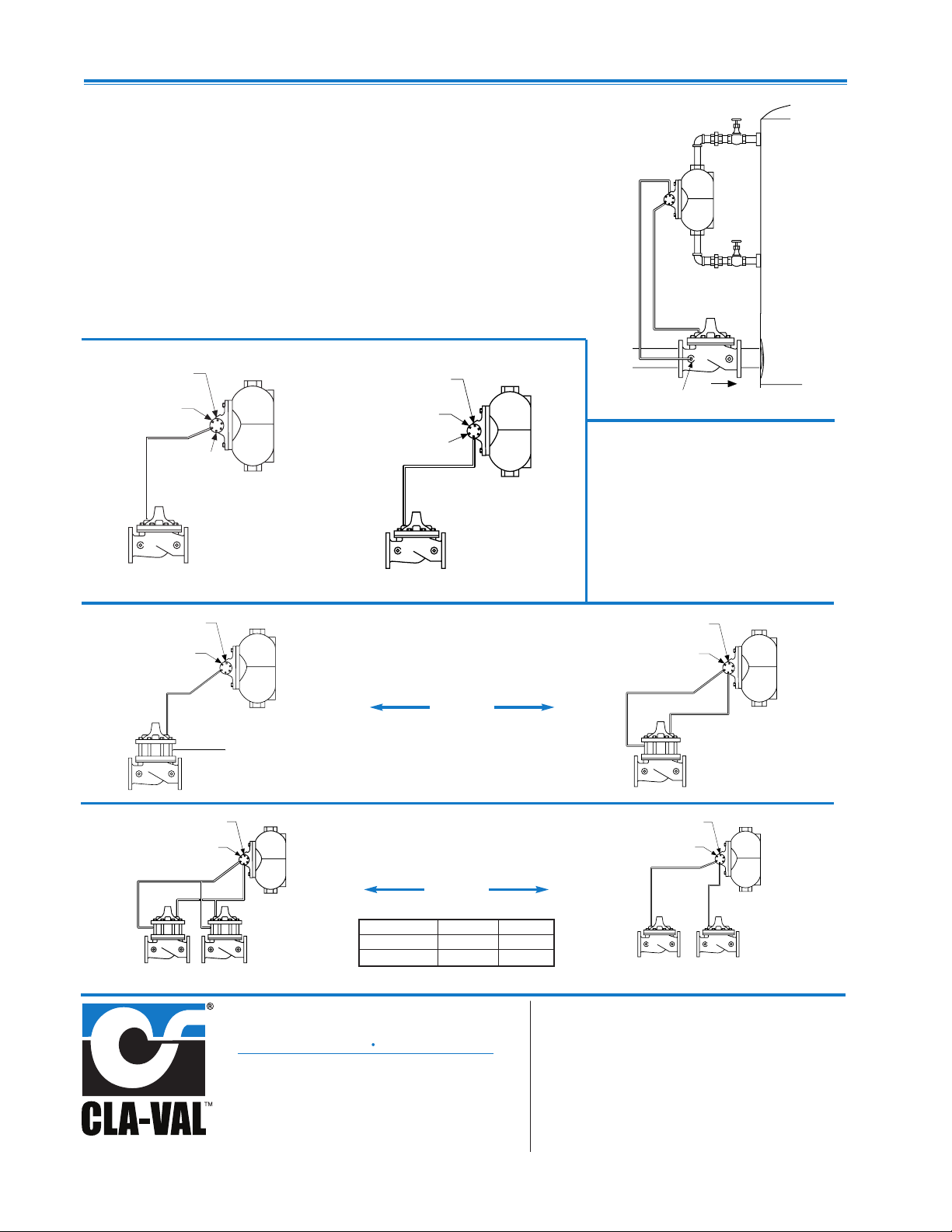

The float control is mounted at the high water
level in the tank. The remote Cla-Val valve is
installed in the line leading to the tank and is
connected to the float control pilot by tubing.
(Min. 3⁄8" for valves 6" and smaller, 3⁄4" or larger
for valves 8" or larger.)

When line pressu re is us ed to operate th e
valve, tubing connections are made from the
float control pilot to the valve cover, and also to
the inlet side of the valve. An X46 Flow Clean
Strainer must be installed in the inlet side of the
valve. The co ntrol may be instal le d at any
elevation above the valve, providing that the
fl ow in g line pressure in psi is eq ua l to, or

For Controlling Hytrol Valve

gr eat er t ha n, the ver tic al d is tan ce i n feet
between the valve and the float control.

An independent source of air or water may be
used to operate the valve. The pressure from
thi s indep end ent sou rce must constantly be
equal to or greater than pressure at the valve
inlet. The independent source is connected to
the float control pilot in place of the supply line
connected to the inlet side of the valve. If the
Model 100-01 under the control of the CFC2 is
8" or larg er, au xiliary Hyt rol va lves may be
required. Consult factory for details.

Note: We recommend protecting the control
tubing and valve from freezing temperatures.

Float Up Closes Valve Float Down Closes Valve

For Controlling

Powertrol Valves

Float Up Float Up

Closes Valve Opens Valve

X46 Flow
Clean Strainer

Flow

When Ordering, Please
Specify

1. Catalog No. CFC2-C1

2. Size and Type of Valve to be
Controlled.

3. Materials if different from standard

4. Specify Gravity of Fluid if other than
Water.

Float Position Valve 1 Valve 2

Operation

UP CLOSED OPEN

DOWN OPEN CLOSED

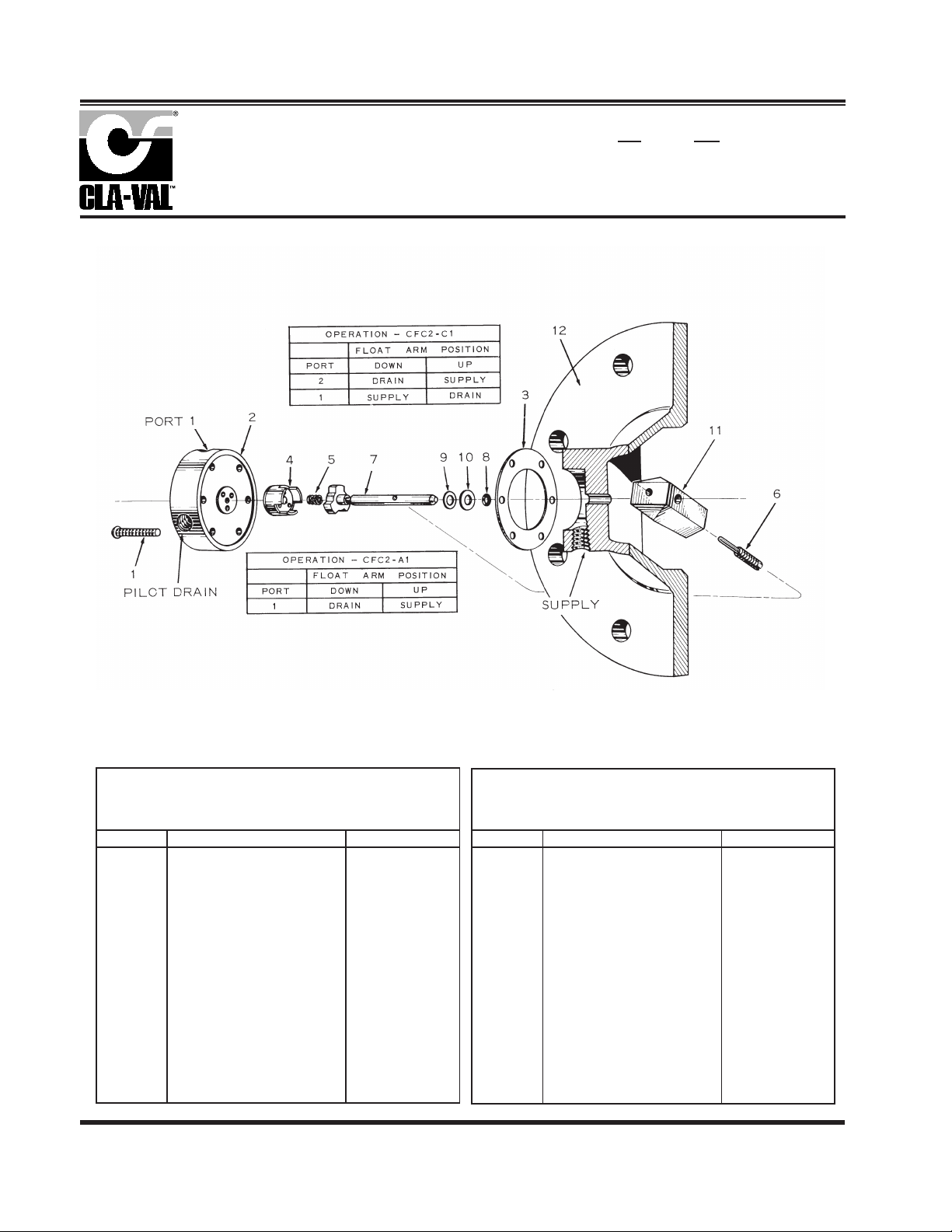

PARTS LIST

CFC2

Float Chamber Control

MODEL

CAP SCREW

(8 Required)

BODY

GASKET

FLOATBALL

PILOT and

HOUSING ASSEMBLY

TOP

W

ATER

LEVEL

FLOAT ARM

(PIPE NIPPLE)

Common Parts:

Description
Float Ball
*Gasket
Cap Screws
3/8-16 x 7/8

Material
S.S.
Neoprene
Steel Cad.

Plated

NOTE: SEE OTHER SIDE FOR EXPLORED
PILOT AND HOUSING ASSEMBLY.

CFC2-A1
CFC2-A2
CFC2-C1
CFC2-A1
CFC2-C1
CFC2-A1
CFC2-A2
CFC2-C1

MATERIAL
Iron
Iron
Iron
Iron
Iron
Steel
Steel
Steel

MATERIAL
Bronze with S.S.
Bronze with S.S.
Bronze with S.S.
Steel with S.S.
Steel with S.S.
Steel with S.S.
Steel with S.S.
Steel with S.S.

MATERIAL
Bronze 67586-03
Bronze 67586-03
Bronze 67586-03
S.S. 67586-19
S.S. 67586-19
S.S. 67586-19
S.S. 67586-19
S.S. 67586-19

BODY PILOT & HOUSING PIPE NIPPLE

ASS’Y 1/4 X 2”

CATALOG NO.

CLA-VAL

Copyright Cla-Val 2008 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CFC2 (R-1/08)

PARTS LIST

CFC2

Pilot & Housing Assembly For Float Chamber Control

Model

PILOT & HOUSING ASSEMBlIES (BRONZE W/STAINLESS STEEL)
C426-1 FOR CFC2-A1 OR CFC2-A2-3
C2035 FOR CFC2-A2 OR CFC2-B2-3
C2149H FOR CFC2-C1 OR CFC2-B2-4

ITEM

1

*2

*3
*4

*5

6
7

*8

9
10
11
12

DESCRIPTION
Machine Screw, Rd. Hd.,
6/32 x 1”, 6 Required
Distributor for C426-1
Distributor for C-2035
Distributor for C-2149-1
Gasket
Disc Assembly

Spring
Pin, Lock
Stem Assembly
“O” Ring
Washer
Washer, Thrust
Arm, Float
Housing

MATERIAL
Brass

S.S.
S.S.
S.S.
Buna-N

®

Brass
Monel
S.S.
S.S.
Brass - S.S.
Buna-N

®

Brass
Brass
Brass
Bronze

PILOT & HOUSING ASSEMBlIES (BRONZE W/STAINLESS STEEL)
C426-1 FOR CFC2-A1 OR CFC2-A2-3
C2035 FOR CFC2-A2 OR CFC2-B2-3
C2149-1 FOR CFC2-C1 OR CFC2-B2-4

ITEM

1

*2

*3
*4
*5

6
7

*8

9
10
11
12

DESCRIPTION
Machine Screw, Rd. Hd.,
6/32 x 1”, 6 Required
Distributor for C-8017
Distributor for 32340
Distributor for 30792
Gasket
Disc Assembly
Spring
Pin, Lock
Stem Assembly
“O” Ring
Washer
Washer, Thrust
Arm, Float
Housing

MATERIAL
Steel Cad.
Plated
S.S.
S.S.
S.S.
Buna-N

®

S.S.
S.S.
S.S.
S.S.
Buna-N

®

S.S.
S.S.
S.S.
Steel
