Description

The CIa-VaI Model 100-01 Hytrol Valve is a main valve for
CIa-VaI Automatic Control Valves. It is a hydraulically operated,
diaphragm-actuated, globe or angle pattern valve.

This valve consists of three major components; body, diaphragm
assembly, and cover. The diaphragm assembly is the only
moving part. The diaphragm assembly uses a diaphragm of nylon
fabric bonded with synthetic rubber. A synthetic rubber disc,
contained on three and one half sides by a disc retainer and disc
guide, forms a seal with the valve seat when pressure is applied
above the diaphragm. The diaphragm assembly forms a sealed
chamber in the upper portion of the valve, separating operating
pressure from line pressure.

Installation

1. Before valve is installed, pipe lines should be flushed of all
chips, scale and foreign matter.

2. It is recommended that either gate or block valves be
installed on both ends of the 100-01 Hytrol Valve to facilitate
isoIating the valve for preventive maintenance and repairs.

3. Place the valve in the line with flow through the valve in the
direction indicated on the inlet nameplate. (See “Flow Direction”
Section)

4. Allow sufficient room around valve to make adjustments and
for disassembly.

5. CIa-VaI 100-01 Hytrol Valves operate with maximum effic iency
when mounted in horizontal piping with the cover UP, however,
other positions are acceptable. Due to size and weight of the
cover and internal components of 8 inch and larger valves,

installation with the cover UP is advisable. This makes internal
parts readily accessible for periodic inspection.

6. Caution must be taken in the installation of this valve to insure
that galvanic and/or electrolytic action does not take place. The
proper use of dielectric fittings and gaskets are required in all
systems using dissimilar metals.

7. If a pilot control system is installed on the 100-01 Hytrol Valve,
use care to prevent damage. If it is necessary to remove fittings
or components, be sure they are kept clean and replaced
exactly as they were.

8. After the valve is installed and the system is first pressurized,
vent air from the cover chamber and pilot system tubing by
loosening fittings at all high points.

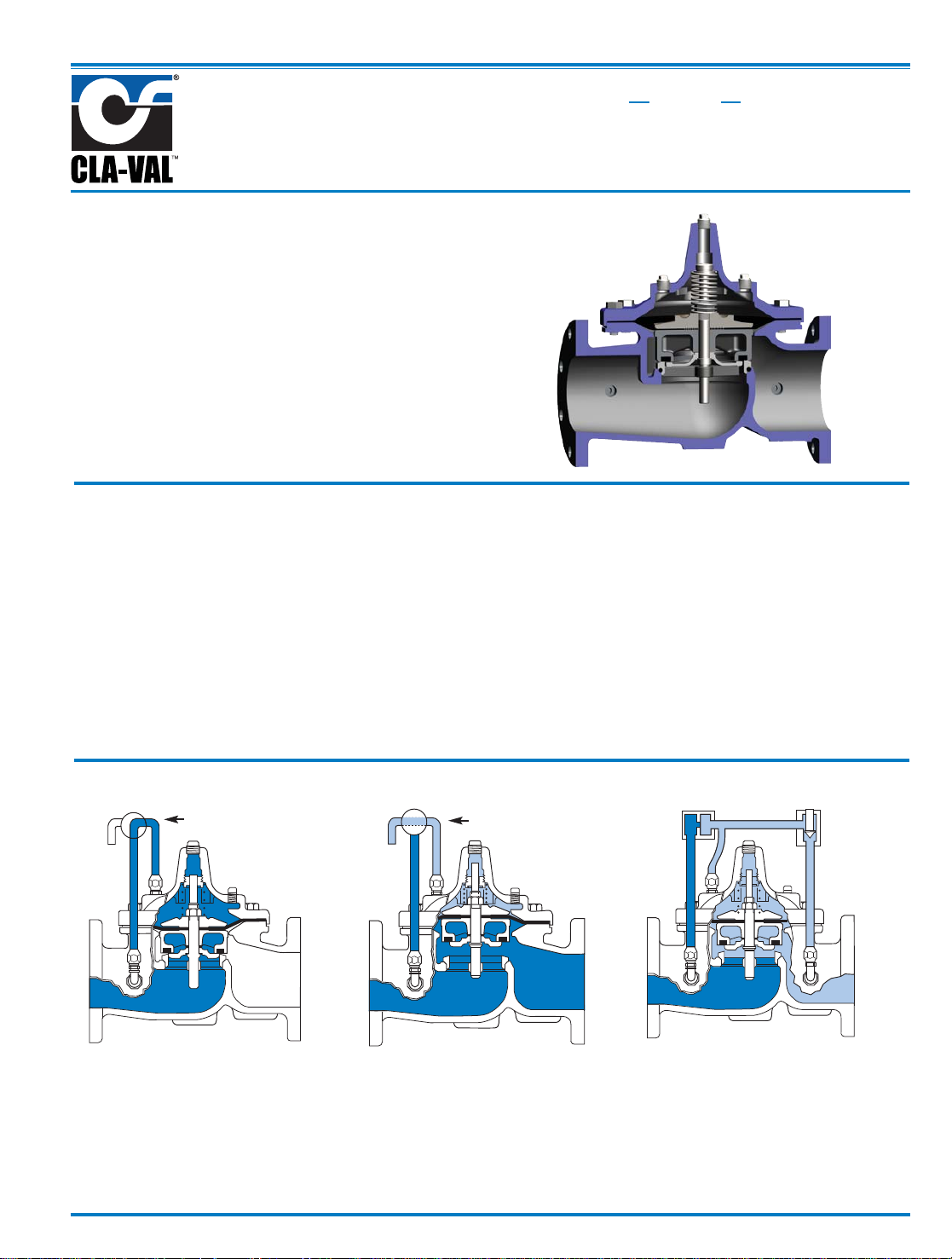

Tight Closing Operation

When pressure from the valve inlet (or
an equivalent independent operating
pressure) is applied to the diaphragm
chamber the valve closes drip-tight.

Full Open Operation

When pressure in diaphragm chamber
is relieved to a zone of lower pressure
(usually atmosphere) the line pressure
(5 psi Min.) at the valve inlet opens the
valve.

Modulating Action

Valve modulates when diaphragm pres­sure is held at an intermediate point
between inlet and discharge pressure.
With the use of a Cla-Val. "modulating
control," which reacts to line pressure
changes, the pressure above the
diaphragm is varied, allowing the valve
to throttle and compensate for the
change.

Principles of Operation

Three Way

Pilot Control

Three Way

Pilot Control

Restriction

Modulating

Control

100-01

Hytrol Valve

MODEL

INSTALLATION / OPERATION / MAINTENANCE

2

Flow Direction

The flow through the 100-01 Hytrol Valve can be in one of two
directions. When flow is “up-and-over the seat,” it is in “normal”
flow and the valve will fail in the open position. When flow is “over­the seat-and down,” it is in “reverse” flow and the valve will fail in
the closed position. There are no permanent flow arrow markings.

The valve must be installed according to nameplate data.

BRIDGEWALL INDlCATOR

Normal Flow Reverse Flow

Troubleshooting

The following troubleshooting information deals strictly with the
Model 100-01 Hytrol Valve. This assumes that all other compo­nents of the pilot control system have been checked out and are
in proper working condition. (See appropriate sections in
Technical Manual for complete valve).

Three Checks

The 100-01 Hytrol Valve has only one moving part (the diaphragm
and disc assembly). So, there are only three major types of prob­lems to be considered.

First: Valve is stuck - that is, the diaphragm assembly is not free
to move through a full stroke either from open to close or vice
versa.

Second: Valve is free to move and can’t close because of a worn
out diaphragm.

Third: Valve leaks even though it is free to move and the
diaphragm isn’t leaking.

Closed isolation valves in control system, or in main line.

Lack of cover chamber pressure.

Diaphragm damaged. (See Diaphragm Check.)

Diaphragm assembly inoperative.
Corrosion or excessive scale build up on valve stem.
(See Freedom of Movement Check)

Mechanical obstruction. Object lodged in valve.
(See Freedom of Movement Check)

Worn disc. (See Tight Sealing Check)

Badly scored seat. (See Tight Sealing Check)

Closed upstream and/or downstream isolation
valves in main line.

Insufficient line pressure.

Diaphragm assembly inoperative. Corrosion or excessive
buildup on valve stem. (See Freedom of Movement Check)

Diaphragm damaged. (For valves in "reverse flow" only)

After checking out probable causes and remedies, the following three checks can be used to diagnose the nature of the
problem before maintenance is started. They must be done in the order shown.

Open Isolation valves.

Check upstream pressure, pilot system, strainer, tubing, valves, or needle
valves for obstruction.

Replace diaphragm.

Clean and polish stem. Inspect and replace any damaged or badly eroded
part.

Remove obstruction.

Replace disc.

Replace seat.

Open isolation valves.

Check upstream pressure. (Minimum 5 psi flowing line pressure differential.)

Clean and polish stem. Inspect and replace any
damaged or badly eroded part.

Replace diaphragm.

Fails to Close

Fails to Open

CAUTION:
Care should be taken when doing the troubleshooting checks on
the 100-01 Hytrol Valve. These checks do require the valve to
open fully. This will either allow a high flow rate through the
valve, or the downstream pressure will quickly increase to the
inlet pressure. In some cases, this can be very harmful. Where
this is the case, and there are no block valves in the system to
protect the downstream piping, it should be realized that the
valve cannot be serviced under pressure. Steps should be
taken to remedy this situation before proceeding any further.

(cast into side of valve body)

SYMPTOM PROBABLE CAUSE REMEDY

Recommended Tools

1. Three pressure gauges with ranges suitable to the instal­lation to be put at Hytrol inlet, outlet and cover connections.

2. Cla-Val Model X101 Valve Position Indicator. This pro­vides visual indication of valve position without disassembly
of valve.

3. Other items are: suitable hand tools such as screw­drivers, wrenches, etc. soft jawed (brass or aluminum) vise,
400 grit wet or dry sandpaper and water for cleaning.

All trouble shooting is possible without removing the valve from the
line or removing the cover. It is highly recommended to permanently
install a Model X101 Valve Position Indicator and three gauges in
unused Hytrol inlet, outlet and cover connections.

Diaphragm Check (#1 )

1. Shut off pressure to the Hytrol Valve by slowly closing upstream
and downstream isolation valves. SEE CAUTION.

2. Disconnect or close all pilot control lines to the valve cover and

leave only one fitting in highest point of cover open to atmosphere.

3.With the cover vented to atmosphere, slowly open upstream
isolation valve to allow some pressure into the Hytrol Valve body.
Observe the open cover tapping for signs of continuous flow. It is
not necessary to fully open isolating valve. Volume in cover cham­ber capacity chart will be displaced as valve moves to open posi­tion. Allow sufficient time for diaphragm assembly to shift posi­tions. If there is no continuous flow, you can be quite certain the
diaphragm is sound and the diaphragm assembly is tight. If the
fluid appears to flow continuously this is a good reason to believe
the diaphragm is either damaged or it is loose on the stem. In
either case, this is sufficient cause to remove the valve cover and
investigate the leakage. (See “Maintenance” Section for procedure.)

Freedom of Movement Check (#2)

4. Determining the Hytrol Valve’s freedom of movement can be

done by one of two methods.

5. For most valves it can be done after completing Diaphragm
Check (Steps 1, 2, and 3). SEE CAUTION. At the end of step 3
the valve should be fully open.

6. If the valve has a Cla-Val X101 Position Indicator, observe the
indicator to see that the valve opens wide. Mark the point of max­imum opening.

7. Re-connect enough of the control system to permit the appli­cation of inlet pressure to the cover. Open pilot system cock so
pressure flows from the inlet into the cover.

8. While pressure is building up in the cover, the valve should
close smoothly. There is a hesitation in every Hytrol Valve closure,
which can be mistaken for a mechanical bind. The stem will
appear to stop moving very briefly before going to the closed posi­tion. This slight pause is caused by the diaphragm flexing at a
particular point in the valve’s travel and is not caused by a
mechanical bind.

9. When closed, a mark should be made on the X101 Valve posi­tion indicator corresponding to the “closed” position. The distance
between the two marks should be approximately the stem travel
shown in chart.

10. If the stroke is different than that shown in stem travel chart
this is a good reason to believe something is mechanically restrict­ing the stroke of the valve at one end of its travel. If the flow does
not stop through the valve when in the indicated “closed” position,
the obstruction probably is between the disc and the seat. If the
flow does stop, then the obstruction is more likely in the cover. In
either case, the cover must be removed, and the obstruction locat­ed and removed. The stem should also be checked for scale build­up. (See “Maintenance, section for procedure.)

11. For valves 6” and smaller, the Hytrol Valve’s freedom of move­ment check can also be done after all pressure is removed from
the valve. SEE CAUTION. After closing inlet and outlet isolation
valves and bleeding pressure from the valve, check that the cover
chamber and the body are temporarily vented to atmosphere.
Insert fabricated tool into threaded hole in top of valve stem, and
lift the diaphragm assembly manually. Note any roughness. The
diaphragm assembly should move smoothly throughout entire
valve stroke. The tool is fabricated from rod that is threaded on
one end to fit valve stem and has a “T” bar handle of some kind
on the other end for easy gripping. (See chart in Step 4 of
“Disassembly” Section.)

12. Place marks on this diaphragm assembly lifting tool when the
valve is closed and when manually positioned open. The distance
between the two marks should be approximately the stem travel
shown in stem travel chart. If the stroke is different than that
shown, there is a good reason to believe something is mechani­cally restricting the stroke of the valve. The cover must be
removed, and the obstruction located and removed. The stem
should also be checked for scale build-up. (See “Maintenance”
Section for procedure.)

Tight Sealing Check (#3)

13. Test for seat leakage after completing checks #1 & #2 (Steps

1 to 12). SEE CAUTION. Close the isolation valve downstream of
the Hytrol Valve. Apply inlet pressure to the cover of the valve, wait
until it closes. Install a pressure gauge between the two closed
valves using one of the two ports in the outlet side of the Hytrol.
Watch the pressure gauge. If the pressure begins to climb, then
either the downstream isolation valve is permitting pressure to
creep back, or the Hytrol is allowing pressure to go through it.
Usually the pressure at the Hytrol inlet will be higher than on the
isolation valve discharge, so if the pressure goes up to the inlet
pressure, you can be sure the Hytrol is leaking. Install another
gauge downstream of isolating valve. If the pressure between the
valves only goes up to the pressure on the isolation valve
discharge, the Hytrol Valve is holding tight, and it was just the iso­lation valve leaking.

STEM TRAVEL

(Fully Open to Fully Closed)

Valve Size (inches) Travel (inches)

Inches MM Inches MM

1 1/4 32 0.4 10
1 1/2 40 0.4 10
250 0.615
2 1/2 65 0.7 18
380 0.820
4 100 1.1 28
6 150 1.7 43
8 200 2.3 58
10 250 2.8 71
12 300 3.4 86
14 350 4.0 100
16 400 4.5 114
20 500 5.6 143
24 600 6.7 165
30 800 7.5 190
36 900 8.5 216

COVER CHAMBER CAPACITY

(Liquid Volume displaced when valve opens)

Valve size (inches) Displacement

Gallons Liters

1 1/4 .020 .07
1 1/2 .020 .07
2 .032 .12
2 1/2 .043 .16
3 .080 .30
4 .169 .64
6 .531 2.0
8 1.26 4.8
10 2.51 9.5
12 4.00 15.1
14 6.50 24.6
16 9.57 36.2
20 12.00 45.4
24 29.00 109.8
30 42.00 197.0
36 90.00 340.0

3

Maintenance

Preventative Maintenance

The Cla-Val Co. Model 100-01 Hytrol Valve requires no lubrication or
packing and a minimum of maintenance. However, a periodic inspec­tion schedule should be established to determine how the operating
conditions of the system are affecting the valve. The effect of these
actions must be determined by inspection.

Disassembly

Inspection or maintenance can be accomplished without removing
the valve from the line. Repair kits with new diaphragm and disc are
recommended to be on hand before work begins.

WARNING: Maintenance personnel can be injured and equipment
damaged if disassembly is attempted with pressure in the valve. SEE

CAUTION.

1. Close upstream and downstream isolation valves and independ-
ent operating pressure when used to shut off all pressure to the

valve.

2. Loosen tube fittings in the pilot system to remove pressure from
valve body and cover chamber. After pressure has been released
from the valve, use care to remove the controls and tubing. Note and
sketch position of tubing and controls for re-assembly. The schemat­ic in front of the Technical Manual can be used as a guide when
reassembling pilot system.

3. Remove cover nuts and remove cover. If the valve has been in
service for any length of time, chances are the cover will have to be
loosened by driving upward along the edge of the cover with a dull
cold chisel.

On 6” and smaller valves block and tackle or a power hoist can be
used to lift valve cover by inserting proper size eye bolt in place of
the center cover plug. on 8” and larger valves there are 4 holes (5/8”
— 11 size) where jacking screws and/or eye bolts may be inserted
for lifting purposes. Pull cover straight up to keep from damaging
the integral seat bearing and stem.

4. Remove the diaphragm and disc assembly from the valve body.
With smaller valves this can be accomplished by hand by pulling

straight up on the stem so as not to damage the seat bearing.

On large valves, an eye bolt of proper size can be installed in the
stem and the diaphragm assembly can be then lifted with a block and
tackle or power hoist. Take care not to damage the stem or bearings.
The valve won't work if these are damaged.

5. The next item to remove is the stem nut. Examine the stem
threads above the nut for signs of mineral deposits or corrosion.
If the threads are not clean, use a wire brush to remove as much
of the residue as possible. Attach a good fitting wrench to the nut
and give it a sharp “rap” rather than a steady pull. Usually
several blows are sufficient to loosen the nut for further removal.
On the smaller valves, the entire diaphragm assembly can be held
by the stem in a vise equipped with soft brass jaws before
removing the stem nut.

The use of a pipe wrench or a vise without soft brass jaws scars
the fine finish on the stem. No amount of careful dressing can
restore the stem to its original condition. Damage to the finish of
the stem can cause the stem to bind in the bearings and the valve
will not open or close.

6. After the stem nut has been removed, the diaphragm assembly
breaks down into its component parts. Removal of the disc from
the disc retainer can be a problem if the valve has been in serv­ice for a long time. Using two screwdrivers inserted along the out­side edge of the disc usually will accomplish its removal. Care
should be taken to preserve the spacer washers in water, partic­ularly if no new ones are available for re-assembly.

7. The only part left in the valve body is the seat which ordinarily
does not require removal. Careful cleaning and polishing of inside
and outside surfaces with 400 wet/dry sandpaper will usually
restore the seat’s sharp edge. If, however, it is badly worn and
replacement is necessary, it can be easily removed.

Seats in valve sizes 1 1/4” through 6” are threaded into the valve
body. They can be removed with accessory X109 Seat Removing
Tool available from the factory. On 8” and larger valves, the seat
is held in place by flat head machine screws. Use a tight-fitting,
long shank screwdriver to prevent damage to seat screws. If upon
removal of the screws the seat cannot be lifted out, it will be nec­essary to use a piece of angle or channel iron with a hole drilled
in the center. Place it across the body so a long stud can be insert­ed through the center hole in the seat and the hole in the angle
iron. By tightening the nut a uniform upward force is exerted on
the seat for removal.

NOTE: Do not lift up on the end of the angle iron as this may force
the integral bearing out of alignment, causing the stem to bind.

VALVE STEM THREAD SIZE

Valve Size Thread Size (UNF Internal)

1 1/4"

—2 1/2" 10—32
3"—4" 1/4—28
6"—14" 3/8—24

16" 1/2—20

20 3/4-16
24" 3/4-16
30” 3/4-16
36” 3/4-16

COVER CENTER PLUG SIZE

Valve Size Thread Size (NPT)

1 1/4"

—1 1/2" 1/4"
2"—3" 1/2"
4"—6" 3/4"
8"—10" 1"

12" 1 1/4"
14" 1 1/2"

16" 2"
20” & 24" 2"
30” & 36” 2”

NUT

ANGLE OR CHANNEL IRON

LONG STUD OR BOLT

NUT OR BOLT HEAD

DO NOT

LIFT

VALVE SEAT

VALVE BODY

4

Lime Deposits

One of the easiest ways to remove lime deposits from the valve
stem or other metal parts is to dip them in a 5-percent muriatic
acid solution just long enough for the deposit to dissolve. This
will remove most of the common types of deposits. CAUTlON:
USE EXTREME CARE WHEN HANDLING ACID. Rinse parts in
water before handling. If the deposit is not removed by acid, then
a fine grit (400) wet or dry sandpaper can be used with water.

Reassembly

1. Reassembly is the reverse of the disassembly procedure. If a

new disc has been installed, it may require a different number of
spacer washers to obtain the right amount of “grip” on the disc.
When the diaphragm assembly has been tightened to a point
where the diaphragm cannot be twisted, the disc should be com­pressed very slightly by the disc guide. Excessive compression
should be avoided. Use just enough spacer washers to hold the
disc firmly without noticeable compression.

2. MAKE SURE THE STEM NUT IS VERY TIGHT. Attach a good
fitting wrench to the nut and give it a sharp “rap” rather than a
steady pull. Usually several blows are sufficient to tighten the
stem nut for final tightening. Failure to do so could allow the
diaphragm to pull loose and tear when subjected to pressure.

Test Procedure After Valve Assembly

There are a few simple tests which can be made in the field to
make sure the Hytrol Valve has been assembled properly. Do
these before installing pilot system and returning valve to
service. These are similar to the three troubleshooting tests.

1. Check the diaphragm assembly for freedom of movement
after all pressure is removed from the valve. SEE CAUTlON.
Insert fabricated tool into threaded hole in top of valve stem, and
lift the diaphragm assembly manually. Note any roughness,
sticking or grabbing. The diaphragm assembly should move
smoothly throughout entire valve stroke. The tool is fabricated
from rod that is threaded on one end to fit valve stem (See chart
in Step 4 of “Disassembly” section.) and has a “T” Bar handle of
some kind on the other end for easy gripping.

Place marks on this diaphragm assembly lifting tool when the
valve is closed and when manually positioned open. The dis­tance between the two marks should be approximately the stem
travel shown in stem travel chart. (See “Freedom of Movement
Check” section.) If the stroke is different than that shown, there
is a good reason to believe something is mechanically restricting
the stroke of the valve. The cover must be removed, the obstruc­tion located and removed. (See “Maintenance” Section for
procedure.)

Inspection of Parts

After the valve has been disassembled, each part should be
examined carefully for signs of wear, corrosion, or any other
abnormal condition. Usually, it is a good idea to replace the rub­ber parts (diaphragm and disc) unless they are free of signs of
wear. These are available in a repair kit. Any other parts which
appear doubtful should be replaced. WHEN ORDERlNG
PARTS, BE SURE TO GIVE COMPLETE NAMEPLATE DATA,
ITEM NUMBER AND DESCRlPTlON.

NOTE: If a new disc isn’t available, the existing disc can be
turned over, exposing the unused surface for contact with the
seat. The disc should be replaced as soon as practical.

3. Carefully install the diaphragm assembly by lowering the stem
through the seat bearing. Take care not to damage the stem or
bearing. Line up the diaphragm holes with the stud or bolt holes
on the body. on larger valves with studs, it may be necessary to
hold the diaphragm assembly up part way while putting the
diaphragm over the studs.

4. Put spring in place and replace cover. Make sure diaphragm
is Iying smooth under the cover.

5. Tighten cover nuts firmly using a cross-over pattern until all
nuts are tight.

6. Test Hytrol Valve before re-installing pilot valve system.

Due to the weight of the diaphragm assembly this procedure is
not possible on valves 8” and larger. on these valves, the same
determination can be made by carefully introducing a low
pressure-less than five psi) into the valve body with the cover
vented. SEE CAUTION. Looking in cover center hole see the
diaphragm assembly lift easily without hesitation, and then
settle back easily when the pressure is removed.

2. To check the valve for drip-tight closure, a line should be
connected from the inlet to the cover, and pressure applied at the
inlet of the valve. If properly assembled, the valve should hold
tight with as low as ten PSI at the inlet. See “Tight Sealing
Check” section.)

3. With the line connected from the inlet to the cover, apply full
working pressure to the inlet. Check all around the cover for any
leaks. Re-tighten cover nuts if necessary to stop leaks past the
diaphragm.

4. Remove pressure, then re-install the pilot system and tubing
exactly as it was prior to removal. Bleed air from all high

points.

5. Follow steps under “Start-Up and Adjustment” Section in

Technical Manual for returning complete valve back to service

.

5

1

5

8

10

14

16

6

17

7

9

OUTLE

T

INLET

GLOBE PATTERN

9

26

27

12

15

14

16

INLET

OUTLET

ANGLE PATTERN

22

23

13

12

14

10

11

15

23

TOP VIEW

8" - 24" SEAT DETAIL

1 1/4" - 6" SEAT DETAIL

16" COVER DETAIL

4

24

2

25

13

31

28

30

29

5

14

3

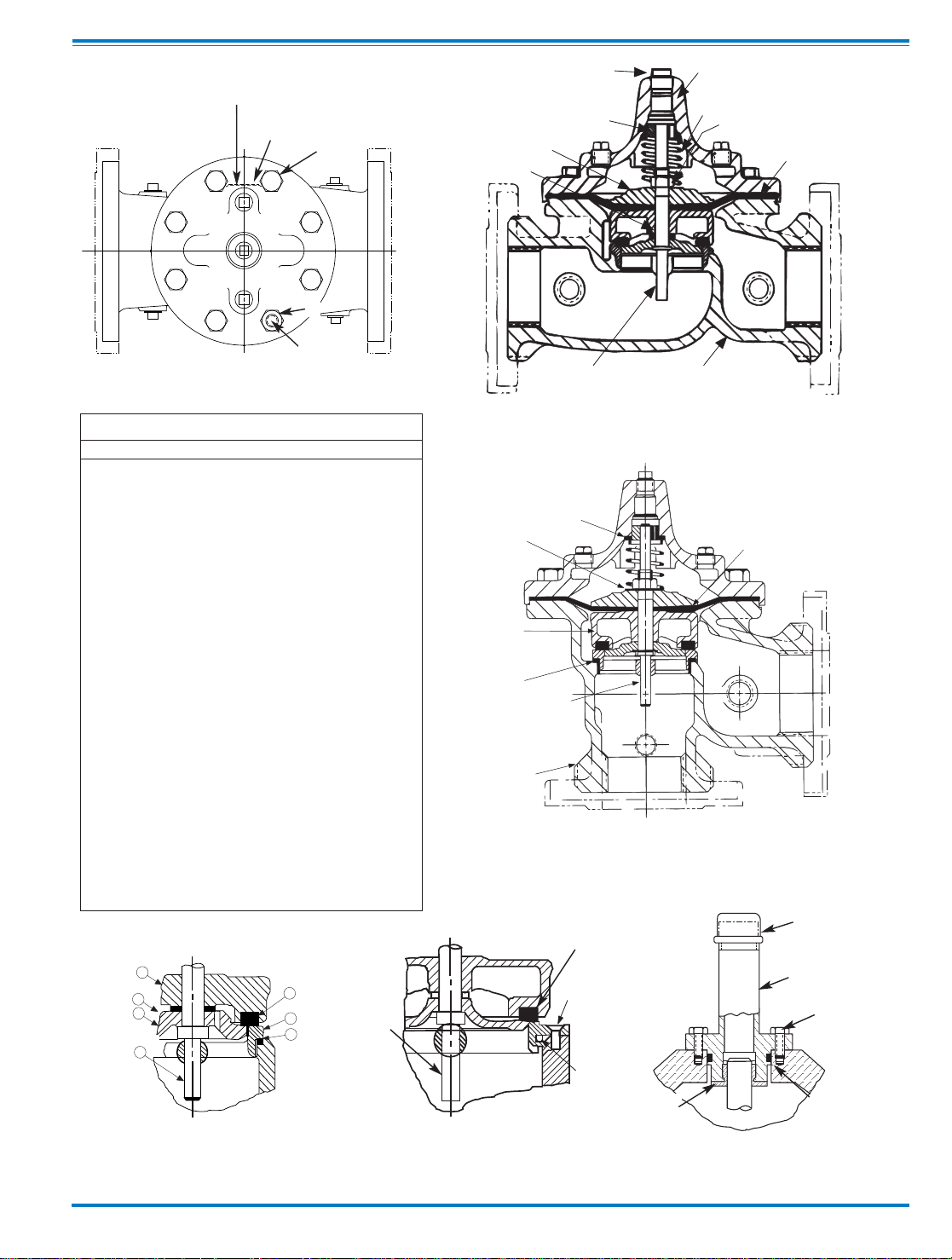

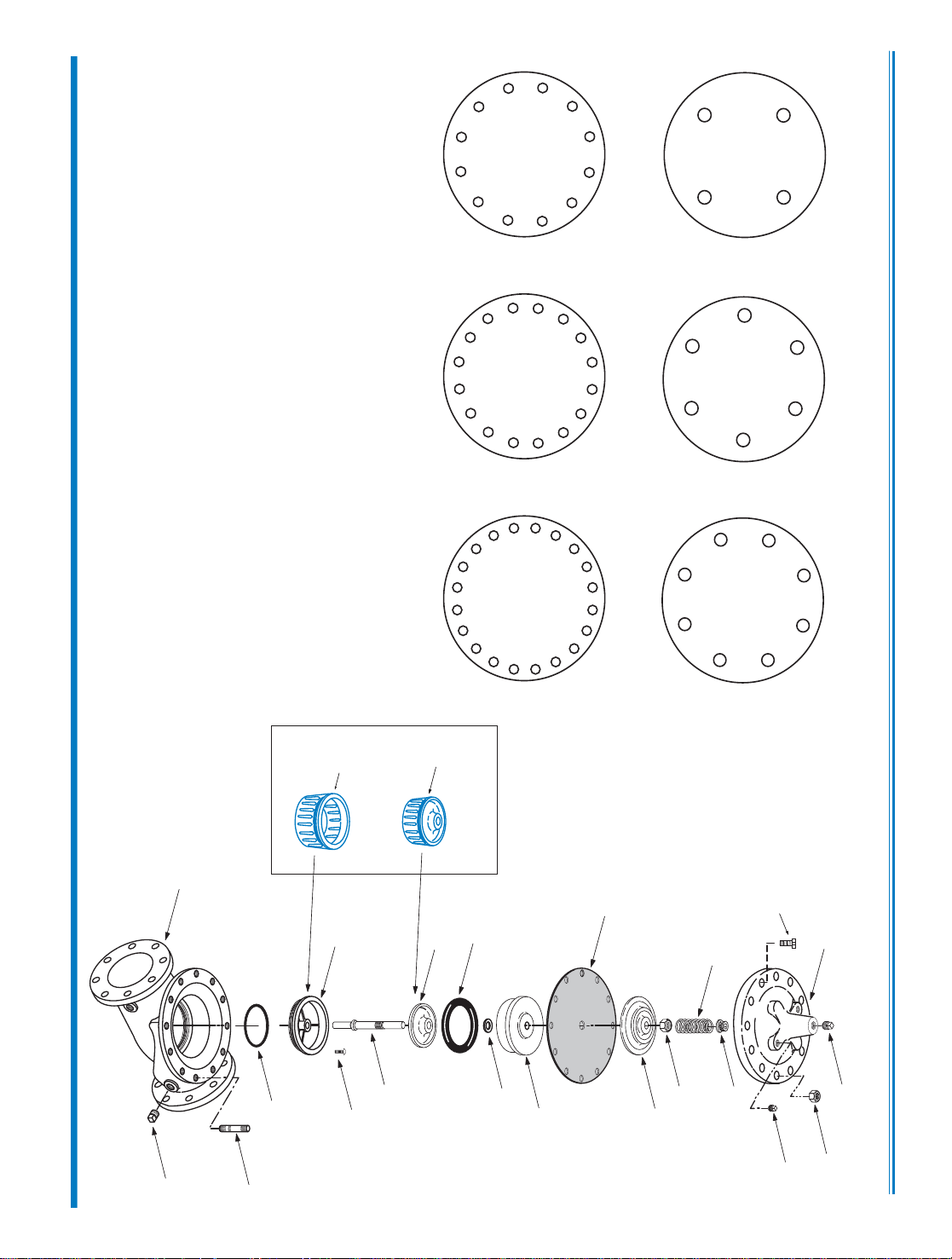

Item Description

1. Pipe Plug

2. Drive Screws (for nameplate)

3. Hex Nut (8” and larger)

4. Stud (8” and larger)

5. Cover Bearing

6. Cover

7. Stem Nut

8. Diaphragm Washer

9. Diaphragm

10. Spacer Washers

11. Disc Guide

12. Disc Retainer

13. Disc

14. Stem

15. Seat

16. Body

17. Spring

22. Flat Head Screws (8” and larger)

23. Seat O-Ring

24. Hex head Bolt (1 1/4” thru 4”)

25. Nameplate

26. Upper Spring Washer (Epoxy coated valves only)

27. Lower Spring Washer (Epoxy coated valves only)

28. Cover Bearing Housing (16” only)

29. Cover O-Ring (16’” only)

30. Hex Bolt (16” only)

31. Pipe Cap (16” only)

PARTS LIST

6

100-01

Hytrol Valve Service Data

MODEL

INSTALLATION / OPERATION / MAINTENANCE

Description 100-01 Hytrol Valve

The CIa-VaI Model 100-01 Hytrol Valve is a main valve for

CIa-VaI Automatic Control Valves. It is a hydraulically operated,

diaphragm-actuated, globe or angle pattern valve.

This valve consists of three major components; body, diaphragm

assembly, and cover. The diaphragm assembly is the only

moving part. The diaphragm assembly uses a diaphragm of nylon

fabric bonded with synthetic rubber. A synthetic rubber disc,

contained on three and one half sides by a disc retainer and disc

guide, forms a seal with the valve seat when pressure is applied

above the diaphragm. The diaphragm assembly forms a sealed

chamber in the upper portion of the valve, separating operating

pressure from line pressure.

Description 100-20 600 Series Hytrol Valve

The CIa-VaI Model 100-20 Hytrol Valve (600 Series main valve)

have only one part -the body- that is different from standard 100

Series Cla-Val main valve parts. The remaining parts of the 600

series main valve are standard Cla-Val main valve parts. All serv-

ice and maintenance information for the standard 100 Series

main valves also apply to the 600 series main valves.

The most important thing to remember when ordering main

valve repair kits and replacement parts, except for the body, all

other parts are going to be for a smaller size main valve. Cla-

Val identifies main valve parts with the flange size of the stan-

dard 100 Series main valve. Refer to the "Main Valve Sizes”

chart below.

HYTROL Service Data

HYTROL SIZE

Stem

Travel

Cover Capacity

Displacement

Valve Stem

Thread

UNF-Internal

Cover

Center

Plug

NPT

Cover Nut or Bolt

Cover

Lifting

Holes

UNC

Cover Plug Cover Torque

Stem Nut**

Stem Nut Torque

(ft. Lbs.)

100-01

100-20

Thread

(Bolt)

Socket

Qty Thread

Socket ft. Lbs. in. Lbs.

Thread

Socket

(Long)

inches mm inches mm inches mm

Gallons

Liters

Lubed DRY

1"

25 0.3 8 1/4"

1/4" - 20 (B)

7/16" 8

4

48 3/8" - 24

4

6

1 1/4"

32

0.4

10

0.020

0.07

10 - 32

1/4" 5/16" - 18 (B) 1/2"

8

8 96 7/16" -20 6 10

1 1/2" 40 0.4 10 0.020 0.07

10 - 32

1/4" 5/16" - 18 (B) 1/2"

8

8 96 7/16" -20 6 10

2" 50 0.6 15 0.032

0.12 10 - 32

1/2" 3/8" - 16 (B) 9/16" 8 3/8" 7/16" 12

1/2" - 20

3/4" 10 15

2 1/2"

65 0.7 18

0.043 0.16

10 - 32

1/2" 7/16" - 14 (B) 5/8" 8 1/2" 9/16" 20

5/8" - 18 15/16" 21

30

3" 80 4" 100 0.8

20

0.080 0.30

1/4 - 28 1/2"

1/2" - 13 (B)

3/4" 8 1/2" 9/16" 30 5/8" - 18

15/16"

21 30

4" 100 6" 150 1.1 23

0.169 0.64

1/4 - 28 3/4"

3/4" - 10 (B)

1 1/8" 8 3/4" 5/8" 110 3/4" - 16

1 1/16"

40

60

6" 150 8" 200 1.7 43 0.531 2.00 3/8 - 24 3/4"

3/4" - 10 (B) 1 1/8"

12 3/4"

5/8" 110

7/8" - 14

1 5/16"

85 125

8"

200 10"

250

2.3 58

1.26 4.80 3/8 - 24

1"

3/4" - 10

1 1/4" 16 5/8" - 11

1" 13/16" 110

1 1/8" -12 1 13/16"

125

185

10" 250 12" 300 2.8 71 2.51 9.50

3/8 - 24

1" 7/8" - 9 1 7/16"

20

3/4" - 10

1"

13/16" 160 1 1/2" -12 1 7/8" 252 375

12" 300 16" 400 3.4 86 4.0 15.10

3/8 - 24

1 1/4" 1 1/8" - 7 1 13/16"

20

3/4" - 10

1" 13/16" 390 1 1/2" -12 2 1/2" 270 400

14" 350 3.9

99

6.5

24.60

3/8 - 24 1 1/2" 1 1/4" - 7

2" 20

1" - 8

1" 13/16" 545 1 1/2" -12

2 1/2"

280 420

16"

400

20", 24"

600

4.5

114

9.6 36.20

1/2 - 20

2" 1 1/4" - 7

2" 20

1" - 8

1" 13/16" 545 2" - 16 3" 500 750

20" 500 5.63

143

12 45.40

3/4 - 16 1 1/2" 1 3/8" - 6

2 1/8" 24

1" - 8

1" 13/16" 670

2 1/4" - 16

3 1/2" 930

N/R

24" 600

30"

800 6.75 165

29.0

108.80 3/4 - 16*

3/4"

1 1/2" - 12 2 3/8" 24

1 1/8"- 7

1" 13/16"

800

3" - 12

Special

1350

N/R

* Adapter

p/n 2594101E

inside 1/4" - 28"

Grade 5 Bolts

"Heavy" Grade Nuts

Tighten cover nuts in a "star" cross-over pattern

** Must Use ONLY

Cla-Val Supplied part

COVER

PIPE PLUG

COVER BEARING

SPRING

STEM NUT

DIAPHRAGM WASHER

DISC RETAINER

BODY

*

SPACER WASHERS

DISC GUIDE

SEAT

PIPE PLUG

STEM

SEAT O-RING

STUD

8" and Larger

*

DIAPHRAGM

*

DISC

*

Repair Parts

Seat Screw

8" and Larger

(Globe

or

Angle)

PIPE PLUG

HEX NUT

8" and Larger

Cover Bolt

6" and Smaller

KO

DISC GUIDE

KO

SEAT

KO Anti-Cavitation

Trim Option

N-100-01 (R-3/2011

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

BOLT/NUT TORQUING PROCEDURES ON VALVE COVERS

4

BOLTS

6

BOLTS

8

BOLTS

12

BOLTS

16

BOLTS

20

BOLTS

4

3

2

1

65

4

3

2

1

8

7

6

5

4

3

2

1

0

9

8

7

6

5

4

3

2

1

12

11

10

9

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

Follow this procedure when reassembling MAIN Valve:

1. Tightens bolts/nuts in a “Star” or “Cross-Over” pattern following the

numbers shown above to insure that cover seats evenly on the diaphragm

material and body.

2. Torque the bolt/nuts in three stages with a "Star" or "Cross-Over" pattern

for each stage:

A. To approximately 10% of final torque.

B. To approximately 75% of final torque.

C. To final required torque.

3. Valves that are to be tested to 375 PSI or higher should be retorqued

after 24 hours.

100-01 Hytrol Main Valve Assembly

UNDERSTANDING THE 600 SERIES VALVES

In 1987, Cla-Val introduced the Model 100-20 Hytrol as the basic
main valve for the 600 Series of automatic control valves. To
identify all new valves using the 100-20 Hytrol, an existing cata­log number is modified. Making a 600 Series catalog number is
simply done by using a "6" in front of the two digit catalog num­bers or replacing the "2" with a "6" in three digit catalog num­bers. Current schematics reflect both catalog numbers together
separated by a slash ( i.e. - 90-01/690-01, 58-02/658-02, 210­01/610-01, etc). Since these two valves 'share' the same catalog
number and schematic, they provide the same function in a sys­tem. The only difference between the two valves is the relative
capacity of the two main valve series.

The 100-01 Hytrol is the basic main valve for Cla-Val automatic
control valves. This valve is the current version of the Clayton
Hytrol valve design originated in 1936. The 100-01 Hytrol is
designed as a full flow area valve. This means that the inlet,
seat and outlet openings are the same size. Thus, the pressure
drop is kept to a minimum for this globe style design.

The 100-20 Hytrol valve has all of the basic features and advan­tages of the original 100-01 Hytrol. Only one part has been
changed - the body. It is designed with different size inlet, seat
and outlet openings. The 100-20 Hytrol has inlet and outlet
flanges one valve size larger than the seat opening size. This
results in what is sometimes called a ''reduced port' main valve.
For example, a 4" 100-20 valve has a 3" seat. Note: valve size
is always determined by the flange size. The following chart
compares the 100-01 and the 100-20 main valves.

600 Series Hytrol Valve

100-20

MODEL

INSTALLATION / OPERATION / MAINTENANCE

SERVICE AND MAINTENANCE OF 600 SERIES
VALVES

The 600 series main valves have only one part -the body- that is
different from standard 100 Series Cla-Val main valve parts. The
remaining parts of the 600 series main valve are standard Cla­Val main valve parts. All service and maintenance information
for the standard 100 Series main valves in this manual also
apply to the 600 series main valves.

The most important thing to remember when ordering main valve
repair kits and replacement parts, except for the body, all other
parts are going to be for a smaller size main valve. Cla-Val iden­tifies main valve parts with the flange size of the standard 100
Series main valve. Refer to the "Main Valve Sizes Comparison"
chart. For example, if you are servicing a 6" 100-20 Hytrol and
needed a repair kit, you would order a repair kit for a 4" 100-01
Hytrol. This kit is also suitable for a 6" 100-20 Hytrol. Complete
Technical Manuals include a repair kit data sheet N-RK that
shows this relationship.

When you order repair parts, it is a good idea to include valve
nameplate data (size, catalog number, and part number) and
description of the parts desired. Do this to be sure parts will fit
the valve you are working on and not be too big for it. Pilot con­trols and repair kits maintenance information remain the same
for 100 or 600 Series valves.

Cla-Val Main Valves

Catalog Number

The 100-20 Hytrol is available only in ductile iron, 150 and 300
pressure class, and Bronze trim standard. Available extra cost
main valve options include stainless steel trim, epoxy coating,
Dura-Kleen stem, Delrin sleeved stem, and high temperature rub­ber parts. All four basic main valves have a 600 Series version
available with all of the same benefits and size relationships.
The following chart shows the relationship of Cla-Val main valve
catalog numbers.

Catalog Name

Hytrol

Powertrol

Powercheck

Hycheck

Circa 1936

100 (Angle =2100)

100P & 100PA

100PC & 100PCA

181

100-Series

100-01

100-02

100-03

100-04

600 Series

100-20

100-21

100-22

100-23

(Reduced Internal Port)

Basic Main Valve Size Comparison

Globe Pattern Valves

Flange Size (inch)

Seat Size

100-01 (100 Series) 100-20 (600 Series)
3 3 2
4 4 3
6 6 4
8 8 6

10 10 8
12 12 10
14 14 ---­16 16 12
18 ---- 16
20 20 16
24 24 16
30 30 24
36 36 30
42 ---- 36
48 ---- 36

Angle Pattern Valves

Flange Size (inch)

Seat Size

100-01 (100 Series) 100-20 (600 Series)
4 4 3
6 6 4
8 8 6

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-100-20 (R-3/2011)

100-20

PARTS LIST

NO. DESCRIPTION

1 Pipe Plug

2 Drive Screws (for nameplate)

3 Hex Nut (8" and larger)

4 Stud (8" and larger)

5 Cover Bearing

6 Cover

7 Stem Nut

8 Diaphragm Washer

9 Diaphragm

10 Spacer Washers

11 Disc Guide

12 Disc Retainer

13 Disc

14 Stem

15 Seat

16 Body

17 Spring

22 Flat Head Screws (10" and larger)

23 Seat O-Ring

24 Hex Bolt (3 " Thru 6")

25 Nameplate (Mounted on inlet flange)

26 Upper Spring Washer (Epoxy coated valves only)

27 Lower Spring Washer (Epoxy coated valves only)

28 Cover Bearing Housing (20" & 24" & 30")

29 Cover Bearing Housing O-Ring (20"& 24" & 30")

30 Hex Bolt (20" & 24")

31 Pipe Cap (20" & 24 & 30"")

11

14

12434

5
17

16

26

14

7

8

9

27

14

13

22

12

15

31

28

5

30

29

10" — 24" SEAT DETAIL

20" — 24" COVER DETAIL

TOP VIEW

12

13

15

OUTLET

GLOBE

INLET

ANGLE

INLET

6

8

9

2

25

3" — 6" COVER DETAIL

23

11

WHEN ORDERING PARTS, BE SURE TO GIVE COMPLETE
NAMEPLATE DATA, ITEM NUMBER AND DESCRIPTION.

10

2.00"

6.50"

6.18"

3.94"

• Ideal for Pressure Management

• Simplified Remote Valve Set-Point Control

• Isolated Input

• 12-24VDC Input Power

• Reverse Polarity Protection

• IP-68 Submersible

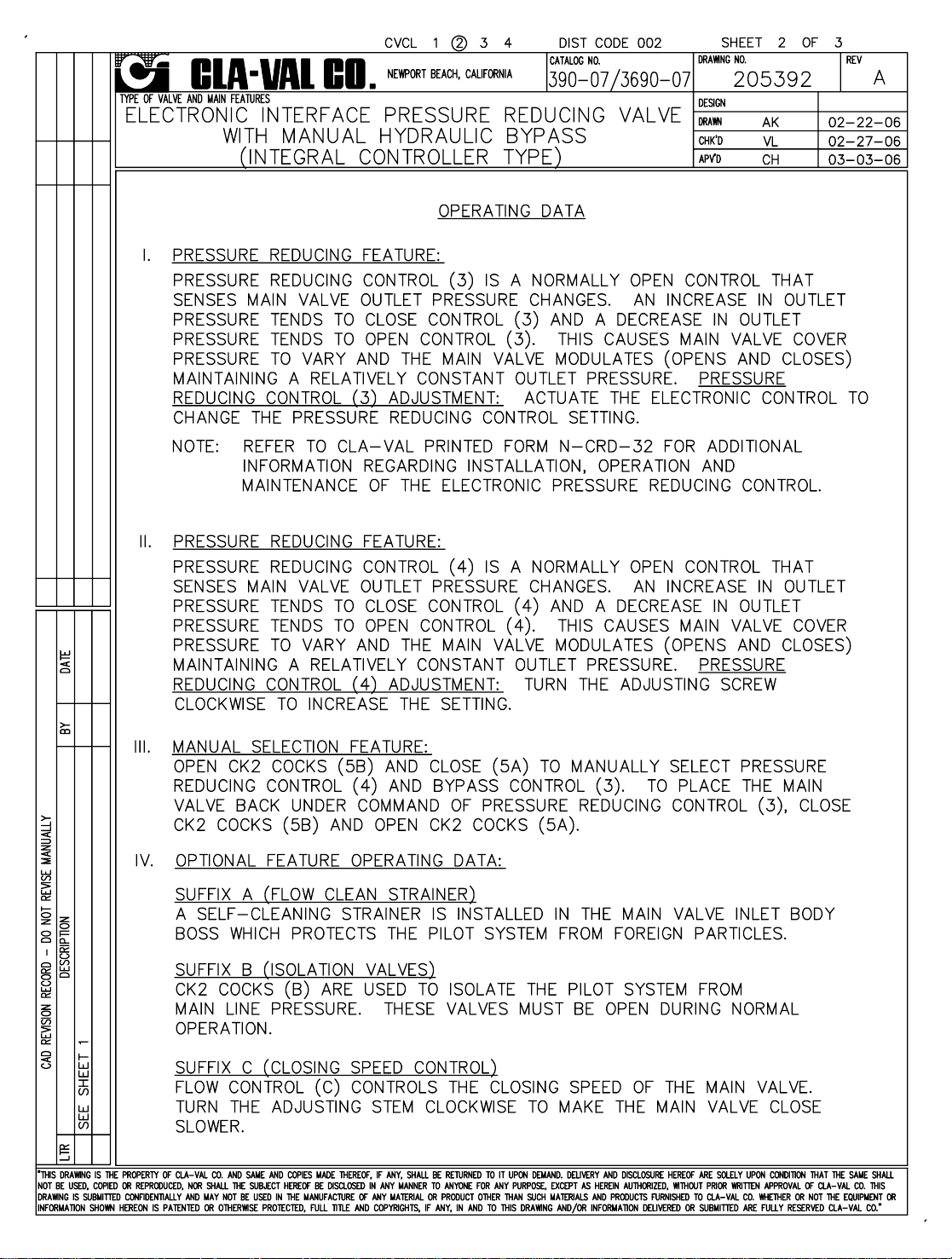

The Cla-Val Model CRD-33 and CRA-33 Electronic Actuated Pressure
Reducing Pilot Controls provide remote set-point adjustment and accurate
downstream pressure control on Cla-Val 390 Series Control Valves.
Remote set-point command signals can be from any SCADA-type control
system using an analog 4-20 mA signal or by contact closure for cc/ccw
rotation.

The CRD-33 senses valve outlet pressure directly and the CRA-33 sens­es downstream pressure with remote hydraulic connection. Operating on
12 to 24 VDC and consuming very little power, they are an ideal control
system for remote valve sites that may even be solar powered. Existing
manually-set Cla-Val 90 Series Pressure Reducing control valves can be
retrofitted with CRD-33 or CRA-33 to add remote set-point control of deliv­ery pressure. Verification of downstream pressure may be sent to SCADA
system from customer supplied pressure sensor attached to valve outlet.

The CRD-33 and CRA-33 consists of a hydraulic pilot and integral con­troller that accepts a 4-20 mA remote set-point and positions the pilot to
maintain a pressure at valve outlet within preset limits. Pressure settings
are linear between these settings. Pressure settings are calibrated to the
specific spring range of the control. Special USB connector cable and free
downloadable software can be used to change this range if needed.
Continuous internal monitoring of actuator position results in smooth tran­sitions between pilot set-points with no backlash or dithering. Should
power or control input fail, the CRD-33 or CRA-33 pilot remains in auto­matic hydraulic control assuring system stability under all conditions.

Electronic Actuated

Pressure Reducing Pilot Control

Remote

Set-Point

SCADA

Computer

Remote Telemetry Unit

(Customer Supplied)

Optional

Process Variable Transmitter o

f

Lower Downstream Pressure

(Customer Supplied)

Higher Upstream

Pressure

CLA-VAL

390 Series

Electronic Actuated
Pressure Reducing Valve
with CRD-33 Pilot Control

Flow

CLA-VAL

CRD-33
Control

Typical Applications

The CRD-33 and CRA-33 are installed on Cla-Val 390 Series valves
that maintain downstream pressure and require this pressure to be
changed from a remote location. It can be an effective solution for low­ering costs associated with "confined space" requirements by eliminat­ing the need for entry in valve structure for set-point adjustment. It is
also ideal for pressure management, and can be programmed to mini­mum night time and optimum daytime pressures. Optional profiler can be
used to create custom correlation between pressure and flow information.
Flow information can also be provided from the main valve, see E-133VF.
Additional pilot controls, hydraulic and/or electronic, are
also available to perform multiple functions to fit exact sys­tem requirements.

CRD-33 and CRA-33

MODELS

When Ordering, Please Specify

1. Catalog No. CRD-33 (Direct Sensing) or CRA-33 (Remote Sensing)

2. Materials - Pilot Control - Wetted Parts

PO Box 1325 Newport Beach CA 92659-0325

Phone: [phone] Fax: [phone]

C

LA-VAL

CLA-VAL CANADA CLA-VAL EUROPE

4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: [phone]
Fax: [phone]

Chemin dés Mesanges 1
CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]

©COPYRIGHT CLA-VAL 2011 Printed in USA

Specifications subject to change without notice.

www.cla-val.com

Adjustment Ranges

2 to 30 psi
15 to 75 psi
20 to 105 psi
30 to 300 psi

End Connection

3/8" NPT

Temperature Range

Water: to 180°F

Materials

Pilot Control: Bronze ASTM B62
Trim:Stainless Steel Type 303
Rubber:Buna-N

®

Synthetic Rubber

Available with optional Stainless Steel or Monel materials
at additional cost. Consult factory for details.
Note: Available with remote sensing control (specify CRA-33)

Note: Total Shipping Weight: 8 Lbs.

Represented By:

E-CRD-33 and CRA-33 (R-9/2011)

CRD-33 and CRA-33 Purchase Specifications

The Electronic Actuated Pressure Reducing Pilot Control shall have an integral hydraulic pilot and electronic controller contained in a
IP-68 rated submersible enclosure to provide interface between remote telemetry and valve set-point control. It will compare a remote
analog command signal with an internal position sensor signal and adjust the hydraulic pilot control spring mechanism to a new set-point
position. Remote analog signal input shall be isolated and reverse polarity protected. 4-20 mA actuator position feedback output shall be
supplied standard. A second command control input shall be from dry-contact switch closure for clockwise or counter clockwise actuator rota­tion. Assembly shall be factory calibrated to the spring range listed below.
If power fails, the control pilot valve shall continue to control main valve to last set-point command. If the Remote Set-Point signal is lost the actu­ator shall be programmable to go to either the 4mA, Last, or 20mA command set-point. No mechanical adjustments shall be necessary
to the actuator. The low and high position range adjustment shall be accomplished only with valve manufacturer's components and
instructions to be supplied in a separate kit. The assembly shall be supplied with 30 feet of cable.

The Electronic Actuated Pressure Reducing Pilot Control shall be Cla-Val Model CRD-33 or CRA-33 as manufactured by Cla-Val, Newport Beach, CA.

Pilot Control Subassembly Specifications

CRD-33 and CRA-33 Electronic Actuator Specifications

•

USB connection cable required when changing range
parameters or restoring range parameters after servicing
pilot control subassembly.

Options:

•

Re-ranging software - free download from www.cla-val.com.
Ranging software makes it easy to set low (4mA) and
high (20mA) set-point limits.

Supply Power Input: 1

2V to

24V DC24V DC
No Load draw: 50 mA
Max. Load draw: 250 mA

Remote Command Inputs:

•

4-20mA, analog signal

(isolated and reverse-polarity
protected)

•

Dry contact closure (CW/CCW)

Position Feedback Signal: 4-20 mA

Alarm Output: Dry-contact closure (High/Low)

Speed of Rotation: Adjustable On/Off time, max 6 rpm
Diagnostic: LED Indicator
Loss of Power: Actuator will remain in last commanded

position.

Loss of Signal Position: Programmable - 4 mA, Last, or 20 mA

Electrical Connections: Single, 30 feet of permanently attached

cable with color-coded power supply
and signal wires

Mechanical Specifications:

Environmental

Protection Class: IP-68 (Temporary submersible)

Ambient Temperature: 15

° to 150° F (-10° to 65° C)

Materials

Enclosure and Bracket: Anodized Aluminum
Coupling Assembly: Stainless Steel
Gear Train: Stainless Steel, permanently lubricated

130VC-3

33 Series Actuator Wiring Diagram

Terminal strip not
supplied for
Illustration
purpose only

*DO NOT WIRE 24 VDC POWER

*

INSTALLATION / OPERATION / MAINTENANCE

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-33 Series Actuator Wiring Diagram (R-3/2011)

Note:

1. All wires are color coded

2. Terminate only wires applicable to your application

130VC-3 Electronic Actuator for 33 Series Pilot Controls

130VC-3

MODEL

INSTALLATION / OPERATION / MAINTENANCE

130VC-3 Electronic Actuator for 33 Series Pilot
Controls

Thank you for purchasing a 33 Series Electronic Control with
130VC-3 “e-Drive” Actuator. With proper maintenance, the actua­tor will perform indefinitely and provide very accurate and reliable
valve control. It is built with the latest technology utilizing the high­est quality components.

33 Series Controls

The 33 Series Actuated Pilot Controls for 300 Series Valves
consist of a hydraulic pilot subassembly and 130VC-3 Actuator.
The Cla-Val Model CDHS-33, CRA-33, CRD-33, and CRL-33 pilot
controls are factory set to full adjustment range of the pilot sub­assembly. The 130VC-3 Actuator accepts a 4 - 20 mA remote
command set point or dry contact closure and positions spring­loaded hydraulic pilot subassembly as it maintains set point of
pressure or flow rate. The pilot subassembly is automatically linear
between the limit settings.

32 Series Control Operation

A.) The 130VC-3 actuator allows 33 Series Controls to be
used in valve remote control applications where a simple change
of pilot set-point is needed. SCADA instrumentation provides set­point control and verification communication based on this scale.
The actuator can also be controlled by simple contact closure.

B.) Other suitable valve remote control applications are
where 4 - 20 mA command input signal is calibrated to specific high
and low range values. SCADA instrumentation provides set-point
control and verification communication based on system dynamic
conditions and valve’s re-ranged scale. Using a laptop computer,
the 130VC-3 actuator is calibrated in the field to specific minimum
and maximum pressure or flow control settings that are in direct
proportion to 4 - 20 mA command signal. Once values are estab­lished, the valve will be linear between limits and set-point will not
exceed limits throughout the 4 - 20 mA signal range. For example,
when actuator is calibrated to 4 mA = 50 psi to 20 mA = 100 psi, a
12 mA command signal will result in a 75 psi set point.

33 Series Actuator Hardware Set-up

BEFORE running actuator or software program, complete the
following hookup steps:
Use good field wiring practices for low voltage DC analog instrumen­tation wiring (use 20-gauge twisted pair shielded wire minimum).
Avoid potential ground loops. Avoid over tightening wiring connec­tor fasteners.
The enclosure is rated IP-68 (similar to NEMA 6P) submersible for
short periods of time. It is not intended for continuous underwater
use. Consult Cla-Val factory technical support if you have questions.
The ten-wire ten meter cable is permanently attached to 130VC-3
actuator and should be terminated in suitable junction box or
directly into an above grade RTU or similar device. Care should be
used when attaching to wires to avoid damage. Installation of suit­able protection from lightning is highly recommended.
There are no user serviceable parts inside the actuator and tam­pering or opening it will void the warranty. The ten-wire actuator
cable is permanently attached. Internal damage not covered by
warranty will occur if cable is removed.

FIELD WIRING STEPS:

Terminate wires only applicable to your application. For example,
minimal wiring requirements for power and remote set point are:

1.) Attach 12 to 24 VDC power to 130VC-3 Actuator cable.
Black wire is for (-) negative; Red wire is for (+) positive. Provide
minimum 500 mA supply.

2.) Attach 4 to 20 mA analog Remote Command Input (from
SCADA system or loop calibrator) to 130VC-3 Actuator cable.
Yellow is positive and Grey is negative.

Download Wiring Diagram from website (www.cla-val.com)

3.) After wiring is complete and actuator is powered, it can be
used with 4 - 20 mA remote command input signal scaled to facto­ry default pilot control adjustment range (Operation A, above).

Troubleshooting Actuator Set-up

1.) The actuator LED will remain red for approximately 30
seconds after power on, and then will switch to green indicating
actuator is OK and that internal start-up test is complete.

2.) he actuator LED blinks red if there is a problem. After
resolving the problem, reset the actuator by turning power off for
ten seconds then on again.

3.) he actuator blinks red and green if still in the calibration
mode. It will be necessary to finish calibration.

Terminal strip not
supplied for
Illustration
purpose only

*DO NOT WIRE 24 VDC POWER

*

Page 2

32 Series Software Kit

For Operation A (above) applications, no changes to the 33
Series control preset values are needed. For Operation B (above)
applications, the 33 Series Software kit is used to ONLY change
factory-set values of: 1) range limits (high and low), 2) rotational
speed of actuator, and 3) loss of signal mode. It is used only for
set-up of 33 Series pilot controls during initial valve start-up or
during valve repair.

The Cla-Val 130VC-3 Software Kit is required to communicate
between your Windows XP laptop computer and 130VC-3
Actuator. It consists of a free software program, a special multi­USB connector cable, and these instructions. The software is
obtained by downloading from our website. Only one cable is
needed to work with all 130VC-3 Actuators. Replacement cables
(p/n 20519203A) can be ordered at extra cost. ADAPTOR.
Do not use this software for remote control of 130VC-3 Actuator.

Software Download Instructions

Supported Operating Systems are Windows XP and XP Service Pack 2

1) Go to Cla-Val website (www.cla-val.com) and navigate to
33 Series actuator software download page. Click the
Download 130VC-3 Range Software button to start the
download.

2) Do one of the following:
_ To start the installation immediately, click RUN to run
this program from its current location.

_ To copy the download to your computer for installation
at a later time, click SAVE to save this program.

3) This program will automatically be installed in new e-Drive
folder in C: Program Files/Cla-Val folder on your computer.
A new Cla-Val folder is created in Program Files folder and
an "e-Drive" icon link is created on Desktop to start program.

33 Series Actuator and Software Set-up

Change 130VC-3 Actuator configuration from factory default set­tings, by using free download software from website (www.cla­val.com). To set up a communication link with 130VC-3 Actuator,
first install software and cable driver and then special USB commu­nications cable in laptop computer. After installing driver and com­munication cable, the actuator must be powered for link to work.
Follow hardware set-up and wiring diagram instructions. Your com­puter must be on before powering the actuator.
Hardware set-up steps must be completed before program will
communicate and change 130VC-3 factory default settings. Until
wiring and power connections are made to the actuator, the soft­ware program can be opened, but new parameters can not be cre­ated or stored or sent to actuator. Changes to parameters must be
done "live" and while control valve is operating.

Cla-Val multi-USB Driver Setup

When 130VC-3 communications cable is installed in your laptop
computer USB port for the first time, Windows will search your
computer for the cable multi-USB driver. If Windows Plug-and­Play does not automatically find the driver and connect to actuator,
then the cable driver must be set-up manually. Use the following
instructions to manually activate the cable driver.

Download multi-USB software from the Cla-Val web site:

www.cla-val.com

Connect the USB cable to the laptop.

Select: "Install from a list or specific location".

Browse to file: C\Program Files\CLA-VAL\Multi-USB Driver Setup.

Microsoft validation presss “Continue Anyway”

Welcome to the Hardware Update
Wizard

This wizard helps you install software for:

USB Device

If your hardware came with an installation CD or
floppy disk, insert it now.

What do you want the wizard to do?

Install the software automatically (Recommended)

Install from a list or specific location (Advanced)

Click Next to continue

Hardware Update Wizard

Next > Cancel< Back

Donʼt search. I will choose the driver to install

Choose this option to select the device driver from a list. Windows does not guarantee that the
driver you choose will be the best match for your hardware

Hardware Update Wizard

Next > Cancel< Back

Search for the best driver in these locations

Use the check boxed below to limit or expand the default search, which includes local paths and
removable media. The best driver found will be installed.

Search removable media (floppy, CD-Rom...)

Include this location in the search

Please choose your search and installation options.

C:\Program Files\CLA-VAL\Muliti-USB Driver Setup

Browse

Completing the Hardware Update
Wizard

This wizard has finished installing the software for

Cla-Val Multi-USB Interface

Click Finish to close the wizard

Hardware Update Wizard

Continue Anyway STOP Installation

The software you are installing for this hardware

CLA-VAL Muliti-USB Interface

has not passed Windows Logo Testing to verify it compatbility with
Windows XP. (Tell me why this testing is important)

Continuing your installation of this software may impair or
distabilize the correct operation of your system either
immediately or in the future. Microsoft strongly recommends
that you stop this installation now and contact the hardware
vendor for software that has padded Windows Logo testing.

!

Setting the restore point during installation

Installation complete.

Opening Software

When the “e-Drive” desktop icon is clicked, the Actuator List will be
displayed, which can contain multiple listing of the actuators.

If the actuator is not connected to the laptop, the window will be
empty but can be used to view the software to become familiarized
with the different windows. Click the “cancel “ button to launch the
software

If connected to one or more actuators, click on "View All" and
select the actuator you would like to communicate with from the
list then click once on left mouse button.

Product name, Firmware version and serial number are displayed.

Page 3

Setting a system restore point and backing up old files in case
your system needs to be restored in the future.

Hardware Update Wizard

Cancel< Back

CLA-VAL Muliti-USB Intervace

Please wait while the wizard installs the software

Next >

Completing the Hardware Update
Wizard

This wizard has finished installing the software for

Cla-Val Multi-USB Interface

Click Finish to close the wizard

Finish Cancel< Back

Hardware Update Wizard

e-line list

Cancel

View All

X

e-line list

Cancel

View All

X

e-Drive: (6) 2.00-->906080060

Product

Name

Firmware

Version

Serial

Number

Starting Actuator Software

.

Page 4

First, be sure hardware set-up and wiring to actuator is completed. Connect laptop computer to actuator using special
multi-USB cable. Be sure computer is on and actuator is powered. Check that Actuator LED is steady green. The first

window to appear will be display.

Display

1 Start the e-Drive / CPC CLA-VAL software.

2 Select the e-Drive in the e-Line list.

3 Select language and click "Read parameters".

4 The right side will display specific configuration information. Also general information including the date of

latest calibration, the average & total working time since the first power up, the number of starts, the serial
number, the firmware version and the maximum and minimum recorded temperature is displayed.

5 Click on continuous reading to see the position of e-Drive, set point (mA) and, if used feedback position

(mA and units).

6 To manually change the setting, write the setting and click on "Override Set point".

CAUTION: Improper use of "Override Set point" may cause damage to your system

Calibration - Static and Dynamic

Before beginning the calibration process, determine if it is actual­ly necessary! The actuator, if new, has been factory calibrated to
the spring range shown on the pilot and may not require further
calibration (30-300 spring range is calibrated from 40 to 140 psi).

Static calibration

Static calibration is a fast and convenient method of calibrating
the actuator by calculating the 4 and 20 mA values rather than
raise or lower the actual system pressure. Dynamic Calibration
requires that the system pressure is actually raised and lowered
to the system values desired.

The “Set Range” window will launch either Static or Dynamic cali­bration. When the "Set Range" is activated, the following mes­sage will be displayed. To continue with calibration, click "OK”, if
not click "Cancel".

1 Select "Static Calibration" Mode. The "CPC Motor"

check box should unchecked (Disabled).

2 Use increase and decrease buttons to put valve in control

of system. This will establish the reference set point.

3 Determine the pilot spring range. (Check nameplate label

on pilot). Get the pressure change per turn per pilot revolu
tion from the spring chart. Calculate the number of turns
between the reference set point and desired low and high
pressures.

4 These numbers are the "Value at 4 mA" and the Value at

20 mA". Numbers must be positive and can have up to 2

decimal places.
5 Enter the low value in set-point window (1).
6 Enter the high value in set-point window (2).
7 Click "Write Set Range" tab to complete actuator to

complete calibration.

Page 5

e-line list

OK

You are going to put the e-Drive / CPC in calibration Mode (Led Blinks Red/Green

X

Cancel

Example:

Valve is in control operating at 45 psi (3 bar).

The desired pressure at 4 mA is 30 psi (2 bar).

The desired pressure at 20 mA is 70 psi (4.8 bar).

From the spring chart, using a 15-75 spring, the pressure per turn is 10.2 psi (0.7 bar). The number of turns
to Low set point is equal to 45 psi (3 bar) minus 30 psi (2 bar) divided by 10.2 psi (0.7 bar) = 1.47 turns.
The number of turns to High set point is equal to 70 psi (4.82 bar) minus 45 psi (3 bar) divided by 10.2 psi
(0.6 bar) = 2.45 turns.

1 Press the Set Range tab and select the Dynamic Calibration mode. Uncheck the "CPC Motor".

2 Select Units.

3 Enter the pressure/flow value at 4 mA and at 20 mA.

4 "Low point setting" - Look at the pressure/flow gauge/display and use the " Decrease

5 actuator" button until the low pressure/flow setting is attained.

6 Click on "Low point setting" button to store the value.

7 "High point setting". Look at the pressure/flow on the gauge/display and use the "Increase actuator" button until the high

pressure/flow setting is attained.

8 Click on the "High point setting" tab to store value.

9 When all values have been entered, click on "Write Set Range". Dynamic calibration is done.

Configuration

Use the configuration mode to set the rotation speed, dead band and loss of signal values.

1 Rotation speed affects the response time of the valve between set-points. The default condition is 1 second on-time, 5

seconds off-time achieving at rotation speed of 1.2 rpm. Entering a ‘0’ (zero) on time and ‘0’ (zero) off time will achieve a
continuous rotation speed of 6 rpm (maximum speed).

Make sure that the values entered are appropriate to your system to minimize the potential for surge.

2 Dead band - The default value is 0.1 mA. This value can be increased depending on the stability of the of the set point

signal. The actuator is internally isolated however, If the set point is inherently unstable, the actuator can dither. If this
happens, improve the signal or increase the dead band.

3 Choose the loss of set point signal mode:

a. Go to 4 mA: Actuator will default to the 4 mA position (low set point).
b. Last position: Actuator will maintain the last position.
c. Go to 20 mA: Actuator will default to the 20 mA position (high set point).

4 Click on "Write Configuration" button to complete configuration.

Dynamic Calibration

Page 6

When using this method, the system pressures must be changed from the actual minimum to maximum set-point values. If this is not
possible, use "Static Calibration" mode.

Alarms

The actuator has a Low and High Alarm with an adjustable hysteresis and is activated as shown in the lower window:
Example: 10% Löw alarm = 4 mA + (10% x 16 mA) = 5.6 mA. 90% High alarm = 4mA + (90% x 16 mA) = 18.4 mA.

Hysteresis

1 Hysteresis prevents chattering of the alarms when the set point is very close to the alarm status. It is calculated as follows:

4 mA + (2% x 16 mA) = 0.32 mA. Low alarm hysteresis therefore equals 5.6 mA + 0.32 mA = 5.92 mA. High alarm

hysteresis equals 18.4 mA - 0.32 mA = 18.08 mA.
2 Enter the requested percentage, for the alarms and hysteresis.
3 Click on "Test" to close or open your contact relay.
4 Click on "Write Alarms" button to complete.

Page 7

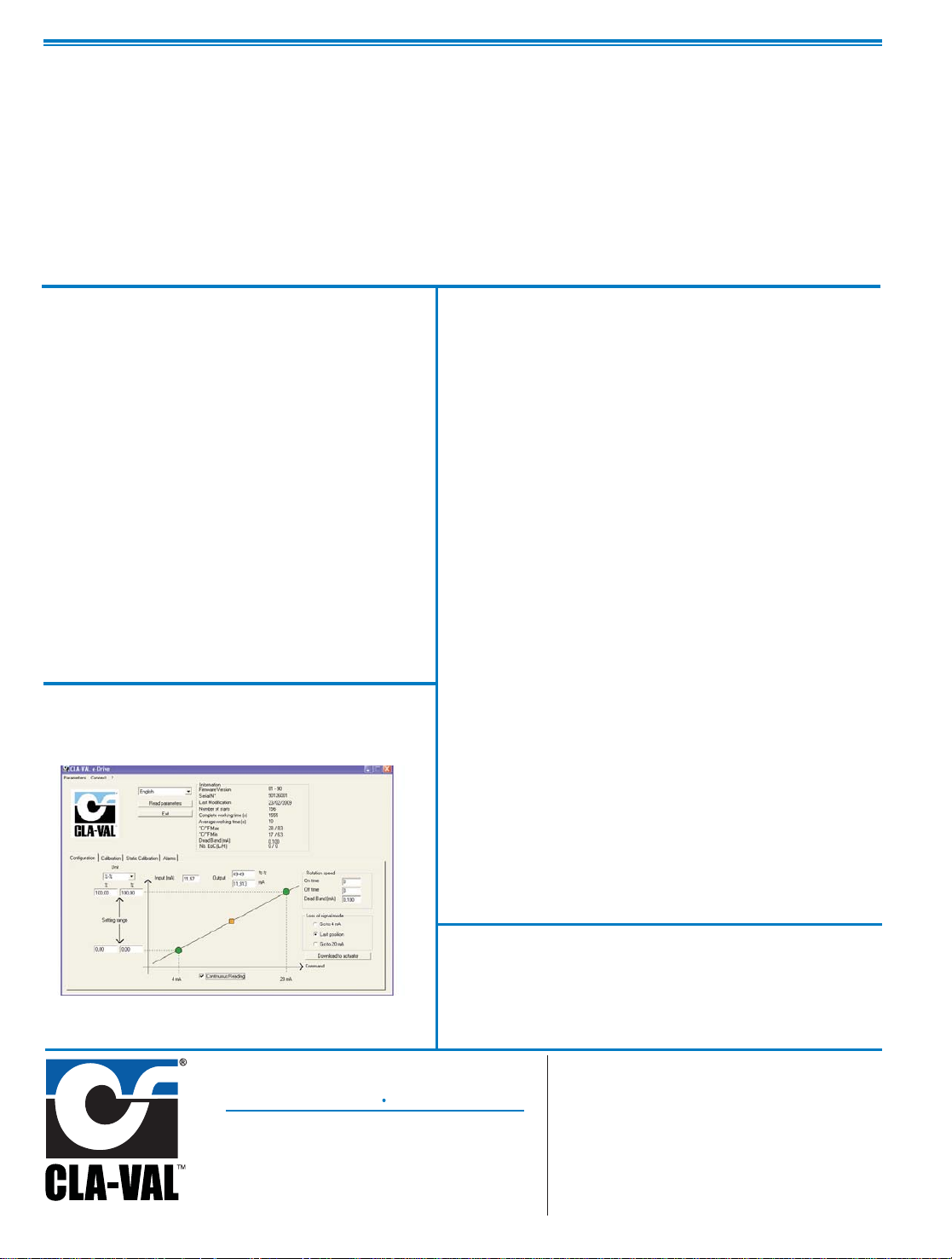

Troubleshooting FAQ

LED Diagnostics

When power is applied to the actuator, the LED will be red for
approximately 5-30 seconds, and then will change to solid green.

Green

OK.

No light

Check power supply.

Red

High torque limit has been exceeded - Power down and power up
again
Excessive Voltage has been applied (Above 32 Volts).

Blinking red/green

Calibration was not completed - recalibrate

Changing set-point without a 4-20 mA command signal
with the USB cable connected to

Go to ‘Display’ tab and select Milliamp value and check the box to
activate.

Changing set-point without a command signal without
an e-Drive - USB cable.

Refer to wiring diagram.
To Increase Actuator connect the Purple Wire with the Pink.
To Decrease Actuator connect the turquoise Wire with the Pink.

To Increase or Decrease the actuator without 4-20 mA
signal.

Refer to wiring diagram in the this manual. To increase actuator
connect the purple wire to the pink. To decrease actuator, connect
the turquoise wire to the pink.

What are the default settings for the 130VC-3 actuator?

Factory default setting for 130VC-3 Actuator range parameter is
the full pilot spring range scaled to match the 4 to 20 mA Remote
Command Input analog signal. Factory default setting for 130VC-3
Actuator rotation speed is one rpm with 24 VDC power.

How do I get the software to work with the actuator?

To set up a link with 130VC-3 Actuator, first install cable driver and
then the special multi-USB communications cable. After installing
driver and communication cable, the Actuator must be powered for
link to work. Follow wiring diagram and hardware hookup instruc­tions. Download Wiring Diagram from website (www.cla-val.com).

How do I install Special USB Communication Cable?

When 130VC-3 communications cable is installed in your laptop
computer USB port for the first time, Windows will search your
computer for the cable USB driver. If Windows Plug and Play does

not automatically find the driver and connect to actuator, then the
cable driver must be set up manually. Windows will take you step­by-step through the manual set up process. The cable USB driver
is installed during software download. You will have to browse to
the Cla-Val folder created during download where the driver file is
located. Details are in this manual.

My computer does not have a USB port

Older laptop computers with only Serial port may have a problem
using USB to Serial adapter with special USB connector cable and
communicating with 130VC-3 actuator. Make sure the USB to
Serial adapter cable is less than 18 inches long. Also, USB exten­sion cables should not be used because they will degrade signals
and cause problems. If problem persists, consult Cla-Val factory
technical support.

Why is actuator LED still blinking red/green after I
downloaded the settings?

Once the calibration mode button is activated, all steps must be
done before downloading is begun. Actuator LED will show green
when downloading is successful and complete.

Can I make a file ahead of time and download it to
130VC-3 later?

All hardware hookup steps must be completed before program will
communicate and change 130VC-3 parameters. Until wiring and
power connections are made to the actuator, this program can be
opened, but new parameters can not be created or stored or sent
to the actuator. Changes to parameters must be done "live" and
while control valve is operating. Actuator LED will show green
when downloading is successful and complete.
.

GENERAL DISCLAIMER

In accordance with our policy of continuous development and
improvement, CLA-VAL reserves the right to modify or improve its
products at any time without prior notice. CLA-VAL assumes no lia­bility or responsibility for any errors or omissions in the content of
this document.

CLA-VAL EUROPE

Chemin des Mésanges 1

CH-1032 Romanel/
Lausanne, Switzerland
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

CLA-VAL FRANCE

Porte du Grand Lyon 1
ZAC du Champ du Périer
France - 01700 Neyron
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

CLA-VAL

PO Box 1325 Newport Beach CA 92659-0325

800-942-6326 Fax: [phone] Web Site: cla-val.com E-mail: [e-mail]

©COPYRIGHT CLA-VAL 2009 Printed in USA Specifications subject to change without notice.

CLA-VAL CANADA

4687 Christie Drive
Beamsville, Ontario
Canada L0R 1B4
Phone: [phone]
Fax: [phone]
E-mail [e-mail]

CLA-VAL UK

Dainton House, Goods Station Road
Tunbridge Wells
Kent TN1 2 DH England
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]

N-130VC-3

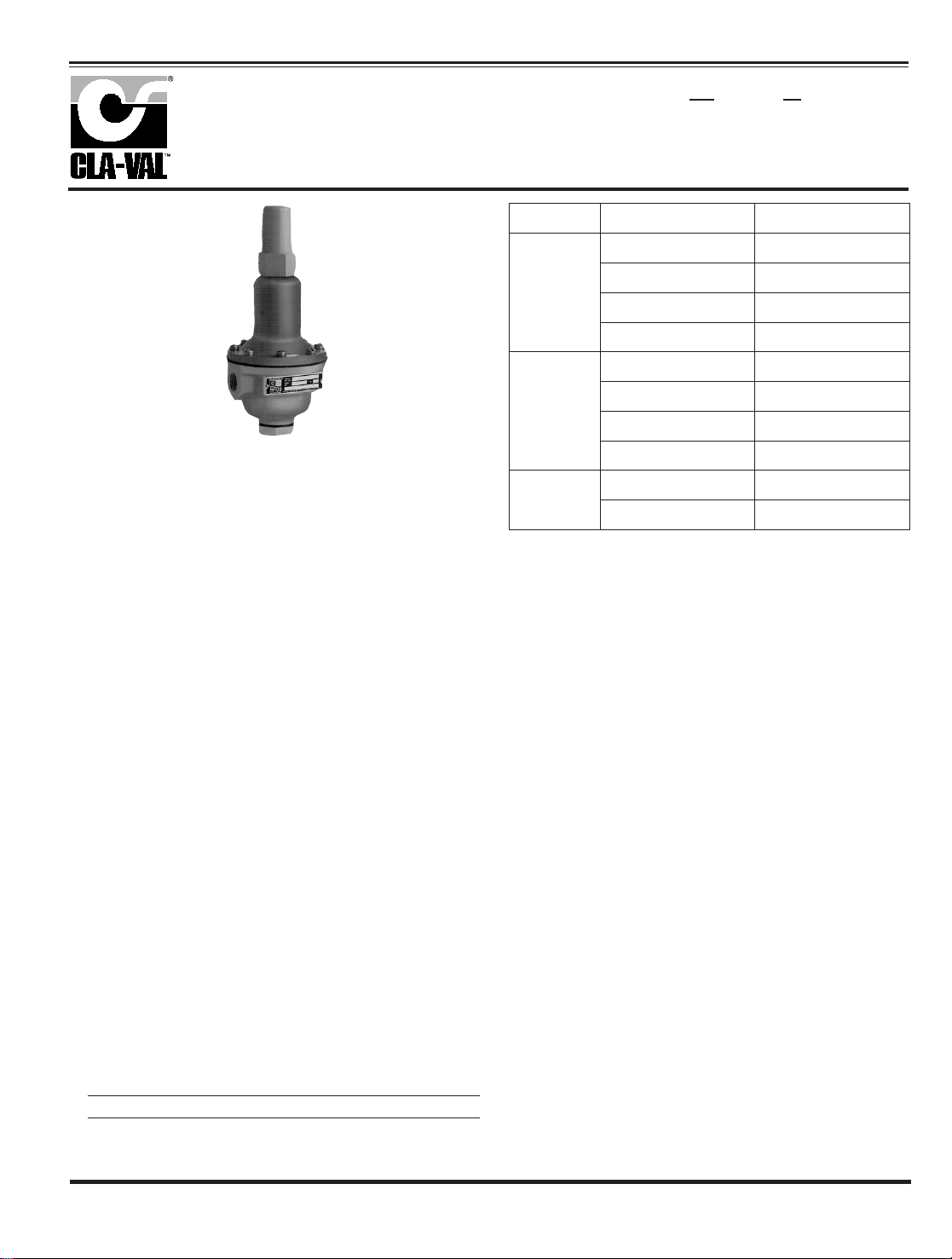

DESCRIPTION

The Cla-Val Model CRD Pressure Reducing Control automatically reduces
a higher inlet pressure to a lower outlet pressure. It is a direct acting,
spring loaded, diaphragm type control that operates hydraulically or pneu­matically. It may be used as a self-contained valve or as a pilot control for
a Cla-Val main valve. It will hold a constant downstream pressure within
very close pressure limits.

OPERATION

The CRD Pressure Reducing Control is normally held open by the force of
the compression spring above the diaphragm; and delivery pressure acts
on the underside of the diaphragm. Flow through the valve responds to
changes in downstream demand to maintain a pressure.

INSTALLATION

The CRD Pressure Reducing Control may be installed in any position.
There is one inlet port and two outlets, for either straight or angle installa­tion. The second outlet port can be used for a gage connection. A flow
arrow is marked on the body casting.

ADJUSTMENT PROCEDURE

The CRD Pressure Reducing Control can be adjusted to provide a deliv­ery pressure range as specified on the nameplate.

Pressure adjustment is made by turning the adjustment screw to vary the
spring pressure on the diaphragm. The greater the compression on the
spring the higher the pressure setting.

1. Turn the adjustment screw in (clockwise) to increase
delivery pressure.

2. Turn the adjustment screw out (counter-clockwise) to
decrease the delivery pressure.

3. When pressure adjustment is completed tighten jam nut on
adjusting screw and replace protective cap.

4. When this control is used, as a pilot control on a
Cla-Val main valve, the adjustment should be made
under flowing conditions. The flow rate is not critical,
but generally should be somewhat lower than normal
in order to provide an inlet pressure several psi higher
than the desired setting

CRD

MAINTENANCE

Disassembly

To disassemble follow the sequence of the item numbers assigned to
parts in the sectional illustration.

Reassembly

Reassembly is the reverse of disassembly. Caution must be taken to
avoid having the yoke (17) drag on the inlet nozzle of the body (18).
Follow this procedure:

1. Place yoke (17) in body and screw the disc retainer
assembly (16) until it bottoms.

2. Install gasket (14) and spring (19) for 2-30 and 2-6.5 psi

range onto plug (13) and fasten into body. Disc retainer
must enter guide hole in plug as it is assembled. Screw
the plug in by hand. Use wrench to tighten only.

3. Place diaphragm (12) diaphragm washer (11) and belleville
washer (20) on yoke. Screw on hex nut (10).

4. Hold the diaphragm so that the screw holes in the
diaphragm and body align. Tighten diaphragm nut with
a wrench. At the final tightening release the diaphragm
and permit it to rotate 5° to 10°. The diaphragm holes
should now be properly aligned with the body holes.

To check for proper alignment proceed as follows:

Rotate diaphragm clockwise and counterclockwise as far as possible.
Diaphragm screw holes should rotate equal distance on either side of
body screw holes ±1/8".

Repeat assembly procedure until diaphragm and yoke are properly
aligned. There must be no contact between yoke and body nozzle
during its normal movement. To simulate this movement hold body
and diaphragm holes aligned. Move yoke to open and closed posi­tions. There must be no evidence of contact or dragging.

5. Install spring (9) with spring guide (8).

6. Install cover (5), adjusting screw (2) and nut (3), then cap (1).

Pressure Reducing Control

The approximate minimum flow rates given in the table are for the main valve
on which the CRD is installed.

Valve Size

Minimum Flow GPM

1 1/4" -3" 4"-8" 10"-16"

15-30 50-200 300-650

MODEL

INSTALLATION / OPERATION / MAINTENANCE

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-CRD (R-3/2011)

SYMPTOM PROBABLE CAUSE REMEDY

Fails to open

when deliver pres-

sure lowers

No spring compression Tighten adjusting screw

Damaged spring Disassemble and replace

Spring guide (8) is not in place Assemble properly

Yoke dragging on inlet nozzle

Disassemble and reassemble

properly (refer to Reassembly)

Fails to close
when delivery

pressure rises

Spring compressed solid Back off adjusting screw

Mechanical obstruction

Disassemble and reassemble

properly (refer to Reassembly)

Worn disc

Disassemble remove and

replace disc retainer assembly

Yoke dragging on inlet nozzle

Disassemble and reassemble

properly (refer to Reassembly)

Leakage from

cover vent hole

Damaged diaphragm Disassemble and replace

Loose diaphragm nut Remove cover and tighten nut

Pressure Reducing Control

(Bronze Body with 303SS Trim)

*SUGGESTED REPAIR PARTS

CRD

3 1/8

PRESSURE SETTING
ADJUSTING SCREW
(TURN CLOCKWISE
TO INCREASE SETTING

SECTION A-A
OPEN POSTION
FOR HIGH PRESSURE CONTROL

5 3/8

1 13/16

inlet

B

13

14

16

18

17

12

11

10

9

8

5

3

1

2

cover vent

B

3/8" NPT

16

19

Body and Disc
Retainer Detail

for Low Pressure

Control

SECTION B-B

CLOSED POSITION

20

18

17

15

4

A

A

67

When ordering parts specify:

• All nameplate data

• Item Description

• Item number

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CRD (R-8/2011)

PARTS LIST

Size

(inch)

Stock

Number

Adjustment Range

psi Ft of Water
3/8 7194307A 2 - 6.5 4.5 - 15
3/8 7194308J 2 - 30 4.5 - 69
3/8 7194303K 15 - 75 35 - 173
3/8 7194311C 20 - 105 46 - 242
3/8 7194304H 30 - 300 69 - 692

Factory Set Pressure

PSI per Turn*

2 - 6.5 set @ 3.5 psi .61

2 - 30 set @ 10 psi 3.0

15 - 75 set @ 20 psi 9.0
20 - 105 set @ 60 psi 12.0
30 - 300 set @ 60 psi 27.0

*Approximate-Final Adjustment should be

with a pressure gauge and with flow.

Item Description Material Part Number List Price

1 Cap PL 67628J

2 Adjusting Screw BRS 7188201D

3 Jam Nut (3/8-16) SS 6780106J

4* Machine Screw (Fil.Hd.) 8 Req'd 303 6757821B

5 Cover BRS C2544K

6 Nameplate Screw SS 67999D

7 Nameplate BRS C0022001G

8 Spring Guide 302 71881H

Spring Guide (20 - 105 psi) 303 205620F

9 Spring (15-75 psi) CHR/VAN 71884B

Spring (2 - 6.5 psi) SS 82575C

Spring (2 - 30 psi) SS 81594E

Spring (20 - 105 psi) 316 20632101E

Spring (30 - 300 psi) CHR/VAN 71885J

10 Hex Nut 303 71883D

11 Diaphragm Washer 302 71891G

12* Diaphragm NBR C6936D

13 Plug, Body BRS V5653A

14* Gasket Fiber 40174F

15 Plug BRS 6766003F

16* Disc Retainer Assy. (2 - 30 psi) SS/Rub C8348K

Disc Retainer Assy. (15 - 75 psi) SS/Rub 37133G

Disc Retainer Assy. (20 - 105 psi) SS/Rub 37133G

Disc Retainer Assy. (30 - 300 psi) SS/Rub 37133G

17 Yo ke VBZ V6951H

18 Body & 1/4" Seat Assy BR/SS 8339702G

19* Bucking Spring (2 - 6.5 psi)(2 - 30psi) 302 V0558G

20 Belleville Washer STL 7055007E

* Repair Kit (No Bucking Spring)

Buna®-N

9170003K

* Repair Kit (with Bucking Spring)

Buna®-N

9170002B

*This drawing is the property of CLA-VAL and same and copies made thereof, if any, shall be returned to it upon demand. Delivery and disclosure hereof are made solely
upon condition that the same shall not be used, copied ore reproduced, nor shall the subject here of be disclosed in any manner to anyone for any purpose, except as
herein authorized, without prior approval of CLA-VAL. Whether or not the equipment or information shown hereon is patented or otherwise protected, full title and copy­rights if any, in and to this drawing and/or information delivered or submitted are fully reserved by CLA-VAL.

Dwg#47117

Regulator Spring Color Coding Chart

THE FOLLOWING CONTROL & SPRING P/N#'S WERE REMOVED, 32656B, 31554K, 44591G, V65695B, & V5695B.
ADDED CRL-13, CRL-5A, CRA, CRA-10A, CHANGED SPRING RANGES TO MATCH CURRENT CONTROLS.

CLA-VAL

Copyright Cla-Val 2010 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-47117 AF (R-4/2010)

PARTS LIST

WIRE SIZE SPRING NUMBER COLOR WIRE MATERIAL CATALOG NUMBER PSI RANGE *PSI PER TURN

.080 DIA. C0492D BLUE S.S.

CDB-7

CRL-5A

0-7
0-7

.75
.75

.018 DIA. 82575C -- S.S.

CRD

CRD-10A

1.9-6.5

1.9-6.5

.61
.49

.116 DIA. 81594E -- S.S.

CRD

CRD-10A

2-30
2-30

3.0

2.4

.120 DIA. V5654J GREEN CHR VAN

CRL-5A

CRD

5-25

10-40

4.0

4.0

.162 DIA. 32447F NATURAL S.S.

CDB-7

CRL-5A

CRL-13

10-60
10-60
10-60

12.0

12.0

12.0

.162 DIA. V5695B YELLOW MUSIC WIRE

CDB-7

CRL-5A

CRL-13

20-80
20-80
20-80

14.5

14.5

14.5

.207 DIA. C1124B CAD PLT MUSIC WIRE

CDB-7

CRL-13

CRL-5A

50-150
50-150
50-150

29.5

29.5

29.5

.225 DIA. V6515A RED MUSIC WIRE

CDB-7

CRL-13

CRL-5A

65-180
65-180
65-180

44.0

44.0

44.0

.115 X .218 71884B RED CHR VAN

CRL

CRD

CRD-10A

0-75
15-75
15-75

8.5

9.0

7.2

.118 X .225 71885J GREEN CHR VAN

CRL

CRD

CRD-10A

20-200
30-300
30-300

28.0

27.0

22.4

.225 X .295 1630201A CAD PLT CHR VAN

CRL

CRL-5A

100-300
100-300

18.00

18.00

.440 X .219 48211H CAD PLT STEEL

CRA-18
CRD-22
CRL-4A

200-450
200-450
100-450

17.0

17.0

17.0

.187 20632101E BLACK 316 SST

CRD

CRL

20-105
20-105

13.0

13.0

WIRE SIZE SPRING NUMBER COLOR WIRE MATERIAL CATALOG NUMBER FEET RANGE *FEET PER TURN

.080 DIA. C0492D BLUE S.S.

CRA

CRD-2

4.5-15

4.5-15

.82
.82

.375 DIA.

87719B
1 SPRING
2 SPRING
3 SPRING
4 SPRING
5 SPRING

EPOXY

COATED

CHROME SILICON CDS-5

5-40

30-80

70-120
110-120
150-200

1.0

2.0

3.0

4.0

5.0

.072 DIA. V5097A -- 302SS CVC 1-17 .7

.375 DIA.

2933502H
1 SPRING
2 SPRING
3 SPRING
4 SPRING
5 SPRING

EPOXY

COATED

CHROME SILICON CDS-6A

5-40

30-80

70-120
110-160
150-200

.75

1.50

2.20

3.00

3.70

*THESE FIGURES ARE ONLY APPROXIMATE. FINAL ADJUSTMENTS SHOULD BE MADE WITH A PRESSURE GAGE.

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CK2 (R-3/2011)

The strainer is designed for use in conjunction with a Cla-Val
Main Valve, but can be installed in any piping system where
there is a moving fluid stream to keep it clean. When it is used
with the Cla-Val Valve, it is threaded into the upstream body port
provided for it on the side of the valve. It projects through the
side of the Main Valve into the flow stream. All liquid shunted to
the pilot control system and to the cover chamber of the Main
Valve passes through the X46 Flow Clean Strainer.

C

Male

Pipe

SAE

H

D

E

B

I

G

Male

Pipe

B

I

Width Across Flats

Female

Pipe

A

D

E

F

• Self Scrubbing Cleaning Action

• Straight Type or Angle Type

The Cla-Val Model X46 Strainer is designed to prevent passage of
foreign particles larger than .015". It is especially effective against
such contaminant as algae, mud, scale, wood pulp, moss, and root
fibers. There is a model for every Cla-Val. valve.

The X46 Flow Clean strainer operates on a velocity principle utilizing
the circular "air foil" section to make it self cleaning. Impingement of
particles is on the "leading edge" only. The low pressure area on the
downstream side of the screen prevents foreign particles from clog­ging the screen. There is also a scouring action, due to eddy cur­rents, which keeps most of the screen area clean.

Dimensions

(In Inches)

INSTALLATION

X46 Angle Type B (In Inches)

B

(NPT)C(SAE)

DEH I

1/8 1/4 1-3/8 5/8 7/8 1/4

1/4 1/4 1-3/4 3/4 1 3/8

3/8 1/4 2 7/8 1 1/2

3/8 3/8 1-7/8 7/8 1 1/2

1/2 3/8 2-3/8 1 1-1/4 5/8

X46A Straight

X46B Angle

X46A Straight Type A (In Inches)

A B D E F G I

1/8 1/8 1-3/4 3/4 1/2 1/2 1/4

1/4 1/4 2-1/4 1 3/4 3/4 3/8

3/8 3/8 2-1/2 1 7/8 7/8 1/2

3/8 1/2 2-1/2 1-1/4 1/2 7/8 3/4

1/2 1/2 3 1-1/4 1 1-1/8 3/4

3/8 3/4 3-3/8 2 1/2 1 7/8

3/4 3/4 4 2 1 1-1/2 7/8

3/8 1 4-1/4 2-3/4 1/2 1-3/8 7/8

1 1 4-1/2 2-3/4 1-1/4 1-3/4 7/8

1/2 1 4-1/4 2-3/4 1/2 1-3/8 7/8

Flow Clean Strainer

X46

INSPECTION

Inspect internal and external threads for damage or evidence
of cross-threading. Check inner and outer screens for clogging,
embedded foreign particles, breaks, cracks, corrosion, fatigue,
and other signs of damage.

CLEANING

After inspection, cleaning of the X46 can begin. Water service usually will produce
mineral or lime deposits on metal parts in contact with water. These deposits can
be cleaned by dipping X46 in a 5-percent muriatic acid solution just long enough
for deposit to dissolve. This will remove most of the common types of deposits.
Caution: use extreme care when handling acid. If the deposit is not removed
by acid, then a fine grit (400) wet or dry sandpaper can be used with water.
Rinse parts in water before handling. An appropriate solvent can clean parts used
in fueling service. Dry with compressed air or a clean, lint-free cloth.
Protect from damage and dust until reassembled.

REPLACEMENT

If there is any sign of damage, or if there is the slightest doubt that the Model X46
Flow Clean Strainer may not afford completely satisfactory operation, replace it. Use
Inspection steps as a guide. Neither inner screen, outer screen, nor housing is fur­nished as a replacement part. Replace Model X46 Flow Clean Strainer as a com­plete unit.

When ordering replacement Flow-Clean Strainers, it is important to determine pipe
size of the tapped hole into which the strainer will be inserted (refer to column A or
F), and the size of the external connection (refer to column B or G).

When Ordering,
Please Specify:

• Catalog Number X46

• Straight Type or Angle Type

• Size Inserted Into and Size Connection

• Materials

DISASSEMBLY

Do not attempt to remove the screens from the strainer housing.

MODEL

INSTALLATION / OPERATION / MAINTENANCE

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-X46 (R-3/2011)

(NPT) (NPT)

X46B

X46A

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

INSTALLATION / OPERATION / MAINTENANCE

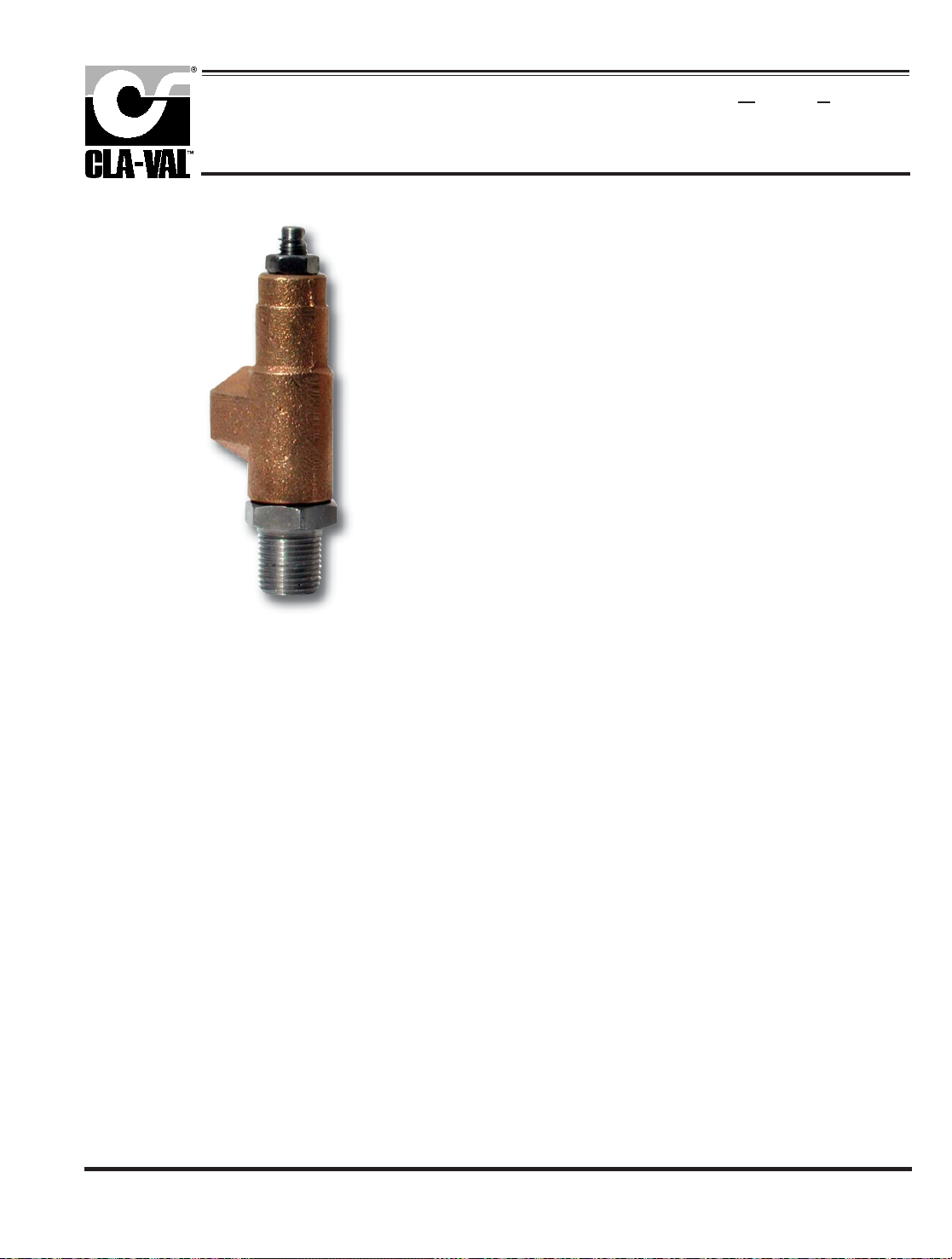

Flow Control

CV

MODEL

N-CV (R-3/2011)

DESCRIPTION

The Cla-Val Model CV Flow Control is a simply-designed,
spring-loaded check valve. Rate of flow is full flow in one direc­tion and restricted in other direction. Flow is adjustable in the
restricted direction. It is intended for use in conjunction with a
pilot control system on a Cla-Val Automatic Control Valve.

OPERATION

The CV Flow Control permits full flow from port A to B, and
restricted flow in the reverse direction. Flow from port A to B
lifts the disc from seat, permitting full flow. Flow in the reverse
direction seats the disc, causing fluid to pass through the clear­ance between the stem and the disc. This clearance can be
increased, thereby increasing the restricted flow, by screwing
the stem out, or counter-clockwise. Turning the stem in, or
clockwise reduces the clearance between the stem and the
disc, thereby reducing the restricted flow.’

INSTALLATION

Install the CV Flow Control as shown in the valve schematic All
connections must be tight to prevent leakage.

DISASSEMBLY

Follow the sequence of the item numbers assigned to the
parts in the cross sectional illustration for recommended
order of disassembly.

Use a scriber, or similar sharp-pointed tool to remove O-ring
from the stem.

INSPECTION

Inspect all threads for damage or evidence of cross- thread­ing. Check mating surface of seat and valve disc for exces­sive scoring or embedded foreign particles. Check spring for
visible distortion, cracks and breaks. Inspect all parts for
damage, corrosion and cleanliness.

CLEANING

After disassembly and inspection, cleaning of the parts can
begin. Water service usually will produce mineral or lime
deposits on metal parts in contact with water. These
deposits can be cleaned by dipping the parts in a 5-percent
muriatic acid solution just long enough for deposits to dis­solve. This will remove most of the common types of
deposits. Caution: use extreme care when handling acid.
If the deposit is not removed by acid, then a fine grit (400)
wet or dry sandpaper can be used with water. Rinse parts
in water before handling. An appropriate solvent can clean
parts used in fueling service. Dry with compressed air or a
clean, lint-free cloth. Protect from damage and dust until
reassembled.

REPAIR AND REPLACEMENT

Minor nicks and scratches may be polished out using a fine
grade of emery or crocus cloth; replace parts if scratches
cannot be removed.

Replace O-ring packing and gasket each time CV Flow
Control is overhauled.

Replace all parts which are defective. Replace any parts
which create the slightest doubt that they will not afford com­pletely satisfactory operation. Use Inspection steps as a
guide.

REASSEMBLY

Reassembly is the reverse of disassembly; no special tools
are required.

TEST PROCEDURE

No testing of the flow Control is required prior to reassembly
to the pilot control system on Cla-Val Main Valve.

3/8" Flow Control

CV

2.12
MAX

STAMP PART NO. ON
SMOOTH SURFACE

RESTRICTED

FLOW

3/8 - 18 NPT

1.84

ADJUSTING STEM
(TURN CLOCKWISE TO
INCREASE RESTRICTION)

1

7

2

10

9

8

6

5

4

3

.85

FREE FLOW

BAR STOCK

CONFIGURATION

When ordering parts,

please specify:

• Number Stamped on Side

• Description (CV Flow Control)

• Part Description

• Material

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL-CV (R-3/2011)

PARTS LIST

ITEM DESCRIPTION QTY

1

Cap (SS only)

1

2

Nut, Jam

1

3

Seat

1

4

Gasket

1

5

Disc

1

6

Spring

1

7

Ring, Retaining

1

8

Stem

1

9

O-Ring

1

10

Housing

1

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

Dimensions

Available only in replacement assembly.

PL-CDC-1 (R-6/2011)

NPT

5

3

4

2

1

I

Full Open Operation

NPT

5

3

4

2

1

I

Tight Closing Operation

B

C

A

NSF 61

Approved

Item Description Material

1 Body Brass

2

End

Connection

Brass

3 Disc Polytherimide

4 Seat NBR

5 Spring Stainless Steel

Size

(NPT)

Stock

Number

A B C I CVpsi Wt.

3/8" 9834501A 1.73 0.79 1.06 0.40 4.55 400 0.37

1/2" 9834502J 2.32 0.98 1.35 0.53 6.00 400 0.32

• NSF 61 Approved

• Meets low lead requirements

• Soft Seat for Bubble Tight Shutoff, Spring Loaded for

Fast Seating Action

• Compact Design

• Low Cracking Pressure 1/2 psi

• Flow Profile Designed to Minimize Head Loss

• Perfect Seating both at High and Low Pressure, Wide

Temperature Range: +10

° to 210°F

•

Polyethermide Disc to ensure the Best Resistance for

Corrosion and Abrasion

•

Patented Disc Guide to Prevent Any Side Loading

CDC-1

PARTS LIST

Check Valve (Sizes 3/8” and 1/2”)

MODEL

1

2

3

4

5

3/8 NPT

2.06

2.72

Strainer

X43

Standard 60 mesh pilot system strainer for fluid service.

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

PL- X43 (R-3/2011)

PARTS LIST

ITEM DESCRIPTION MATERIAL

1

Pipe Plug Steel

2

Strainer Plug Brass

3

Gasket Copper

4

Screen SST

5

Body Brass

No parts available. Rreplacement assembly only.

Size Stock Number

3/8 x 3/8 33450J

Complete Replacement Diaphragm Assemblies for 100-01 and 100-20 Hytrol Main Valves

For:

Hytrol Main Valves with Ductile Iron, Bronze Trim Materials—125/150 Pressure Class Only.
FACTORY ASSEMBLED
Includes: Stem, Disc Guide, Disc, Disc Retainer, Spacer Washers, Diaphragm, Diaphragm Washer
and Stem Nut.

3/8"

1/2" - 3/4"

1"

1 1/4"-1 1/2"

2"

2 1/2"

3"
4"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A

N/A
C2524B
C2525J

6"

8"
10"
12"
14"
16"
20"
24"

40456G
45276D

81752J

85533J
89067D
89068B

N/A
N/A

33273E
40456G
45276D

81752J

N/A

85533J
89068B
89068B

Valve

Size

Valve

Size

49097K
C2518D
C2520K

C2522 F

C2524B
C2523D

C2525J

33273E

100-01 100-20

Diaphragm Assembly

Stock Number

100-01 100-20

Diaphragm Assembly

Stock Number

3/8"

1/2" - 3/4"

1"

1 1/4" - 1 1/2"

2"

2 1/2"

3"
4"
6"

8"
10"
12"
14"
16"
20"
24"

(Also 81-01 )
(Also 81-01 )

N/A
N/A
N/A
N/A
N/A

N/A
9169805A
9169812G
9169813E
9169815K
9817901D
9817902B

N/A
9817903K
9817905E
9817905E

3/8"

1/2" - 3/4"

1"

1 1/4” - 1 1/2"

2"

2 1/2"

3"
4"
6"
8"

9169806J
9169807G
9169808E
9169809C
9169810A

9169817F
9169818D
9169819B
9169820K
9169834A

N/A
N/A
N/A
N/A
N/A

N/A
9169810A
9169818D
9169819B
9169820K

Valve

Size

Valve

Size

9169801K
9169802H
9169803F
9169804D
9169805A
9169811J
9169812G
9169813E
9169815K
9817901D
9817902B
9817903K
9817904H
9817905E

N/A

9817906C

100-01 100-20

Repair Kit

Stock Number

100-01 100-20

Repair Kit

Stock Number

Repair Kits for 100-01/100-20 Hytrol Valves

For:

Hytrol Main Valves—125/150 Pressure Class Only.

Includes: Diaphragm, Disc (or Disc Assembly) and spare Spacer Washers.

(Also 81-01 )
(Also 81-01 )

REPAIR KITS

When ordering, please give complete nameplate data of the valve and/or control being repaired.

MINIMUM ORDER CHARGE APPLIES.

Buna-N®Standard Material

Viton (For KB Valves)

MODEL

INSTALLATION / OPERATION / MAINTENANCE

Repair Kits for 100-04/100-23 Hy-Check Main Valves

For:

Hy-Check Main Valves—125/150 Pressure Class Only

Includes: Diaphragm, Disc and O-Rings and full set of spare Spacer Washers.

Larger Sizes: Consult Factory.

Repair Kits for 100-02/100-21 Powertrol and 100-03/100-22 Powercheck Main Valves

For:

Powertrol and Powercheck Main Valves—125/150 Pressure Class Only

Includes: Diaphragm, Disc (or Disc Assembly) and O-rings and full set of spare Spacer Washers.

Repair Kits for Pilot Control Valves (In Standard Materials Only)

Includes: Diaphragm, Disc (or Disc Assembly), O-Rings, Gaskets or spare Screws as appropriate.

Repair Assemblies (In Standard Materials Only)

CLA-VAL

Copyright Cla-Val 2011 Printed in USA Specifications subject to change without notice.

P.O. Box 1325 • Newport Beach, CA 92659-0325 • Phone: [phone] • Fax: [phone] • E-mail: [e-mail] • Website cla-val.com

©

N-RK (R-3/2011)

Valve

Size

Kit Stock Number

100-02

Valve

Size

Kit Stock Number

100-02 & 100-03 100-21 & 100-22

3

⁄8”

9169901H

2

1

⁄2”

9169910J N/A

1

⁄2” &3⁄4”

9169902F

3”

9169911G 9169905J

1” 9169903D

4”

9169912E 9169911G

1

1

⁄4” &11⁄2”

9169904B

6”

9169913C 9169912E

2” 9169905J

8”

99116G 9169913C

10”

9169939H 99116G

12"

9169937B 9169939H

Valve

Size

Kit Stock Number

Valve

Size

Kit Stock Number

100-04 100-23 100-04 100-23

4” 20210901B N/A 12” 20210905H 20210904J
6” 20210902A 20210901B 14” 20210906G N/A
8” 20210903K 20210902A 16” 20210907F 20210905H

10” 20210904J 20210903K 20” N/A 20210907F

24” N/A 20210907F

BUNA-N

®

(Standard Material)

VITON (For KB Controls)

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number

Pilot

Control

Kit

Stock

Number

CDB 9170006C CFM-7 1263901K CDB-KB 9170012A
CDB-30 9170023H CFM-7A 1263901K CRA-KB N/A
CDB-31 9170024F CFM-9 12223E

CRD-KB (w/bucking spring)

9170008J

CDB-7 9170017K

CRA (w/bucking spring)

9170001D CRL-KB 9170013J

CDH-2 18225D

CRD (w/bucking spring)

9170002B CDHS-2BKB 9170010E

CDHS-2 44607A

CRD (no bucking spring)

9170003K CDHS-2FKB 9170011C
CDHS-2B 9170004H CRD-18 20275401K CDHS-18KB (no bucking spring) 9170009G
CDHS-2F 9170005E CRD-22 98923G

102C-KB

1726202D
CDHS-3C-A2 24657K CRL (55F, 55L) 9170007A
CDHS-8A 2666901A CRL-4A 43413E
CDHS-18 9170003K CRL-5 (55B) 65755B
CDS-4 9170014G CRL-5A (55G) 20666E
CDS-5 14200A CRL-18 20309801C
CDS-6 20119301A CV 9170019F

Buna-N

®

CDS-6A 20349401C X105L (O-ring) 00951E
CFCM-M1 1222301C 102B-1 1502201F CRD Disc Ret. (Solid) C5256H
CFM-2 12223E 102C-2 1726201F CRD Disc Ret. (Spring) C5255K

102C-3 1726201F

Control Description Stock Number

CF1-C1 Pilot Assembly Only 89541H
CF1-Cl Complete Float Control less Ball and Rod 89016A
CFC2-C1 Disc, Distributor and Seals 2674701E
CSM 11-A2-2 Mechanical Parts Assembly 97544B
CSM 11-A2-2 Pilot Assembly Only 18053K
33A 1" Complete Internal Assembly and Seal 2036030B
33A 2" Complete Internal Assembly and Seal 2040830J

When ordering, please give complete nameplate data of the valve and/or control being repaired. MINIMUM ORDER CHARGE APPLIES

Larger Sizes: Consult Factory.
