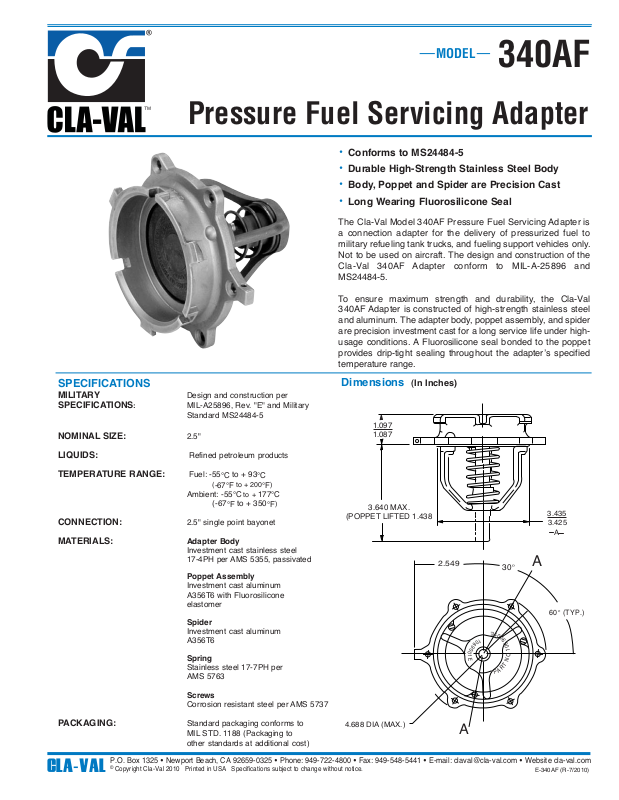

340AF
Pressure Fuel Servicing Adapter
• Conforms to MS24484-5
• Durable High-Strength Stainless Steel Body
• Body, Poppet and Spider are Precision Cast
• Long Wearing Fluorosilicone Seal
The Cla-Val Model 340AF Pressure Fuel Servicing Adapter is
a connection adapter for the delivery of pressurized fuel to
military refueling tank trucks, and fueling support vehicles only.
Not to be used on aircraft. The design and construction of the
Cla-Val 340AF Adapter conform to MIL-A-25896 and
MS24484-5.
To ensure maximum strength and durability, the Cla-Val
340AF Adapter is constructed of high-strength stainless steel
and aluminum. The adapter body, poppet assembly, and spider
are precision investment cast for a long service life under highusage conditions. A Fluorosilicone seal bonded to the poppet
provides drip-tight sealing throughout the adapter’s specified
temperature range.
SPECIFICATIONS
MILITARY Design and construction per
SPECIFICATIONS: MIL-A25896, Rev. "E" and Military
NOMINAL SIZE: 2.5"
LIQUIDS: Refined petroleum products
TEMPERATURE RANGE: Fuel: -55
CONNECTION: 2.5" single point bayonet
MATERIALS: Adapter Body
Standard MS24484-5
to + 93
°C
(
-67°F
Ambient: -55
(-67°Fto + 350
Investment cast stainless steel
17-4PH per AMS 5355, passivated
Poppet Assembly
Investment cast aluminum
A356T6 with Fluorosilicone
elastomer
Spider
Investment cast aluminum
A356T6
Spring
Stainless steel 17-7PH per
AMS 5763
°C
to + 200°F)
to + 177
°C
°C
)
°F
Dimensions (In Inches)
1.097
1.087
3.640 MAX.
(POPPET LIFTED 1.438
2.549
3.435
3.425
A
A
30º
60º (TYP.)
E
1
0
0
1
0
6
9
0
0
1
E
9
6
0
1
O
N
T
R
A
P
PACKAGING: Standard packaging conforms to
Screws
Corrosion resistant steel per AMS 5737
MIL STD. 1188 (Packaging to
other standards at additional cost)
4.688 DIA (MAX.)
A
E-340AF (R-7/2010)
