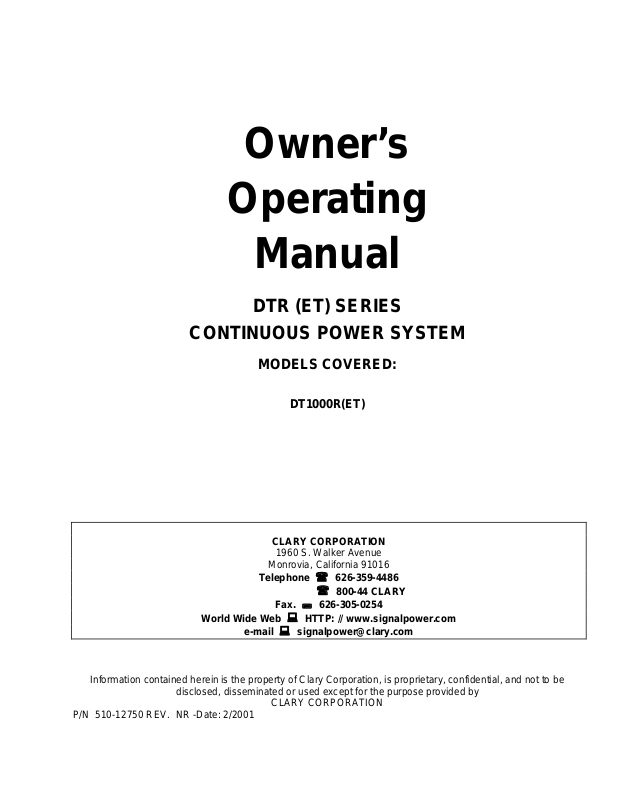

Clary DT Series ET User Manual

PRELIMINARY

Owner’s

Operating

Manual

DTR (ET) SERIES

CONTINUOUS POWER SYSTEM

MODELS COVERED:

DT1000R(ET)

CLARY CORPORATION

1960 S. Walker Avenue

Monrovia, California 91016

Telephone  626-359-4486

 800-44 CLARY

Fax.  626-305-0254

World Wide Web  HTTP: // www.signalpower.com

e-mail  [e-mail]

Information contained herein is the property of Clary Corporation, is proprietary, confidential, and not to be

disclosed, disseminated or used except for the purpose provided by

CLARY CORPORATION

P/N 510-12750 REV. NR -Date: 2/2001

THE CONTINUOUS POWER COMPANY

TABLE OF CONTENTS

TITLE PAGE

TABLE OF CONTENTS 2

INTRODUCTION 3

TECHNICAL DESCRIPTION 4

PACKAGING 6

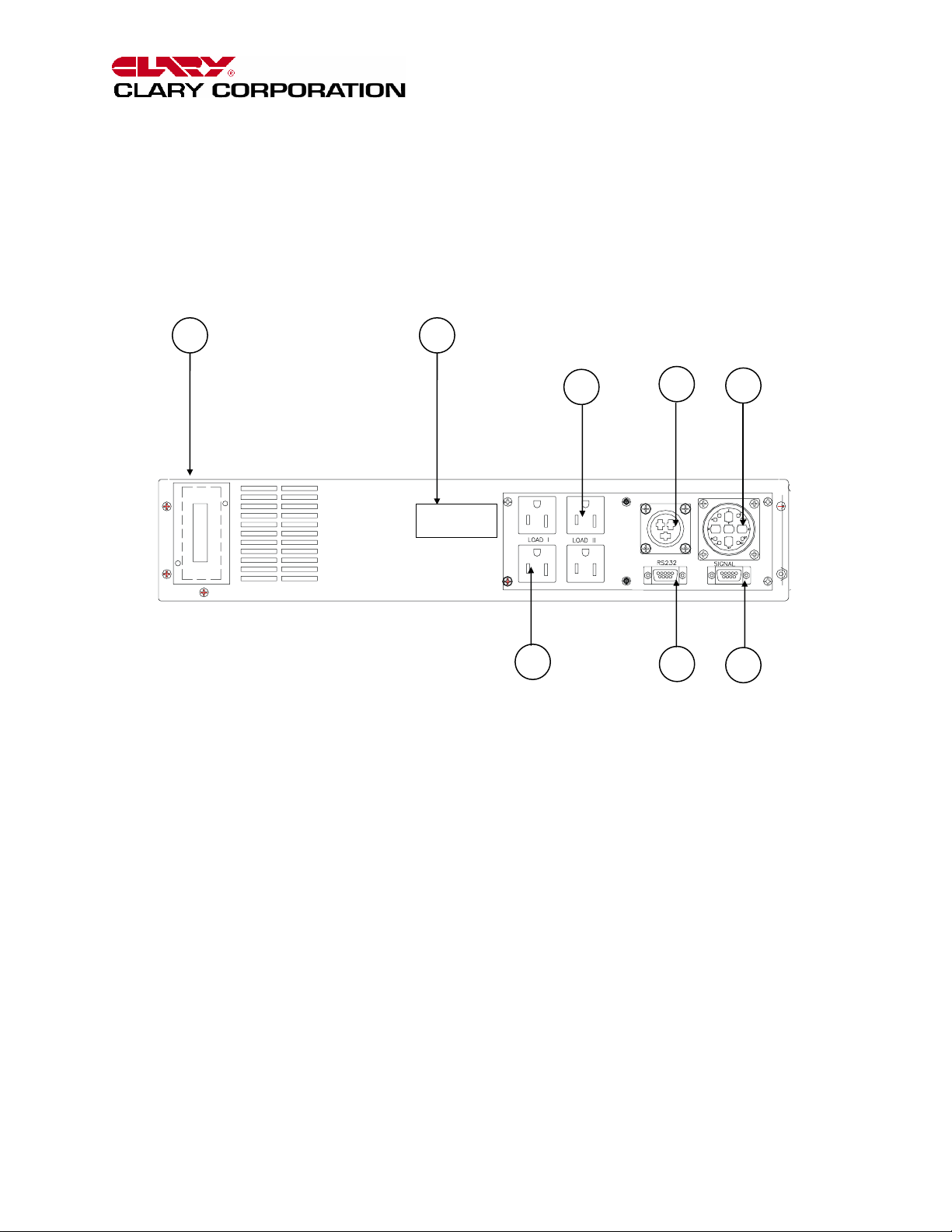

PHYSICAL DESCRIPTION 7

INSTALLATION 10

OPERATION 11

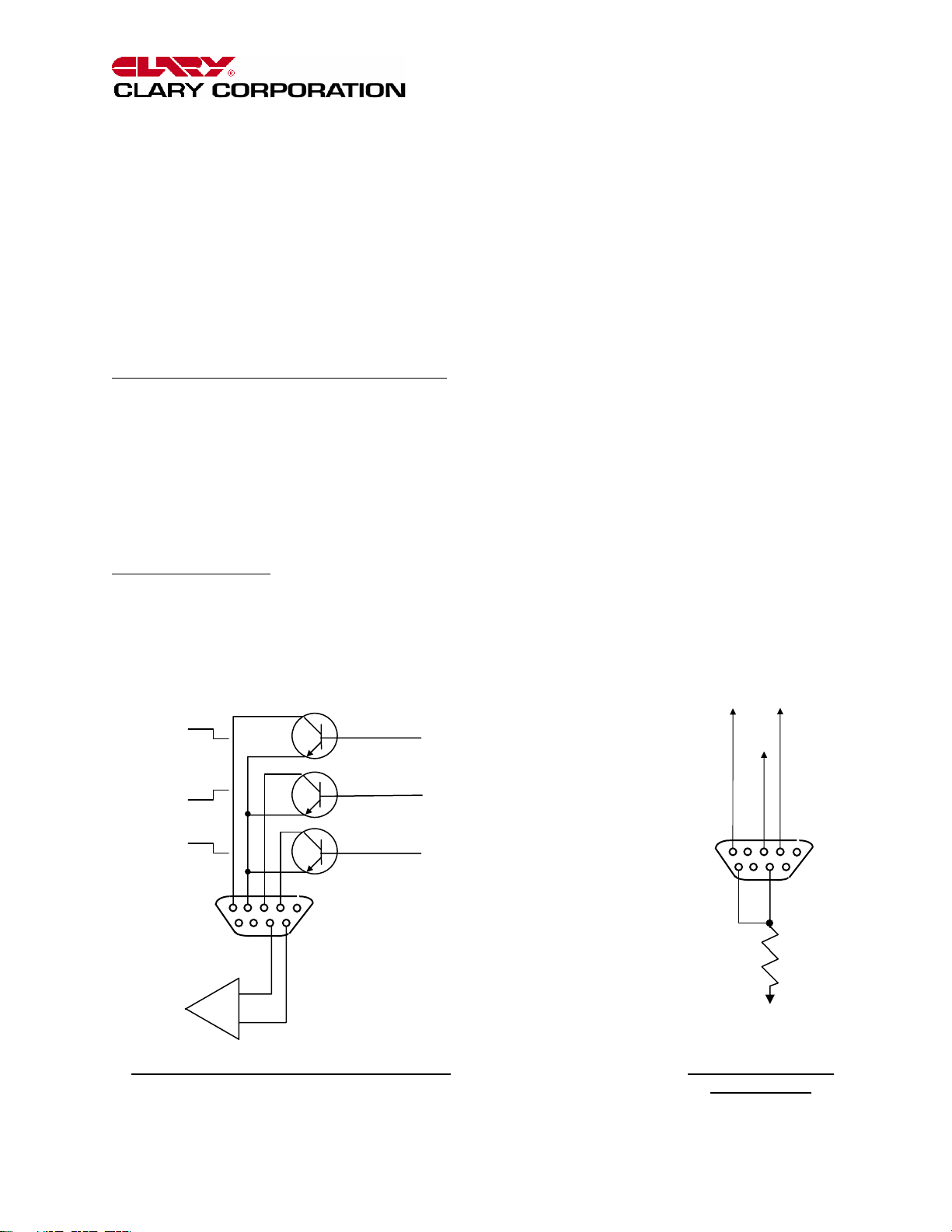

SIGNALS AND INTERFACING 12

SPECIFICATIONS 13

CARE AND MAINTENANCE 14

SERVICE AND REPAIR 15

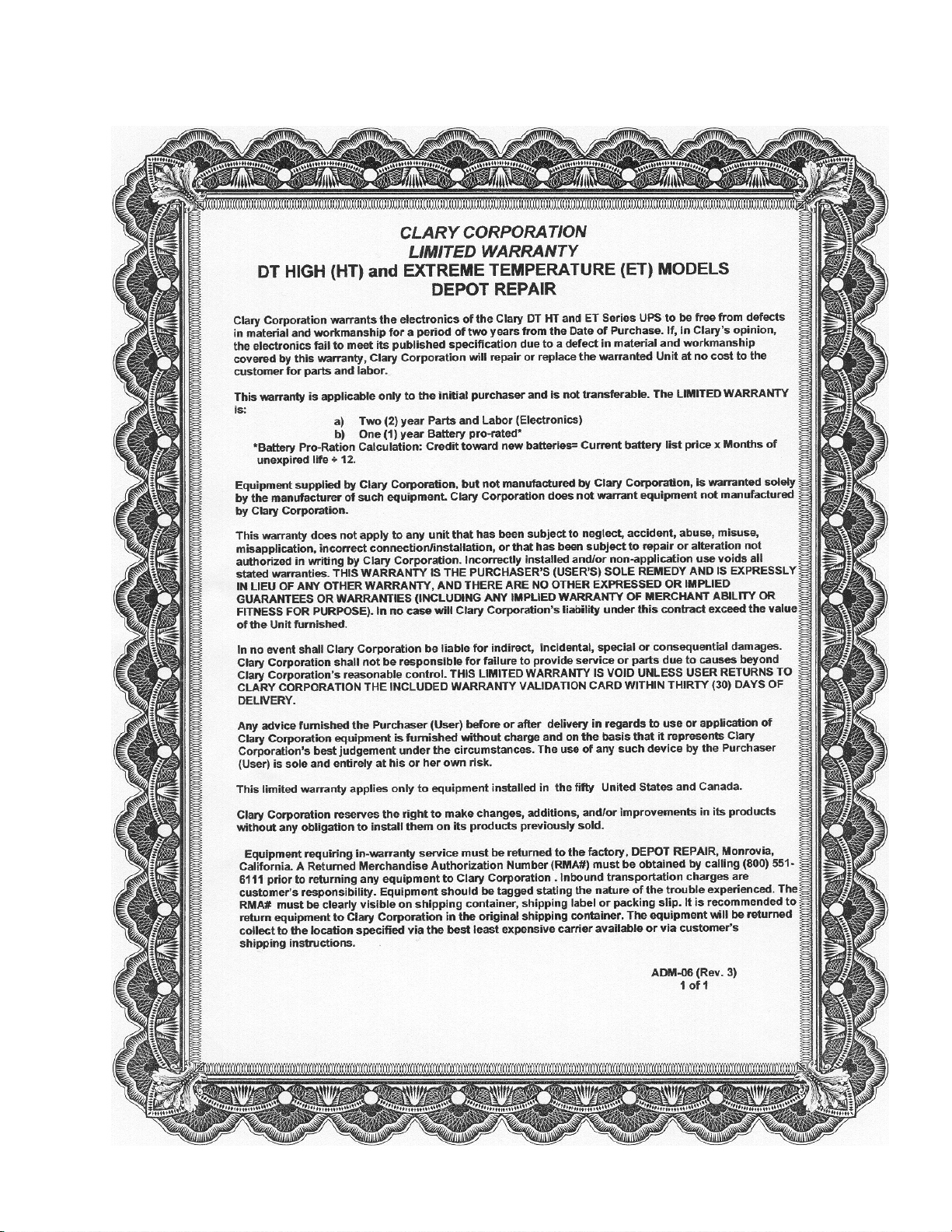

WARRANTY 16

THE CONTINUOUS POWER COMPANY

INTRODUCTION

ongratulations! You have selected the
highest quality protection for your continuous

C

you can depend on. You now own a DTR(ET)
Series Continuous Power System (CPS) which is an
all Digital Technology product manufactured by Clary
Corporation, the first name in uninterruptible power
system (UPS) reliability. The Continuous Power
System is the highest order in the hierarchy of UPS
products. When power problems occur, there can
be no compromising the reliability of your power
solution. The DTR(ET) Series Continuous Power
System is your complete

power needs. This unit offers a quiet and
compact package with superior performance

power solution.

This Owner’s Operating Manual is provided with
your new DTR(ET) UPS. It will enhance your
understanding of the product and its functions. WE

STRONGLY URGE YOU TO READ THIS MANUAL
COMPLETELY, PRIOR TO BEGINNING
INSTALLATION OR ATTEMPTING OPERATION.

This will save you time and effort in your installation
and application, and it will assure a trouble free
installation and startup session, thus enhancing
public safety and the image of your agency.
The illustrations provided will familiarize you with this
product’s operating modes and components. Always
operate the unit within the guidelines and
specifications provided to maximize safety and the
lifetime of the unit. Also, your understanding of the
product is a key element in getting the most out of
your DTR(ET) Series UPS.

IMPORTANT SAFETY INSTRUCTIONS,

SAVE THESE INSTRUCTIONS

This symbol indicates that
dangerous voltage constituting
a risk of electrical shock is
present within the unit.

This manual contains important safety instructions that should be followed during installation and maintenance of
the UPS and batteries. Be aware of the following symbols and their meaning as they appear throughout the
manual:

This equipment generates and uses radio frequency
energy and if not installed and used properly in strict
accordance with the manufacturer's instructions, may
cause interference to radio and television reception. All
units in this manual have been tested and found to comply
with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15
of FCC Rules, which are designed to provide reasonable
protection against such interference in a commercial
installation. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause interference to radio and television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:

This symbol indicates that there
are important operating and
maintenance instructions in the

!

literature accompanying this
unit.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

 Reorient the receiving antenna.
 Relocate the UPS with respect to the

receiver.

 Move the UPS away from the receiver.
 Plug the UPS into a different outlet so

that the UPS and receiver are on
different branch circuits.

If necessary, the user should consult the dealer or an
experienced radio/television technician for additional
suggestions. The user may find the following booklet
prepared by the Federal Communications Commission
helpful:
"How To Identify and Resolve Radio-TV Interference
Problems"
This booklet is available from the U.S. Government
Printing Office, Washington, DC 20402, Stock No.

004000003454.

!

Page 3

TECHNICAL DESCRIPTION

THE CONTINUOUS POWER COMPANY

he Digital Technology-Extreme Temperature

T

(DTR(ET) Series Continuous Power System
(CPS) is a revolutionary new concept in total power
protection and management. The DTR(ET) Series
is a microprocessor-based UPS that now allows the
user to set most of the control feature parameters.
By directly linking a personal computer to the
DTR(ET) Series RS232 port, frequency settings and
operation, alarm signals, load switching, fan
operation, etc. can all be programmed to meet
specific application requirements.

The DTR(ET) Series in a true on-line, continuous
power UPS. In the tradition of Clary products, the
DTR(ET) Series generates the same high quality
and proven reliability to provide the best power
protection available for today’s critical applications.

In keeping with state-of-the-art design, the power
electronics are completely governed by an on-board
microprocessor. Given the powerful memory
capability of today’s microcontrollers, this
microprocessor has evolved the UPS into an all-in­one complete power distribution and monitoring
center. Not only is your critical load insured of the
most reliable and constant power available, but the
user may now continuously track status of the
supply components that keep the entire system
operational. Production downtime can now be
virtually eliminated by knowing exactly what patterns
the supply utility power maintains and by knowing
exactly the condition and life expectancy of the
battery reserve.

Reference the block diagram for a simplified
explanation of the system’s operation. The AC utility
source is connected to the power and micro
electronics when the input switch is closed. The
input line is filtered, power factor corrected and
rectified for enhanced performance without
disturbing other equipment that may share the same
utility circuit.

The microprocessor controls an Inverter Generator
that produces a low harmonic, AC sinewave for
continuous power applications.

When the input AC utility line fails, the battery circuit
within this system takes over to ensure continuous
power. Only until properly rated power is returned,
does the microprocessor reconnect the input source
back into the system.

The microprocessor is directly tied to an external
RS232 connector port. This allows the user to
monitor and even set some of the operating
parameters. With a simple link to a personal
computer using the DTR(ET) UPS software
program, you can actually view, on your monitor, the
event history of the power distribution system with
the
DTR(ET) Series unit as the central hub. More
sophisticated users may implement the optional
SNMP package to accomplish full Network Power
Management.

Page 4

THE CONTINUOUS POWER COMPANY

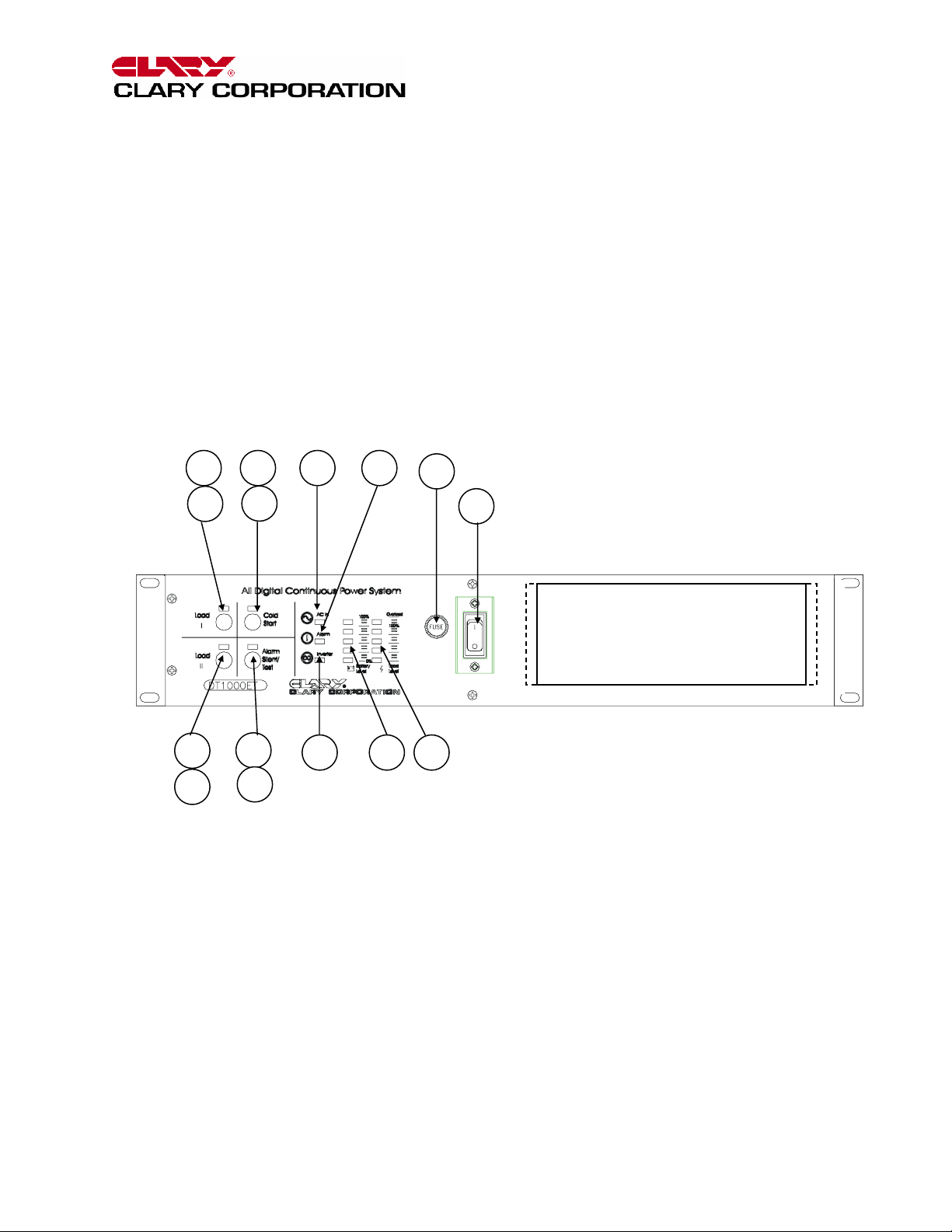

DT1000R(ET) UPS

AC IN

DC IN

BATTE RY BANK

+

+

+

-

-

-

+

+

+

-

-

-

SIMPLIFIED SYSTEM INTERCONNECT
