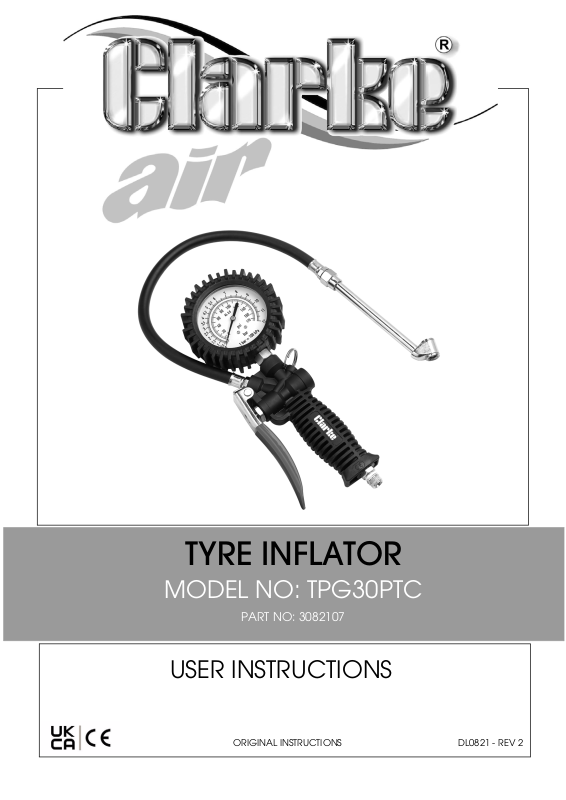

Page 1
TYRE INFLATOR
MODEL NO: TPG30PTC
PART NO: 3082107
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0821 - REV 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
SPECIFICATION
Weight 0.65 kg
Connecting Hose Length 400 mm
Max Working Pressure 8 bar/ 116 psi
Airline Connection size 1/4” BSP
GENERAL SAFETY PRECAUTIONS
1. Compressed air can be dangerous. Ensure that you are thoroughly familiar
with all precautions relating to the use of compressors and a compressed
air supply.
2. Never direct a jet of compressed air at people or animals.
3. Always ensure that the equipment/tool being used has a safe working
pressure exceeding the output pressure of the compressor that it is
connected to.
4. Never exceed the operating pressure stated in the specification.
5. Always ensure that the air supply is turned off at the tool outlet and vent all
compressed air from the air hose and the equipment attached to it, before
disconnecting air hoses or other equipment from your compressor.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
6. Ensure all fixed air connections are properly sealed using teflon tape or
pipe sealant.
7. Check the gauge periodically for accuracy and replace if damaged or
inaccurate.
OPERATION
CAUTION: THIS PRODUCT MAY HAVE A LOWER WORKING PRESSURE
THAN SOME COMPRESSORS WILL SUPPLY, THEREFORE, AN AIRLINE
REGULATOR SHOULD BE INSTALLED.
CAUTION: AIRLINE LUBRICATORS SHOULD NOT BE USED WITH THIS ITEM
Under or over inflated tyres are dangerous. Consult vehicle owners handbook
before using this tyre inflator.
Attach the airline hose to the tyre inflator and fully tighten. Use PTFE tape if
needed. Turn on the air supply and check that the airline pressure does not
exceed 8 bar (116psi)
1. Remove the dust cap from the tyre valve and check that the tyre valve is
clean before connecting.
2. Push the connector fully home onto the tyre valve. If the valve leaks, the
connector may need repositioning. Correct position is confirmed by a
steady reading on the gauge.
3. Check the tyre pressure on the gauge.
4. Pull the trigger to inflate the tyre. Re-check the tyre pressure. Note that
when the trigger is pulled, the gauge will show the airline pressure, not the
tyre pressure.
5. To deflate the tyre, partially pull the trigger and check the pressure again.
6. When the tyre pressure is correct, disconnect and remove the connector.
Replace the dust cap on the tyre valve.
IMPORTANT: The air pressure gauge on this product is for guidance only. It is
important that you check the pressure with an approved, calibrated
gauge.
7. Inspect the air hose for wear or damage periodically and replace if
necessary.
8. DO NOT use damaged or leaking hoses. Occasionally clean the product
and lubricate the trigger parts.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

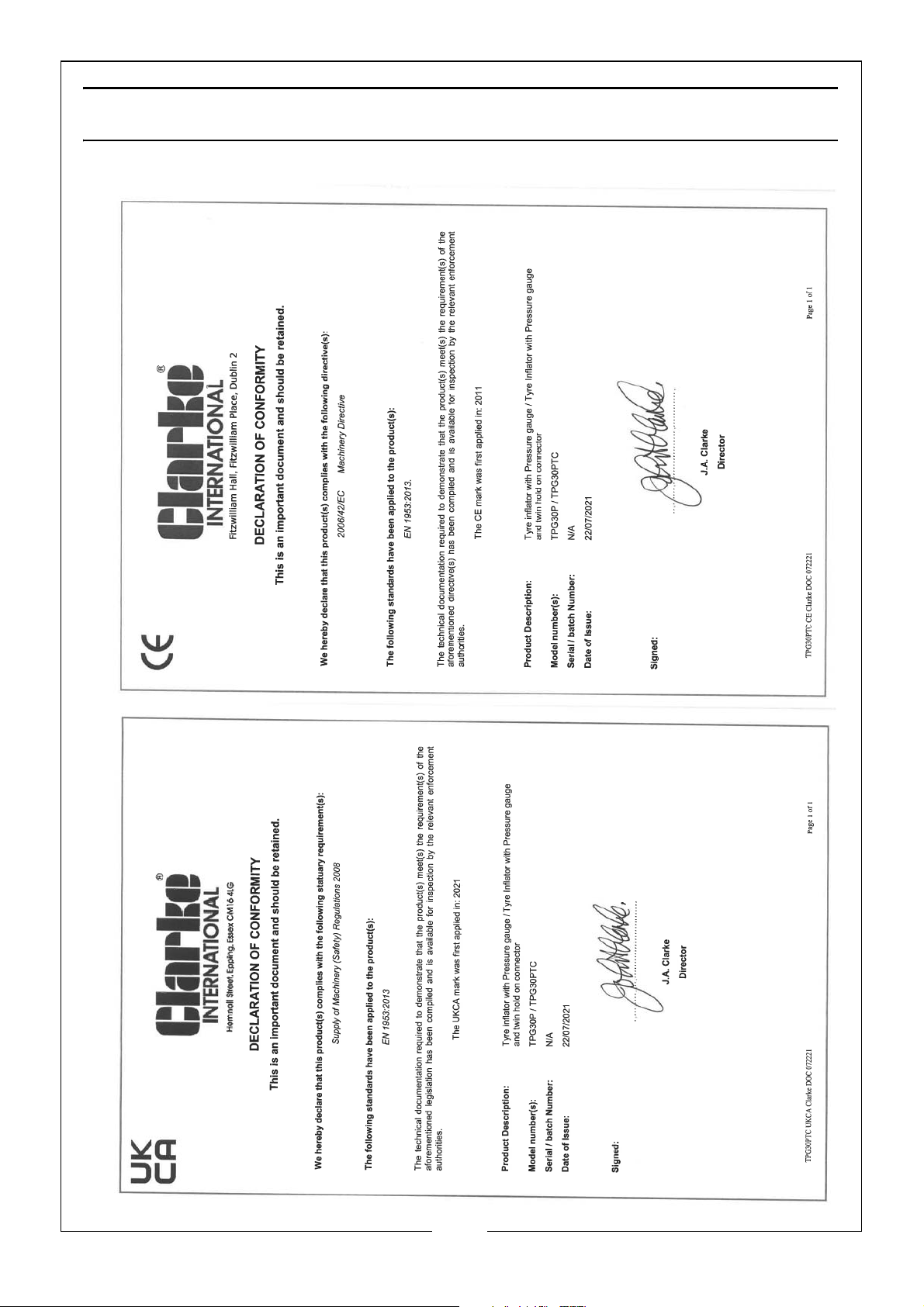

DECLARATION OF CONFORMITY
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
