Clarke SMD 84T, 4003635 User guide

SMD LED WORKLIGHT(230V)

MODEL NO: SMD84T

PART NO: 4003635

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 ISS 2

INTRODUCTION

Thank you for purchasing this CLARKE LED twin light worklamp with tripod,
suitable for indoor or outdoor use.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

TECHNICAL INFORMATION

Model SMD84T

Model typpe L3305SJ-2

Dimensions (L x W x H) 58 x 870 x 1720 mm

Weight 4.9 kg

Light Source SMD LED array

Operating Temperature -20oC to + 50oC

Input power 2 x 21 W

Light Output (luminous flux) 2 x 1650 @ 1m (lumen)

Fuse Rating 3 A

Power Supply 230V 50 Hz

Insulation Class II

Ingress Protection Rating IP54

Energy Efficiency Class A+

Colour Temperature 6500 K

Weighted Energy Consumption 42 kWh/1000h

Efficiency 78 Lm/W

Life expectancy of LED 20,000 hours

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. Do not look directly into the lamp when switched on as this can damage
the eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged supply
cable.

5. Always unplug the worklight before moving it or performing maintenance.
Don’t touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Do not leave the worklight unattended when switched on. Always unplug
the worklight when it is not in use.

8. Never unplug the worklight by holding the cable. Unplug by holding the
plug.

9. Never use the worklight if the cable or plug are damaged.

10. When assembling the tripod, ensure that the ground is level and firm.

11. Take extra care not to push or knock the tripod over when fully extended.

12. Ensure the lamp is a safe distance from other objects in the working
environment.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

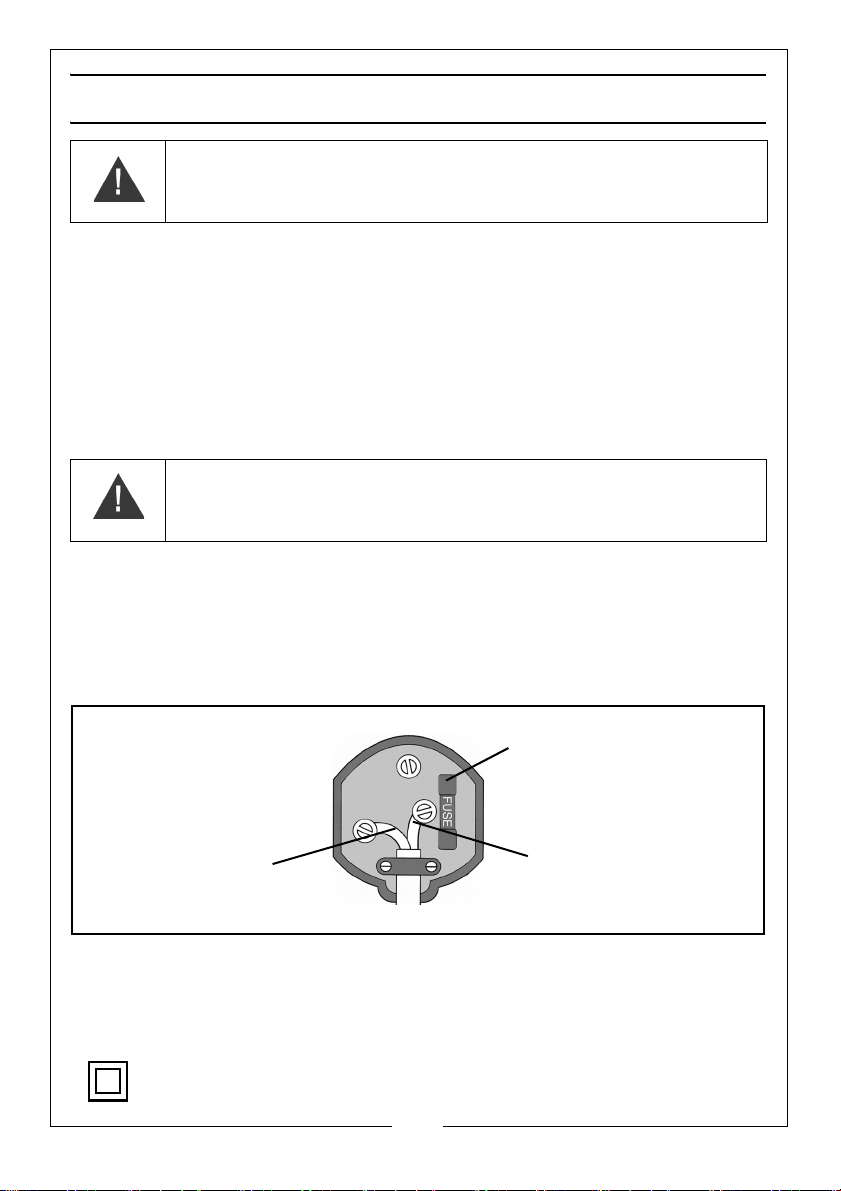

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS POWER SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL / BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal

which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

This symbol indicates that this is a Class II product, and does not require
an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

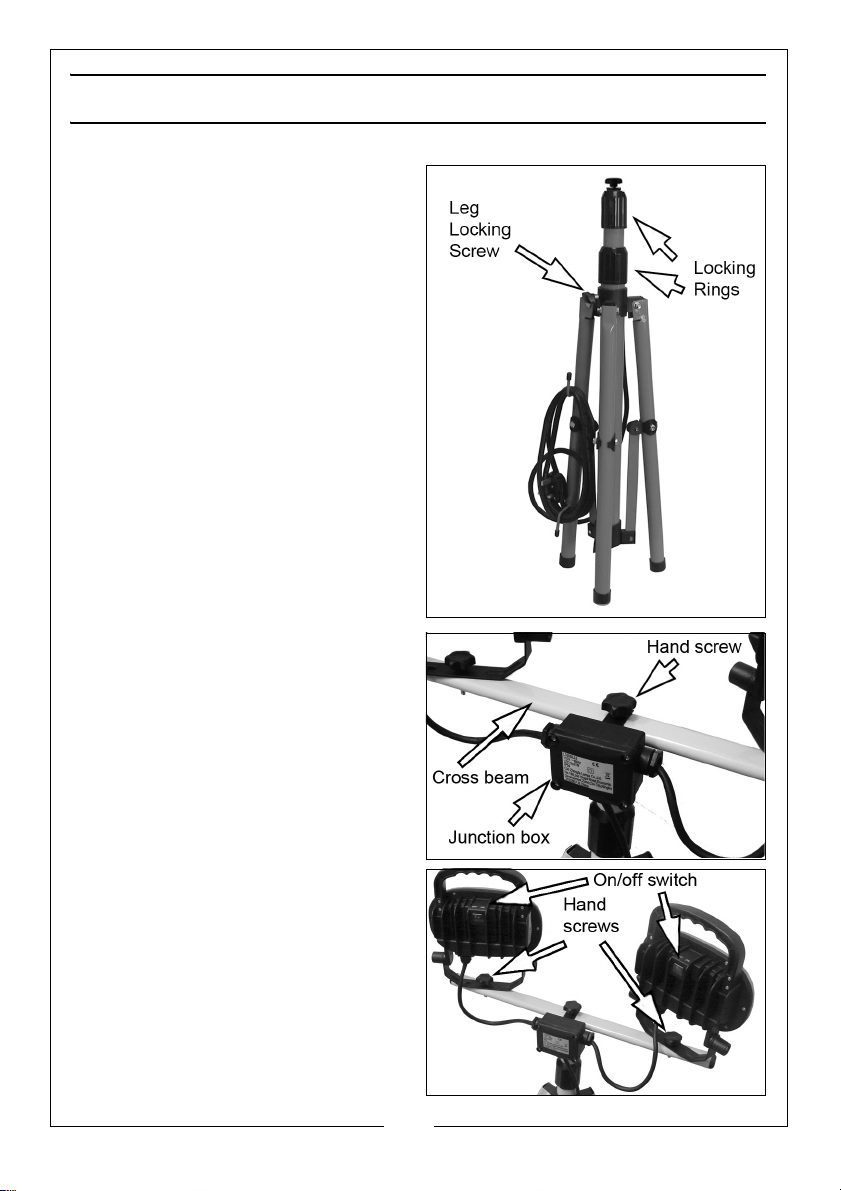

ASSEMBLY

CONTENTS

• Pair of lamps wired to the

junction box & power cable.

•Tripod assembly

• Cross beam

• Hand screws/nuts/washers

ASSEMBLY

The tripod assembly may be erected
before attaching the other items. If
the end/upper tripod extension is not
visible, turn the locking ring and tilt
the tripod to slide the extension to
greater height.

1. Pull the legs apart to erect the
tripod and set in position with the
locking screw.

2. Adjust the height of the tripod
column by twisting the locking
rings anti-clockwise to release,
and sliding the tubes to the
required height before twisting
clockwise to lock.

3. Attach both the cross beam and
the junction box to the column by
securing with the hand screw.

4. Attach both the lamps to the
cross beam with the hand screws,
washers and nuts.

5. Tighten the hand screws on each
lamp to set the angle as required.

• Each worklamp can also be

tilted as required.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply. Coil the cable
around the storage hooks provided on the tripod for tidy storage.

2. Store this product in a secure, dry place, out of the reach of children. DO
NOT leave it exposed to the elements and avoid direct sunlight, direct
heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this product to come into contact with abrasive or corrosive materials.

4. Do not use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the worklamp unplugged from the power supply,
use a dry cloth to wipe over the lamp components.

5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 20000 hours.

7. Never use unauthorised accessories or attachments which can cause
personal injury or damage to the product.

8. Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the Clarke Service Department on 020 8988 7400.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

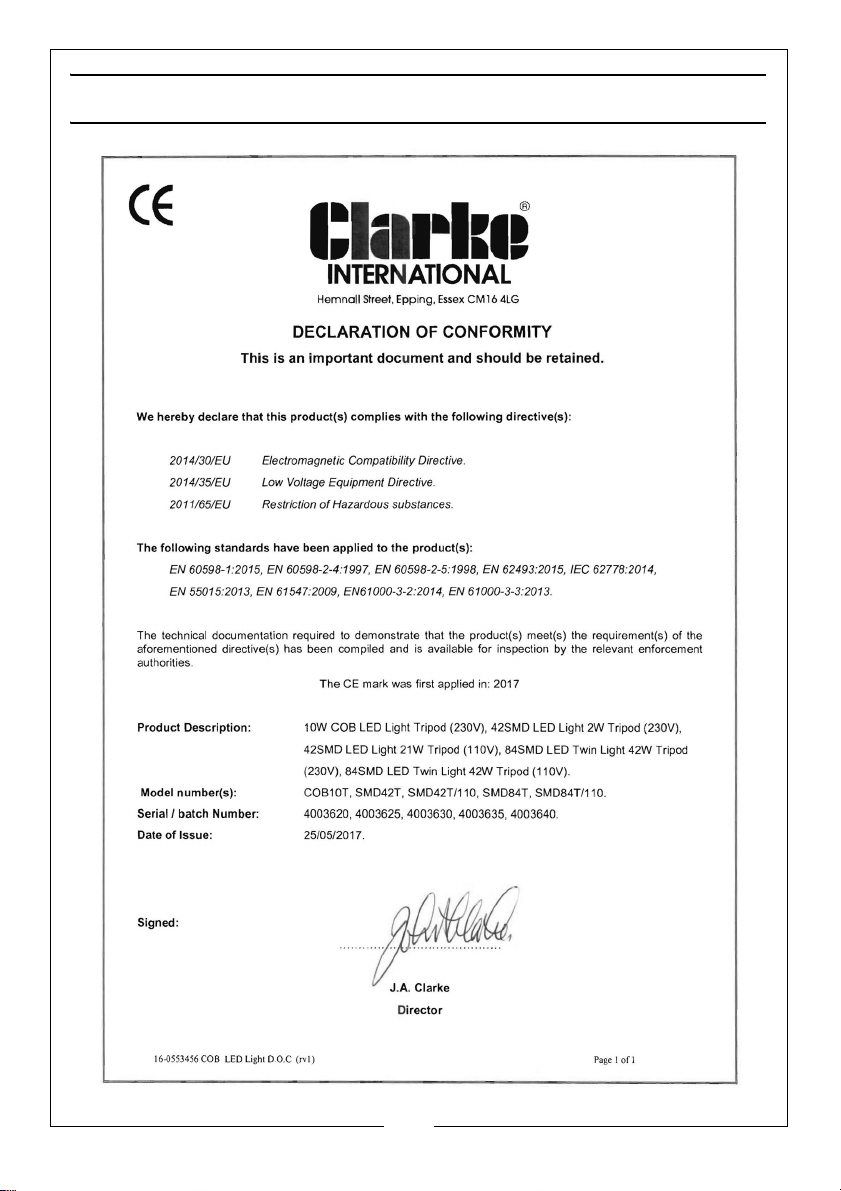

DECLARATION OF CONFORMITY

7
