Clarke SMD4500 User guide

4500 LUMEN LED WORKLIGHT

MODEL NO: SMD4500

PART NO: 4003540

INSTRUCTIONS FOR USE

GC06/23

INTRODUCTION

Thank you for purchasing this CLARKE Worklight.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

TECHNICAL INFORMATION

Model SMD4500

Operating voltages 230V - 50HZ

Outlet sockets 2 x 230V - 50HZ (max 3500W)

Cable length 1.95M

LED Wattage consumption 50W

Efficiency 90L/W

Lighting source 84 x LED (not replaceable)

Light output (luminous flux) 4500LM

Colour temperature (rendering) 6500K

Ingress Protection (IP rating) IP44 (based on output sockets)

Operating temperatures

Dimension 210 x 240 x 180mm

Weight 1.5Kg

0 to + 45

o

C

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must never be immersed in water.

2. DO NOT look directly into the lamp when switched on as this can harm the
eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. DO NOT use this worklight if it has a broken lens, casing or damaged cable

5. ALWAYS unplug the worklight before moving it or performing maintenance.
Do not touch the lamp when your hands are wet.

6. DO NOT attempt to disassemble or repair the worklight.

7. ALWAYS unplug the worklight when it is not in use.

8. NEVER unplug the worklight by pulling the cable, always hold the plug.

9. NEVER use the worklight if the cable or plug are damaged.

10. ALWAYS stand on firm, level ground.

11. DO NOT cover the lamp or place combustible materials on top of the
worklight.

12. DO NOT place within 1m of combustible materials.

SAFETY SYMBOLS

The following symbols appear on the unit.

Read the manual before use

Do not cover

Protect from rain/water

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

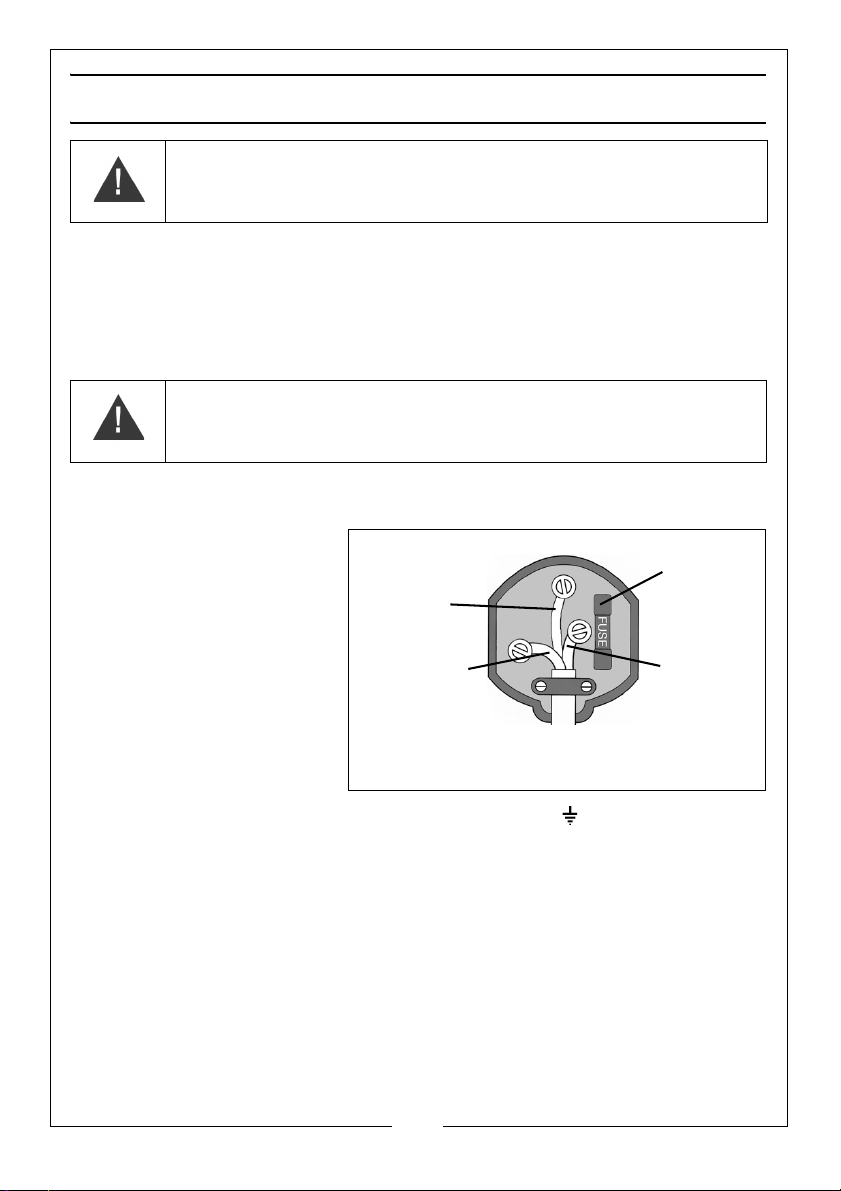

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yel low)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug.

• The BLUE wire must be

connected to the
terminal which is
marked N or coloured
black.

• The BROWN wire must

be connected to the
terminal which is
marked L or coloured
red.

• The YELLOW AND

GREEN wire must be
connected to the terminal which is marked E or or coloured green.

We strongly recommend that this product is connected to the mains supply
through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

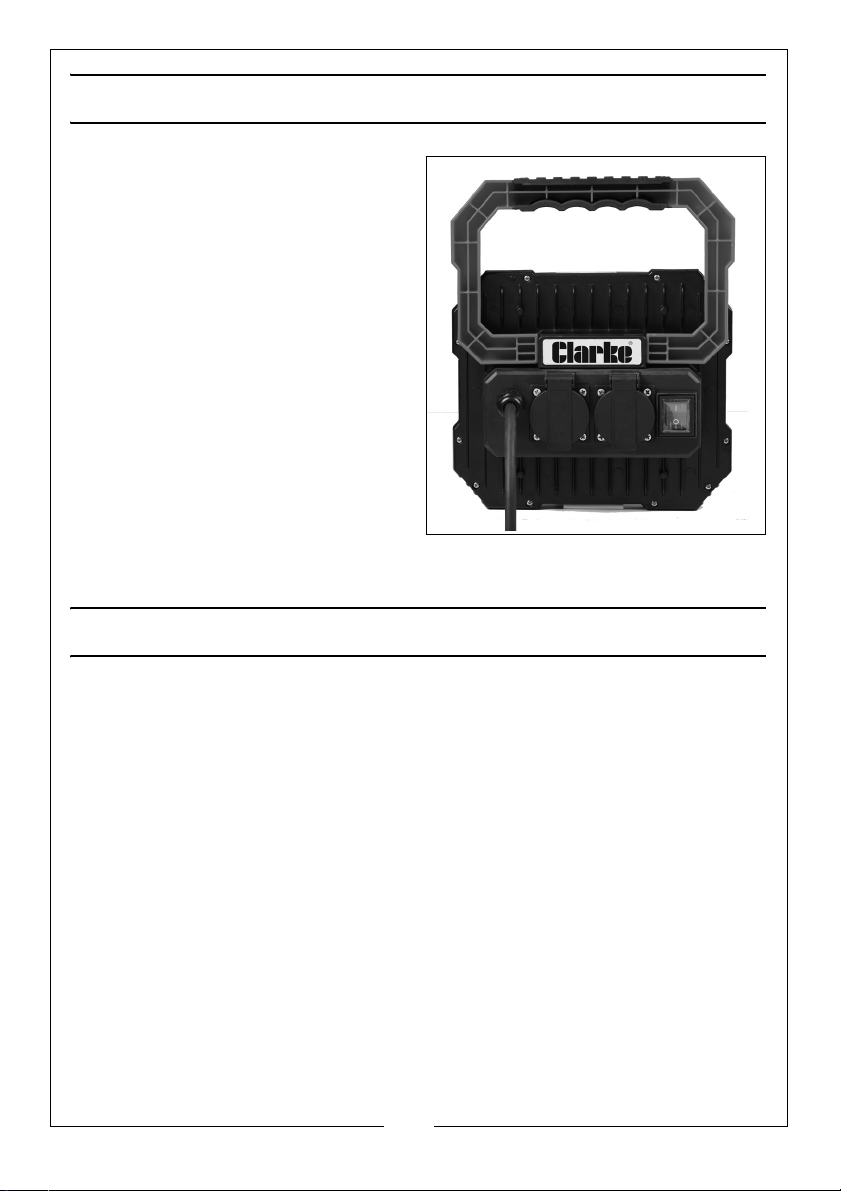

OPERATION

1. The light has four adjustment
positions, each at 45

positioned to direct the light as
required.

2. Only use extension leads that are
of an appropriate power rating
and suitable for the work
environment. Inspect the
extension lead regularly and
replace if damaged.

3. Before working with the work light,
check that the voltage shown on
the light’s model plate is the same
as the mains voltage being used.

4. Plug the worklight into a
grounded electrical outlet.

5. Position the worklight near the work. Adjust to direct the light beam.

o

and can be

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply.

2. Store this worklight folded flat in a secure, dry place, out of the reach of
children. DO NOT leave it exposed to the elements and avoid direct
sunlight, direct heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & DO NOT allow
the worklight to come into contact with abrasive or corrosive materials.

4. DO NOT use solvents, thinners or alcohol for cleaning as these will damage
the finish. With the worklight unplugged from the power supply, use a dry
cloth to wipe over the components.The LED light source cannot be
replaced but has a life expectancy of approximately 30,000 hours.

5. NEVER use unauthorised accessories or attachments which can cause
personal injury or damage to the product.

6. DO NOT attempt to replace or change or the LEDs if the protective glass is
cracked or broken it must be replaced before the work light is used again.

7. DO NOT attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the CLARKE Service Department.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

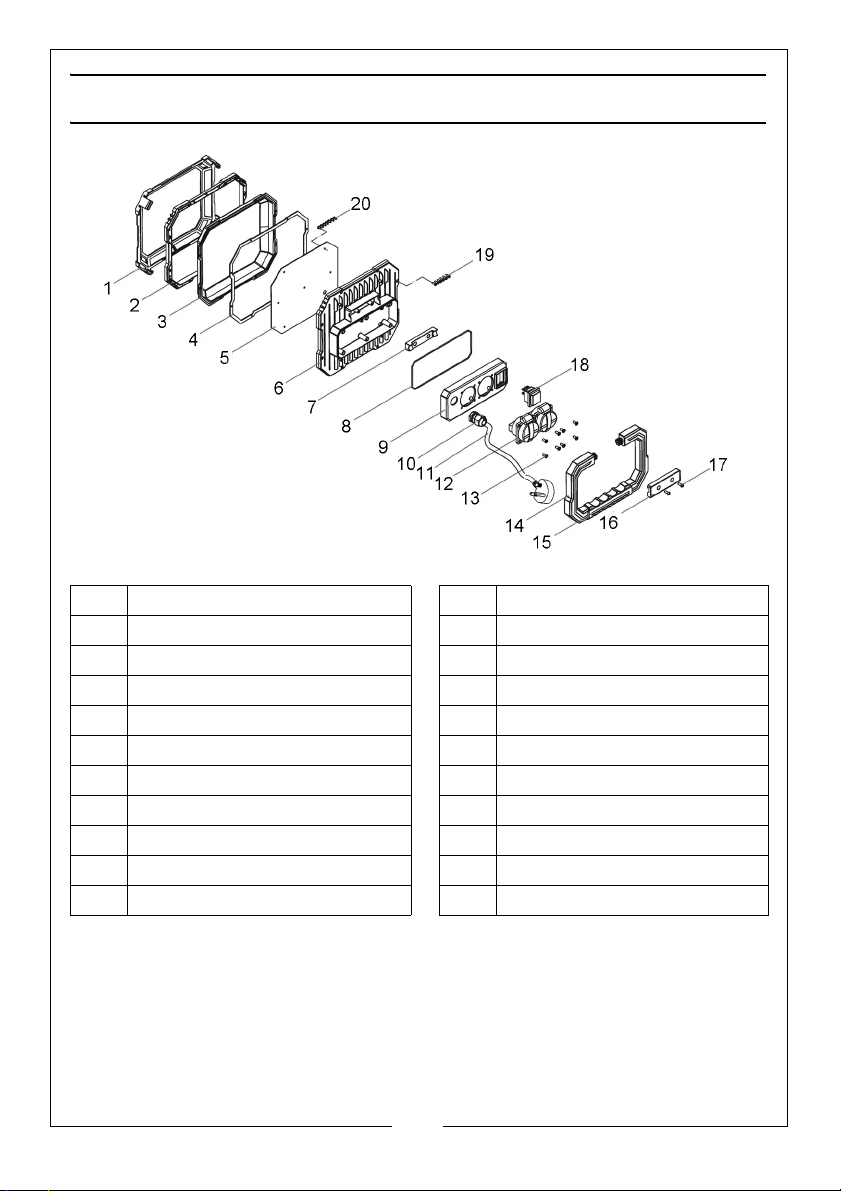

COMPONENT PARTS

Item Description Item Description

1 Protective cover (optional) 11 Cable with plug

2 Face frame 12 Power socket

3 Lamp shade 13 Screws st4x10

4 Sealing ring 14 Carrying handle

5LED panel 15Hand grip

6 Aluminium housing 16 Cover plate

7 Bracket for handle 17 Screws M4x10

8 Sealing ring 18 Switch

9 Socket box 19 Screws M3x6

10 Waterproof cable gland 20 Screws M3x13

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

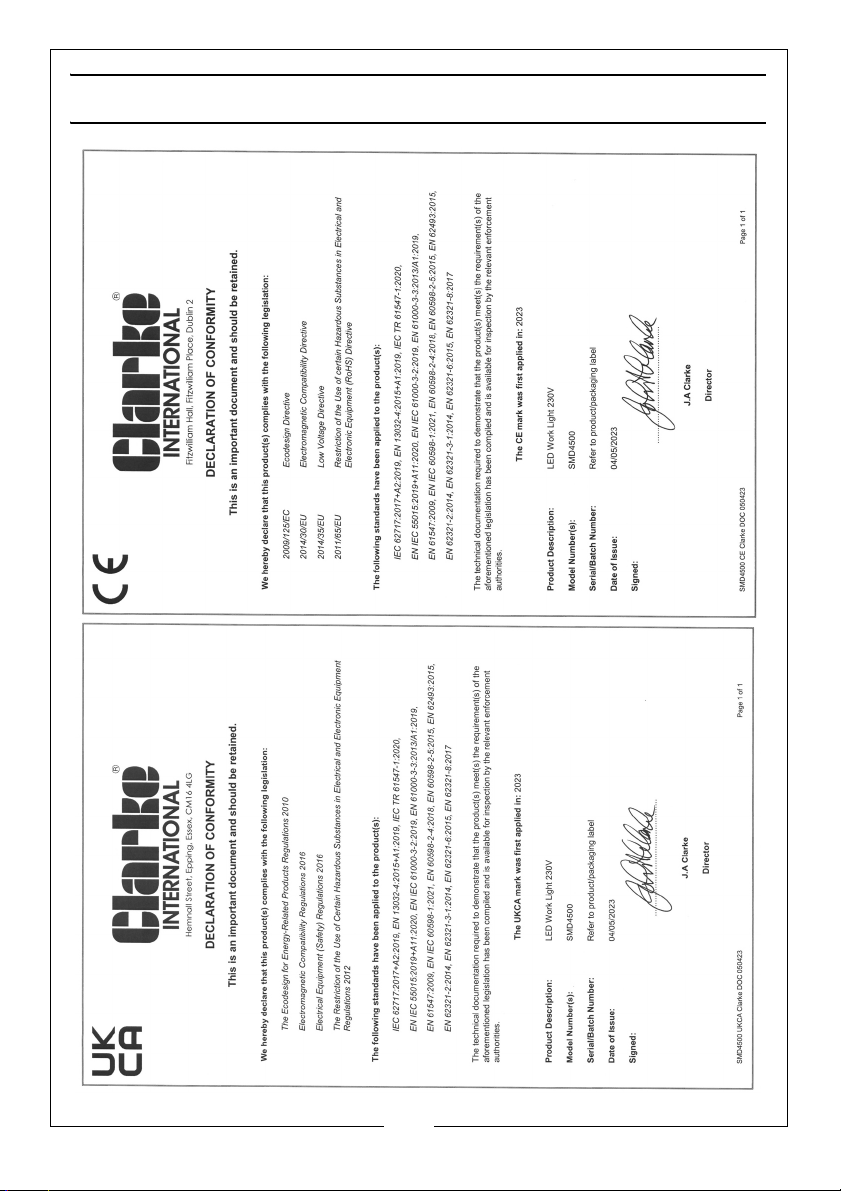

DECLARATIONS OF CONFORMITY

7
