Clarke SMD2700L User guide

FOLDABLE LED WORKLIGHT

MODEL NO: SMD2700L

PART NO: 4003539

USER INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC-11/23 Rev 1

INTRODUCTION

Thank you for purchasing this CLARKE portable worklight.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

TECHNICAL INFORMATION

Model SMD2700L

Operating voltages 230V - 50HZ

Cable length 1.95M

LED Wattage consumption 30W

Efficiency 90L/W

Lighting source SMD 40LED array

Light output (luminous flux) 2700LM

Colour temperature (rendering) 6000-6500 K

Ingress Protection (IP rating) IP65

Operating temperatures

Dimension 260 x 230 x 180 mm

Weight 1Kg

0 to +45

o

C

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

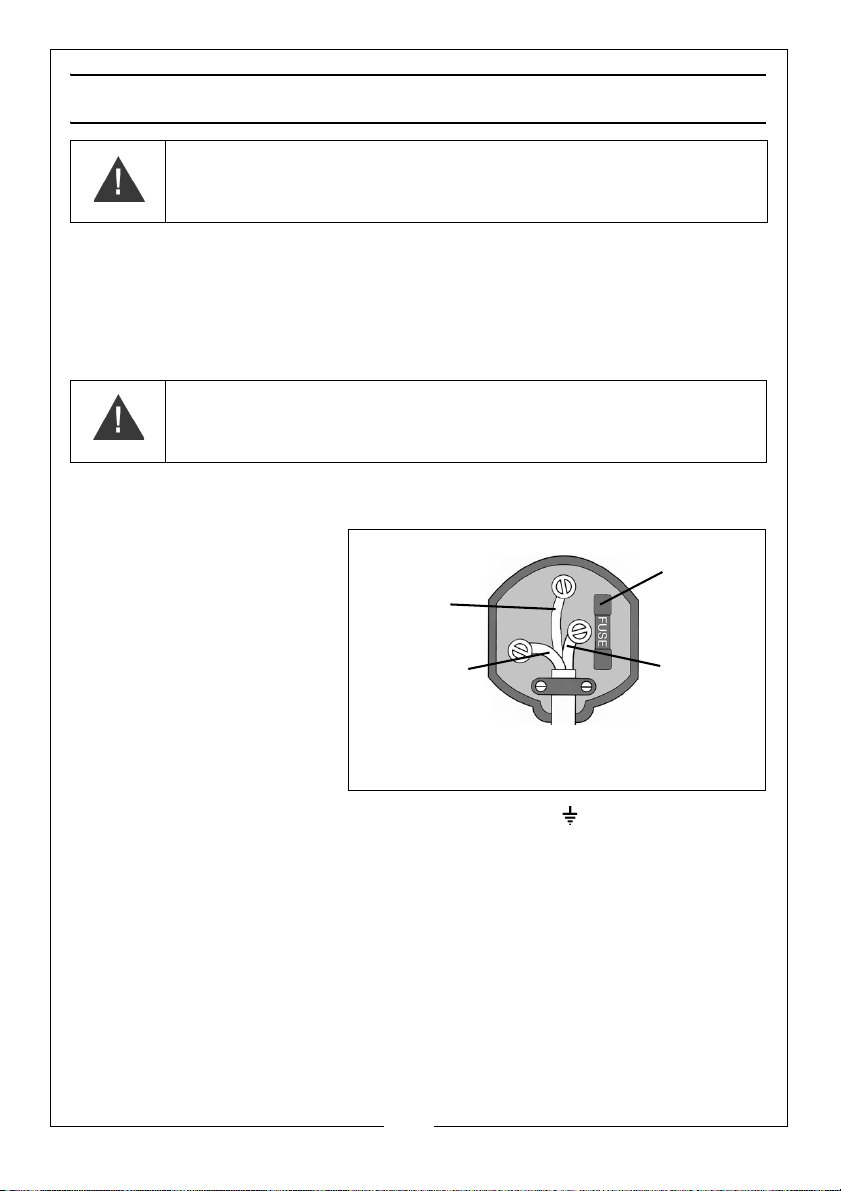

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 3 Amp

the cable is firmly held by the clamp

fuse.

Yel low)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug.

• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.

• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.

• The YELLOW AND
GREEN wire must be

connected to the terminal which is marked E or or coloured green.

We strongly recommend that this product is connected to the mains supply
through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. DO NOT look directly into the lamp when switched on as this can damage
the eyes.

3. DO NOT use this worklight if it has a damaged lens, casing or supply cable.

4. ALWAYS unplug the worklight before moving it or performing maintenance.
DO NOT touch the lamp when your hands are wet.

5. DO NOT attempt to disassemble or repair the worklight.

6. NEVER unplug the worklight by pulling the cable.

7. DO NOT leave the worklight unattended when switched on. ALWAYS
unplug the worklight when it is not in use.

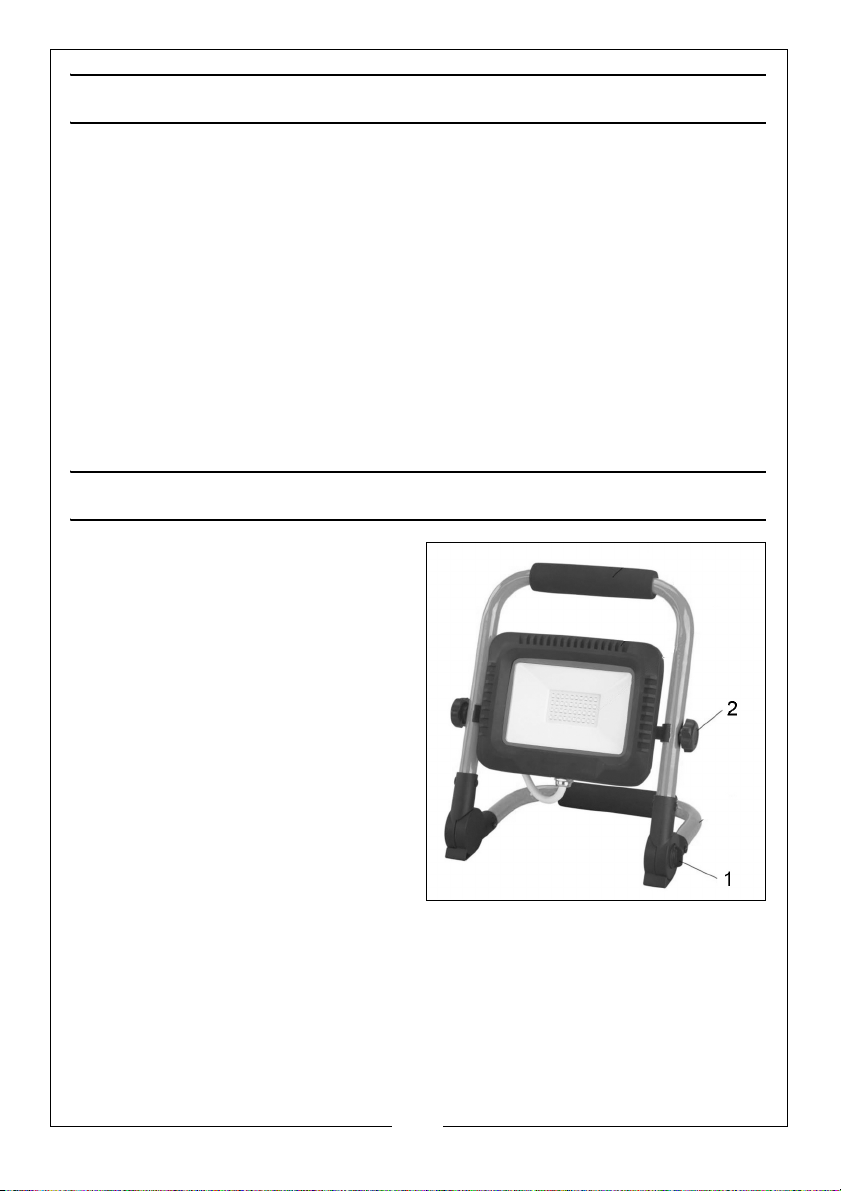

ADJUSTMENT & USE

The LED work light’s stand is
adjustable. Loosen the locking knobs
(1) on both sides and adjust the stand
to the suitable position before using
and finally tighten it.

NOTE: DO NOT exceed the

adjustable range as this
could damage the stand.

The worklight head can be tilted
vertically up to 30° down or 90° up.

To adjust the light direction, loosen
the side angle adjusting knobs (2) on
both sides. Adjust the work light head
to the desired position and retighten
the knob.

TURNING THE WORKLIGHT ON

1. Before working with the work light, check that the voltage shown on the
light’s model plate is the same as the mains voltage being used.

2. Plug the worklight into a grounded electrical outlet.

3. Position the worklight near the work. Adjust the stand to direct the light
beam.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

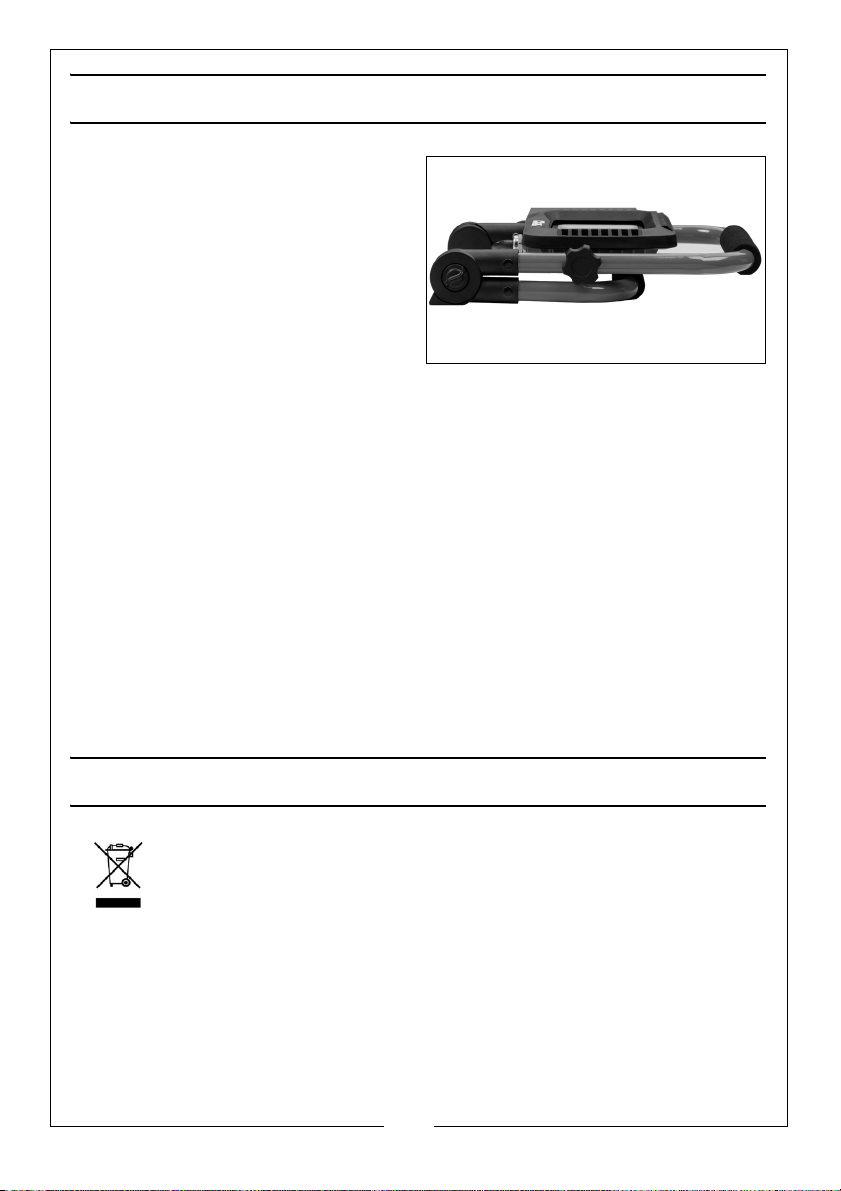

CARE & STORAGE

1. When not in use, switch off &
unplug from the power supply.

2. Store the worklight folded flat as
shown.

3. Store in a dry place, out of reach
of children. DO NOT leave it
exposed to the elements and
avoid direct sunlight, direct heat,
rain/moisture etc.

4. Keep the external surfaces clean. Avoid impact damage & DO NOT allow
this product to come into contact with abrasive or corrosive materials.

5. DO NOT use solvents, thinners or alcohol for cleaning, as these chemicals
will damage the finish. With the lamp unplugged from the power supply,
use a dry cloth to wipe over the lamp components.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 30,000 hours.

7. NEVER use unauthorised accessories or attachments which can cause
personal injury or damage to the product.

8. DO NOT attempt to replace or change or the LEDs if the protective glass is
cracked or broken it must be replaced before the work light is used again.

9. DO NOT attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the CLARKE Service Department.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

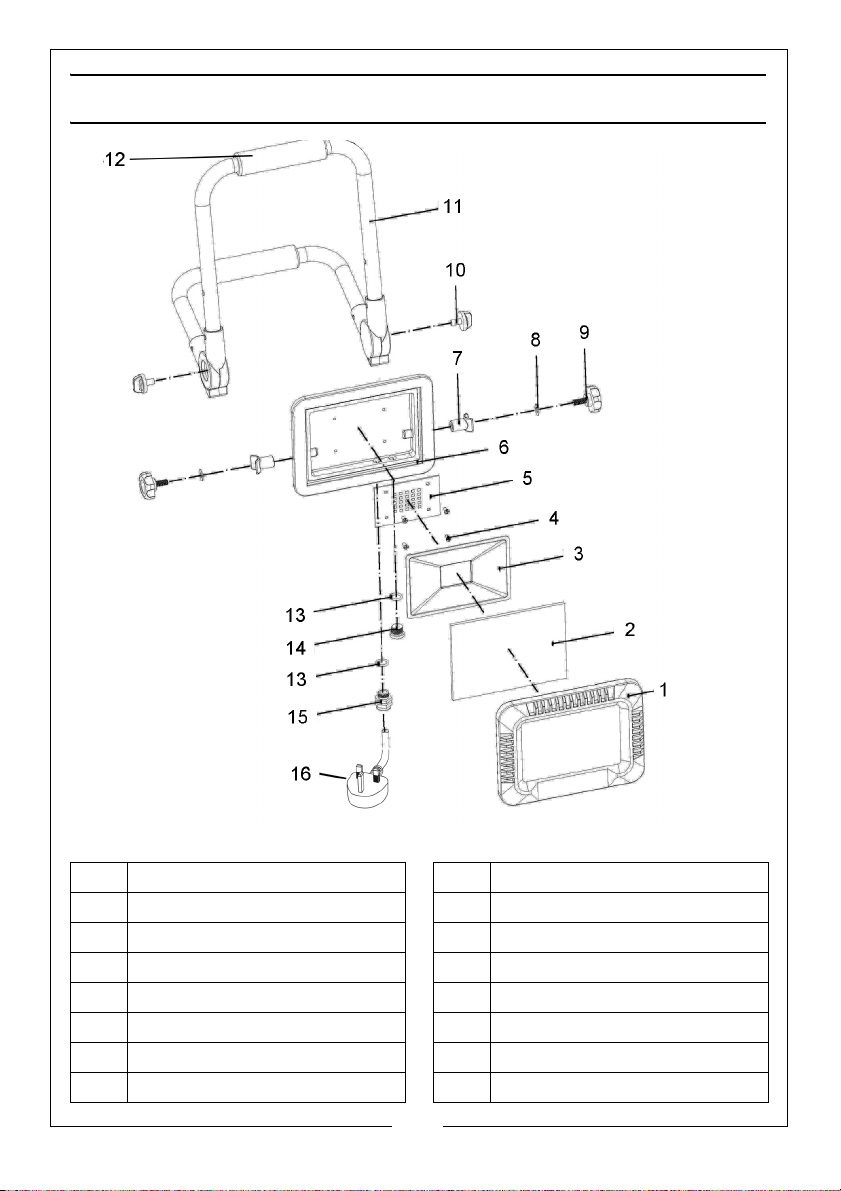

COMPONENT PARTS

1 Face frame 9 Angle adjusting knob M6

2 Tempered glass 4mm 10 Stand locking knob M6

3 Reflector 11 Stand

4 Screw M3 x 6 12 Carrying handle

5 LED panel 13 O-ring

6 Aluminium housing 14 Waterproof end cap

7 Connecting sleeve 15 Waterproof cable gland

8 Washer M6 16 Power cable with plug

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

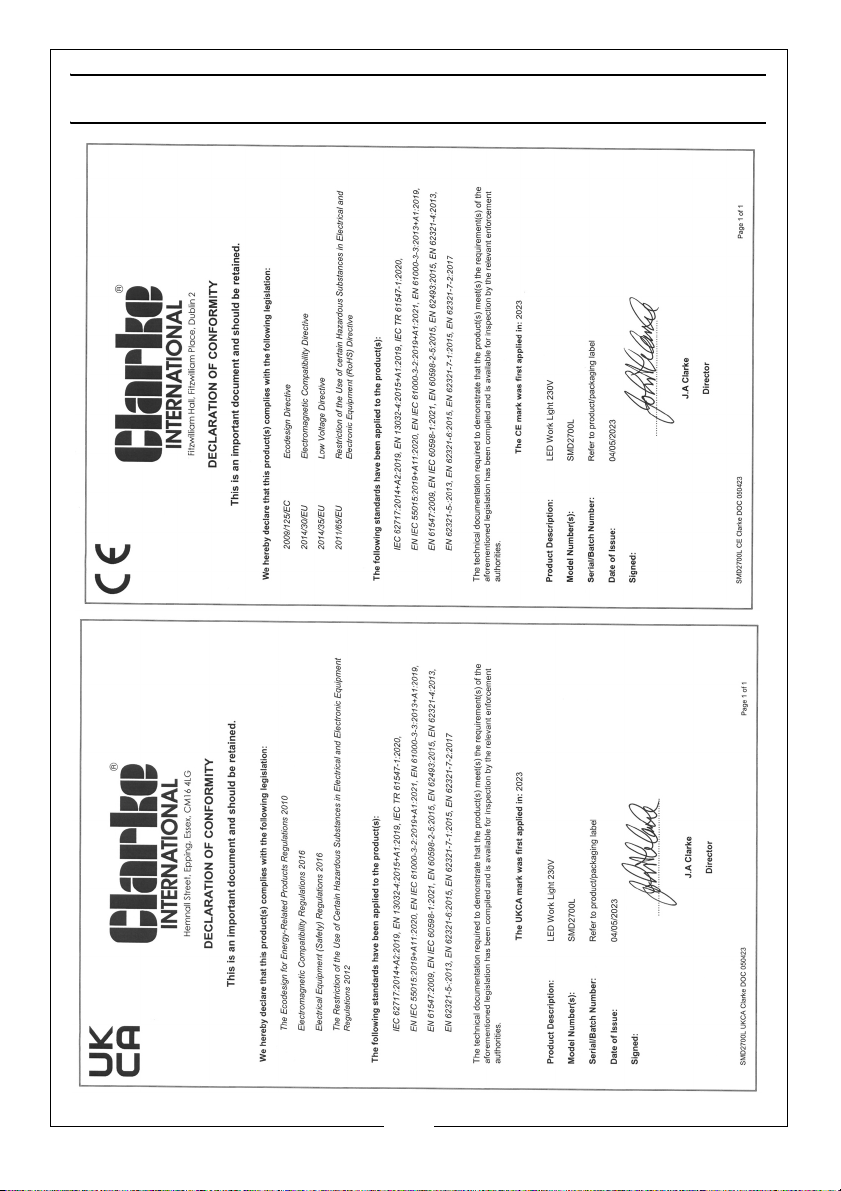

DECLARATIONS OF CONFORMITY

7
