Clarke SAM 170, 5460538 User guide

SWING ARM MAGNIFYING LAMP

MODEL NO: SAM170

PART NO: 54605338

ASSEMBLY & OPERATING INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL1120 ISS.2

INTRODUCTION

Thank you for purchasing your CLARKE swing arm magnifying lamp, which is
ideal for fine detail assembly and repair work, stamp collectors, model makers,
jewellers, etc.

This product is designed for indoor use only.

Before using this product, read this leaflet thoroughly, and follow the
instructions carefully. Although the product is robust it should nevertheless be
used with care and consideration, you can then look forward to it giving long
and reliable service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

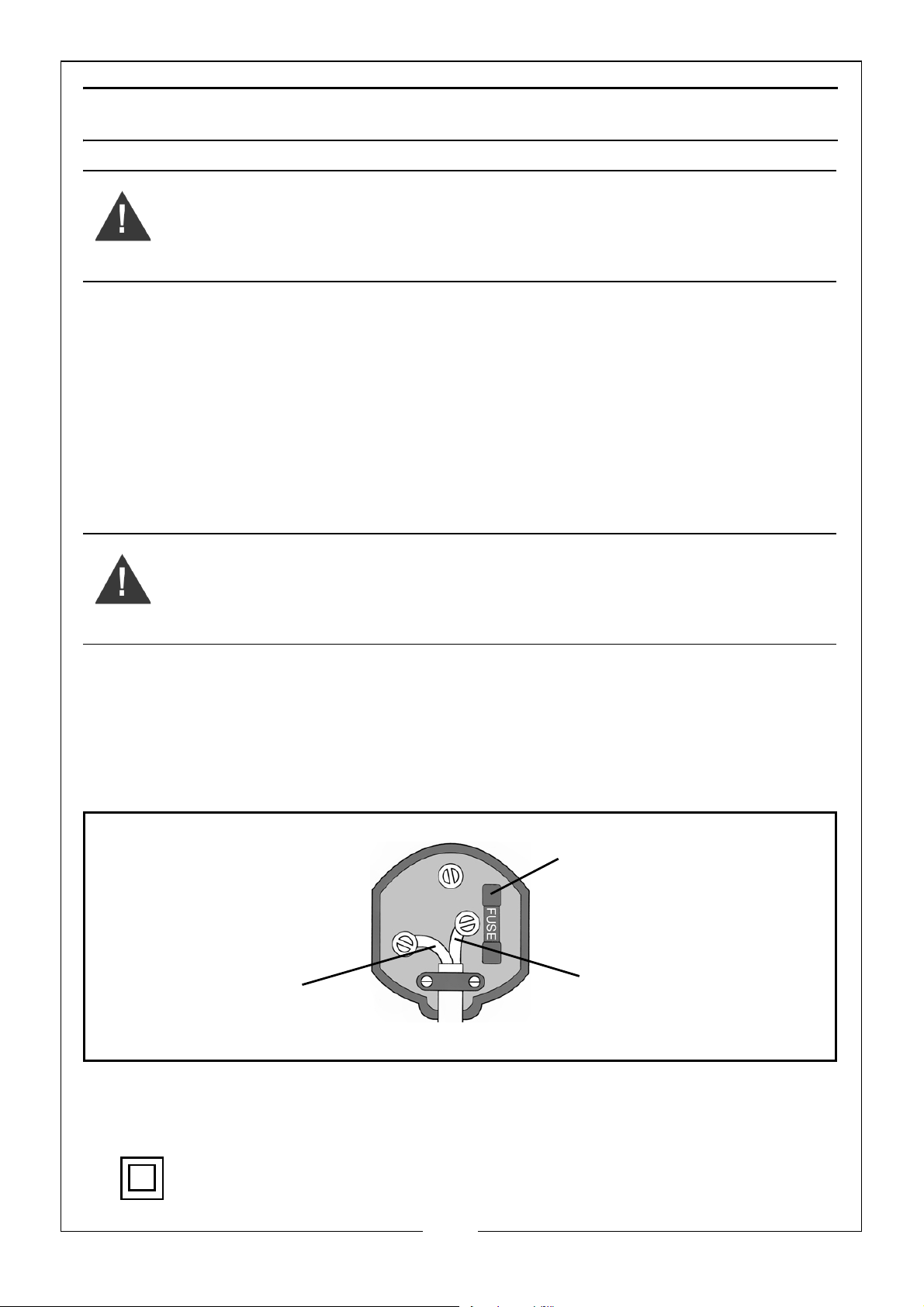

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 3 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY
BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

he wire which is coloured Blue must be connected to the terminal

•T

which is marked N or coloured black.

• The wire which is coloured Brown must be connected to the terminal

which is marked

We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)

L. or coloured red

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

This symbol indicates that this is a Class II product, and does not
require an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3

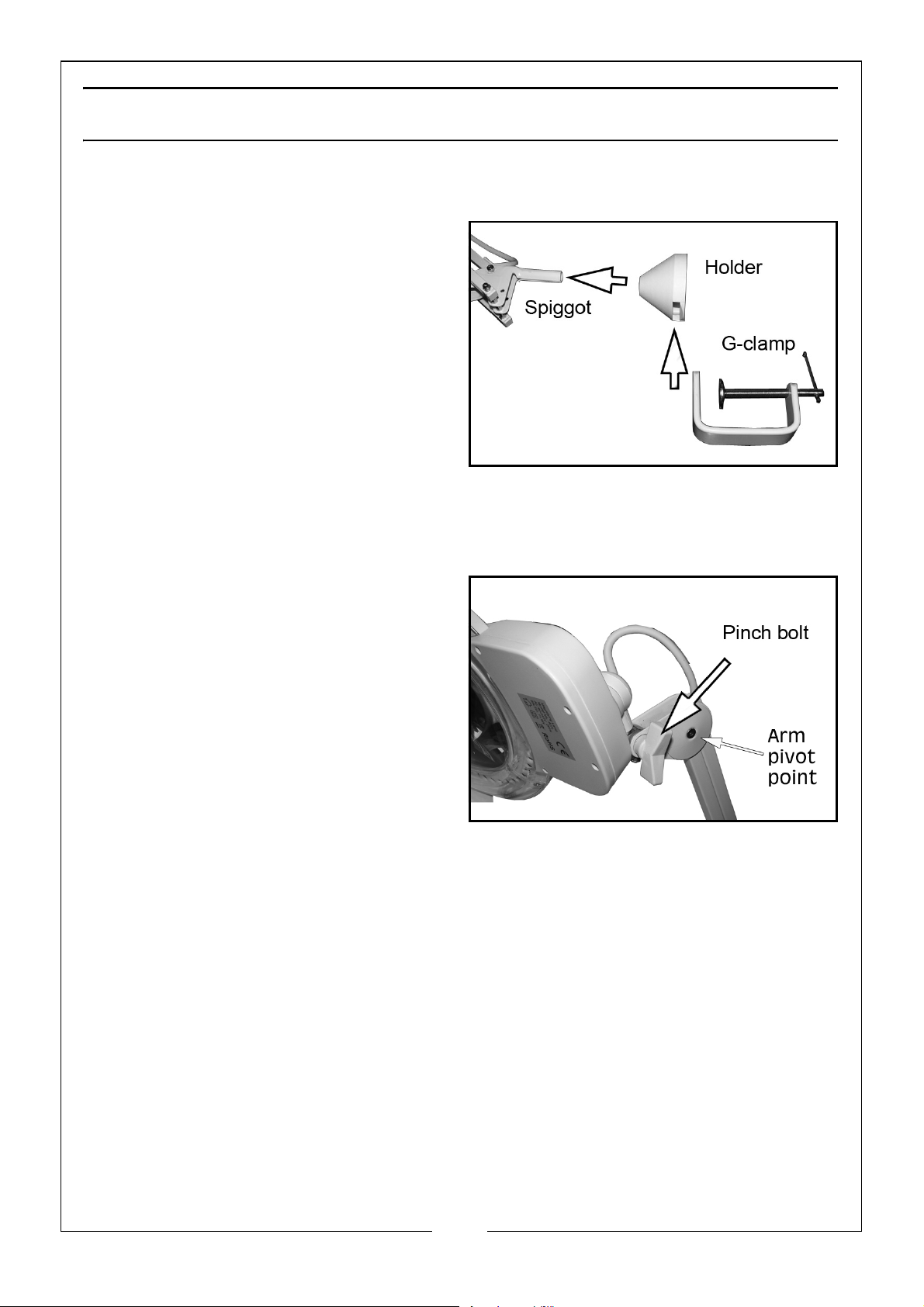

ASSEMBLY AND OPERATION

ASSEMBLY

Your lamp is supplied in three parts;-

• The lamp assembly with
adjustable arms,

•The G- clamp,

• The holder.

Slide the G-clamp into the slot in the
side of the holder, then slide the lamp
assembly spiggot into the holder.

SETTING UP

The G-clamp can be mounted on surfaces with varying angles and such
variations can be accommodated by the angulation of the lamp assembly.

The lamp may be rotated freely in the
holder by slackening the pinch bolt,
adjusting the angle and re­tightening.The arms can be set at
any angle by slackening the 3 arm
pivot points and re-tightening.

Do not over tighten the pinch bolt or
pivot points. When they are correctly
tightened, the lamp should remain
stable in any position.

MAINTENANCE

The lamp requires no maintenance other than cleaning the lens. Liquid glass
cleaner may be used to clean the lens, used sparingly and with a soft dry
cloth. Do not allow the LEDs or electrical connections to get wet.

IMPORTANT: Always switch the lamp OFF and unplug from the power supply
before cleaning the lens.

1. When not in use, switch off & unplug from the power supply.

2. This product should be stored in a secure, dry place, out of the reach of
children. DO NOT leave it exposed to the elements and avoid direct
sunlight, direct heat, rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this product to come into contact with abrasive or corrosive materials.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4. Do not use solvents, thinners or alcohol for cleaning, as these chemicals will
damage the finish. With the lamp unplugged from the power supply, use a
dry cloth to wipe over the lamp components.

5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.

6. Only use parts and accessories recommended in this manual. Never use
unauthorised accessories or attachments which may result in personal
injury or damage to the product.

Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult a qualified electrician or the Clarke Service
Department on 020 8988 7400.

SPECIFICATIONS

Model Number SAM170

Upper/lower arm length 400 mm

Weight 3.3 kg

Operating Temperature

Duty Cycle S1 (continuous)

Fuse Rating 3A

Power Supply 230V @50Hz

Insulation Class II

IP Rating IP20

Efficiency Class A++,A+,A

Luminence 10600 lux @15 cm

0-55oC

Lumen output 700 @1 m

Colour temperature 6300K

Life expectancy of LED 20,000 hours

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

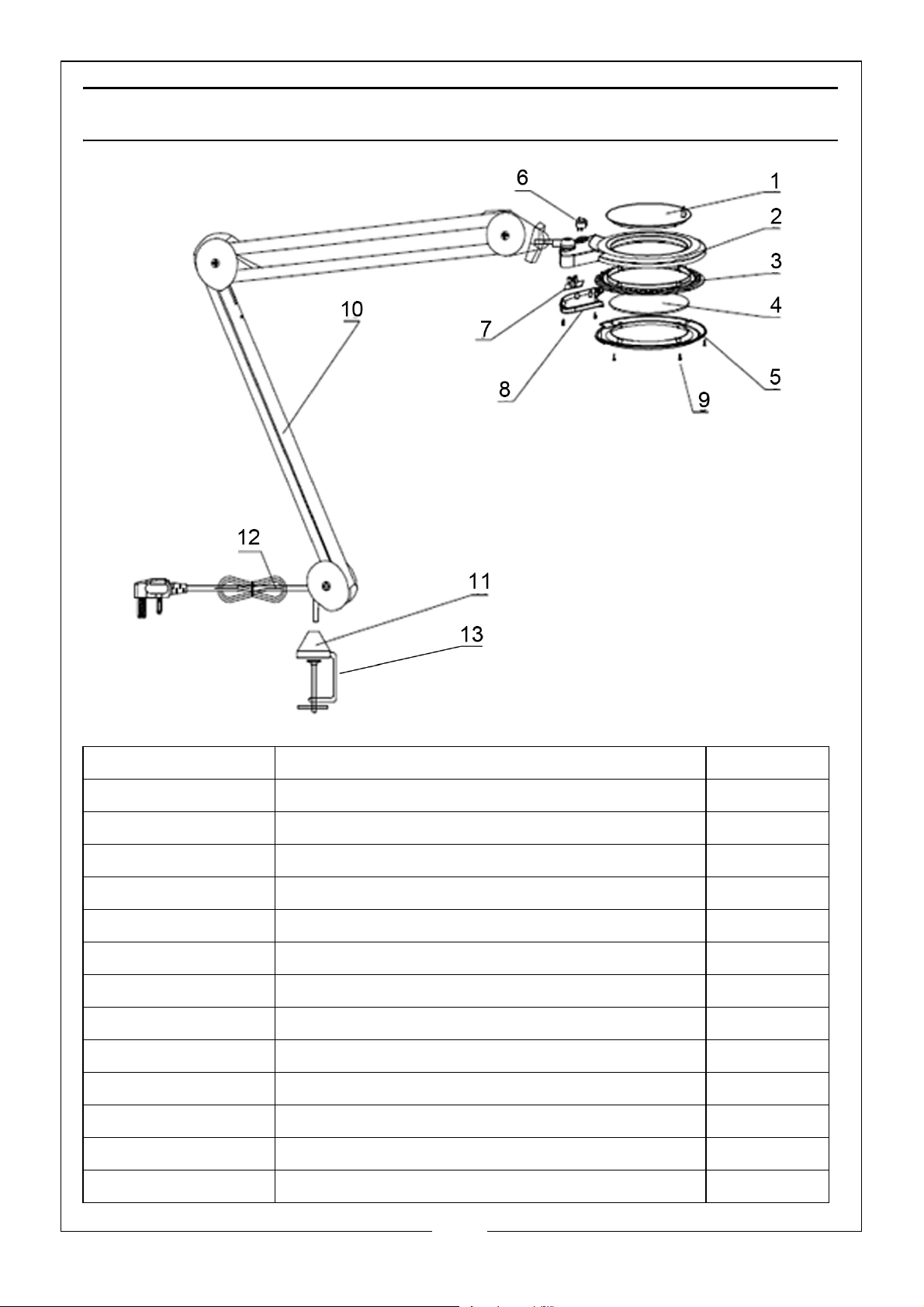

COMPONENT PARTS

Item No Description Qty

1Lens Cover 1

2 Plastic Head cover 1

3LED Board 1

4 Lens (3D) 2

5Diffuser 1

6 On/Off Switch 1

7 LED Driver 1

8 Plastic Back Cover 1

9Screws 12

10 A3- 4bar Swing Arm Assembly 1

11 C1 Table Holder 1

12 BS Plug & power cable 1

13 G- clamp 1

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

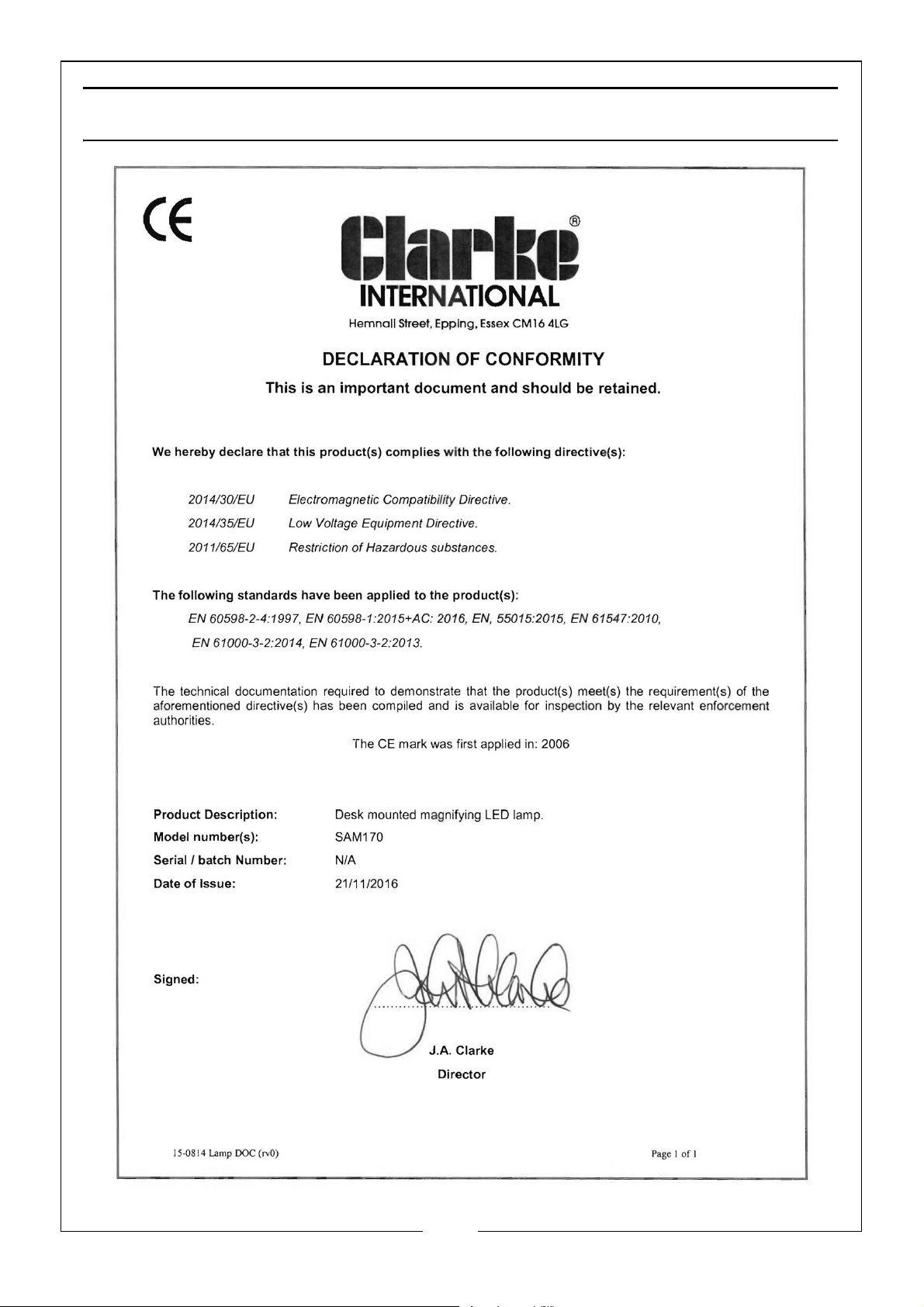

DECLARATION OF CONFORMITY
