Page 1
DESK MOUNTED MAGNIFYING LED LAMP
MODEL NO: SAM127A
PART NO: 54605367
ASSEMBLY & OPERATING INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC11/23
Page 2
INTRODUCTION
Thank you for purchasing your CLARKE magnifying lamp, which is ideal for fine
detail assembly and repair work, stamp collectors, model makers, jewellers,
etc.
Please note that this product is designed for indoor use only.
Before using this product, read this manual thoroughly, and follow the
instructions carefully. Although the product is robust it should nevertheless be
used with care and consideration, you can then look forward to it giving long
and reliable service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
ASSEMBLY AND OPERATION
ASSEMBLY
Your lamp is supplied in three parts;-
• The lamp assembly with
adjustable arms
• The G-clamp
• The holder

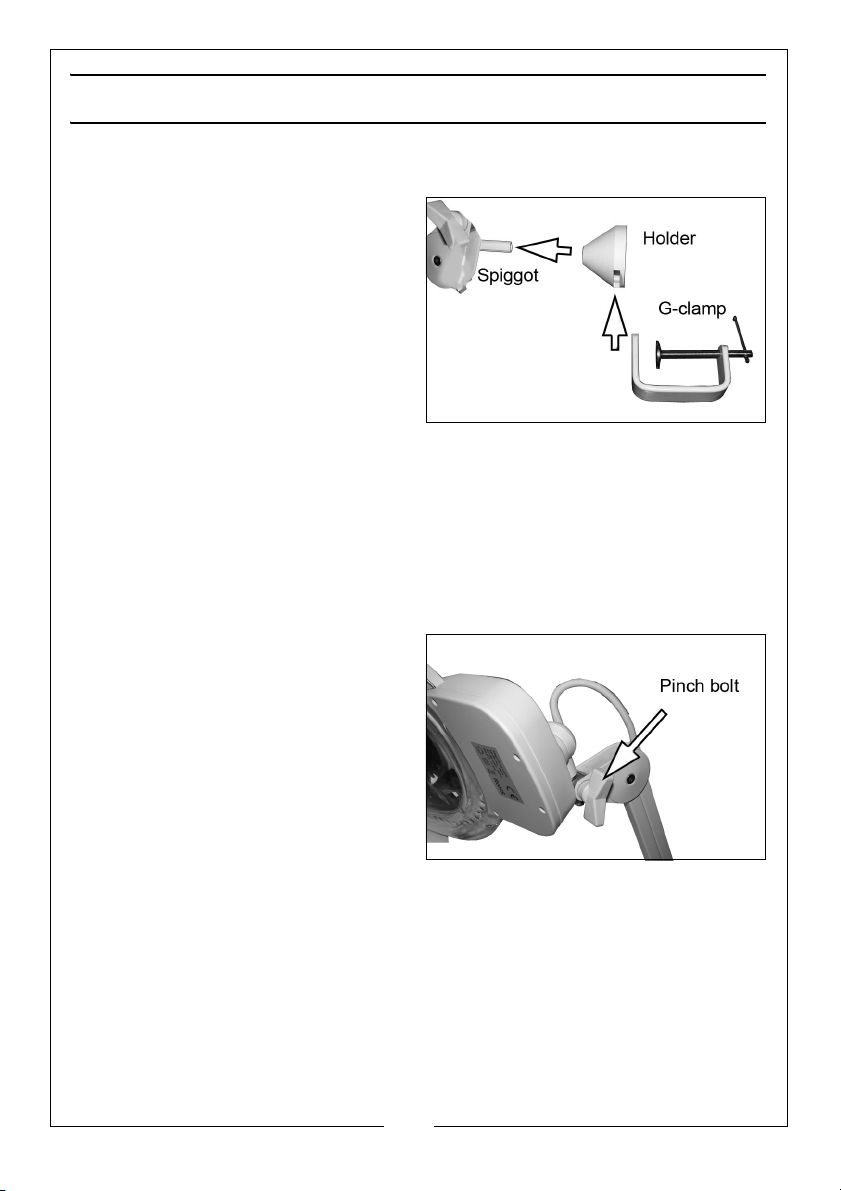

Slide the G-clamp into the slot in the
side of the holder, then slide the lamp
assembly spiggot into the holder.
Plug the power adaptor into a mains
power supply and connect the adaptor to the lamp unit.
SETTING UP
The G-clamp can be mounted on surfaces with varying angles and such
variations can be accomodated by the angulation of the lamp assembly.
The lamp may be rotated freely in the holder and the arms set at any angle by
slackening the pinch bolts, adjusting the angle and re-tightening.
DO NOT over tighten the pinch bolts.
When they are correctly tightened,
the lamp should be capable of
maintaining stability in any position.
CARE & MAINTENANCE
The lamp requires no maintenance
other than cleaning the lens. Liquid
glass cleaner may be used to clean
the lens, used sparingly and with a
soft dry cloth. DO NOT allow the LEDs
or electrical connections to get wet.
IMPORTANT: Always switch the lamp OFF and unplug from the power supply
before cleaning the lens.
1. When not in use, switch off & unplug from the power supply.
2. This product should be stored in a secure, dry place, out of the reach of
children. DO NOT leave it exposed to the elements and avoid direct
sunlight, direct heat, rain/moisture etc.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
3. Keep the external surfaces clean. Avoid impact damage & DO NOT allow
this product to come into contact with abrasive or corrosive materials.
4. DO NOT use solvents, thinners or alcohol for cleaning, as these chemicals
will damage the finish. With the lamp unplugged from the power supply,
use a dry cloth to wipe over the lamp components.
5. Only use extension leads that are of an appropriate power rating and
suitable for the work environment. Inspect the extension lead regularly and
replace if damaged.
6. Only use parts and accessories recommended in this manual. NEVER use
unauthorised accessories or attachments which may result in personal
injury or damage to the product.
DO NOT attempt to repair or modify this product or attempt any electrical
repair yourself. Consult a qualified electrician.
SPECIFICATIONS
Upper/lower arm length 500/500 mm
Weight 2.6 kg
Operating Temperature
Duty Cycle S1 (continuous)
0-40
o
C
Rated Input power 12.5 W
Power Supply 230V @50Hz/12V adaptor
Insulation Class Lamp class III / charger class II
IP Rating IP20
Efficiency Class G
Efficiency 71 Lm/W
Luminence 6500 lux @15 cm
Lumenous flux 500 Lm
Colour temperature 6300K
Weighted energy consumption 13 kWh/1000h
Life expectancy of LED 30,000 hours
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

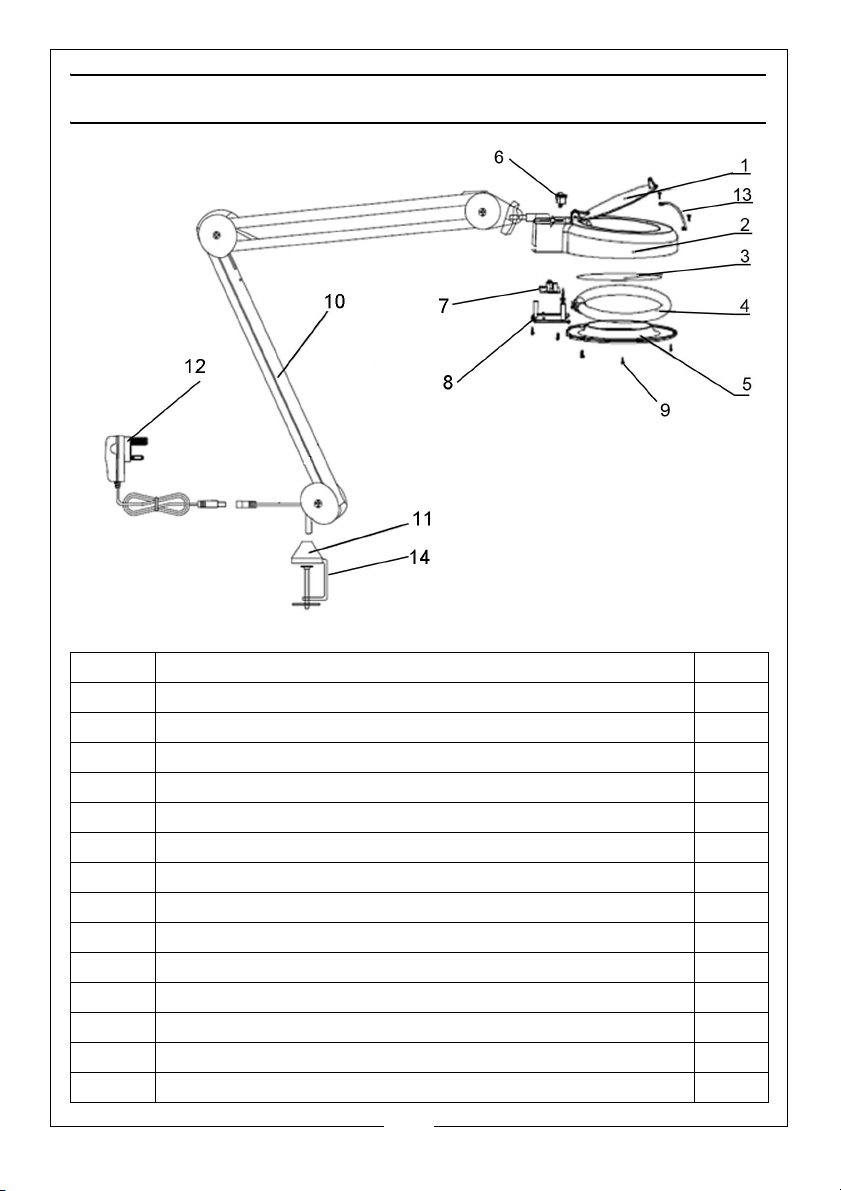

COMPONENT PARTS
Item No Description Qty
1Lens Cover 1
2 Plastic Head cover 1
3Lens 1
4 T9/22W Lamp tube 1
5 Diffuser 1
6 On/Off Switch 1
7 Ballast 1
8 Plastic Back Cover 1
9Screws 8
10 Swing Arm Assembly 1
11 Lamp Holder 1
12 Power adaptor/power cable 1
13 Metal Handle
14 G- clamp 1
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

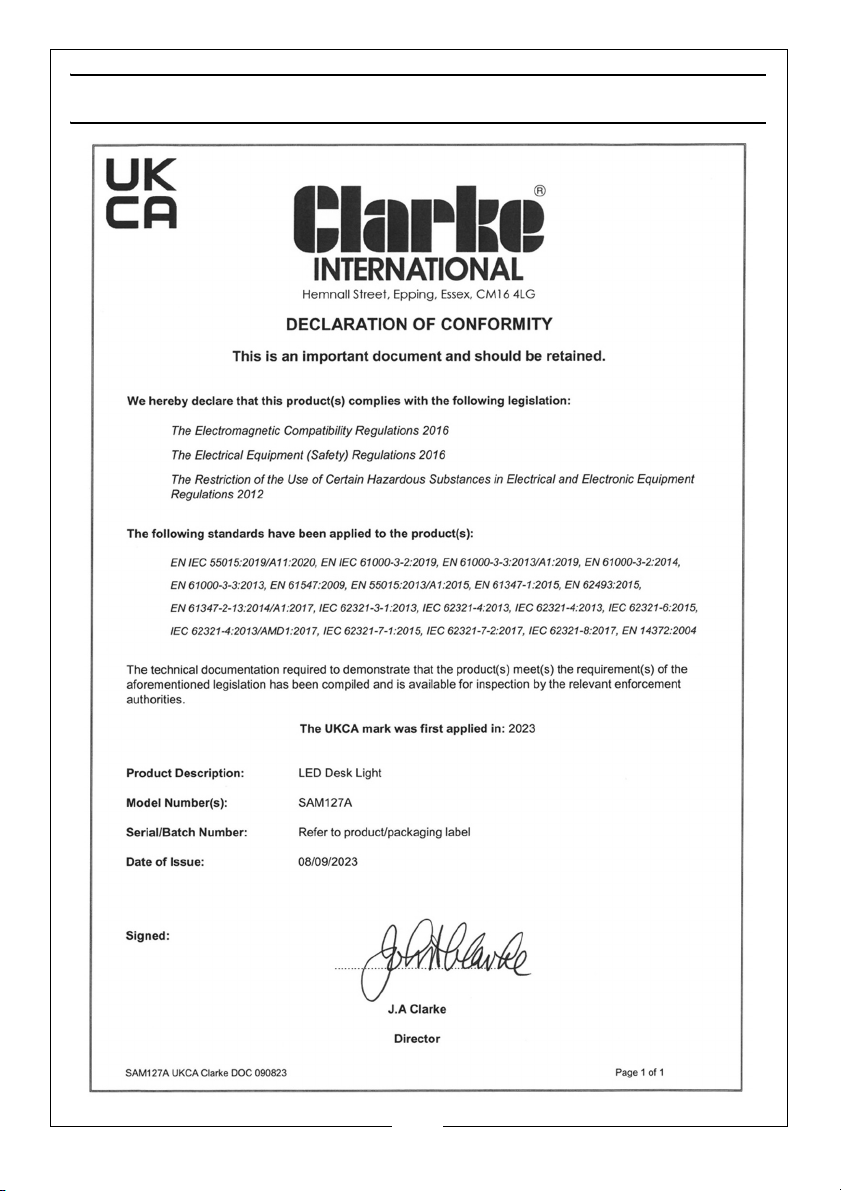

DECLARATION OF CONFORMITY - UK
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

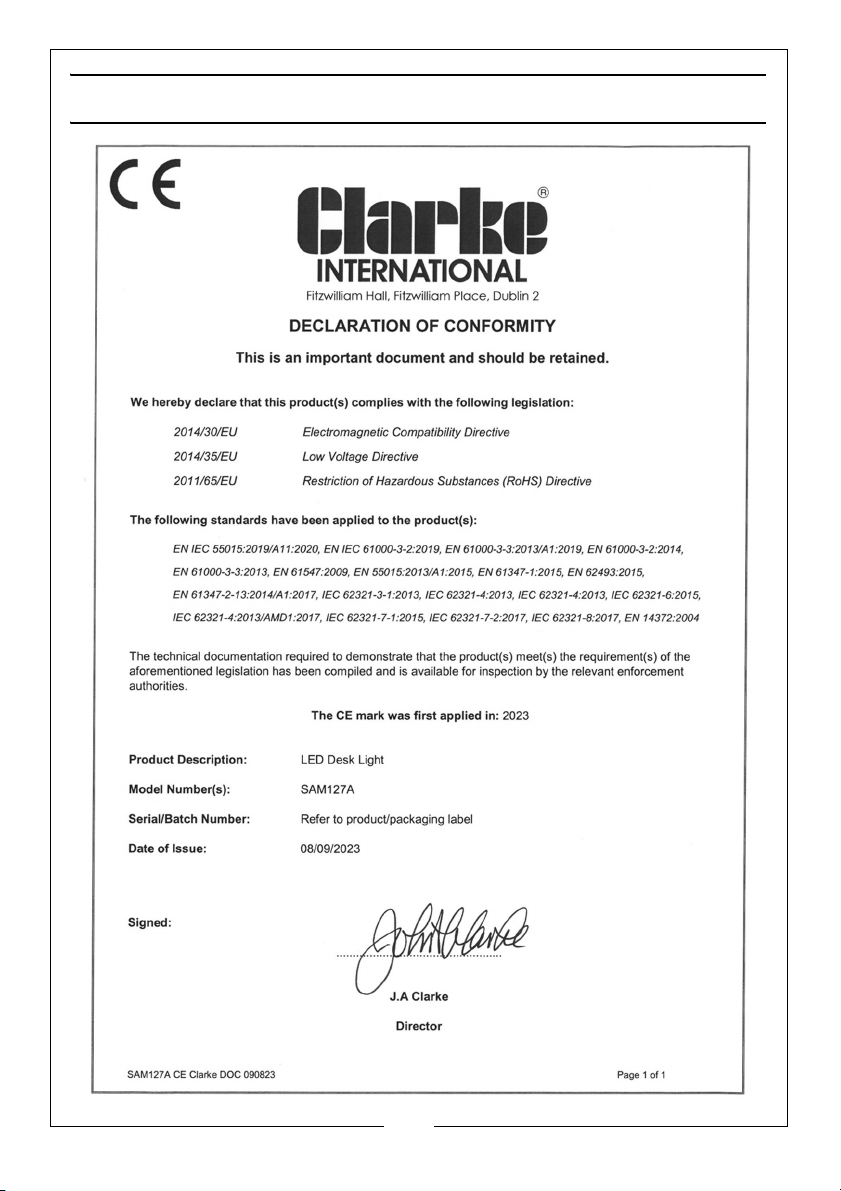

DECLARATION OF CONFORMITY - CE
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
