Clarke PTE550C User guide

HYDRAULIC PALLET TRUCK

MODEL NO: PTE550C

PART NO: 7631701

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC11/22

INTRODUCTION

Thank you for purchasing this CLARKE Hydraulic Pallet Truck.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you and you can look forward to your purchase
giving you long and satisfactory service.

INTENDED USE

The operator / operating company has to ensure the correct use and that this
pallet truck is used only by staff who are trained and authorized to use it.

PRODUCT SPECIFICATION

PTE550C

Width to outside of the forks 550 mm

Fork Length 1100 mm

Gap between the forks. 250 mm

Fork height lowered 75 mm

Maximum Capacity 2000 kg

Dims (L x W x H) mm 1520 x 550 x 1176

Weight 50.5 kg

Turning radius (mm) 1265

Max lifting height (mm) 190

Number of pumps to max height 11

Lowering speed 0.08m/sec

Oil capacity 220ml

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY INSTRUCTIONS

WARNING: THE TRUCK HAS TO BE USED ON SUBSTANTIALLY FIRM,
SMOOTH, LEVEL AND PREPARED SURFACES. THE LOAD MUST BE PLACED
CENTRALLY ON THE FORKS.

The operator should read all warning signs and instructions here and on the
pallet truck before use.

1. Examine the condition of the pallet truck before use, with particular
attention to the wheels, handle, forks and lift/lower controls. DO NOT use
the pallet truck if any defects are found.

2. DO NOT operate a hand pallet truck unless you are familiar with it and
have been trained or authorized to do so.

3. DO NOT make any changes or modifications to the pallet truck.

4. DO NOT use if the wheels or rollers are damaged. Have them replaced
immediately.

5. Keep the work area tidy and well lit.

6. Keep children and bystanders away from the work area.

7. DO NOT exceed the capacity of the pallet truck. Refer to the labelling on
the pallet truck and the Product Specification section in this manual,

8. DO NOT use on rough terrain. The pallet truck is designed for use on smooth
flooring only.

9. DO NOT use the pallet truck on a gradient if the load is too heavy to be
easily handled by the operator. The pallet truck must not be used by
anyone not capable of handling the full weight of the truck when loaded.

10. Watch for differences in the floor levels when moving the truck. The load
may overbalance or the truck could become uncontrollable.

11. DO NOT let the pallet truck come into direct contact with food.

12. DO NOT use the truck in explosive atmospheres.

13. The operator must wear safety shoes and gloves.

14. DO NOT allow personnel other than the operator to stand in front of or
behind the truck when it is moving or lifting/lowering.

15. DO NOT put your foot in front of rolling wheels. Injury could result.

16. DO NOT use the pallet truck as a jack.

17. Ensure nothing is beneath the pallet truck forks prior to lowering, especially
anyone’s feet.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

18. Load the pallet truck evenly with the centre of gravity of the load above
the centre of the forks. DO NOT move unstable or loosely stacked loads.
Use extra care when moving long, tall or wide loads which impair your
view.

19. Keep watching the load and stop if the load becomes unstable.

20. When not in use, always make sure that the truck is stored where it is not a
danger to others. DO NOT leave the truck on a gradient without first
securely chocking the wheels.

21. Carry out maintenance work according to the “Troubleshooting” on
page 10.

22. This truck is not designed to be water resistant, therefore use it in a dry
environment.

ENVIRONMENTAL PROTECTION

DO NOT dispose of this product or its packaging with general household
waste. All tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of appropriately.

To avoid pollution due to oil leakage the user should provide some absorbent
materials to capture any escape of oil during refilling of the hydraulic
mechanism. Such materials should then be disposed of appropriately.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

23. This guarantee does not effect your statutory rights.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY

After unpacking it is necessary to attach the handle assembly as follows:

1. Withdraw the hinge pin (1) from
the truck frame.

2. Take the handle assembly and
lower the end of the chain
through the hole in the pump
body so that it emerges at the
bottom of the housing.

3. Insert the hinge pin through the
handle and frame to connect the
handle to the truck and secure
the hinge with the cotter pins at
each end.

4. Take the end of the chain and
lead it past the hinge pin and
engage it with the actuating lever
(6).

5. Move the handle assembly to the
level position and remove the
travel pin (7). Store it safely for
future use.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ADJUSTMENT

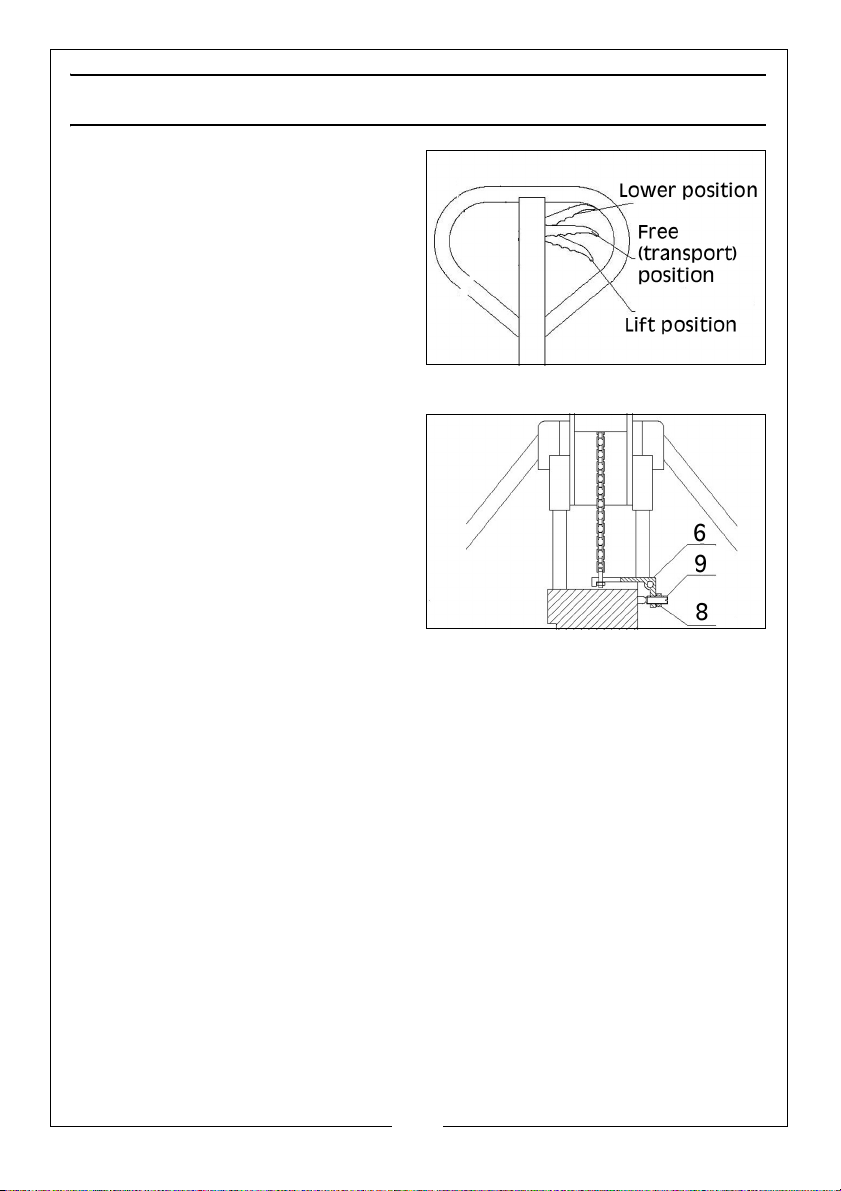

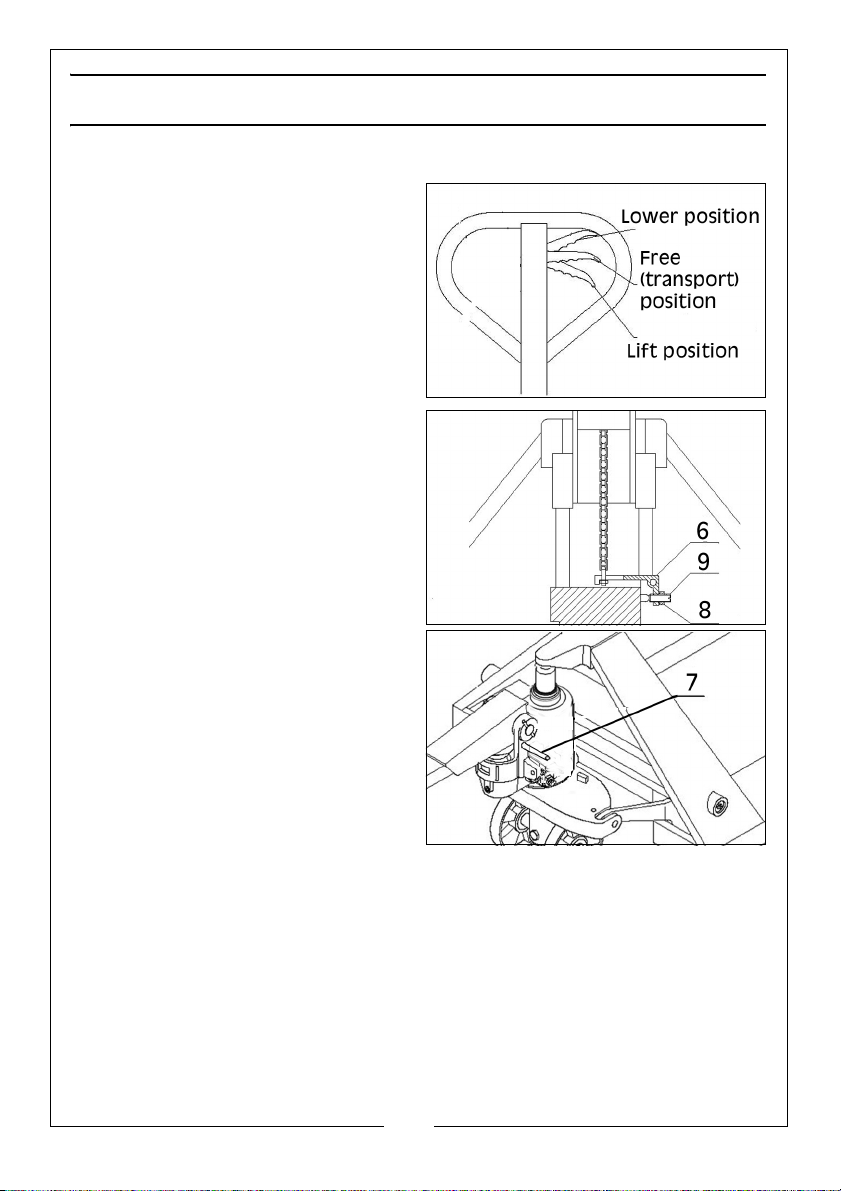

The control lever has three positions
shown and indicated by the label on
the handle.

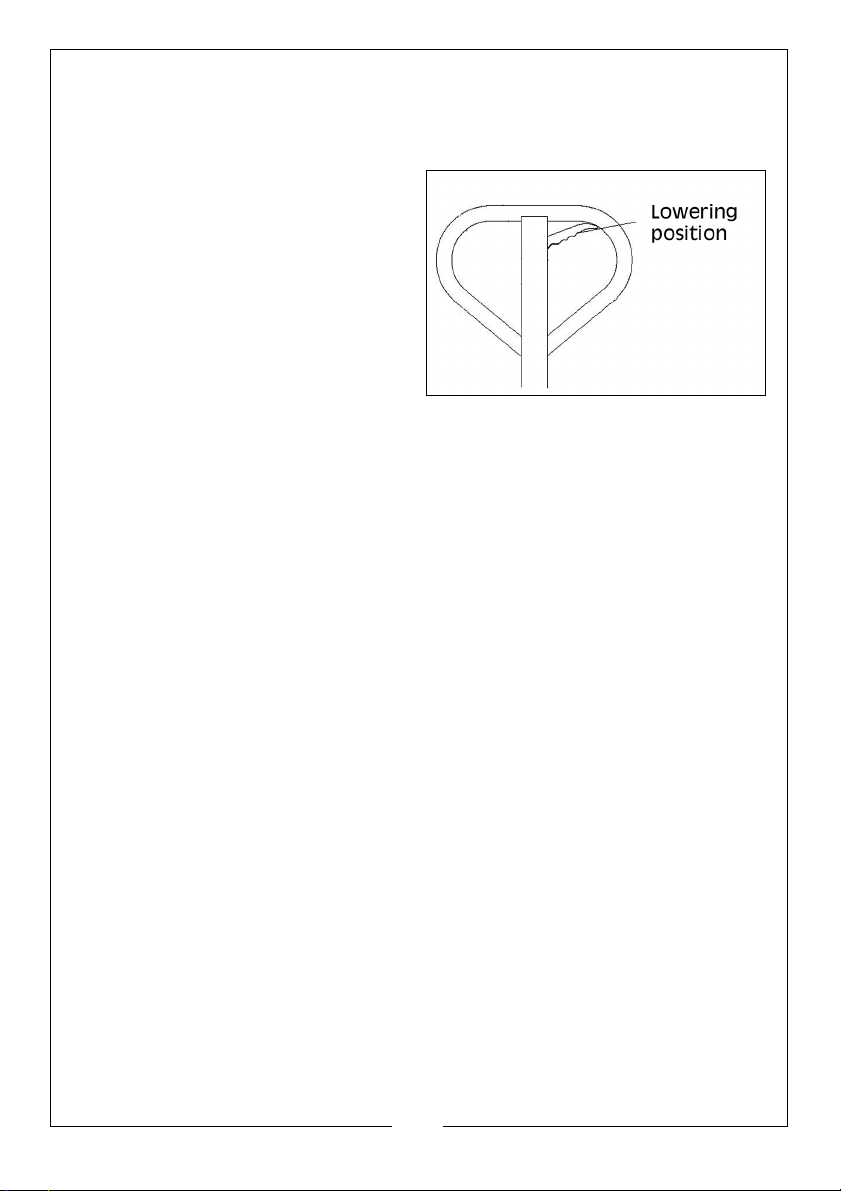

• With the lever pulled to the

upper position, the forks will
lower.

• The middle position allows the

load to be transported.

• The lower position will cause

the forks to lift when the handle is pumped.

The screw (9) is used to adjust the
range of movement of the handle
relative to the hydraulic pump.

Raise and lower the handle to make
the forks lift up.

1. If the truck drops immediately
after it is raised, turn the screw (9)
in a counter-clockwise direction
Test again to see if the truck lifts
normally.

2. If the truck fails to lower after being raised, turn the screw clockwise.

The locking nut (8) is used to secure the mechanism once the correct setting is
achieved.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATING INSTRUCTIONS

BEFORE USE

Daily inspection is advisable to find any defect of the pallet truck. Check the
following points before operation.

• Visually check for structural damage and listen for any unusual noise or

binding of the lifting mechanism.

• Check if there is any oil leakage.

• Raise/lower the forks to check for vertical creep of the lifting

mechanism.

• Check for any damage to the wheels and ensure they rotate smoothly.

• Check that all the bolts and nuts are tight.

• Verify that all warning labels are in place.

WARNING: DO NOT USE THE PALLET TRUCK IF ANY DEFECT IS FOUND.

LIFTING

1. Check that the load does not exceed the rated capacity of the truck.

2. Roll the pallet truck with its forks slowly under the pallet/load until the back
end of the fork rests against the load.

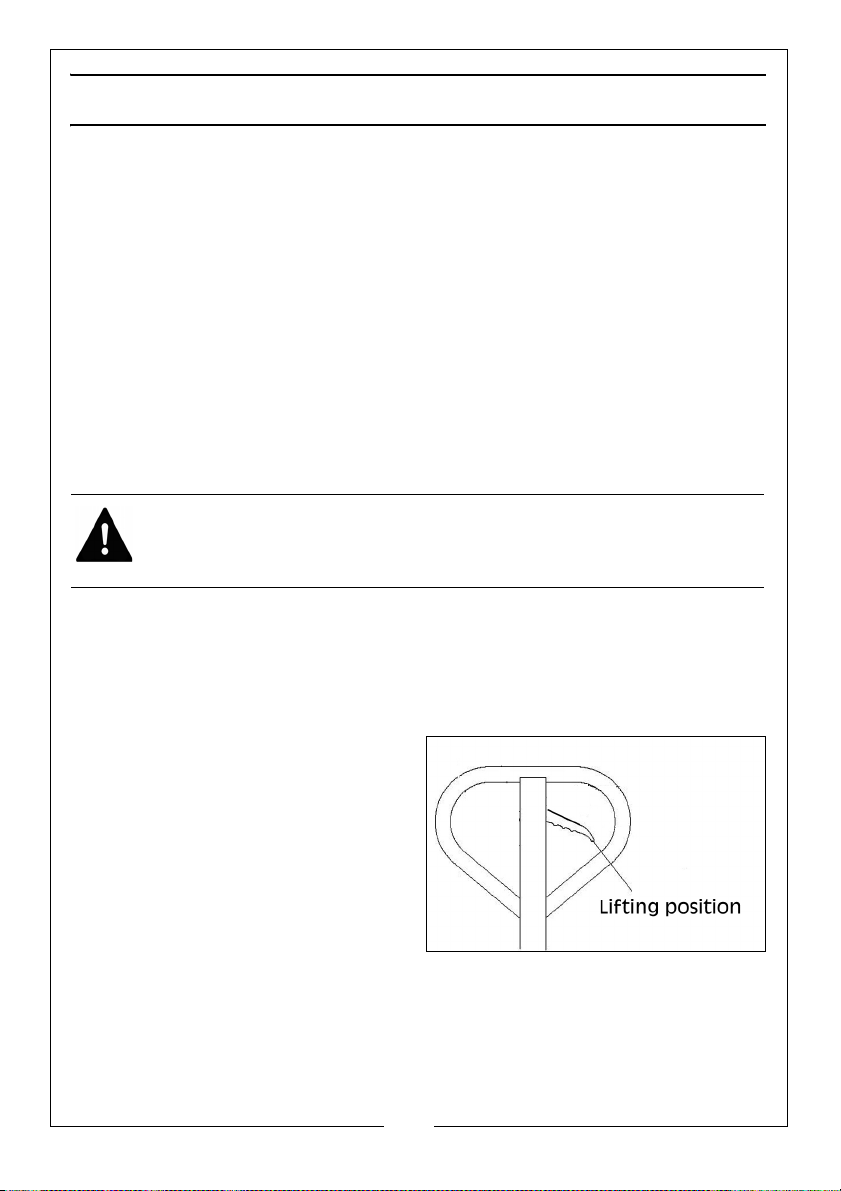

3. Move the operating lever down to
the ‘Lifting’ position. Lift the load
by moving the handle assembly
up and down.

• The load must be evenly

distributed across both forks.

• DO NOT OVERLOAD.

MOVING

1. Ensure the control lever is in its middle (transport) position.

2. Move the truck using the handle assembly.

3. DO NOT operate the truck on a slope.

4. Watch for differences in the floor level when moving the pallet truck.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Make sure that the load is stable.

6. If the pallet truck is moving, DO NOT turn the handle at a right angle to stop
the pallet truck.

LOWERING

1. Lower the load by moving the
operating lever up to the lowering
position carefully.

• By releasing the lever, the

lowering movement will stop.

2. Ensure there is adequate
clearance behind you when
withdrawing the forks from the
pallet.

3. DO NOT put your foot or hand under the lifting components.

PARKING

When parking the pallet truck, lower the forks to the lowest position and park
on smooth, level ground where it is not an obstruction. If the ground is not flat,
chock the wheels to stop it moving.

MALFUNCTIONS

If there is any malfunction stop using the truck until it is repaired by your local
CLARKE dealer.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CARE & MAINTENANCE

Whilst the pallet truck requires very little maintenance, the following care can
be expected.

PURGING AIR FROM THE HYDRAULIC SYSTEM

If the pallet truck has been
transported over any distance or has
been overturned at any time, air may
have entered the hydraulic system.
This will make it impossible to raise the
forks under load.

1. Hold the control handle in the
‘lower’ position.

2. Move the handle up and down
several times.

CHECKING THE OIL

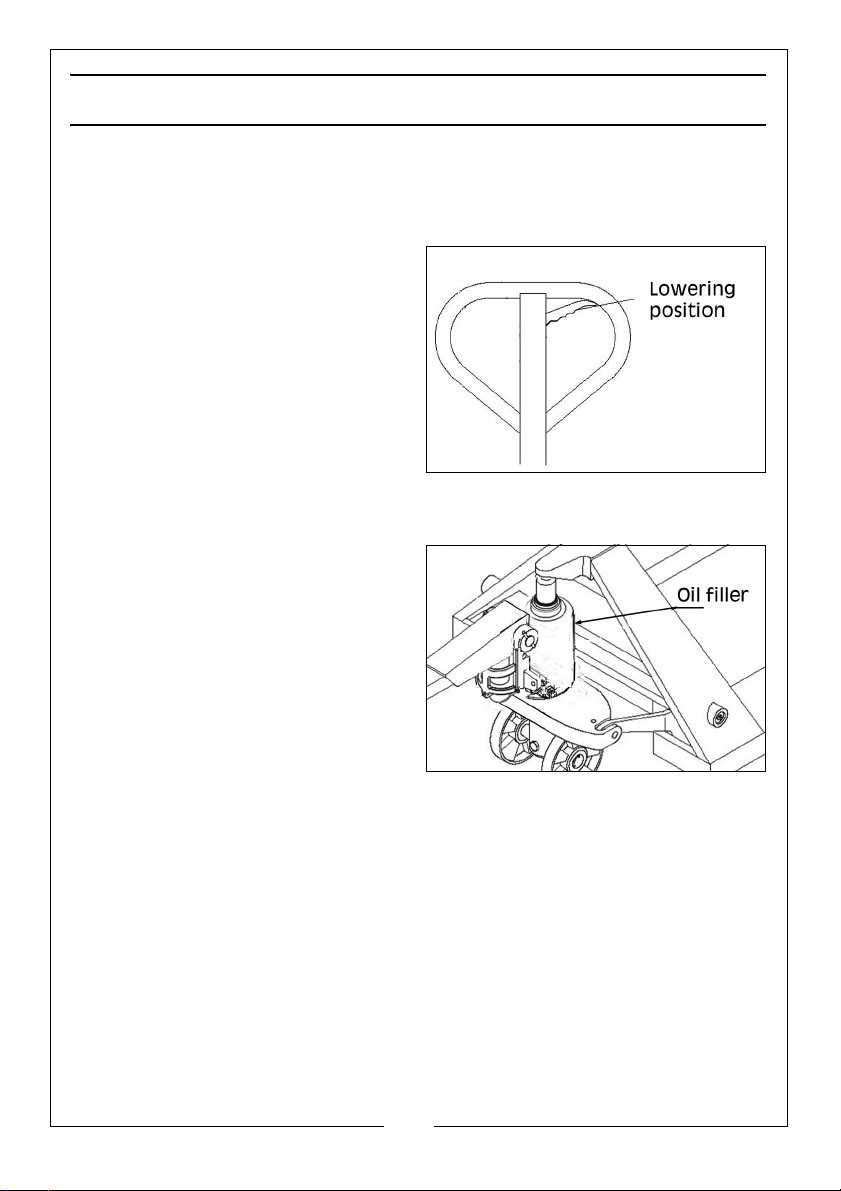

1. Check for any oil leaks and top up
if necessary at the filler plug.

• The capacity is approximately

0.22 litre.

• The recommended type is L-

Hydraulic 32 oil, provided the
truck is not to be used outside
the temperature range of -20°C
to +40°C.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

PROBLEM CAUSE ACTION

The forks
cannot be
raised to
the max
height

The forks
cannot be
lowered

Oil leaks
from the
ram

The forks
lower
on their
own.

Hydraulic oil is low Top up oil.

The oil is contaminated with
moisture.

The chain adjustment for the
operating lever is incorrect

Air in the hydraulic system. Purge air from the

The piston rod is deformed
resulting from load slanting to
one side or over loading.

The fork was kept in the raised
position for long time with the
piston rod exposed to dampness
which caused rusting and
jamming of the rod.

The chain adjustment for the
operating lever is incorrect

Oil seals are worn or damaged. Replace or return to

Impurities in the oil cause the
release valve to remain open.

Leaks in the hydraulic system. Return to CLARKE dealer

Air in the hydraulic system. Purge air from the

The chain adjustment for the
operating lever is incorrect

Change the oil.

See page 6.

hydraulic system. See
page 9.

Replace the piston rod or
return to CLARKE dealer
for overhaul.

Keep the fork in the lowest
position when not in use
and lubricate the piston
rod.

See page 6.

CLARKE dealer for
overhaul.

Replace with the new oil.

for overhaul.

hydraulic system. See
page 9.

See page 6.

Do not attempt to repair the pallet truck unless you are trained or authorized
to do so.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

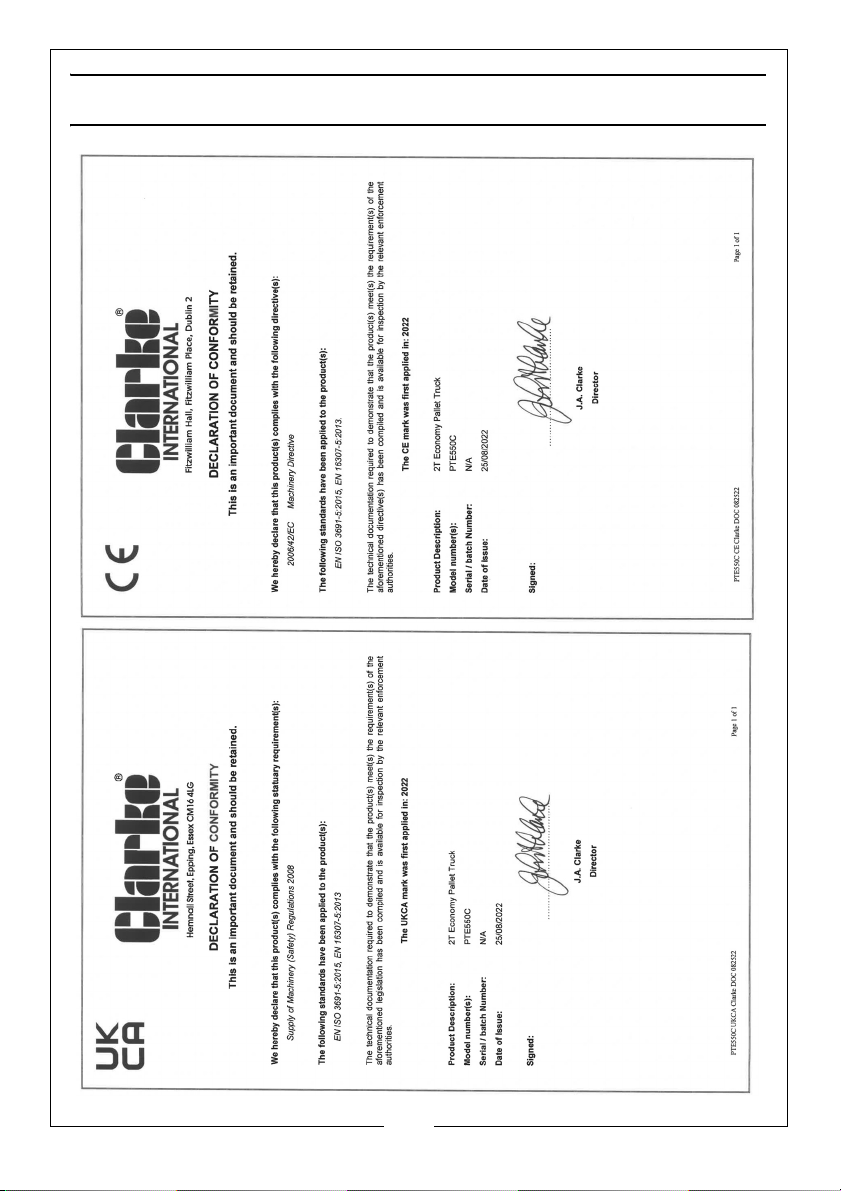

DECLARATIONS OF CONFORMITY-PTE550C

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

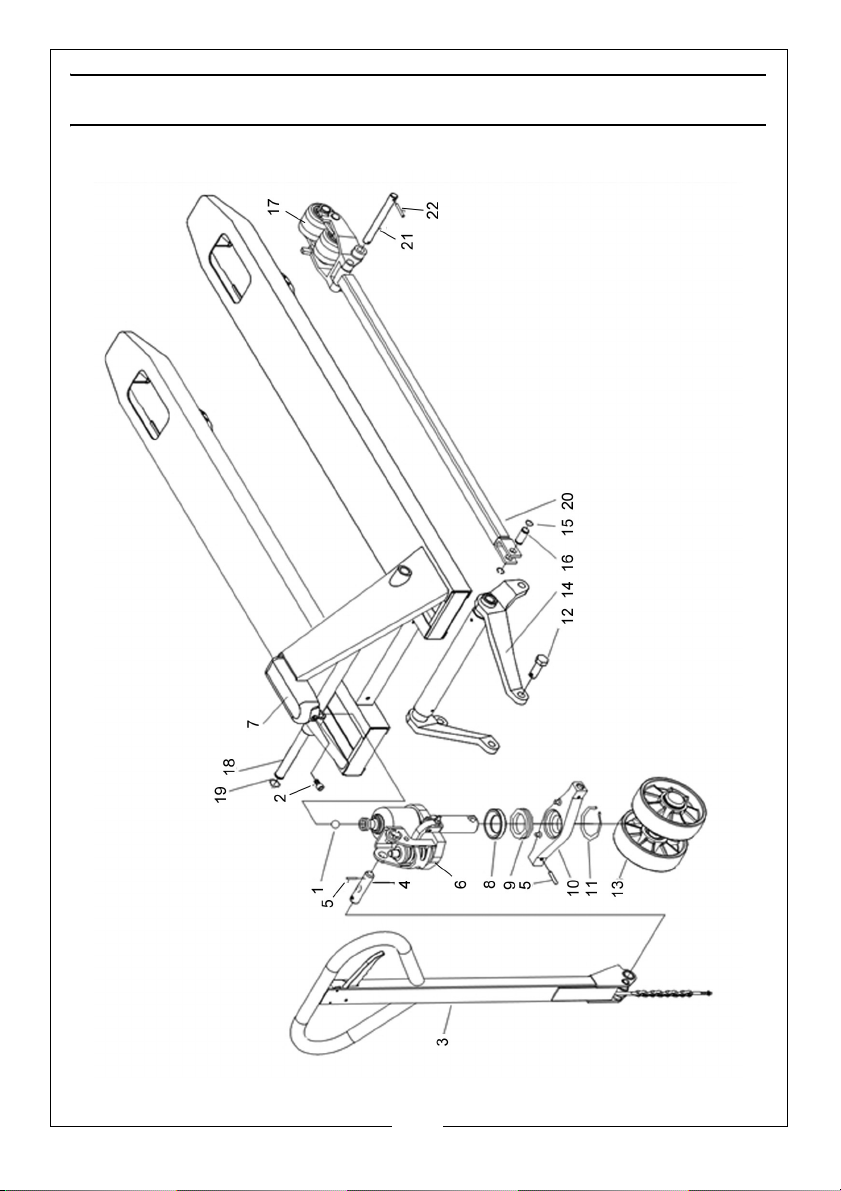

COMPONENT PARTS - FORKS & FRAME

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPONENT PARTS - FORKS AND FRAME

No Description No Description

1 Ball 12 Hinge pin

2 Bolt 13 Rear wheel assembly

3 Handle assembly see page 15 14 Crank arm

4 Hinge pin 15 Circlip

5 Support cuff 16 Bush

6 Pump assembly (see p 14 17 Bogie assembly

7 Forks 18 Hinge Rod

8 Pivot cuff 19 Circlip

9 Bearing base 20 Connecting rod

10 Hinge base 21 Pivot shaft

11 Circlip 22 Securing pin

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPONENT PARTS - PUMP

No Description No Description

1 Pump core 11 O-ring

2Pin 12Seal ring

3 Spring cap 13 Screw plug

4 Dust ring 14 Washer

5 Sealing ring 15 Spring

6 Spring 16 Valve body

7 Pump base 17 Valve core

8 Piston rod 18 Steel ball

9 O-ring 19 Spring

10 Magnet 20 Valve body

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

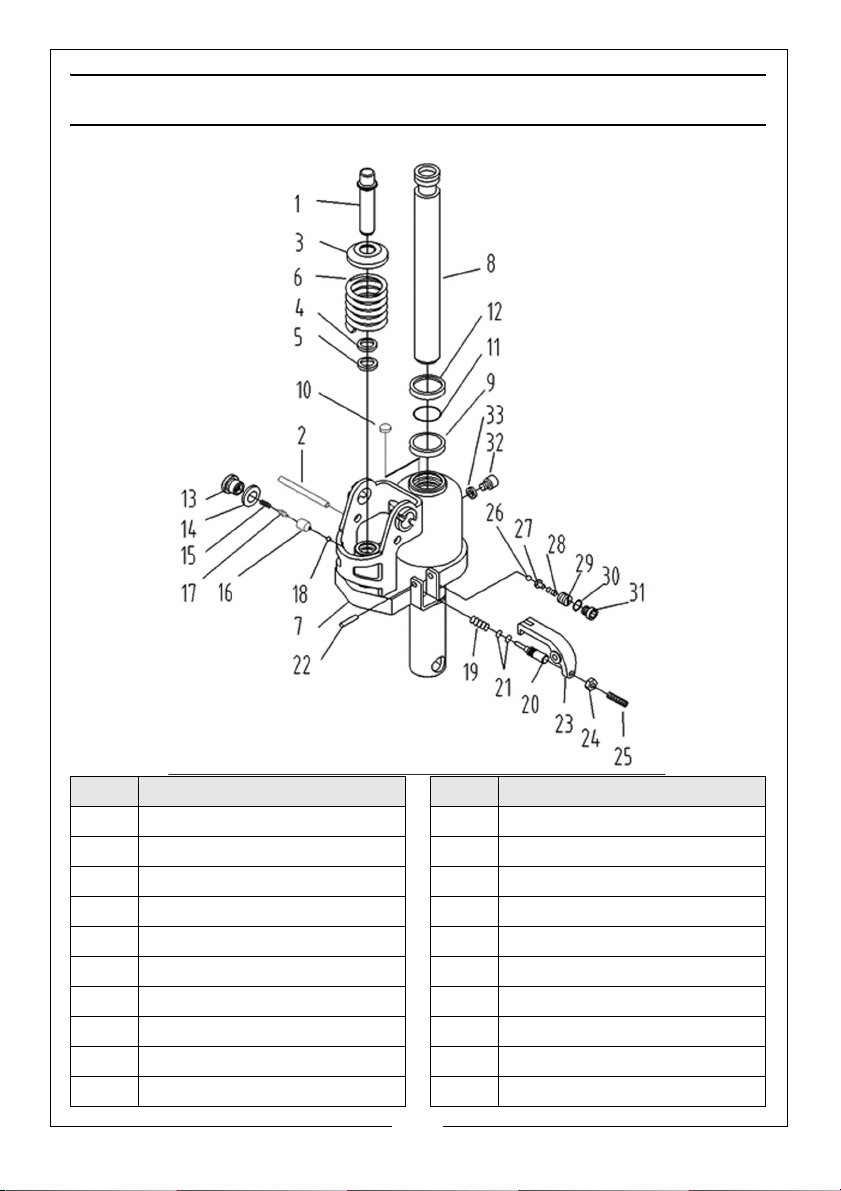

21 Steel balls 28 Valve spring

22 Pin 29 Valve core

23 Lever bracket 30 Washer

24 Nut M6 31 Screw cap

25 Screw M6x25 32 Plug

26 Steel ball 33 Seal ring

27 Ball seat

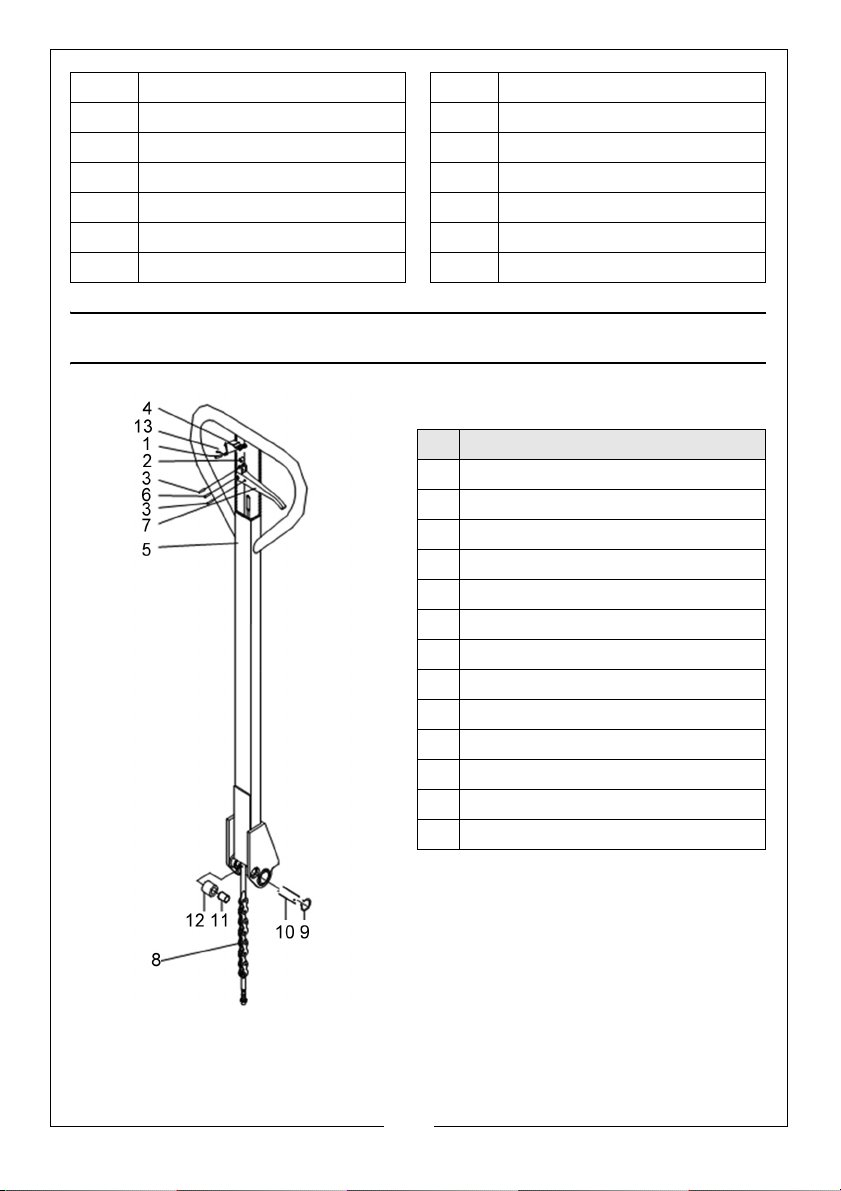

COMPONENT PARTS - HANDLE ASSEMBLY

No Description

1Pin

2 Wheel

3Pin

4 Fixed plate

5Column

6Pin

7 Handle

8Chain

9 Circlip

10 Hinge

11 Pin

12 Bush

13 Spring

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
