Clarke PM1200, PM1600 User guide

1200/1600W PADDLE MIXERS

MODEL NO: PM1200 & PM1600

PART NO: 6479560 6479565

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC10/23

INTRODUCTION

Thank you for purchasing this CLARKE Paddle Mixer.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

SPECIFICATIONS

PM1200 PM1600

Product Dimensions (L x W x H) 840 X 330 X 195 mm 880 x 330 x 195mm

Weight 4.45 kg 5.2 kg

Chuck connection M14 female thread

Paddle length 590mm (fitted)

IP Rating IPX0

Rated Voltage / Frequency 230 V / 50 Hz

Input Wattage 1200 W 1600 W

Input Ampere (typical load) 4.45 A 7.4 A

Rated No Load Spindle Speed 0-750 rpm (variable) 0-600/ 0-900 rpm

Duty Cycle Classification S1 (continuous)

Sound pressure 92 dB (A)

Sound Power Measured (Lwa dB) 100 dB (A)

Guaranteed sound power level 103 dB (A)

Uncertainty factor 3.0 dB

Vibration (handle)

Uncertainty factor

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3.157 m/s

1.5 m/s

2

2

GENERAL SAFETY PROCEDURES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite
accidents

2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.

2. Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Plugging in power tools that have the switch on invites
accidents.

3. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.

4. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

5. Gloves, manufactured to the current UK & European safety standards
should be worn.

6. Eye protection manufactured to the current UK & European safety
standards should be worn when operating rotating equipment. Eye
protection must provide protection from flying particles from the front and
the side.

GENERAL USE AND CARE OF POWER TOOLS

1. ALWAYS check for any damage or condition that could affect the
machine’s operation. Any damaged part should be properly repaired.

2. NEVER use the mixer if it is defective or operating abnormally.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. NEVER abuse the mains power cable. Never yank the cable to disconnect
it from the socket. Keep the cable away from sharp edges/hot surfaces.

4. NEVER carry out any alterations or modifications to this product.

5. NEVER wipe the machine clean with solvents. Wipe plastic parts with a soft
cloth, slightly dampened with soapy water.

6. NEVER attempt any repairs yourself. If you have a problem with this product
contact your local CLARKE dealer.

7. DO NOT use the machine for any purpose than that described in this
manual.

8. ALWAYS maintain the machine with care. Keep it clean for the best and
safest performance.

9. DO NOT force a power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.

10. DO NOT use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.

11. Store idle tools out of the reach of children and DO NOT allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.

12. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.

13. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a
hazardous situation.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. NEVER modify the plug in any way.
DO NOT use adapter plugs with earthed (grounded) power tools. Correct
plugs and matching outlets will reduce the risk of electric shock.

2. DO NOT abuse the cable. NEVER use it for carrying, pulling or unplugging
the power tool. Keep the cable away from heat, oil, sharp edges or
moving parts. Damaged or entangled cables increase the risk of electric
shock.

3. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock. If operating the power

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply.

4. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.

ADDITIONAL PRECAUTIONS FOR PAINT MIXERS

1. NEVER use third party mixing attachments. Replacement parts can be
obtained from you CLARKE dealer.

Please keep these instructions in a safe place for future reference.

SAFETY SYMBOLS

The meanings of the markings and symbols on the product are shown below

Read this manual
before use and keep
in a safe place for
future reference

Wear ear protection
when using this
product

Wear eye protection
when using this product

Wear prot ective
clothing

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All
tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of according to the laws governing
Waste Electrical and Electronic Equipment.

Through the purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

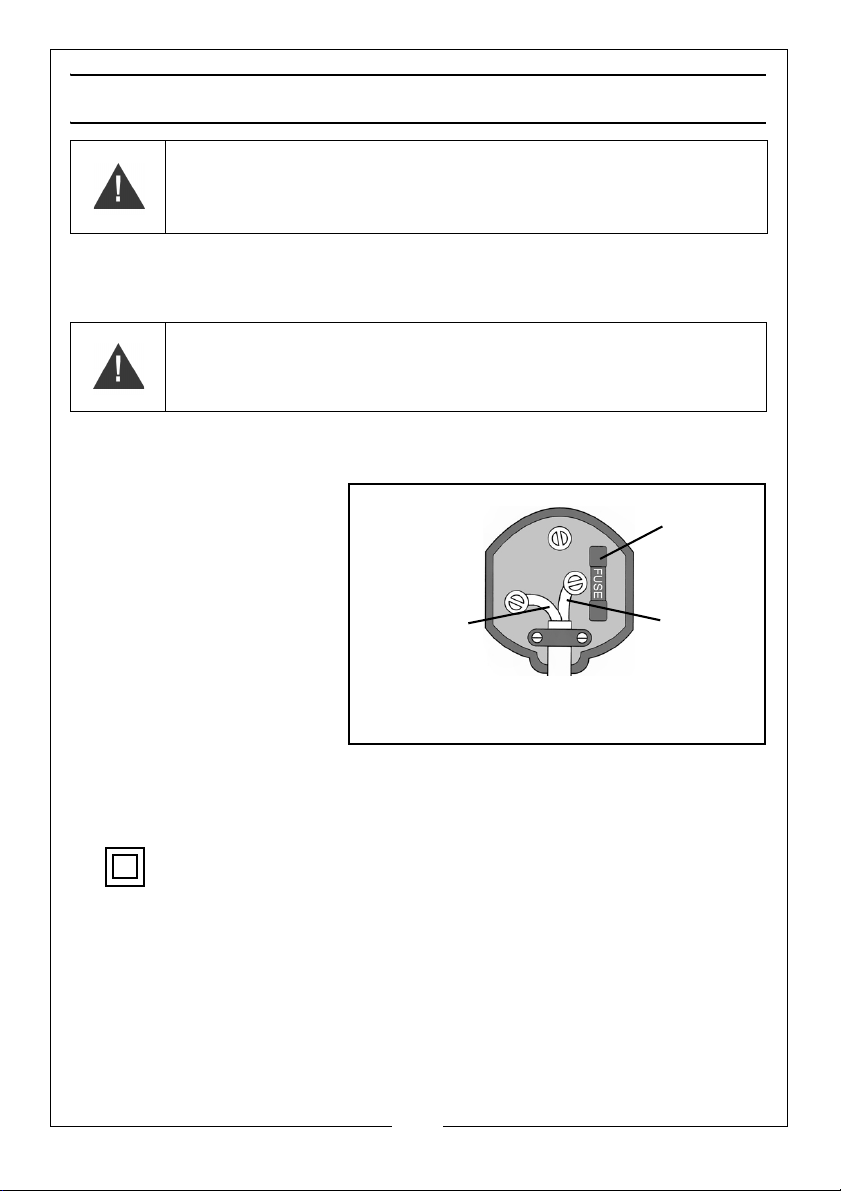

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

make sure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

a 13 Amp

the cable is firmly held by the clamp

fuse.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY
BEFORE CONNECTING THE MACHINE TO THE MAINS SUPPLY.

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug,
for connection to a standard, domestic electrical supply. Should the plug
need changing, make sure that a plug of identical specification is used.

WARNING: THE WIRES IN THE CABLE ARE COLOURED AS FOLLOWS:
BLUE = NEUTRAL BROWN = LIVE

If the colours of the wires in the power cable do not correspond with the
markings on the terminals of your plug, proceed as follows.

• Connect the blue wire

to the terminal which
is marked N.

• Connect the brown

wire to the terminal
which is marked L.

We recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)

If in doubt, consult a qualified electrician. DO NOT attempt any repairs yourself

This symbol indicates that this is a Class II product, and does not
require an earth connection.

CABLE EXTENSIONS

Always use an approved cable extension suitable for the power rating of this
tool (see specifications), the conductor size should also be at least the same
size as that on the machine, or larger. When using a cable reel, always unwind
the cable completely

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6

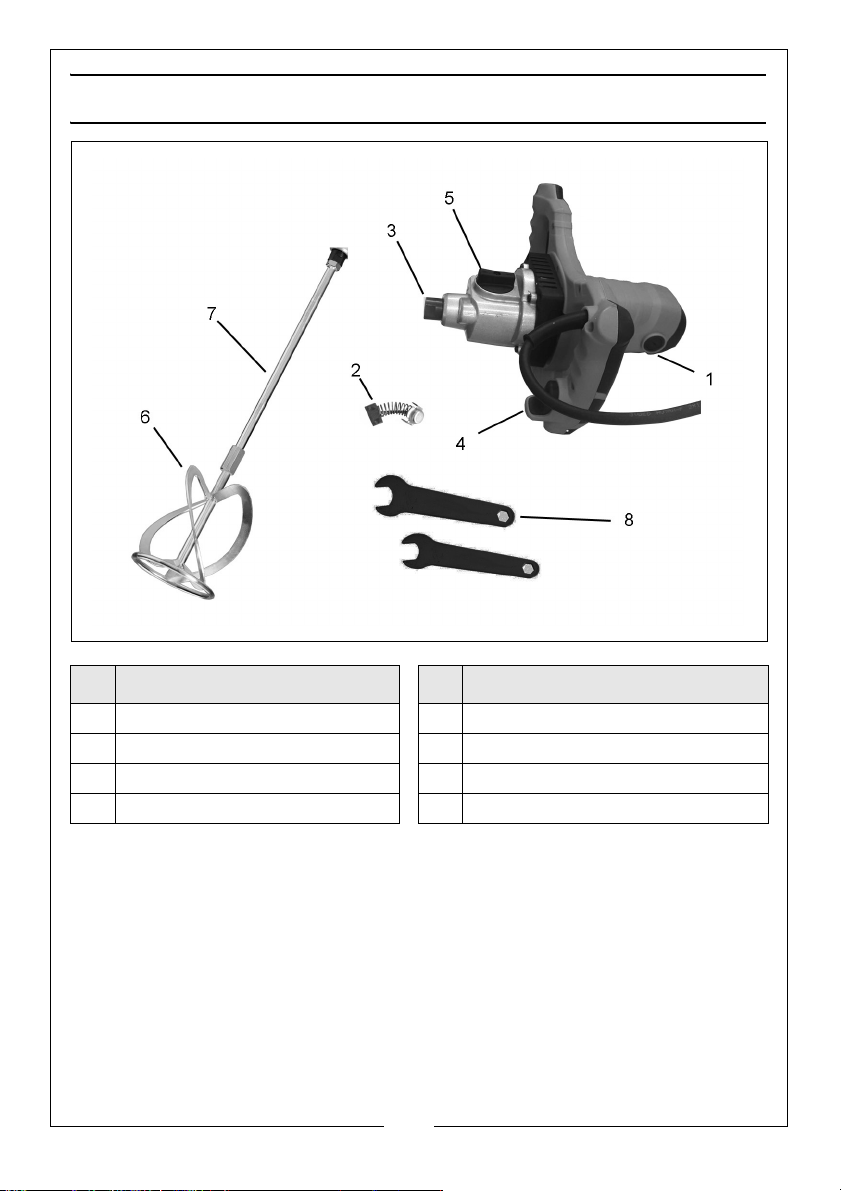

OVERVIEW

No Description No Description

1 Carbon brush cover 5 Dual Speed control (PM1600 only)

2 Replacement carbon brushes 6 Mixing paddle

3 Tool holder 7 Drive shaft

4 Safety trigger 8 Spanners

The items above are supplied loose in the carton. If any are missing or
damaged please contact the CLARKE dealer where you purchased the
product.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

BEFORE USE

WARNING: BEFORE REMOVING, OR INSTALLING THE MIXING BLADE,
MAKE SURE THAT THE MAINS PLUG HAS BEEN REMOVED FROM THE MAINS
POWER SUPPLY.

FITTING THE MIXING BLADE

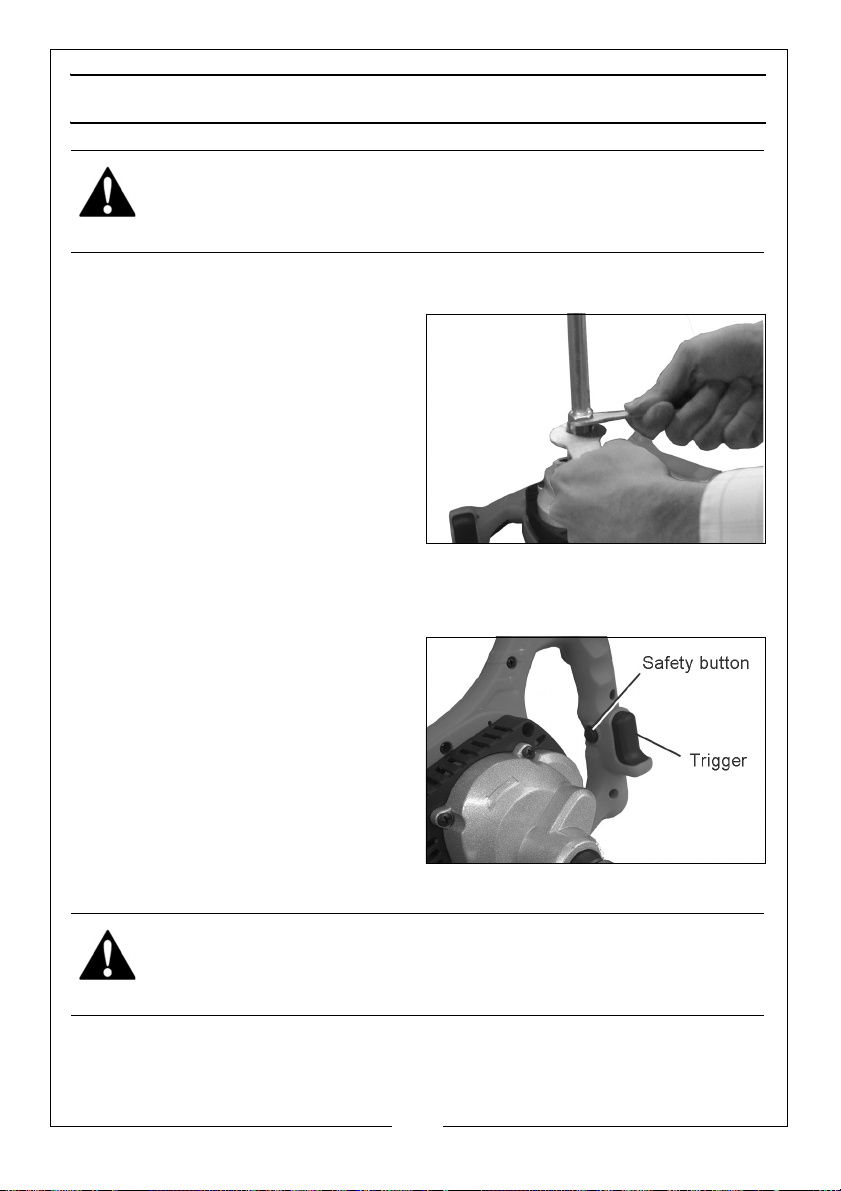

1. Screw the mixing blade shaft into
the tool holder.

2. Use the two spanners supplied to
tighten the mixing blade locking
nut as shown.

3. Screw the mixing paddle to the
other end of the drive shaft and
tighten with the spanners.

SWITCHING ON AND OFF

1. Ensure the mixing container is securely positioned on the floor.

2. Dip the mixing paddle into the substance to be mixed.

3. Set the speed control to low speed

4. Always hold the mixer with both
hands.

5. Press and hold the safety trigger
interlock button, then squeeze the
trigger switch. Gradually increase
the mixing speed to the desired
maximum speed (sothat the
substance will not splash around
and the motor will not be

overloaded).

WARNING: THE MIXING BLADE WILL CONTINUE TO RUN FOR A SHORT
PERIOD AFTER THE TRIGGER SWITCH HAS BEEN RELEASED. WAIT FOR IT TO
STOP BEFORE REMOVING THE MIXING BLADE FROM THE MATERIAL BEING
MIXED.

6. To stop, release the trigger switch before removing from the substance
being mixed.

7. Disconnect the power supply and clean off the mixing paddle.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

VA R I AB L E S PE E DS

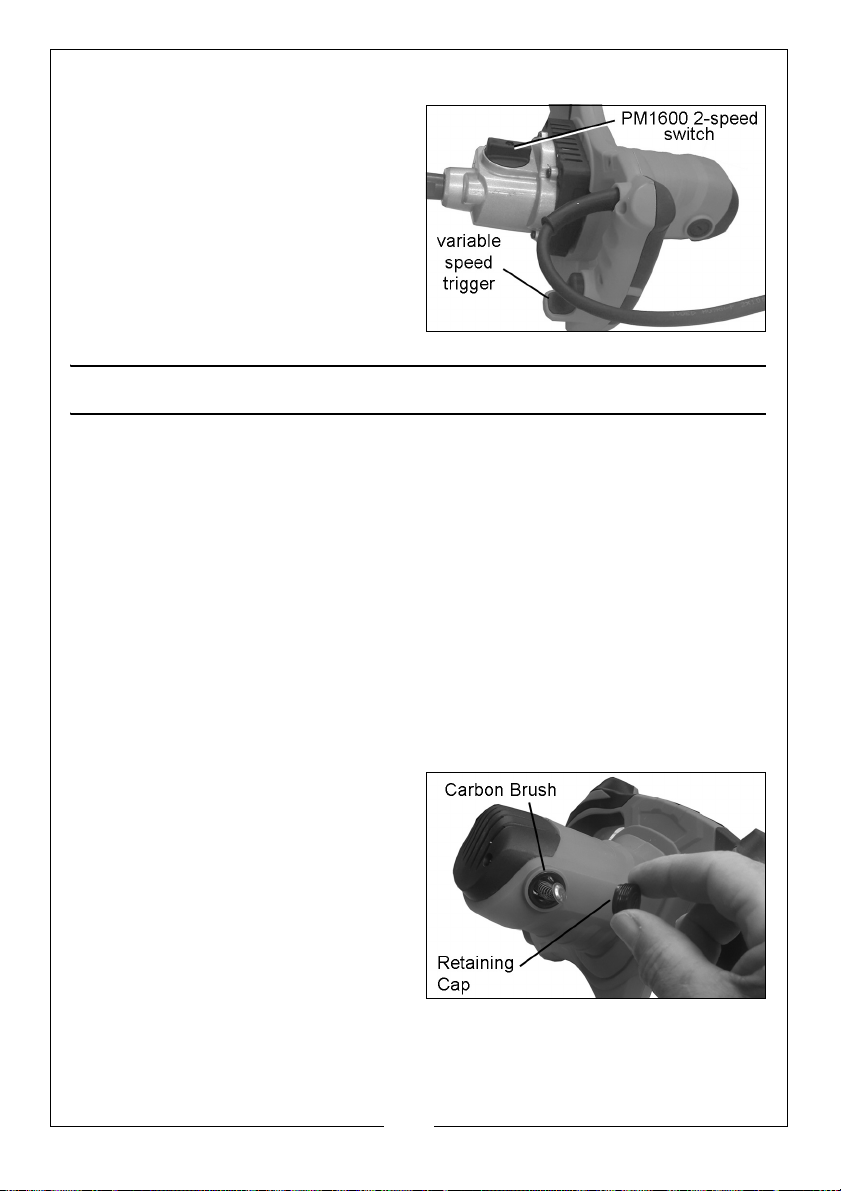

The PM1200 trigger switch offers
variable speed control by squeezing
harder to increase the speed.

The PM1600 has two speed settings in
addition to the variable speed
trigger. and possesses a soft start
feature.

CARE & MAINTENANCE

GENERAL MAINTENANCE

1. After use, clean the mixing blades and allow to dry.

2. Keep the unit clean and free from build up of any residual media material.

The drive motor and bearings are sealed units and require no regular
maintenance. Should you require assistance, contact your local CLARKE
service agent.

With the exception of changing the carbon brushes, there are no other user
serviceable parts on this mixer.

Always have any damaged or worn parts repaired or replaced by qualified
service personnel.

CHANGING THE CARBON BRUSHES

1. Remove the dust caps from the
top and bottom of the mixer.

2. Remove the brush caps using a
flat bladed screwdriver.

3. Remove the old carbon brushes
and replace it with a new ones (a
spare pair of brushes is supplied).

CLEANING & STORAGE

Clean the exterior the machine if
required using a mild detergent. Never immerse the machine in water.

To reduce overheating, keep the cooling vents free of debris.

Store the machine in a clean, dry location, out of reach of children.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

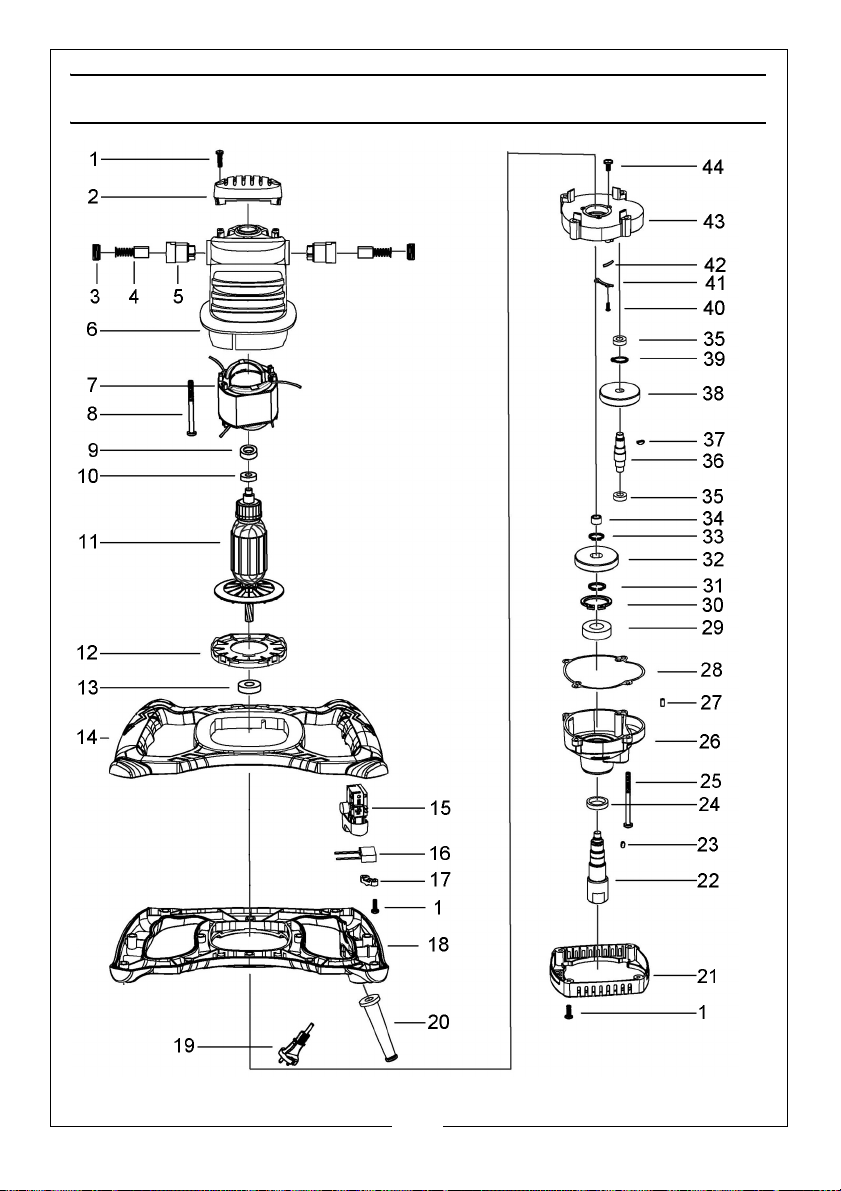

COMPONENT PARTS-PM1600

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPONENT PARTS - PM1600

No Description No Description

1 Screw ST3.9x13 25 Speed shift knob

2Rear cover 26Steel ball

3

Carbon brush cover 27 Spring

4 Carbon brush

5 Brush holder 29 Bush

6 Housing 30 Screw st4.8x50x25

7 Stator 31 Gearbox

8 Screw ST4.8x60 32 Pin

9 Bearing holder 22

10

Bearing 608 34 Bearing 6003

11 Rotor 35 Circlip 35

12 Fibre sealing ring 36 Circlip 17

13 Bearing 6001 37 Second driven gear

14 Upper handle 38 Bearing 607

15 Switch 39 Second connecting spindle

16 Capacitor 40 Key 3x10

17 Cable clamp 41 Helical gear

18 Lower handle 42 Circlip 10

19 Plug 43

20 Cable Sheath 44 Screw M3x8

21 Fan cover

22 Spindle 46

23 Oil port cover 47 Middle cover

24 Screw M4x14 48 Screw M4x6

28 Circlip 28

33 Oil seal gasket

Bearing 698

45 Connector

Oil seal

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

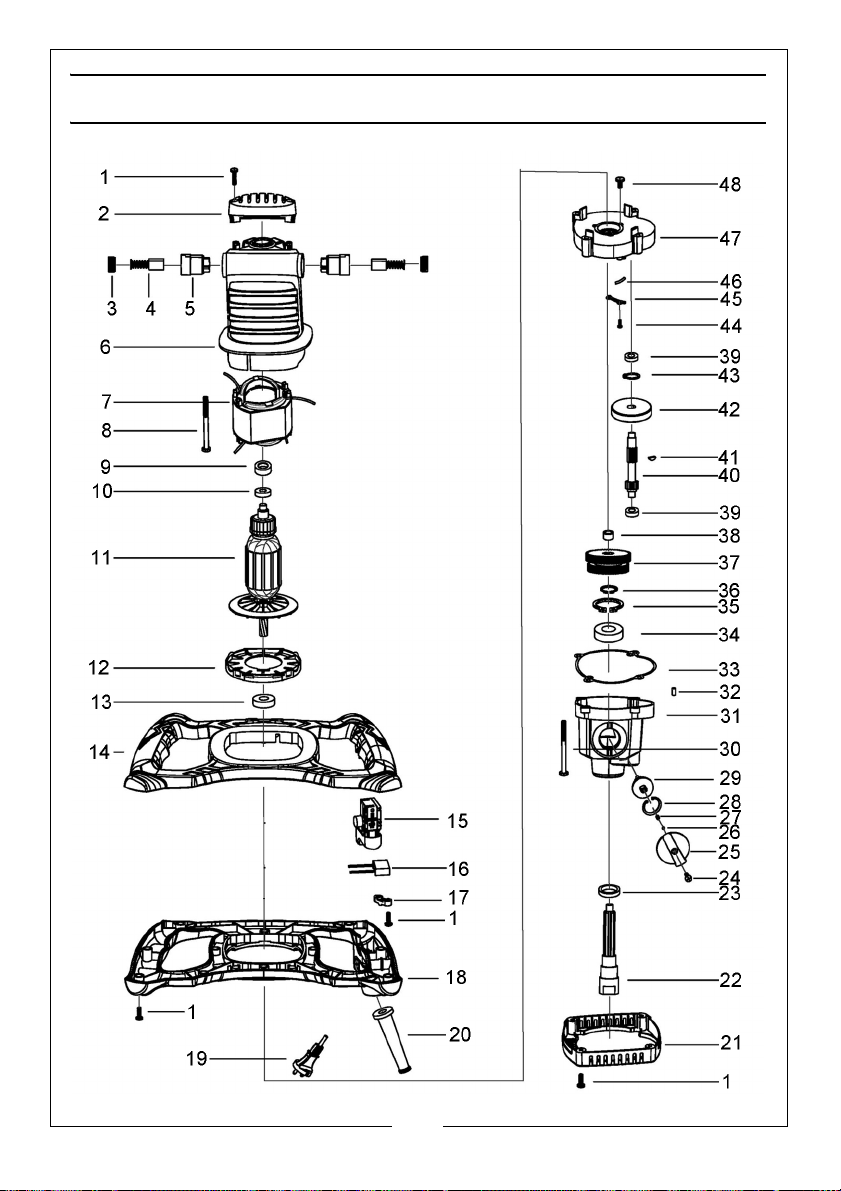

COMPONENT PARTS-PM1200

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPONENT PARTS - PM1200

No Description No Description

1 Screw ST3.8x13 23 Key 5x10

2 Rear cover 24 Oil seal

3

Carbon brush cover 25 S/t Screw 4.8x50

4 Carbon brush 26 Gearbox

5 Brush holder 27 Pin

6 Housing

7 Stator 29 Bearing 6003

8 Screw ST4.8x55 30 Circlip 35

9 Upper handle 31 Circlip 17

10 Speed control 32 Large gear

11 Corner moulding 33 Circlip 14

12 Lower handle 34 Bearing HK0808

13 Bearing holder 35 Bearing 698

14 Bearing 608 36 Primary gear shaft

15 Rotor 37 Woodruff key

16 Capacitor 38 Helical gear

17 Cable clamp 39 Shaft ring 10

18 Handle

19 Cable plug

20 Cable sleeve 42 Connector

21 Fan cover 43

22 Spindle 44 Screw M4x6

28 Oil seal gasket

40 Screw M3x8

41 Oil cover

Middle cover

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

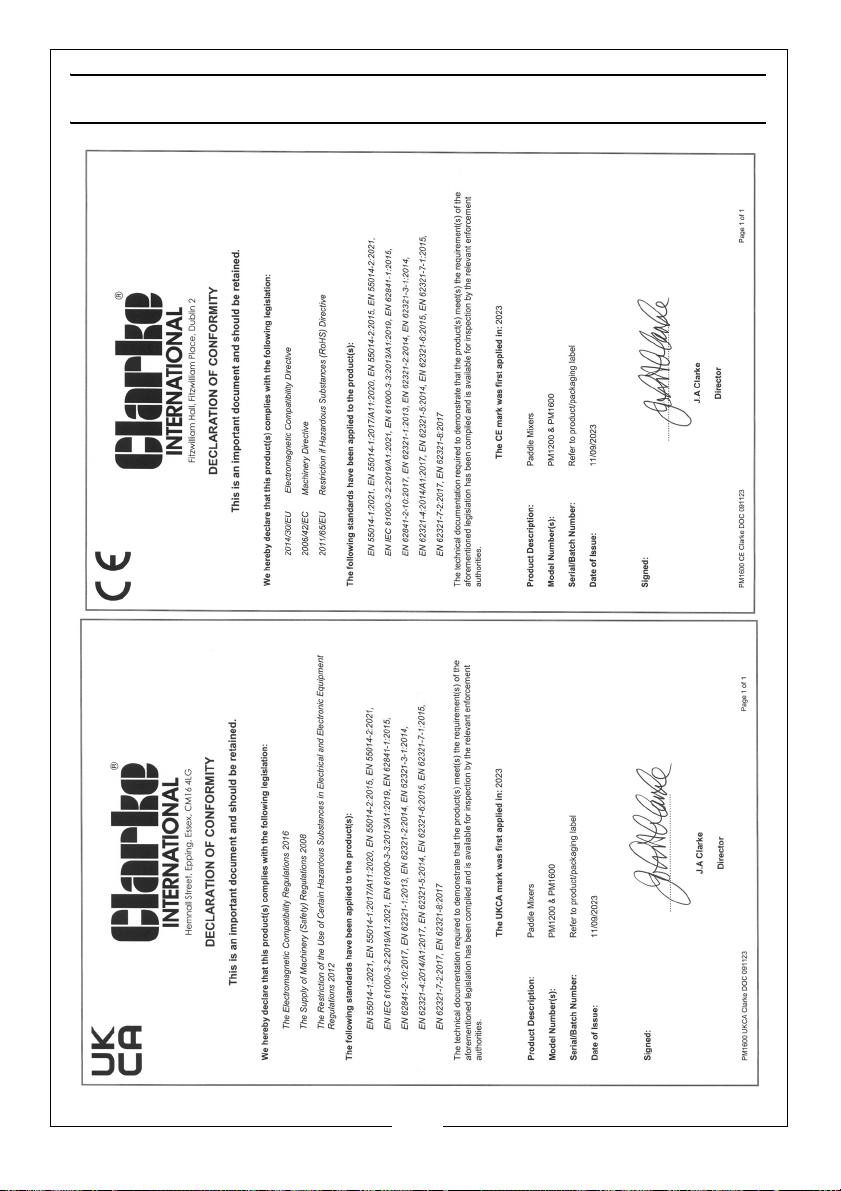

DECLARATIONS OF CONFORMITY - PM1600

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

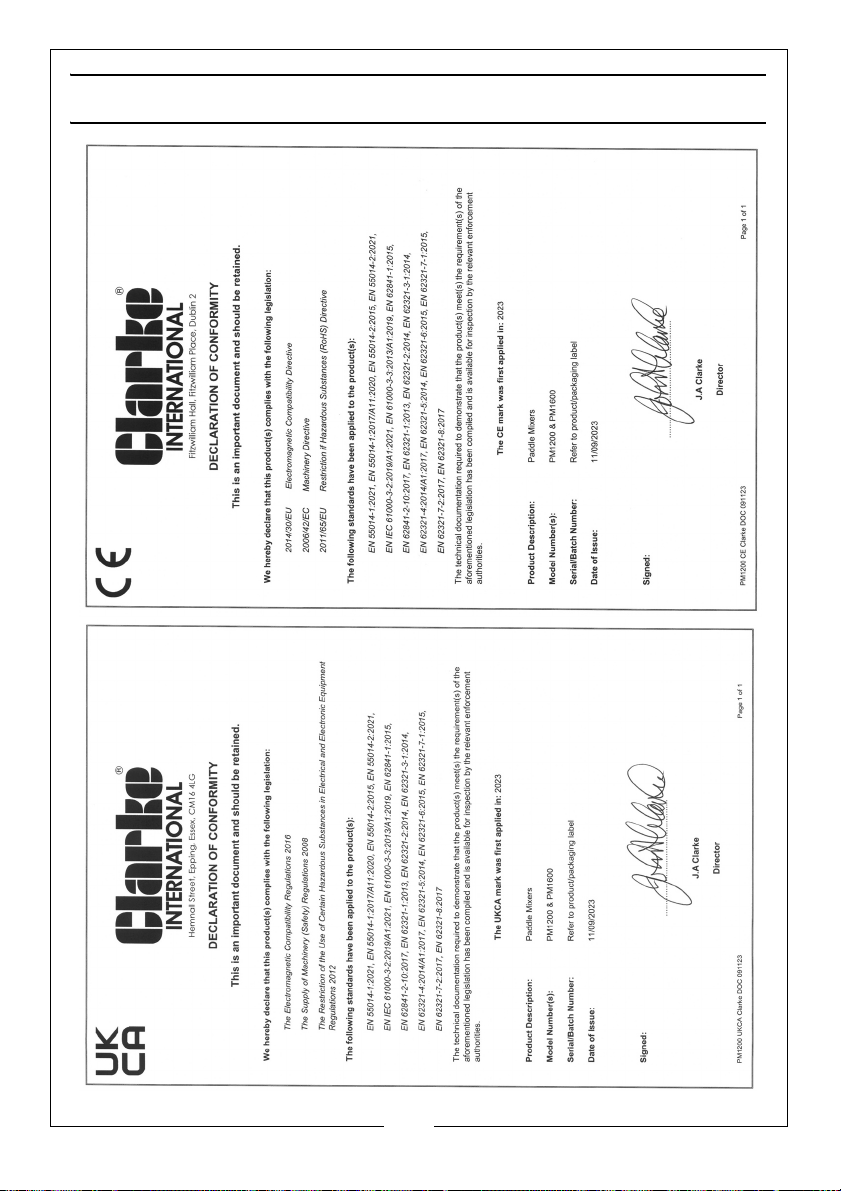

DECLARATION OF CONFORMITY - PM1200

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
