Page 1
3KVA PETROL GENERATOR
MODEL NO: PG3800A
PART NO: 8857852
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0716
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 3kVA Petrol Generator.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED
WORK AREA
• Always use in a well ventilated area.
• Always position the exhaust outlet away from people.
• Never use indoors or in a confined space.
• Read these safety instructions before using the equipment.
• Keep children away from the generator.
POSITIONING THE GENERATOR
1. Always leave a least a 1m gap between the generator and any
surrounding building or structures.
2. Always ensure the generator is on a solid, flat surface.
3. Always en
burn or be damaged by heat.
4. Never m
sure the surrounding area is free from any material that could
ove or tilt the generator whilst it is switched on.
FIRE PREVENTION
1. Always switch the engine OFF when refuelling.
2. Always
3. Always refuel in a well ventilated area.
4. Only use standard u
5. Never smoke whilst refuel
near the generator.
6. Never
clean and the generator allowed to dry before attempting to start the
engine.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
refuel away from any source of heat.
nleaded petrol.
ling and avoid smoking or using a naked flame
start the engine if there is spilled fuel. Any spillage must be wiped
3
Page 4
PREVENTION OF ELECTRIC SHOCK
1. Never use the generator in wet conditions unless it is well protected/
covered. Under these conditions, adequate ventilation MUST be provided.
2. Never operate the generator with wet hands.
3. Never use
water or any other liquids to clean the generator.
ADDITIONAL SAFETY RULES FOR GENERATORS
1. Always ensure the applied load does not exceed the generator rating.
Overloading the generator is dangerous and could cause serious
damage.
2.
Always
3. Always ensure the generator reaches operating speed before connecting
a load.
4. Never
5. Never
6. Do Not
main.
7. Never allow the generator air vents to become blocked.
disconnect the generator when carrying out any maintenance.
allow the generator to run out of fuel when a load is connected.
transport the generator with fuel in the tank.
connect to a commercial or residential power supply; e.g. ring
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

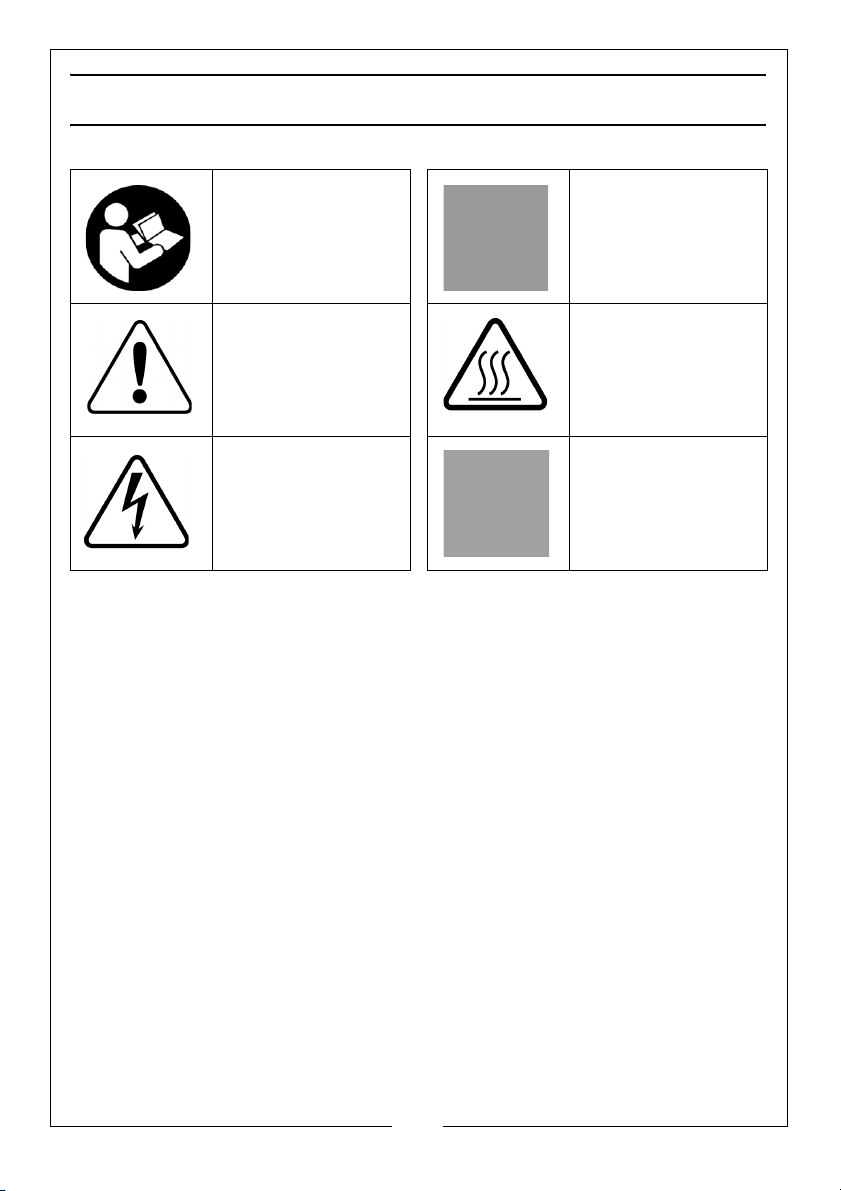

SAFETY SYMBOLS
Read Instruction
manual before use
Caution - The user
should be aware of a
general hazard
Dangerous voltage Poisonous fumes - Do
Flammable
Hot Surface - Do not
touch
not use the generator
in an enclosed space.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
GENERATOR OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Fuel Supply Valve 7 Engine Switch
2 Fuel Tank Cap 8 Anti-vibration Feet
3 Fuel Level Gauge 9 Dipstick
4 Frame 10 Control Panel
5 Air Filter 11 Choke Lever
6 Starting Handle 12 Earth Point
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
UNPACKING AND ASSEMBLY
Unpack your generator and check to ensure the following items are present.
Should there be any deficiency or damage caused during transit contact
your CLARKE dealer immediately.
• The generator • Spark plug box spanner
• Tommy bar • 12 Volt D.C. output lead assembly
BEFORE USING THE GENERATOR
Attach a suitable earth lead to a good earthing point - water pipe, ground
spike etc., whenever you use this generator.
Before using your generator check that:
• The generator is in good condition and free from any damage.
• The generator is clean and free from fuel or oil spillage.
• The generator is correctly located for use (See page 3).
• The fuel system is intact and there is no leakage.
NOTE: Always use a funnel to fill the fuel tank to avoid accidental
spillage of fuel. If fuel is spilled it must be cleaned up before use.
WARNING: ENSURE THERE IS ADEQUATE FUEL IN THE TANK WHEN USING
THE GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE
SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
EARTH POINT
WARNING: FAILURE TO PROPERLY GROUND THE GENERATOR CAN RESULT
IN ELECTROCUTION
1. Ground the generator by
connecting a suitable grounding
wire to the earth point.
NOTE: Connect th
grounding wire to a copper or
brass grounding rod that is driven
into the earth.
e other end of the
CHECKING THE ENGINE OIL LEVEL
WARNING: TO CARRY OUT THIS CHECK, PLACE THE GENERATOR ON LEVEL
GROUND WITH THE ENGINE SWITCHED OFF.
WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE
GENERATOR WHEN CHECKING THE OIL LEVEL.
1. Turn the dipstick anti-clockwise
and remove from the oil fill tube.
2. Wipe the dipstick with a clean
cloth.
3. Insert the dipstick back into the oil
fill tube and then re
Do not screw in the oil filler cap/
dipstick when doing this.
move it again.
If the oil level is at or below the ‘L’
4.
mark on the dipstick, add oil to
the crankcase.
• Fill until the oil reaches the
threads in the oil fill tube.
• Oil capacity (See page 20).
• We recommend the use of
SAE15W40 oil in this generator.
available from your CLARKE
dealer.
5. Replace the oil filler cap.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
CHECKING THE FUEL LEVEL
Empty
Full
Fuel filter
1. Check the fuel level on the fuel
gauge.
The fuel gauge will show as red
en you have fuel in the tank
wh
turning white as the fuel level
decreases
To add fuel, open the fuel filler
2.
cap.
3.
Just inside the fuel tank is a fuel
filter which catches any
cont
4. Slowly add fuel to the fuel tank
(ma
level gauge as you do so.
.
aminants as you refuel.
ximum 15L) watching the fuel
RECOMMENDED FUEL
We recommend the use of standard
unleaded petrol.
WARNING: ALWAYS REFUEL IN A WELL VENTILATED AREA AWAY FROM
ANY HEAT SOURCES.
WARNING: ALLOW THE UNIT TO COOL DOWN BEFORE REFUELLING.
WARNING: DO NOT LEAVE FUEL WITHIN THE REACH OF CHILDREN.
NOTE: Do not overfill the fuel tank.
5. Replace the fuel filler cap securely.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
USING YOUR GENERATOR
STARTING THE ENGINE
1. Remove all connections from the
AC sockets.
2. Set the fuel valve to the ON
positio
n as shown.
3.
Make sure that the AC breaker is
set to the off (down
4. Move the choke lever to the
‘Choke’ position.
) position.
5. Set the engine switch to ‘ON’.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
6. Hold the generator steady and
pull the starting handle lightly until
you start to feel resistance.
Then pull sharply to start the
e.
engin
NOTE: You may have to do this
more than once.
WARNING: ONCE THE GENERATOR HAS STARTED, RELEASE THE STARTING
HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT RECOILS.
NOTE: When you first start the generator, the overload indicator may light
up for a few seconds, this is normal. If the overload indicator is still
lit after 5 seconds, stop the engine and contact your CLARKE
dealer.
Once the engine has warmed up,
7.
move the choke lever to the “run”
n.
positio
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
CONNECTING ELECTRICAL APPLIANCES
The generator can supply both 230V AC and 12V DC
AC POWER
Start the engine. See page 10.
1.
2. Make sure that the AC Breaker is
set to the ON
3. Connect the appliance to the
generato
• Make sure the appliance is
turned off before connecting it
to the generator.
• The voltage being supplied is
shown on the voltmeter.
AC BREAKER
The AC Breaker will activate if the generator is overloaded,
activates,
1.
Remove any connected devices
from the generator
2. Wait for a few minutes
3. Set the AC breaker to the ON (up)
positio
n.
4. Reconnect the devices to the
gene
rator, making sure your do
not exceed the maximum
capacity of the generator.
(up) position.
r.
If the AC Breaker
CAUTION: MAKE SURE THAT THE APPLIANCE BEING CONNECTED IS IN
GOOD WORKING ORDER, IF IT BEGINS TO ACT ABNORMALLY OR STOPS
SUDDENLY, DISCONNECT IT FROM THE GENERATOR
CAUTION: MAKE SURE THE APPLIANCE DOES NOT EXCEED THE MAXIMUM
RATED LOAD FOR THE GENERATOR.
CAUTION: ANY DEVICE WHICH CONTAINS AN
DEVICES THAT CONTAIN A MOTOR
MAY REQUIRE MORE CURRENT ON
INDUCTIVE LOAD E.G.
STARTUP.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
DC POWER
1. Start the generator. See page 10.
2. Make sure the appliance is turned
off before connecting it to the
generator.
3. Connect the 12V DC appliance
(max 8.3A) to the generator.
DC POWER (CHARGING CAR BATTERIES)
WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS
IN THE ORDER SHOWN.
WARNING: YOU SHOULD ONLY USE THIS GENERATOR TO ‘TOP UP’ THE
BATTERY, ALSO TRYING TO CHARGE A COMPLETELY FLAT BATTERY MAY
CAUSE THE FUSE TO BLOW.
1. Start the generator. See page 10.
2. Connect the battery charging leads to the battery.
• Make sure you clamp the red wire to the positive (+
) terminal and
the black wire to the negative (-) terminal of the battery.
3. Connect the battery charging leads to the generator.
• The battery will begin to charge
4. Monitor the voltage across the battery
regularly during charging and
disconnect the battery when the voltage reaches 14.4 volts.
• Do not allow the clamps to touch each other whilst connected to
the generator.
CAUTION: WHEN DISCONNECTING THE BATTERY, ALWAYS DISCONNECT
THE NEGATIVE (BLACK) LEAD FIRST.
DC OVERLOAD PROTECTOR
If the DC overload protector
activates, wait for a few minutes and
then press the reset button shown on
the right.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
SHUTTING DOWN THE GENERATOR
To stop the generator in an emergency simply set the engine switch to ‘OFF’.
NOTE: Turn off any electric devices.
1.
Disconnect any electric devices.
2. Make sure that the AC breaker is
set to the off (dow
Set the engine switch to the “0”
3.
(OFF) position.
4. Set the fuel valve to the OFF
position as shown.”.
n) position.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
MAINTENANCE
CHANGING THE ENGINE OIL
CAUTION: PROLONGED EXPOSURE TO USED ENGINE OIL IS DANGEROUS,
ALWAYS WASH YOUR HANDS THOROUGHLY AFTER HANDLING USED
ENGINE OIL.
1. Unscrew and remove the oil filler
cap/dipstick.
2. Place an oil collection tray under
the drain plug.
3. Unscrew the drain plug and allow
the
used engine oil to drain from
the crankcase into the oil
collection tray.
NOTE: Drain the engine oil when the
engine is warm, this will ensure
the oil flows out faster.
4. Replace the drain plug.
5. Fill the crankcase with engine oil.
• Fill until the oil reaches the threads in the oil fill tube.
•
il capacity (See page 20.).
O
• We recommend the use of
from your CLARKE dealer.
6. Replace the dipstick.
SAE15W40 oil in this generator. available
ENVIRONMENTAL PROTECTION
One of the most damaging sources of pollution is oil, Do not throw away used
engine oil in with your domestic rubbish or pour it down drains and sinks. Place
it in a leak proof container and take it to your local waste disposal site.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
CHANGING THE SPARK PLUG
Add pic
CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK
PLUG.
1. Remove the spark plug cap from
the spark plug.
2.
Use the spark plug spanner
supplied to remove the spark
plug.
3. Remove any carbon that has
accu
mulated around the
electrode.
Check the spark plug gap (a), it
4.
should be between 0.7 and 0.8
mm, adjust if necessary.
5. Check the overall condition of the
spark plug
for erosion or pitting
and replace if necessary.
6. Reinstall the spark plug and
replace the spark plug cap.
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17
CHECKING THE AIR FILTER
CAUTION: DO NOT USE THE GENERATOR WITHOUT THE AIR FILTER FITTED,
THIS CAN DAMAGE THE GENERATOR.
1. Unclip and remove the air filter
cover.
2. Remove the air filter element.
3. Make sure that the air filter is
clean and not damaged.
•
If the air filter is damaged
cont
act CLARKE spare parts
department for a replacement.
• If the filter is dirty, wash in a
solution of warm water and
mild detergent and rinse
thoroughly. Leave the filter to
dry completely, once it is dry immerse in clean engine oil and
squeeze to remove excess oil.
WARNING: DO NOT USE INFLAMMABLE SOLVENTS OR PETROL TO CLEAN
THE AIR FILTER.
4. Replace the filter to its original position and replace the air filter cover.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
CLEANING THE FUEL VALVE FILTER / DRAINING THE FUEL TANK
VALVE FILTER
‘O’ RING
CUP
1. Set the fuel supply valve to OFF.
2. U
nscrew and remove the cup,
then remove the valve filter and
‘O’ ring.
Wash these parts in a non-
3.
inflammable solvent. Make sure
that the valve filter
damaged.
4. Place an approved petrol storage
container under the fuel valve
and set the fuel supply valve to
‘ON’.
• The fuel in the tank will drain
into the container.
5. Replace the ‘O’ ring and valve
filter and tighten
possible.
is not
the cup as far as
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The generator fails
start
to
The generator fails
g
enerate elec-
to
tricity
The generator is
i
fficult to start
d
Ignition switch is off Set the ignition switch to ‘on’
Not enough oil in the generator Add more oil, See page 8
No fuel Add more fuel, See page 9
Spark plug not working correctly Change the spark plug, See
page 16
The device you are trying to
power is faulty
The AC breaker is switched off Switch the AC breaker on
The air filter is dirty Clean the air filter, See page 17
The fuel filter is blocked Clean the fuel filter, See page 18
Make sure the device you want
to power is working properly
If this does not solve your problem, please contact the CLARKE service
department.
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
SPECIFICATIONS
PG3800A
Engine Engine Model PT170F1
Fuel Type Petrol
3
Displacement (cm
Max. power output (hp/rpm) 5.6 @ 3000 rpm
Start system Hand recoil
Fuel tank capacity (L) 15
Fuel consumption (L/hr.) 1.9
Maximum run time (h) @75% Load 8.2
Engine oil type SAE15W40
Engine oil capacity (L) 0.61
)
212 cc
Guaranteed sound power (L
Generator Rated Frequency (Hz) 50
AC Output Voltage (V) 230 (13A)
DC Output Voltage (V) 12V (Max 8.3A)
Rated Power (W) 2700
Dimensions Length (mm) 600
Width (mm) 435
Height (mm) 445
Unpacked Weight (kg) 43.7
WA dB) 96
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21
Page 22
PARTS LIST
No Description No Description
1 Switch 19 Bolt M6x25
2 Panel 20 Fuel Filler Cap
3 Vo lt me te r 21 Fuel Filter
4 AC Socket 22 Screw M5x12
5 AC Breaker 23 Fuel Gauge
6 Screw M3x8 24 Fuel Valve
7 Earth Bolt 25 Frame
8 DC Socket 26 Cross Beam
9 DC Breaker 27 Anti Vibration Foot (LH)
10 Panel Back Cover 28 Flange Nut M8
11 Wiring Loom 29 Rubber Feet
12 Bolt M6x12 30 Anti Vibration Foot (RH)
13 Bridge Pile 31 Back Guard Plate
14 Engine 32 Flange Bolt M6x12
15 Generator 33 Side Guard Plate
16 Fuel Tank 34 Flange Bolt M6x12
17 Rubber Gasket 35 Flange Bolt M6x35
18 Wash er 36 Upper Guard Plate
Please quote the reference THPG380001 onwards. e.g. Fuel Filter will be
THPG380021.
22
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 23
DECLARATION OF CONFORMITY
23
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 24
Loading...
