Clarke MIG 120, 6015601 User guide

MIG/MMA/TIG INVERTER WELDER

MODEL NO: MIG120 MULTI

PART NO: 6015601

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0722

INTRODUCTION

Thank you for purchasing this CLARKE Welder. Before attempting to operate
the machine it is essential that you read this manual thoroughly and carefully
follow all instructions given. In doing so you will ensure the safety of yourself
and that of others around you, and you can also look forward to the welder
giving you long and satisfactory service.

When unpacking, any damage or deficiency should be reported to your
CLARKE dealer immediately.

SPECIFICATIONS

MIG120 Multi

Unpacked Weight (kg) 6.8

Dimensions (l x w x h) (mm) 305 x 155 x 233

Power Supply 230V~ 50Hz

Connecting plugs BS1363 (13A)

Max Input Power 3.9 KW

Max Input Current 17.3A

No Load Voltage 63V

Output Welding Current MIG 20A/15V -120A/20v

MMA 20A/18.8V - 100A/24V

TIG 20A/10.8V - 100A/14V

IP Rating IP21S

Insulation Grade Class 1 - Grade H

Suitable Electrode size 1.6-3.2mm

Welding Wire size 0.6mm, 0.8mm, 0.9mm & 1.0mm (flux cored)

0.6mm, 0.8mm (solid)

Welding Capacity (Mild Steel) 1-5 mm (MIG)

1.5-4.5 (MMA)

NOTE: The details and specifications contained herein, are correct at the

time of going to print. However, CLARKE International reserve the
right to change specifications at any time without prior notice.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PRINCIPLES OF THE MACHINE

The MIG120 Multi is an inverter type welding machine, suitable to carry out
Gas and No Gas CO

welder is mainly used for CO2 gas protected welding which has the
advantages of high energy efficiency, strong arc penetration and small

welding deformation.

Weldable materials include low carbon steel, low alloy steel, high strength
steel, stainless steel and aluminium alloy. Methods include full position spot
welding, butt welding, fillet welding and lap welding. The stable welding
process can be obtained by using pure CO

protective gases. The torch is suitable for wire diameters of 0.6-1.0mm.

Manual Metal Arc (MMA) welding uses a coated consumable electrode
(stick) to lay the weld, therefore an additional welding torch kit is not used. The
arc melts the core of the electrode to produce drops of molten metal (weld
pool) that cool to create the welded joint. Because of the versatility and
simplicity of MMA welding, it requires less skill and is used primarily to weld iron
and steel (including stainless steel. but nickel and copper can also be welded
using this method.

MIG (Metal Inert Gas) welding allows you to fuse together two similar metals
without altering the properties of the metal.

A consumable wire electrode is continuously fed through the welding torch
fitted with a concentric gas nozzle. the wire is connected to a high voltage
supply which creates an electric arc between the electrode (the wire) and
the workpiece. The arc is used to create the required heat to turn the metal
into a molten state. The wire is used as both the electrode and as a filler.

The gas is used to prevent oxidation and to shield the arc and the weld from
atmospheric contamination. The choice of gas is dependent upon the
material being welded. This machine is designed to be used for both metal
ARC (MMA) and TIG welding.

(TIG welding leads are not supplied with the machine. These are however,
readily available from your CLARKE dealer (Part number 6012233).

A wide selection of accessories and consumables are available from your
CLARKE dealer (see page 36)

welding, MMA, TIG and MIG (MAG -USA welding). The

2

, CO2+Ar, CO2+ O2 and other

2

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SUITABILITY OF DIFFERENT METHODS

MMA/Arc Welding Carbon Steel, Low Alloy Steel, Stainless Steel, Cast

Iron.

MIG Welding Carbon Steel, Mild Steel, Stainless Steel

TIG Welding Carbon Steel, Low Alloy Steel, Stainless Steel, Cast

Iron, Titanium, Copper + Brass.

Metal Being Welded Suitable Gas Part number

Mild Steel Carbon Dioxide (CO2) 6000642

Stainless Steel Argon 6000663

Aluminium

Thin Sheet Metal/Mild
Steel

When using the welder in a gasless configuration the shielding gas is created
from the flux within the welding wire.

When using the welder outside you may need to erect a wind break to make
sure the shielding gas is not blown away, thereby leaving a poor quality weld.

Carbon Dioxide (CO2)/Argon Mix 6000662

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS FOR ALL TYPES OF WELDING

WARNING: AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS
INVOLVED WITH THEIR OPERATION AND USE. EXERCISING RESPECT AND
CAUTION WILL CONSIDERABLY LESSEN THE RISK OF PERSONAL INJURY.
HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED, OR
IGNORED, PERSONAL INJURY TO THE OPERATOR MAY RESULT.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

GENERAL PRECAUTIONS

BURN PREVENTION

Wear protective clothing - gauntlet gloves designed for use in welding, apron,
and protective shoes. Button shirt collar and pocket flaps and wear cuffless
trousers to avoid entry of sparks and slag. Wear helmet with safety goggles or
glasses with side shields underneath, appropriate filter lenses or plates
(protected by clear glass). This is a MUST for welding (and chipping) to protect
the eyes from radiant energy and spatter. Replace cover glass when broken,
pitted, or spattered. Avoid oily or greasy clothing. A spark may ignite them. Hot
metal should never be handled without gloves. First aid facilities and a
qualified first aid person should be available unless medical facilities are close
by for immediate treatment of flash burns of the eyes and skin burns. A hard
hat should be worn when others work overhead. Flammable hair preparations
should not be used by persons intending to weld or cut.

NOTE: ALL protective wear incl. masks & head shields MUST comply with

PPE Regulation (EU) 2016/425.

TOXIC FUME PREVENTION

Severe discomfort, illness or death can result from fumes, vapours, heat, or
oxygen enrichment or depletion that welding (or cutting) may produce.
Prevent them with adequate ventilation. NEVER ventilate with oxygen. Lead-,
cadmium-, zinc-, mercury- and beryllium-, bearing materials, when welded (or
cut) may produce harmful concentrations of toxic fumes. Adequate local
exhaust ventilation must be used, or each person in the area as well as the
operator must wear an air- supplied respirator. For beryllium, both must be
used. Metals coated with or containing materials that emit toxic fumes should
not be heated unless coating is removed from the work surface, the area is
well ventilated, or the operator wears an air-supplied respirator. Work in a
confined space only while it is being force ventilated and, if necessary, while
wearing an air-supplied respirator. Vapours from chlorinated solvents can be
decomposed by the heat of the arc (or flame) to form PHOSGENE, a highly
toxic gas, and other lung and eye irritating by-products. The ultraviolet
(radiant) energy of the arc can also decompose trichloroethylene and
perchloroethylene vapours to form phosgene. DO NOT WELD where solvent

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

vapours can be drawn into the welding atmosphere or where the radiant
energy can penetrate to atmospheres containing even minute amounts of
trichloroethylene or perchloroethylene.

FIRE AND EXPLOSION PREVENTION

Causes of fire and explosion are:

1. Combustibles reached by the arc, flying sparks, hot slag or heated
material;

2. Short circuits.

BE AWARE that flying sparks or falling slag can pass through cracks, along
pipes, through windows or doors, and through wall or floor openings, out of
sight of the goggled operator.

To prevent fires and explosion: keep equipment clean and operable, free of
oil, grease, and (in electrical parts) of metallic particles that can cause short
circuits. If combustibles are in the area, DO NOT weld. Move the work if
practicable, to an area free of combustibles.

Avoid working in paint spray rooms, dip tanks, storage areas, ventilators. If the
work cannot be moved, move combustibles away from sparks and heat; or
protect against ignition with suitable fire-resistant covers or shields.

Walls, ceilings, and floor near work should be protected by heat resistant
covers or shields. Fire watcher must be standing by with suitable fire
extinguishing equipment during and for some time after welding or cutting if:

1. Appreciable combustibles (including building construction) are within 10m.

2. Appreciable combustibles are further than 10m, but can be ignited by
sparks.

3. Openings (concealed or visible) in floors or walls can expose combustibles
to sparks.

4. Combustibles adjacent to walls, ceilings, roofs or metal partitions can be
ignited by radiant or conducted heat.

After work, check that area is free of sparks, glowing embers and flames. An
empty container that held combustibles or that can produce flammable or
toxic vapours when heated, must never be welded on or cut, unless the
container has first been cleaned. This includes a thorough steam or caustic
cleaning (or a solvent or water washing, depending on the combustible’s
solubility) followed by purging and inerting with nitrogen or carbon dioxide,
and using protective equipment.

Water filling just below the working level may substitute for inerting.

A container with unknown contents should be cleaned (see paragraph
above). DO NOT depend on sense of smell or sight to determine if it is safe to

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

weld or cut. Hollow castings or containers must be vented before welding as
they can explode.

In explosive atmospheres, NEVER weld or cut where the air may contain
flammable dust, gas, or liquid vapours.

DO NOT overload arc welding equipment. It may overheat cables and cause
a fire. Loose cable connections may overheat or flash and cause a fire. NEVER
strike an arc on a cylinder or other pressure vessel. It creates a brittle area that
can cause a violent rupture or lead to such a rupture later under rough
handling.

ELECTRIC ARC WELDING

Comply with precautions in above and this section. Arc welding, properly
done, is a safe process but a careless operator invites trouble. The equipment
carries high currents at significant voltages. The arc is very bright and hot.
Sparks fly, fumes rise, ultraviolet and infrared energy radiates and work pieces
are hot. The wise operator avoids unnecessary risks and protects himself and
others from accidents.

BURN PROTECTION

The welding arc is intense and visibly bright. It’s radiation can damage eyes,
penetrate lightweight clothing, reflect from light coloured surfaces and burn
the skin and eyes. Skin burns resemble acute sunburn, those from gas ­shielded arcs are more severe and painful.

PROTECTIVE CLOTHING (PPE) MUST BE WORN

Wear long sleeved clothing (particularly for gas shielded arc) in addition to
gloves, apron and strong shoes. As necessary, use additional protective
clothing such as leather jacket or sleeves, flameproof apron, and fire-resistant
leggings. Avoid outer garments of untreated cotton. Bare skin protection:
Wear dark substantial clothing, Button collars closed to protect the chest and
neck and button any pockets to prevent entry of sparks.

EYE AND HEAD PROTECTION

Protect eyes from exposure to arc. NEVER look at an electric arc without
protection. Welding helmet or shield containing an appropriate filter plate
(Please refer to the section ‘Welding Shield on page 12). Place over face
before striking arc. Protect filter plate with a clear cover plate. Cracked or
broken helmet or shield should NOT be worn; radiation can pass through to
cause burns.

Cracked, broken, or loose filter plates must be replaced IMMEDIATELY.
Replace clear cover plate when broken, pitted, or spattered. WE SUGGEST
you wear flash goggles with side shields under the helmet, to give some
protection to the eyes should the helmet not be lowered over the face before

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

an arc is struck. Looking at an arc momentarily with unprotected eyes
(particularly high intensity gas-shielded arc) can cause a retinal burn that may
leave a permanent dark area in the field of vision. Before welding whilst
wearing contact lenses, seek advice from your optician.

PROTECTION OF NEARBY PERSONNEL

For production welding, a separate, well vented room or enclosed bay is best.
In open areas, surround the operation with low reflective, non- combustible
screens or panels. Allow for free air circulation, particularly at floor level.
Provide face shields for all persons who will be looking directly at the weld.
Others working in the area should wear flash goggles. Before starting to weld,
make sure that screen or bay doors are closed.

SHOCK PREVENTION

Exposed live conductors or other bare metal in the welding circuit, or in
unearthed, electrically-LIVE equipment can fatally shock a person whose
body becomes a conductor. DO NOT STAND, SIT, LIE, LEAN ON, OR TOUCH a
wet surface when welding without suitable protection.

PROTECTION FOR WEARERS OF ELECTRONIC LIFE SUPPORT DEVICES (PACEMAKERS)

Magnetic fields from high currents can affect pacemaker operation. Persons
wearing pacemakers should consult with their doctor before going near arc
welding or spot welding operations.

PROTECTION AGAINST SHOCK

Keep your body and clothing dry. NEVER work in damp area without
adequate insulation against electric shock. Stay on a dry duckboard or rubber
mat when dampness or sweat can not be avoided. Sweat, sea water, or
moisture between body and an electrically LIVE part - or earthed metal ­reduces the body surface electrical resistance, enabling dangerous and
possibly lethal currents to flow through the body.

EARTHING THE EQUIPMENT

When arc welding equipment is earthed according to the National Electrical
Code and the workpiece is earthed, a voltage may exist between the
electrode and any conducting object.

Examples of conducting objects include, but are not limited to, buildings,
electrical tools, work benches, welding power source cases, workpieces, etc.
NEVER touch the electrode and any metal object unless the welding power
source is off. When installing, connect the frames of each unit such as welding
power source, control, work table, and water circulator to the building earth.
Conductors must be adequate to carry earth currents safely. Equipment
made electrically live by stray current may shock, possibly fatally. DO NOT
EARTH to electrical conduit or to a pipe carrying ANY gas or a flammable
liquid such as oil or fuel.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CABLES

Frequently inspect cables for wear, cracks and damage. IMMEDIATELY
REPLACE those with excessively worn or damaged insulation to avoid possibly
lethal shock from bared cable. Cables with damaged areas may be taped to
give resistance equivalent to original cable. Keep cable dry, free of oil and
grease and protected from hot metal and sparks.

TERMINALS AND OTHER EXPOSED PARTS

Terminals and other exposed parts of electrical units should have insulating
covers secured before operation.

SAFETY DEVICES

Safety devices such as interlocks and circuit breakers should not be
disconnected or shunted out. Before installation, inspection, or service of
equipment, shut off all power and remove line fuses (or lock or red-tag
switches) to prevent accidental turning ON of power. DO NOT open power
circuit or change polarity while welding. If, in an emergency, it must be
disconnected, guard against shock burns, or flash from switch arcing. Always
shut OFF and disconnect all power to equipment. A power disconnect switch
must be available near the welding power source.

PREPARATION OF THE WORKING AREA

The working area must be sufficiently spacious, not humid, and well-ventilated
as to avoid any fumes which develop from the welding process and from
incidental material adhering to the pieces to be welded (oils, paints, tars...)
which may cause danger to the operator.

Avoid welding tanks which may contain flammable residuals.

WARNING: ELECTRIC SHOCK CAN BE FATAL. A PERSON QUALIFIED IN FIRST
AID SHOULD ALWAYS BE PRESENT IN THE WORKING AREA. IF PERSON IS
UNCONSCIOUS AND ELECTRIC SHOCK IS SUSPECTED, DO NOT TOUCH
THE PERSON IF HE OR SHE IS IN CONTACT WITH THE WELDER OR CABLES.
DISCONNECT THE WELDER FROM THE POWER SOURCE AND THEN USE FIRST
AID. DRY WOOD OR OTHER INSULATING MATERIAL CAN BE USED TO
MOVE CABLES, IF NECESSARY, AWAY FROM THE PERSON.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ADDITIONAL PRECAUTIONS FOR MMA WELDING

1. ALWAYS ensure that there is full free air circulating around the outer casing
of the machine and that the louvres are unobstructed.

2. A welding arc can seriously damage your eyes. Both operator and
spectators must ALWAYS use a proper welding face shield or helmet with
suitable filter lenses. Proper gloves and working clothes should be worn at
all times.

3. ALWAYS remove all flammable materials from the welding area.

4. NEVER remove any of the panels unless the machine is disconnected from
the supply and never use the machine with any of the panels removed.

5. NEVER use or store in a damp environment. DO NOT EXPOSE TO RAIN.

6. NEVER attempt any electrical or mechanical repair unless your are a
qualified technician. If you have a problem with the machine contact your
local CLARKE dealer.

7. ALWAYS keep a fire extinguisher handy (Dry Powder, C0
Water).

8. NEVER continue to weld, if, at any time, you feel even the smallest electric
shock. Stop welding IMMEDIATELY and DO NOT attempt to use the machine
until the fault is diagnosed and corrected.

9. NEVER allow the earth cable or torch to become wrapped around the
operator or any person in the vicinity.

A comprehensive range of CLARKE safety equipment for use when welding is
available from your local dealer. See page 37.

Consideration should be given to shielding the supply cable of permanently
installed welding equipment, in metallic conduit or equivalent. Shielding
should be electrically continuous throughout its length.

The shielding should be connected to the welding power source so that good
electrical contact is maintained between the conduit and the welding power
source enclosure.

The welding equipment should be routinely maintained according to the
manufacturer’s recommendations (see page 33). All access and service doors
and covers should be closed and properly fastened when the welding
equipment is in operation. The welding equipment should not be modified in
any way except for those changes and adjustments covered in the
manufacturer’s instructions. In particular, the spark gaps of arc striking and
stabilizing devices should be adjusted and maintained according to the
manufacturers recommendations.

or BCF, NOT

2

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY SYMBOLS

The following symbols may be displayed on the machine or its packaging.

Read this instruction
booklet carefully
before use.

Wear welding mask Recycle unwanted

Wear protective gloves General Hazard

Wear a dust mask Warning;- Magnetic

Caution:- Hot surface Danger! Harmful fumes

Risk of Electric Shock Do not weld near

Do not expose to rain.

materials under WEEE
Directive

field created (

flammable or
combustible materials

Do not weld near
flammable or
combustible materials

May interfere with
pacemakers

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Danger:- Arc Rays

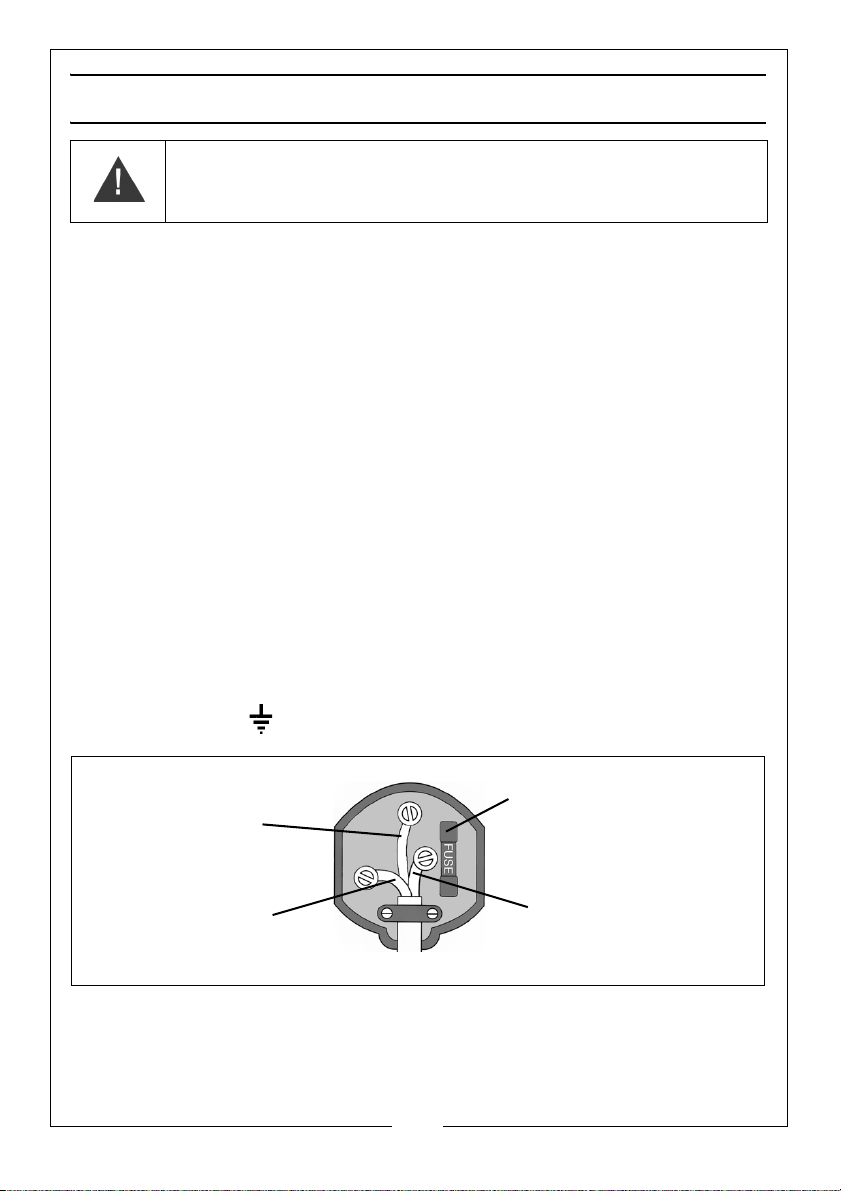

ELECTRICAL CONNECTION

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal marked N or

coloured Black.

•The Brown wire must be connected to the terminal marked L or

coloured Red.

•The Yellow and Green wire must be connected to the terminal

marked E or or coloured Green.

.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD). If in any doubt, consult a qualified
electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

12

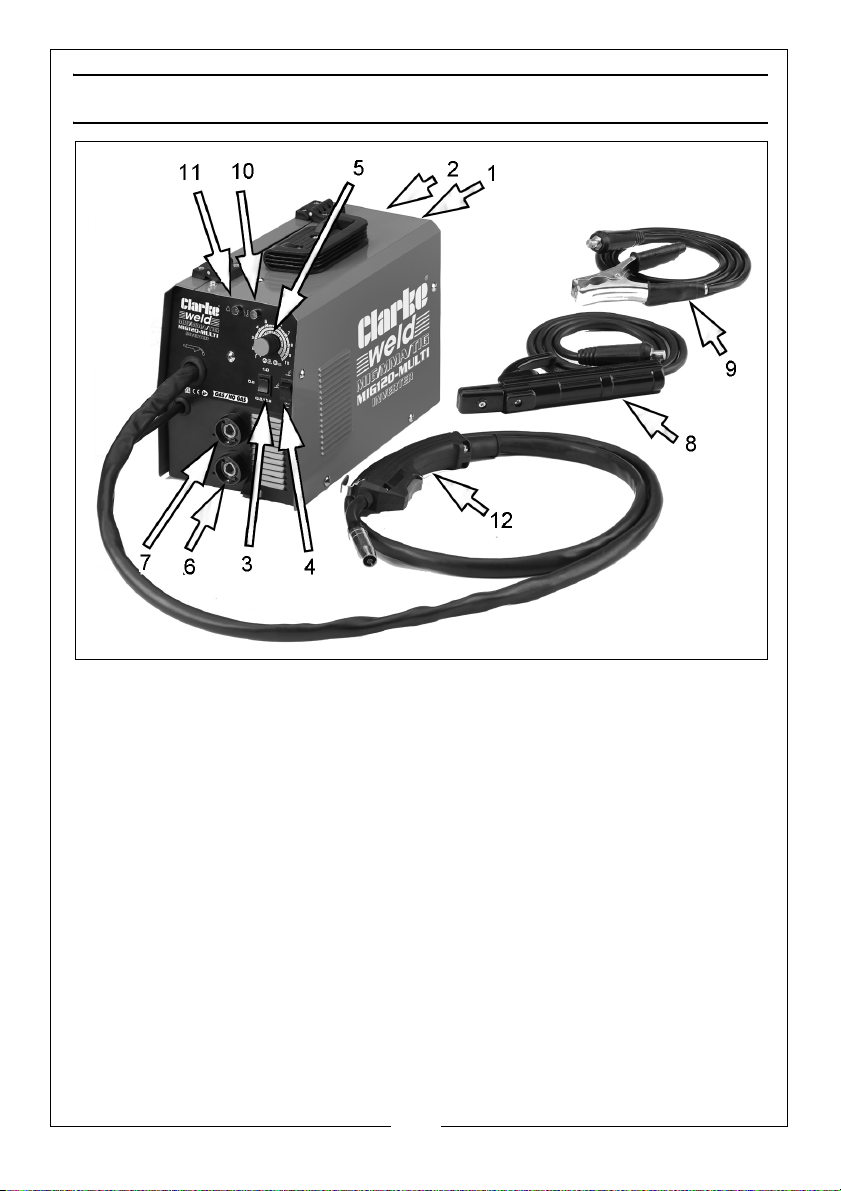

OVERVIEW & INVENTORY

The MIG120 Multi- welder is fitted with:

1. On/off Switch (at rear)

2. Gas cylinder connecting port (at rear)

3. Wire thickness selector switch

4. MIG/MMA/LIFT TIG function selector switch

5. Current selector knob

6. Positive terminal

7. Negative terminal

8. 1 x Torch Cable/Electrode Holder

9. 1 x Earth Cable/Clamp

10. Overheating LED

11. Power-On LED

12. 1 x MIG welding torch with hose (0.8mm tip)

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Loose items supplied include the following:

13. 1 x Hammer/brush

14. 1 x Face shield

15. 1x Spool of 0.6mm mild steel welding wire

16. 1x Spool of 0.9 mild steel welding wire

17. 1 x 0.6mm welding torch tip

18. 1 x 0.8mm welding torch tip (fitted)

19. 1 x 0.9mm welding torch tip

20. 1 x 0.6/0.8mm wire roller (fitted)

21. 1 x 0.9/1mm wire roller

22. 1 x torch wrench (for changing tips)

23. 1 x 520mm Gas hose

24. 1 x Gas bottle holder (2 pieces)

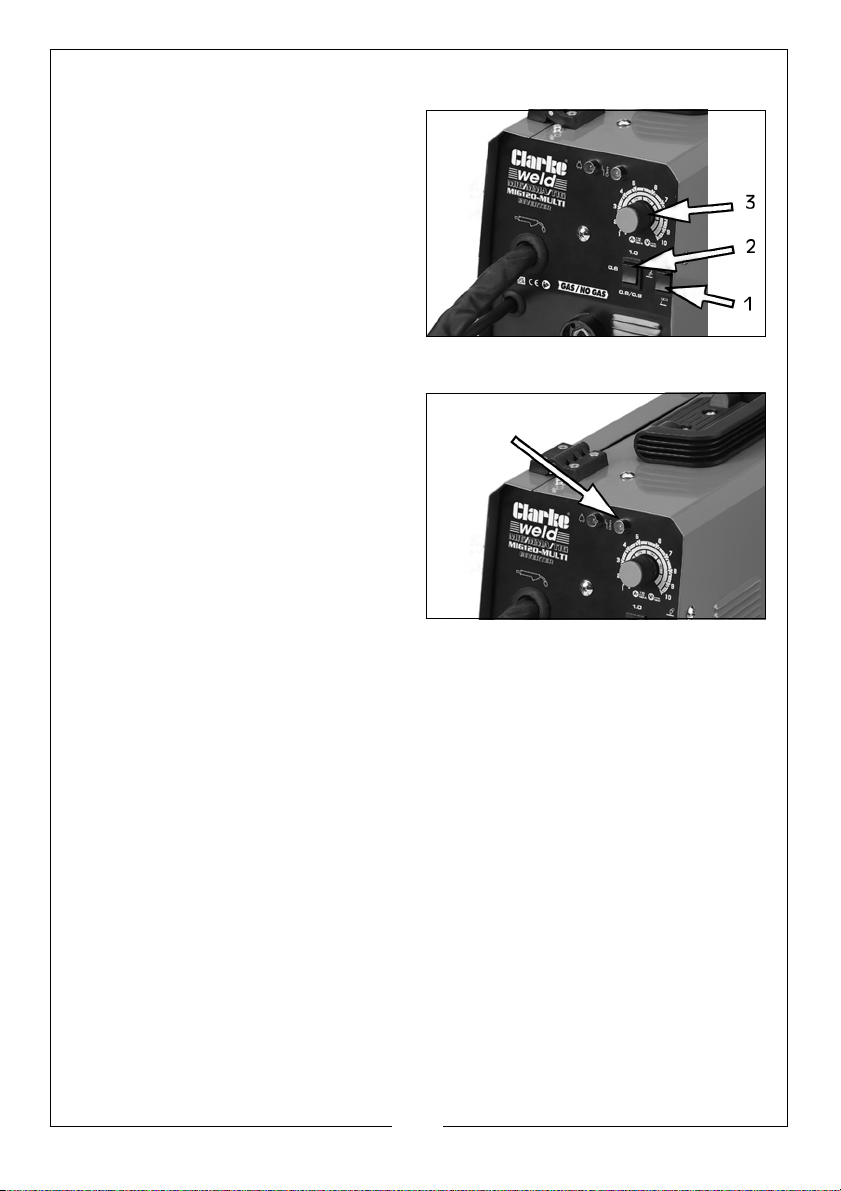

THE CONTROL FUNCTIONS

1. Power LED. When the power is switched on at the rear of the machine the

switch will be illuminated, as will the green ‘Power On’ LED.

2. Thermal overload LED. If the duty cycle is exceeded as a result of welding for

too long with a high current, the overload light will illuminate and the
welder will turn off. When the welder has cooled down (approx. 5 to 10
minutes), the power will be restored and welding can recommence.

3. Wire speed /current control knob. A higher current requires a higher wire

speed. Wire speed should be set based upon the table on page 28.

4. Wire thickness selector switch. For use with MIG/Flux welding in one of three

positions (0.6, 0.8/0.9, 1.0).

5. MIG/MMA/LIFT TIG function selector switch for welding mode selection.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLING THE WELDING SHIELD

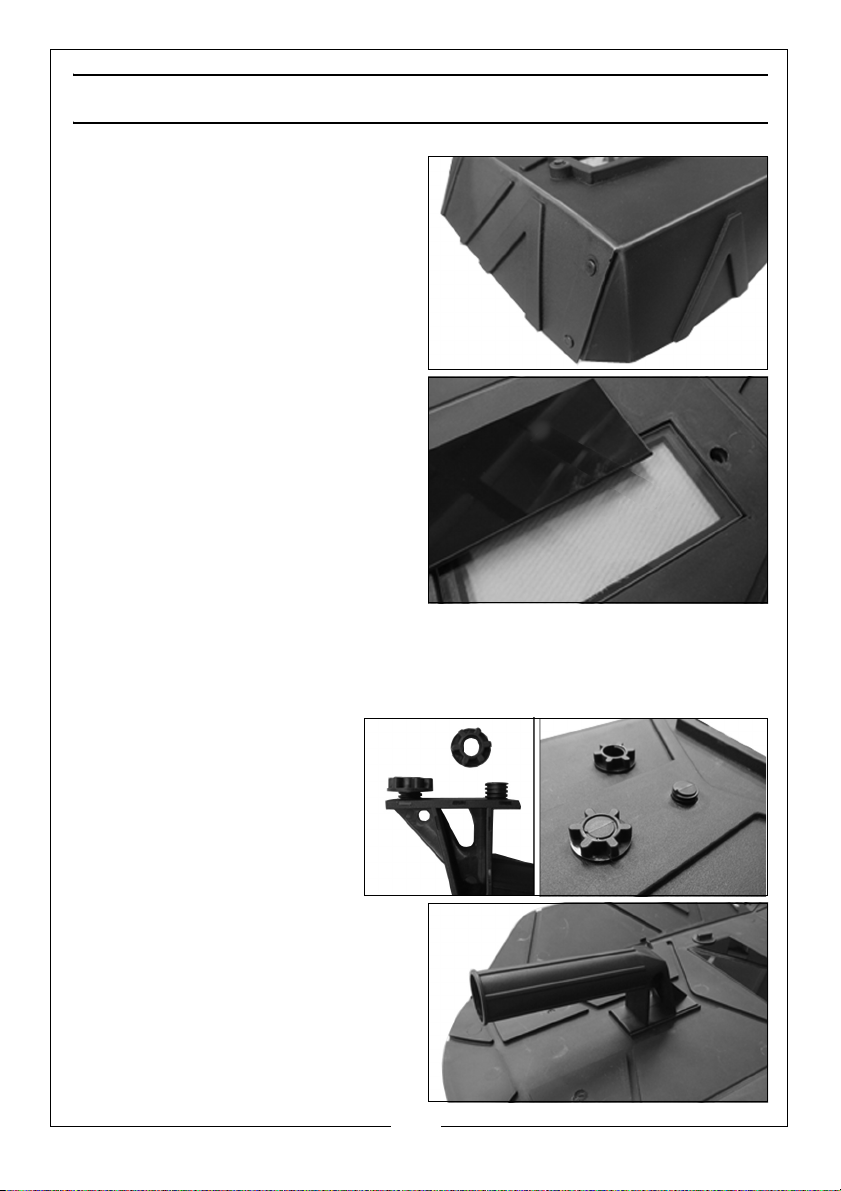

1. The welding shield shown is
supplied flat for shipping. Fold the
sides of the shield around and clip
to the top panel.

2. Insert both the glass lens panels
into the recess inside the shield.

• The clear glass must be fitted first
to face the outside.

3. Insert the two plastic screws and
use the plastic wingnuts to clamp
the glass panels to the shield.

• The clear glass panel should be
replaced when it becomes badly
pitted.

4. When replacing the glass panels, only use parts supplied by CLARKE
International. The dark panel is a certified, optical glass and should not be
exchanged for any other type.

5. Secure the handle in
position using the plastic
nuts provided.

• The handle will be
mounted on the inside of the
shield.

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PREPARATION FOR USE

FITTING THE GAS BOTTLE HOLDER

WARNING: NEVER OPERATE THIS MACHINE WITH THE SIDE PANELS
PARTIALLY OPENED OR REMOVED.

IMPORTANT: Ensure that the welder is
not connected to the mains supply
before opening.

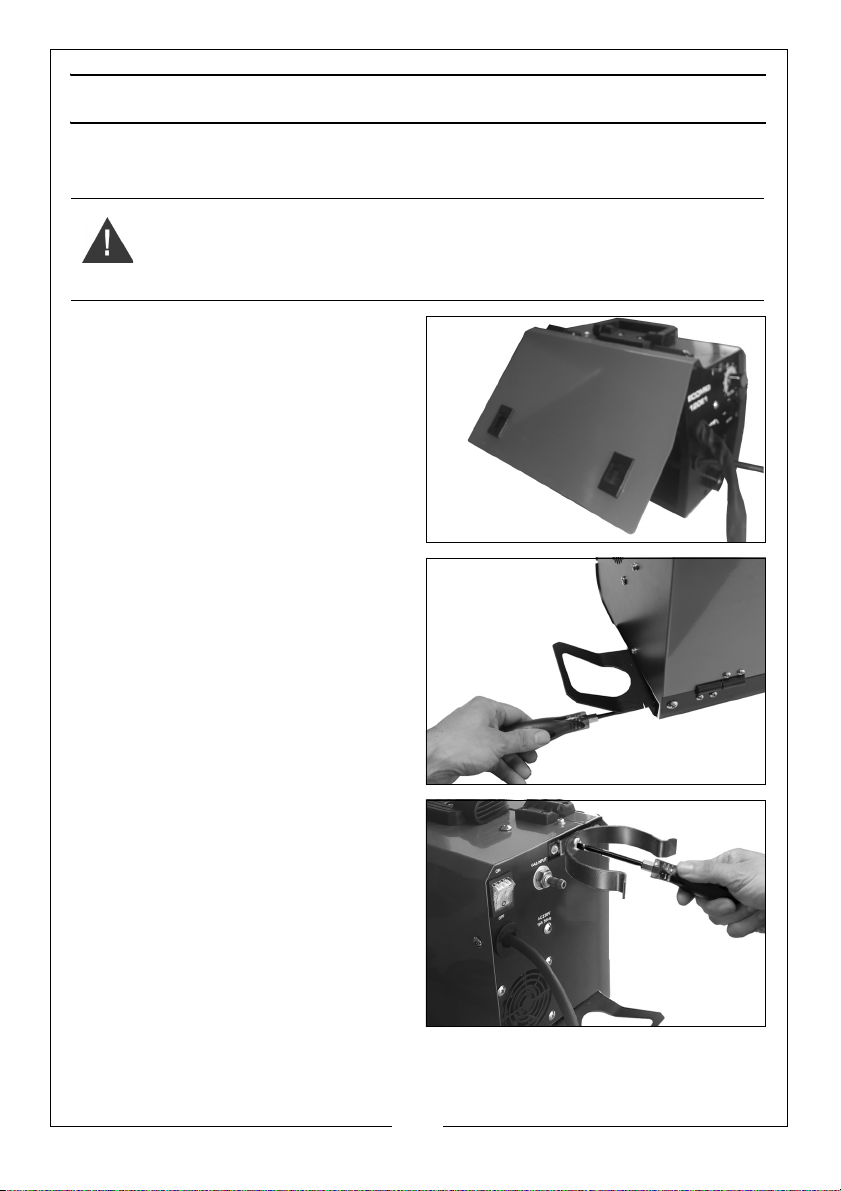

1. Open the side panel by pushing
the latch down and allowing the
side panel to drop down.

2. Remove any loose items that
have been transported inside.

3. Place the lower bottle bracket
into position and secure in place
using the 2 screws provided.

4. Secure the top clip in place using
the screw provided.

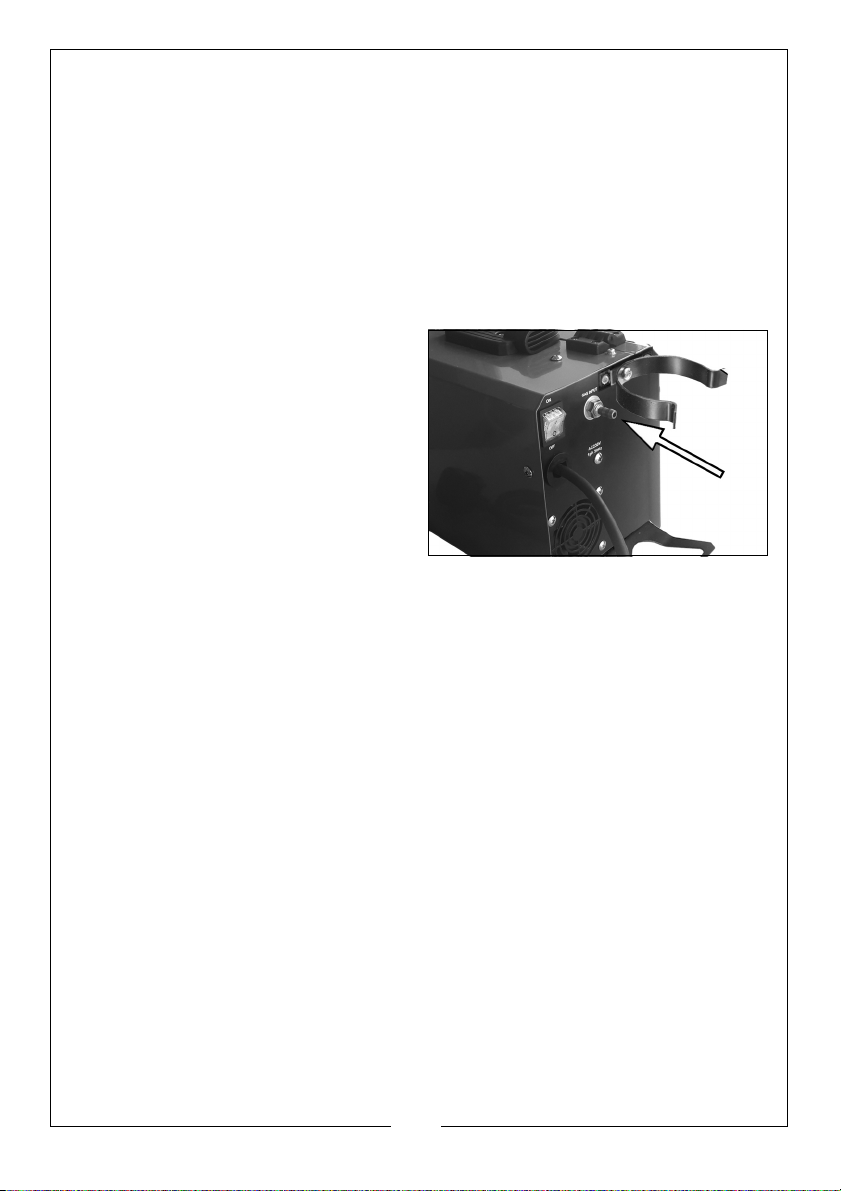

5. Fit the gas cylinder to the rear of the machine. Install the pressure relief
valve to the gas cylinder and ensure it is tight to prevent leakage.

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MOUNTING THE WELDING WIRE SPOOL

WARNING: MAKE SURE THAT THE WELDER IS NOT CONNECTED TO THE
MAINS SUPPLY.

Select the appropriate wire diameter according to the welding process. After
the wire diameter is selected, check that the wire diameter matches the size
of the wire feeding wheel and the welding torch components.

Spools of welding wire are available from your CLARKE dealer.

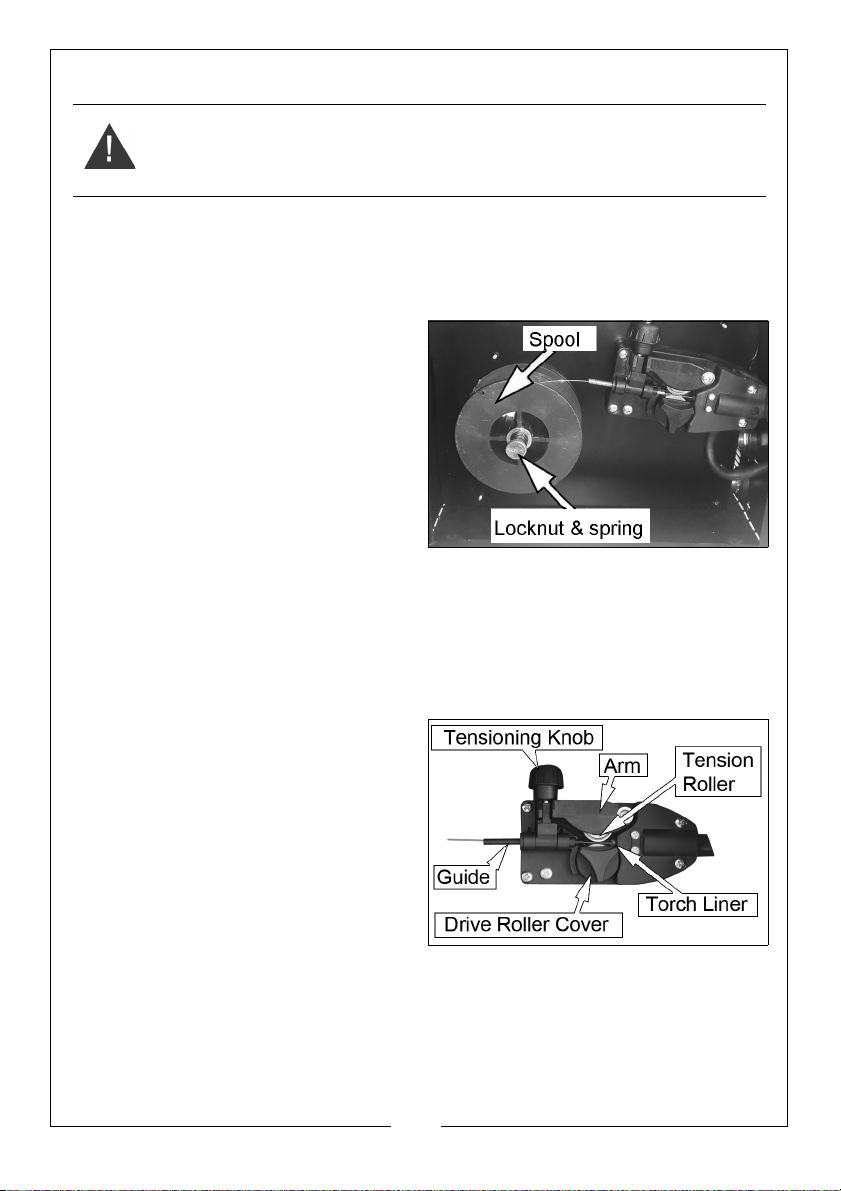

1. Open the side panel by pushing
the latches down and allowing
the side panel to open.

2. Remove the locking nut and
retaining spring.

3. Place a spool of welding wire over
the spindle.

• DO NOT release the tension on

the wire, as it will unravel
causing feeding problems later.

• The wire will feed off the spool clockwise from the top of the reel.

• The spool must be fitted in the correct orientation otherwise it will not

feed correctly.

SETTING THE DRIVE ROLLER SIZE

1. Loosen the tensioning knob and
pivot it towards you.

2. Lift up the arm.

3. Take hold of the triangular knob
on the drive roller cover and
rotate it 90°anticlockwise to
release it.

4. Pull the roller retainer off the drive
spindle to reveal the roller.

5. Pull the roller off the drive spindle.

• The groove size is stamped on the corresponding side of the roller.

Select the groove size according to the size of the wire you are using
and put the roller back on the spindle with your chosen side facing
you.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. Replace the drive roller cover back onto the drive spindle with the opening
facing right.

7. Ensure that the flanges at the base of the drive roller cover, seat fully into
the circular recess in the main moulding and then rotate the drive roller
cover through 90° to lock it in place.

THREADING THE WIRE

IMPORTANT: Do not release the tension on the wire as it will unravel causing
feeding problems later.

1. Pull out the end of the wire from the spool, taking care not to release the
tension.

• We recommend you cut off and discard the first 10 cm of wire from

the spool to avoid any burrs and then straighten the next few
centimetres of wire to help with feeding.

2. Loosen the tensioning knob and pivot it towards you.

3. Lift up the arm.

4. Feed the wire through the guide,
over the drive roller and into the
torch liner.

• Push about 10-15 cm into the

torch liner.

5. Lower the arm and refit the
tensioning knob.

• Tighten the tensioning knob

sufficiently to hold in position,
but do not fully tighten.

NOTE: Correct tension will allow the wire to feed into the torch liner

smoothly but will allow the drive roller to slip in the event of a
blockage.

6. Close the side panel of the welder.

7. Pull off the torch shroud with a twisting movement, then unscrew the
contact tip.

8. Connect the welder to the power supply and switch ON.

9. Set the ‘WIRE FEED’ rotary control on the front panel to position 7 or 8 and
squeeze the trigger on the torch body.

• The wire will feed through the hose until it appears at the torch tip.

• Ensuring the hose is free from kinks during this process will assist the

wire in its passage through the hose liner.

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

10. Release the trigger and switch off the welder and disconnect the machine
from the mains supply.

11. Refit the appropriate size contact tip (the 0.9 mm tip, for no gas welding is
supplied fitted) to suit your wire and replace the shroud.

• A spare 0.6 and 0.9 mm tip are supplied loose and should be used

when using 0.6/0.8 mm mild steel solid wire.

12. Trim the welding wire so that it protrudes no more than 5 mm from the end
of the contact tip.

CONNECTING THE GAS CYLINDER

The welder can be configured to
weld, with or without a gas supply
according to the type of welding
wire being used.

• Mild steel solid core (with gas)

• Flux cored (no gas)

1. Connect a bottled gas cylinder to
the connector at the back of the
welder.

FITTING THE WELDING ROD

Select the appropriate welding rod and insert it into the welding rod holder.

• It should be approximately the same thickness as the workpieces

being welded.

PREPARING THE WORKPIECE

The area being welded should be perfectly clean. Any coating, plating or
corrosion must be removed, otherwise a good weld will be impossible to
achieve.

CONFIGURING THE MACHINE

To prepare the machine for welding it is important that you follow the following
procedure.

Attach the earth clamp to the workpiece as close to the point of welding as
possible without it being intrusive.

Making sure that the ON/OFF switch, located on the rear panel is in the OFF
position, connect the welding leads and gas bottle as follows:

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

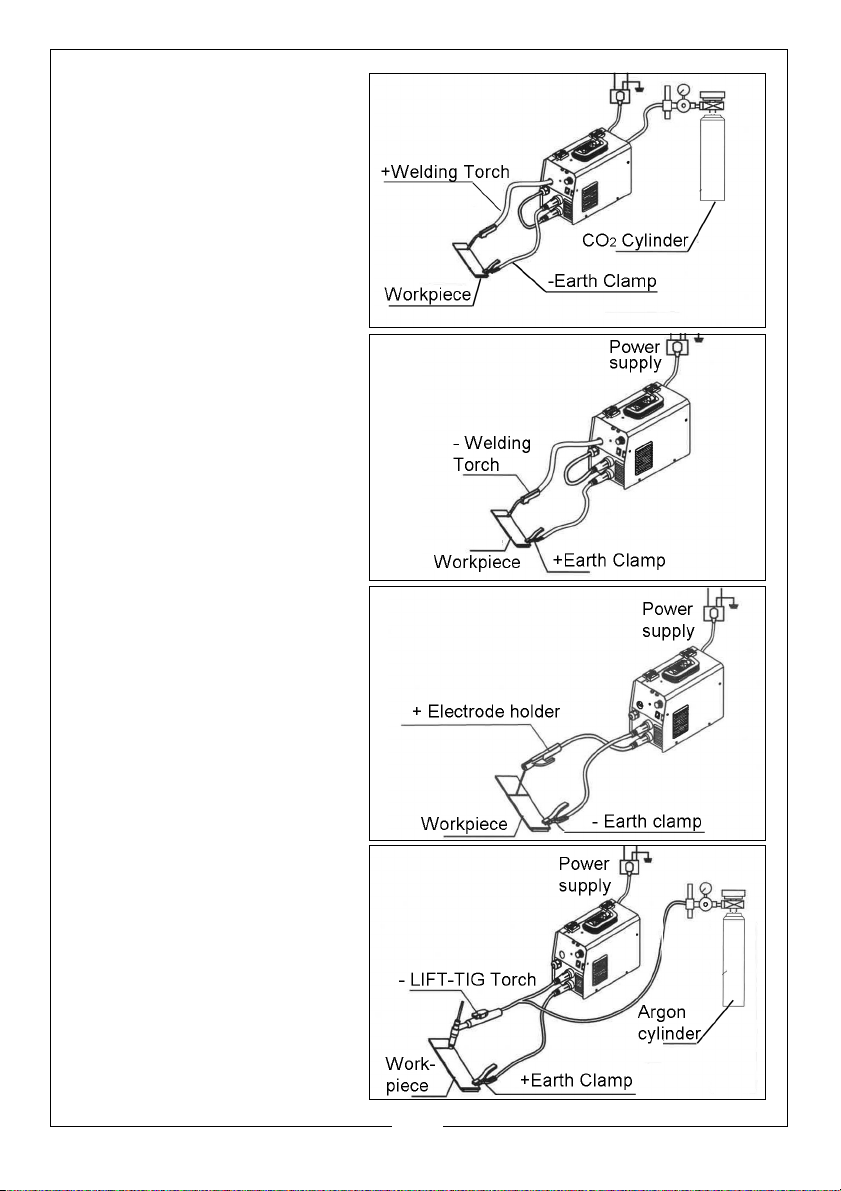

MIG WELDING WITH GAS

If using 0.9mm flux cored wire,
connect the earth clamp to
the negative terminal as
shown.

FLUX WELDING WITH NO GAS

If using 0.9mm flux cored wire,
connect the earth clamp to
the positive terminal as shown.

MMA ELECTRODE WELDING

Connect the earth clamp to
the positive terminal and the
electrode holder to the
negative as shown.

LIFT-TIG WELDING

Welding rod holder lead to the
(+) Positive terminal.

20

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

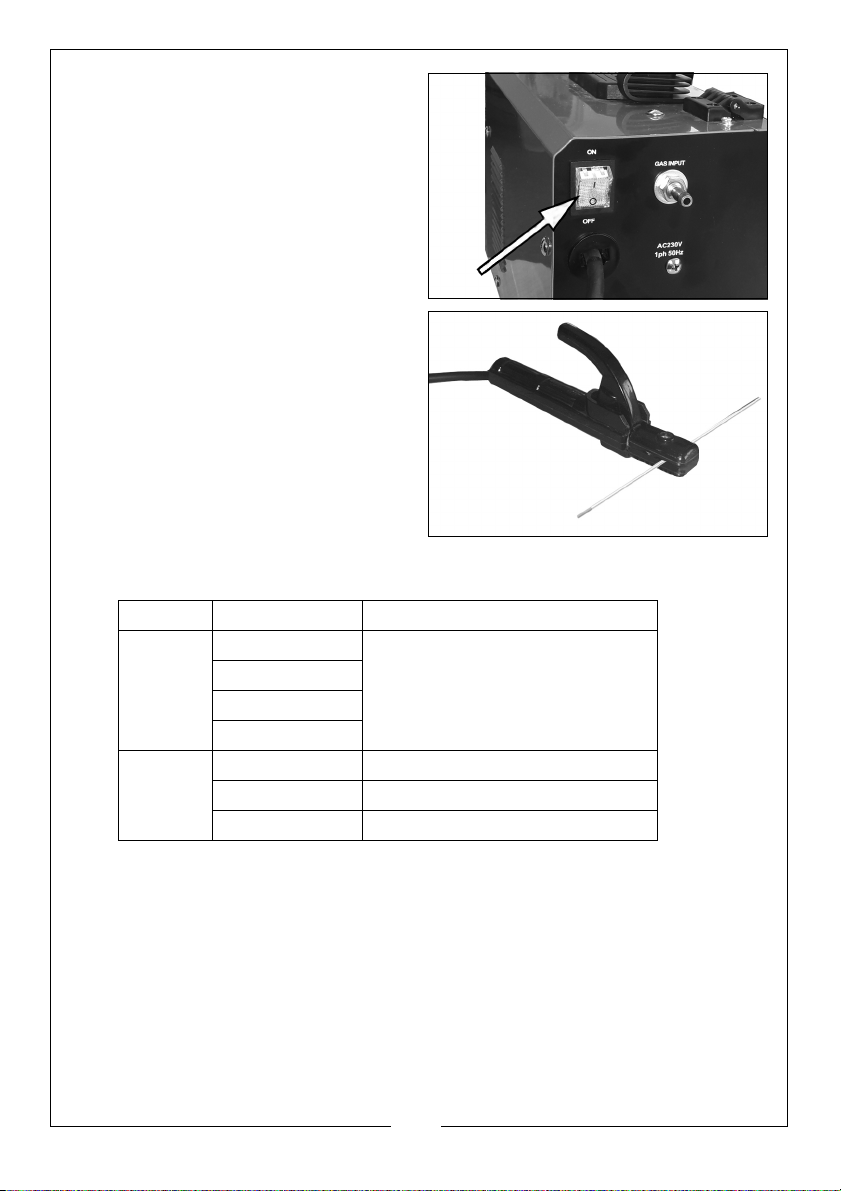

2. Switch on using the switch
located on the rear panel.

3. For Flux or MMA welding, select
the appropriate welding rod and
fit it into the welding rod holder.

The following sizes can be used and are available from your CLARKE dealer.

ROD DIAMETER WORKPIECE THICKNESS

MIG 0.6 mm

0.8 mm

0.9 mm

1-5 mm

1.0 mm

MMA 1.6 mm 1.5 - 2.0 mm

2.5 mm 2.5 - 3.0 mm

3.2 mm 3.5 - 4.5 mm

4. Attach the work clamp to the workpiece as close as possible to the area
being welded. Clean with a wire brush where necessary to ensure the
connection is as clean as possible.

21

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONTROL SETTINGS

1. Set the rocker switch (1) to either
welding mode.

2. Select the welding wire thickness
using the left rocker switch (2).

• Set the welding voltage (Settings
1-10) using the selector knob (3).

• With practice you will gain a feel
for the correct current setting for
different welding rod thicknesses.

THERMAL OVERLOAD

The ‘Thermal Overload’ shuts off the
welder when it becomes too hot,
due to the duty cycle being
exceeded. This is to prevent any
damage to the machine.

When this occurs, the warning lamp
shown will light up. Allow the welder
to cool until the amber light
extinguishes before resuming work.

22

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATING THE WELDER (MIG)

CAUTION: THE DUTY CYCLE MUST BE ADHERED IN ORDER TO PREVENT
THE THERMAL OVERLOAD PROTECTION FROM ACTIVATING

1. With the welding current set and the wire trimmed, set the wire feed
control to an intermediate setting.

2. Plug the machine into the power supply and switch on.

3. Cover your face with the welding mask supplied.

4. Approach the work with the torch tip at an angle of about 45
torch trigger fully.

• As the wire touches the workpiece an arc will be struck.

5. In order to produce a satisfactory weld, the control may be fine tuned as
required. This will come with practice.

• MIG welding is an acquired skill. It is strongly advised that, if you are not fully
familiar with this type of welding, you practice on a piece of material with
the same characteristics as your workpiece until you are satisfied with the
result and you have set your welder to produce a satisfactory weld.

• One of the problems experienced with novice welders is the welding wire
sticking to the contact tip. This is as a result of the wire feed speed being
too slow. It is always better therefore to start with too high a speed and
back off slightly to avoid the possibility of the wire welding itself to the tip.

• The speed of wire delivery will increase automatically as the current is
increased.

• Listen to the sound made. An irregular crackling sound denotes too high a
wire speed. Decrease the voltage/speed until a regular, strong buzzing
sound is heard.

o

and pull the

WELDING TECHNIQUE

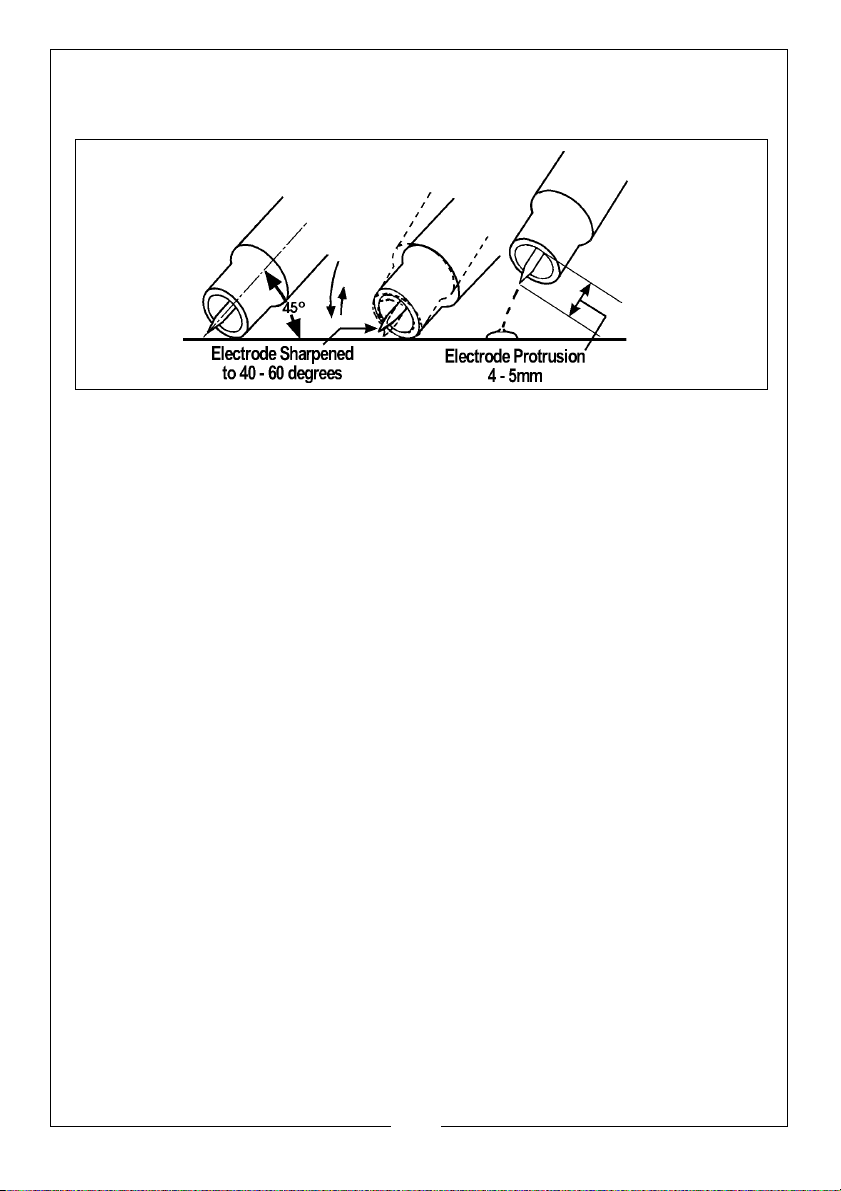

• Try to maintain the tip of the nozzle at an angle of approx 45oand at a
constant distance of approx 5-7mm from the workpiece.

• Try to maintain a constant speed of movement with the torch.

• DO NOT weld in windy conditions or in an area where ventilation is a
problem, or where air flow fluctuates.

• ALWAYS keep the wire and nozzle clean...NEVER use rusted wire.

• Avoid sharp bends or kinks in the welding hose.

23

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATING THE WELDER (MMA/ARC)

WARNING: WHEN WELDING ALWAYS ENSURE THERE IS ADEQUATE
VENTILATION IN THE WORK AREA DUE TO TOXIC FUMES.

WARNING: DO NOT STRIKE THE ELECTRODE ON THE WORKPIECE, AS THIS
MAY DAMAGE THE ELECTRODE.

WARNING: WELDING ARCS PRODUCE HARMFUL UV/IR LIGHT WHICH CAN
SERIOUSLY DAMAGE YOUR EYES. ALWAYS USE A WELDING FACE-SHIELD
WITH A SUITABLE FILTER THAT CONFORMS TO CURRENT STANDARDS.

WARNING: PROTECT BYSTANDERS BY USING WELDING SCREENS.

The consumable electrode is connected to a high amperage low voltage
supply which creates an electric arc between the electrode and the
workpiece.

The most difficult aspect of the arc welding process, particularly for beginners,
is that of striking an arc. We strongly recommend that you practice on some
pieces of scrap metal to get the feel of the operation before you start an
actual welding job.

1. Holding the welding mask close-up to your face, give a short stroke with
the electrode on the workpiece. As soon as the arc is primed, withdraw the
electrode from the workpiece to leave a gap. The current will flow across
the gap with a crackling noise and a brilliant arc. Continue to weld in one
direction, maintaining the small gap as you go.

2. As soon as the arc is struck, maintain a distance from the workpiece equal
to the diameter of the electrode. Keep this distance as constant as
possible for the duration of the weld. As you advance along the workpiece
the angle of the electrode must be maintained at between 20º and 30º.

NOTE: When you prime the arc be sure to withdraw the electrode swiftly

to leave the gap, otherwise the electrode will weld itself to the
workpiece. If this occurs give the electrode a short sharp jerk to
free it and, if necessary, prime the arc again. If you cannot free
the electrode, switch the machine off immediately and free it.
Take care the electrode will get red hot very quickly and will be
capable of burning through welding gloves.

3. At the finish of the weld, bring the end of the electrode backward in order
to fill the weld crater and then quickly lift the electrode from the weld pool
to extinguish the arc.

4. Inspect the job carefully. Any slag forming on the surface should be
chipped away with a chipping hammer or pick. ALWAYS wear your safety
goggles when chipping away slag.

24

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATING THE WELDER (TIG WELDING)

TIG welding is primarily for very thin materials. It uses a non-consumable
tungsten (or tungsten alloy) electrode, held in a torch.

A shielding gas (100% Argon), is fed through the torch to protect:

• The electrode

• Molten weld pool

• Solidifying weld metal from contamination by the atmosphere

The electric arc is produced by the passage of current through the
conductive, ionized shielding gas. The arc is established between the tip of the
electrode and the work. Heat generated by the arc melts the base metal.
Once the arc and weld pool are established, the torch is moved along the
joint and the arc progressively melts the joined surfaces. Filler wire, if used, is
usually added to the leading edge of the weld pool to fill the joint.

This process is ideally suited for welding thin metals such as car body panels,
pressure vessels, heat exchangers, pipes etc., where accuracy and a high
quality weld is desired, as it produces a very low porosity weld.

MAIN FEATURES OF TIG WELDING

1. Electronic control of welding current.

2. Forced air cooling.

3. A thermal overload protection device prevents overheating.

TIG WELDING PROCESS ADVANTAGES

• It produces superior quality welds, generally free of defects.

• It is free of the spatter which occurs with other arc welding processes.

• It can be used with or without filler metal as required.

• It allows excellent control of root pass weld penetration.

• It can produce welds at high speeds.

• It allows precise control of the welding variables.

• It is capable of welding very thin material (0.5mm), without undue
distortion.

LIMITATIONS

1. Greater weld dexterity is required.

2. The DC output is not suitable for welding aluminium.

25

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TIG WELDING

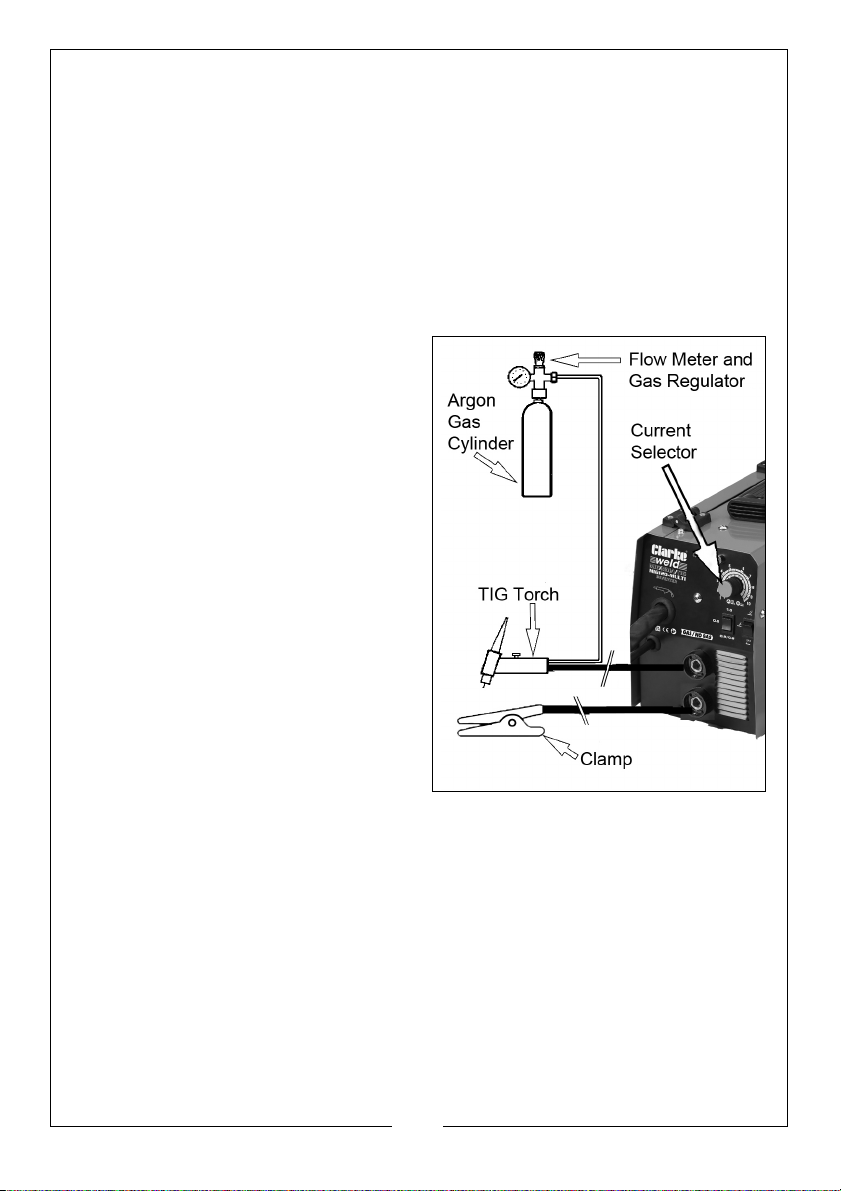

Before TIG welding, you must obtain the correct torch and a gas cylinder of
100% pure Argon. (see page 36)

To prepare the unit for TIG welding, adopt the following procedure.

1. Plug the work clamp lead in to the +ve terminal, and secure the work
clamp to the workpiece.

• For good contact, the work clamp must be attached to clean bare

metal. Clean with a wire brush where necessary.

2. Plug the torch lead to the -ve terminal.

3. Screw the pressure regulator on to
the gas bottle tightly, and attach
the gas hose to the inlet connector
securely, with a hose clip.

4. Turn the pressure regulator knob to
set a pressure of approx. 2.5kg/

2

cm

(35 lbf/in2).

5. Ensure the electrode at the torch
nozzle, protrudes by 4 - 5mm, also
ensure that the electrode is sharply

pointed with an angle of 40
it is not, grind it to shape.

6. Set the welding current in
accordance with the thickness of
the material to be welded and the
size of tungsten electrode to be
used.

7. Switch on using the switch
mounted on the rear panel. The
green light on the front panel will glow.

8. If the machine stops at any time and the amber light comes on, the
thermal overload has intervened. Wait until the welder has cooled
sufficiently (the amber light goes out) before restarting work.

o

- 60o if

26

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

9. Cover your face with the head shield, bring the torch to within 3-4mm of

o

the work, and at an angle of 40-60

, so that the ceramic nozzle gently

touches the work surface.

10. Scratch the tip of the electrode against the piece to be welded, as soon as
the welding arc starts, remove the electrode to a distance of 3-4 mm, and
continue the weld. (See notes below).

• This method is referred to as ‘Scratch Arc’.

11. To stop welding, simply remove the torch from the workpiece.

12. Turn off the gas as soon as you finish welding.

Notes:

• To avoid a visible strike mark on the surface of the workpiece it is

advisable to strike the arc in the joint where the mark will be
concealed by the weld.

• Thin sheet and stainless steel may be welded with or without filler,

similar to gas welding.

• The filler is fed in at the edge of the pool. The rod must not touch the

tip of the electrode or enter the arc. The end of the rod must always
be shielded by the argon atmosphere to prevent as far as possible
the formation of oxides of its surface. When welding stainless steel
and copper, it is often possible to feed in the filler continuously at the
edge of the pool.

• The arc length generally varies between 3 and 6 mm depending on

the type of joint, type and thickness of material and so on.

• The torch is advanced in the direction of welding, without lateral

movement, maintaining the torch angle of 45

o

to the workpiece.

27

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WELDING SETTINGS TABLES

L-SHAPED BUTT WELDING

Metal
thickness
(mm)

0.8 0.8 - 0.9 0 60-70 16-16.5 50-60 10 1

1.0 0.8 - 0.9 0 75-85 17-17.5 50-60 10-15 1

1.2 0.8 - 0.9 0 80-90 17-18 50-60 10-15 1

1.6 0.8 - 0.9 0 95-105 18-19 45-50 10-15 1

2.0 1.0 - 1.2 0 - 0.5 110-120 19-19.5 45-50 10-15 1

2.3 1.0 - 1.2 0.5 - 1.0 120-130 19.5-20 45-50 10-15 1

3.2 1.0 - 1.2 1.0 - 1.2 140-150 20-21 45-50 10-15 1

4.5 1.0 - 1.2 1.0 - 1.5 140-150 22-23 40-50 15 1

6.0 1.2 1.2 - 1.5 170-185 24-26 40-50 15-20 Positive

9.0 1.2 1.2 - 1.5 320-340 32-34 40-50 15-20 Positive

Wire
diameter
(mm)

Root gap Welding

current
(A)

Welding
voltage
(V)

Welding
speed

Gas Flow
(L/min)

Number
of

ANGLE JOINT (THIN PLATE)

Metal
thickness
(mm)

1.6 0.8-0.9 65-75 16-17 40-45 10 10-15

2.3 0.8-0.9 80 - 100 19-20 40-45 10 10-15

3.2 1.0-1.2 130 - 150 20-22 35-40 10-15 10-15

4.5 1.0-1.2 150 - 180 21-23 30-35 10-15 10-15

Wire
diameter
(mm)

Welding
current (A)

Welding
voltage
(V)

Welding
speed

Distance
between
conductive
nozzle
profiles (mm)

Gas Flow
(L/min)

FLAT FILLET WELDING LAP JOINT (THIN PLATE)

Metal
thickness
(mm)

0.2 0.8 - 0.9 60-70 16-17 40-45 10 10-15

1.2 0.8 - 0.9 80-90 18-19 45-50 10 10-15

1.6 0.8 - 0.9 90-100 19-20 45-50 10 10-15

2.3

Wire
diameter
(mm)

0.8 - 0.9 100-130 100-130 45-50 10 10-15

1.0-1.2 120-150 120-150 45-50 10 10-15

Welding
current
(A)

Welding
voltage
(V)

Welding
speed

Distance between
conductive nozzle
profiles (mm)

28

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Gas Flow
(L/min)

WELDING PITFALLS

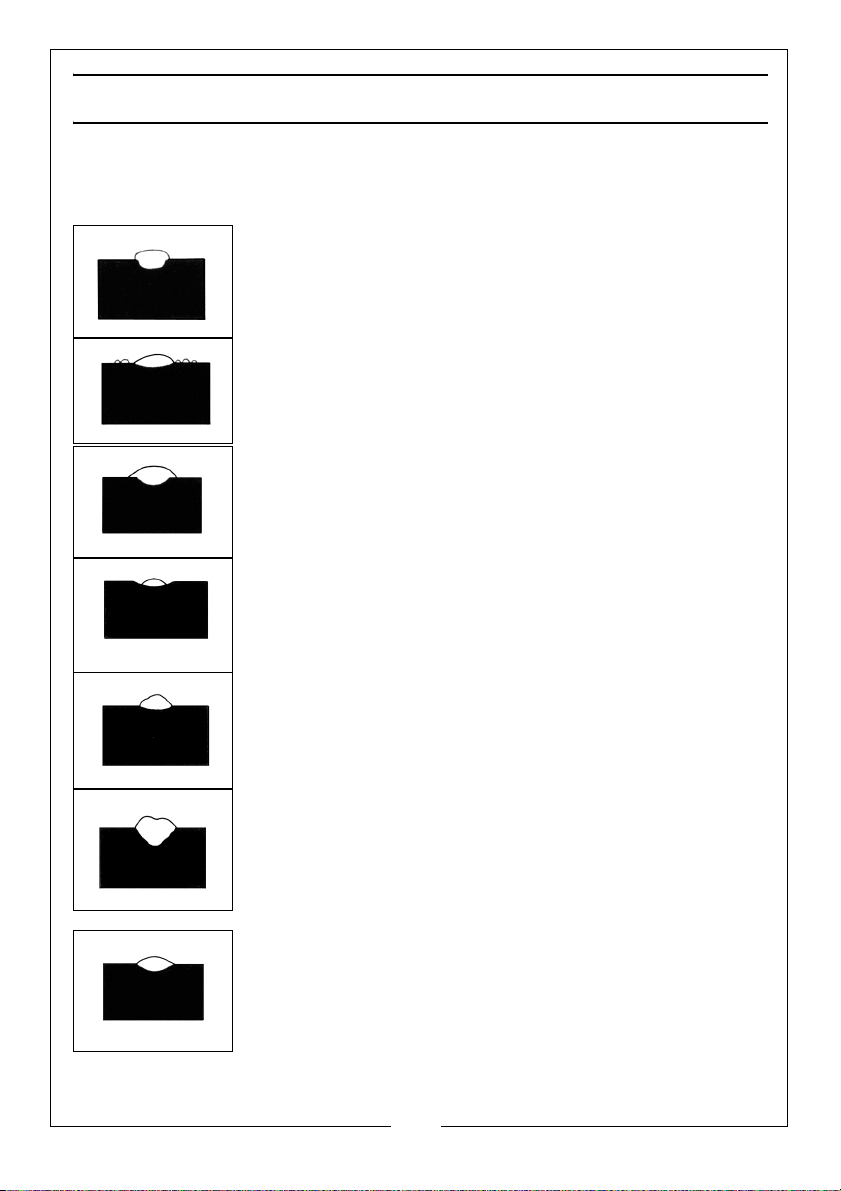

The arc welding technique is an acquired skill and requires considerable
practice before perfect results are obtained. The diagrams below will help to
explain the pitfalls in your technique and how to overcome them.

ARC TOO SHORT

This causes irregular masses of weld to be deposited, with
slag contamination on an uneven surface.

ARC TOO LONG

This causes poor penetration resulting in a weak weld with
excessive spatter and porosity. Surface of the weld is rough
and the arc makes a hissing sound

ELECTRODE MOVED TOO SLOWLY

This causes a very wide and heavy deposit which overlaps
at the sides. It is wasteful both in terms of time and electrode
use.

ELECTRODE MOVED TOO QUICKLY

This causes poor penetration with a ‘stringy’ and incomplete
weld deposit. Slag is very hard to remove.

CURRENT TOO LOW

This causes poor penetration and causes the electrode to
stick to the workpiece too readily. Also results in a very
irregular and high weld deposit. Slag is very hard to remove.

CURRENT TOO HIGH

This causes excessive penetration with spatter and deep
pointed crater. It may also cause holes to be burned in the
workpiece.

Burns electrodes very quickly.

THE PERFECT WELD

With the correct combination of arc length, current
regulation, inclination and speed of the electrode, you will,
with practice, produce the perfect weld.

This should be regular with uniform ripples and no slag
contamination. The arc will make a steady crackling sound.

29

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

Your CLARKE Welder has been designed to give long and trouble free service.
If however, having followed the instructions in this booklet carefully you still
encounter problems, the following points should help identify and resolve
them.

DEFECT CAUSES SUGGESTIONS

Spark will not start Bad clamp connection.

Inverter printed circuit is
defective.

No output voltage Overheated machine (the

amber LED should be on).

Internal relay has failed. Contact your nearest

Inverter printed circuit is
defective.

Wrong output
current

Porosity of welds Acid electrode on steel

Cracks in weld Material being welded is

Limited
penetration

Current selector control is
defective.

Low power supply voltage. Check the mains distribution

with high sulphur content.
Electrode oscillates too
much.
Workpieces are too far
apart.
Workpiece being welded is
cold.

dirty (e.g.oil, paint, rust,
oxides).
Not enough current.

Low current, high welding
rate, reversed polarity.
Electrode inclined in
position opposite to it's
movement.

Check clamp connection.
Contact your nearest
CLARKE dealer.

Wait for thermal cutout to
be reset.

CLARKE dealer.

Contact your nearest
CLARKE dealer.

Contact your nearest
CLARKE dealer.

system.

Use basic electrode.
Move edges to be welded
closer together. Move slowly
at the beginning.

Clean workpiece before
welding is an essential
method of achieving neat
weld beads. Also increase
current output.

Ensure operating
parameters are regulated
and improve preparation of
work pieces.

30

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DEFECT CAUSES SUGGESTIONS

Profile defects Welding parameters are

incorrect.
Pass rate is not related to
operating parameter
requirements.
Electrode not inclined
constantly while welding.

High Sprays Electrode is too inclined. Make appropriate

Arc is unstable Insufficient current. Check condition of

Electrode melts
obliquely

Electrode core is not
centred.
Magnetic blow
phenomenon.

No response from
welder.

Welder does not

Check fuses and power
lead.

Feed motor defective. Return welder to your local

feed wire.

Feed motor
running but no
wire being fed
from welder tip

Insufficient Feed Roller
pressure.

Burr on end of wire. Re-cut wire square with no

Liner blocked or damaged. Clean with compressed air

Inferior wire Use only good “clean” wire.

Roller worn out. Replace roller.

Wire welds itself to

Wire feed speed too low. Unscrew tip, cut wire and fit

tip.

Wrong size tip. Fit correct size tip.

Follow basic and general
welding principles.

corrections.

electrode and earth wire
connection.

Replace electrode.
Connect two earth wires
to opposite sites of the
work piece.

Replace fuses as necessary.
If problem persists return
welder to your local dealer.

Check fuse size.

dealer.

Increase roller pressure.

burr.

or replace liner.

new tip.
Increase wire speed before
operating again.

31

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DEFECT CAUSES SUGGESTIONS

Wire feeds into
‘birds nest’ tangle.

Loose coils of wire
tangle around
wire drum inside
machine.

Erratic wire feed. Tensioning Knob too tight. Loosen Tensioning Knob

Poor quality welds. Insufficient gas at weld

Welder cuts out
whilst in use.

Wire welded to tip. As previous plus reduce

feed roller pressure.

Wire liner damaged

Renew wire liner.
preventing smooth
operation.

Locking knob too slack. Tighten Locking Knob

slightly. Do not over-tighten.

slightly.

Tension roller worn. Check and replace if

necessary.

Insufficient pressure on
tension roller.

Increase pressure on tension

roller

Caution: DO NOT over-

tighten.

Wire dirty, rusty, damp or
bent.

Re-cut wire and ensure it is

clean.

Liner partially blocked. Clean with compressed air.

Check that gas is not being
area.

blown away by draughts

and if so move to a more

sheltered work area. If not,

increase gas supply.

Rusty, painted, damp, oil or
greasy workpiece.

Ensure workpiece is clean

and dry.

Rusty/dirty wire. Ensure wire is clean and dry.

Poor earth contact. Check earth clamp/

workpiece connection.

Duty cycle exceeded (auto
cut-out operates).

Allow welder to cool 15-30

mins before continuing.

Note: If duty cycle is

continually exceeded,

damage to the welder may

result and welder output is

probably too small for

application.

32

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CARE AND MAINTENANCE

WARNING: ELECTRICITY CAN KILL - NEVER TOUCH LIVE ELECTRICAL
COMPONENTS.

WARNING: DISCONNECT THE POWER SUPPLY BEFORE ALL INSPECTIONS
AND MAINTENANCE OPERATIONS. BEWARE HOT SURFACES.

The machine requires no maintenance other than the following guidelines.
Cleaning at frequent intervals is advisable if the unit is operating in a very dusty
environment.

1. Keep the louvres clean to avoid a build up of dirt and oxides inside the
machine which can reduce machine output.

2. Check all cables periodically for condition and secure. They must be in
good condition and not cracked.

Always avoid getting particles of metal inside the machine since they could
cause short circuits.

Always inspect the earth cable and torch hose before use, to ensure they are
in perfect condition and that the earth clamp is clean and secured correctly
to the cable.

Check the hose for security and damage.

Wire feed unit:

The feed roller / wire guide plays an important part in achieving consistent
results. Check the feed roller groove, removing any deposits.

Torch:

Protect the torch hose assembly from mechanical wear. If the liner is blocked it
must be replaced.

Contact tip:

The contact tip is a consumable item and must be replaced when the bore
becomes enlarged or oval. The contact tip MUST be kept free from spatter to
ensure an unimpeded flow of gas.

To keep the contact tip free from spatter, we recommend the use of anti­spatter spray (6000715) available from your CLARKE dealer.

Torch shroud:

The torch shroud must also be kept clean and free from spatter. Build-up of
spatter inside the gas cup can cause a short circuit at the contact tip which
will result in expensive machine repairs.

33

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

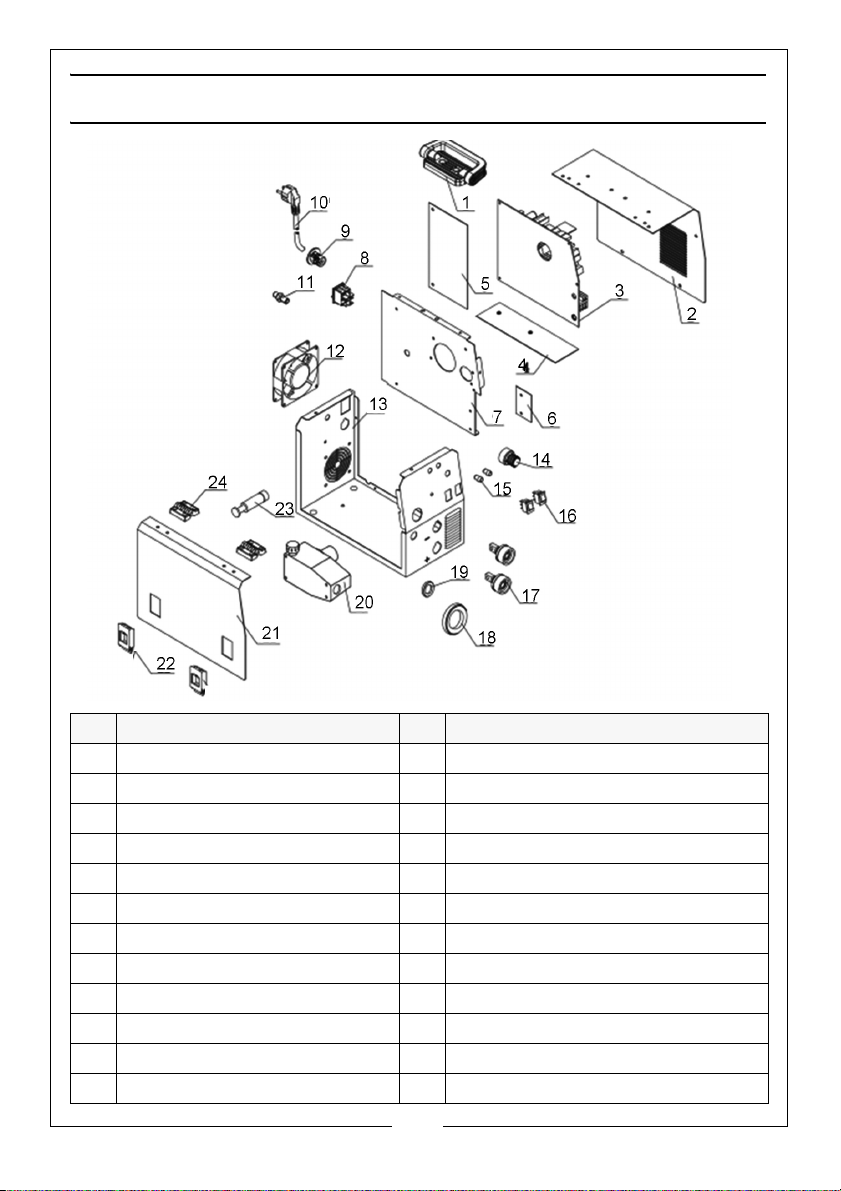

COMPONENT PARTS

NO DESCRIPTION NO DESCRIPTION

1 Handle 13 Base panel

2 Cover panel 14 Potentiometer

3Main PCB 15LED

4 Insulation board 1 16 3-gear switch

5 Insulation board 2 17 Coupling device

6 Dam board 18 Torch cable gland 10 dia

7 Centre panel 19 Torch cable gland 12 dia

8 Power switch 20 Wire feeder

9 Entry port 21 Feeding door

10 Power cable 22 Door lock

11 Gas connector 23 Wire spool

12 Cooling fan 24 Hinge

34

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

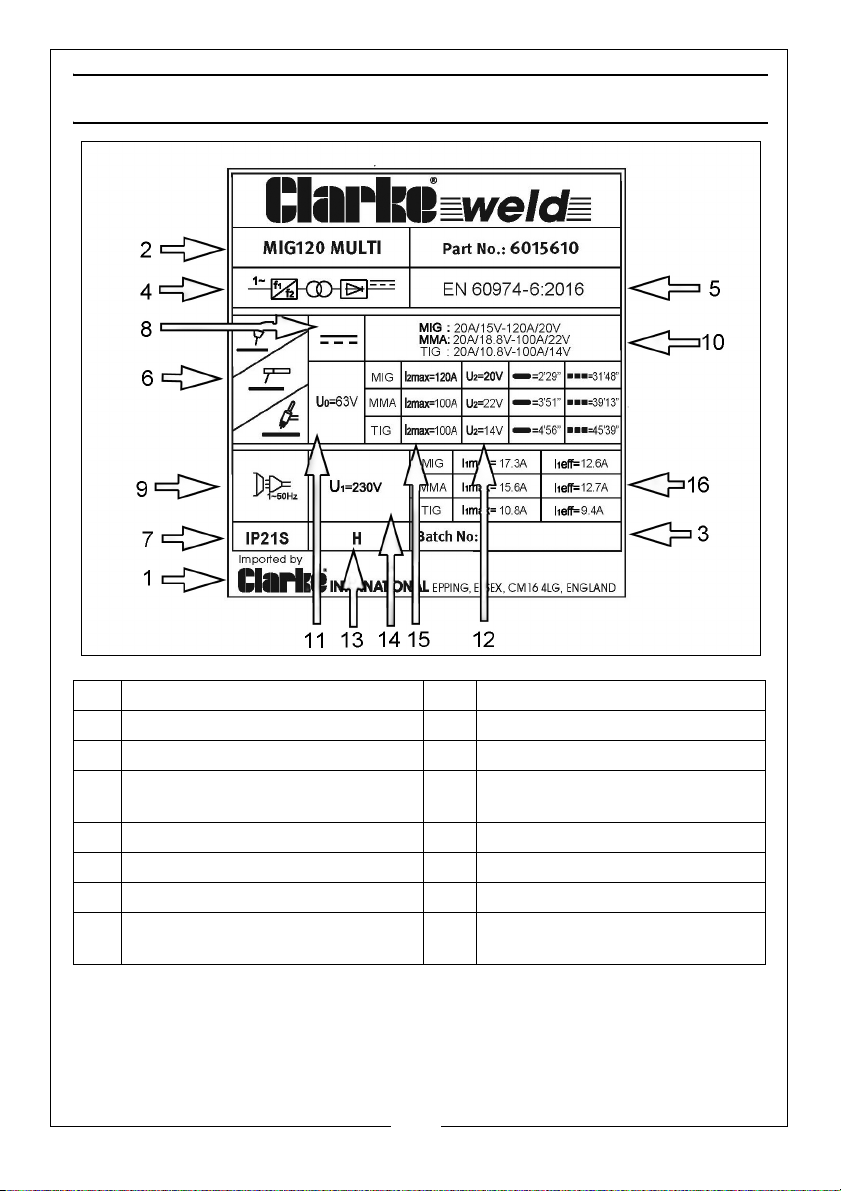

THE MACHINE RATING PLATE

1 Name/address of manufacturer 9 Energy Supply symbol

2 Model Number / Part Number 10 Range of Output

3 Serial / Batch number 11 Rated No-load Voltage

4Welding Power Source 12Conventional Load Voltage

symbol

5 British Standards applied 13 Insulation grade

6 Welding Process symbol 14 Rated Supply Voltage

7 Degree of Protection 15 Rated Maximum Supply Current

8 Welding Current symbol 16 Maximum Effective Supply

Current

This welder is covered by regulations EN 60974-1:2018+A1:2019 / EN 60974­10:2014+A1:2015, where the Duty Cycle is expressed as a percentage of time
the machine may be used in a given period for a specified welding current.
e.g. When welding at 140 Amps the machine may be used for 6 minutes (60%)
in any10 minute period,

35

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONSUMABLES

The following are some of the accessories available from your CLARKE dealer.
Please quote the part numbers shown below:

Part Description Part

number

Welding Wire
Spools

Welding Gas CO2 (250g) 6000642 For welding mild steel

Welding Tips 0.6 mm (pack of 5) 8132260

Arc Welding
Rods

Welding Rods 4.0 x 400mm E6013 3050598

Welding Torch Welding Torch Assembly

Regulator Argon Gas Regulator 8134140

Flux cored mild steel (mini
spool) 0.9mm

Mild steel (mini) - 0.6mm 8132100 Use for gas welding

Mild steel (mini) - 0.8mm 8132070 Use for gas welding

Stainless Steel 0.8mm (mini
spool)

CO2 (600g) 6000643 For welding mild steel

Argon 6000661

CO2/Argon Mix 6000660 For welding stainless/

0.8 mm (pack of 5) 8132270

1.0 mm (pack of 5) 8132275

1.6 x 300mm 3050590

2.0 x 350mm 3050592

2.5 x 350mm 3050594

3.25 x 350mm 3050596

(MMA/TIG)

8132110 Use for no gas welding

8132090

6012232

Comment

thin sheet mild steel

A Gas Regulator, Arc Activated Headshields, Anti-spatter Spray, Swan Necks,
Torch Shrouds and Torch Liner are also available from your CLARKE dealer or
our parts division.

36

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ARC ACTIVATED HEADSHIELDS

These highly popular head-shields activate instantly when the arc is struck and
allow you to have both hands free when welding.

Model Arc

Activated

GWH2 ✔✔✔ 6000697

GWH3 ✔✔✔ 6000698

GWH4 ✔✔✔ 6000706

GWH5 ✔✔✔ 6000707

GWH6 ✔✔✔ 6000708

GWH7 ✔✔✔ 6000709

PG4 ✔✔✔ 6000716

HS1 ✔✔6000700

HSF1 ✔✔6000705

Grinding
function

Solar
Powered

Fixed
Shade

Flip Up Part

Number

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

37

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY -UK

38

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY - CE

39

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
