Page 1
MULTI-FUNCTION WORKLIGHT
MODEL NO: MFL800R
PART NO: 4003542
INSTRUCTIONS FOR USE
GC07/23
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Worklight. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.
TECHNICAL SPECIFICATIONS
Model MFL800R
Operating voltages 3.7V (light), / 230V (charger)
LED Wattage consumption 9W(max)
LED replaceable No
Rechargable Lithium battery 3.7V / 4400mAh
LED Light source 4 x 1W SMD, 1 x 5W LED, 1 x 2W LED
Light output (luminous flux) max 800 Lm
Colour temperature (rendering) 6000 - 6800K
Ingress Protection (IP rating) IP20
Battery charging time 6 hours
Approximate Run Time 5 Hours
Efficiency 88 Lm/W
Operating temperatures
Dimension 55 x 255 x 42mm
Weight 330g
0 to +45
o
C
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase. This guarantee is invalid if the product is found
to have been abused or tampered with in any way, or not used for its
intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY INSTRUCTIONS
1. ALWAYS check for damage before using the worklight. Inspect the power
cable and plug for damage. Any damage should be properly repaired or
the part replaced. Consult your local CLARKE dealer.
2. ALWAYS ensure that the voltage marked on the charger matches the
power supply to be used.
3. NEVER use this lamp in a bathroom or in the vicinity of a swimming pool.
4. NEVER cover the lamp.
5. NEVER pull the cable to remove the charger plug from the power supply.
6. DO NOT look directly into the worklight when it is switched on.
7. Keep the worklight out of the reach of children.
8. Charge the worklight in a dry indoor location. DO NOT immerse in water or
any other liquid.
9. ALWAYS fully charge before first use.
10. DO NOT turn on the light when charging.
11. DO NOT leave the worklight on charge for more than 24 hours.
12. DO NOT disassemble the worklight as there are no user changeable parts.
13. This worklight utilises a rechargeable Lithium-ion battery that can rupture,
ignite and cause serious injury if being used improperly.
14. DO NOT put batteries and the worklight in the fire or high temperature.
15. DO NOT puncture or damage the batteries.
16. DO NOT immerse or expose the worklight to water.
17. DO NOT dispose of the worklight in a fire or water.
THE FOLLOWING WARNING SYMBOLS ARE FOUND ON THE PRODUCT
Indoor use
Harmful to aquatic life
Pacemaker hazard (due to magnet)
Not suitable for use by children
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.
The light source contained in this worklight has a life expectancy of
approximately 50000 hours after which the worklight should be disposed of in
an environmentally responsible way.
The Lithium Ion battery falls under the Waste Batteries and Accumulators
Regulations 2009 and should be disposed of in a controlled manner.
BATTERY CHARGING
1. Connect the AC charging
adaptor to the charging jack on
the worklight.
2. Connect the other end of the
charger to the 230V mains power
supply and charge until fully
charged.
• The battery condition indicator
will illuminate when charging.
• The worklight should not be
used while using the charger.
3. The battery should be re-charged
at least every 3 months. Failure to
re-charge the battery will lead to
reduced performance of the
worklight and to premature battery failure.
4. If you plan to store the worklight (e.g. for emergencies), we recommend
that the battery is fully charged before doing so. This will ensure the longest
possible battery life.
5. NEVER abuse the charger cable or yank the cable to disconnect it. Keep
the cable away from sharp edges/hot surfaces.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
OPERATION
To switch on the different LEDs, press the ON/
OFF button in the following sequence.
1. The first press switches on the centre light.
2. The second press switches on the two
upper and two lower LEDs.
3. The third press switches on all LEDs.
4. The fourth press makes all lights brighter.
5. The fourth press switches off the main
lights and switches on the end LED (torch) light.
6. The fifth press switches the unit off.
NOTE: If set to 3 or 4 for longer than a few seconds, the next press
switches the unit off.
CAUTION: NEVER SHINE ANY LED LIGHT DIRECTLY INTO ANYONE’S EYES.
Attach the worklight to a suitable
support using the folding hook or
attach to a ferrous metal surface using
the magnetic retainer.
Angle the worklight to suit the task by
bending and/or twisting the top half of
the unit to shine in any direction.
To keep your worklight clean, wipe with
a damp cloth only, DO NOT use
detergents, chemicals or harmful
abrasives. Never immerse in water.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
COMPONENT PARTS
Item Description Item Description Item Description
1 Front Lens 10 Switch Support 19 Lithium Battery
2 Housing 11 Switch Cap 20 Ratchet
3 Reflector 12 Radiator 21 Back Pivot
4 LED Plate 13 Back Housing 22 Hook Support
5 Torch LED 14 Sticker 23 Back Housing
6 LED Lens 15 DC Hole Rubber 24 Hook
7 DC Socket Nut 16 Front Pivot 25 Screw
8 DC Socket 17 Front Housing 26 Magnet
9 PCBA 18 Fluorescent Ring 27 Magnet Support
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

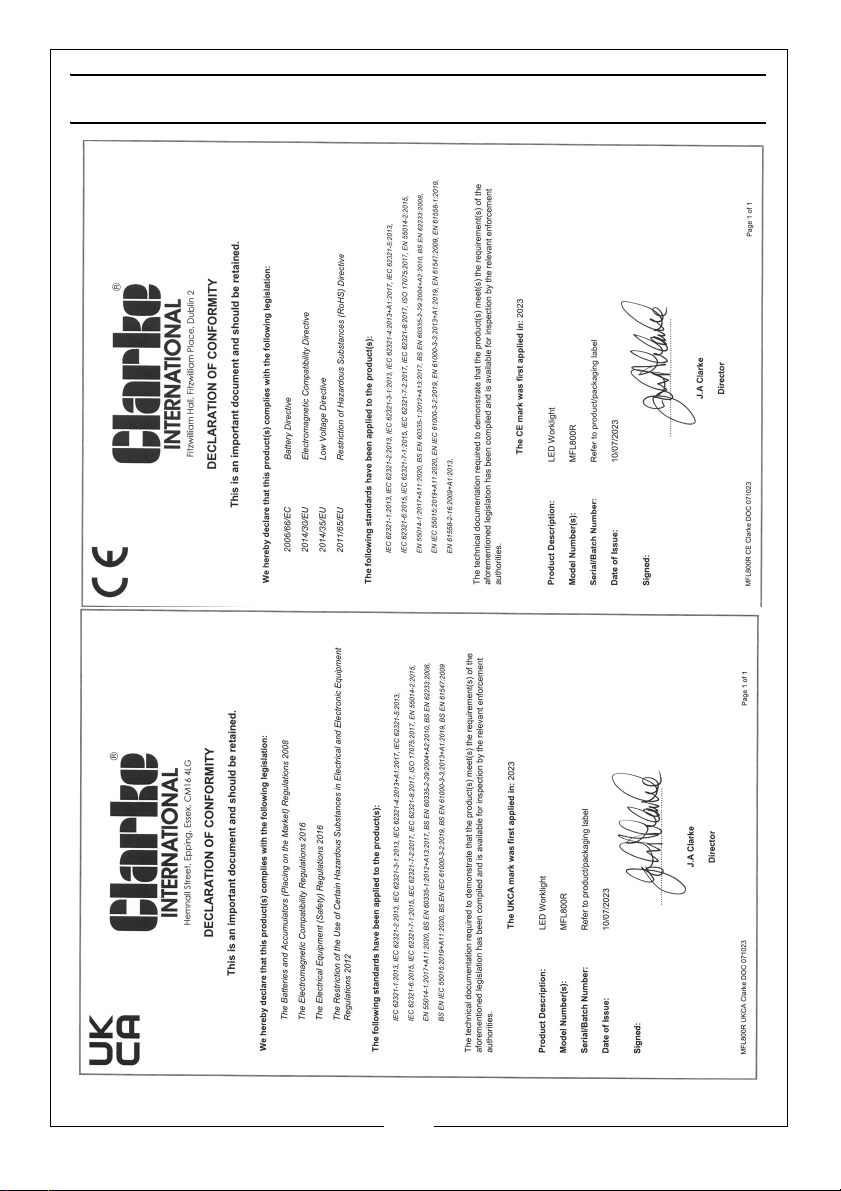

DECLARATIONS OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
