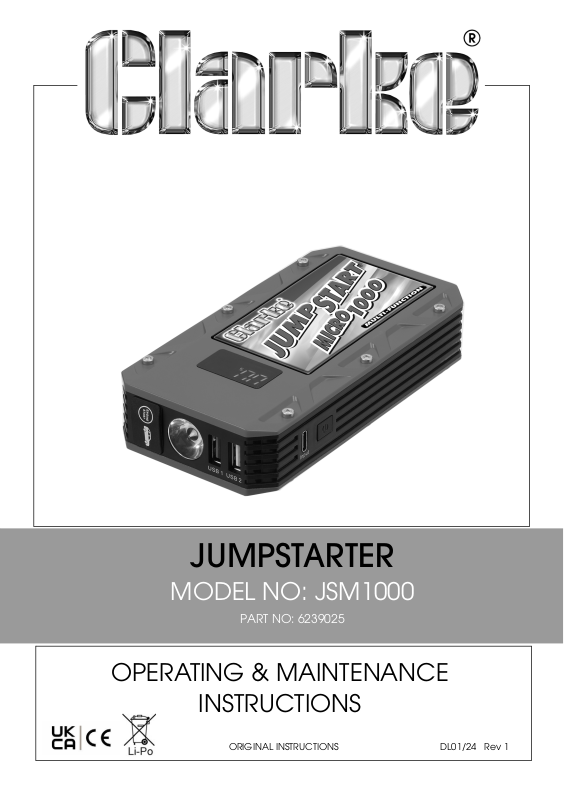

Page 1
JUMPSTARTER
MODEL NO: JSM1000
PART NO: 6239025
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL01/24 Rev 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Jump-starter. Before attempting to use
this product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service. Please keep these instructions in a safe place for future
reference.
SPECIFICATIONS
Item Specification
Weight 365 g
Size (L x W x H) 146mm x 78mm x 31mm
Max Output Current (12V) Starting 500A
Peak 1000A
Output voltage (open circuit) 14.8V
Input Voltage/Current 5 V / 2A
Battery Type Sealed re-chargeable lithium-polymer
10000 mAh
USB(A) output power supply 5 V DC - (2.1A & 3.0A)
Estimated engine starting capacity Up to 2.5 litres (diesel) or
5 litres (petrol)
Full charging time Approx 6 -7 hours from flat
Lifetime 1000 cycles
Duration before recharging 3 months max
Number of starts before re-charging 20 max
Protection features Short circuit, over-charge protection
and discharge protection
USB Cable Plugs 1 x USB C, 1 x Micro USB, 1 x Lighting
Work Light LED, 3V, 1W.
Ingress Protection IP20
Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY
WARNING: ALL LEAD ACID BATTERIES GENERATE HYDROGEN GAS
DURING NORMAL OPERATION. THIS PROCESS INCREASES DURING A
PERIOD OF RAPID DISCHARGE.
WARNING: HYDROGEN GAS AND BATTERY ACID (SULPHURIC ACID) CAN
BE EXPLOSIVE, CORROSIVE TO SKIN, EYES AND HAIR, DAMAGING TO
CLOTHING AND METALS, FLAMMABLE, POISONOUS TO BREATHE.
1. DO NOT leave the device exposed to the elements. Avoid direct sunlight,
direct heat, rain/moisture etc.
2. The device must only be used indoors or completely protected from the
rain. This also applies to any device being powered by the device.
3. DO NOT operate the device if any of the cables are damaged. Consult
your CLARKE dealer for repair or replacement of the parts.
4. DO NOT operate the device if the case is damaged. Consult your CLARKE
dealer or a qualified person for inspection and repair.
5. To prevent the battery from overheating and consequent damage, DO
NOT exceed our recommendations for the duration of jump starting.
6. The unit is NOT designed to be used as a replacement for a vehicle
battery.
7. NEVER allow the battery to become completely discharged.
8. NEVER jump start the engine whilst the unit is being charged.
9. NEVER attempt any repairs yourself. If you have a problem with the unit
contact your local CLARKE dealer.
10. ALWAYS keep your body and clothing dry. NEVER work in a damp area
without adequate insulation against electric shock.
11. ALWAYS wear safety glasses when working with lead acid batteries.
12. If splashed by battery acid, immediately flush the area of the splash with
clean water. If a burning sensation is felt or any blistering occurs, seek
medical help.
13. If battery acid comes into contact with the eyes, flush the eyes with clean
water continuously and seek medical help.
14. ALWAYS ensure that there is air circulating around the unit when in use.
15. When not in use, store in a safe dry place out of reach of children.
16. NEVER allow the jumpstart leads, to touch each other or to touch the
same metal object.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
17. Ensure the vehicle battery posts and battery clamps are perfectly clean
before use.
18. Connect the red clamp to the unearthed battery terminal first, (this is
usually the positive (+ve) terminal and coloured RED); then connect the
black clamp to the earthed battery terminal, (this is usually the negative
(-ve) terminal and coloured BLACK).
19. ALWAYS wear suitable protective clothing and eye protection when
working with lead acid batteries.
20. Only use this charger on lead acid batteries.

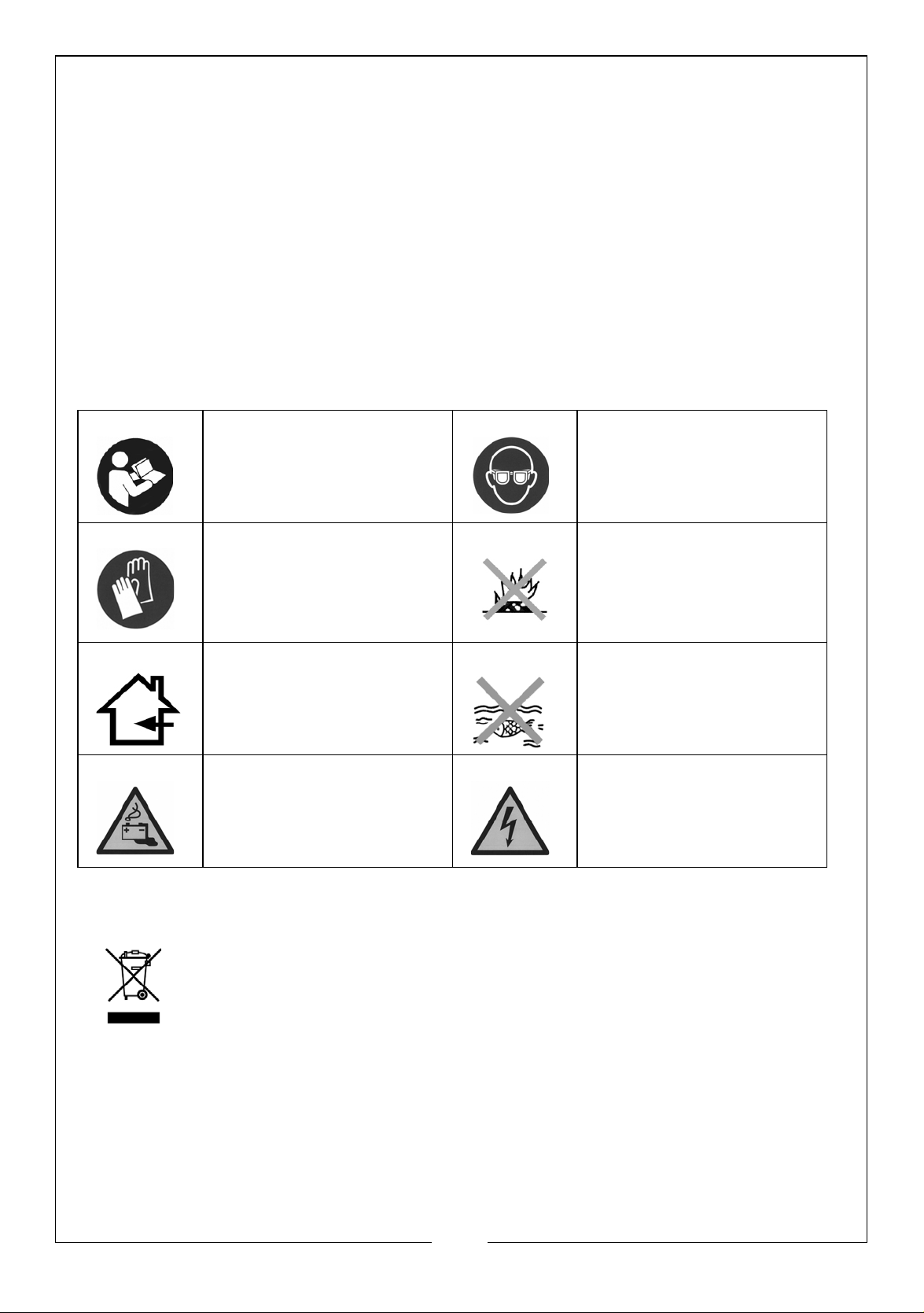

THE FOLLOWING SAFETY SYSMBOLS ARE SHOWN ON THE PRODUCT
Read the instructionmanual
Wear Protective Gloves Do not incinerate
Indoor use only Harmful to aquatic life
Warning: Battery
Charging
Wear Eye Protection
Warning: Risk of
electrical shock
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste but in accordance with the laws governing Waste Electrical
and Electronic Equipment (WEEE) at a recognised disposal facility.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

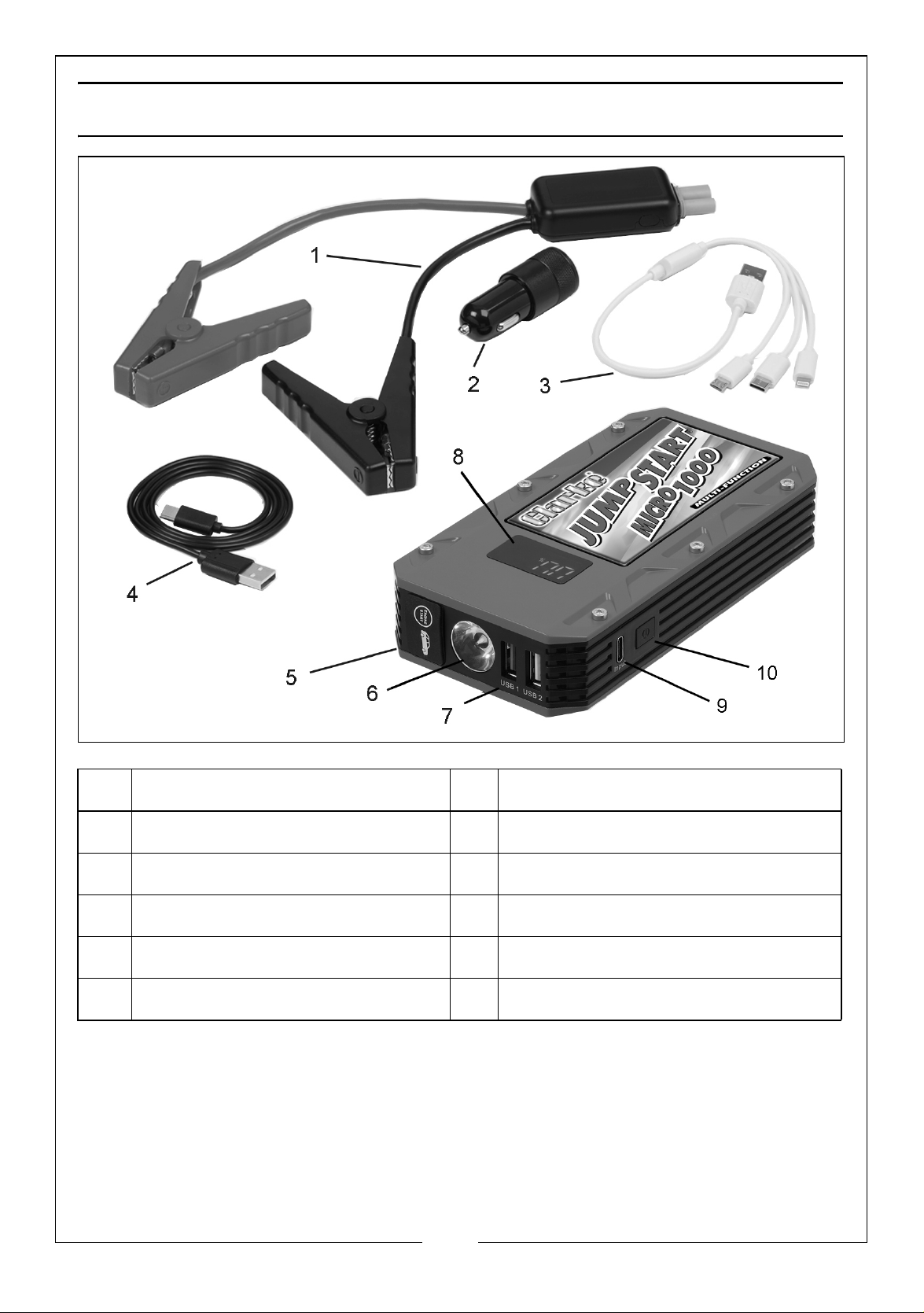

OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Smart Jumper Cable/Clamps 6 LED Flashlight
2 12V USB Car Adaptor 7 USB 5V Output Sockets (2.1A & 3A)
3 USB 3 in 1 Adapter Cable 8 Charge indicator/output display
4 USB Charging Cable 9 5V 1.5A Input Socket (USB-C)
5 Jumpstart Lead Socket 10 On/Off Button
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

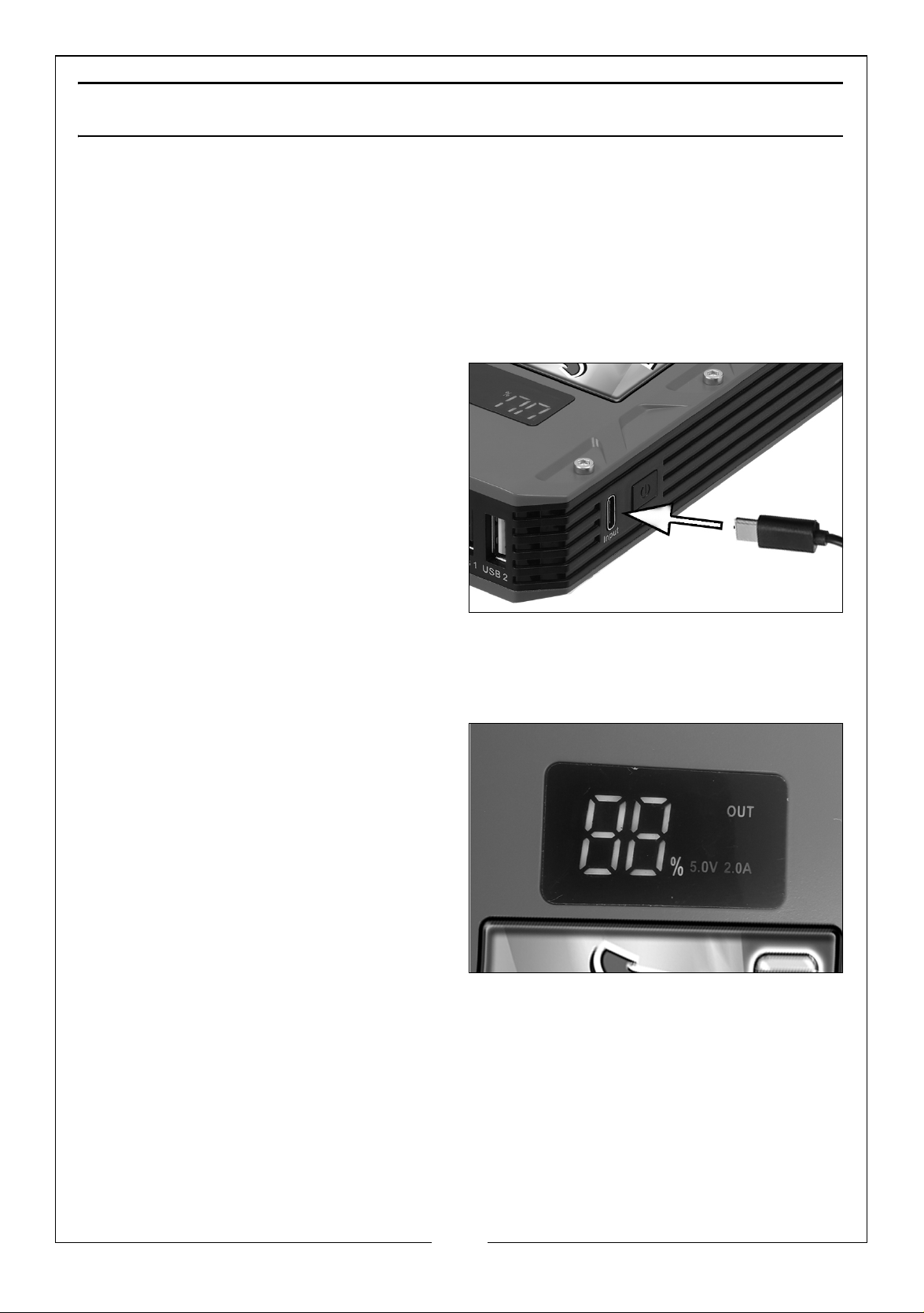

CHARGING THE DEVICE
CHARGING
You can charge the power pack using:
• The 12V DC car adapter.
• A device with a USB output socket.
• You can also use a USB-C to USB-C for fast charging (sold separately)
1. Switch the power pack off.
2. Plug the USB charging cable into
the charger input socket and the
other end to the car adapter
socket using the supplied adaptor,
or else to a suitable appliance.
• If you are using the car adapter
socket you will need to start the
engine.
3. Disconnect the charger when fully
charged.
THE LED CHARGE INDICATOR
Press the switch button to display the
battery status of the device. The
screen shows the % of power
available and displays the output
ports activated and in use. (100% is
fully charged).
• When jumpstarting, the power
indicator should show at least
80%. Recharge the device if
required.
• The unit should hold a charge for 3-6 months but we recommend
recharging every 3 months.
TO GET THE MAXIMUM LIFE FROM THE BATTERY
• Charge the jumpstarter before first use.
• DO NOT leave in a state of discharge.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

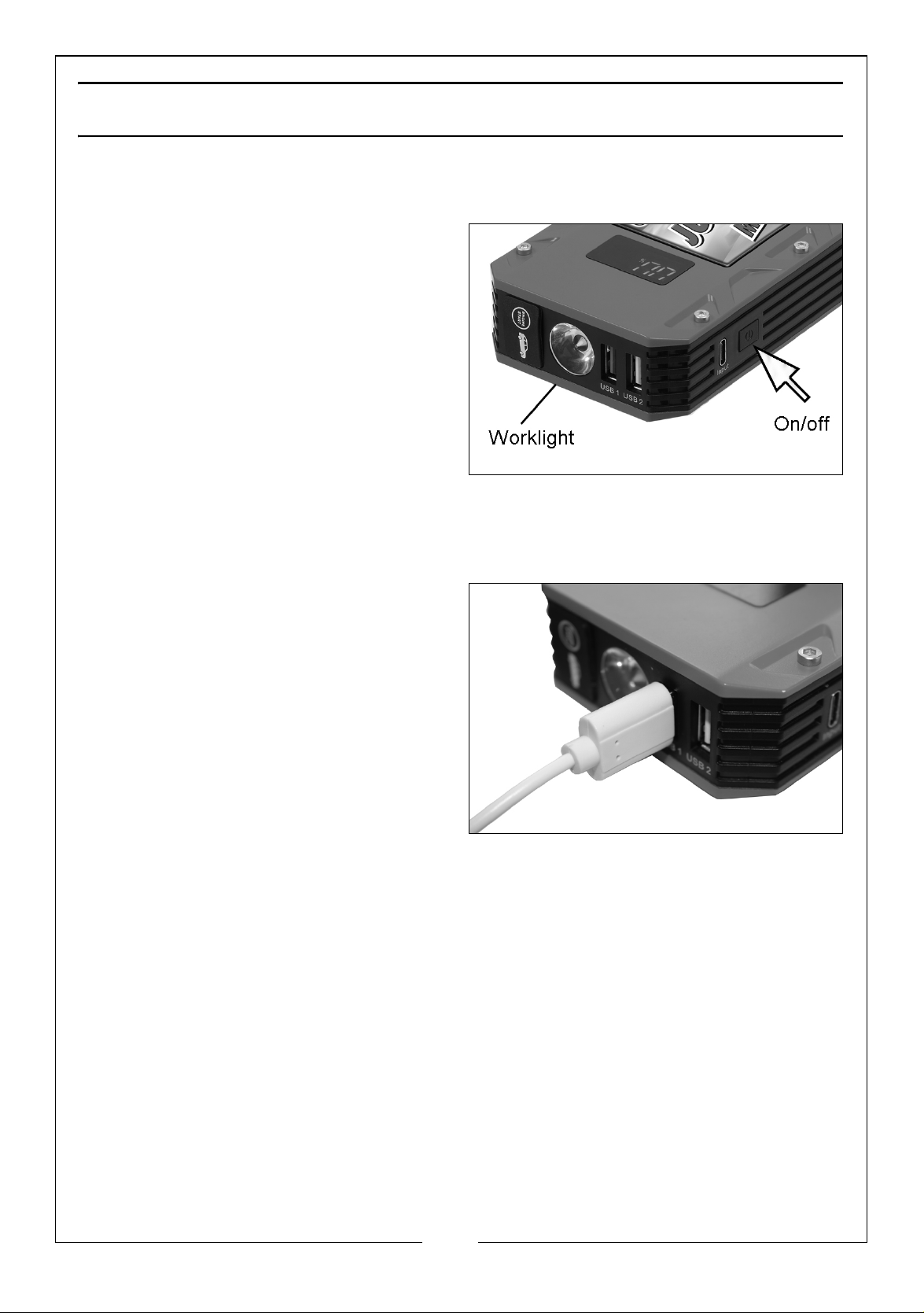

OPERATION
WORK LIGHT
1. Push and hold the ON/OFF button
for 3 seconds to turn the work light
on.
2. Push the ON/OFF button again.
• The worklight flashes on and off.
3. Push the ON/OFF button again.
• The work light flashes with the
morse code S-O-S pattern.
4. Push the ON/OFF button again to
turn the work light off.
USB OUTPUT POWER SUPPLY
The USB sockets supply a maximum of
3A at 5V.
1. Plug the 3 in 1 USB cable into
either of the USB sockets.
2. Connect the other end of the
appropriate cable to your
device(s).
3. Push the ON/OFF button to start
supplying power.
SMART CABLE STATUS DISPLAY
The status of the device is shown by the LED display on the smart jumper cable
as follows;
• Low voltage - Red LED solid
• Ready to start - Green LED solid
• Short circuit - Red LED solidand bleeping
• Reverse polarity - Red LED solidand bleeping
• Reverse charge - Red LED solidand bleeping
• Overheating - Red LED solidand bleeping
• Overcurrent - Green and red LED both solid
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
JUMP STARTING VEHICLES
WARNING: IT IS POSSIBLE THAT SOME ELECTRONIC EQUIPMENT COULD BE
DAMAGED BY JUMP STARTING. ALWAYS CHECK WITH THE CAR
MANUFACTURER’S HANDBOOK TO DETERMINE WHAT PRECAUTIONS IF
ANY SHOULD BE TAKEN.
WARNING: FAILURE TO FOLLOW THE INSTRUCTIONS BELOW AND THE
SAFETY INSTRUCTIONS ON PAGES 3/4 MAY RESULT IN PERSONAL INJURY,
DAMAGE TO THE VEHICLE, OR BATTERY. NEVER ATTEMPT JUMP STARTING
WITH DAMAGED CABLES.
CAUTION: TO AVOID DAMAGE TO THE VEHICLE'S ELECTRICAL SYSTEM,
DO NOT USE THE JUMP STARTER ON A VEHICLE THAT HAS NO BATTERY
INSTALLED.
CAUTION: DO NOT TOUCH POSTIVE AND NEGATIVE BATTERY CLAMPS
TOGETHER.
NOTE: This device will not jumpstart a vehicle if the battery is very low.
Check the indicators around the on/off button to determine the
charge status.
NOTE: Make sure that the jumpstarter power pack is at least 80%
charged (3 power indicator lights are lit) before you attempt to
jumpstart.

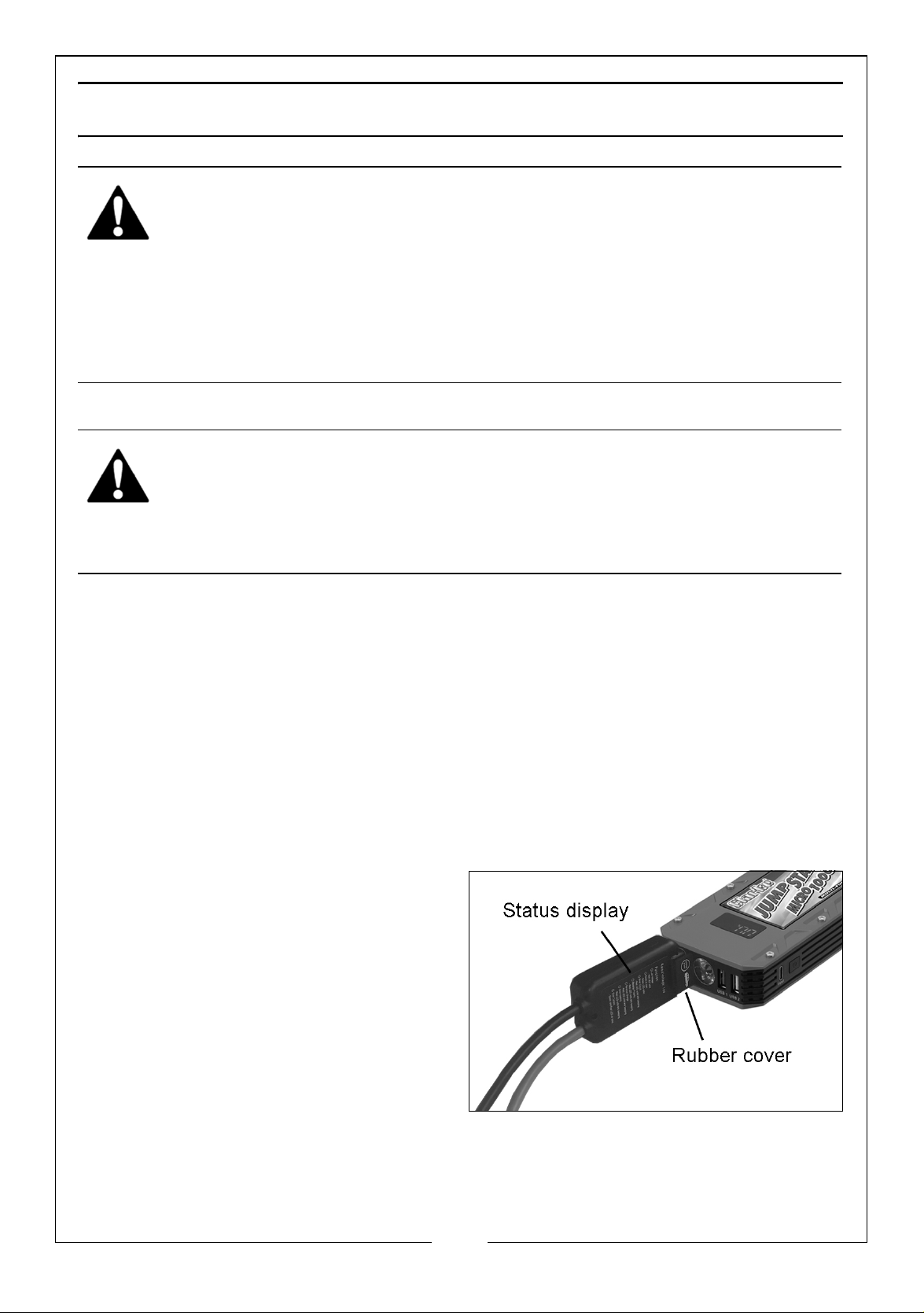

CONNECTING THE JUMPER CABLE TO THE JUMPSTARTER
1. When jumpstarting, the power indicator lights must be lit. Recharge the
device if required.
2. Lift the rubber plug and insert the
duel pin connector of the jumper
cable into the power pack.
• The LEDs on the smart cable will
flash to indicate the status.
CONNECTING THE JUMP START LEADS TO THE VEHICLE BATTERY
ALWAYS carry out the following
preliminary checks before
connecting the jump-start to the car battery:
• Switch off the vehicle ignition and ALL ancillary equipment (lighting,
radio etc.)
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
• Ensure the vehicle battery is rated at 12V and not damaged in any way.
• Ensure the area is well ventilated.
• Make sure that the battery terminals are clean and the clamps are
firm and secure.
• If fitted, remove any vehicle battery filler plugs and check the
electrolyte level. If necessary, top up with distilled water.
• Verify the jump starter is fully charged and recharge if needed.
• Make sure that the jumpstart is OFF.
• Turn off the vehicle ignition switch and all accessories (lights, radio,
climate control, etc.)
1. Connect the red positive (+) clamp to the positive (+) battery terminal first.
Take care the clamp does not touch any moving parts or fuel lines.
2. Connect the black clamp to the earthed battery terminal, (this is usually
the negative (-ve) terminal and coloured BLACK) or to a suitable earthing
point on the vehicle chassis ensuring the connections are firm and secure.
STARTING THE ENGINE
1. Push the ON/OFF button on the jumpstarter to start supplying power.
2. Crank the engine. The engine should start.
3. Switch or press the ignition to ‘start’. If the engine does not start SWITCH OFF
the ignition and wait for at least 30 seconds before trying again.
4. If the vehicle does not start after 3 attempts, investigate any problems with
the vehicle systems.
5. Once the engine is running, disconnect the earthed clamp FIRST i.e. that
connected to the chassis or Negative terminal etc, then disconnect the
Positive clamp from the battery terminal. You should remove the
connections within 30 seconds of starting.
6. Leave the vehicle engine running for a while to let the alternator recharge
the battery.
• Take great care not to touch the red positive (+) clamp against the
black negative (-) clamp.
7. Leave the jumpstarter for 30 minutes before re-charging following
jumpstarting a vehicle.
• If the battery is allowed to remain in a discharged state its life may
be reduced.
• The jumpstarter will power off automatically when no load is found.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
No response when
pressing the On
button
Unit fails to
jumpstart vehicle
If these remedies are unsuccessful, consult your CLARKE dealer.
Low voltage protection
in operation
Broken clamps/cable
Low battery.
Unit damaged
internally
Plug the charging cable into
the input port to recharge and
reactivate.
Have damaged items replaced
Recharge the jumpstarter.
Take the unit to your Clarke
dealer for repair.
DAILY CARE
Always ensure the cables & clamps are in good condition and the clamps are
clean and corrosion free. If damaged they should be replaced. Keep the unit
clean by wiping with a dry cloth. DO NOT use solvents as a cleaning agent.
Keep the unit fully charged at all times and always store away from direct
sunlight, moisture or sources of extreme heat or cold.
NEVER attempt any repair unless your are a qualified technician. Your jumpstart has been designed to give long and trouble free service. If, however,
having followed the instructions in this booklet carefully, you encounter
problems, take the unit to your local Clarke dealer.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

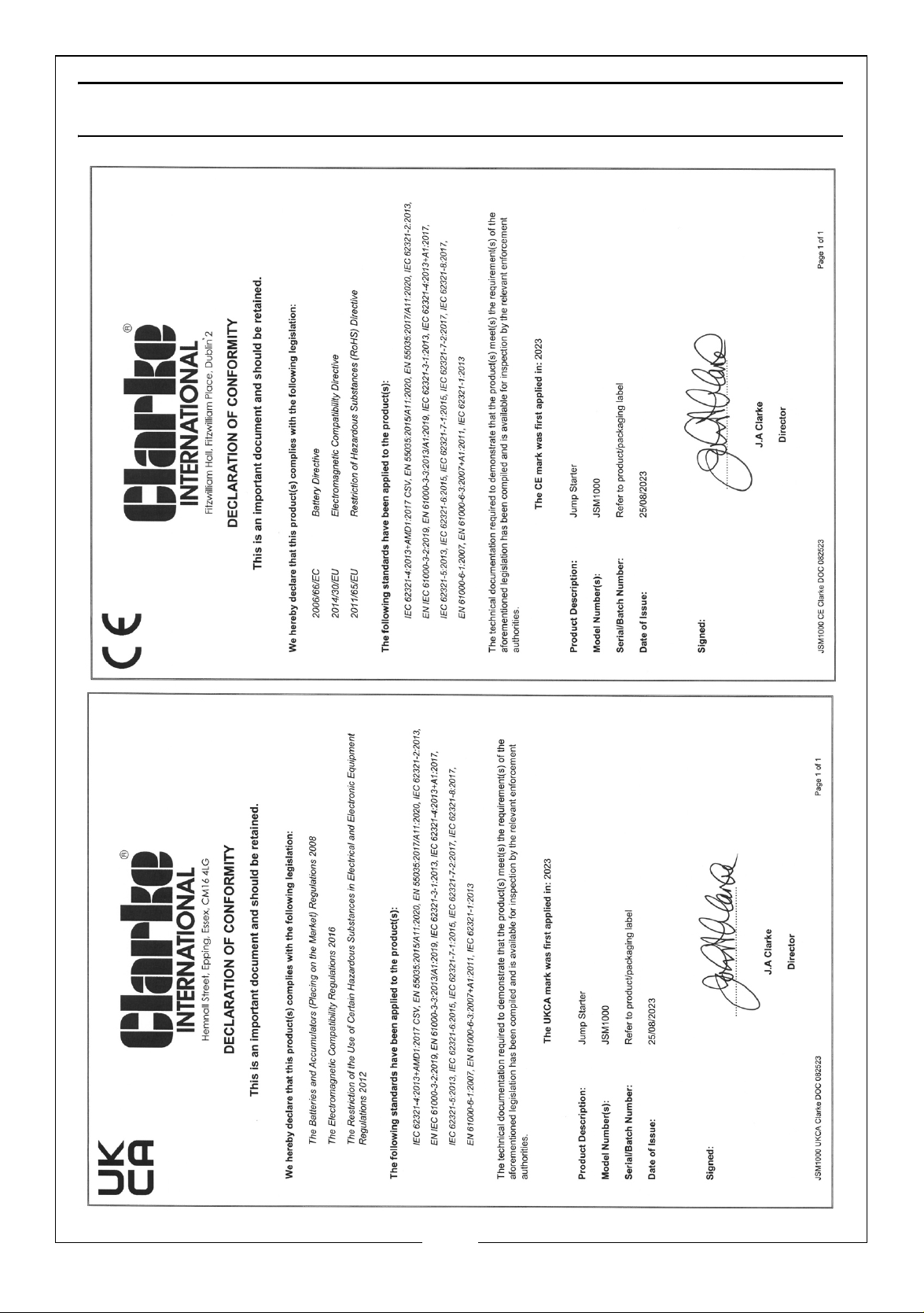

DECLARATIONS OF CONFORMITY
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Loading...
