ARC ACTIVATED HEADSHIELD
MODEL NO: GWH9
PART NO: 6000720
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC02/25
Page 2
Thank you for purchasing this CLARKE Headshield. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
TECHNICAL DATA
Product dimensions (W x D x H) 230 x 330 x 238 mm
Product weight 430 g
Viewing field (W x H) 93 X 43 mm
Shade available in Light State DIN 4
Shade available in Dark State DIN 9-13
UV/IR protection Max shade DIN16
Operating temperature range
Switching time from light to dark 1/25,000 second or 0.04 m/s
Delay time from dark to light 0.10 - 1.0 second
Lens power control Manual step-less control
Power supply Solar Cells /
Construction material Plastic (pp)
- 5oC to 55oC
Lithium coin type Battery type Cr2450
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
WARNING: ARC RAYS CAN INJURE EYES AND BURN SKIN. THIS MASK IS NOT SUITABLE FOR LASER WELDING, LASER CUTTING OR OVERHEAD WELDING APPLICATIONS OR FOR OXY-ACETYLENE.
• The protective plate in this headshield is breakable and will not protect against impact hazards.
• This headshield is designed for use in grinding, arc welding or cutting applications such as MIG/MAG, TIG, MMA, Plasma Arc, and Carbon Arc.
• Use this headshield for face and eye protection against harmful rays, sparks and spatter from welding and cutting.
• NEVER place this product on a hot surface.
• In the event of failure, the headshield gives protection against UV and IR radiation.
• DO NOT make any modifications to this product. Protection can be seriously impaired if modifications are made.
• When necessary, use identical replacement parts. This will ensure that the safety of the product is maintained.
• DO NOT use without the protective plate installed. DO NOT use if any part of the headshield is cracked or broken.
• DO NOT use this headshield for welding outside the range of DIN 9-13. Harm to the eyes and impaired eyesight may result. ALWAYS select the correct setting before use.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste but according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
The light source contained in this worklight has a life expectancy of approximately 30,000 hours after which the worklight should be disposed of in an environmentally responsible way.
The Lithium Ion battery falls under the Waste Batteries and Accumulators Regulations 2009 and should be disposed of in a controlled manner.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

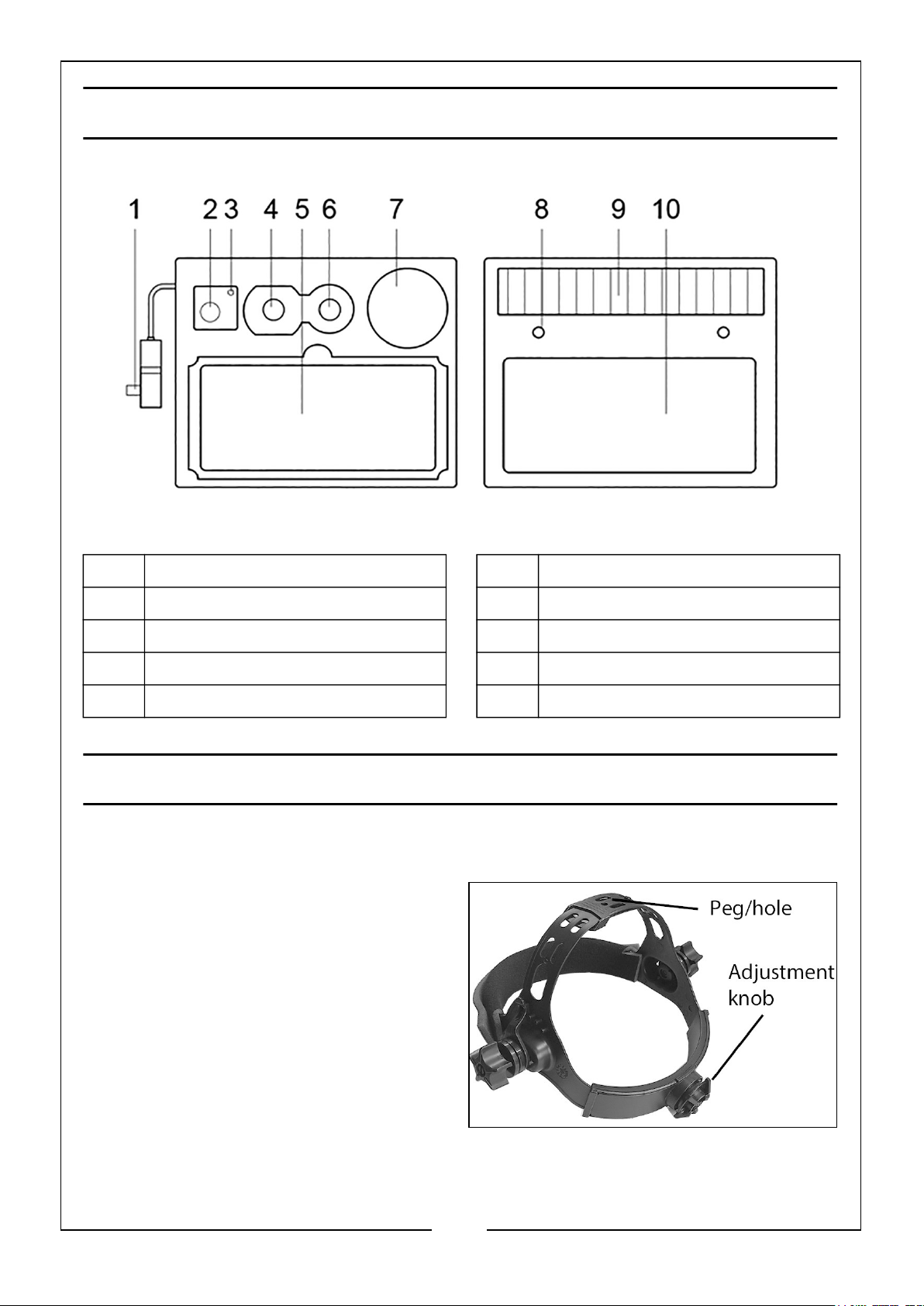

WORKING PARTS OF THE MASK
1 Shade Control knob 6 Delay time control knob
2 Self test button 7 Lithium battery
3 Low voltage indicator 8 Arc sensor
4 Sensitivity control knob 9 Solar panel
5 LCD 10 UV/IR filter
PREPARATION
ADJUSTING THE HEADBAND TO FIT
1. The headband should be adjusted both in diameter and height to fit the wearer’s head. To do this, press in and turn the adjustment knob on the back of the headband either left or right to expand or contract the headband.
2. The top headbands can be adjusted by bending the strap and positioning the pegs in the appropriate hole in each headband.
3. The working position of the headshield and its raised position can be pre-set.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

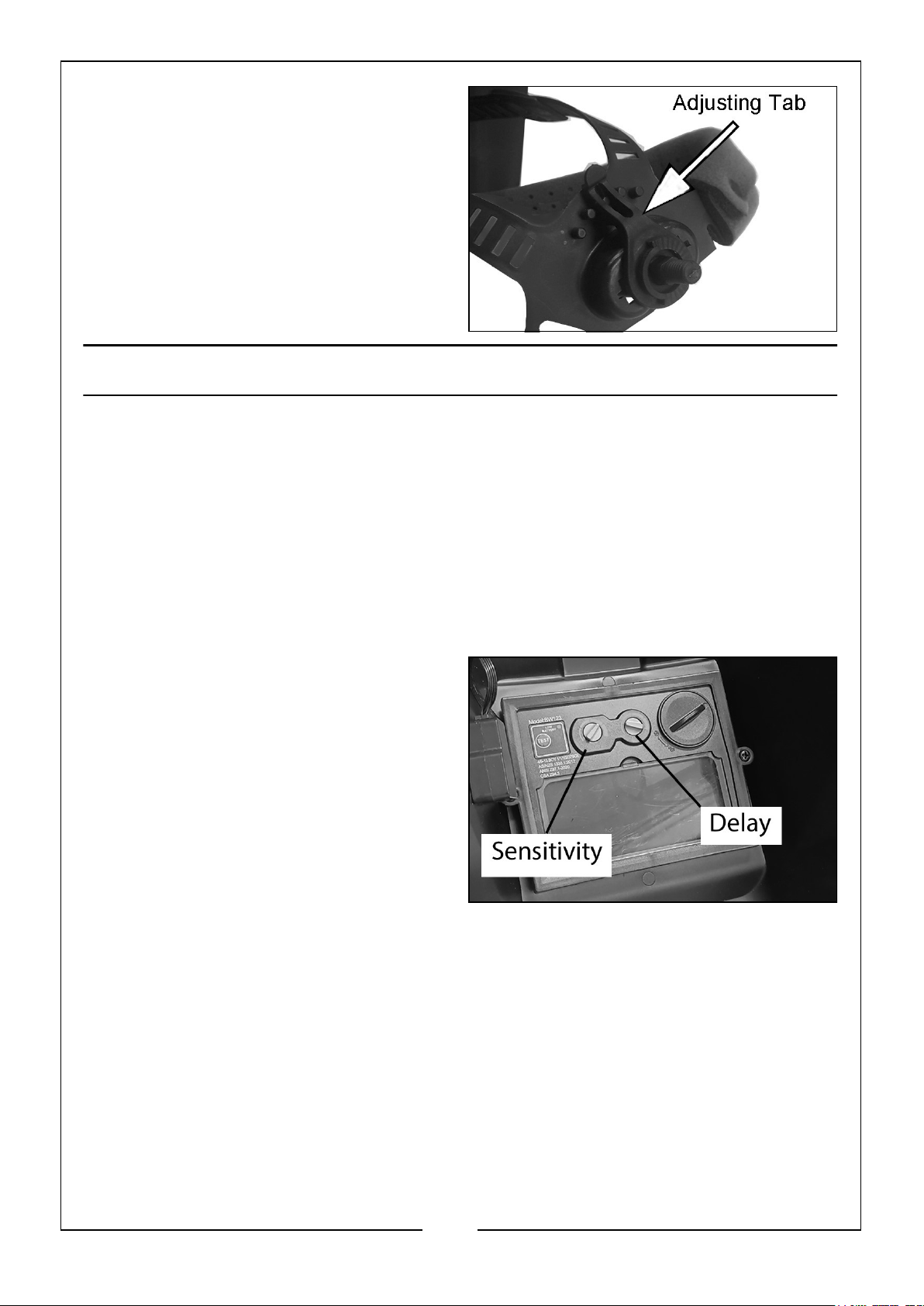

4. Loosen the adjusting nuts until you can lift the adjusting tab and position it on the pins on the backing plate to set the headband range of movement. Tighten the adjusting nut when satisfied.
• You can remove the headband
completely from the headshield by unscrewing the side knobs.
USING THE HEADSHIELD
1. The lens will be set to light DIN 4 state, & you will be able to see the workpiece. The lens will automatically darken when an arc is struck.
2. Test the lens by striking an arc on the workpiece for the first time. Check also that the outer screen and lens are clean and clear at all times.
3. Change the shade setting as required using the shade adjustment knob as described. Refer to the table on page 6.
DELAY TIME ADJUSTMENT
The delay time is the time taken to switch back from fully dark to fully light and is selected using the knob in the centre of the headshield.
1. Set the minimum (0.1-0.25 sec) when spot welding, or doing short or seam welding work.
2. Set the delay to medium for most welding operations.
3. Set the maximum (0.85-1.0 sec) when doing high current welding.
SENSITIVITY
The sensitivity can be adjusted using the knob on the left hand side of the headshield according to the type of welding and the background light. The mid range selection is suitable for most indoor and outdoor welding.
1. Select maximum for low current welding or when working in low light conditions, especially when welding argon arc with a low current.
2. Select minimum for high current welding or working in a brightly lit environment.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
SELECT THE SHADE SETTING
On striking an arc, the light created will activate the solar cell and the window will automatically darken to a pre-set level. The lithium battery will provide the necessary energy to operate the headshield when there is no arc light. You can adjust this shade level using the shade adjustment knob on the side of the headshield, corresponding to the type of welding process.
1. Set the shade selector to the required setting.
2. During the welding operation the lens will automatically darken to the pre­set shade. On removal of the arc, the lens will return to the light state.
Check the table to determine which you should select
SHADE CONTROL

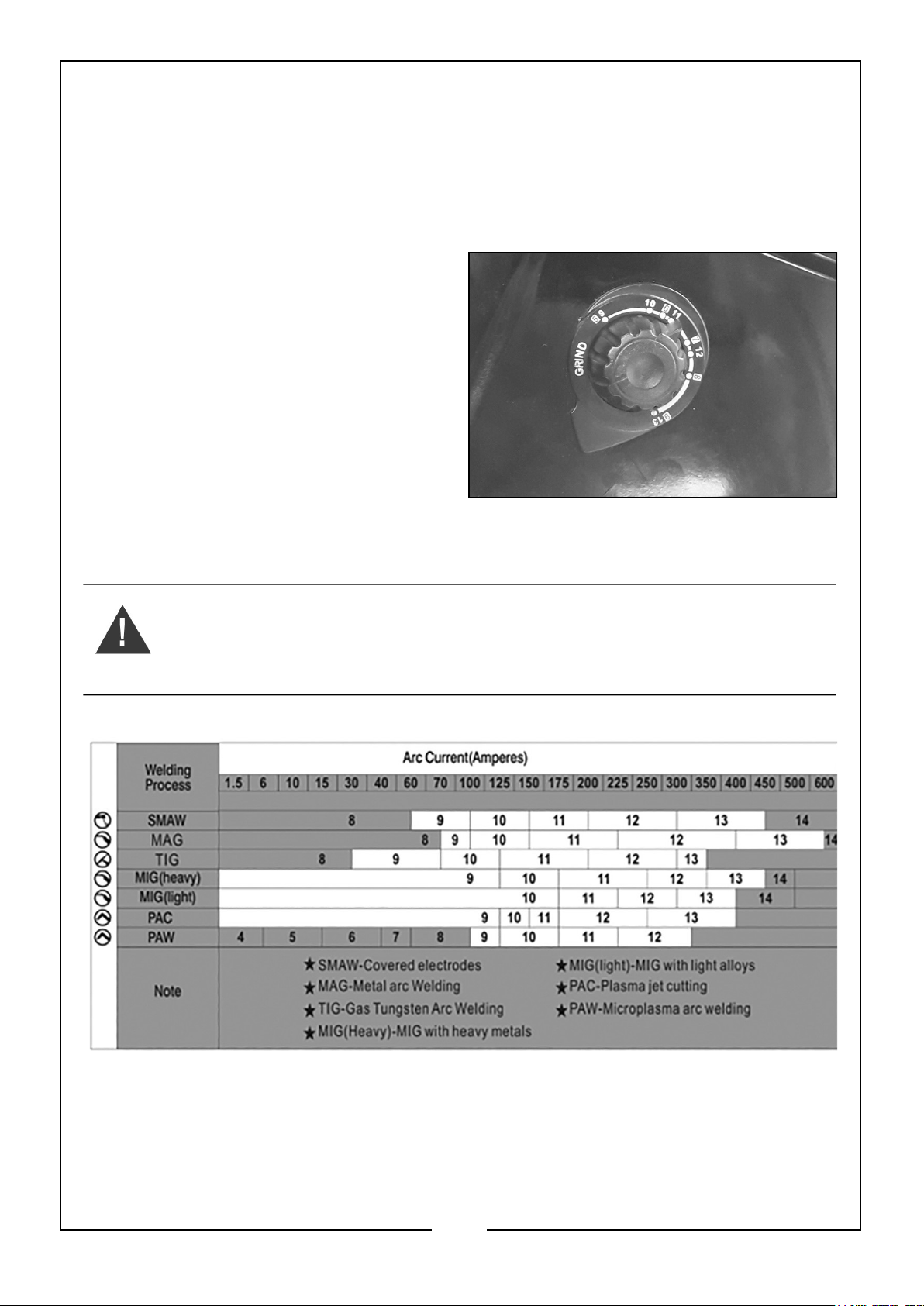

Shade numbers are available from DIN9-DIN13 and the user should set the shade state corresponding to welding Amperes in different applications.
WARNING: DO NOT USE FOR WELDING OUTSIDE THE RANGE OF DIN 9-13. INJURY TO THE EYES & LOSS OF EYESIGHT MAY BE CAUSED.
Shade numbers according to BS 379, DIN 4647-1 and EN 169
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Difficult to see through filters
Filter does not darken when arc is struck
Filter darkens with­out arc
Filter remains dark after welding
Cover lens dirty Clean or replace cover lens
Filter lens dirty Clean filter lenses
GRIND or CUT mode selected Adjust Shade from 9 to 13
Sensors or solar panel blocked or covered
Set the sensitivity LOW Adjust sensitivity to required
Low voltage of lithium battery Replace with new lithium bat-
Set the sensitivity HIGH Adjust sensitivity to required
The set delay is too high Adjust delay to required level
Make sure sensors or solar panel are exposed to weld arc without blockage
level
tery if indicator turns red
level
CARE & MAINTENANCE
Damaged components must be replaced immediately to avoid risk of eye and face injuries. Periodically inspect the filter cartridge and lenses. Cracked, pitted or scratched lenses reduce vision and seriously reduce the level of protection and should be replaced with genuine, certified spare parts.
FRONT COVER LENS
NEVER use sharp tools to remove foreign material sticking to the outer lens cover.
This may cause damage leading to poor function and invalidate the warranty.

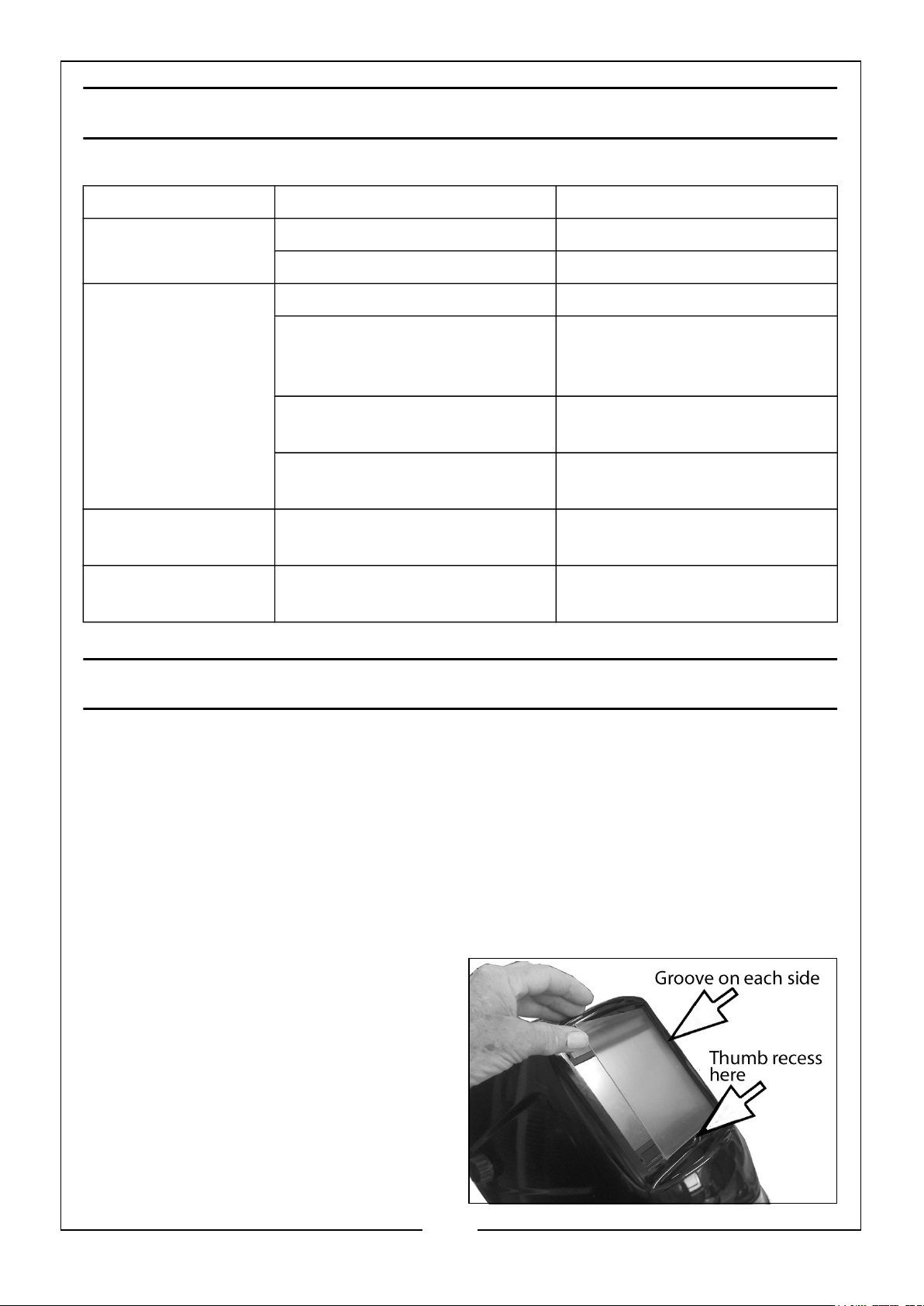

The outer screen can be removed for replacement and cleaning of the front lens. Place your finger or thumb into the recess and flex the inside cover lens upwards until it releases from one edge. Remove any protective film before installing the new one.
The outer lens cover may need replacing regularly.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
Two replacement outer lens covers are supplied with the headshield.
INSIDE COVER LENS
The inner lens cover may also require cleaning. Lift the inside lens cover (on the operators side of the filter cartridge) free from the filter cartridge.
• A single replacement is supplied with this headshield.
CARTRIDGE CLEANING
Clean the headshield shell and sweat bands with detergent if necessary.
Clean the filter surface, sensors and solar cells regularly by wiping with a household glass cleaner. Apply the cleaner with a clean cloth or paper towel. DO NOT USE ALCOHOL TO CLEAN. DO NOT APPLY CLEANER DIRECTLY TO THE CARTRIDGE.
Clean all lenses with a soft tissue and suitable lens cleaning fluid. DO NOT use solvents. NEVER use tools or other sharp objects to remove material from the lens or screen. This may cause damage which may cause incorrect function and invalidate the warranty.
Store the unit in its box or similar safe place out of reach of children.
BATTERY REPLACEMENT

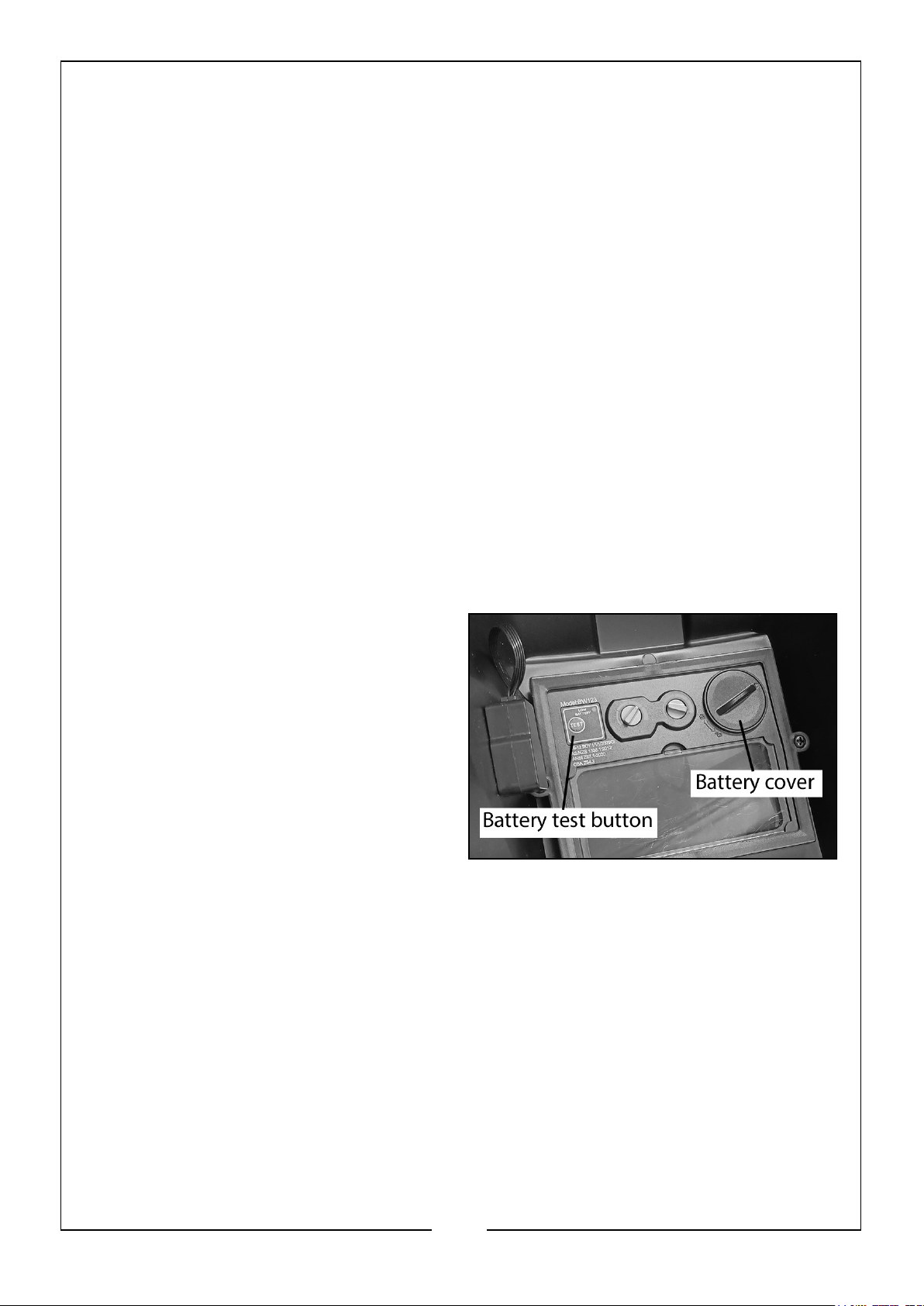

The battery should last approximately 5000 hours of normal use. Test the battery condition by pressing the TEST button.
If the LOW BATTERY lamp comes on, the battery should be replaced.
Twist the cover of the battery compartment anticlockwise and lift away.
• A CR2450 battery is required.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

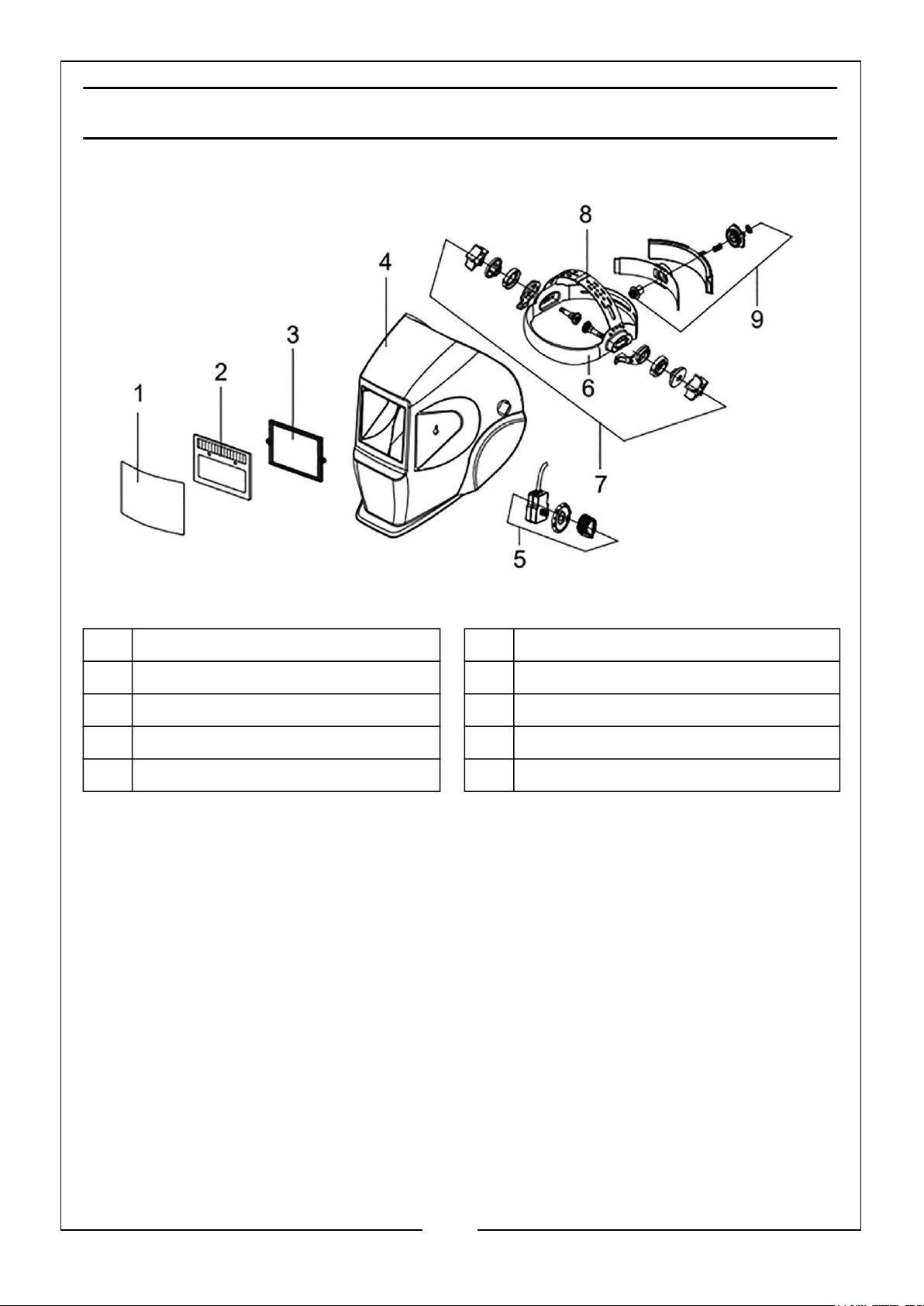

SHELL COMPONENT PARTS
1 External protective cover lens 6 Sweatband
2 Filter cartridge 7 Headgear angle adjusting control
3 Cartridge holder 8 Headgear height adjusting strap
4. Helmet body 9 Headgear distance adjusting control
5 Shade number button
The GWH9 is supplied with the following;
• Small inner lens cover
• Large outer lens cover
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

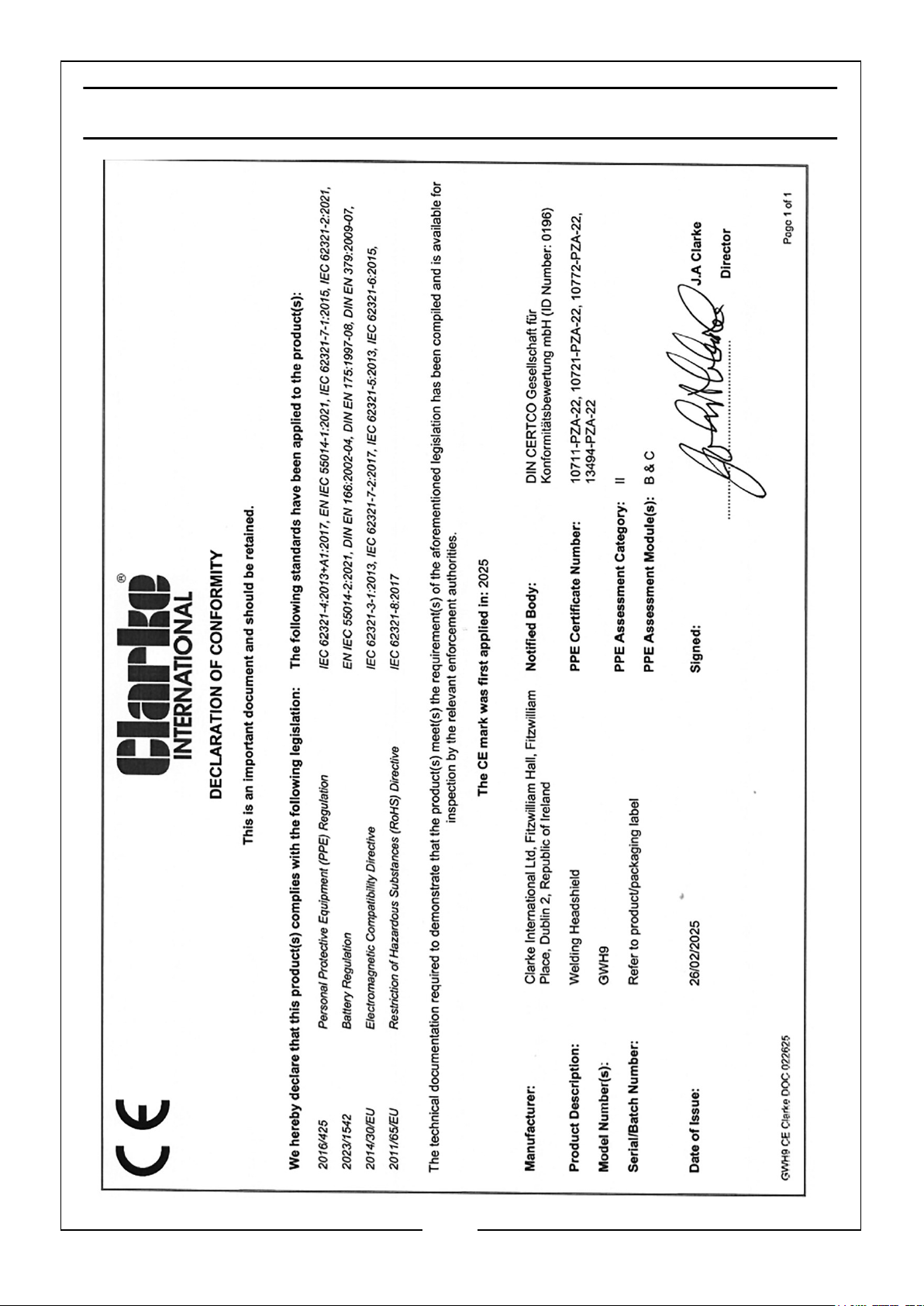

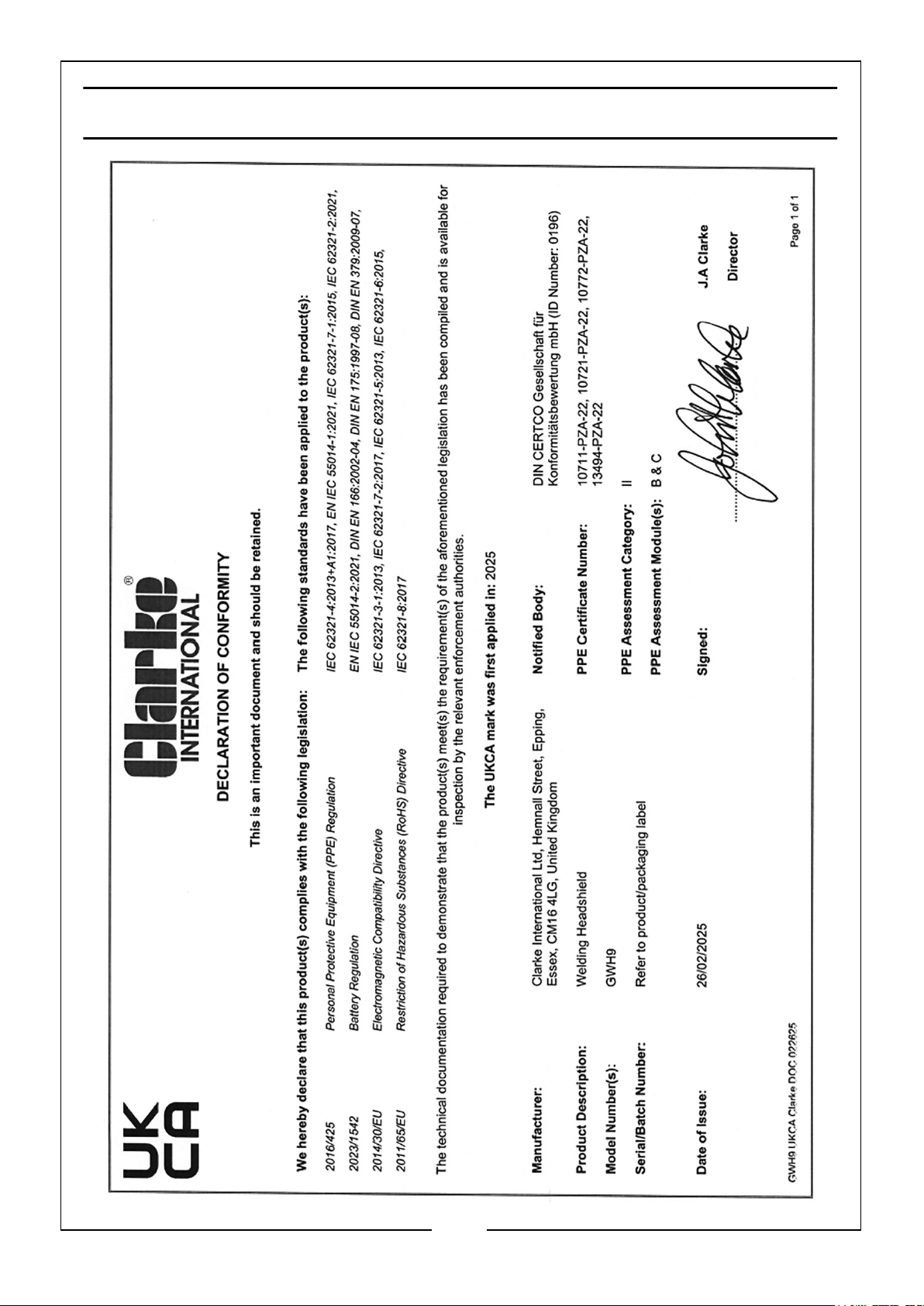

DECLARATION OF CONFORMITY -UK
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
DECLARATION OF CONFORMITY - CE
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
