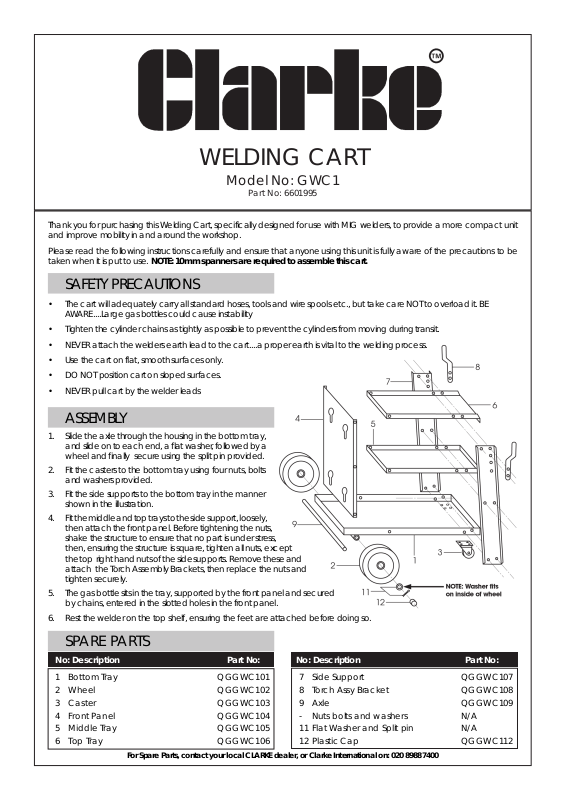

WELDING CART
Model No: GWC1
Part No: 6601995
Thank you for purchasing this Welding Cart, specifically designed for use with MIG welders, to provide a more compact unit
and improve mobility in and around the workshop.
Please read the following instructions carefully and ensure that anyone using this unit is fully aware of the precautions to be
taken when it is put to use. NOTE: 10mm spanners are required to assemble this cart.
SAFETY PRECAUTIONS
• The cart will adequately carry all standard hoses, tools and wire spools etc., but take care NOT to overload it. BE
A W ARE....Large gas bottles could cause instability
• Tighten the cylinder chains as tightly as possible to prevent the cylinders from moving during transit.
• NEVER attach the welders earth lead to the cart....a proper earth is vital to the welding process.
• Use the cart on flat, smooth surfaces only.
• DO NOT position cart on sloped surfaces.
• NEVER pull cart by the welder leads
ASSEMBL Y
1. Slide the axle through the housing in the bottom tray,
and slide on to each end, a flat washer , followed by a
wheel and finally secure using the split pin provided.
2. Fit the casters to the bottom tray using four nuts, bolts
and washers provided.

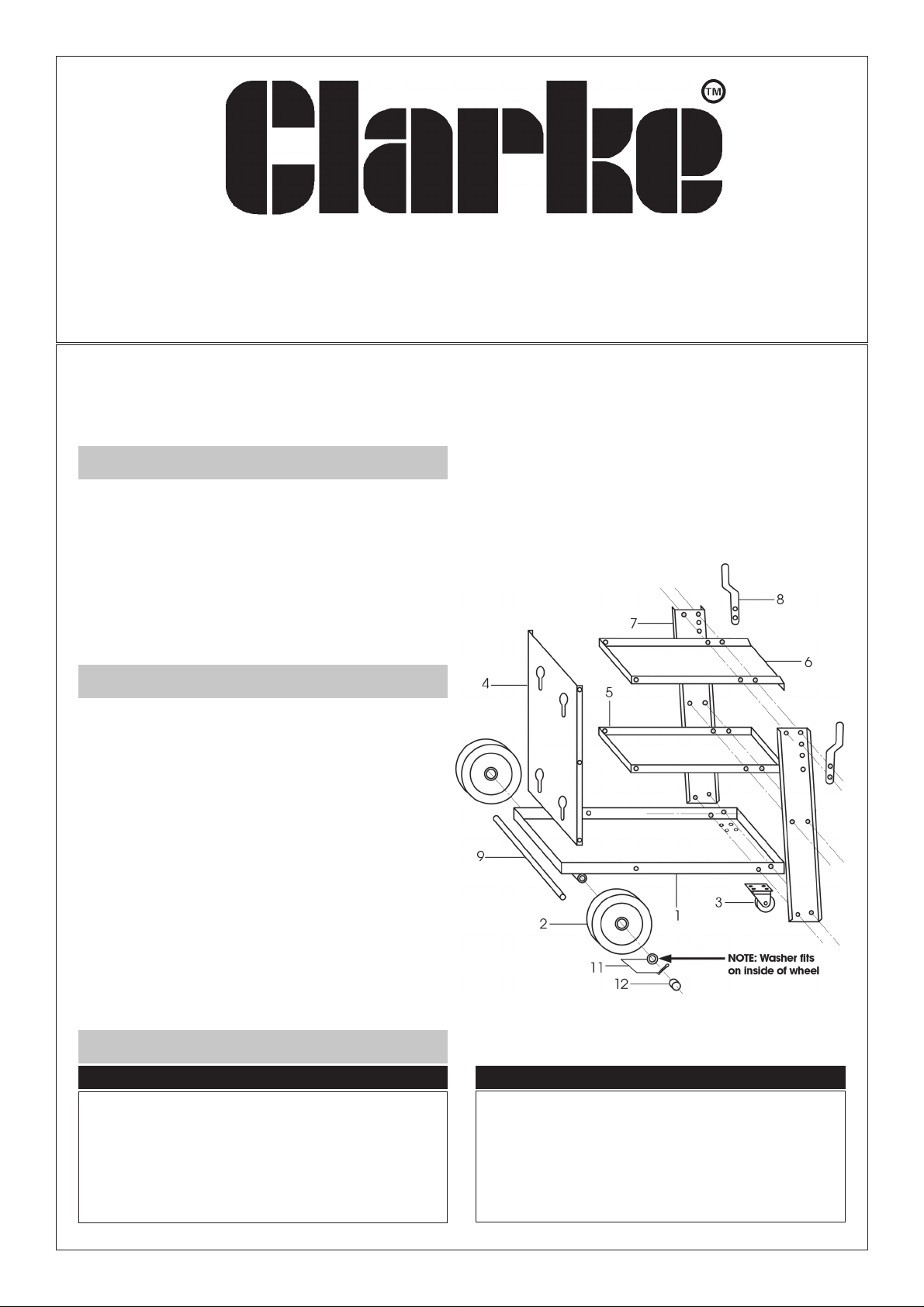

3. Fit the side supports to the bottom tray in the manner
shown in the illustration.
4. Fit the middle and top trays to the side support, loosely,
then attach the front panel. Before tightening the nuts,
shake the structure to ensure that no part is under stress,
then, ensuring the structure is square, tighten all nuts, except
the top right hand nuts of the side supports. Remove these and
attach the Torch Assembly Brackets, then replace the nuts and
tighten securely.
5. The gas bottle sits in the tray, supported by the front panel and secured
by chains, entered in the slotted holes in the front panel.
6. Rest the welder on the top shelf, ensuring the feet are attached before doing so.
SPARE PARTS
No: Description Part No:
1 Bottom Tray QGGWC101
2 Wheel QGGWC102
3 Caster QGGWC103
4 Front Panel QGGWC104
5 Middle Tray QGGWC105
6 Top Tray QGGWC106
For Spare Parts, contact your local CLARKE dealer, or Clarke International on: 020 8988 7400
No: Description Part No:
7 Side Support QGGWC107
8 Torch Assy Bracket QGGWC108
9 Axle QGGWC109
- Nuts bolts and washers N/A
11 Flat Washer and Split pin N/A
12 Plastic Cap QGGWC112
