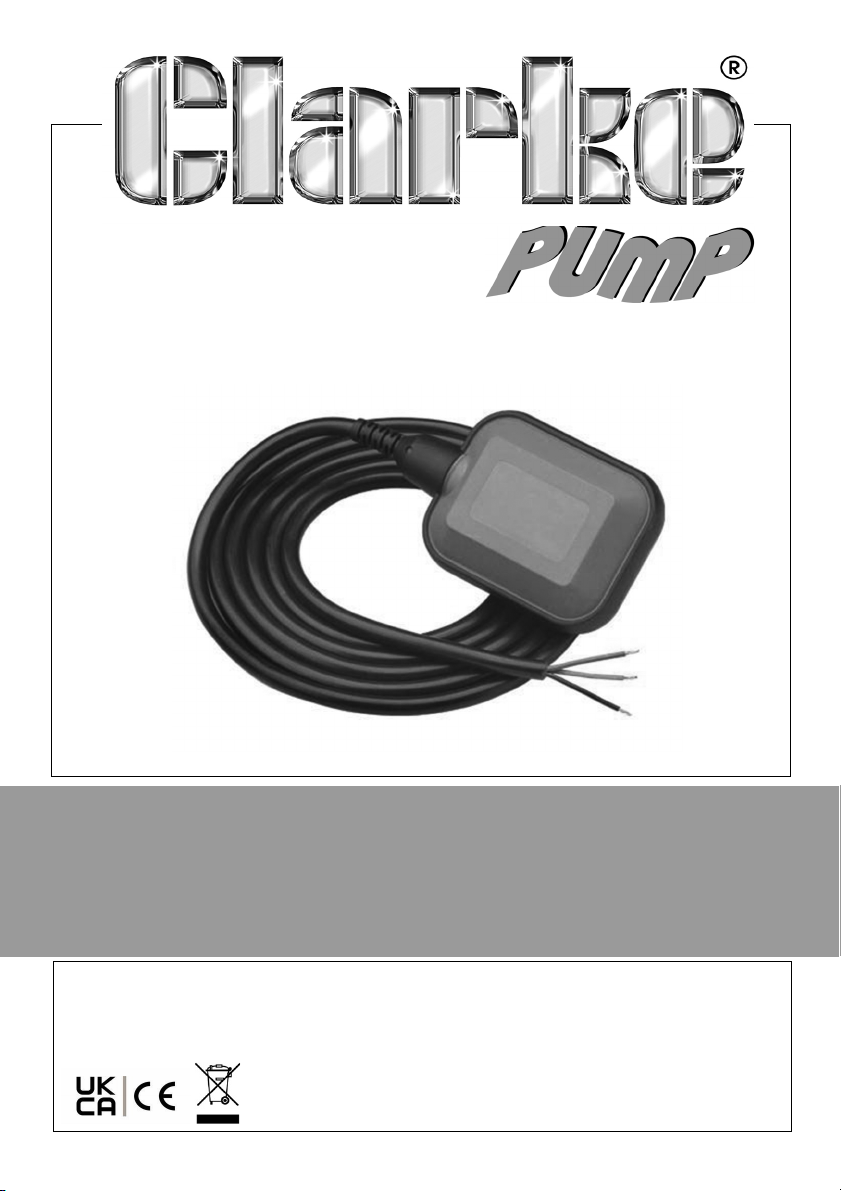

FLOAT SWITCH
MODEL NO: FS1
PART NO: 7950827
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC06/24
Page 2
INTRODUCTION
Thank you for purchasing this Clarke Float Switch, which is simple to install and
designed for trouble free operation and a long life.
The FS1is a plastic float switch moulded to 3 core cable. Actuation is via a
roller ball and micro-switch within the switch.
The microswitch assembly inside the float, axially mounted in line with the
weight, changes contacts according to the float’s position. Therefore as the
liquid level drops or rises slowly, a pump or flow control suitably connected
can be switched on or off to maintain an average level of the liquid. By
connecting only one side of the switch, the unit can be also used to fill or
empty a tank or reservoir as required.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
SPECIFICATIONS
Power supply 230V-50-60Hz
Current 8 A
Operating temperature
Cable length 2 mtr
IP Rating IP68
0-50
o
C
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

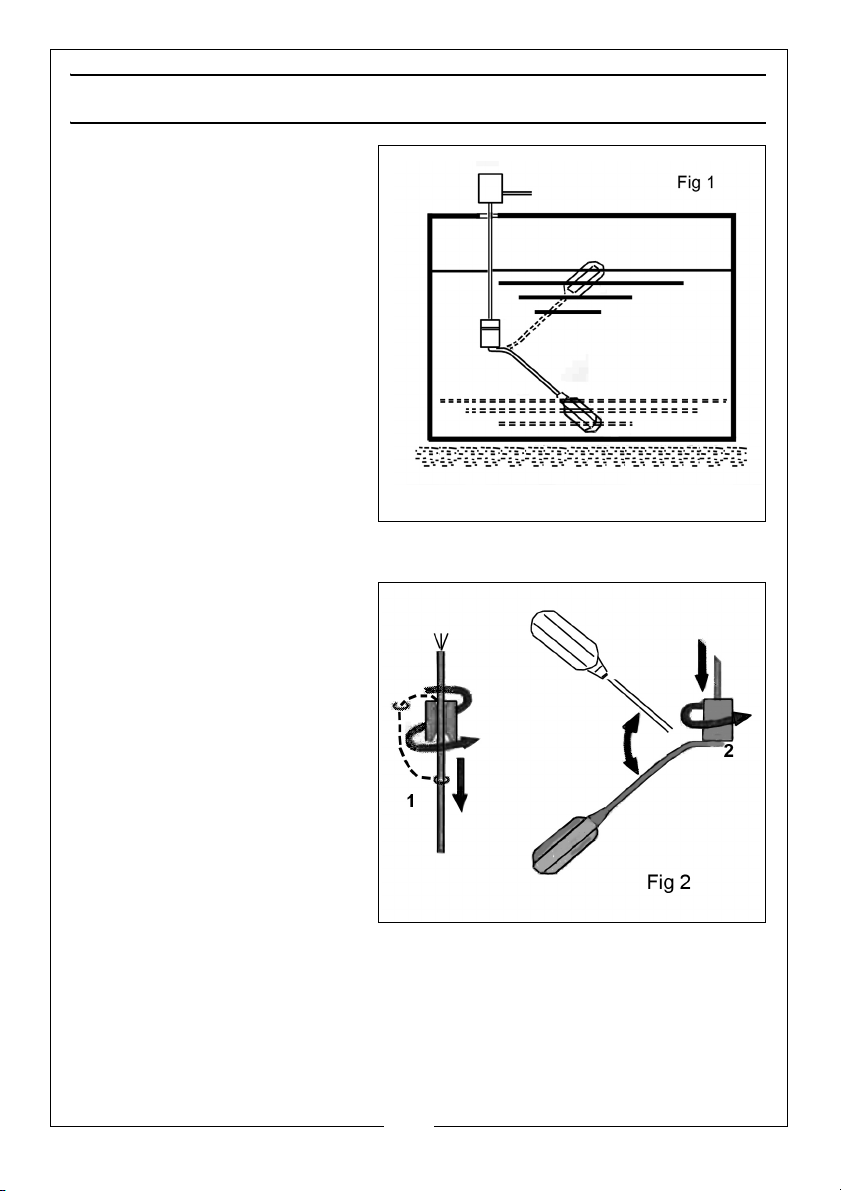

INSTALLATION
To ensure the efficient function
of the switch it is necessary to fix
the electrical cable inside the
tank as shown in fig:1.
The length of the cable section
between the Pivot Point
(counterweight) and the float
will determine the length of
time the pump runs between
starting and stopping.
The switch must be free from
obstructions within the area of
the float arc.
No joins should be made to the
cable that may become
immersed in water.
HEIGHT COUNTERWEIGHT INSTALLATION
For correct counterweight
installation refer to the
procedure as in fig: 2.
1. Insert the cable into the
counterweight from the
conical shaped end, turning
it as shown. This will result in
the detachment of the
plastic ring inserted in the
mouth (if required aid
detachment by using a
screwdriver) Place the ring
at the point of the cable
where the counterweight is
to be fixed.
2. Fix the counterweight onto
the ring using moderate pressure and turning it as shown.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ELECTRICAL CONNECTIONS
Electrical Connections:

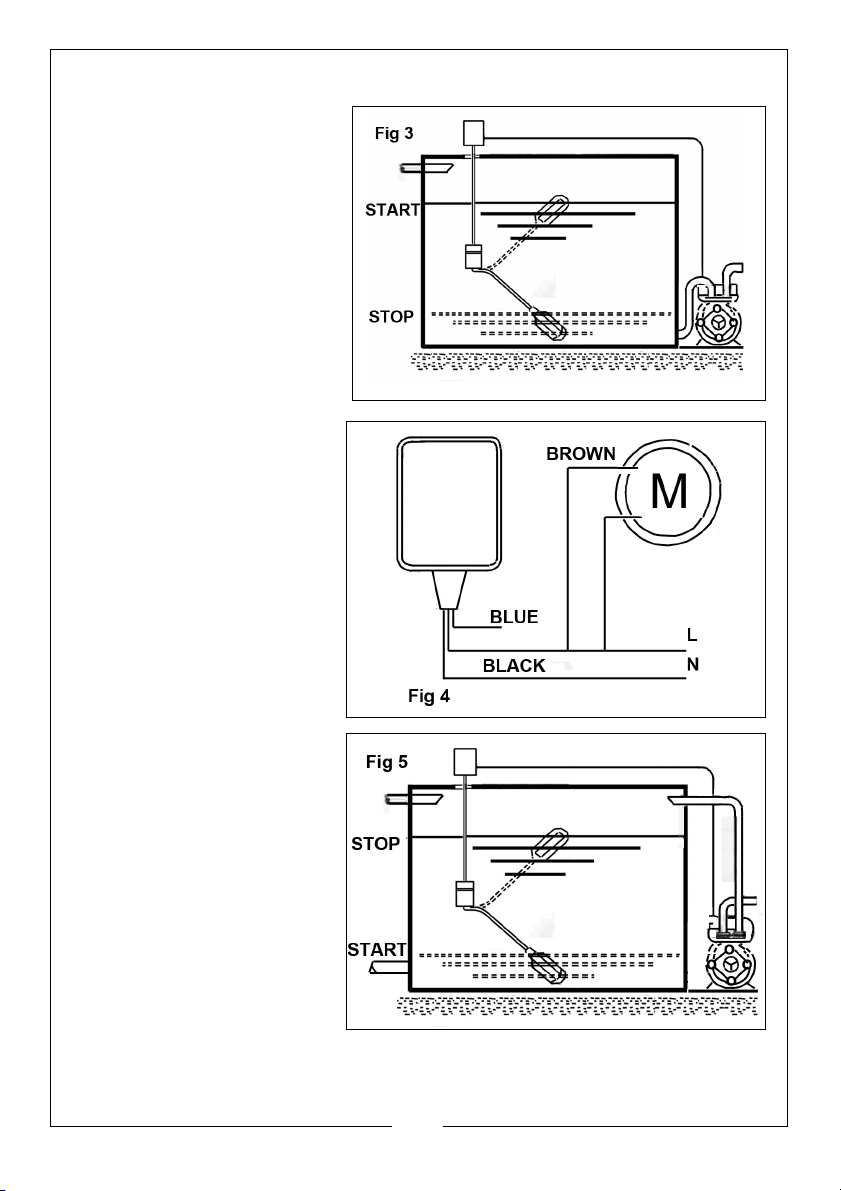

Emptying (Fig 3 & 4)
To empty a tank; Connect
'Brown' and 'Black'
This will allow the switch to:
Open when down; Close
when up.
Electrical Connections:

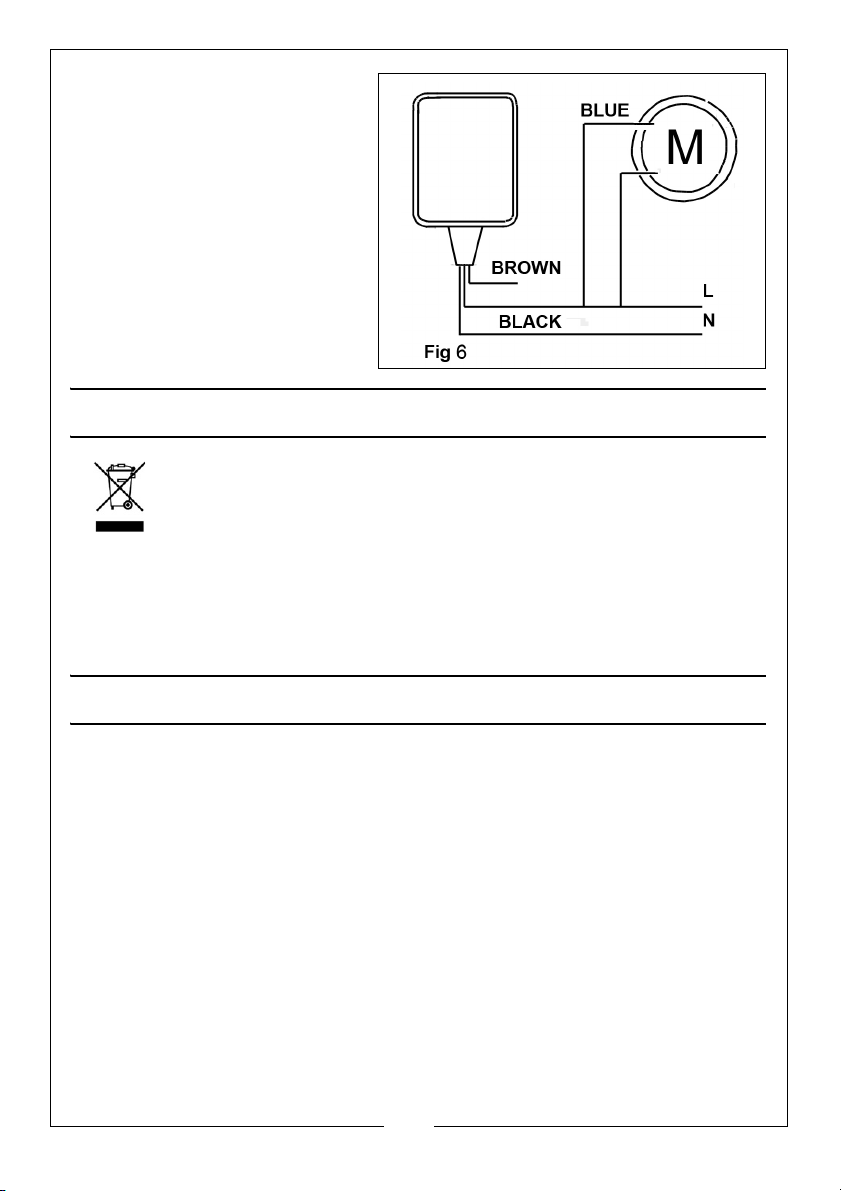

Filling (Figs S
To fill a tank; Connect 'Blue'
and 'Black'.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
& 6)
4
Page 5
This will allow the switch to:
• Open when up;
• Close when down.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

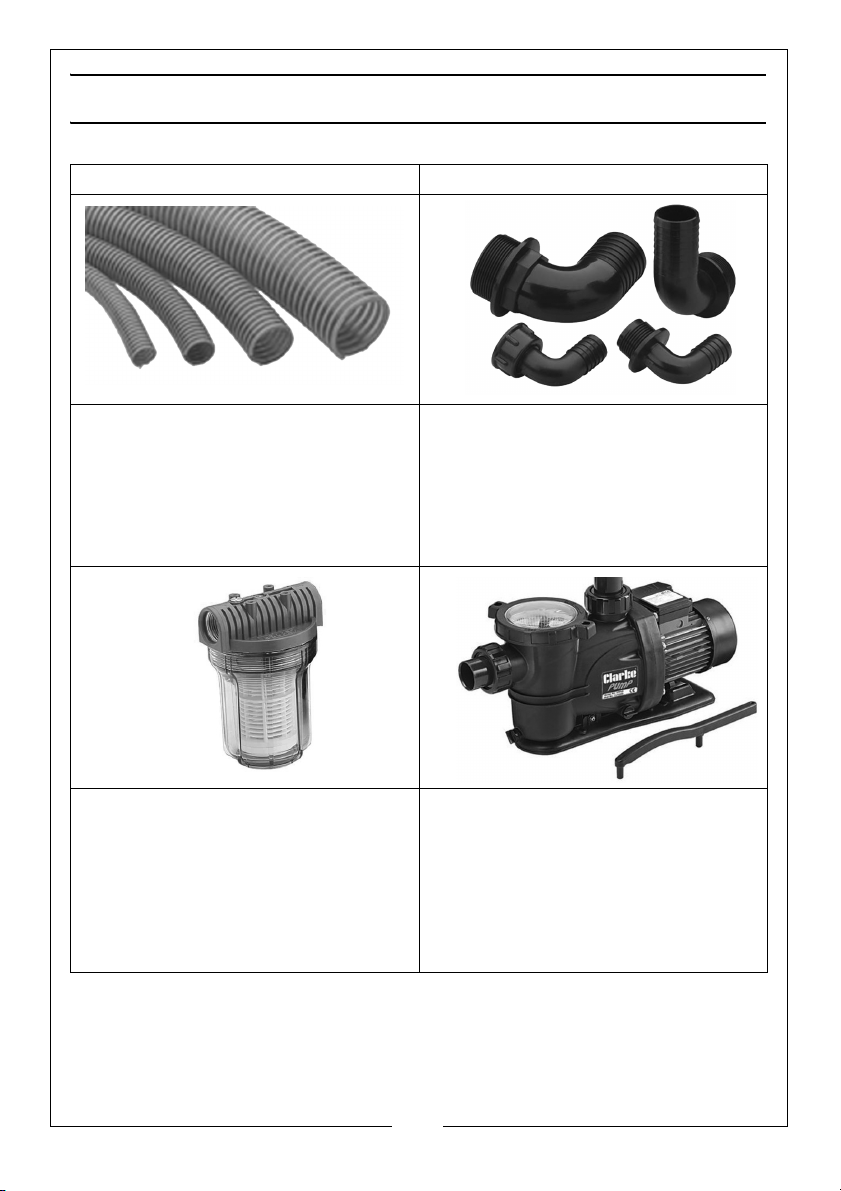

ASSOCIATED CLARKE PRODUCTS
Suction/Delivery Hoses Assorted Hose Clip Set - CHT672
• Reinforced 1" diameter hose for
use with water pumps. Reinforced
hose can be used on both the
suction and delivery sides of any
surface mounted water pump or
the delivery side of a submersible
pump.
• An optional pump filter and
cartridge for use with the various
Clarke water pumps including the
SPP swimming pool pump range
& CBM booster pumps.
• 25mm (1") diameter 90° threaded
female hose adaptor
• The 1HP SPP10A 750W swimming
pool pump is a self priming pump
designed to re-circulate water to
and from the pool via a filtration
system (sold separately) allowing
for the quick and easy draining
and cleaning of pools of varying
sizes.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

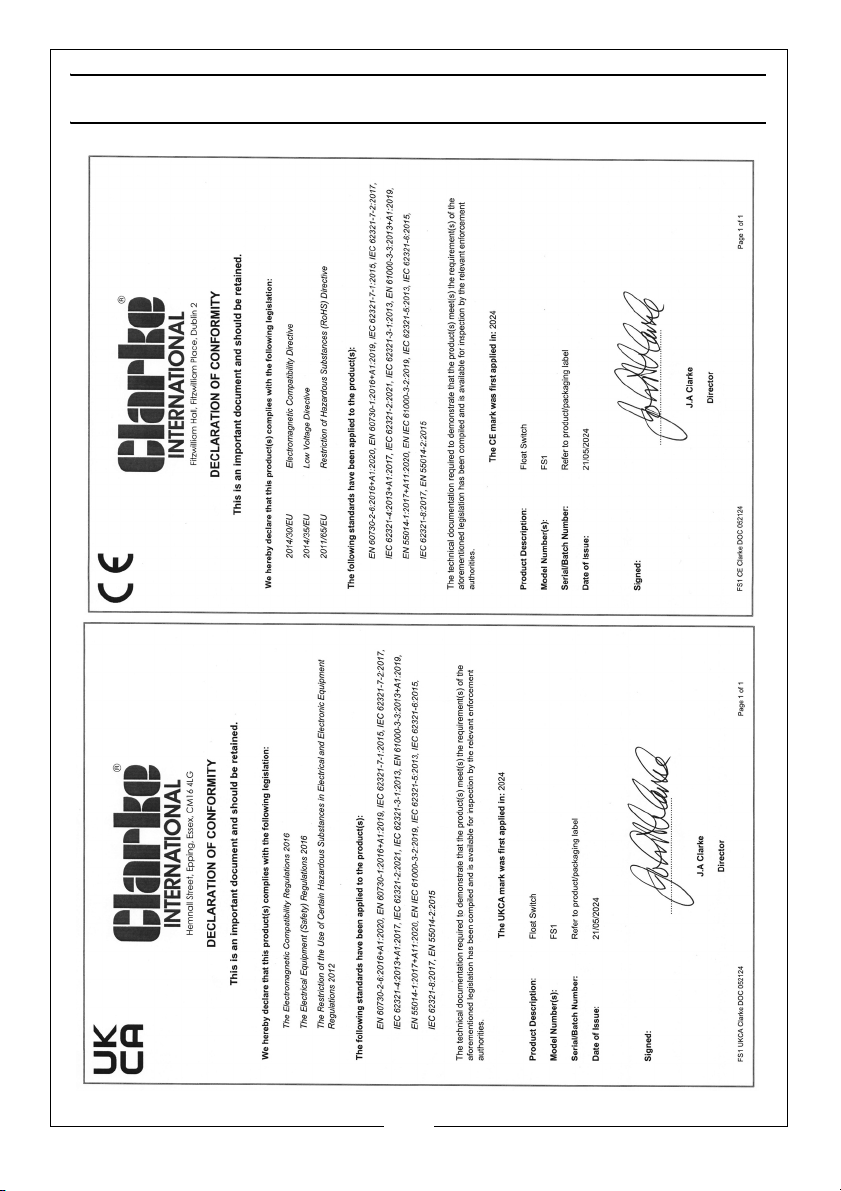

DECLARATIONS OF CONFORMITY
