10 LITRE DEHUMIDIFIER
MODEL NO: DH10
PART NO: 6470650
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0115
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
R134a is a refrigerant that complies with EEC environmental standards;
nonetheless, the refrigerant circuit on the machine should not be punctured.
At the end of its working life, consign the air conditioning unit to a special
collection centre.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY WARNINGS
WARNING: IF THE SUPPLY CABLE IS DAMAGED, IT MUST BE REPLACED BY
THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED
PERSONS IN ORDER TO AVOID A HAZARD.
1. Please read these instructions carefully and retain for future reference.
2. Position the mains cable so that it cannot be inadvertently pulled or
pinched and where it does not cause a trip hazard
3. This appliance is designed to dehumidify residential environments and must
not be used for any other purposes.
4. If the appliance requires repair, always contact your CLARKE dealer.
Always insist on original spare parts. Repairs carried out by unauthorized
persons may be dangerous and invalidate the guarantee.
5. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
6. Do not use extension power cables.
7. Before cleaning or maintenance operations, always unplug the appliance
from the power supply.
8. Do not move the appliance by pulling the power cable.
9. Do not install the appliance in rooms containing gas, oil or sulphur. Do not
install near sources of heat.
10. Do not use the appliance on inclined surfaces.
11. Keep the appliance at least 50 cm away from inflammable substances
(alcohol etc) or pressurised containers (e.g. aerosol cans).
12. Do not rest heavy or hot objects on top of the appliance.
13. Always transport the appliance upright or resting on one side. Remember
to drain the tank before moving the appliance. Wait at least 1 hour after
transporting the appliance before using it to allow the refrigerant gasses to
settle.
14. Do not use the appliance outdoors.
15. Do not obstruct the air inlet or outlet.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

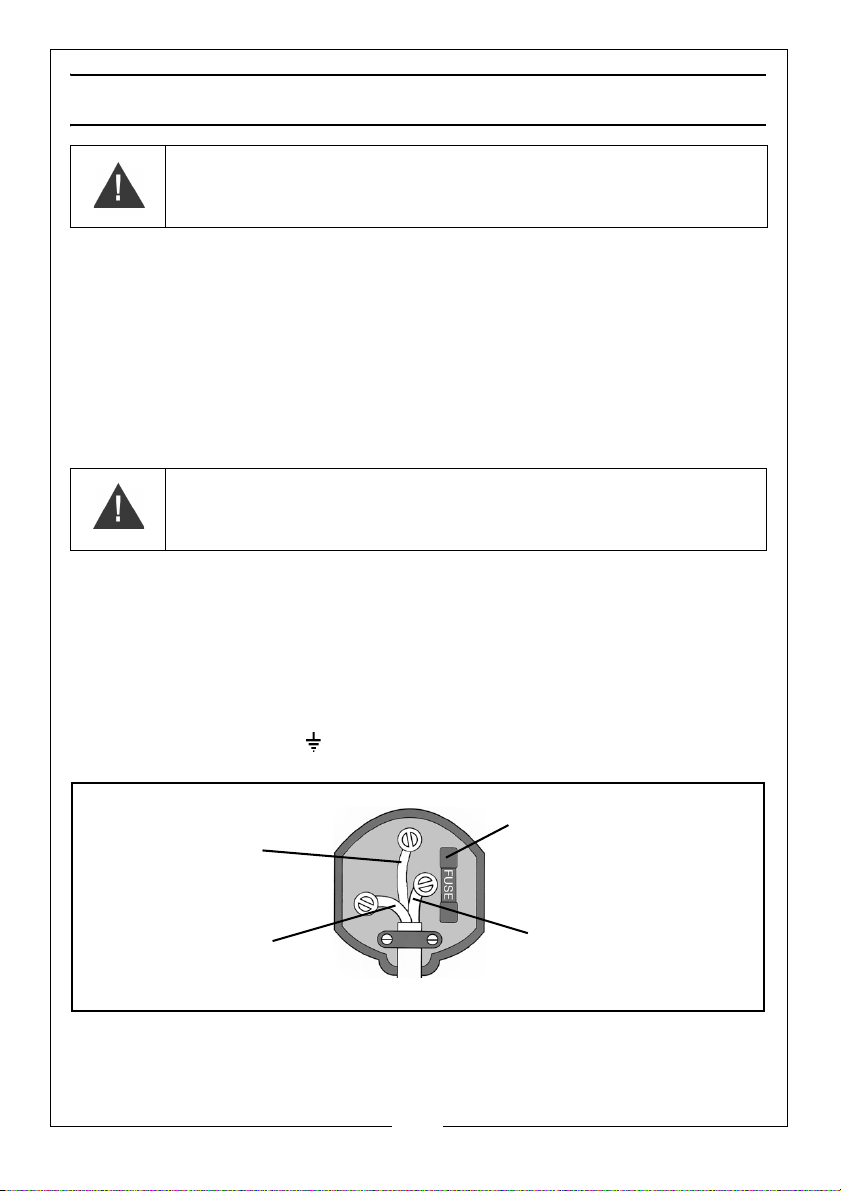

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 5 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is
marked L or coloured Red.
• The wire which is coloured Yellow and Green must be connected to the terminal
which is marked E or or coloured Green.
.
We strongly recommend that this machine is connected to the mains supply via a Residual
Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
4
Page 5

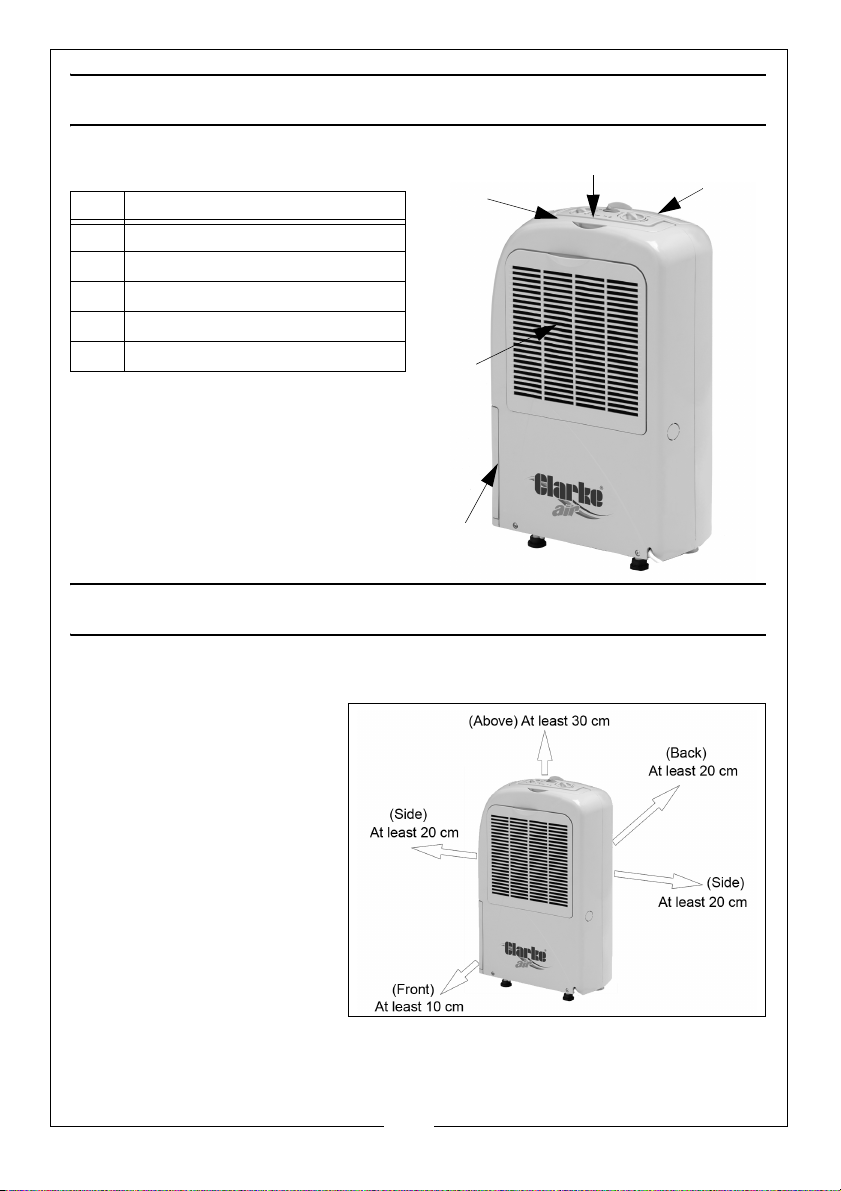

OVERVIEW
4
5
3
2
1
NO DESCRIPTION
1 Control panel
2 Handle
3Air outlet vent
4 Filter cover / Air inlet
5Water tank
POSITIONING THE DEHUMIDIFIER
• Position the dehumidifier close to a mains supply socket.
• A free space as shown
must be left around
the dehumidifier, so as
not to block the air
flow.
• Make sure that the
power cable is not
placed where it can
be inadvertently
pulled or pinched and
where it does not
cause a trip hazard.
• Do not place the
dehumidifier next to a
radiator or other heat source as this will reduce the performance of your
dehumidifier.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
OPERATION
BEFORE USE
1. Stand your dehumidifier upright for at least 2 hours prior to operating.
2. Remove the water tank then replace it. This will reset the sensors which may
have been activated during transit.
SWITCHING ON
1. Plug into the mains supply socket
and switch on.

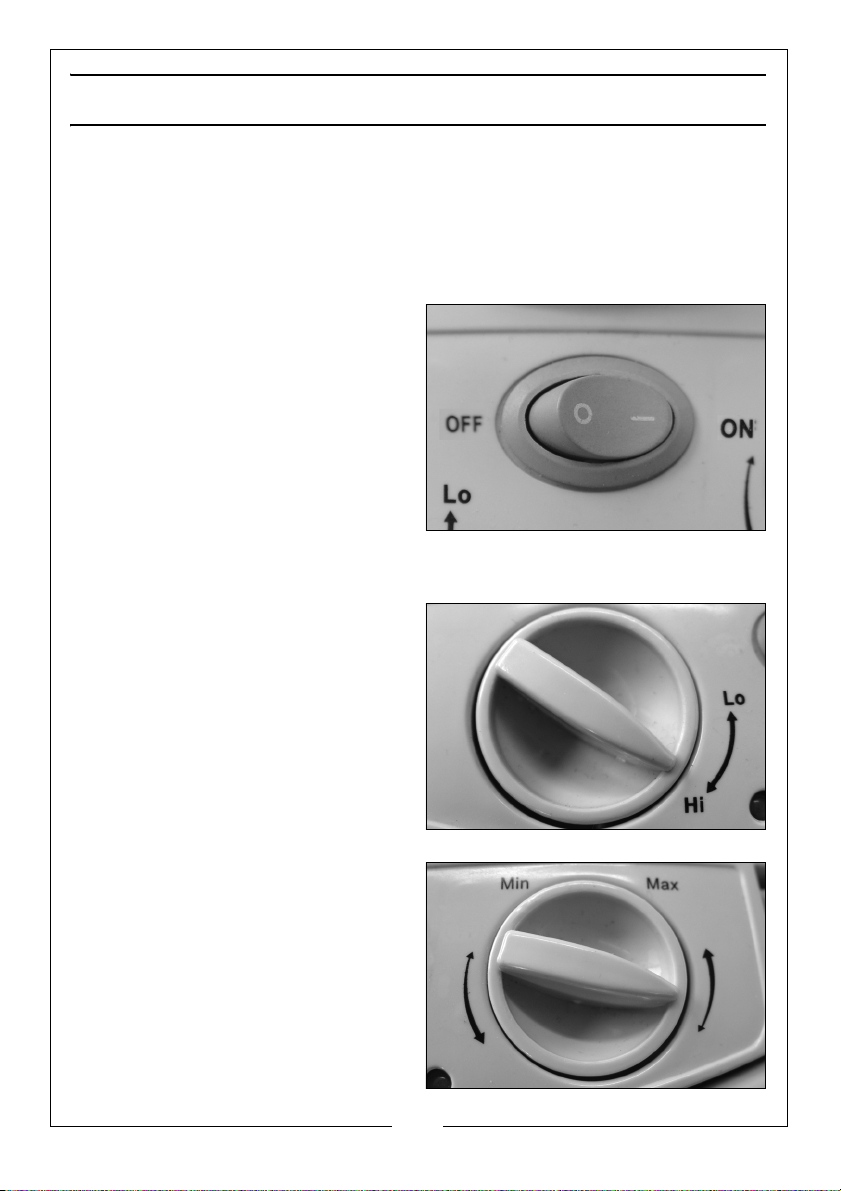

• The power indicator will
illuminate.
2. Open the air outlet vent (3) on top
of the dehumidifier.
3. Set the ON/OFF Switch to the ON
(I) position.
SPEED SELECTION
Use the speed control to select the
fan speed.
• Select from Hi or Lo.
SETTING THE HUMIDITY LEVEL
Set the desired humidity level by
rotating the humidity knob.
• The humidity increases
gradually from min. to max.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
SWITCHING OFF
Set the ON/OFF Switch to the OFF (O)
position.

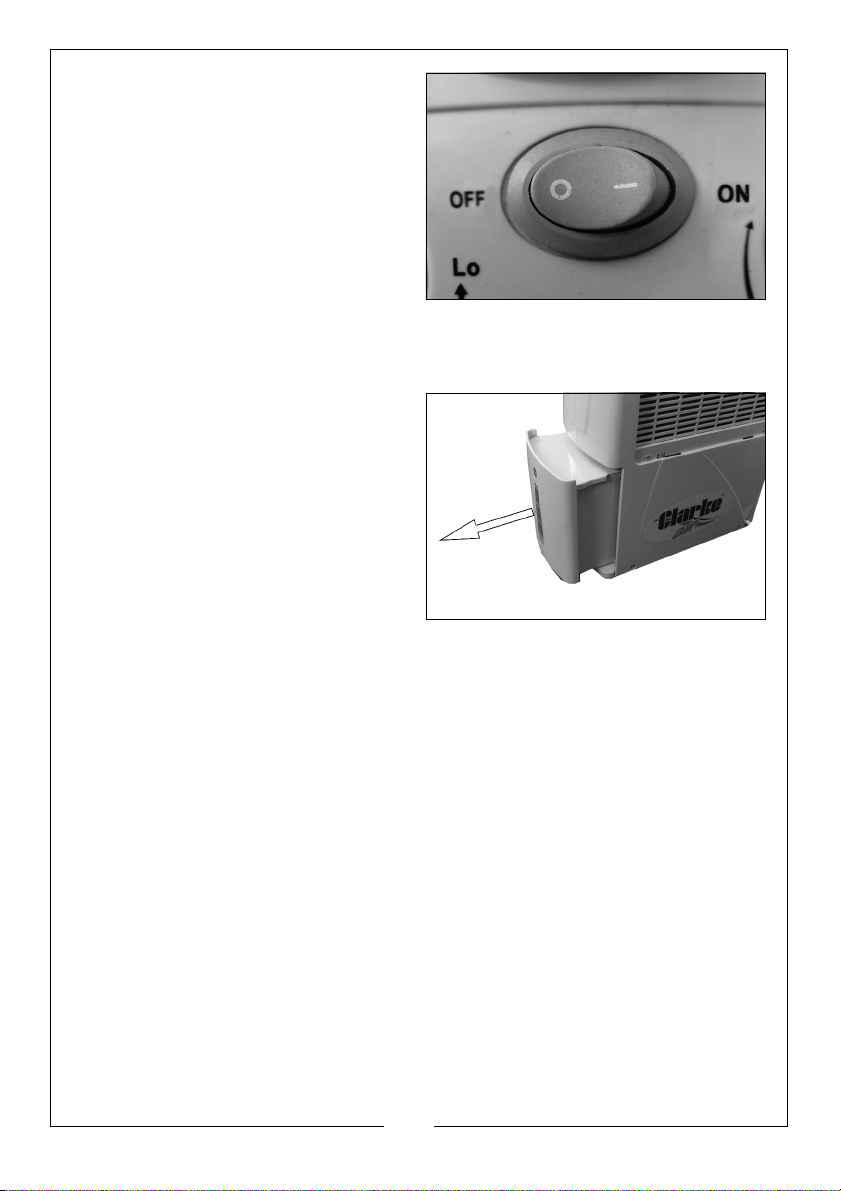

EMPTYING THE WATER TANK
1. When the FULL indicator on the control panel illuminates, switch off and
disconnect from the mains supply.
2. Carefully remove the water tank
by placing your fingers in the
channel underneath the tank and
pulling forwards, as shown
opposite.
3. Discard the water and refit the
water tank.
NOTE: The unit will not operate
unless the water tank is fitted
correctly.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
CONTINUOUS DRAINING
This function enables continuous dehumidifying without having to empty the
water tank.
PREPARATION FOR CONTINUOUS DRAINING:

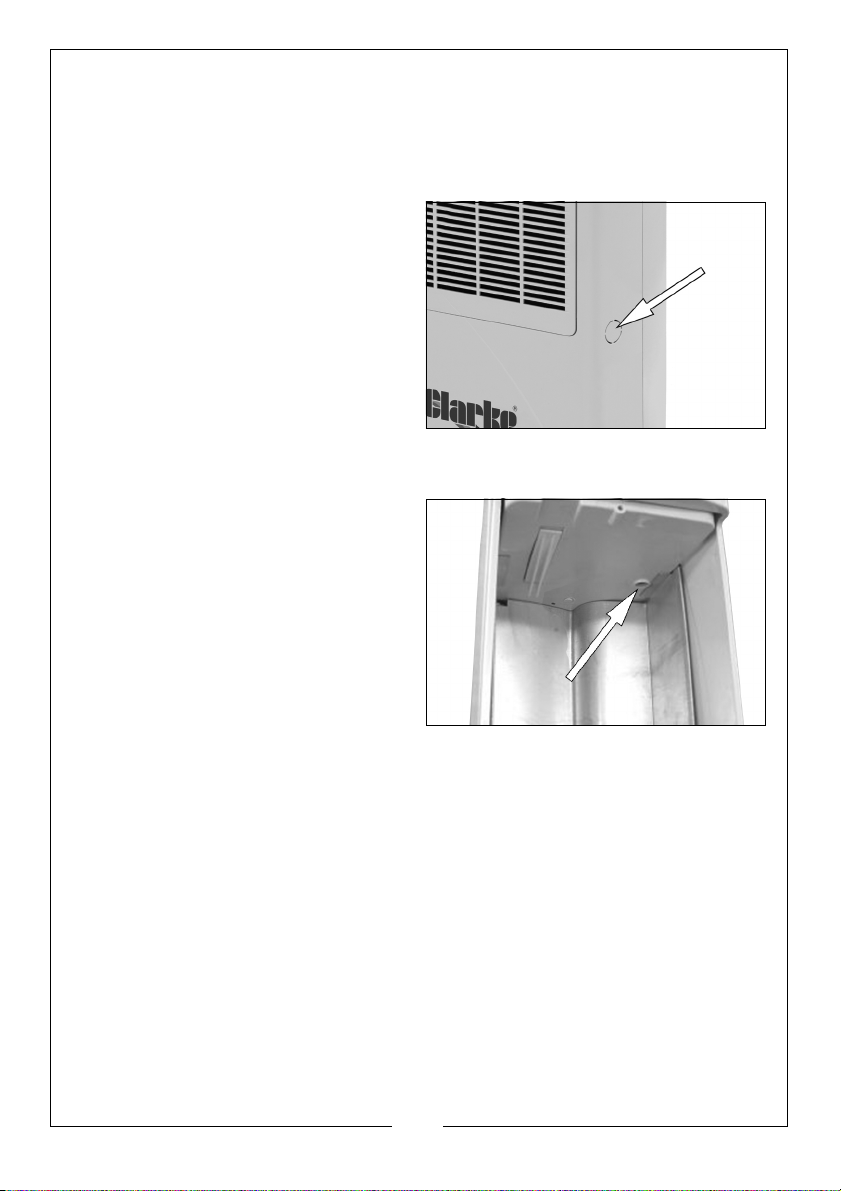

1. Remove the knock out section in
the case using a small
screwdriver.
• The spigot and rubber bung will
become visible.
2. Remove the rubber bung using a
pair of long nosed pliers.
3. Attach the drainage hose
(supplied) to the spigot.
• Make sure that the drain hose always runs downhill away from the
dehumidifier.
4. Remove the water tank. and
insert the rubber bung into the
hole indicated on the right.
5. Replace the water tank.
• The unit will not operate without
the tank in position.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
MAINTENANCE
WARNING: ALWAYS UNPLUG THE DEHUMIDIFIER BEFORE PERFORMING
ANY CLEANING OR MAINTENANCE OPERATIONS.
STORAGE
• Unplug from the mains socket and empty the tank.
• Clean and reinstall the filter. See page 9
Cover the dehumidifier to prevent dust getting inside.
CLEANING THE CABINET
• Use a soft damp cloth to clean the exterior.
• Never use harsh chemicals or abrasive cleaning agents as these may
damage the casing finish.

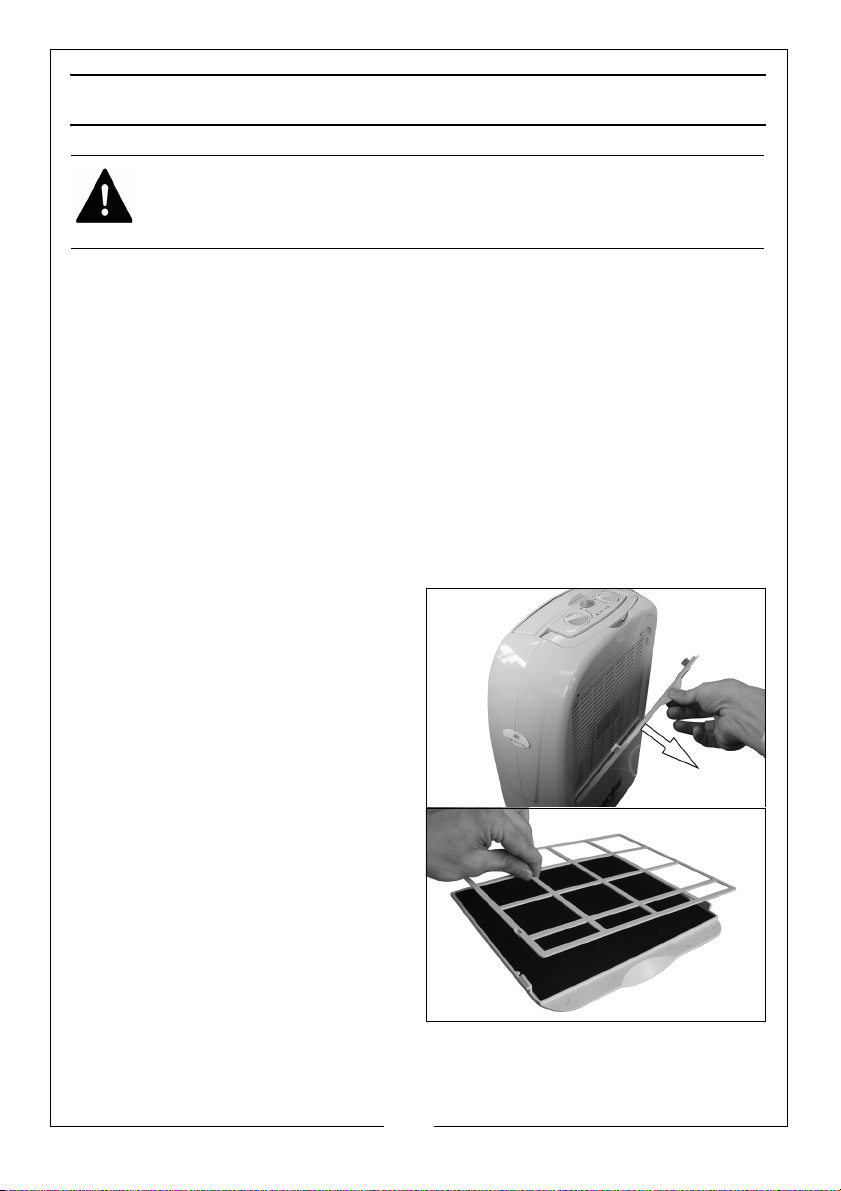

CLEANING THE AIR FILTER
1. Remove the water tank.
2. Pull the grill towards you from the
top.
3. Remove the filter holder.
4. Unclip the cage at the rear of the
filter holder.
5. Wash the filter under running
water to remove any dust.
6. Allow the filter to dry naturally.
7. Refit parts in the reverse order.
• The frequency depends on the
duration of use and the level of dust in the environment.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
TROUBLESHOOTING
Cause Solution
No operation Power cable
disconnected.
Water tank is full. Empty the water tank.
Water tank is not seated
properly.
Dehumidified
volume is small
Operation
stops during
spot
dehumidifying
Washed
clothes are not
dried
Filter is dirty. Clean the filter as described
Check to see if the air inlet
is blocked.
The room temperature is
higher than the usable
operating temperature.
Washed clothes are hard to
dry when the temperature
is low.
Insert the plug into a power
socket.
Replace the tank correctly in
position.
See page 9.
Remove dirt from the air inlet.
Dehumidifying operation will
restart automatically when the
temperature falls.
Check to see if the room
temperature is too low.
TECHNICAL SPECIFICATION
Power source 220 to 240 Volts AC 50Hz
Input Power 210W
Water tank capacity 2 Litres
Weight 9.55 kg
Operation temperature 5 - 35 degrees Celsius
Dimensions (LxWxH) 158 mm x 300 mm x 510 mm
Refrigerant R134a
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

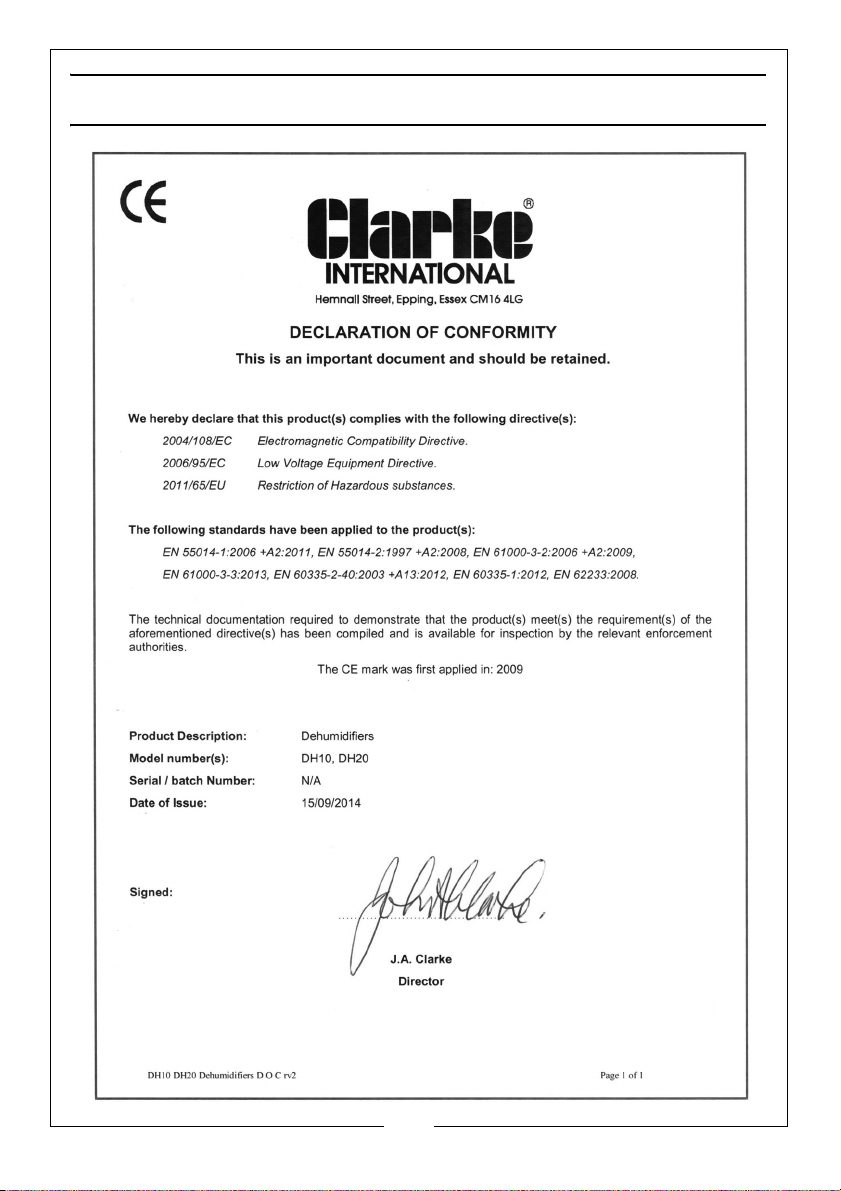

DECLARATION OF CONFORMITY
