Clarke DEVIL 350 230V, DEVIL 350 110V Operating & Maintenance Instructions

CERAMIC HEATER

MODEL NO: DEVIL 350 230V/110V

PART NO: 6920262 & 6920263

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0615

INTRODUCTION

Thank you for purchasing this CLARKE Ceramic Heater.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.

In effect, this means that this product must not be disposed of with
general household waste. It must be disposed of according to the
laws governing Waste Electrical and Electronic Equipment (WEEE) at
a recognised disposal facility.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

Please keep these instructions in a safe place for future reference.

1. These heaters are for INDOOR USE ONLY.

2. Do not expose the heater or power cable to rain or wet conditions. Any
water entering the heater will increase the risk of electric shock. DO NOT
use this heater in a bathroom, shower room or any other wet environment.

3. NEVER locate the heater near combustible materials such as curtains,
furniture etc. Allow at least 1 metre distance.

4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a
distance of at least 1 metre from a wall or ceiling. Avoid placing the heater
directly below power socket outlets.

5. Take care to ensure that the wire guard cannot be covered.

6. Do not operate heater in explosive atmospheres such as in the presence of
flammable liquids, gases or dust such as in a paint spray booth or any
explosive environment.

7. Never stand the heater on a movable vehicle where it could tip over.

8. Do not allow the halogen tubes to become covered with dust which could
become a fire hazard. If used in a dusty workplace it should be cleaned as
described under Cleaning and Maintenance.

9. NEVER touch the halogen tubes for at least 15 minutes after switching off.

10. DO NOT leave the heater unattended.

11. If children are present always use with a fireguard.

12. Store the heater out of the reach of children and do not allow persons
unfamiliar with these instructions to operate it.

13. Do not use this heater with a programmable timer used to switch it on
automatically.

14. This heater must only be located on a firm, level surface but is fitted with an
anti-tilt switch which will turn the unit off if it should tip over.

ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug
in any way. Do not use adaptor plugs with earthed (grounded) appliances.
Correct plugs and outlets will reduce the risk of electric shock.

2. Do not abuse the electrical cable. Never use the cable for pulling or
unplugging the heater. Keep the cable away from sources of heat, oil,

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

sharp edges or moving parts. Damaged or tangled cables increase the risk
of electric shock.

3. ALWAYS disconnect from the power supply before moving the heater, or
performing any cleaning or maintenance tasks.

4. Keep the power cable well away from machines and ensure an adequate
electrical supply is close at hand so that the operation is not restricted by
the length of the cable.

5. Inspect the power cable regularly for signs of damage. DO NOT use if it is
damaged, and ALWAYS keep it away from the source of heat.

6. Check the heater for damage before use. Any damage should be
properly repaired or the part replaced. If in doubt, DO NOT use. Consult
your local Clarke dealer.

SERVICE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using
identical replacement parts. This will ensure that the safety of the
appliance is maintained.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

DEVIL 350 (230V) UNITS

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY
BEFORE CONNECTING THE PRODUCT TO THE POWER SUPPLY.

The 230v model is provided with a 13 amp BS 1363 plug, fitted with a 13amp
fuse and MUST be connected to a standard, 230 Volt (50Hz) electrical supply,
preferably through a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely as

insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH.

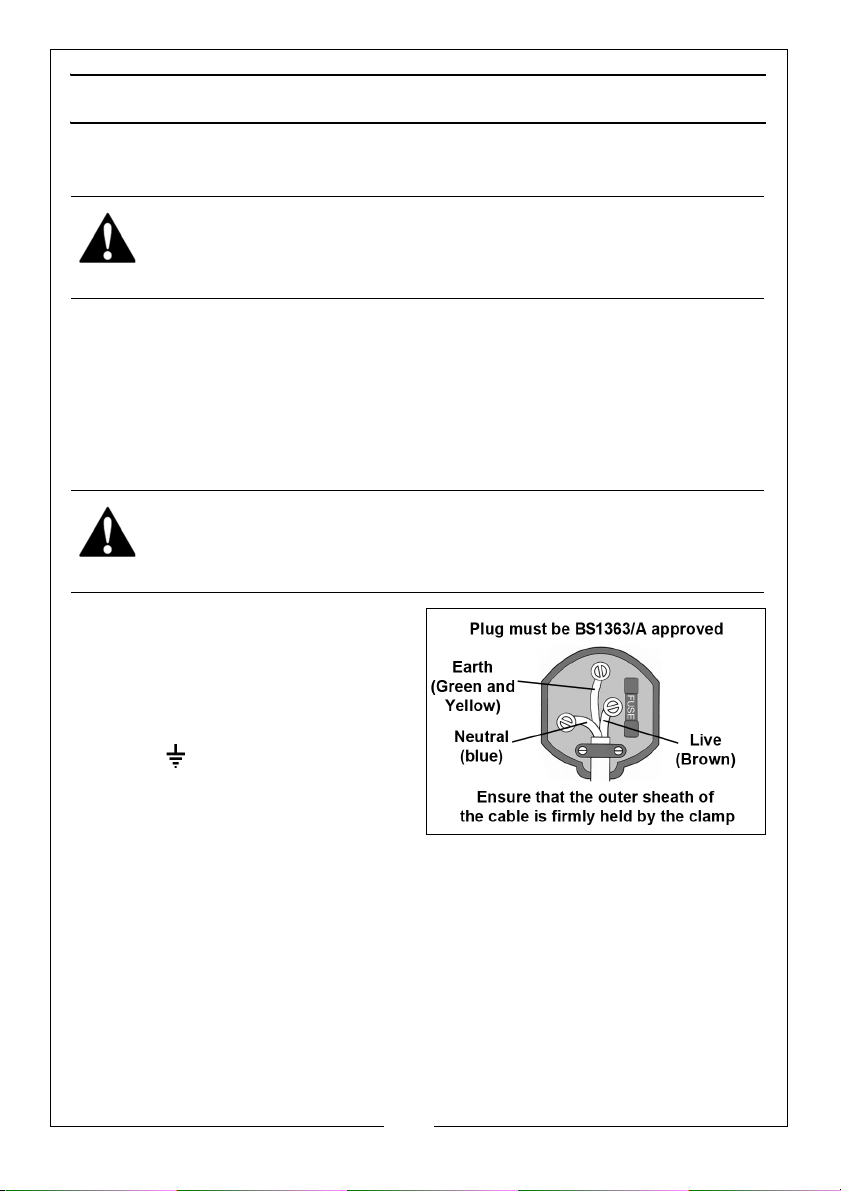

The wires in the mains lead should be
wired up in accordance with the
following colour code:

• Connect the GREEN & YELLOW

coloured wire to the plug
terminal marked with a letter E
or or coloured GREEN or
GREEN & YELLOW.

• Connect the BROWN coloured

wire to the plug terminal
marked a letter “L” or coloured RED

• Connect the BLUE coloured wire to the plug terminal marked a letter

“N” or coloured BLACK.

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DEVIL 350 (110V) UNITS

The 110V model is fitted with a 32 amp, three pin industrial plug to EN 60309
and MUST be connected to a 110-130 volt, 1 phase 50Hz supply through a
suitably fused isolator switch. On no account must a 230V, 13amp (BS1363)
plug be used.

NOTE: If a portable 110V transformer is used, make sure it has a rated

capacity sufficient to take the load of the heater.

In the event that the heater is hard wired into the electrical system, it must be
carried out in accordance with IEE regulations.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

UNPACKING AND ASSEMBLY

Before assembling, please check
contents against the following list and
advise your dealer immediately if any
parts are missing.

• 1 x Heater

•2 x Legs

• 1 x handle

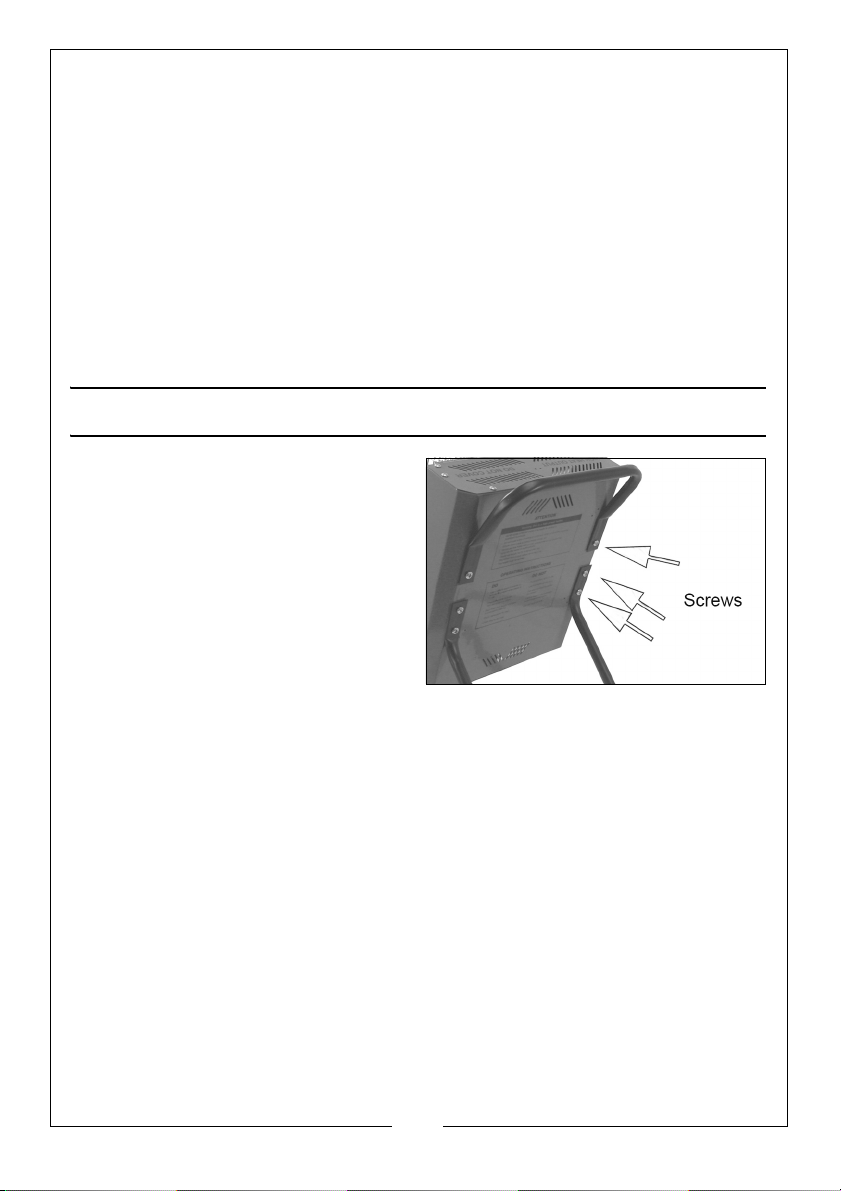

1. Remove the screws from their
locations in the heater and use
them to attach the legs.

2. Repeat with the two remaining screws to fit the handle as shown.

3. DO NOT use the heater without fitting the legs.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

INSTRUCTIONS FOR USE

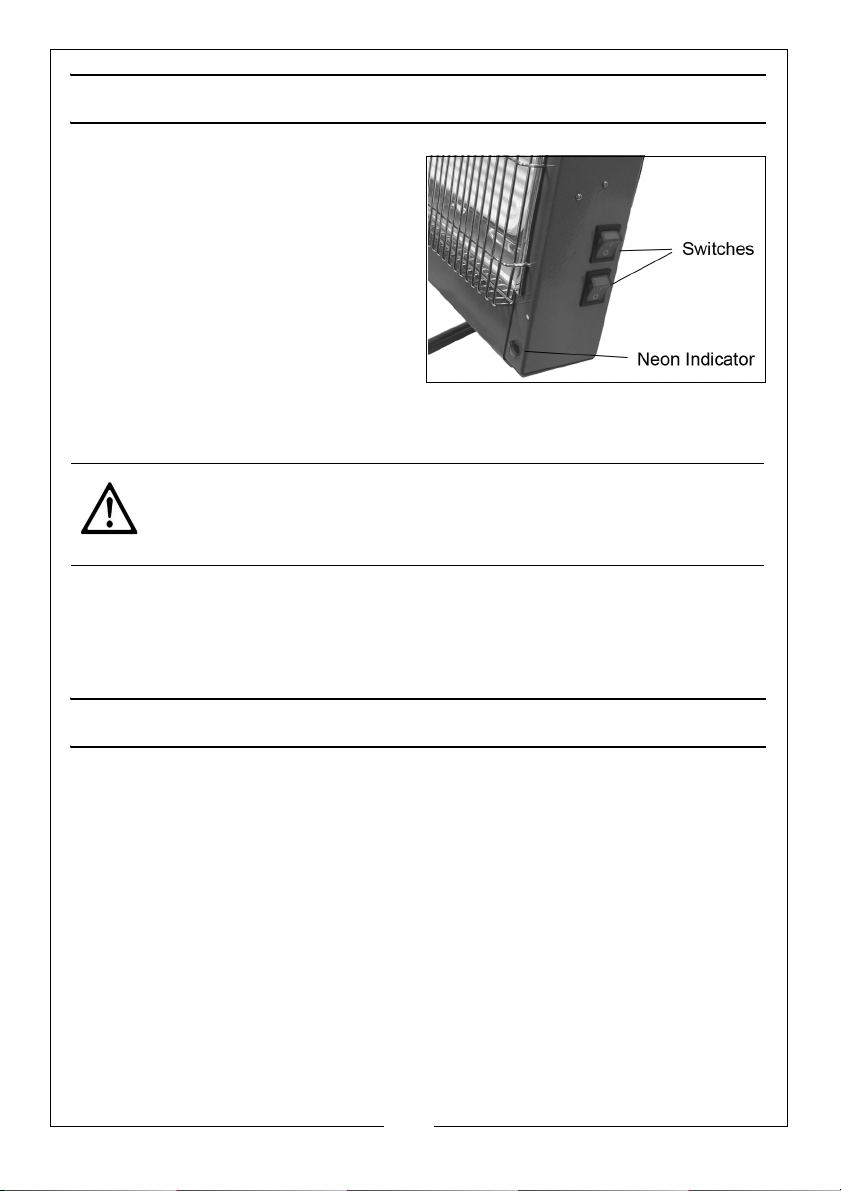

1. Place the heater on a firm, level
surface and following all safety
precautions, plug into a suitable
mains supply. The neon indicator
will illuminate.

2. Set one, or both switches to the I
(On) position as required.

• Two power settings are

available. Each switch will
illuminate to show that the
upper or lower heat element is in use.

• The output of each heating element is 1200 W (4100 BTU).

CAUTION: PLEASE NOTE THAT THE HEATING ELEMENTS OF THIS PRODUCT
DO NOT GLOW WHILST IN OPERATION. ANY PICTURES SHOWING THIS IN
ADVERTISING MATERIAL ARE FOR ILLUSTRATION ONLY.

NOTE: The heater is equipped with an anti-tilt switch that automatically

shuts the power off should the heater tip over. If this happens,
simply place the heater in its correct position and it will
immediately rest

CLEANING & MAINTENANCE

ALWAYS allow the heater to cool down for at least 15 minutes and disconnect
it from the mains supply before performing any maintenance tasks.

PERIODICALLY

1. Inspect the power cable for damage. Undue heat will cause the cable to
stiffen and crack. If this is found, have the cable replaced. Check cable
routing and ensure it is well away from the heat source.

2. Should the heater become dirty, disconnect from the power supply,
remove the guard and wipe the reflector and elements with a clean damp
cloth. DO NOT use abrasive cleaners. Take care that no moisture enters the
heater.

• Refer to your CLARKE dealer if internal maintenance is required.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• When storing the heater, allow it to cool down, then place it for

storage in a dry, ventilated place.

ELEMENT REPLACEMENT

Ceramic heat elements are long lasting and should not need replacing under
normal circumstances. Should this become necessary take the heater to your
Clarke dealer.

FAULT FIN DIN G

SYMPTOM PROBLEM SOLUTION

Heater does not
operate, although
plugged in and
switched on.

Heater element is
glowing hot

Plug is loose/bad
connection.

Fuse blown. Replace if necessary and

No power at socket
outlet

Tilt safety switch is
disabling unit

Input voltage incorrect. Ensure power supply

Air circulation partly
blocked.

Remove the plug & check
the connection of the plug
and socket.

investigate the cause. If
fuse blow repeatedly,
consult your Clarke dealer.

Insert plug into a suitable
socket.

Ensure unit is upright. If
switch does not re-set, con­sult your Clarke dealer.

matches the rating on the
label.

Ensure the heater is kept
away from any objects or
materials which could
partially cover the wire
guard or be drawn onto it.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

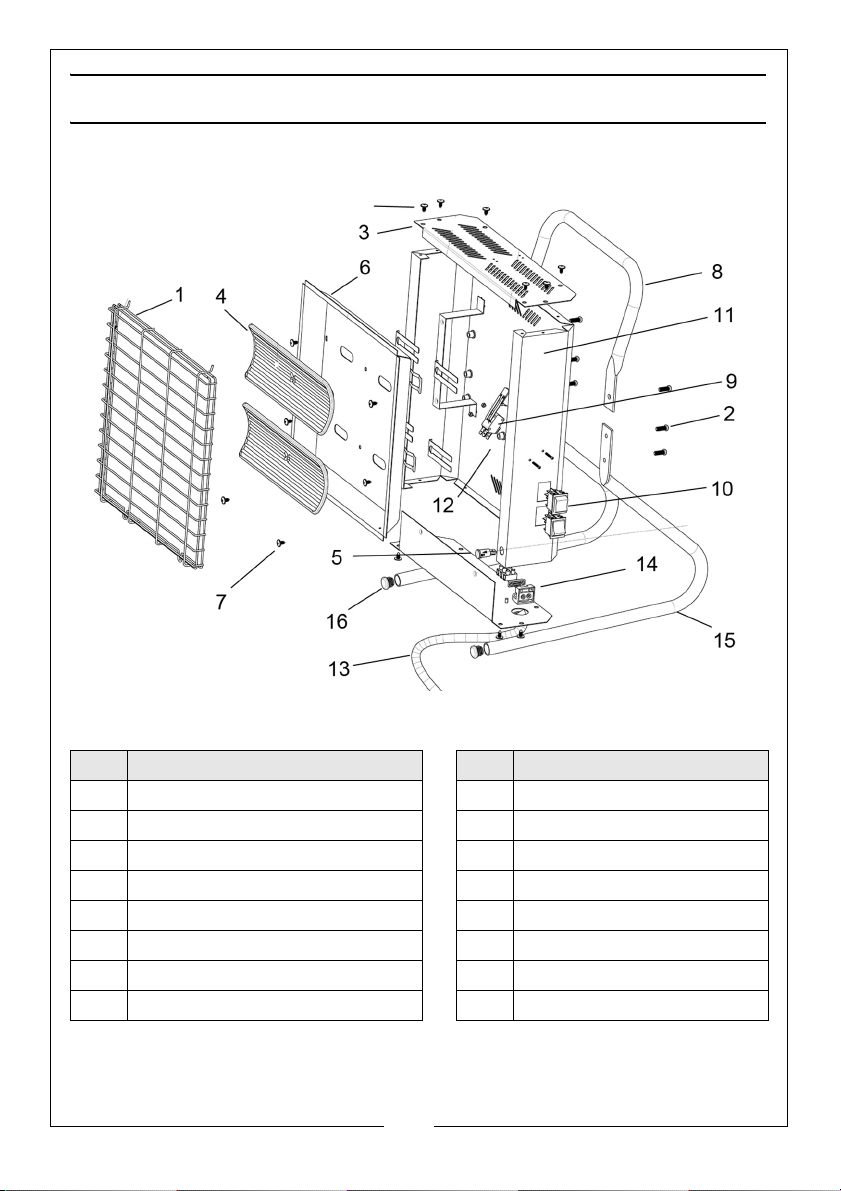

PARTS DIAGRAM

No Description No

1 Front Guard 9 Tip-Over Switch

2 M6x15 Pan Screw 10 On/Off Switch

3 Top Panel 11 Casing

4 Ceramic Heat Element 12 Screw

5Neon Indicator Lamp 13 Power Cable & Plug

6 Reflector Panel 14 Cable Clamp

7 No10x12 Pan Screw 15 Leg

8Handle 16End Plug

When requesting spare parts, please quote WS DEV 35001 to WS DEV 35016,
stating the model/voltage of your heater if applicable.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Model Number Devil 350 (230v Devil 350 110v

Model Number 6920262 6920263

Weight 5.45kg 5.75kg

Dimensions (L x W x H) 375 x 370 x 560mm 442 x 372 x 565mm

Rated input Current 10.5A 20A

Supply Voltage 230V/50 hz 110v/50Hz

Fuse Rating 13A N/A

Insulation Class IP20

Max Heat Output 1200W/2400W

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

A selection of suitable extension leads & plugs is available from your nearest
CLARKE dealer, for further information, contact your nearest dealer, or
telephone CLARKE International Sales department on 01992 565300.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

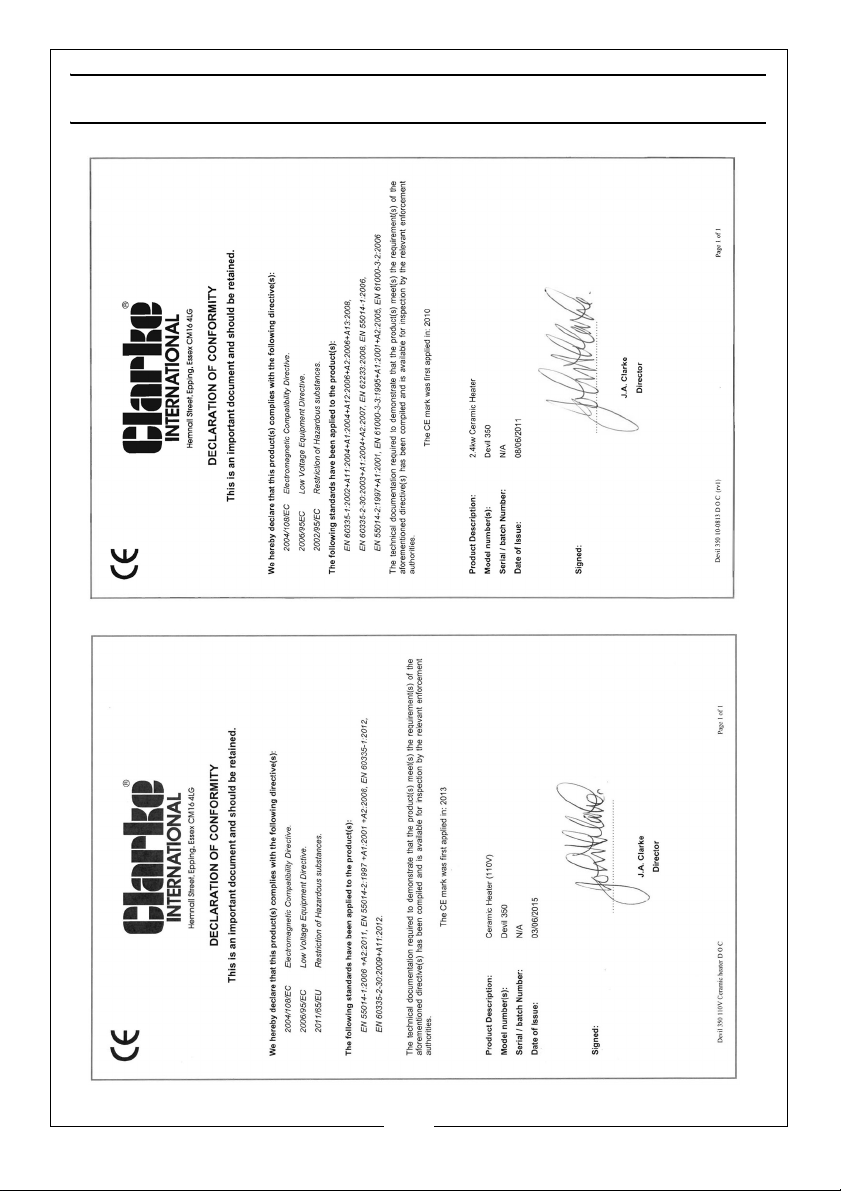

DECLARATION OF CONFORMITY

11
