Page 1
Only suitable for well insulated areas and not designed
to be the primary heat source
2.8KW 230V PTC ELECTRIC FAN HEATER
MODEL NO: DEVIL 2800PTC
PART NO: 6925600
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC0621 rev 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Electric Fan Heater.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Operating Voltage and Frequency: 230 V / 50Hz / 1 Phase
Operating Temperature: (Min/Max) -15 to +25°C
Max Heat Output: 2.8 kW - 9554 BTU/hr.
Air Output:
Safety Device: Thermal cut-out
Duty Cycle Classification: S1 Continuous duty
Electrical Insulation Class I
Ingress protection IP20
Product: Depth x Width x Height 265 x 210 x 290 mm
Product Weight 2.8 kg
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
280m
3
/h
Page 3
THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 36%
Nominal heat output P
Minimum heat output (indicative) P
Maximum continuous heat output P
Auxiliary electricity consumption
At nominal heat output el
At minimum heat output el
In standby mode el
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature
feedback
Electronic heat charge control with room and/or outdoor temperature
feedback
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No
nom
min
max
max
min
SB
2.8 kW
1.4 kW
2.8 kW
n/a kW
n/a kW
n/a kW
No
No
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY ADVICE
Make sure that you read, understand and comply with the following.

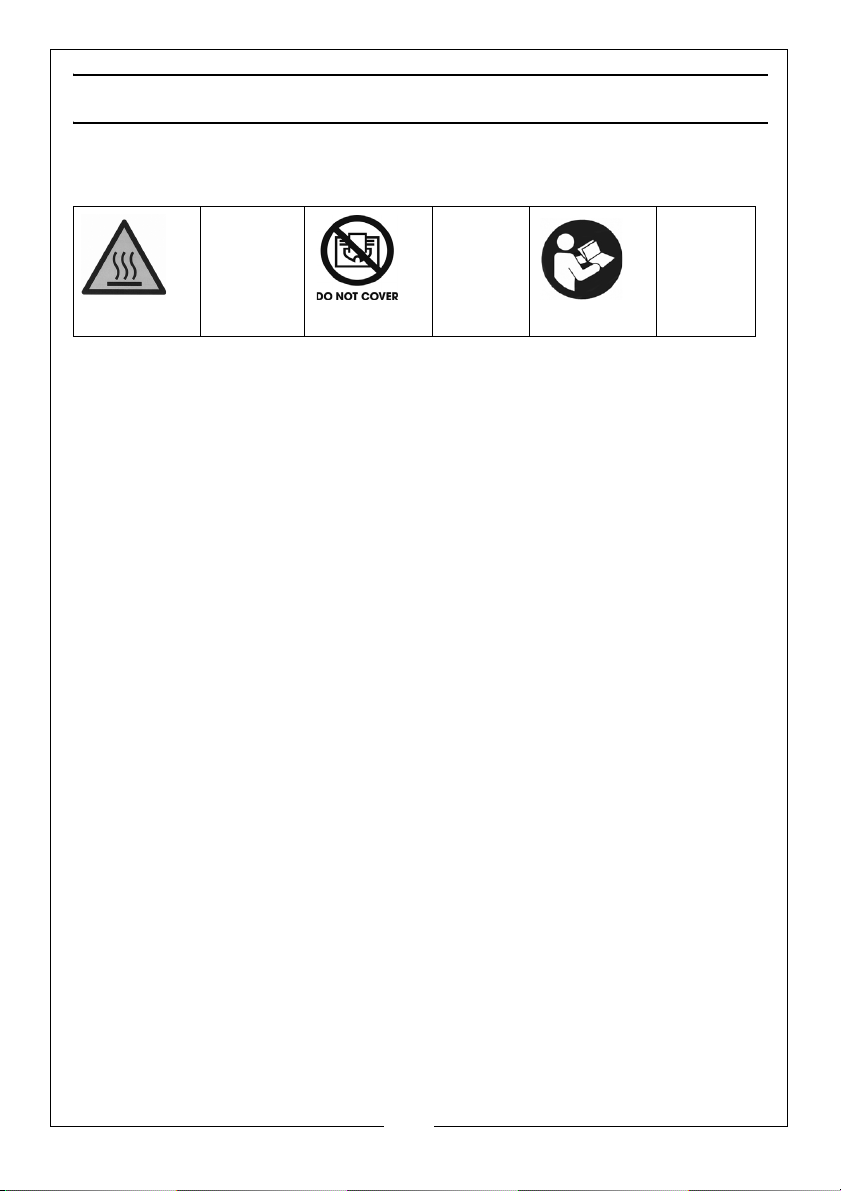

The following symbols appear on the unit.
Hot
surface,do not
touch
Do not
cover
ELECTRICAL SAFETY
• Regularly inspect the power cable / plugs to be used with this heater
and DO NOT use the heater if the power cable is damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker).
• Make sure that the voltage on the rating plate is the same as the
voltage of the power supply. If in doubt, consult a qualified electrician.
• DO NOT abuse any electrical cable used with this heater. NEVER use the
cable for pulling or unplugging the heater.
• Keep the cable away from sources of heat, oil, sharp edges or moving
parts. Damaged or tangled cables increase the risk of electric shock.
OPERATION
• The heater must only be used by persons who have read these
instructions and have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
• DO NOT cover the heater.
• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power cable to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the
heater.
• ONLY use the heater on a level surface.
• DO NOT use this heater with a programmable timer used to switch it on
automatically.
Read the
manual
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
POSITIONING
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.
• This heater is designed for indoor use only.
• DO NOT place the heater close to a bath, wash basin, shower, swimming
pool or any other water-filled area or wet surface. DO NOT place the
heater up against any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near combustible materials such as curtains,
furniture etc. Allow at least 2 metre clearance.
• DO NOT place the heater on a raised surface or anywhere where it
could topple over
• ALWAYS ensure that the grille cannot be blocked by curtains or other
fabrics.
• DO NOT operate in explosive atmospheres such as in the presence of
flammable liquids, gases or dust such as in a paint spray booth or any
explosive environment. Electric motors create sparks which may ignite
dust or fumes.
• DO NOT LEAVE THE HEATER UN-ATTENDED, FOR EXAMPLE, LEFT ON AT
NIGHT.
COMMON SENSE
• DO NOT operate when you are tired or under the influence of alcohol,
drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use the heater with wet hands or when there is water on the
power cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas, such as workshops and
other industrial areas. DO NOT use the heater for any other function. It is
not suitable for drying clothes or laundry.
• Young children must be kept away unless continuously supervised.
• DO NOT touch the heater casing or grille during use.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
ELECTRICAL CONNECTIONS
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY
BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. Connecting it to any
other power source may cause damage.
If it is necessary to change the fuse in the plug, the fuse cover must be refitted.
If the fuse cover becomes lost or damaged, the plug must not be used until a
suitable replacement is obtained.
If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a mains socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW/GREEN = EARTH
If the colors of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be
connected to the
terminal which is
marked N or coloured
Black.
•The Brown wire must
be connected to the
terminal which is
marked L or coloured
Red.
•The Yellow/Green wire
must be connected to
the terminal which is marked E or coloured Green.
We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
6
Page 7

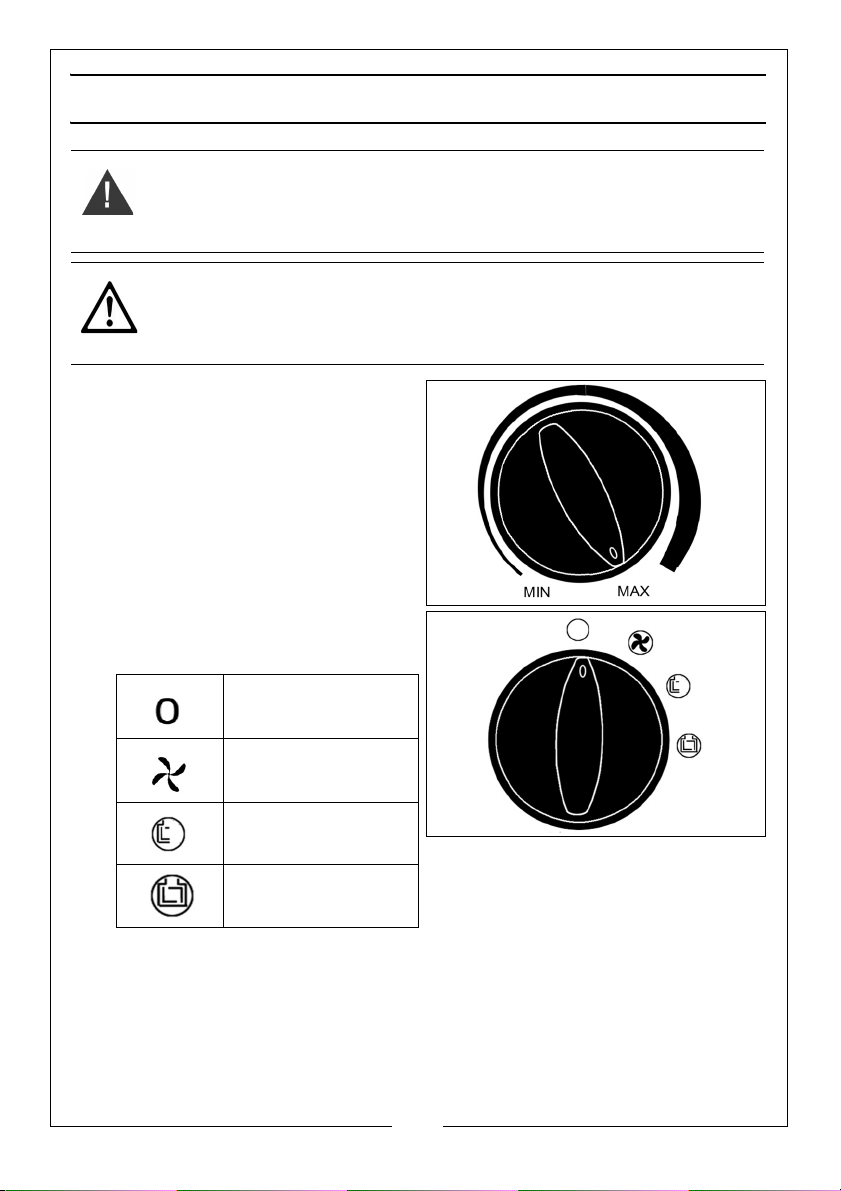

OPERATION
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAN CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
1. Put the heater in a level position
on a flat surface and at a safe
distance from flammable
materials. Keep a minimum of 2m
clearance all round.
2. Connect the heater to a suitable
power supply.

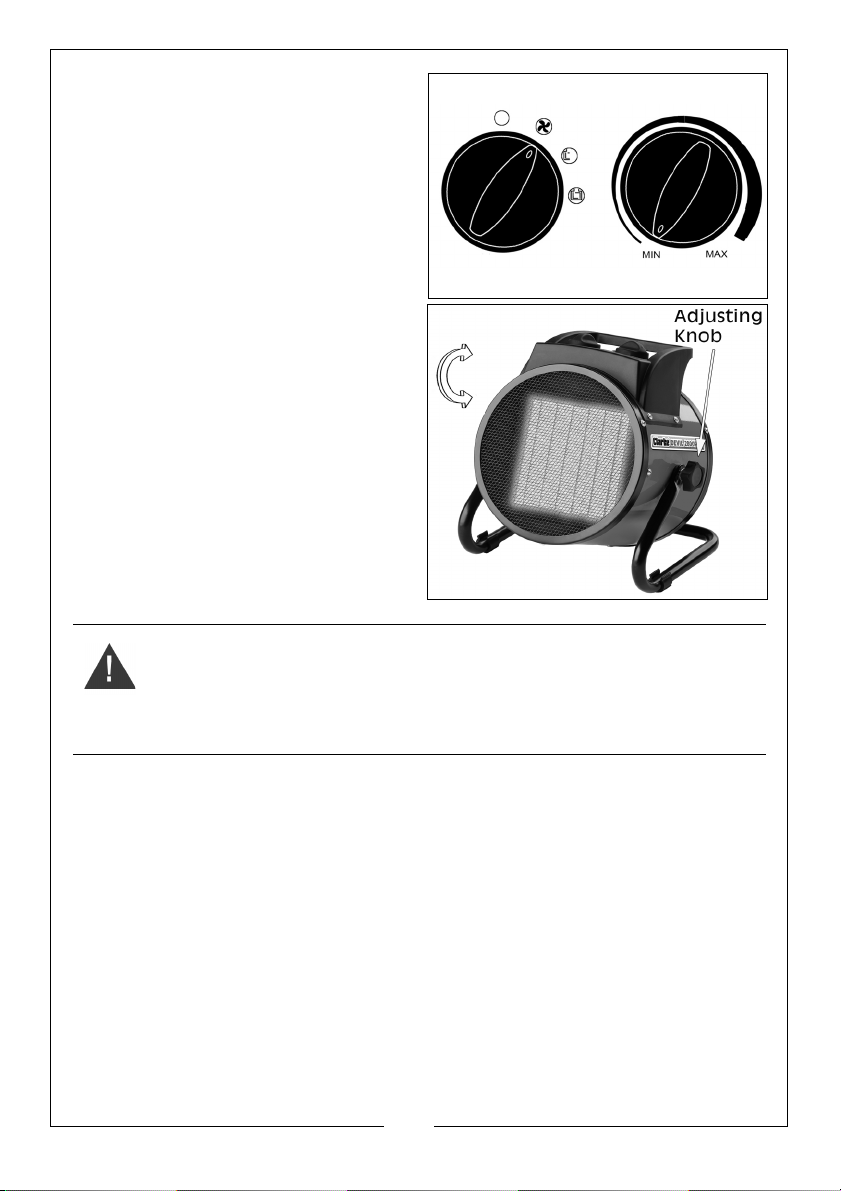

3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of
the 3 settings:
Off
Fan Only
Heat Setting 1
Heat Setting 2
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
• The room temperature will be maintained at this setting. The heater will
continue to operate until the power switch is turned to the OFF position.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
6. For fan only operation, turn the
power switch to the fan only
setting and set the thermostat to
its minimum setting.
7. Adjust the angle by loosening
both adjusting knobs and setting
the required angle.
8. Retighten the adjusting knobs.
9. When not in use, disconnect the
heater from the mains supply.
Store it in a safe, dry, childproof
location.
MAINTENANCE.
WARNING: SERVICING OR INTERNAL MAINTENANCE MUST ONLY BE
CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
• Check that the heater is in good working order. Take immediate action
to repair or replace damaged parts.
• DO NOT allow the heating elements to become covered with dust
which could become a fire hazard. If used in a dusty workplace it should
be cleaned after every use with a dust extractor.
• ONLY recommended parts should be used. Unapproved parts may be
dangerous and will invalidate the warranty.
• DO NOT attempt to repair a damaged heater, contact the CLARKE
service department.
• Clean the heater with a soft damp cloth once cold. DO NOT use
solvents or abrasives
• No other maintenance is required, should you discover any problem
with the heater, return it to the CLARKE service department for repair.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
SERVICE & REPAIRS
Have your heater repaired by a qualified person using identical replacement
parts. This will ensure that the safety of the heater is maintained.
TROUBLE SHOOTING
Problem Possible Cause Remedy
Heater does not
operate,
although
plugged in with
the switch and
thermostat
switched on.
Heating element
glowing hot.
The unit has failed
to heat up so only
the air fan has
operated.
Abnormal noise. Heater is not level. Stand heater on a level surface.
Plug is loose/bad
connection.
Fuse blown or
circuit breaker
trips.
No power at
socket outlet
Input voltage too
high.
Air inlet grille is
blocked.
Control switch not
set at a
“HEATING” level.
Thermal cut out
device is active/
Thermostat has
tripped
Pull the plug out & check all
connections (cable/plug and socket).
Replace if necessary and investigate
cause. If fuse blows repeatedly, consult
your CLARKE dealer.
Insert the plug in a suitable socket.
Use a power supply in accordance
with the rating on the label.
Ensure the heater is kept away from
any objects which could cover the air
inlet or be drawn into it.
Turn switch to a heating level.
Turn the thermostat and listen. If there is
no CLICK and the thermostat is not
damaged, the heater will
automatically switch ON when it has
cooled down.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

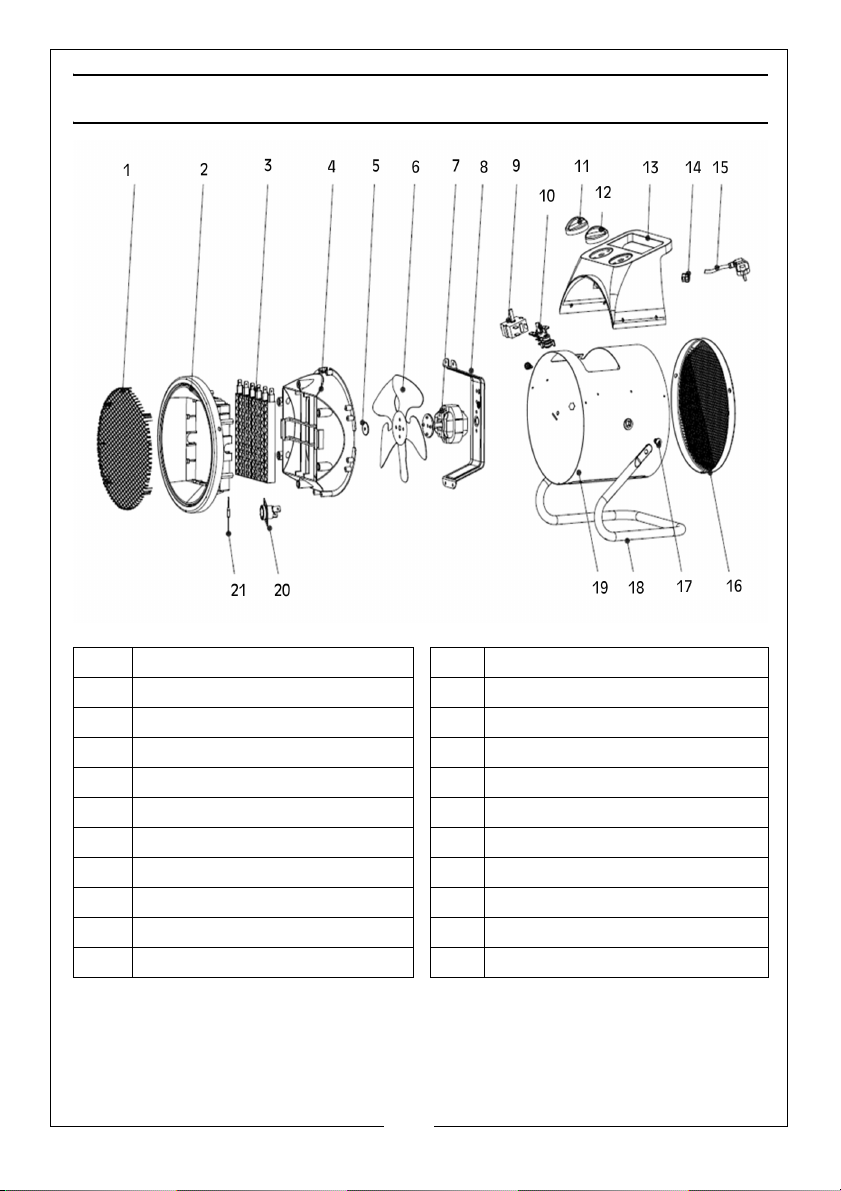

COMPONENT PARTS
1 Front Grille 12 Thermostat Knob
2 Air Outlet Shutter Fixed Ring 13 Control Box Cover
3 PTC Heating Element 14 Cable Clamp
4 Air Flue 15 Power Cable/Plug
5 Fan Plate 16 Back Grille
6 Fan 17 M6 x 16mm Screw
7 Motor 18 Steel Pipe Frame
8 Motor Support 19 Outer Casing
9 Rotary Switch 20 Self-Resetting Thermostat
10 Adjustable Thermostat 21 Temperature Probe
11 Mode Selector Knob
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

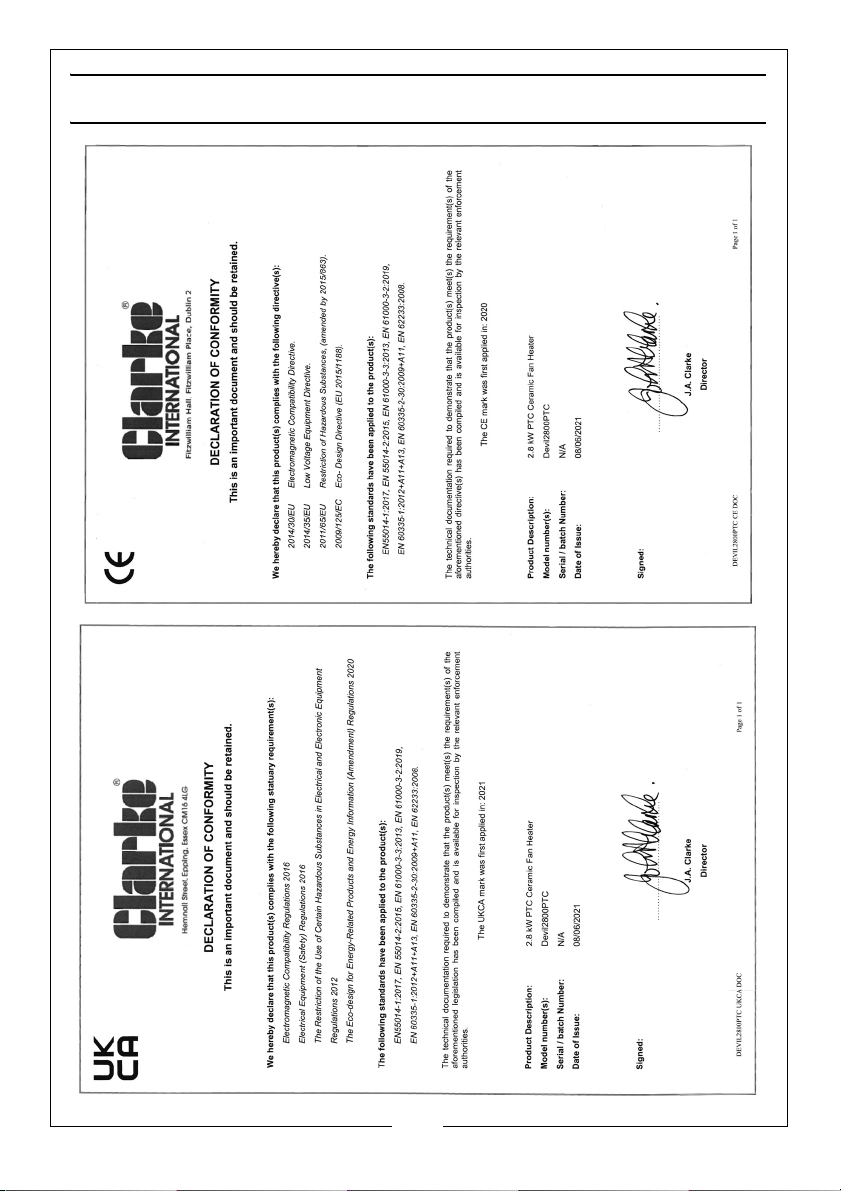

DECLARATIONS OF CONFORMITY
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Loading...
