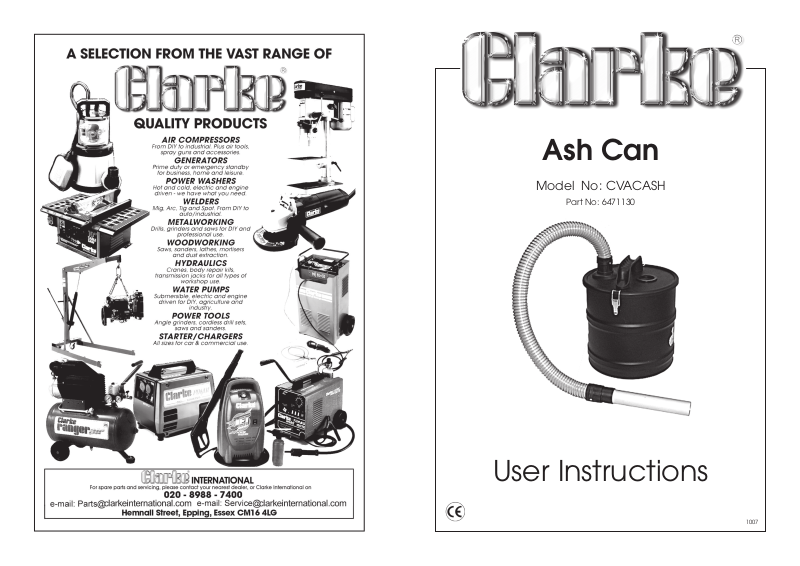

Ash Can
Model No: CVACASH
Part No: 6471130
User Instructions
1007
Thank you for purchasing this CLARKE Ash Can which is ndesigned to provide you with a
cleaner and safer working environment.
Before attempting to use this machine, please read this leaflet thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to this Ash Can giving you long and satisfactory
service.
Retain this manual in a safe place, so that the information is available at all times.This
manual must accompany the product in the event of resale.
We accept no liability for damage or accidents which arise due to non-observance of
these instructions and the safety information.
GUARANTEE
• Before you begin vacuuming, wait for the material to cool down completely.
Do not extinguish hot ash with water as the sudden differences in temperature could
crack your fireplace.
• When vacuuming inside ovens, be certain to wait for the oven to cool down completely
as temperatures above 40
O
C could damage the vacuum cleaner and the ash filter.
• If you discover overheating, switch off the vacuum cleaner immediately, disconnect
from the power supply and take out the filter bag. Separate the ash filter from the vacuum
cleaner and remove the vacuumed material. Then leave the vacuum cleaner and the
ash filter to cool outdoors under supervision.
• Important! When you are finished with your work, empty the ash filter and the
vacuum cleaner completely as there may still be a risk of fire.
This product is guaranteed against faulty manufacture for a period of 12 months from the
date of purchase. Please keep your receipt therefore, as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
1. SCOPE OF USE
The ash filter can be used together with a wet and dry vacuum cleaner (not included),
for vacuuming cold ash or material from ovens, fireplaces or barbecues.
2. SAFETY INFORMATION
• It is imperative to follow the information in these operating instructions.
Additionally, the safety precautions and fire prevention regulations required by law
must be observed.
• Important! Never vacuum dangerous substances with the ash filter!
• Do not use the ash filter to vacuum hot, glowing or combustible objects (eg.
charcoal, cigarettes, etc).
• Do not vacuum soot.
• Important! The material being vacuumed must not exceed a temperature of
40OC as this creates a risk of fire.
• Important! If the permissible temperature is exceeded, there is a risk of the
vacuum cleaner, the ash filter and the hoses being damaged.
• Beware! Some materials can look cool on the outside but remain hot on the inside.
Hot materials can re-ignite in a current of air.
• While you are vacuuming, check the hoses, the ash filer and the vacuum cleaner
continually for overheating.
3. LAYOUT
1. Container
2. Container lid
3. Locking hook
4. Suction hose (ash
filter)
5. Suction tube
6. Connection for
suction tube
(ash filter)
7. Connection for suction
tube (vacuum cleaner)
8. Suction tube (vacuum cleaner)
9, Wet and dry vacuum cleaner
Important! Suction hose (8) and wet and dry vacuum cleaner (9) not included!
For Spare Parts, consult your CLARKE dealer or CLARKE International (see back page)
4. STARTING UP
• Fit the vacuum tube (5) to the end of the suction hose (4), the hose ends are identical.
• Fit the suction hose (4) to the connection (6) and turn until securely attached.
• Prepare the wet and dry vacuum cleaner (9) according to the operating instructions.
A filter bag must be inserted at all events.
• Fit the suction hose (8) to the connection (7).
• Switch on the wet and dry vacuum cleaner (9) and begin working.
5. SPECIFICATIONS
Container Volume ........... 18L/5gal
Weight............................... 2.5kg
Dimensions ........................ 305x305x345mm
