Page 1
UNDERBODY SEAL GUN
MODEL NO: CUB3
PART NO: 5092105
OPERATING & MAINTENANCE
INSTRUCTIONS
GC0714
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Underbody Sealant Gun.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATION
Model Number CUB3
Flow/delivery rate 520 ml/min
Max Operating Pressure 90 psi (6.2 bar)
Air Consumption 10 cfm (max @90psi)
Air Inlet Size 1/4“BSP male
Weight 0.3 kg
Dimensions (L x W x H) 280 x 215 x 47 mm
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ACCESSORIES
A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.
Contact your Clarke dealer for further information.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.
WORK ENVIRONMENT
1. Keep the work area clean and tidy.
2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.
3. Keep children and visitors away - Do not let children handle the tool.
4. Do not operate the tool where there are flammable liquids or gases.
USE OF COMPRESSED AIR TOOLS
1. Stay alert and use common sense - do not operate the tool when you are
tired or under the influence of alcohol, drugs or medication.
2. Always wear eye protectors when using the tool. Eye protectors must
provide protection from flying particles from the front and the side.
3. A breathing mask may be required when using certain sealing/coating
products. Consult the sealing/coating product manufacturers instructions.
4. Ensure adequate ventilation while working with chemical products.
5. Do not overreach - Keep proper footing and balance at all times.
6. Never use oxygen, CO
a source of power for this tool.
7. Do not connect the air supply hose with your finger on the trigger.
8. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.
9. Keep the air supply hose away from heat, oil and sharp edges.
10. Do not fit the tool to any stand or clamping device that may damage it.
11. Check hoses for leaks or worn condition before use and ensure that all
connections are secure.
12. Do not use the tool for any purpose than that described in this manual.
13. Do not carry out any alterations or modifications to the tool.
14. Always disconnect from the air supply when:
• Performing any maintenance.
2
, combustible gasses or any type of bottled gas as
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
• The tool is not in use.
• The tool will be left unattended.
15. Never use the tool if it is defective or operating abnormally.
16. Always maintain the tool with care. Keep it clean for the best and safest
performance.
17. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.
18. Never discharge this sealant gun at any persons or animals.
TRANSPORT & STORAGE
1. Never carry the tool by the air hose or with your finger on the trigger.
2. When not in use the tool must be disconnected from the air supply and
stored in a dry place out of the reach of children.
3. Avoid storing the tool where the temperature is below 0oC.
Please keep these instructions in a safe place for future reference.
BEFORE USE
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLIES.
1. Ensure the compressor is turned off.
2. Drain any water from the airline filter and compressor.
3. Connect a suitable hose fitted with a female connector to the sealant gun.
4. Connect the other end of the hose to the compressor.
5. Turn on the air supply and check for air leaks. Rectify any found before
proceeding.
• PTFE tape may be useful for sealing threaded connections.
Your air tool is now ready for use.
You can fit a whip hose with a quick fit coupling if required, available from
your Clarke dealer.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
COMPRESSED AIR REQUIREMENTS
WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.
• Use only clean, dry, regulated compressed air as a power source.
• Air compressors used with the tool must comply with the appropriate
European Community Safety Directives.
• A build-up of moisture or oil in the air compressor will accelerate
wear and corrosion in the tool. Ensure any moisture is drained from
the compressor daily and the inlet filter is kept clean.
• If an unusually long air hose is required, (over 8 metres), the line
pressure or the hose inside diameter may need to be increased.
• The air hose must be rated at least 150% of the maximum operating
pressure of the tool.

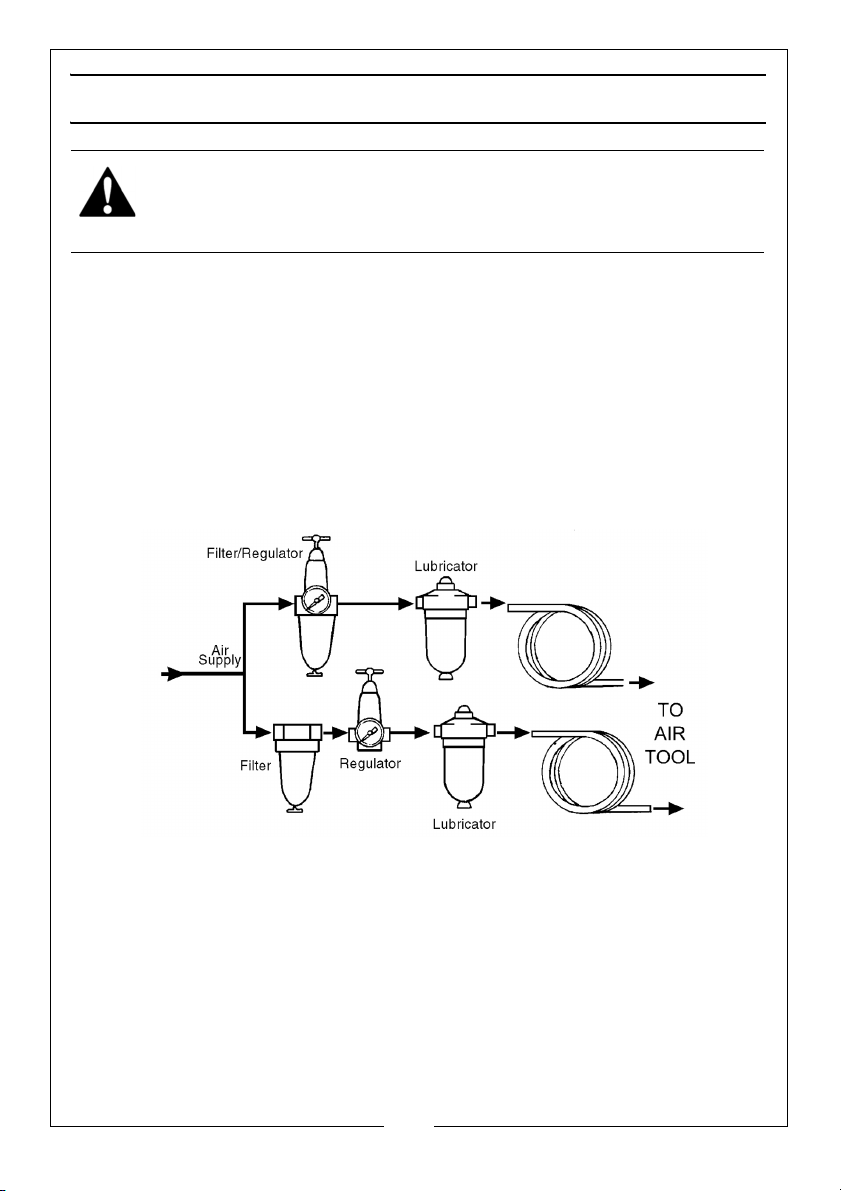

• A typical air line layout is shown above. If an automatic in-line filter/
regulator is used, it will keep the tool in good condition.
• For optimum performance it is recommended that a 3/8” ID hose is
used.
• Never exceed the maximum operating pressure for the tool. It is
recommended that air pressure to this tool does not exceed 90 psi
at the tool when running. Higher pressures and dirty air will shorten
the life of the tool due to faster wear and is a possible safety hazard.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
OPERATION
1. Ensure the gun is securely screwed to the sealant product container and
that the vent hole in the top of the screw cap is clear.
2. Select and secure either the short nozzle (item 4 on page 7) or the
extension hose (items 5-7 on page 7).
3. Set the air pressure to a maximum of 90psi..
4. If using the short nozzle, test on a spare piece of material first.
5. If using the flexible extension hose no adjustment is necessary. Ensure the
nozzle is fully inserted into the target aperture before pulling the trigger.
6. Release the trigger before removing the flexible tube nozzle.
DISCONNECTING THE AIR SUPPLY
1. Do not disconnect the air supply hose until the compressor has been shut
down and the compressed air released. Refer to the compressor instruction
manual for the procedure to shut down and vent the compressed air.
2. Once the pressure has been released, disconnect the air supply hose from
the air tool.
MAINTENANCE
WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE
PROCEDURES.
1. Clean thoroughly after use with a suitable solvent which will not harm the
O-rings inside the sealant gun.
PERFORMANCE
Please note that factors other than the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline,
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.
Your Clarke air tool has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, contact the Clarke service department.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

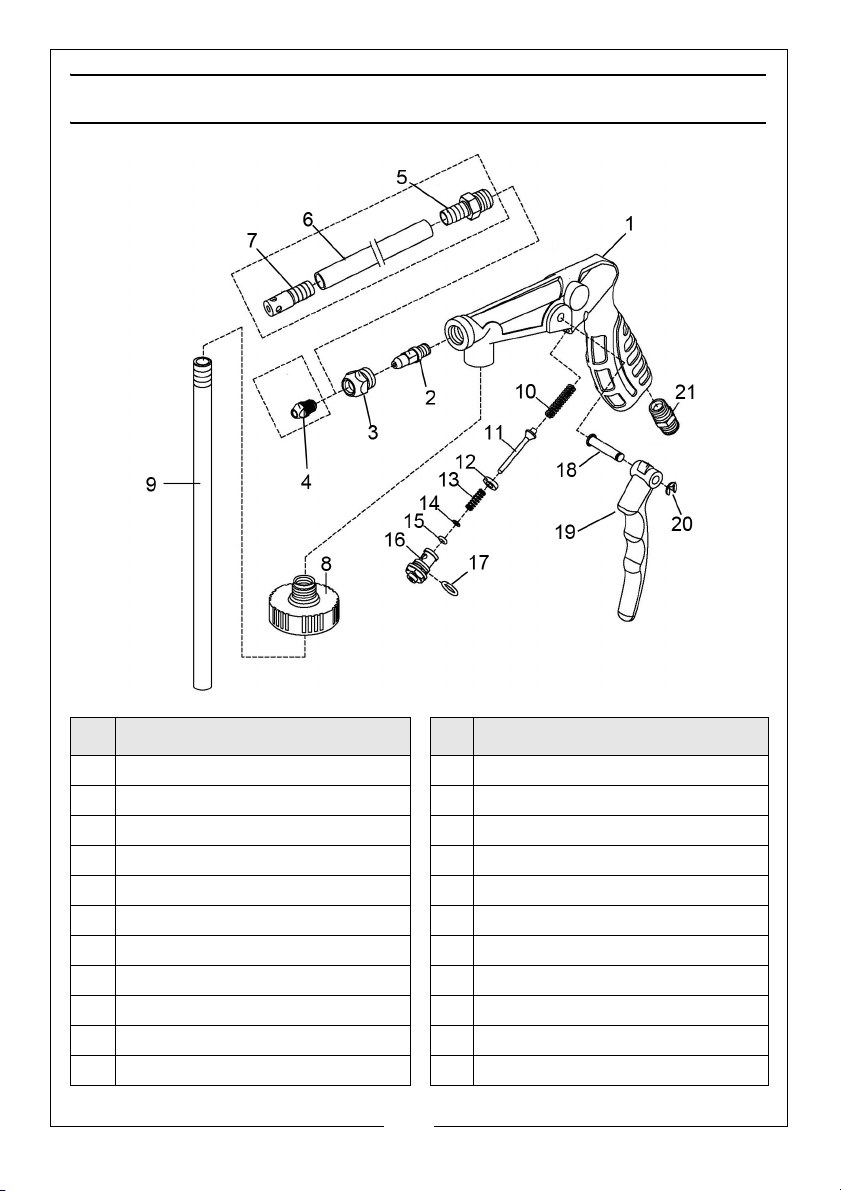

COMPONENT PARTS
No Description No Description
1 Gun Body 12 Sealant Gasket
2 Air Nozzle 13 Compression Spring
3 Nozzle Seat 14 Gasket
4 Nozzle 15 O-Ring 2.5 x 1.8
5 Connector 16 Air Valve Body
6 Tube 17 O-Ring 8.0 x 1.8
7 Nozzle 18 Trigger Pin
8 Screw Cap 19 Trigger
9 Material Tube 20 Circlip
10 Air Valve Spring 21 Air Inlet Connector
11 Air Valve Stem
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
