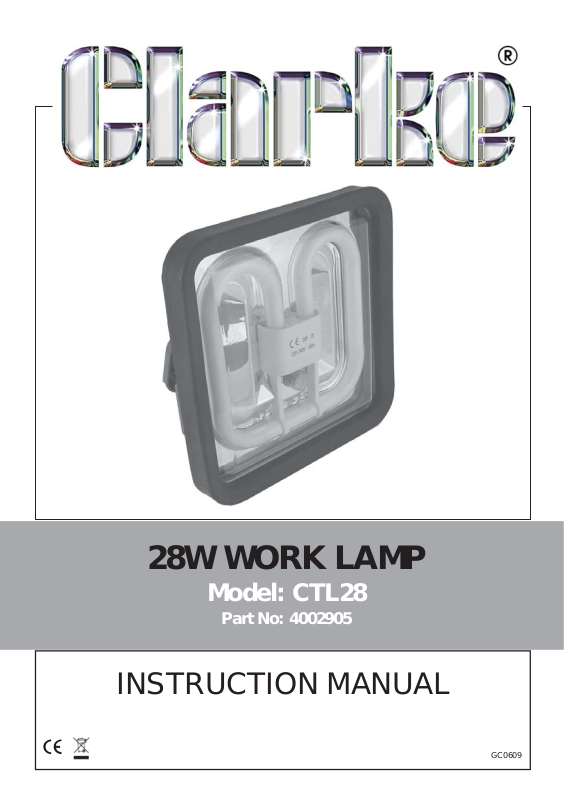

28W WORK LAMP

Model: CTL28

Part No: 4002905

INSTRUCTION MANUAL

GC0609

INTRODUCTION

Thank you for purchasing this CLARKE 28W Work Lamp.

Before attempting to use the product, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will
ensure the safety of yourself and that of others around you, and you can also
look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling
centre and disposed of according to the laws governing Waste
Electrical and Electronic Equipment.

SPARES & SERVICE CONTACTS

For parts & servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

2

GENERAL SAFETY PRECAUTIONS

WORK ENVIRONMENT

1. ALWAYS keep the work area clean and tidy.

2. ALWAYS keep children and visitors away from the work area.

3. Although the lamp may be used outdoors, DO NOT leave it exposed to
the elements. Avoid direct sunlight, direct heat, rain/moisture etc.

4. ALWAYS keep body and clothing dry. Never work in damp area without
adequate insulation against electric shock.

GENERAL USE

1. ALWAYS check for damage before using the lamp. Inspect the power
cable and plug for damage and make sure that no connections are
loose. Any damage should be properly repaired or the part replaced.
Consult your CLARKE dealer.

2. NEVER modify the plug in any way. Do not use adaptor plugs with earthed
(grounded) power tools. Correct plugs and outlets will reduce the risk of
electric shock.

3. ALWAYS disconnect from the mains supply before moving or performing
any maintenance.

4. NEVER move your lamp or replace fluorescent tubes or broken parts with
wet hands or when standing on a wet or damp surface or in water.
Always ensure the power supply is disconnected at the mains.

5. ALWAYS use an outdoor weatherproof socket when using the lamp
outdoors.

6. NEVER abuse the mains cable or yank the cable to disconnect it from the
socket. Keep the cable away from sharp edges/hot surfaces.

7. NEVER cover the lamp.

8. ALWAYS disconnect from the power supply when not in use.

9 NEVER immerse the lamp in water.

10. ALWAYS store this product in a dry, secure place out of reach of children.

11. NEVER carry out any alterations or modifications to this product.

12. NEVER use this product if it is defective/operating abnormally.

Please keep these instructions in a safe place for future reference.

3

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt /50Hz electrical supply
through an approved 13 amp BS1363 plug, or a suitably fused isolator switch.

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead should be wired up in accordance
with the following colour code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

•

Connect the GREEN & YELLOW coloured cord to the plug
terminal marked with a letter E or Earth “ “ symbol or
coloured GREEN or GREEN & YELLOW.

• Connect the BROWN coloured cord to the plug terminal
marked a letter “L” or coloured RED.

•

Connect the BLUE coloured cord to the plug terminal marked
a letter “N” or coloured BLACK

If this appliance is fitted with a plug which is moulded on to the electric cable
(i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

4

TECHNICAL SPECIFICATION

erutaeF noitacificepS

thgieWgk3.2

)hxwxd(snoisnemiD mm272x962x941

htgnelelbacylppuS mm0561

egatlovtupnI zH05/V032

sebu

TtnecseroulF )D2(W82

tuptuothgiL mm003@xul0243

ssalCnoitalusnI*45PI

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

USE OF THE WORK LAMP

The folding carrying handle can be used as a hook to suspend the lamp from
a fixed point or overhead line.

Use the holes to facilitate fixing to a flat surface using suitable screws or bolts
(not supplied)

The socket at the rear of the worklamp can be used as an extension socket
(max 13 amps) for secondary applications in dry conditions. *The IP54 (splash
& dustproof) rating only applies when the sockets are closed and the product
is used with an external waterproof socket.

SPARE PARTS

noitpircseD oNtraP noitpircseD oNtraP

retratS10342LTCKNKtsallaB40342LTCKNK

ebuTtnecseroulF20342LTCKNKrevoCtnerapsnarT50342LTCKNK

elbaCsniaM303

42LTCKNKdnuorruSrebbuR60342LTCKNK

5

MAINTENANCE

• Keep the unit clean by wiping with a dry cloth. DO NOT use solvents

as a cleaning agent.

• Check the power cable to ensure it is sound & free from cuts /

cracks etc.

REPLACING A FLUORESCENT TUBE OR STARTER

Before attempting to replace the tube, ensure the lamp is switched off and
isolated from the main electrical supply by removing the plug from the
socket. Allow the lamp to cool down for a few minutes after switching off,
before performing any maintenance tasks. Handle the fluorescent tube using
either a glove or a piece of cloth wrapped around the tube.

1. Pull off the rubber surround from around the fluorescent tube and lift away
the transparent front cover.

2. Remove the lamp centre cover by pinching the sides together.

3. Pull the tube assembly from the frame where it is held by four fixing pins.

4. Replacing the fluorescent tube unit is a reverse of the above process,
taking care that the four pins of the fluorescent tube line up with the
corresponding four holes inside the connecting base socket. Press the
fluorescent tube into place.

5. To remove a defective starter, simply twist it gently anti-clockwise and pull
it from its socket.

6
