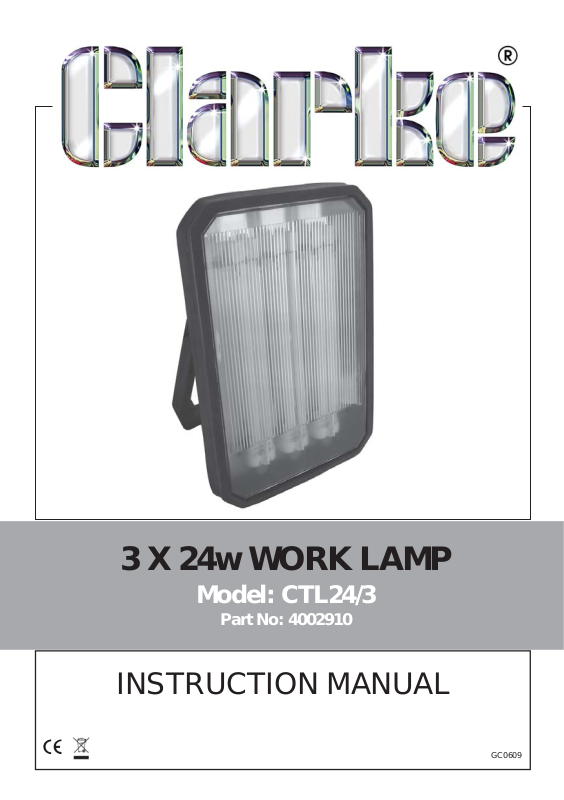

Clarke CTL 24-3, 4002910 User guide

3 X 24w WORK LAMP

Model: CTL24/3

Part No: 4002910

INSTRUCTION MANUAL

GC0609

INTRODUCTION

Thank you for purchasing this CLARKE Work Lamp.

Before attempting to operate the product, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the product giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling
centre and disposed of according to the laws governing Waste
Electrical and Electronic Equipment.

SPARES & SERVICE CONTACTS

For parts & servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

2

GENERAL SAFETY PRECAUTIONS

WORK ENVIRONMENT

1. ALWAYS keep the work area clean and tidy.

2. ALWAYS keep children and bystanders away from the work area.

3. Although the lamp may be used outdoors, DO NOT leave it exposed to
the elements. Avoid direct sunlight, direct heat, rain/moisture etc.

4. ALWAYS keep body and clothing dry. Never work in damp area without
adequate insulation against electric shock.

GENERAL USE

1. ALWAYS check for damage before using the lamp. Inspect the power
cable and plug for damage and ensure that no connections are loose.
Any damage should be properly repaired or the part replaced. Consult
your CLARKE dealer.

2. NEVER modify the plug in any way. Do not use adaptor plugs with earthed
(grounded) power tools. Correct plugs and outlets will reduce the risk of
electric shock.

3. ALWAYS disconnect from the mains supply before moving or performing
any maintenance.

4. NEVER move the lamp with wet hands or when standing on a wet or
damp surface.

5. ALWAYS use an external weatherproof socket when using the lamp
outdoors.

6. NEVER abuse the mains cable or wrench the cable to disconnect it from
the socket. Keep the cable away from sharp edges/hot surfaces.

7. NEVER cover the lamp.

8. ALWAYS disconnect from the power supply when not in use.

9 NEVER immerse the lamp in water.

10. ALWAYS store this product in a dry, secure place out of reach of children.

11. NEVER carry out any alterations or modifications to this product.

12. NEVER use this product if it is defective/operating abnormally.

13. NEVER attempt any repairs yourself. If you have a problem with this
product contact your local CLARKE dealer.

Please keep these instructions in a safe place for future reference.

3

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt /50Hz electrical supply
through an approved 13 amp BS1363 plug, or a suitably fused isolator switch.

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead should be wired up in accordance
with the following colour code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

•

Connect the GREEN & YELLOW coloured cord to the plug
terminal marked with a letter E or Earth “ “ symbol or
coloured GREEN or GREEN & YELLOW.

• Connect the BROWN coloured cord to the plug terminal
marked a letter “L” or coloured RED.

•

Connect the BLUE coloured cord to the plug terminal marked
a letter “N” or coloured BLACK

If this appliance is fitted with a plug which is moulded on to the electric cable
(i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

4

TECHNICAL SPECIFICATION

erutaeF noitacificepS

thgieWgk0.4

)hxwxd(snoisnemiD mm524x582x511

htgnelelbacylppuSmm0564

egatlovtupnI zH05/V032

tnecseroulF )11G2(W42x3

sebut

tuptuothgiL mm003@xul0865

ssalCnoitalusnI*45PI

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

USE OF THE WORK LAMP

The folding carrying handle can be used to support the lamp on the floor, or
as a hook to suspend the lamp.

Use the holes to facilitate fitting to a flat surface using suitable screws or bolts
(not supplied).

The pair of splashproof sockets fitted to the rear of the worklamp can be used
as extension sockets (max total 13 amps) for secondary applications in dry
conditions. *The IP54 (splash & dustproof) rating only applies when the sockets
are closed and the product is used with an external waterproof socket.

SPARE PARTS

noitpircseD oNtraP noitpircseD oNtraP

retratS10082LTCKNKtsallaB40082LTCKNK

ebuTtnecseroulF20082LTCKNKrevoCtnerapsnarT50082LTCKNK

elbaCsniaM300

82LTCKNKdnuorruSrebbuR60082LTCKNK

5

MAINTENANCE

• Keep the work lamp clean by wiping with a dry cloth. DO NOT use
solvents as a cleaning agent.

• Check the power cable to ensure it is sound & free from cuts/
cracks etc.

TO REPLACE A FLUORESCENT TUBE OR LAMP STARTER:

Before attempting to replace a fluorescent tube, ensure the work lamp is
switched off and isolated from the electrical supply by unplugging from the
socket. Allow the work lamp to cool down for a few minutes after switching
off, before performing any maintenance tasks. Handle the lamp tubes using
either a glove or a
piece of cloth.

1. Pull off the rubber
surround from
around the lamp
and lift away the
clear front cover.

2. Remove the upper
retaining clip (1)
from the top of the
lamp by sliding
upwards.

3. Remove the lower
retaining clip (2) by
sliding upwards.

4. Release the
fluorescent tube
from the upper
spring clip (3) and
pull the tube
upwards from the
connecting socket.

5. Replacing the tube
is a reverse of the above process, taking care that the four pins of the
lamp line up with the corresponding four holes inside the connecting
socket.

6. To remove a defective starter (4), simply twist it gently anti-clockwise and
pull it from the socket. Gently twist clockwise to replace.

6

DECLARATION OF CONFORMITY

7
