Clarke CTIDG2 User guide

DIGITAL TYRE INFLATOR

MODEL NO: CTIDG2

PART NO: 5060290

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC12/23

INTRODUCTION

Thank you for purchasing this CLARKE Tyre Inflator. The CTIDG2 can be used for
inflating car, motorcycle and bicycle tyres. The tyre inflator is not waterproof
and should not be used in any wet applications.

Before attempting to use the product it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure
the safety of yourself and that of others around you and you can also look
forward to the product giving you long and satisfactory service

After removing the tyre inflator from its packaging, check that it has not been
damaged in transit. Report any damage immediately to the CLARKE dealer
where the item was purchased.

PRODUCT SPECIFICATIONS

Model CTIDG2

Hose length 500mm

Max supply pressure 200psi

Max inflation pressure 174 psi

Max flow rate 500L/min @188psi

Accuracy +/- 2psi @ 25-75psi

Ingress protection IP44

Units of measurement psi, kPa, bar

Working temperature 10 to 50oC

Dimensions (L x W x H) 890 x 85x 45 mm

Weight 0.85 kg

Inlet size 1/4 “ BSP

Auto-Off 9 seconds

Battery Type 2 x AAA (included)

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY WARNINGS

WARNING: WHEN USING BATTERY POWERED TOOLS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF
FIRE OR PERSONAL INJURY. PLEASE READ ALL THE SAFETY AND
OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT

PERSONAL SAFETY

1. ALWAYS thoroughly familiarise yourself with this product and its operation
and always read the instructions in this manual before using the product.

2. ALWAYS stay alert, watch what you are doing and use common sense
when operating the tyre inflator. DO NOT use while you are tired or under
the influence of medication, drugs or alcohol. A moment of inattention
can result in personal injury.

WORKING CONDITIONS

1. DO NOT use the tyre inflator in a damp or wet environment.

2. DO NOT cover the tyre inflator.

3. ALWAYS use the tyre inflator in spaces with good all-round air ventilation
and that the air intake air is dry and dust free.

4. Keep the work area clean and well lit. Floors should always be kept clear.
Cluttered or dark areas invite accidents.

5. NEVER over-reach. Keep your proper footing and balance at all times to
enable better control of the tyre inflator in unexpected situations.

6. ALWAYS use in a safe area away from traffic and other hazards.

GENERAL PRODUCT USE AND CARE

1. NEVER attempt to modify the fittings or attachments in any way. Doing so
will invalidate the guarantee and could result in personal injury.

2. ALWAYS take care to maintain tyres to vehicle manufacturer’s
recommended pressures.

3. ALWAYS store the tyre inflator at moderate temperature and out of reach
of children.

4. NEVER use this product if it appears defective or is operating abnormally: If
the tyre inflator operates unusually or makes strange noises, switch off
immediately. Arrange repairs by your CLARKE dealer.

5. NEVER attempt any repairs yourself. If you have a technical problem
contact your local CLARKE dealer.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. NEVER throw the product away with household waste or allow it to fall into
a fire.

AIRLINE SAFETY PRECAUTIONS

1. Compressed air can be dangerous. Ensure that you are thoroughly familiar
with all precautions relating to the use of compressors and a compressed
air supply.

2. NEVER direct a jet of compressed air at people or animals.

3. ALWAYS ensure that the equipment/tool being used has a safe working
pressure exceeding the output pressure of the compressor that it is
connected to.

4. NEVER exceed the operating pressure stated in the specification.

5. ALWAYS ensure that the air supply is turned off and vent all compressed air
from the air hose and the equipment attached to it before disconnecting
air hoses or other equipment from your compressor.

6. Ensure all fixed air connections are properly sealed using ptfe tape or pipe
sealant.

7. Check the airline pressure gauge periodically for accuracy and replace if
damaged or inaccurate.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation
to comply with current WEEE regulations.

This means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic Equipment (WEEE) at a recognised
disposal facility.

This product contains valuable raw materials. Metal products should be taken
to your local civic amenity site for recycling of metal products.

The batteries fall under the Waste Batteries and Accumulators Regulations
2009 and should be disposed of in a controlled manner.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PREPARATION

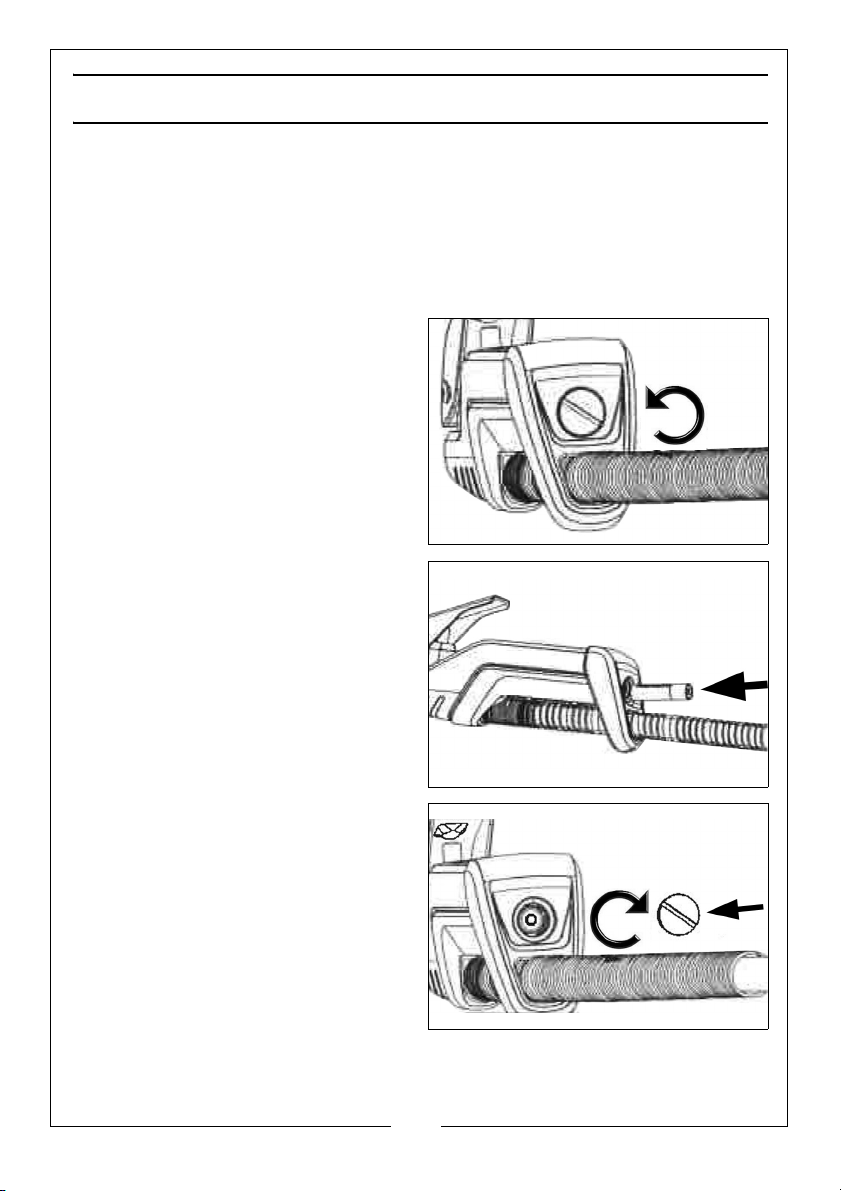

FITTING THE BATTERIES

The inflator requires 2 x AAA batteries. If the voltage of the batteries falls below

2.6 volts, the battery icon will flash continuously until it shuts down. If the
voltage of the batteries falls below 2.5 volts the LOW “LO” battery icon
appears while the power is on and then shuts down automatically. The
batteries must be changed if the battery icon flashes.

1. Unscrew the battery cap.

2. Slide the batteries into the tyre
inflator with the positive end
facing outwards.

3. Replace the battery cap carefully
and DO NOT over tighten.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CONNECTING THE AIRLINE

CAUTION: THIS PRODUCT MAY HAVE A LOWER WORKING PRESSURE
THAN SOME COMPRESSORS WILL SUPPLY, THEREFORE, AN AIRLINE
REGULATOR SHOULD BE INSTALLED.

CAUTION: AIRLINE LUBRICATORS SHOULD NOT BE USED WITH THIS ITEM.

CAUTION: ALWAYS USE DRY FILTERED COMPRESSED AIR & AVOID UNDUE
EXPOSURE TO MOISTURE.

1. Attach the airline hose to the tyre inflator and fully tighten. Use PTFE tape if
needed. Turn on the air supply and check that the airline pressure does not
exceed 13.8 bar (200 psi).

2. Ensure all fixed air connections are properly sealed using PTFE tape or pipe
sealant.

AIRLINE ACCESSORIES AND EQUIPMENT

An extensive range of airline equipment is available from your CLARKE dealer
including hoses, retractable hose reels, filter/regulators, in-line regulators,
pressure gauges and safety goggles.

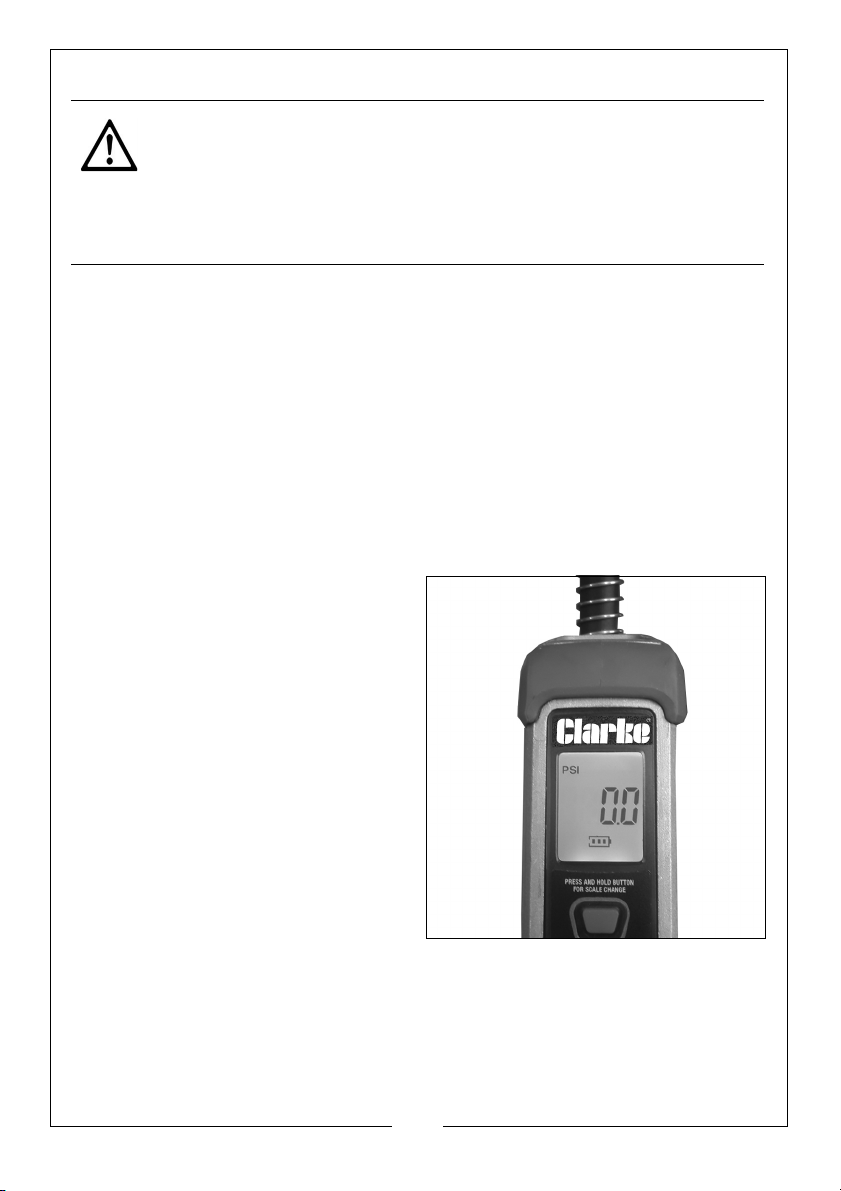

THE DISPLAY PANEL

Press and hold the button on the front
of the unit to activate.

Once activated, press and hold the
button for 2 seconds to change the
unit of measurement to either psi, kPa
or bar.

The display panel will illuminate and
display as shown.

The display should time out and
switch off after 9 seconds.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

Under or over inflated tyres are dangerous. Consult the vehicle owners
handbook before using this tyre inflator. Never exceed the maximum pressure
of the tyre.

1. Remove the dust cap from the tyre valve and check that the tyre valve is
clean before connecting.

2. Push the connector fully home onto the tyre valve. If the valve leaks, the
connector may need repositioning. Correct position is confirmed by a
steady reading on the gauge.

3. When connected correctly, the display will show the current pressure in the
tyre. If this is the correct tyre pressure as stated in your vehicle handbook,
remove the valve connector.

4. Check the tyre pressure on the display.

5. Depress the trigger to inflate the tyre. Re-check the tyre pressure. Note that
when the trigger is depressed, the gauge will show the airline pressure, not
the tyre pressure.

6. To deflate the tyre, partially depress the trigger and check the pressure
again.

7. When the tyre pressure is correct, remove the connector. Replace the dust
cap on the tyre valve.

IMPORTANT: The air pressure gauge on this product is for guidance only. It is
important that you check the pressure with an approved, calibrated
gauge.

8. DO NOT use damaged or leaking hoses. Occasionally clean the product
and lubricate the trigger parts if required.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMMON INFLATION PRESSURES

PSI KPA BAR

Car 35 - 50 240 - 350 2.4 - 3.5

Motorcycle 26 - 40 180 - 275 1.8 - 2.75

Bicycle 35 - 100 240 - 690 2.4 - 6.9

CARE & MAINTENANCE

Keep the tyre inflator free of dirt and dust as far as possible. Wipe with a clean
cloth or blow it down with compressed air at low pressure. DO NOT use
cleaning agents or solvents as these may be aggressive to the plastic parts.
Ensure that no water can get into the interior of the tyre inflator.

Your tyre inflator has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the item to your local CLARKE dealer.

Store the tyre inflator in a dry location.

USEFUL ACCESSORIES

Various airline components are available from your CLARKE dealer including:

Airline hoses (available in 10Mtr/15mtr lengths)

Recoil hose (available in 7.6 and 15 mtr lengths)

Hose reels

Airline fittings such as filters, regulators, connectors

See also the extensive range of CLARKE compressors and air tools.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

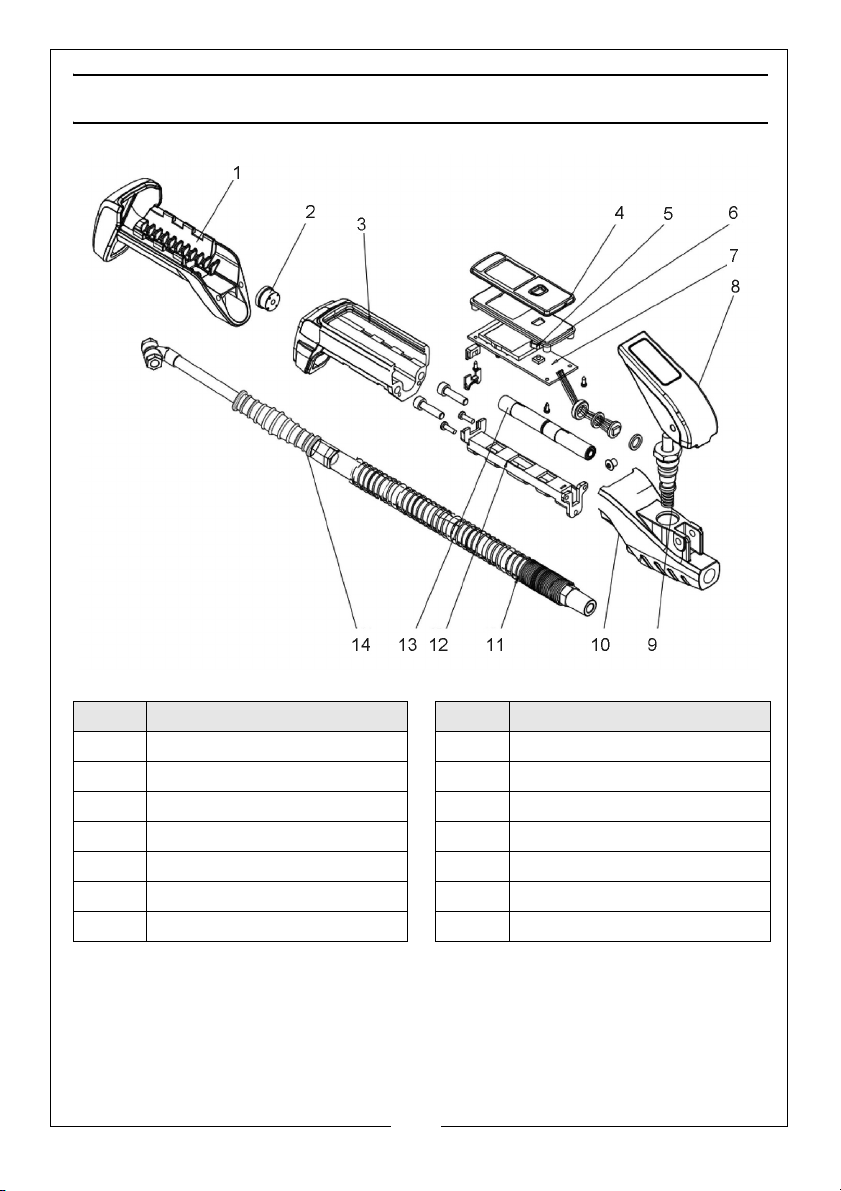

COMPONENT PARTS

No Description No Description

1Rubber sleeve 8Trigger

2 Battery cover 9 Trigger valve assembly

3 Valve housing 10 Main body

4 Transparent cover 11 Air hose assembly

5 Button 12 Battery housing

6 Circuit board support 13 Battery (AAA)

7 Printed circuit board 14 Air nozzle

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

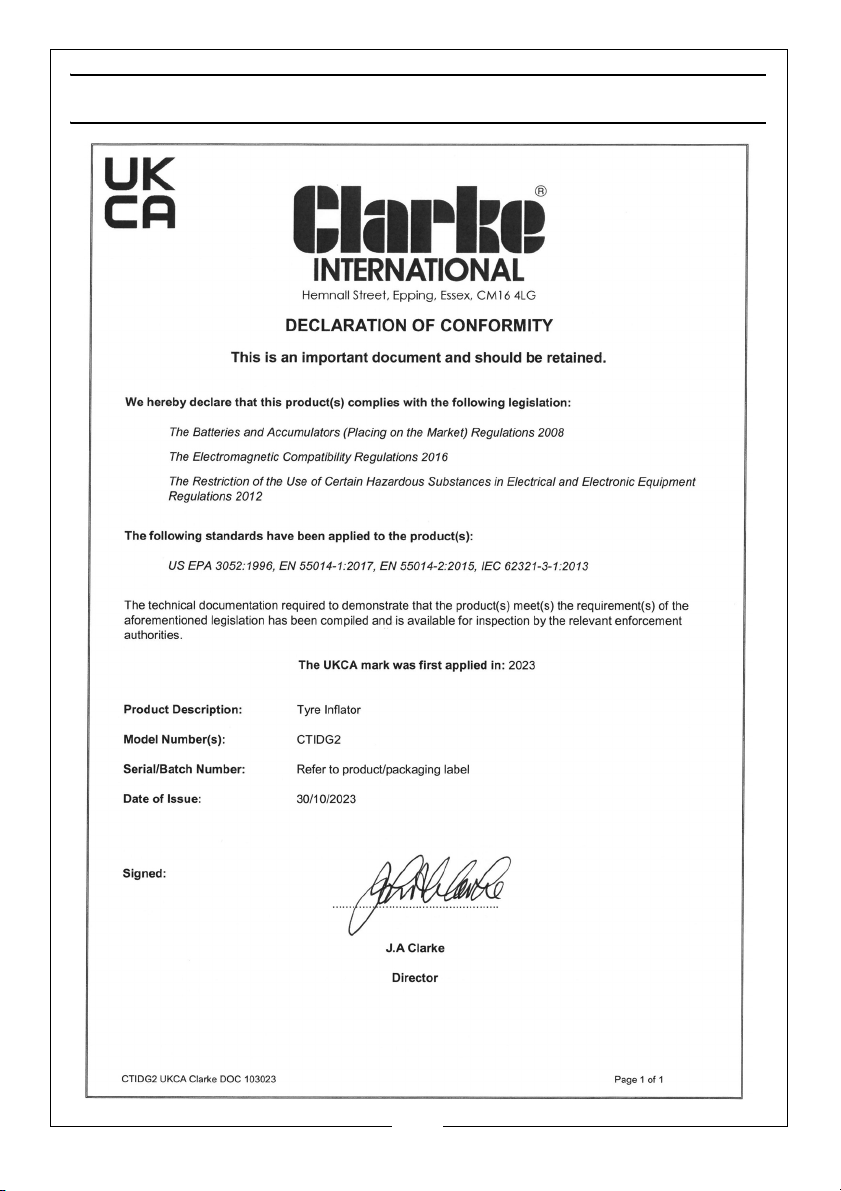

DECLARATION OF CONFORMITY - UK

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

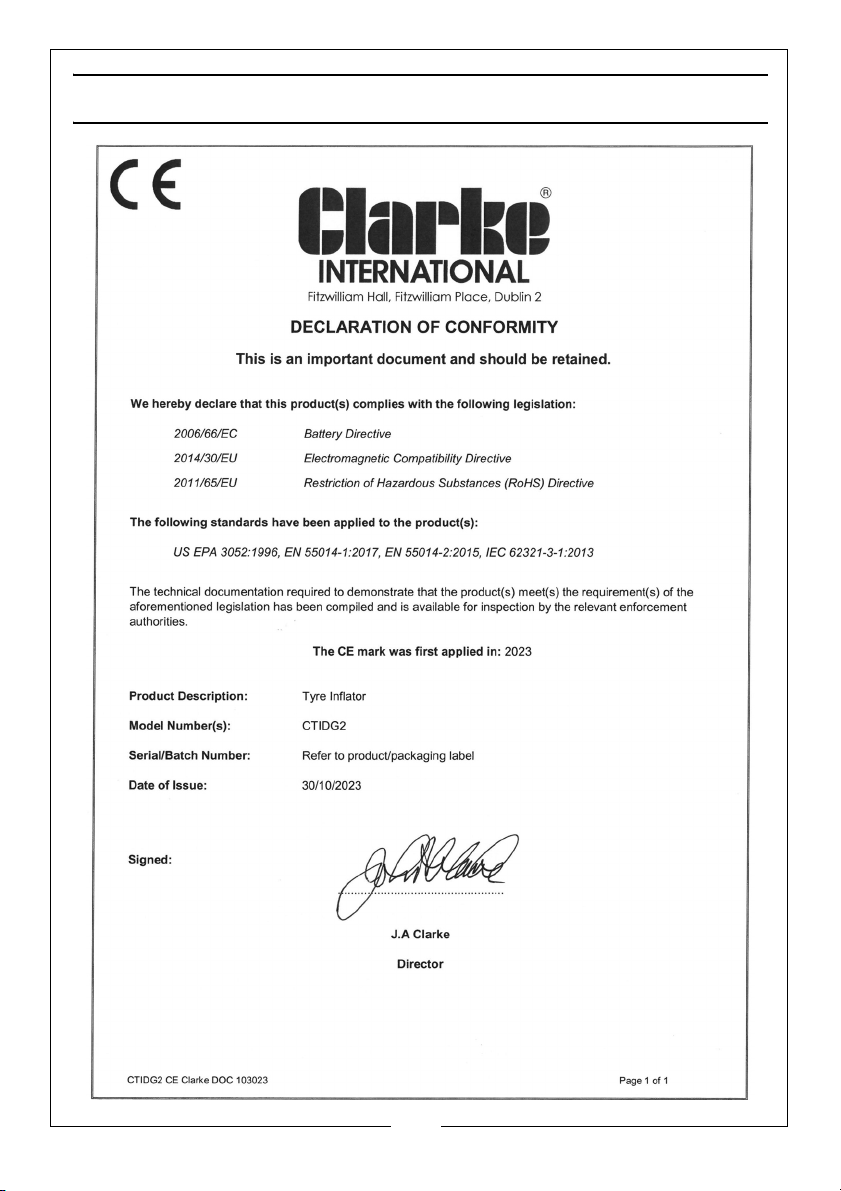

DECLARATION OF CONFORMITY - CE

11
