Clarke CSR5100 User guide

5-SHELF BOLTLESS SHELVING UNITS

MODEL NO: CSR5100

PART NO: SEE TABLE PAGE 2

ASSEMBLY INSTRUCTIONS

GC0416

INTRODUCTION

Thank you for purchasing this CLARKE Shelving Unit.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Please keep these instructions in a safe place for future reference.

SCOPE

These instructions cover the following models

Description Model Part Number

5-Shelf 100kg Boltless Shelving (Light Grey) CSR5100LG 6600686

5-Shelf 100kg Boltless Shelving (Blue) CSR5100BL 6600688

5-Shelf 100kg Boltless Shelving (Red) CSR5100RP 6600690

SPECIFICATIONS

Model Dimensions

(W x D x H)

All CSR5100 Units 900 x 400 x 1800 mm 16.9 kg 100 kg

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2

Weight
(Empty)

Load per shelf

(evenly distributed)

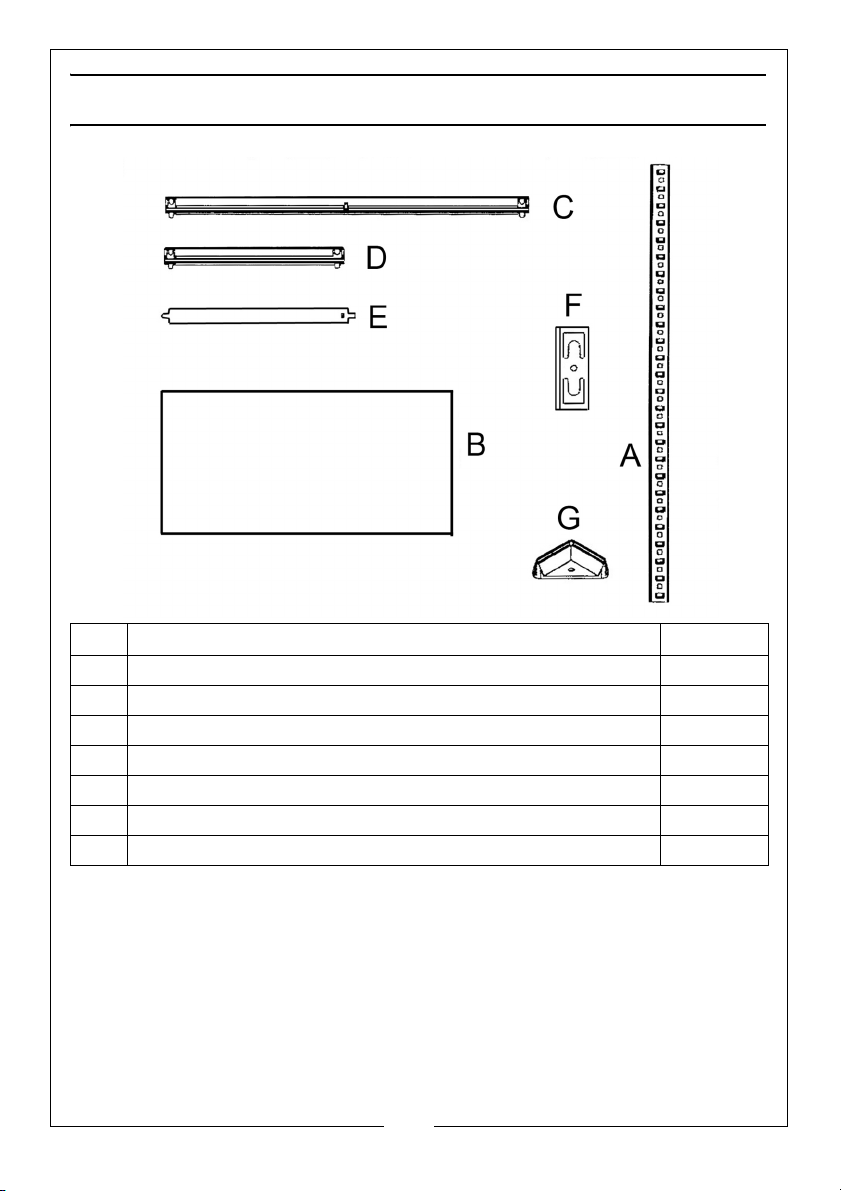

INVENTORY

No Description Quantity

ACorner Post 8

B Shelf 5

C Long Beam 10

D Short Beam 10

E Centre Beam 5

F Post Joining Insert 4

G Plastic End Cap 8

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY ADVICE

1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet.

2. Use a cloth or softwood block to protect the surface finish of the product
when using a mallet. Strike the flat surface of each beam to prevent
damage to the beam.

3. Always ensure that the rivets sit at the bottom of the keyhole slots.

4. It is recommended that the assembly should be done by two persons.

5. Always wear protective gloves when assembling the shelving unit.

6. The shelving unit is not recommended for outdoor use.

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED

• Rubber mallet or hammer

• Protective cloth/wood block

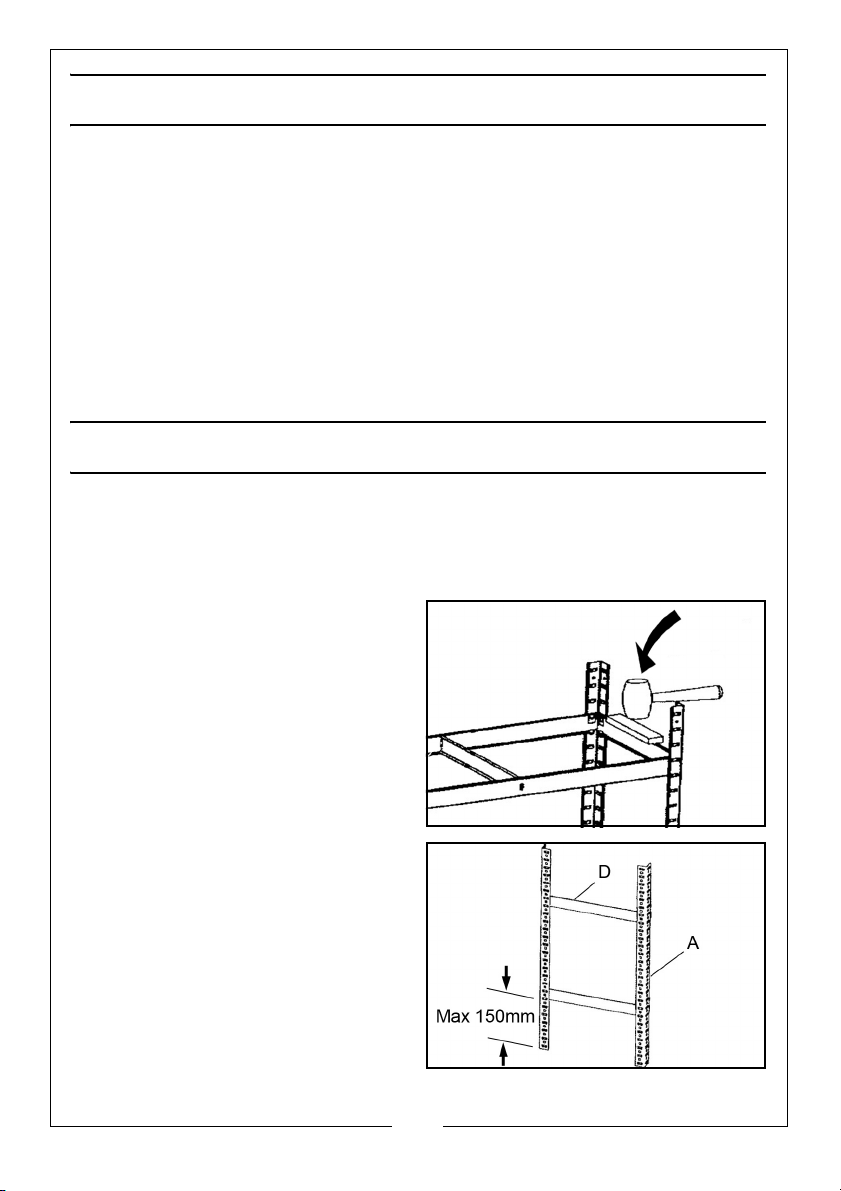

The tabs of the beams will often enter
the slots fully using just firm hand
pressure but if they are too tight, you
may require a rubber mallet to assist.
If so, always use a cloth to protect
the product paint finish.

Tap gently with the mallet to drive the
tabs of the beams fully into the slots in
the post. Always strike the edge close
to the post.

1. Use the short beams (D) to
connect the front and rear posts
together.

NOTE: The short and long beams

should be installed with the
recessed edge uppermost to
retain the shelf.

• Repeat this again to create the
other end assembly, making
surethat the corresponding
beams are at the same height.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

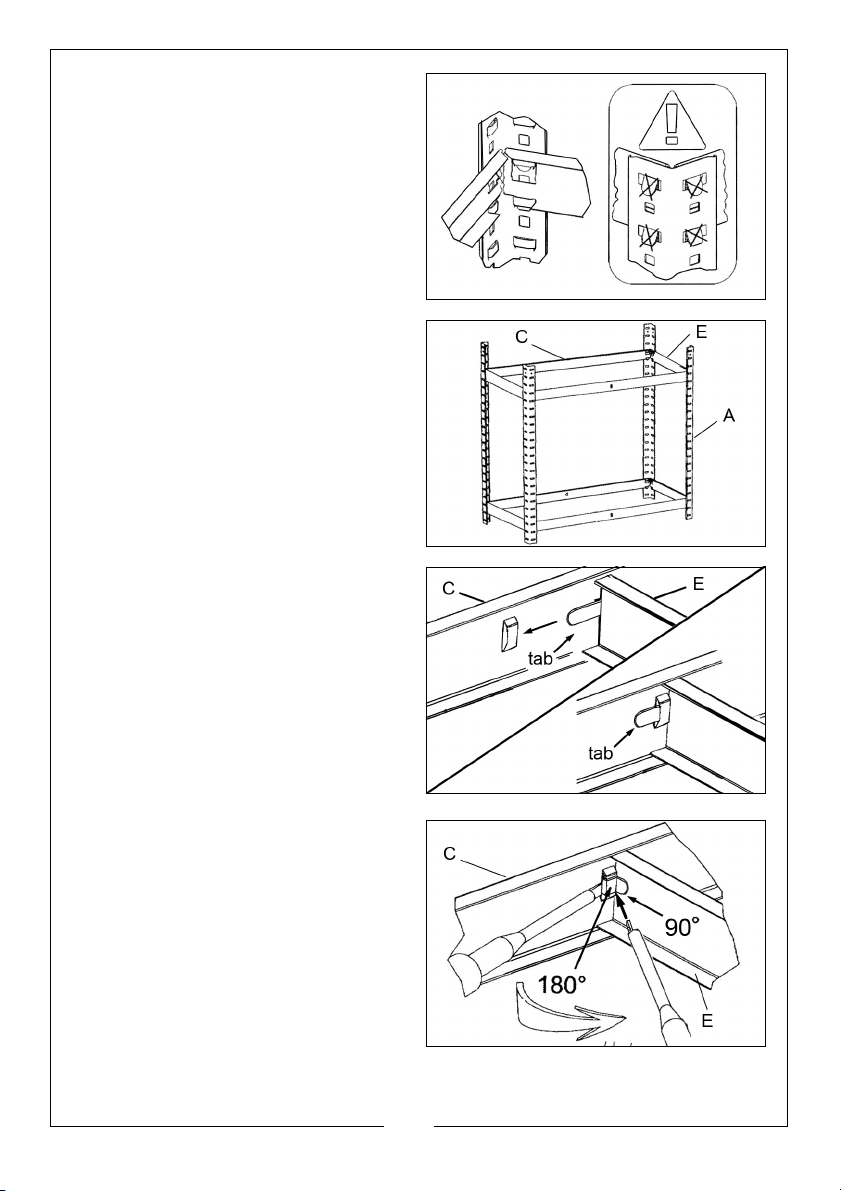

2. Ensure the tabs lie flat against the
surface of the post.

3. Join the two end assemblies
together with the long beams (C).

4. Connect the support beams (E) to
the long beams (C). First bend the
tabs 90 degrees to pass them
through the slots in the long
beams.

• The tab initially lays flat against the
long beam (C).

5. Next, bend the tab back through
180 degrees to grip the long
beam.

• Use a screwdriver or similar tool to
bend the tabs.

6. Finally bend the tab again through
90 degrees the opposite way, to
seat tightly against the support
beam (E).

7. Ensure there is no movement
between the beams.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

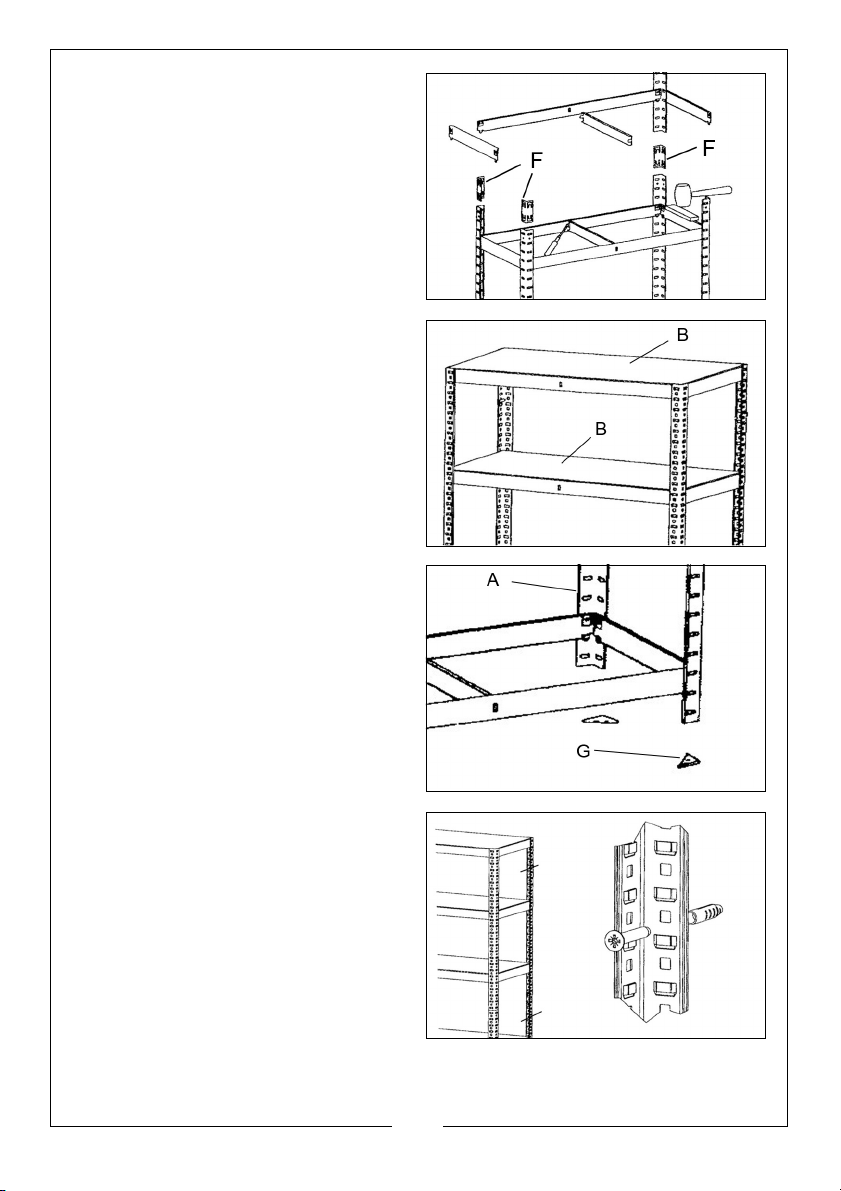

8. Fit post joining inserts (F) into the
posts (A), ensuring that the inserts
are fitted with their keyholes to
match those of the posts.

9. Construct the upper end
assemblies onto the post inserts (F)
before adding more long beams
and support beams as previously
to complete the framework.

10. Lay the shelf panels (B) into
position.

• Always assemble the top shelf at
the highest possible position.

11. Insert the plastic end caps (G) into
the end of each post (A).

12. We recommend that the shelvng
be secured to an adjacent wall
using typical wall insert plugs and
screws (not supplied) aligned with
the assembly slots in the posts.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

1. Always maintain equipment in good condition for the best/safest
performance.

2. Never exceed the maximum load for these shelving units as stated in the
specification.

3. Never use these units if they are damaged.

4. Always load small, stable items on the top shelves, heavier and bulky items
should be stored on the lower shelves.

5. Always distribute heavy loads evenly across the shelves.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of old products or damaged parts with general household
waste. All tools, accessories and packaging no longer required should be
sorted, taken to a recycling centre and disposed of appropriately.

7
