Page 1
✄
REGISTRATION FORM
Please enter all details, detach at the line above, and post to.
Customer Services Department, Clarke International, Shrubland Road, London E10 7RB
Model CS1055 & CS1190
Name
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Address
○○○○○○○○○○○○○○○○○○○○○○
Serial Number Key Number
Date Purchased Place Purchesed
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Post Code
○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○
○○○○○○○○○○○○○

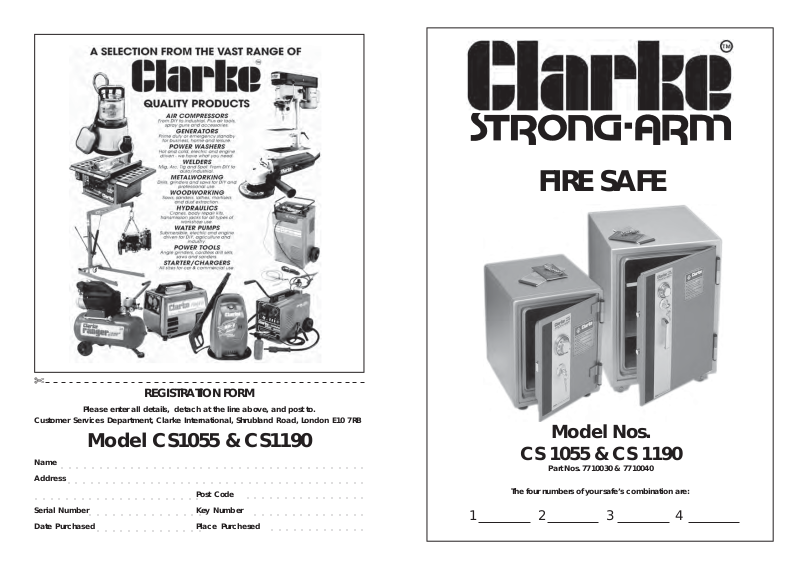

FIRE SAFE
Model Nos.
CS 1055 & CS 1190
Part Nos. 7710030 & 7710040
The four numbers of your safe’s combination are:
1234
Page 2
Thank you for purchasing this CLARKE Strongarm Fire Safe which is designed to provide you with maximum
security and many years of protection for your valuables and cherished possessions.
Please read this information booklet thoroughly in order that you may familiarise yourself with all aspects
of the safe including its installation and operation.
For security reasons, it is of the utmost importance that you let your combination be known to as few
people as possible.
We strongly advised that you DO NOT store any medicines in the safe to which you may require quick
access.
LIMITED WARRANTY
If your CLARKE STRONGARM safe fails to operate due
to manufacturers defect at any time within one year
of purchase, we will, at our discretion, repair or replace
the unit at no charge to the original owner. Goods
should be returned, postage paid, to CLARKE
International, at the address given in the Warranty
Registration form.
Please retain your receipt as proof of date of purchase.
This warranty shall be void if the product has been
damaged by improper installation, neglect, accident,
misuse, exposure to extreme heat or humidity, or as a
result of service or modification not authorised by
CLARKE International.
All costs of removal and reinstallation of the product
are the owners responsibility.
No other expressed warranty is given. Repair or
replacement of the product is our only liability. .
In no event shall CLARKE International be liable for
consequential or incidental damages.
This does not effect your statutory rights.
UNPACKING
On unpacking your safe open it, according to the
instructions below, and remove the contents. In the
case of the CS1055, this includes the anchor ‘Break
Head’ bolts - used for mounting purposes.
(The procedure for mounting the CS1055 is described
later in this booklet).
When you subsequently open the safe, follow the
instructions given under ‘Opening the Safe’.
Please ensure you complete the Registration form on
the back page of this booklet, remembering to include
the serial number of your safe and the key number.
The serial number is to be found printed on a small foil
label on the lower L.H. corner of the R.H. side - CS1055,
and lower R.H. front corner - CS1190. Record the serial
number also for your own use in the event the foil label
becomes detached or unreadable, and the key
number in the event you lose the key. Remember , DO
NOT store these numbers in the safe.
Forward the Registration Card to the Customer Service
Manager at Clarke International at the address shown
on the registration form.
If your combination or key is lost or misplaced, you may
contact Clarke International, Customer Services
Department with a written request for your combination
numbers or a replacement key, quoting your serial
number.
If your registration is on file, the combination will be
returned to you in written form. There will be a small
charge made for a replacement key.
If you fail to register and subsequently lose
your combination or key, we are unable to
provide you with replacements. It is
therefore in your own interest to register.
REGISTRATION
OPENING THE SAFE
Your combination is stamped on the front cover and
has 4 numbers. To open the safe, please follow these
simple instructions:
1. Turn the dial to the right, passing the first number
four times and stopping at that number the next
time around.
2. Turn the dial to the left, passing the second
number two times and stopping at that number
the next time around.
3. Turn the dial to the right, passing the third
number one time and stopping at that number
the next time around.
4. Turn the dial to the left, to the fourth number
and stop.
5. Insert the key in the cylindrical lock and turn it
clockwise to open
CLOSING THE SAFE
Close the safe door and in the case of the CS1055, turn
the key anticlockwise to lock. (The CS1190 has
automatic locking).
REMEMBER to spin the dial in order to reset the tumblers
- both models.
SPECIFICATIONS
CS1055 CS1190
Firesafe at 925
Capacity: 1.0 cu ft 2.2 cu ft
Dimensions (cm): 34X39X44 46x50x65
Weight: 31kg 73kg
0
C 60 min. 120 min.
Model CS1055 & CS1190
MOUNTING YOUR SAFE.
(CS1055 only)
The CS1055 safe may be mounted on a shelf or other
furniture of your choice.
Please bear in mind, that for maximum security the shelf/
furniture must be of sufficient strength, or reinforced to
prevent the removal of the safe by force. REMEMBER,
your safe is only as secure as its mountings. The weight
of the safe itself, may not deter an intruder from carrying
it off to open at leisure.
Plan the installation carefully, and if necessary, seek
expert advice.
There are four threaded holes in the base of the safe
and four ‘Break Head’ bolts are provided for mounting
to a shelf or other furniture.
Use the template provided to drill four mounting holes
in the shelf, or furniture.
Remove the screws securing the rubber feet. Insert the
break head bolts through the mounting surface and
the rubber feet and screw them into the threaded holes
in the base of the safe.
Tighten the bolts progressively until each bolt head
snaps off.
NOTE:
The rubber feet may be omitted if desired to avoid
having a gap between the safe and the furniture. If
there is sufficient clearance around the safe, this
gap could be used to insert a lever to pry the safe
away from a wooden mounting.
The Break Head bolts may be cut to length if desired.
Customer Services Department, Shrubland Road, London E10 7RB
