HYDRAULIC CABLE
CUTTER
Model No. CS10HC
Part No. 7630087
OPERATING & MAINTENANCE
INSTRUCTIONS
0800
Page 2
Thank you for purchasing this CLARKE 4 Ton Hydraulic Cable Cutter
Please read this manual thoroughly and follow the instructions carefully, in doing
so you will ensure the safety of yourself and that of others around you, and you can
look forward to the press giving you long and satisfactory service.
Please note that this manual is an integral part of the Cable Cutter and must
always accompany it, even in the event of sale.
The owner and/or user must read and fully understand the operating instructions
and recommendations before use.
CLARKE International shall not be held liable to any damage to persons or
equipment due to improper or non-permitted use of the Cable Cutter.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your
statutory rights.
SAFETY PRECAUTIONS
• ALWAYS check before use for signs of cracked welds, or any other structural
damage and do not use if any of these conditions exist. Have repairs made
only by authorised service centres.
• NEVER tamper with the machine. The safety valve is calibrated and sealed at
the factory, do not attempt to change these settings.
• Use ONLY the recommended hydraulic oil.
• NEVER use the machine for any purpose other than that for which it is
designed.
• NEVER substitute bolts, pins, or any other components. (Components of this
Cable Cutter are specially designed to withstand the rated capacity).
• NEVER attempt to cut cable with a thickness greater than 1¼”
• NEVER operate the pump further, once the red line becomes visible on the
extended ram.
• NEVER replace the cutter pivots (B, fig.1) with any bolt other than that supplied
by your CLARKE dealer or CLARKE International.
OPERATION
1. Remove the dust cap (A) from the
Cable Cutter Ram inlet.
2. Ensuring the Pump Release Valve
(C) is fully open, i.e turned
anticlockwise, and the Pump Ram
therefore fully retracted, attach
the hose from the Pump to the
Cutter inlet connection. Tighten
securely by hand.
3. Clamp the Cutter to the cable and close the Pump Release Valve by turning
it clockwise fully, then proceed to pump the pump handle.
IMPORTANT:
If the cable is taught or under load at the time of cutting, keep well away from
it, as the cable may ‘spring’ when cut. Take all necessary precautions to avoid
damage or injury which could ensue.

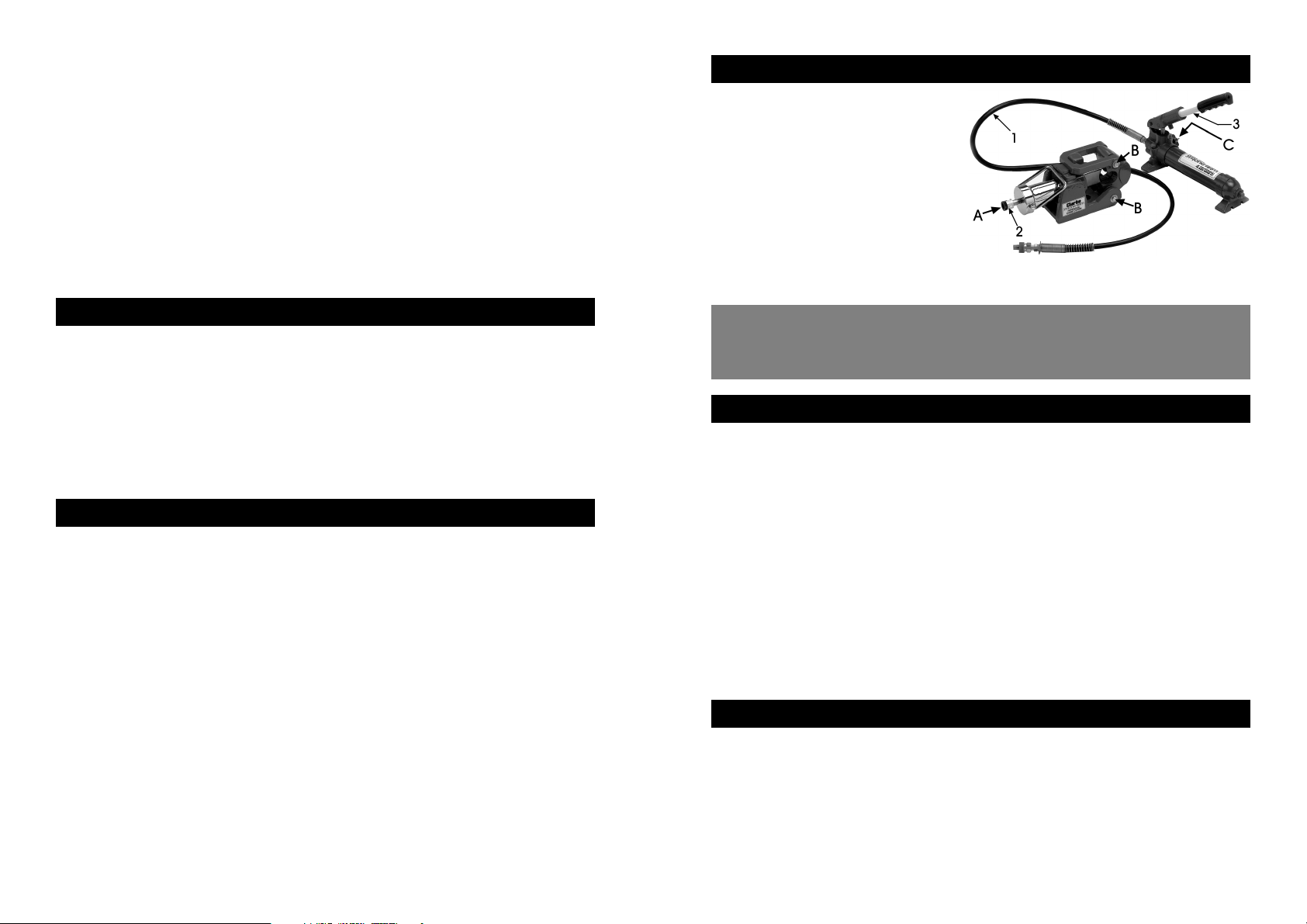

Fig.1
MAINTENANCE
Always inspect before use to ensure the hose is in good condition, and there are
no hydraulic leaks. If the hose is kinked or damaged in any way, have it replaced
immediately. (Contact your CLARKE dealer)
A slight seepage from the ram is acceptable, but if oil is seen to drip, then the
equipment MUST be serviced. Consult your CLARKE dealer.
If there has been a slight seepage, check the oil level as follows:
• Ensure the Pump Ram is fully retracted by turning the Release Valve fully
anticlockwise.
• Place the Pump in an upright position with the filler plug uppermost.
• Remove the filler plug using a suitable spanner and check the oil level, which
should be level with the FULL mark on the dipstick. If necessary, top up with
CLARKE Hydraulic Oil. (See your CLARKE dealer)
SPARE PARTS & SERVICING
The following user serviceable parts are available from your Clarke dealer.
1. (Fig.1) Hose assembly Part No. CSA60442
2. (Fig.1) Coupling Part No. CT10HC03
3. (Fig.1) Handle Assembly Part No. CSA0443
- Hydraulic Oil (1 Litre) Part No. 3050830
FOR PARTS & SERVICE TELEPHONE: 020 8988 7400
