Clarke CPF 13, 6462062 User guide

ELECTRIC POWER FILE

MODEL NO: CPF13

PART NO: 6462062

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0122 - REV 5

INTRODUCTION

Thank you for purchasing this CLARKE Electric Power File.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Model Number CPF13

Rated Voltage 230-240V~50Hz

Power Input 400 W

Belt Speed 300-1700m/min.

Sound Pressure Level LpA 80.2 dB(A), Uncertainty Factor (K) 3 dB(A)

Sound Power Level LWA 91.2 dB(A), Uncertainty Factor (K) 3 dB(A)

Weight 1.72 kg (unpacked)

Vibration

Dimensions (L x W x H) 385 mm x 172 mm x 95 mm

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

1.215 m/s

2

Uncertainty Factor 1.5

2

POWER TOOL SAFETY WARNINGS

WORK AREA

1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the
dust or fumes.

3. Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use adaptor plugs with earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce the risk of electric shock.

2. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.

3. Do not abuse the cable. Never use it for carrying, pulling or unplugging the power
tool. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or
entangled cables increase the risk of electric shock.

4. When operating a power tool outdoors, use an extension cable suitable for outdoor
use. Use of a cable suitable for outdoor use reduces the risk of electric shock

5. If operating the power tool in a damp location is unavoidable, use a residual current

device (RCD) protected supply.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools
may result in personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that
have the switch on invites accidents.

4. Remove any wrench before turning the power tool on. A wrench left attached to a
rotating part may result in personal injury.

5. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct accessories for your application. The
correct power tool will do the job better and safer at the rate which it was designed
for.

2. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source before changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the power
tool accidentally.

4. Store idle tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate it. Power tools are dangerous in the
hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused
by poorly maintained power tools.

6. Use the power tool and accessories in accordance with these instructions and in the

manner intended, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from intended could result

in a hazardous situation.

7. The performance of this tool may vary, depending upon variations in line voltage.
Extension cable usage may also affect performance.

SERVICE

1. Have your power tool serviced by qualified service personnel using only identical
replacement parts.

This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY WARNINGS FOR SANDERS

1. Hold the power tool by insulated gripping surfaces, because the sanding belt /
sanding base may contact its own cord. Cutting a “live” wire may make exposed
metal parts of the power tool “live” which could give the operator an electric shock.

2. Use clamps or another practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against your body leaves it unstable
and may lead to loss of control.

3. Warning! Contact with or inhalation of dust arising from sanding applications may
endanger the health of the operator and possible bystanders. Wear a dust mask
specifically designed for protection against dust and fumes and ensure that persons
within or entering the work area are also protected.

4. Thoroughly remove all dust after sanding

5. Take special care when sanding paint which is possibly lead based or when sanding
some woods and metal which may produce toxic dust, -Do not let children or
pregnant women enter the work area.

.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

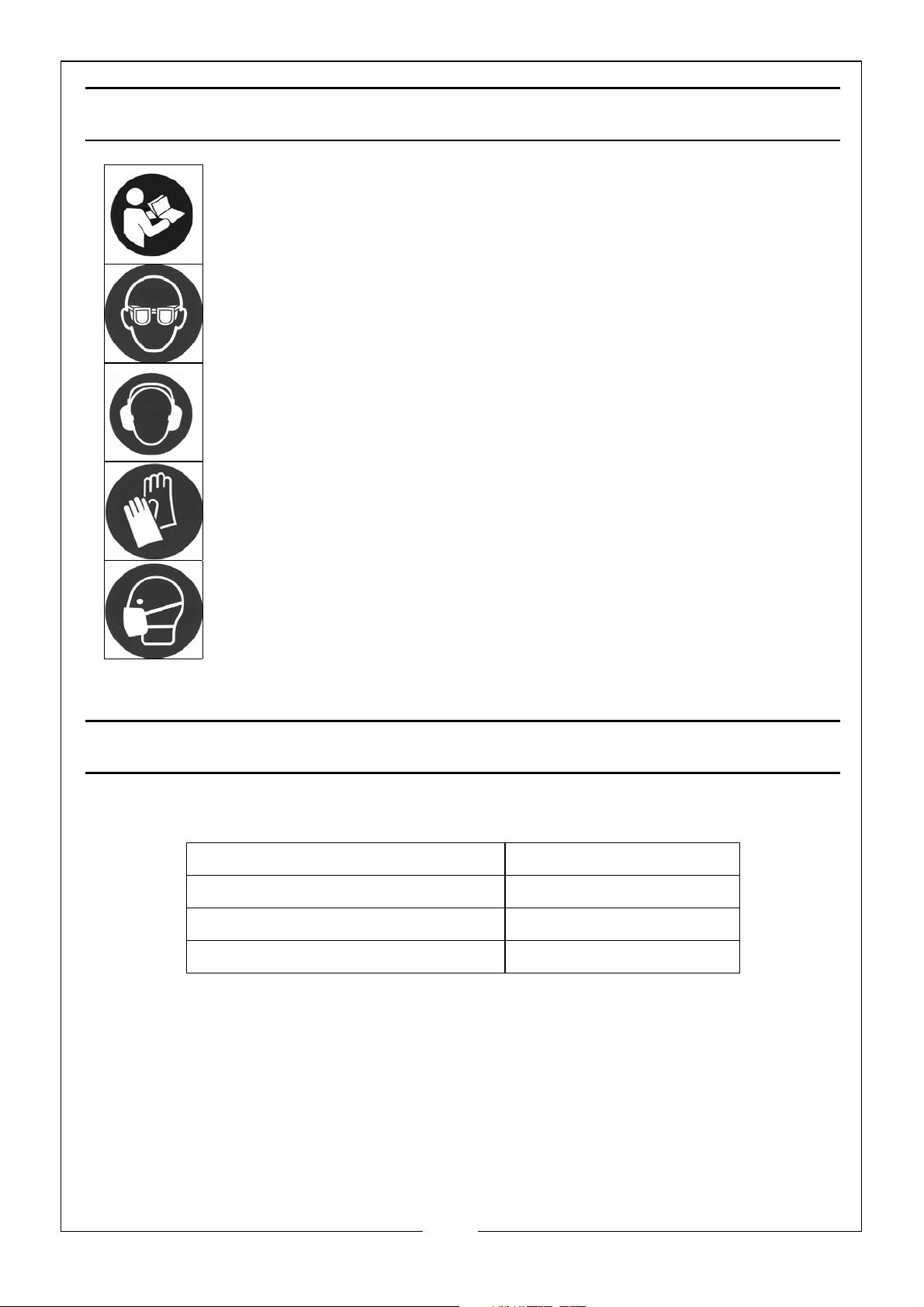

EXPLANATION OF SYMBOLS & PICTOGRAMS

Read Instruction Manual Before Use.

Wear safety glasses or goggles when using the tool.

Wear ear protection when using this tool.

Always wear gloves when working with metal workpieces.

Wear a dust mask.

ACCESSORIES

The following belts are available from your Clarke dealer.

DESCRIPTION PART NUMBER

Pack of 5 120 Grit (fine) belts 6502360

Pack of 5 80 Grit (medium) belts 6502365

Pack of 5 60 Grit (coarse) belts 6502370

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

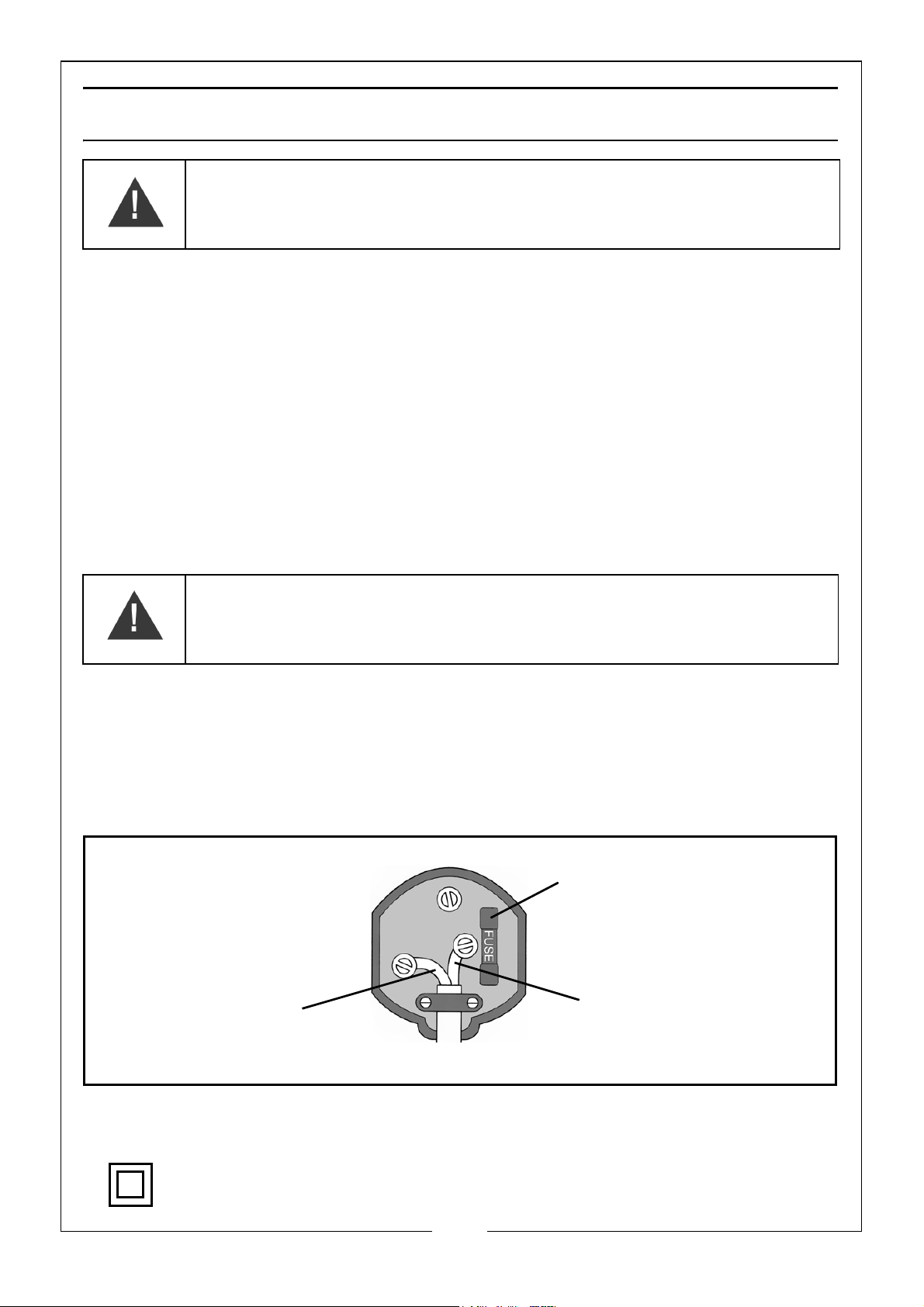

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard

.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE

If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal marked N or coloured

Black.

•TheBrown wire must be connected to the terminal marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

This symbol indicates that this is a Class II product, and does not require
an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6

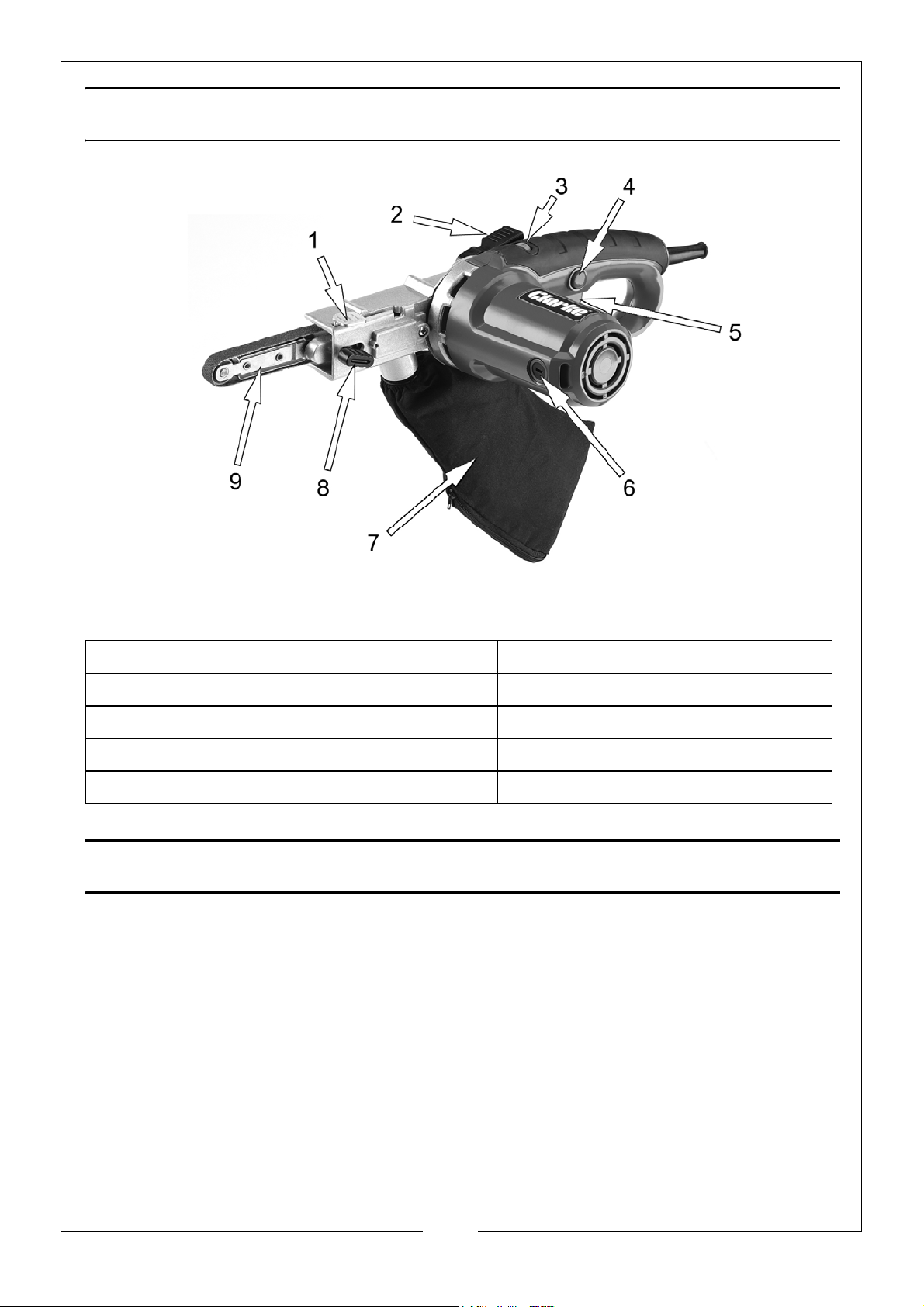

PART IDENTIFICATION.

1 Belt Tensioning Lever 6 Carbon Brush Cap

2Arm Adjustment Lever 7 Dustbag

3 Variable Speed Control Knob 8 Belt Tracking Knob

4 Safety Lock Button 9 Arm

5 On/off Trigger Switch

CARTON CONTENTS

The following items should be supplied. If any parts are missing or damaged,
please contact the Clarke dealer where you purchased the tool.

• 1 x Electric Power File

• 5 x 13mm x 457mm 120 Grit Sanding Belts.

• 1 x Dust Collection Bag

• 1 x Black Moulded Case

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY

WARNING: BEFORE ASSEMBLY, MAKE SURE THAT THE TOOL IS SWITCHED
OFF AND UNPLUGGED.

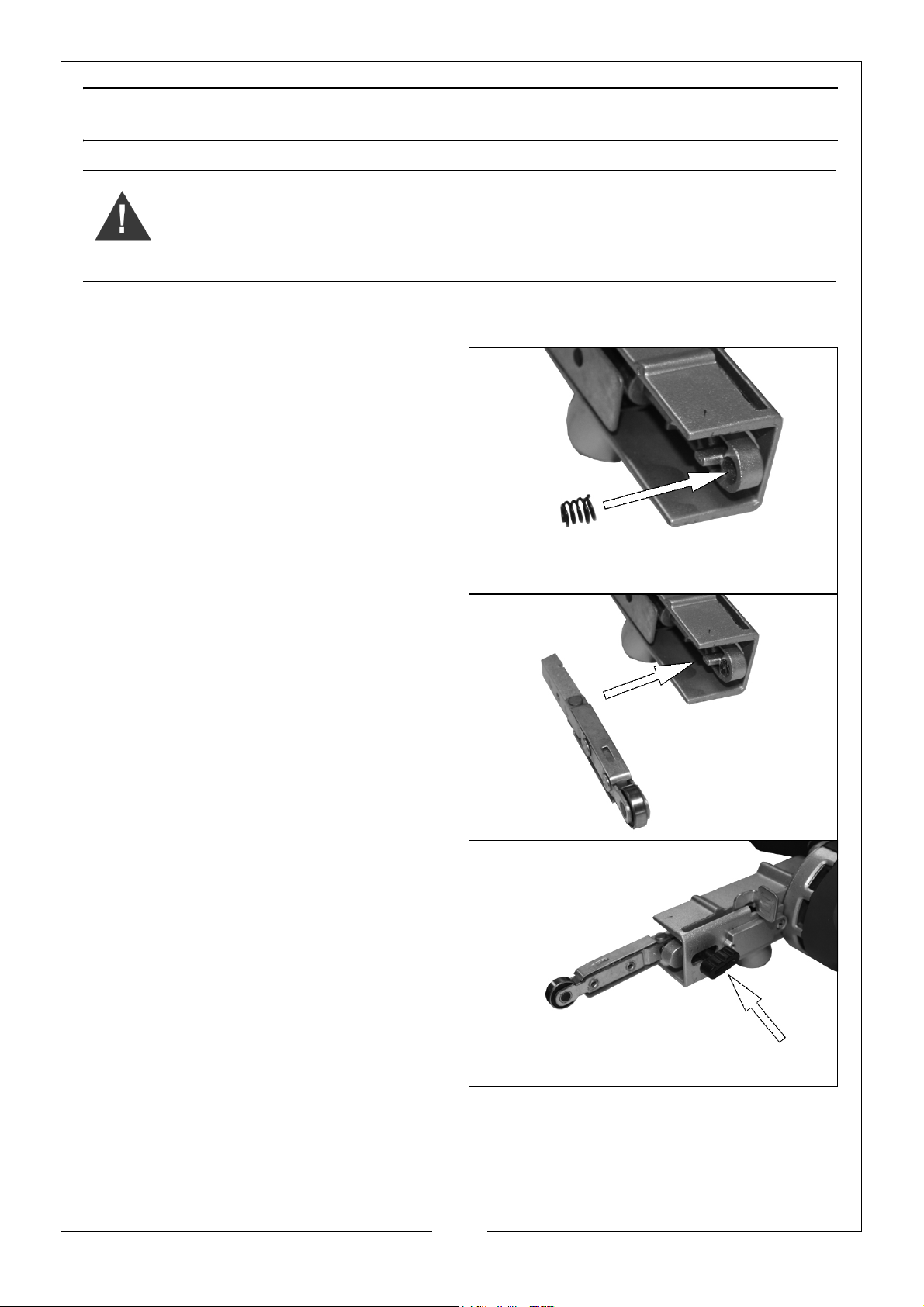

FITTING THE SANDING ARM

1. Insert the small spring into the
recess as shown.

2. Slide the sanding arm over the
raised ‘pip’ and hold it in place.

3. Pass the belt tracking knob
through the casting into the
sanding arm to lock the arm in
position.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

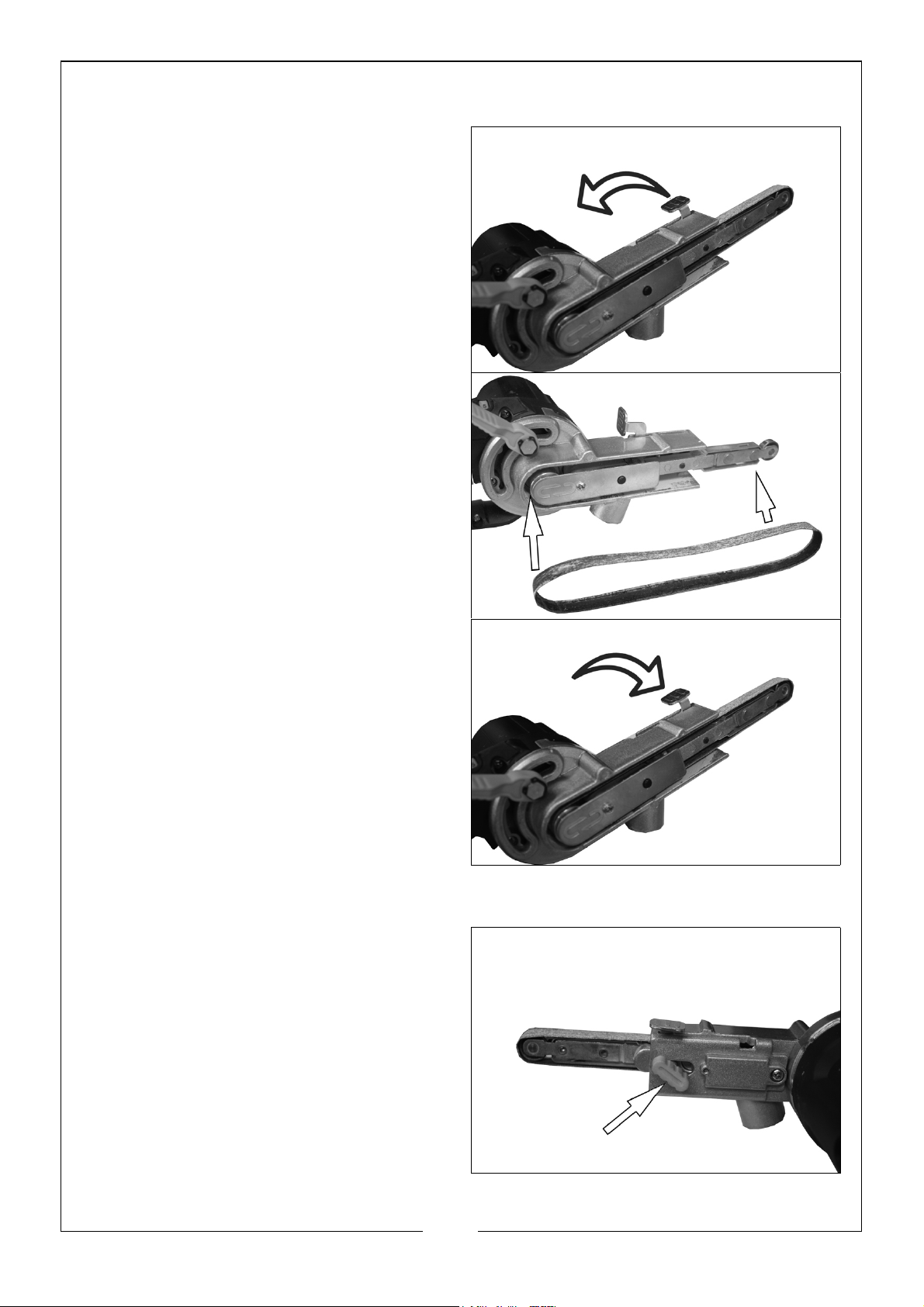

FITTING AND REMOVING SANDING BELTS

1. Move the belt tensioning lever to
the front position.

2. Place the sanding belt over the
front pulley and the rear pulley,
sliding it through the slot in the
housing.

• Make sure that the arrows on

the inside of the sanding belt
face the same direction as the
arrows on the housing.

3. Move the belt tensioning lever to
the rear position.

4. Adjust the belt tracking as
described See page 9.

ADJUSTING THE SANDING BELT TRACKING

1. Switch the tool on.

2. Turn the belt tracking knob as
required until the sanding belt runs
straight along the length of the
arm.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

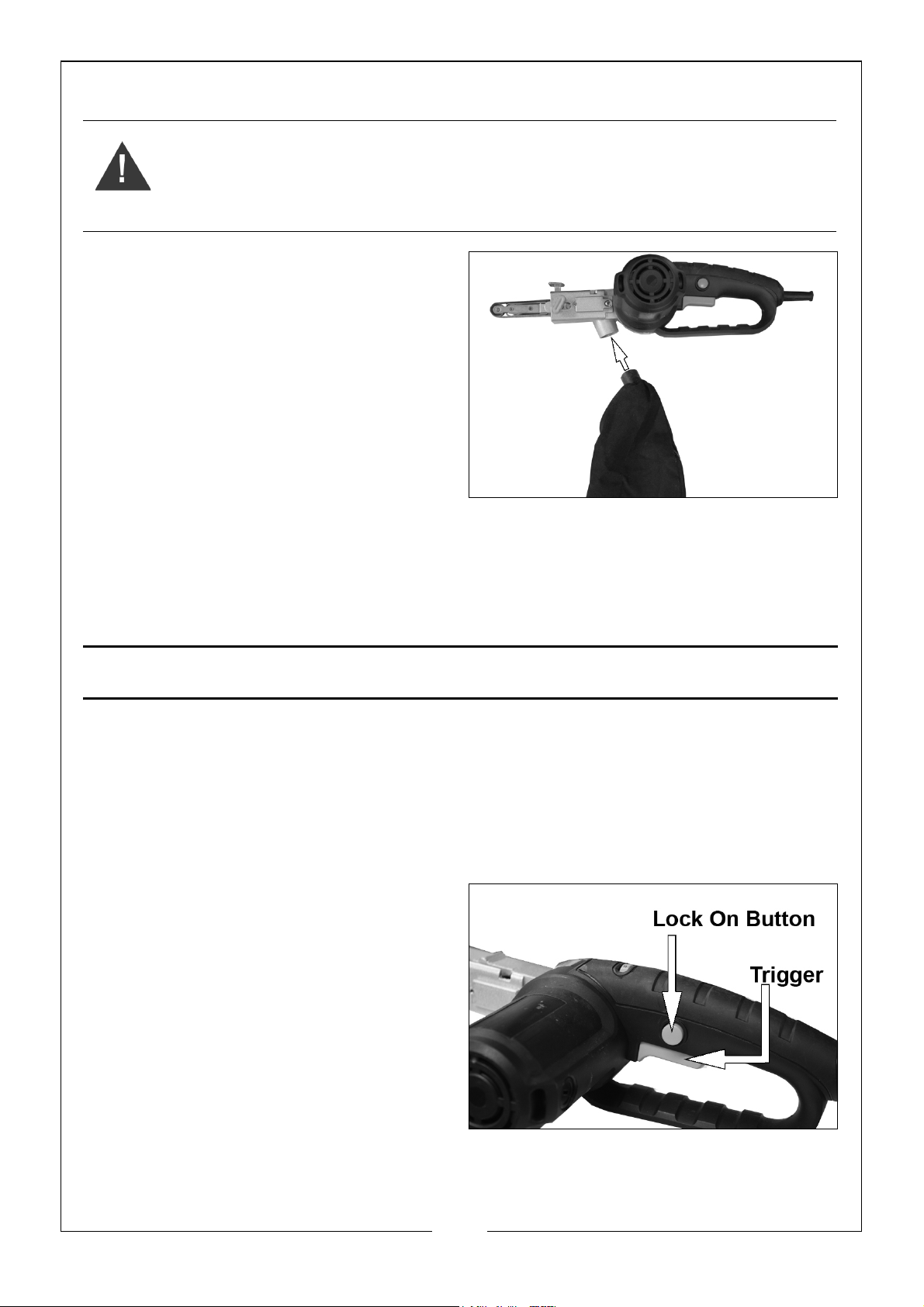

FITTING AND REMOVING THE DUST BAG

WARNING: ALWAYS REMOVE THE DUSTBAG WHEN USING THE TOOL ON
METAL WORKPIECES.

FITTING

1. Fit the dust bag over the dust
extraction outlet.

REMOVING / EMPTYING THE DUSTBAG

The dustbag should be emptied
when full.

1. Pull the dustbag off of the tool.

2. Hold the dustbag over a bin and
unzip the dustbag to empty the
contents.

3. Zip up the dustbag and slide it back on to the tool, making sure that it is
securely located.

OPERATION

INTENDED USE

Your power file has been designed for sanding wood, metal, plastics and
painted surfaces.

SWITCHING ON AND OFF

To switch the tool on, press the on/off
trigger switch.

To switch the tool off, release the on/
off trigger switch.

FOR CONTINUOUS OPERATION:

1. Press the on/off trigger switch.

2. Press the lock-on button.

3. Release the on/off trigger switch.

4. To switch the tool off when in continuous operation, press and release the
on/off trigger switch.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

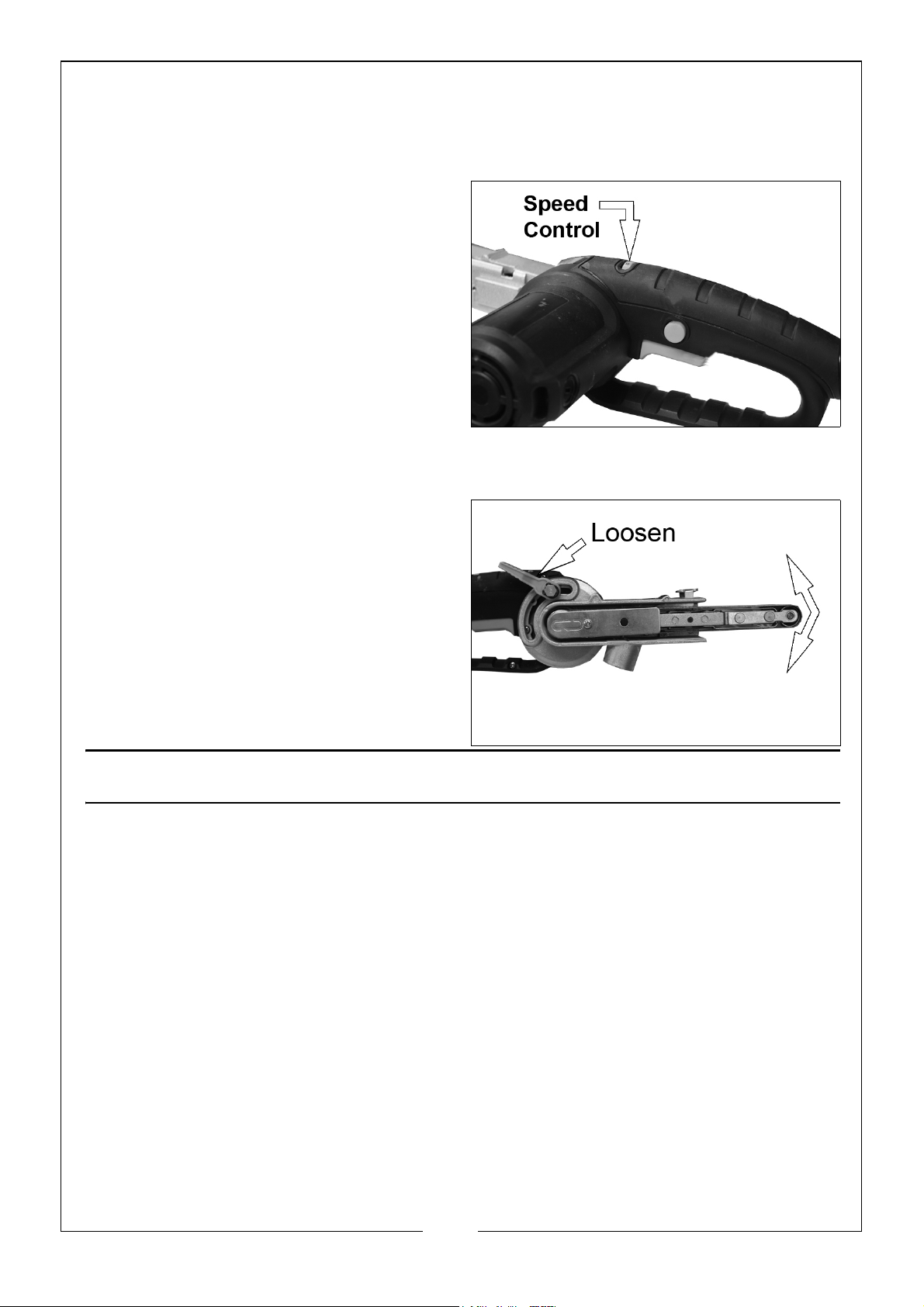

VARIABLE SPEED CONTROL

The variable speed control allows you to adapt the speed of the tool to the
workpiece material.

1. Set the variable speed control
knob to the required setting.

• Use a low speed setting when

using a fine grit, when working
with plastics or ceramics and
when removing painted or
varnished surfaces.

• Use a high speed setting when

using a coarse grit and when
removing a lot of material.

ADJUSTING THE ANGLE

To adjust the angle of the arm.

1. Loosen the arm adjustment lever.

2. Adjust the arm to one of the 14
positions from +30

3. Move the arm adjustment lever to
the lock position.

o

to -90

o.

HINTS FOR OPTIMUM USE

• Always hold the tool securely.

• Do not exert too much pressure on the tool.

• Regularly check the condition of the sanding belt and replace when

necessary.

• On very uneven surfaces, or when removing layers of paint, start with a

coarse grit. On other surfaces, start with a medium grit. In both cases,
gradually change to a fine grit for a smooth finish.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: BEFORE PERFORMING ANY MAINTENANCE, SWITCH OFF AND
UNPLUG THE TOOL.

Your tool has been designed to operate over a long period of time with a
minimum of maintenance. Continuous satisfactory operation depends upon
proper tool care and regular cleaning.

Regularly clean the ventilation slots in your tool using a soft dry brush or dry
cloth.

Regularly clean the motor housing using a clean damp cloth. Do not use any
abrasive or solvent-based cleaner.

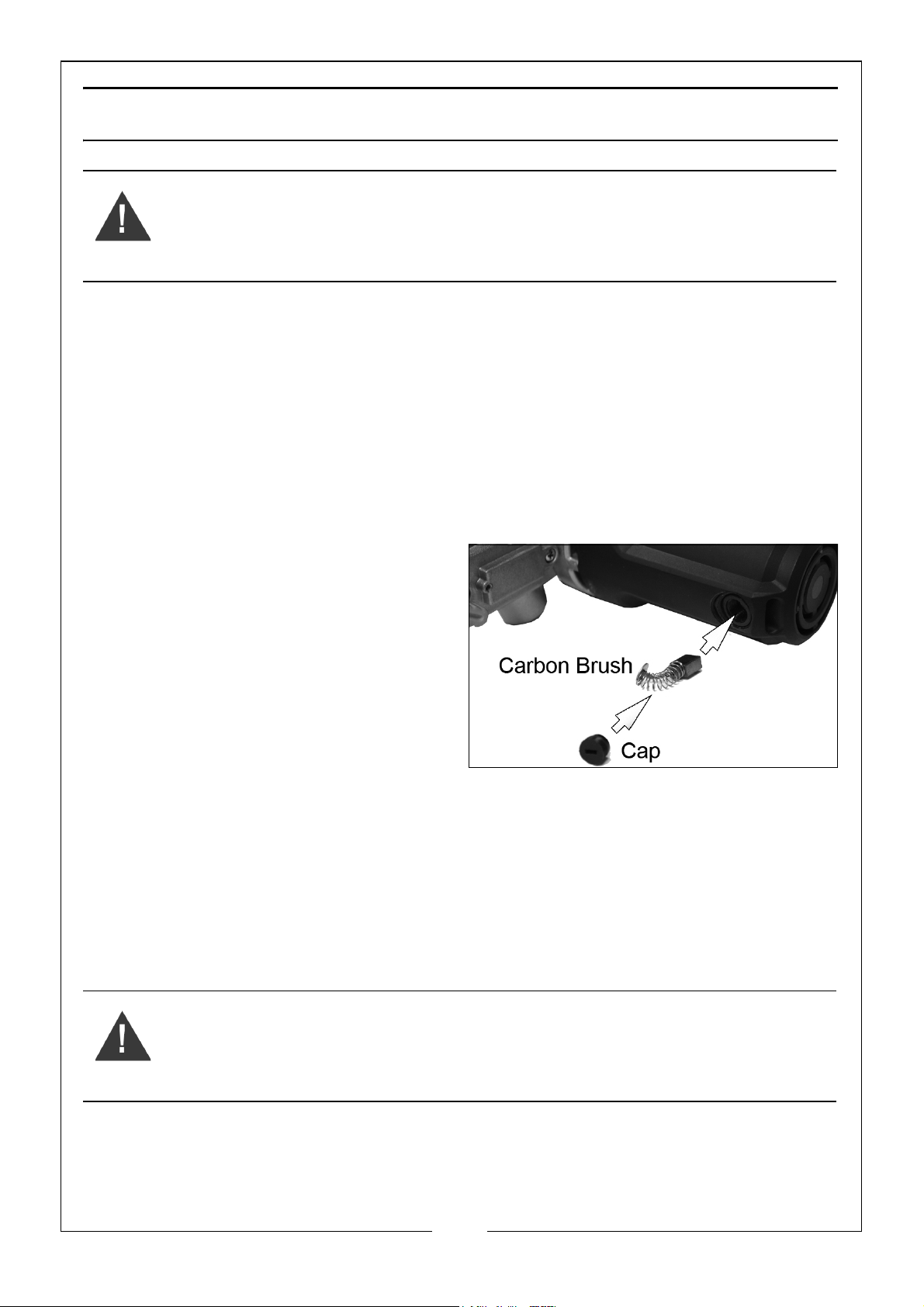

CHANGING THE CARBON BRUSHES

Occasionally remove and inspect
the motor brushes and replace if
necessary.

When removing brushes, note which
way round they are. The brushes must
be returned exactly the same way.

Never allow the brushes to wear
more than two thirds of their original
length, (new brushes are
approximately 13 mm long), fit new brushes when or before they are worn
down to 5 mm.

VIBRATION

The declared vibration emission values stated in the specifications have been
measured in accordance with a standard test method provided by EN 60745
and may be used for comparing one tool with another. The declared vibration
emission value may also be used in a preliminary assessment of exposure.

WARNING: THE VIBRATION EMISSION VALUE DURING ACTUAL USE OF THE
POWER TOOL CAN DIFFER FROM THE DECLARED VALUE DEPENDING ON
THE WAYS IN WHICH THE TOOL IS USED. THE VIBRATION LEVEL MAY
INCREASE ABOVE THE LEVEL STATED.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

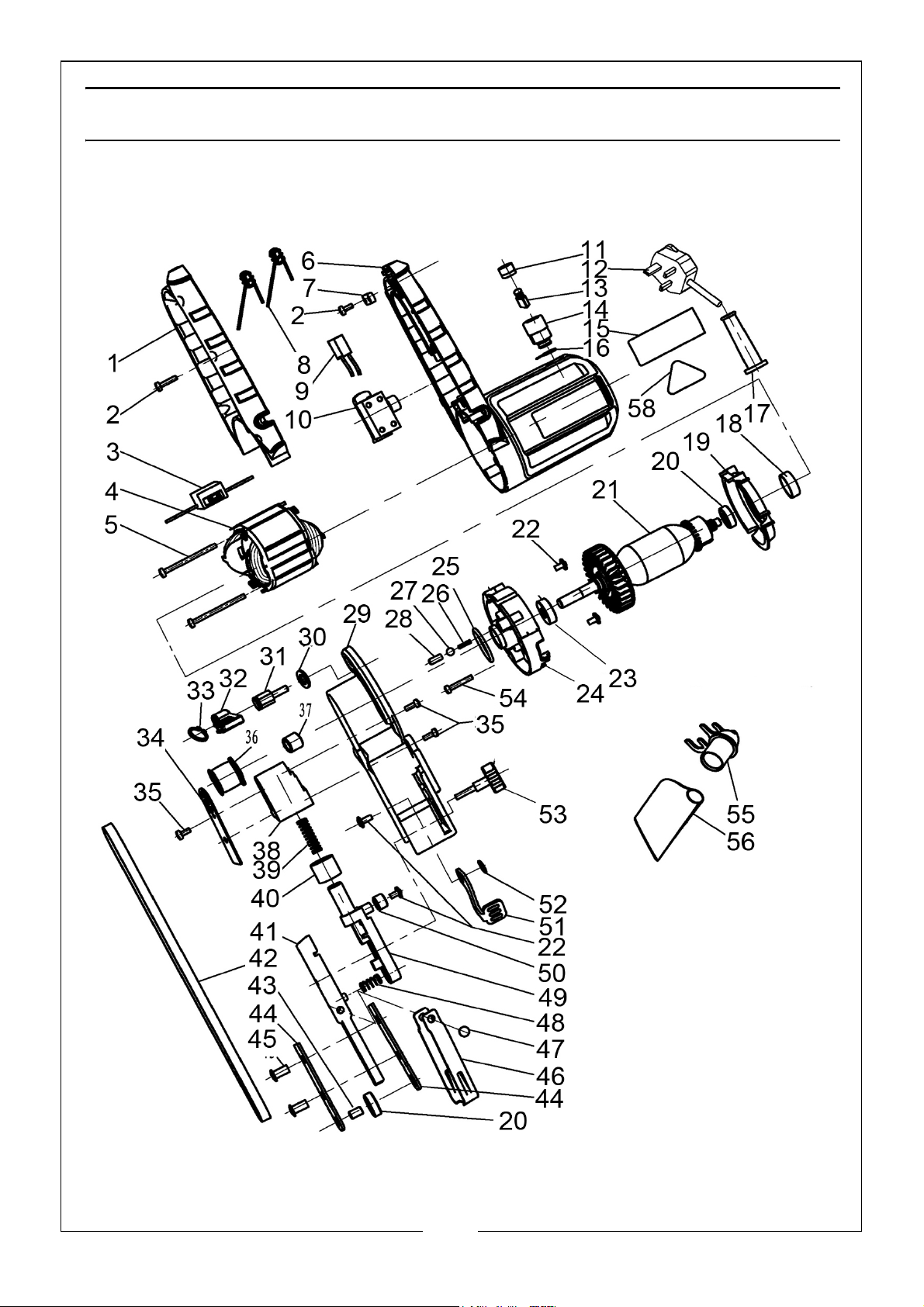

PARTS DIAGRAM

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

1Handle

2Screw

3 Speed Controller

4 Stator

5 Screw

6Housing

7 Cable Clamp

8 Inductance

9 Capacitor

10 Switch

11 Carbon Brush Cover

12 Cable

13 Carbon Brush

14 Carbon Brush Holder

33 Circlip

34 Cover

35 Screw

36 Driving Roller

37 Bearing

38 Adjustor Body

39 Compression Spring

40 Dust Proof Ring

41 Support Bar

42 Sanding Belt 13 X 457

43 Pin

44 Side Plate

45 Rivet

46 Buffer

15 Brand Label

16 Spring

17 Cable Sleeve

18 Bearing Spacer 607

19 Wind Fence

20 Bearing 626-2rs

21 Rotor Assembly

22 Screw

23 Bearing 608-2rz

24 Centre Housing

25 Seal Ring

26 Small Spring

27 Steel Ball

28 Small Steel Sleeve

29 Support Frame

47 Rivet

48 Compression Spring

49 Bracket Base

50 Bearing

51 Tension Lever

52 Wave Shape Washer

53 Tracking Adjuster Knob

54 Screw

55 Dust Exit

56 Dust Bag

Part nos for this product carry the
prefix HF (CPF13) when ordering
replacement parts.

Replacement belts are available in
packs of 5 as:

30 Flat Washer

31 Hexagonal Bolt

32 Locking Lever

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Fine - 6502360

Medium - 6502365

Coarse - 6502370

14

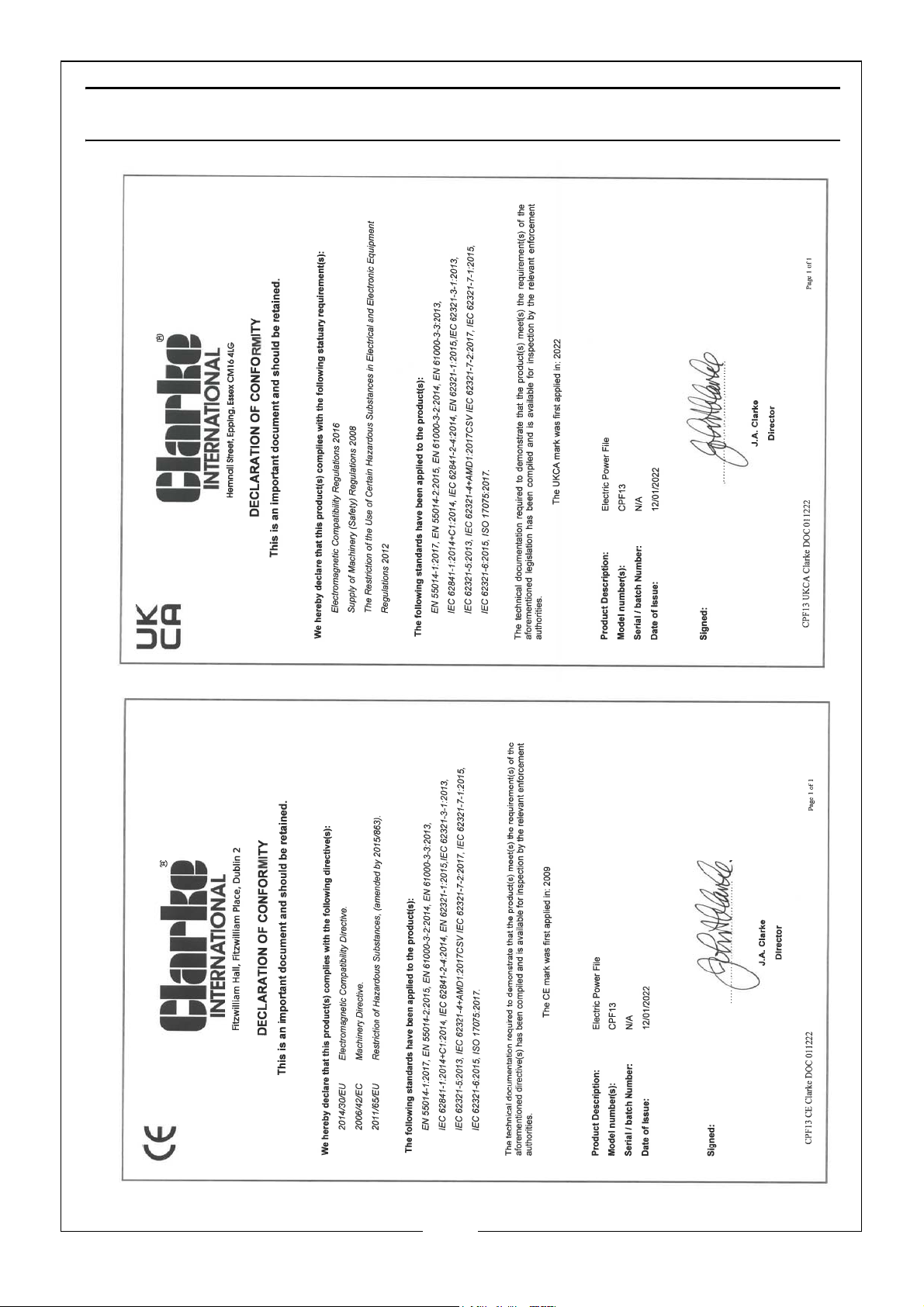

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
