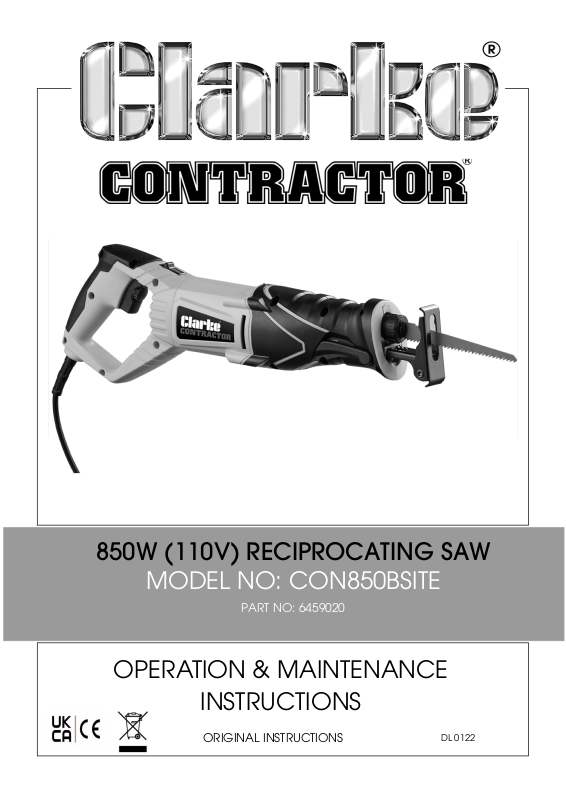

850W (110V) RECIPROCATING SAW
MODEL NO: CON850BSITE
PART NO: 6459020
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL 0122
INTRODUCTION
Thank you for purchasing this CLARKE 850W 110V Reciprocating Saw.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility
2

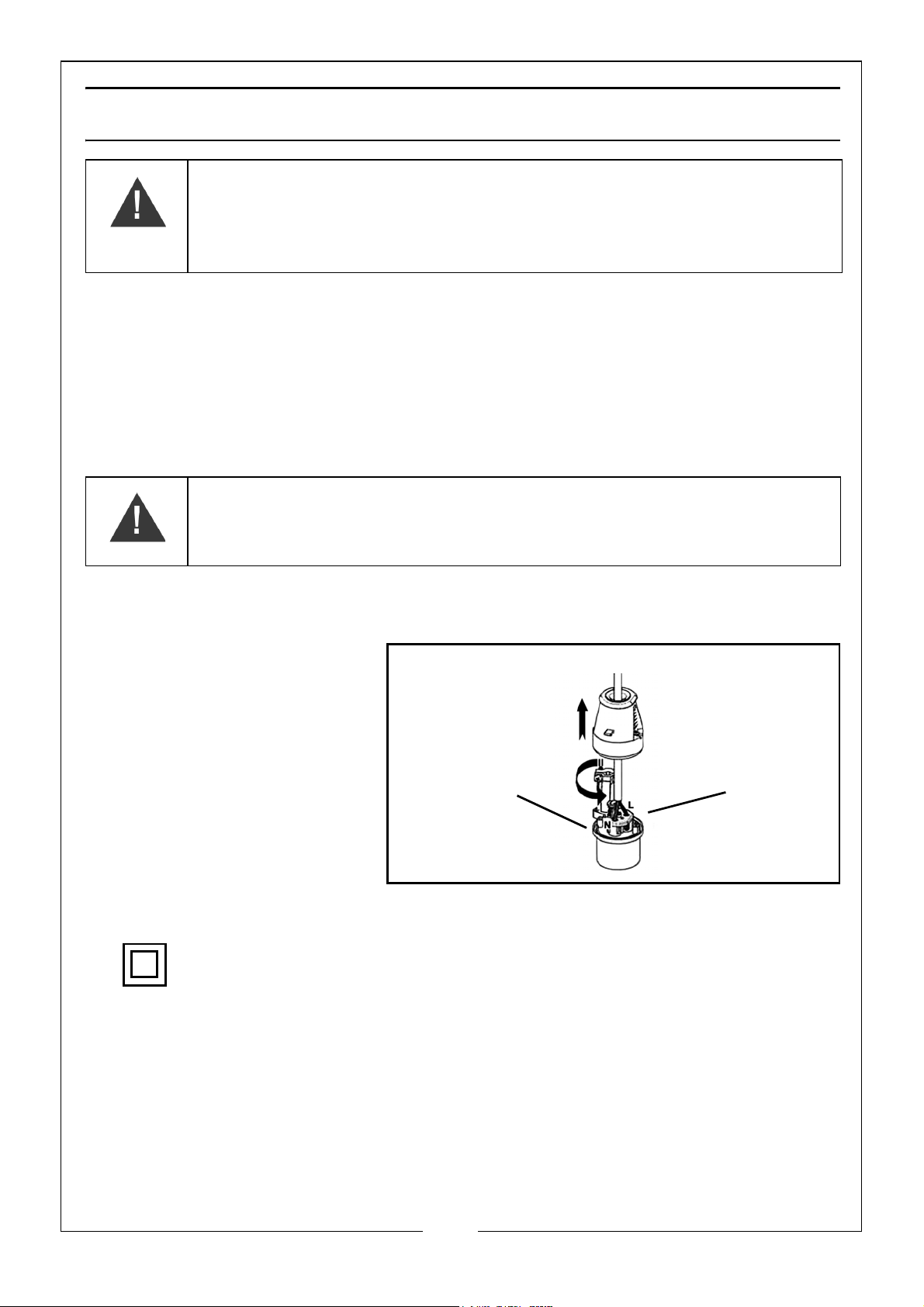

ELECTRICAL CONNECTIONS
Plug must be BS60309 approved.
Neutral
(White)
Live
(Black)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage.
If the plug has to be changed due to damage, a replacement should be fitted, following the wiring instructions shown below. The old plug must be disposed of as insertion into a 110v socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: WHITE = NEUTRAL BLACK = LIVE
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
•The White wire must be connected to the terminal which is marked N or Neutral.
•The Black wire must be connected to the terminal which is marked L or Live.
If in any doubt, consult a qualified electrician. DO
NOT attempt any repairs yourself.
This symbol indicates that this is a Class II product, and does not require an earth connection.
3
GENERAL SAFETY RULES
WORK AREA
1. ALWAYS keep the work area clean and well lit. Cluttered and dark areas invite accidents.
2. DO NOT operate power tools in explosive atmospheres such as in the presence of flammable liquids, gasses or heavy dust. Power tools create sparks which may ignite dust or fumes.
3. ALWAYS keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tools must match the power outlet. NEVER modify the plug in any way. DO NOT use adaptor plugs with earthed (grounded) power tools. Correct plugs and outlets will reduce the risk of electric shock.
2. DO NOT expose power tools to rain or wet conditions. Any water entering power tools will increase the risk of electric shock.
3. DO NOT abuse the electrical cable. NEVER use the cable for pulling or unplugging the power tool. Keep the cable away from sources of heat, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
4. If working outdoors, use outdoor extension leads, always use an approved cable extension suitable for the power rating of this tool (see specifications). The conductor size should also be at least the same size as that on the machine, or larger.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when you are operating a power tool. DO NOT operate a power tool when you are tired, ill or under the influence of alcohol, drugs or medication.
2. Wear personal protective equipment including eye protection. Safety equipment such as a dust mask, non-skid shoes and hearing protection used for appropriate conditions will reduce personal injuries. Use a face or dust mask if operation is particularly dusty. Wear ear protectors/defenders as the noise level of this machine can exceed 85dB (A).
3. DO NOT over-reach. Keep a proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
4. Concentrate on the job in hand, no matter how trivial it may seem. Be aware that accidents are caused by carelessness due to familiarity.
4
5. Dress appropriately. DO NOT wear loose clothing or jewelry which may get caught in moving parts. Wear protective hair covering to contain long hair. For best footing, wear rubber soled footwear. Keep floor clear of oil, scrap wood, etc.
6. AV OI D accidental starting of the machine. Ensure the switch is in the off position and the locking button disengaged before plugging the machine in to the power supply. Carrying power tools around with your finger on the trigger or plugging in power tools that are switched on invites accidents.
7. Switch the machine OFF immediately after the task is completed.
POWER TOOL USE AND CARE
1. DO NOT force the machine. Use the correct power tool for your application. It will do a better and safer job at the rate for which it was designed.
2. DO NOT use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the power tool from the power supply before making any adjustments, changing accessories, or storing the tool. These measures will reduce the risk of the power tool starting accidentally.
4. Store power tools out of the reach of children and DO NOT allow persons unfamiliar with these instructions to operate the power tool. Power tools are potentially dangerous in the hands of untrained users.
5. Use recommended accessories. The use of improper accessories could be hazardous.
6. DO NOT allow the ventilation slots in the machine to become blocked with dust.
7. Check the power tool for damage before using the machine each time. Any damaged part should be inspected to ensure that it will operate properly and perform its intended function. Check for alignment of moving parts, breakage of parts, mountings, and any other condition that may affect the machine’s operation. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your local CLARKE dealer.
SERVICE
1. When necessary, have your power tools serviced or repaired by a qualified person using identical replacement parts. This will ensure that the safety of the power tool is maintained.
5
RECIPROCATING SAW SAFETY INSTRUCTIONS
WARNING: ONLY USE THE SAW AS DESCRIBED IN THESE INSTRUCTIONS.
HAND VIBRATION
All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handles. Operators who are regularly exposed to vibration may suffer from Hand Arm Vibration Syndrome (HAVS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’. These are painful conditions and are widespread in industries where vibrating tools are used. If you feel numbness or pain in hands or arms, STOP using the tool and take a rest. If symptoms persist seek medical advice.
CHANGING BLADES (PAGE 9)
1. Unplug the saw before changing blades, and take care to prevent entrapment of fingers between the blade and the shoe. Ensure the blade is secure before use.
2. Use the appropriate saw blade for the material being cut. Different blades are available from your CLARKE dealer.
3. Only use saw blades in perfect working condition. Discard and replace any cracked or bent saw blades.
WHEN SAWING (PAGE 12)
1. Keep the mains cable well away from the saw blade and ensure an adequate electrical supply is close at hand so that the operation is not restricted by the length of the cable.
2. Working on the bench. Allow sufficient clearance beneath the workpiece to ensure the blade does not come into contact with the floor, bench etc.
3. Switching off. NEVER place the saw on a table or bench if it has not completely stopped. The saw blade will continue to reciprocate for a short time after the trigger has been released to stop the saw.
4. DO NOT cut material above the specified thickness.
5. Cutting into walls. DO NOT cut through walls or cavities before checking for hidden electrical wires or water pipes etc.
6. Finishing cutting. DO NOT remove the tool from the work until the blade has completely stopped and allow time for it to cool before touching the blade immediately after use.
7. Use clamps & vices wherever possible to secure the workpiece.
6
8. Cutting sheet materials. DO NOT cut workpiece less than at least twice the pitch of the saw blade. i.e. at least two teeth must be in contact with the workpiece at all times.
9. Beware of foreign objects. When cutting pre-used wood, ensure all nails have been removed beforehand. Nails will damage the wood saw blade.
10. Cooling agents. When cutting metals, ALWAYS use a cooling agent i.e. cutting/soluble oil.
11. DO NOT attempt to saw very small objects including those which cannot be properly secured. Always hold the saw with both hands.
Please keep these instructions in a safe place for future reference.
SAFETY SYMBOLS
ALWAYS: Read this manual and make sure that all warnings and
instructions are clear before you use this reciprocating saw.
WARNING: Always wear eye protection.
WARNING: Always wear protective gloves.
WARNING: Always wear ear protection.
WARNING: Always wear a dust mask.
WARNING: Risk of injury. Sharp blade.
7

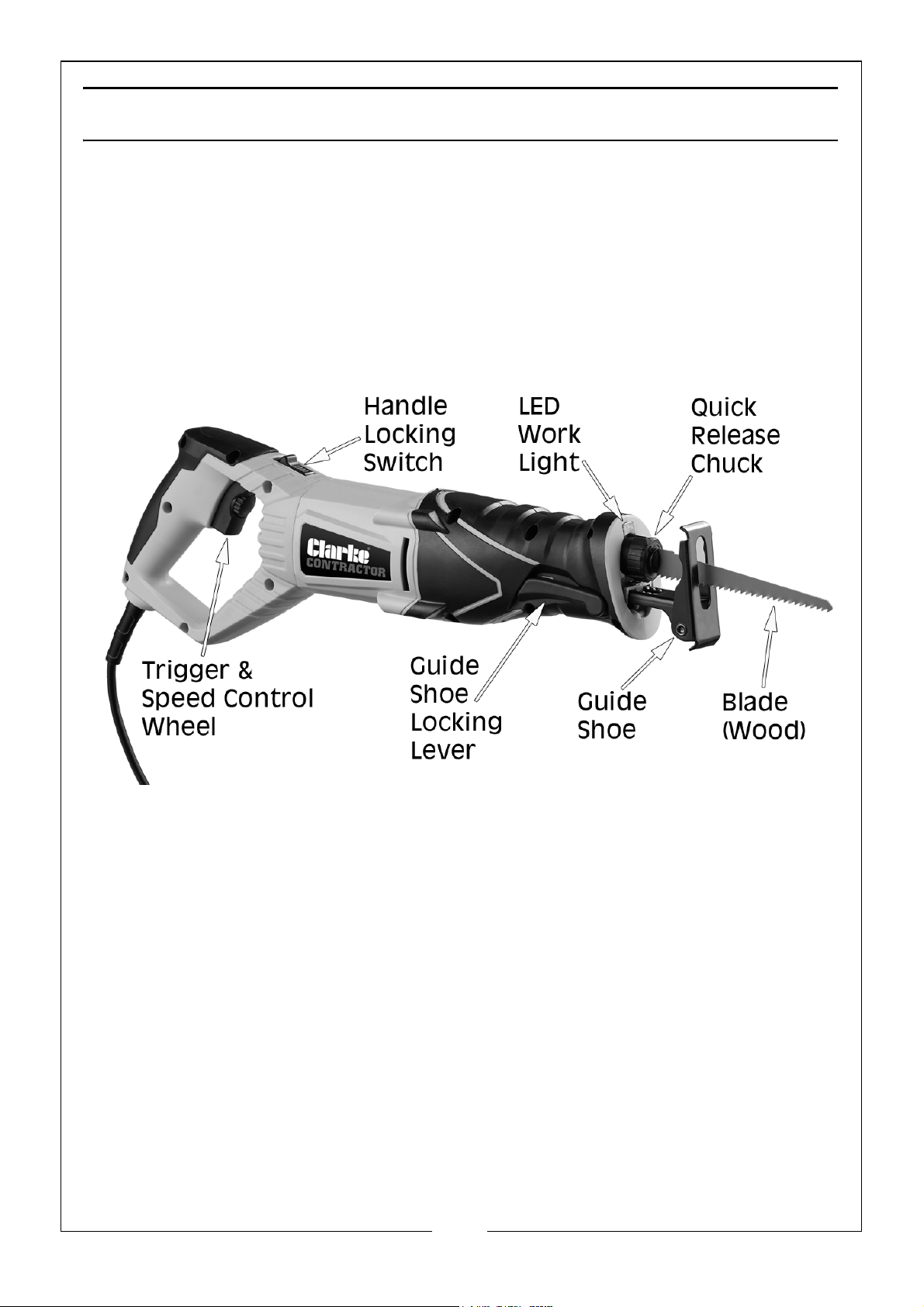

OVERVIEW
The CLARKE CON850 is a variable-speed reciprocating saw fitted with a lock­on button for continuous operation. The saw is equipped with a quick-release blade retention system for convenient replacement of saw blades.
When unpacking, check for damage or shortages etc. Any found should be reported to your CLARKE dealer where the appliance was originally purchased. This CON850BSITE Reciprocating Saw is supplied with the following components:
The saw is also supplied with the following cutting blades:
• 2 x 130mm Wood Cutting Blade
• 1 x 80mm Metal Cutting Blade
8
BEFORE USE
CAUTION: USE ONLY RECIPROCATING SAW BLADES WITH THE CORRECT FITTING AS SHOWN BELOW. ALWAYS ENSURE THE SAW IS DISCONNECTED FROM THE POWER SUPPLY BEFORE INSTALLING/REMOVING THE BLADE.
INSTALLING/CHANGING BLADES
1. Twist the quick release chuck a 1/4 turn anti-clockwise and hold open.
2. Insert or remove the blade while keeping the chuck open.
• Never use cracked, blunt or
otherwise damaged blades.
3. Release the chuck when the blade is fully inserted in position, making sure the teeth of the blade are pointing downwards. The blade will now be locked in place.
4. Pull the blade to check that it is secure. If it does not pull out, it is correctly fitted.
9
ADJUSTING THE GUIDE SHOE
WARNING: ALWAYS ENSURE THE SAW IS DISCONNECTED FROM THE POWER SUPPLY BEFORE MAKING ADJUSTMENTS.
1. To adjust the shoe, unlock by releasing the locking lever on the side of the saw. Adjust the shoe to the desired position and then push the locking lever back into position.
• Note that the shoe can slide
fully in and out of the saw body.
2. The head of the shoe will adapt to the surface of the workpiece you are working on with an inclination of up to 30
o
.
ADJUSTING THE HANDLE
The handle can be rotated 90o left or right of centre so as to give a better angle of attack on the workpiece.
1. Slide handle locking switch back.
2. Rotate handle 90
o
left or right, depending on angle of attack needed.
10
3. Slide handle locking switch forward to lock the handle into place.
OPERATION
IMPORTANT: DO NOT plug into a power supply unless you have ensured the saw is switched OFF. To do this, squeeze the trigger fully, then release it.
NOTE: The LED work light will be illuminated once the tool is plugged into the
power supply. There is no standalone on/off switch for the light.
PRIOR TO CUTTING
1. Ensure that the workpiece is securely held in place and that the cut line is clearly marked.
2. Ensure the blade is not striking anything below the workpiece and that the power cable is well away from the moving blade before starting the saw.
• Let the blade work naturally. If cutting out an aperture, it will be
necessary to drill a suitably sized hole in the workpiece to use as a starting point.
• The blade should emerge from the work at every point of the cut.
3. Check that any previously used timber being sawn does not contain any nails or other metal objects which would damage the blade.
11
STARTING & STOPPING
1. To start the saw, squeeze the trigger.
2. Maintain the saw at a constant speed by pressing in the lock button.
• You can then release your
finger pressure on the trigger.
3. To stop the saw if the lock button is used, squeeze the trigger fully in, then release it and the motor will stop. Always switch off before unplugging.
USING THE SAW
1. Place the shoe fully against the work-piece and squeeze the trigger to run the saw before letting the blade touch the cut line on the work piece. To make your cut, move the saw slowly along the cutting line.
2. Take care not to allow the saw to bounce on the workpiece. Ensure the shoe remains in contact with the workpiece.
3. Always hold the saw with one hand on the body and the other hand on the handle.
4. Take extra care when cutting curves - move slowly to avoid stress on the blade.
5. Avoid putting unnecessary pressure on the blade and avoid applying lateral pressure. Let the blade work naturally.
6. Never try to start the saw if the blade becomes jammed in the workpiece.
7. If the blade becomes blunt in one section of its cutting edge, reposition the shoe to utilise a sharper, unused portion of the blade. Page 10 shows the adjustable shoe which can be positioned close to the blade holder and then extended to optimise the use of the blade & extend its useful life.
12
CUTTING DIFFERENT MATERIALS
Adjust the speed controller wheel to suit the material being cut using the following suggested settings as a starting point. However, the optimum speed will be determined with practice.
• Plastic: Slow - Medium
• Steel: Slow - Medium
•Hardboard: Medium
• Ceramics: Medium - Fast (max)
• Aluminium: Medium - Fast (max)
• Wood: Medium - Fast (max)
CUTTING WOOD
PLUNGE CUTTING IN WOOD
• Rest the saw shoe on the workpiece in such a position that the blade forms an appropriate angle for the plunge cut.
• Switch the saw on and slowly feed in the blade. Make sure that the saw shoe remains in contact with the workpiece at all times.
POCKET CUTS IN WOOD
• Measure and mark out the pocket cut. Using a narrow blade, rest the bottom of the shoe on the workpiece ensuring the blade is on the cutting line. If necessary, e.g. in confined spaces, use the outer edge of the shoe as your guideline.
CUTTING METAL
• Choose the correct blade for cutting metal. Support the workpiece with wooden blocks on either side.
• Apply a thin film of lubricant along the cutting line to prevent the tool from overheating.
CUTTING PLASTICS
• Always work at reduced speed and carry out a test cut to see if the material is sensitive to heat or vibration.
13
MAINTENANCE
CLEANING
1. To ensure constant air circulation and after use, clean all dust and wood chippings from the reciprocating saw.
• Clean all of the ventilation slots on the motor housing.
• If possible, use compressed air to clean the machine (Always wear
eye protection when using compressed air).
2. The blade holder should be kept clean and occasionally be lightly oiled.
3. Keep the handle clean and free from oil and grease.
4. Resin and glue on the blade causes poor cutting results. Clean the blade after use if necessary.
GENERAL MAINTENANCE
1. Check the power cable to ensure it is sound and free from cracks, bare wires etc. Avoid using solvents when cleaning plastic parts, most plastics are susceptible to damage from the various types of commercial solvents.
2. Ensure all nuts, bolts and screws remain tight at all times.
• All bearings etc, in this power tool are lubricated with a sufficient
amount of high grade lubricant for the tools lifetime under normal operating conditions, therefore no further lubrication is required.
• Only use replacement blades specified for this product (consult your
CLARKE dealer).
• Refer to your CLARKE dealer if internal maintenance is required.
14
FAULT FINDING
Problem Possible Cause Remedy
Tool will not operate. No power supply. Check power supply.
Switch is faulty. Consult your CLARKE dealer
Fuse blown. Check and replace
Motor is faulty Consult your CLARKE dealer
Motor becomes hot. Unduly heavy use Reduce the force applied
to the tool. Let the tool do the work.
Air vents have become blocked.
Low supply voltage. Ensure supply voltage is
Motor runs but blade does not move.
Internal sparking Faulty motor Consult your CLARKE dealer
Excessive vibration Blade not mounted
Blade fastening not tight. Secure blade.
Drive gear broken Consult your CLARKE dealer
correctly
Machine bearings worn Consult your CLARKE dealer
Clean out the air vents using compressed air or clean with a dry cloth
correct. If an extension cable is used, ensure it is of the correct rating & fully unwound.
Check and correct (See Page 9).
15

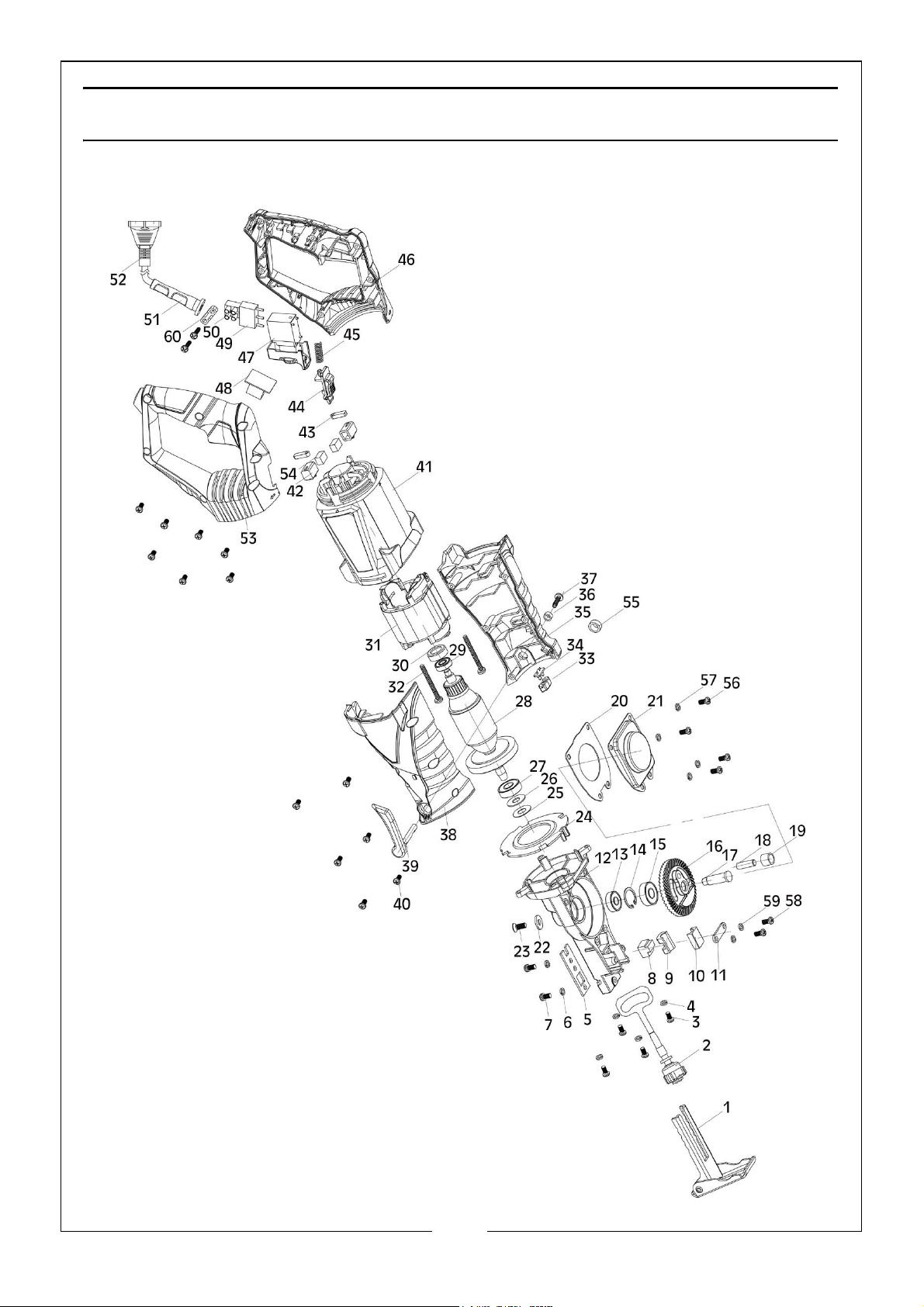

PARTS DIAGRAM
16
PARTS LIST
PART
NO
1 Guide Shoe Assembly 31 Stator
2 Chuck Assembly 32 Screw ST4 x 53
3 Screw ST4 x 20 33 Lamp Lense
4 Split Washer 34 LED Lamp PCB
5Baffle 35Left Body Casing
6 Split Washer 36 Positioning Sleeve
7 Screw 37 Screw M4 x 6
8 Washer 38 Right Body Casing
9 Lower Slide 39 Guide Shoe Locking Lever
10 Upper Slide 40 Screw ST4 x 16
11 Plate 41 Stator Housing
12 Central Supporter 42 Brush Holder
13 Bearing 608 43 Pressing Plate
DESCRIPTION
PART NO
DESCRIPTION
14 C Clip 44 Handle Locking Switch
15 Bearing 6000 45 Spring
16 Main Drive Gear Wheel 46 Left Side Handle
17 Gear Shaft 47 Speed Control Switch
18 Small Eccentric Shaft 48 Variable Pressure Plate
19 Axis Guide 49 Capacitor 0.22uf
20 Base Plate 50 Binding Post
21 Cover Plate 51 Power Cable Sheath
22 Clamp Washer 52 Plug and Cable
23 Screw M5 x 14 53 Right Side Handle
24 Fan Shroud 54 Carbon Brush
25 Red Fibre Gasket 55 Baffle Plate
26 Dustproof Cushion 56 Screw M5 x 14
27 Bearing 6000 57 Split Washer
28 Motor 58 Split Washer
29 Bearing 607 59 Screw M5 x 10
30 Shockproof Bearing Case 60 Cable Plate
17
SPECIFICATIONS
MODEL CON850BSITE
Weight 2.70 kg
Dimensions (L x W x H) 475mm x 90mm x 150mm
Voltage 110 V AC, 50Hz
Fuse Rating N/A
IP Rating IPX0
Class II
Motor Power 850 Watts
Speed Control Type Variable
No-load Speed 0-2800 Strokes Per Min
Max Cutting Capacity Wood: 105mm
Mild Steel: 10mm
Effective Blade Length Wood (HCS): 130m
Metal (HSS): 80mm
Sound Pressure Level (LpA) 90.39 dB(A)
Sound Power Level (LWA) 104 dB(A)
Sound Uncertainty Value (K) 3 dB(A)
Max. Vibration 20.40 m/s²
Vibration Uncertainty Value (K) 1.5 m/s²
Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.
18
DECLARATION OF CONFORMITY
19
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
