Clarke CON1200RD User guide

Download
Page 1
ROTARY HAMMER DRILL
MODEL NO: CON1200RD
PART NO: 6479600
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC1023 - ISS 6
Page 2

INTRODUCTION

Thank you for purchasing this CLARKE Hammer Drill. The CON1200RD is designed for general drilling/masonry drilling/chiselling/drill & hammer use in light industrial applications.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

INVENTORY

1 Moulding plastic carrying case 7 Pot of Grease
2 Rotary Hammer Drill 8 8mm SDS+ masonry drill bit
3 Front Handle 9 10mm SDS+ masonry drill bit
4 13 mm Drill Chuck Adaptor 10 12mm SDS+ masonry drill bit
5 Chuck Key 11 2 x SDS+ plus masonry chisel bits
6 Dust Shield Cup
2
Page 3

SAFETY PRECAUTIONS

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR HAMMER DRILL.
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges or refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
2. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
3. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before connecting to the power supply.
4. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
3
Page 4
5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must be repaired.
3. Disconnect the battery before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
4. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Poorly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a hazardous situation.
SERVICE
1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power
tool is maintained.
4
Page 5

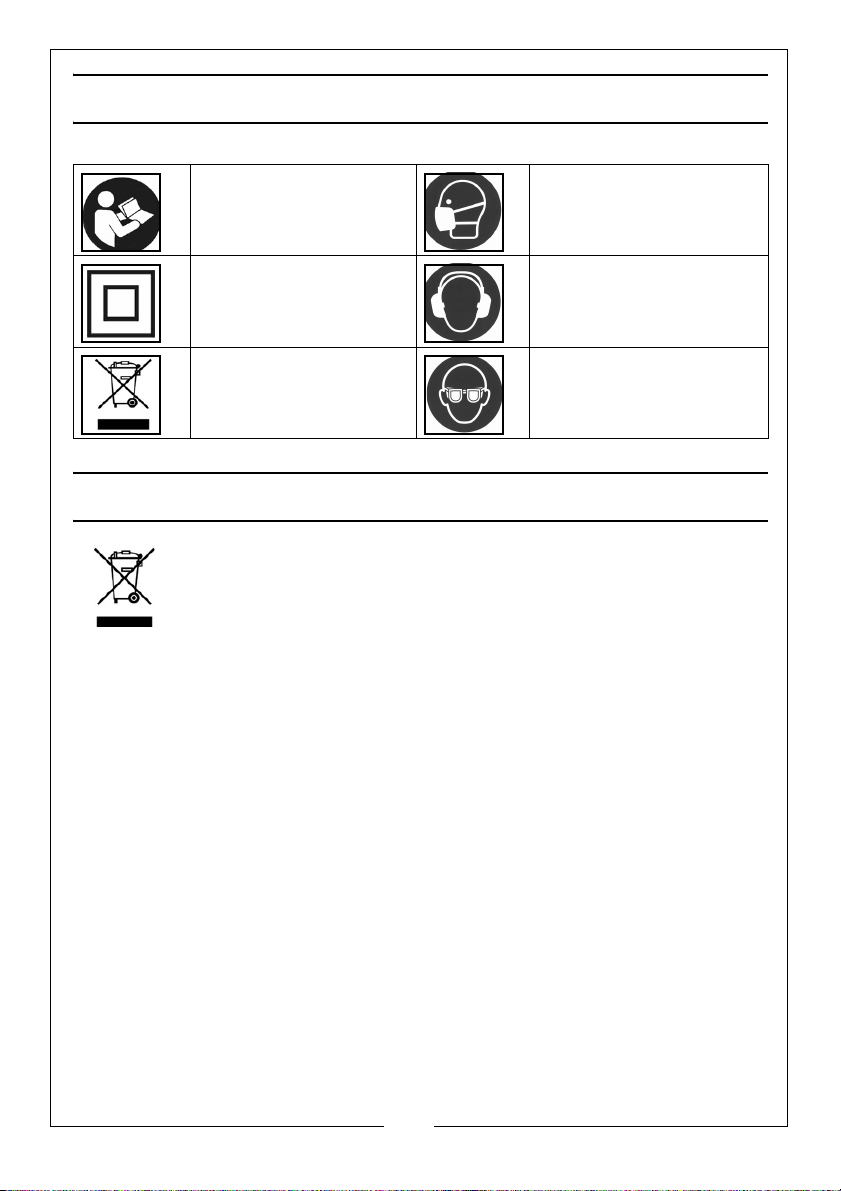

SAFETY SYMBOLS

Read instruction manual before use
Class 2 Double Insulated
Weee Directive Wear safety glasses
Wear dust mask
Wear ear defenders

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
5
Page 6

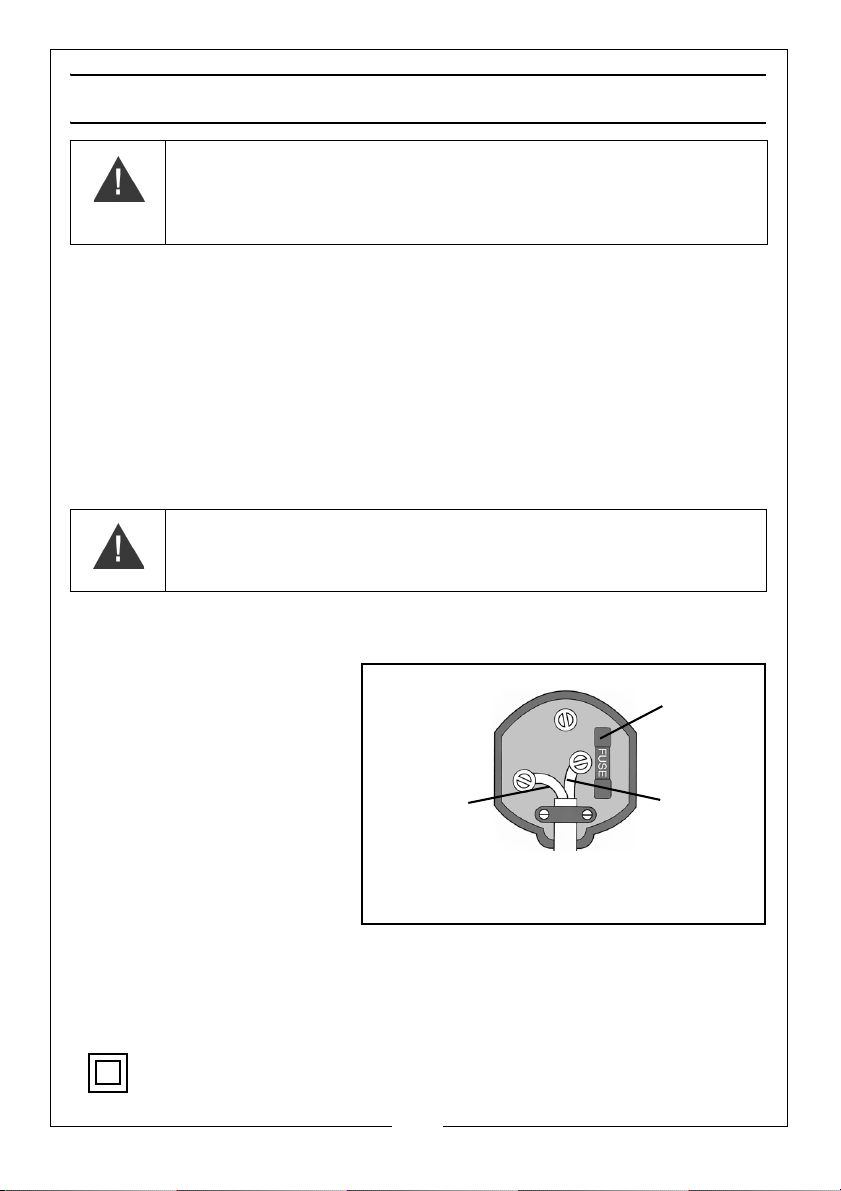

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
a 13 Amp
the cable is firmly held by the clamp
fuse
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage.
If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed due to damage, a replacement should be fitted, following the wiring instructions shown below. The old plug must be disposed of as insertion into a mains socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be
connected to the terminal marked N or coloured Black.
•The Brown wire must be
connected to the terminal marked L or coloured Red.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
This symbol indicates that this is a Class II product, and does not require an earth connection.
6
Page 7

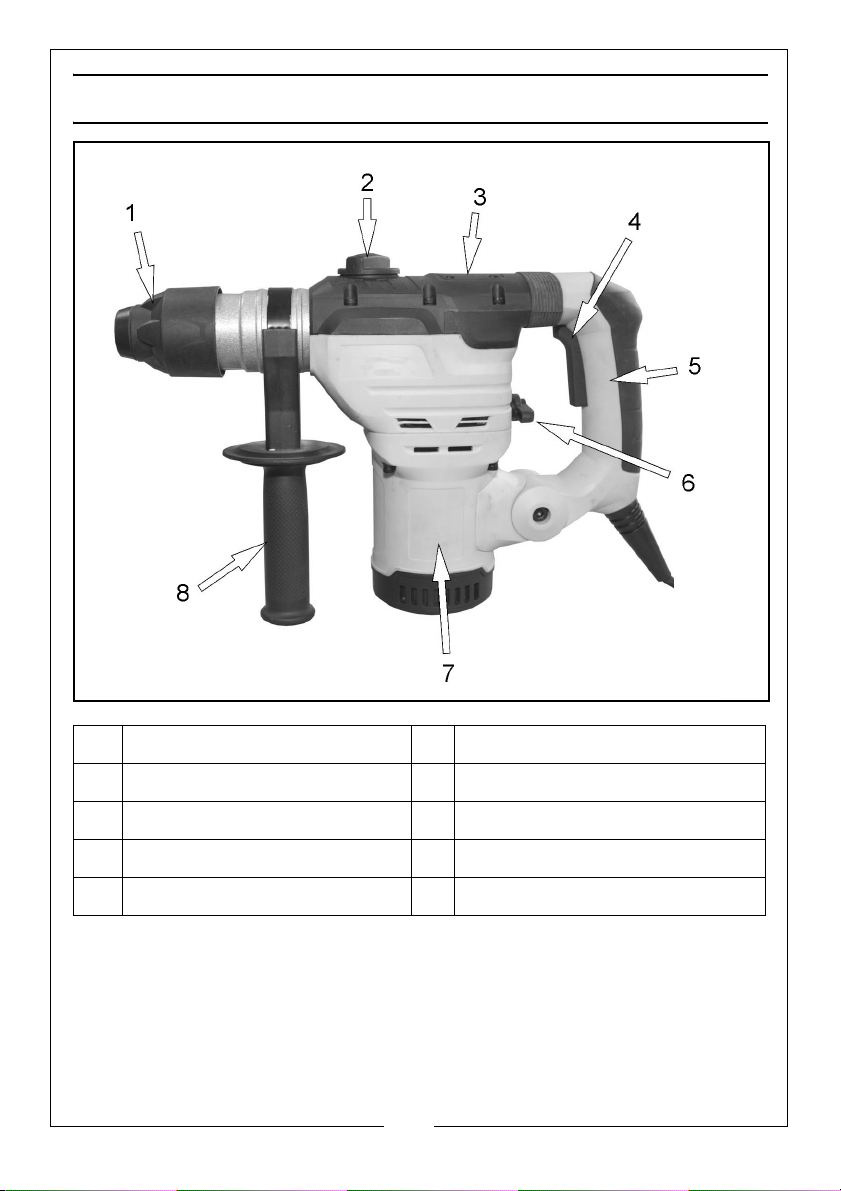

OVERVIEW

NO DESCRIPTION NO DESCRIPTION
1 SDS+ Chuck 5 Rear Handle
2 Rotation Stop Switch 6 Hammer Action Selector
3Grease Port Cover 7Motor
4 Trigger 8 Front Handle
7
Page 8

BEFORE USE

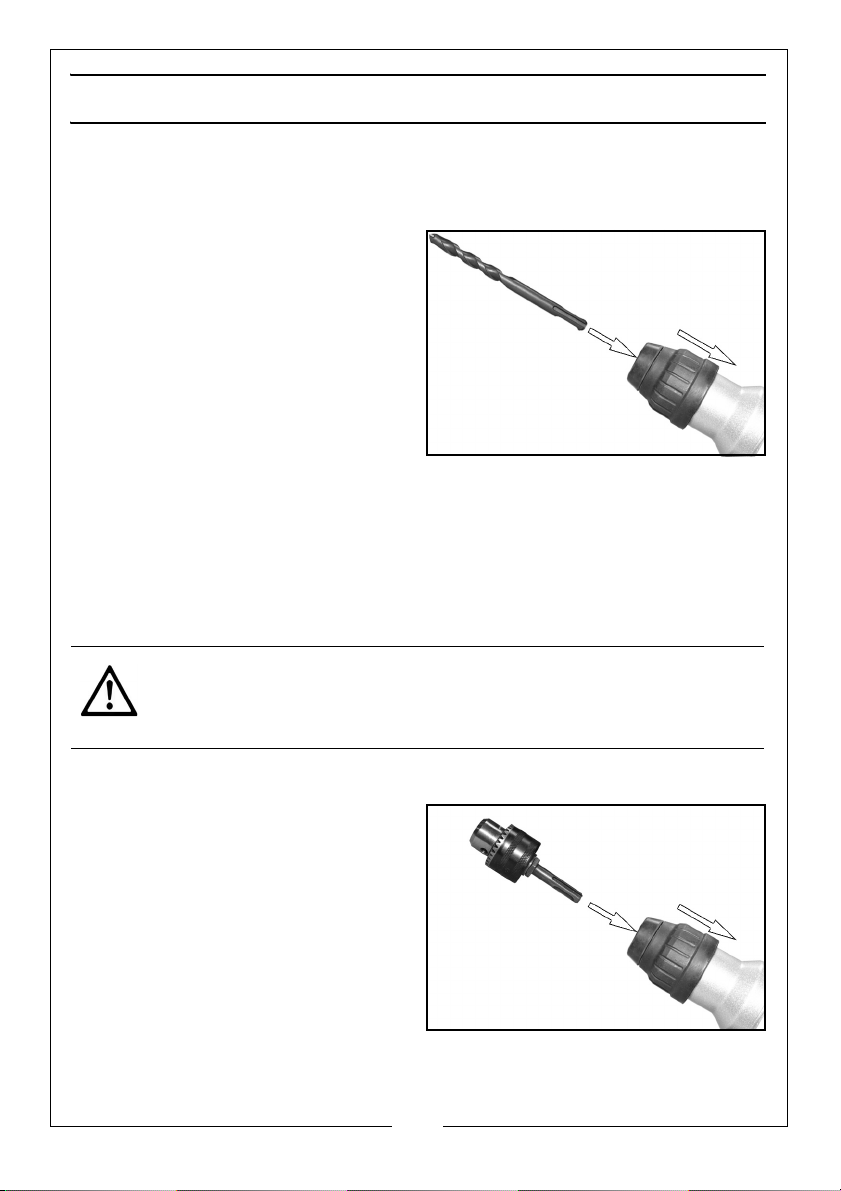

INSERTING A DRILL BIT / CHISEL

The chuck clamps SDS+ drill bits and chisels without the need for a chuck key.
1. Pull back the collar.
2. Insert the bit
3. Turn the bit in the chuck until it latches.
4. Release the collar to lock in place.
5. Check by pulling the bit to see if it is locked in place.
IMPORTANT: Always clean the shaft of the drill bit before inserting into the chuck.
IMPORTANT: Do not allow dust or debris inside the chuck as this will cause problems in the future.

REMOVING A BIT

1. Slide the collar to the rear and pull the bit out of the chuck.
CAUTION: WHEN REMOVING A BIT FROM THE DRILL, REMEMBER THAT IT MAY BE EXTREMELY HOT. EITHER ALLOW IT TO COOL DOWN FIRST OR USE INDUSTRIAL GLOVES TO REMOVE THE BIT.

USING THE DRILL CHUCK ADAPTOR (DRILL MODE ONLY)

When drilling with non SDS+ drill bits, a 13mm chuck (supplied) can be inserted into the SDS+ chuck as shown.
IMPORTANT: DO NOT USE THE CHUCK ADAPTER IN HAMMER ACTION MODE.
8
Page 9

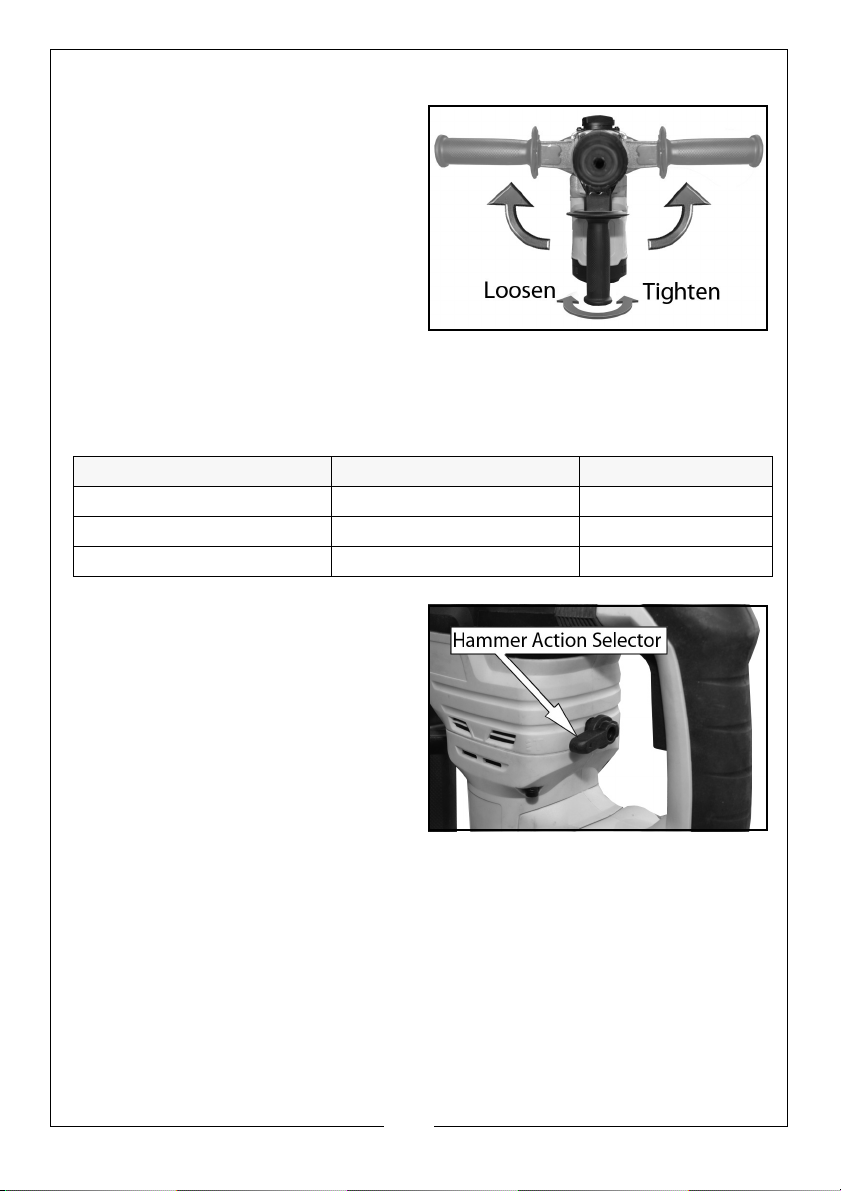

POSITIONING THE FRONT HANDLE

The front handle can be positioned left, right or centre as required.
1. Loosen the handle by twisting it clockwise (when viewed from above).
2. Rotate the handle to the required position.
3. Secure the handle by twisting it anticlockwise (when viewed from above).

SELECTING THE OPERATING MODE

Mode Hammer Action selector Rotation selector
Drill Only Drill Only ON
Hammer Drill Hammer Assisted Drilling ON
Hammer only (no rotation) Hammer Assisted Drilling OFF
HAMMER ACTION SELECTOR
1. With the drill not operating, set the hammer action selector to the required setting.
• Left - Hammer Assisted Drilling
• Right - Drill Only
IMPORTANT: When using the “hammer action” you only need to apply light pressure. Too much pressure will place unnecessary load on the motor. Check the drill bits regularly, re-sharpen or replace if required.
9
Page 10

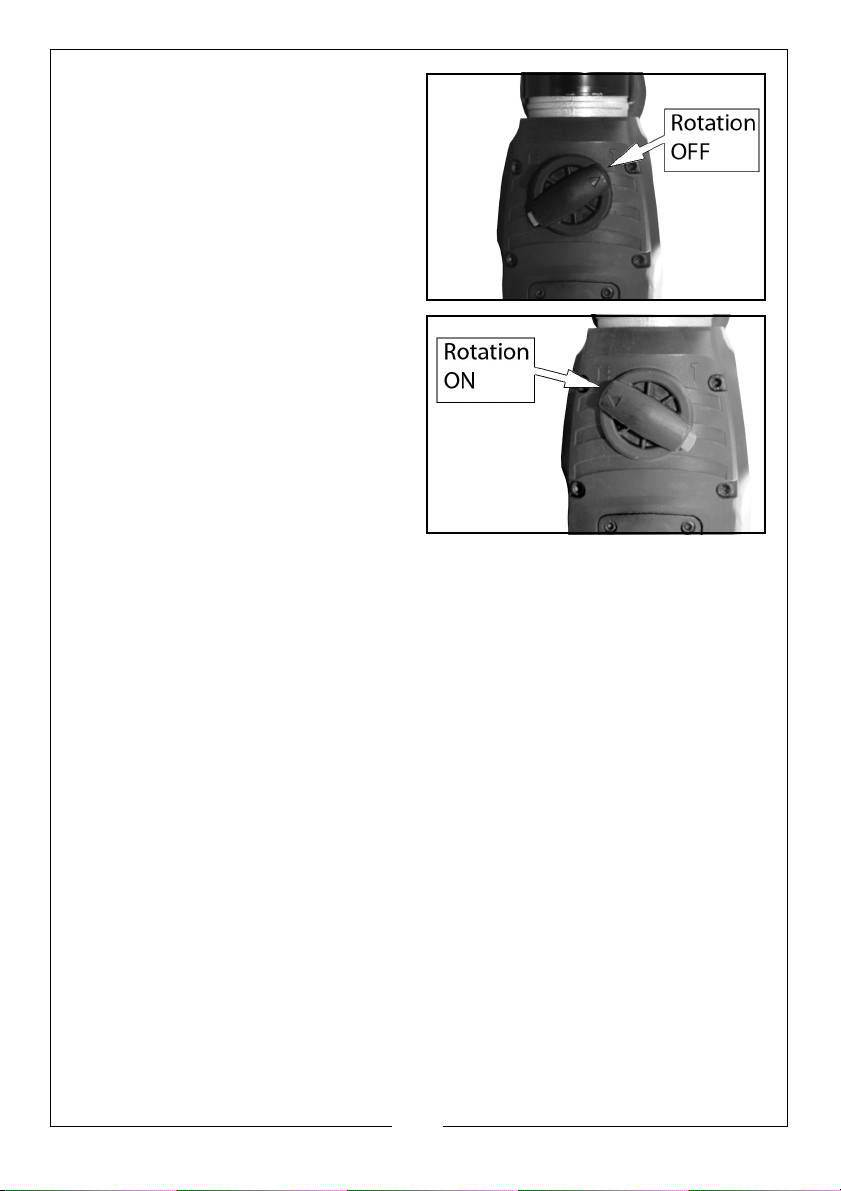

ROTATION ON/OFF SELECTOR
Some jobs require the chuck to remain stationary yet still have the hammer effect, such as chiselling concrete, plaster etc.
• Set the rotation selector to the right for “no rotation”.
• Set the rotation selector to the left for “normal rotation”.
10
Page 11

USING THE DRILL

BEFORE STARTING WORK

1. Before drilling into walls and floors etc., check first that there are no hidden electrical cables, gas or water pipes etc.
2. Check the mains voltage before plugging in and switching on.
3. Ensure the work area is as hazard free as possible.

STARTING WORK

1. Select and install the bit to be used. See page 8.
2. If required, adjust the support handle attachment for the most comfortable position. See page 9.
• For safety, always use the hammer drill with the front handle attached.
3. Set the required operating mode. See page 9.

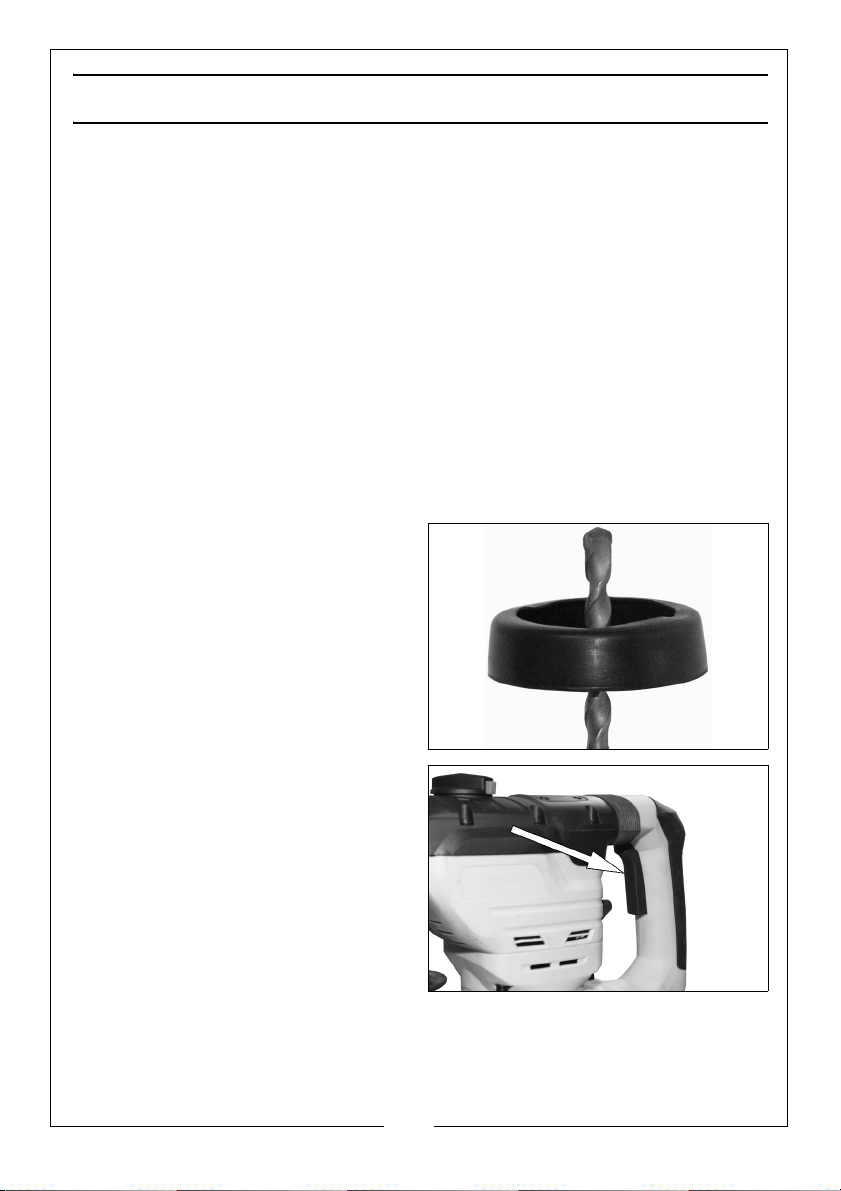

4. When drilling vertically overhead, fit the rubber dust shield cup shown onto the drill bit.
5. Position the tool against the surface to be drilled and pull the trigger switch.
• If using the hammer action do
not start the drill until the tool is in contact with the work surface.

STOPPING WORK

1. Release the trigger and wait until the bit has stopped before placing the drill on any surface
11
Page 12

DRILLING TIPS

• Always use sharp, good quality drill bits. The performance of your drill is dependant on the quality of the bits used.
• After drilling material to the full depth, do not simply pull out the drill but maintain chuck rotation to ease withdrawal.
• Reduce the pressure on the drill bit when it is about to break through. This will prevent the drill from jamming.
• If drilling a large hole, first drill a pilot hole using a smaller drill bit.
• Always apply pressure to your drill bit in a straight line and, where possible, at right angles to the workpiece.
• When drilling in metal, the materials being drilled can become hot. To reduce overheating use a suitable cooling lubricant. No cooling lubricant is necessary when drilling cast iron or brass as they should be drilled dry.
• When drilling metal, the harder the metal the slower the drill speed. Similarly, the bigger the drill bit the slower the speed.
• To prevent the drill bit from slipping when starting to drill a hole in metal, use a centre punch to make an indentation at the start point.
• Always start drilling at a slow speed to prevent the drill from slipping out of the pop mark or indent, gradually increasing speed until the optimum cutting speed is achieved whilst maintaining a MODERATE pressure ONLY. NEVER force the drill bit into the work. This will overheat the tip and cause it to dull very quickly.
• When drilling in wood, clamp a piece of scrap wood to the underside of the material to avoid splintering.
• Large holes should be drilled with wood augers, flat wood bits or hole saws.

DRILL BITS

A wide choice of SDS+ and standard drill bits are readily available for this drill.
Please contact your local stockist or visit the Clarke website at: www.clarkeinternational.com
12
Page 13

MAINTENANCE AND SERVICING

1. After use, remove the drill bit and tap the side of the chuck to remove any dust or chippings etc.
2. Keep the handle clean and free from oil and grease.
3. Worn or damaged parts must be replaced by qualified personnel.
4. Clean the tool regularly, use a soft brush and or soft cleaning cloth. DO NOT use any chemicals or harsh abrasives to clean the tool.
5. At the end of work, to prevent dust deposits you should use compressed air (max.3 bar) to clean out the ventilation holes.

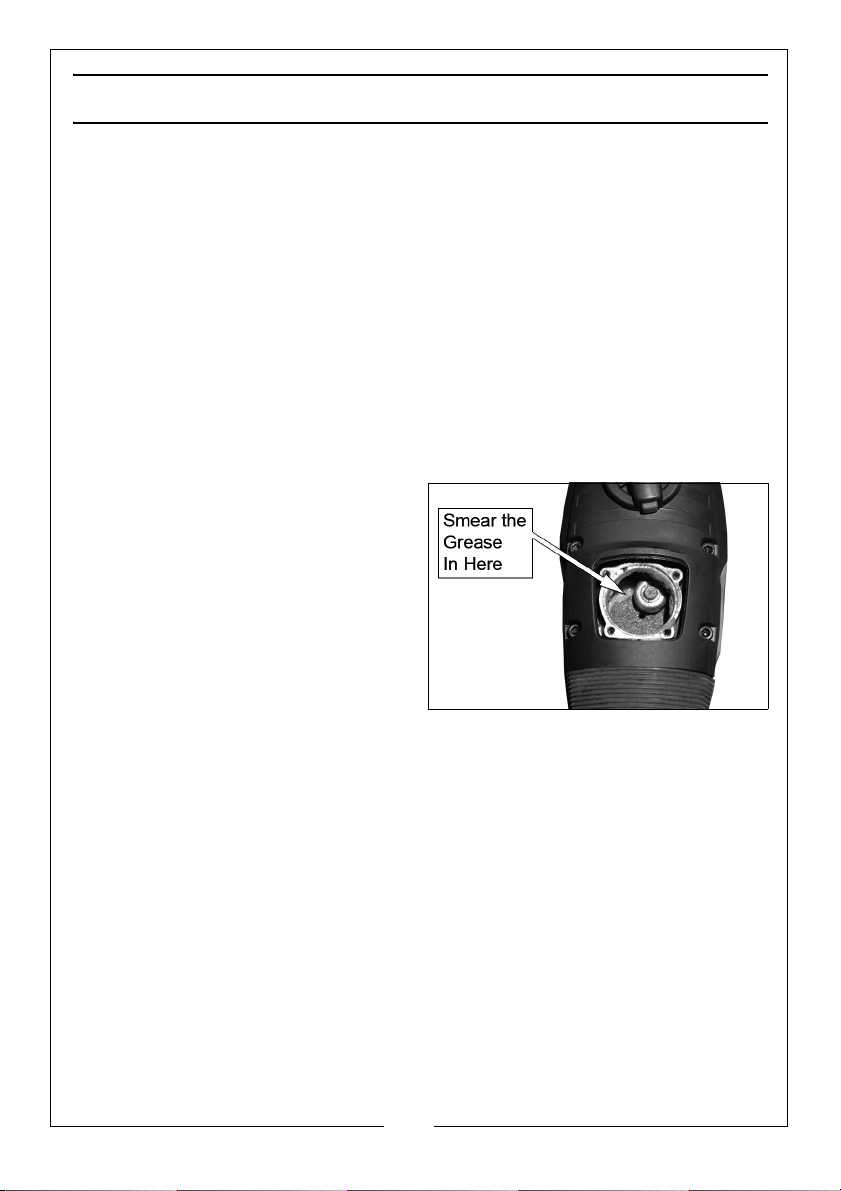

GEARBOX GREASE

Check gearbox occasionally and top up if necessary with a good quality high melting point grease.
1. Remove the 4 hex bolts from the grease cover.
2. Remove the cover.
3. Apply sufficient grease to cover all visible moving parts.
• DO NOT overfill the gearbox.
4. Replace the cover and hex bolts before using the drill again.
13
Page 14

SPECIFICATIONS

Operating voltage and frequency 230V AC~ 50Hz -1phase
Rated input power 1200W
Chuck capacity/type SDS+ Plus
13mm keyed chuck adapter
Rotational speed Drill Mode 860 rpm
Drill/Hammer Mode 820 rpm
Impact rating 4050 (blows/min)
Maximum drilling capacity Wood - 42 mm,
Steel - 13 mm,
Concrete - 32 mm
Sound Pressure Level 96.4 dB LpA
Sound Power Level 107.4 dB L
Vibration Rotary hammer - 19.327 m/s
Chiselling hammer - 17.879 m/s
WA
2
2
Weight 4.7 kg
Dimensions (L x H x W) 410 x 275 x 105 mm
Duty Cycle classification S1 (continuous)
14
Page 15

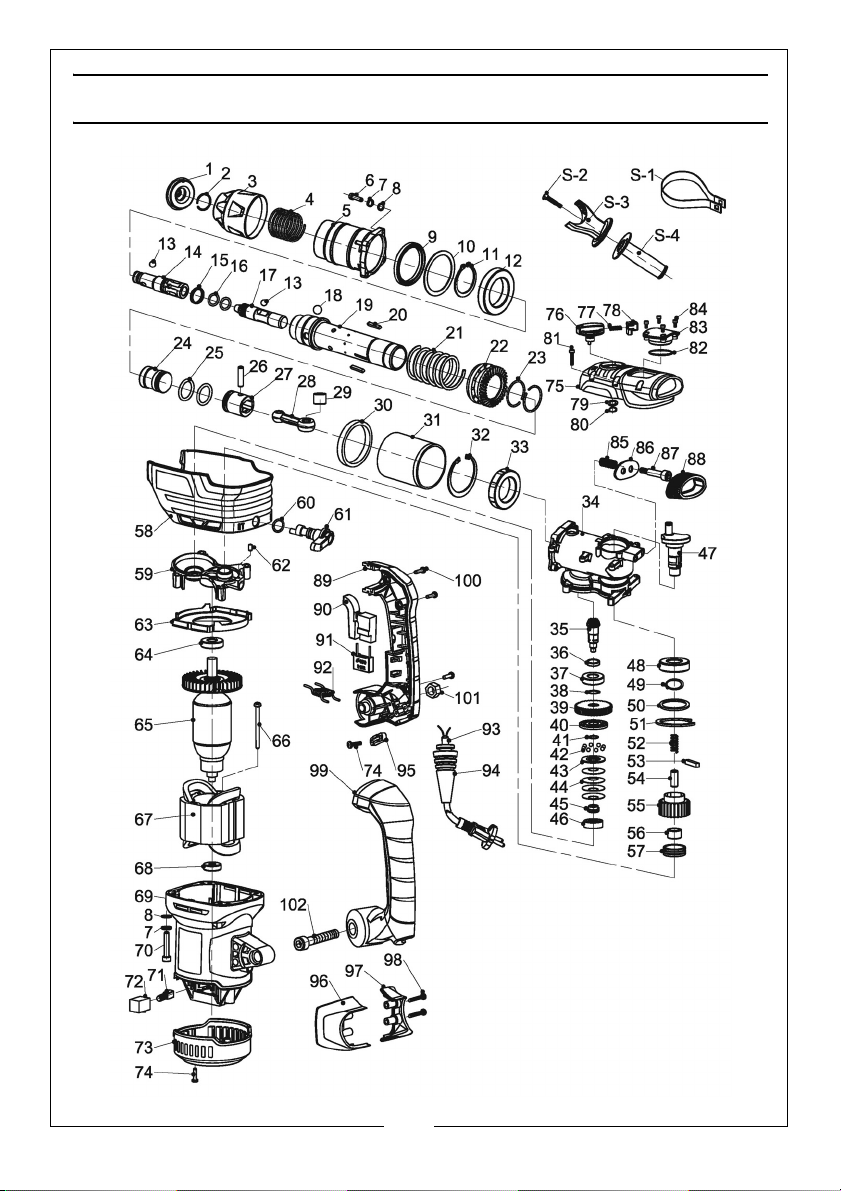

PAR TS DIAGRAM

15
Page 16

PART S L I S T

ID DESCRIPTION ID DESCRIPTION
1 Rubber Cap 31 Cylinder Case
2 Circlip 32 Circlip
3 Chuck Grip 33 Bearing
4Spring 34 Gearbox
5 Chuck Barrel 35 Small Gear
6 Screw 36 Washer
7 Washer 37 Bearing
8 Washer 38 Washer
9 Oil Seal 39 Gear
10 Washer 40 Fixing Plate
11 Circlip 41 Washer
12 Bearing 42 Ball
13 Ball 43 Plate
14 Flex 44 Spring
15 X-ring 45 Nut
16 O-ring 46 Bearing
17 Impact Hammer 47 Eccentric Shaft
18 Ball 48 Bearing
19 Cylinder 49 Washer
20 Flat Key 50 Washer
21 Spring 51 Washer
22 Drive Gear 52 Spring
23 Circlip 53 Flat Key
24 Hammer 54 Spindle
25 O-ring 55 Gear
26 Piston Pin 56 Needle Bearing
27 Piston 57 Impact Bolt Holder
28 Connecting Rod 58 Centre Cover
29 Needle Bearing 59 Middle Cover
30 O Ring 60 O-ring
16
Page 17
ID DESCRIPTION ID DESCRIPTION
61 Hammer Action Selector 84 Screw
62 Screw 85 Spring
63 Retainer 86 Anti-vibration Board
64 Bearing 87 Screw
65 Rotor 88 Anti-vibration Cover
66 Screw 89 Right Handle moulding
67 Stator 90 Trigger
68 Bearing 91 Capacitor
69 Motor Casing 92 Inductor
70 Screw 93 Power Cable
71 Brush 94 Cable Sheath
72 Brush Holder 95 Cable Board
73 Brush Cover 96 Left Hand Handle Sheath
74 Screw 97 Right Hand Handle Sheath
75 Upper Cover 98 Screw
76 Rotation Selector 99 Left Handle moulding
77 Spring 100 Screw
78 Button 101 Nut
79 Washer 102 Socket Head
80 Washer 14 S1 Hoop
81 Screw S2 Screw
82 O-ring S3 Bracket
83 Cover S4 Handle/grip
17
Page 18

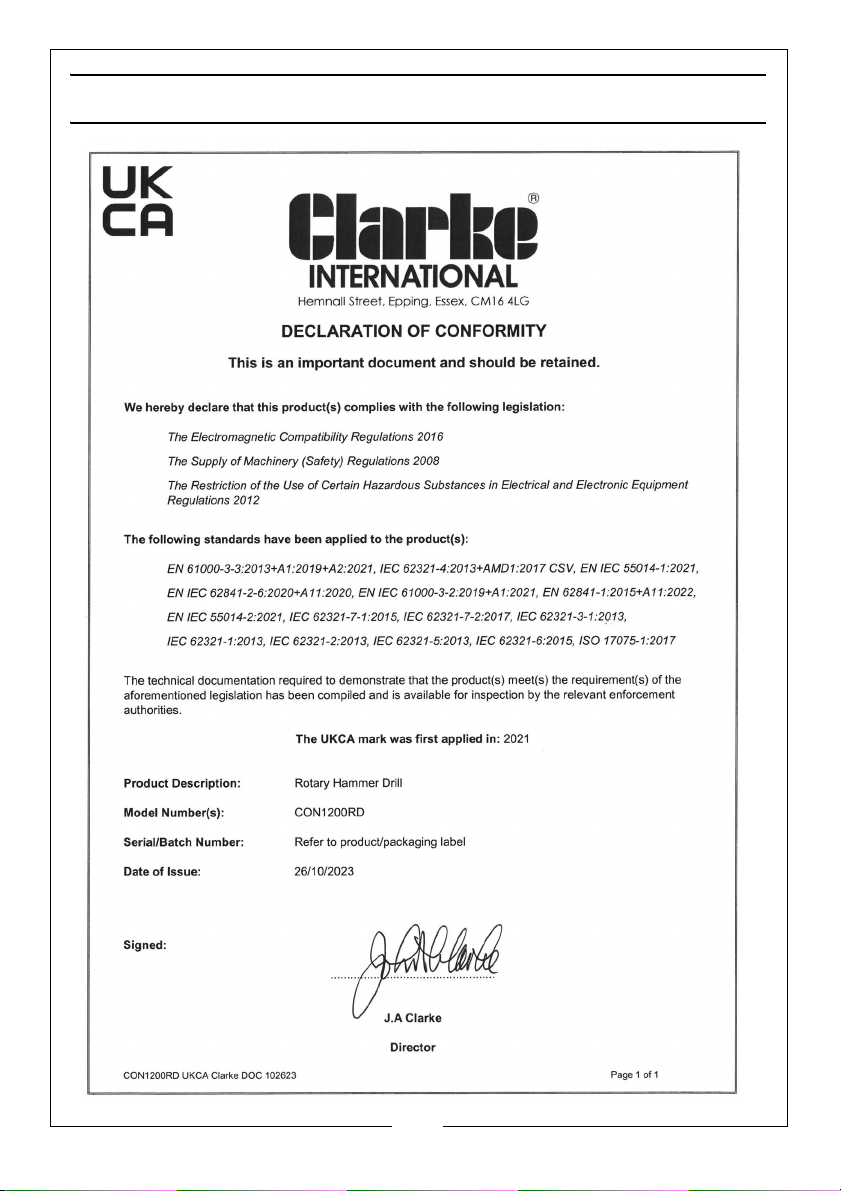

DECLARATION OF CONFORMITY - UKCA

18
Page 19

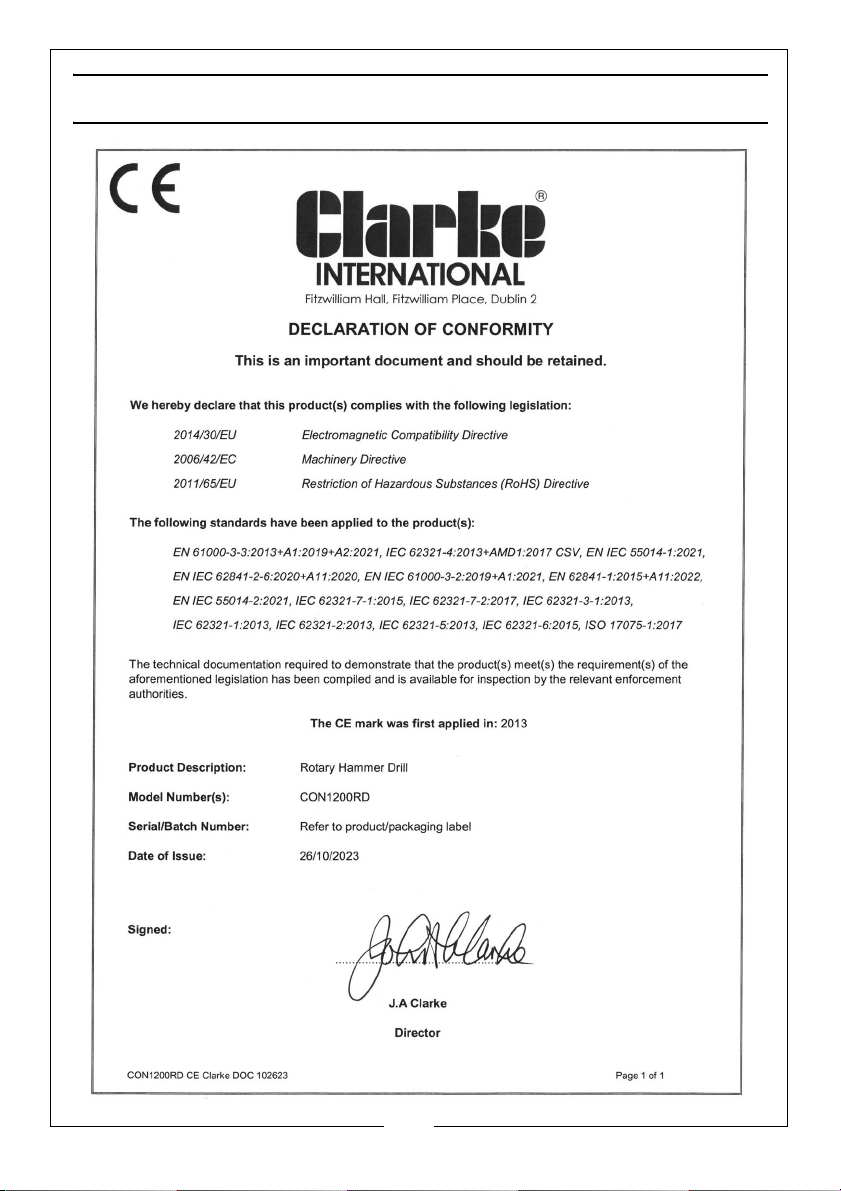

DECLARATION OF CONFORMITY - CE

19
Page 20
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
